USER MANUAL SKR 3W D4 SILVERCREST

DAB+ KITCHEN RADIO SKR 3W D4

GB

DAB+ KITCHEN RADIO

Operation and safety notes

FI

DAB+ -KEITTIÖRADIO

GB Operation and safety notes Page 5

FI Käyttö- ja turvaohjeet Sivu 24
SE Bruksanvisning och säkerhetsanvisningar Sidan 43
PL Wskazówki dotyczące obstugi i bezpieczeństwa Strona 62
LT Naudojimo ir saugos pastabos Psl 82
DE/AT/CH	Bedienungs- und Sicherheitshinweise	Seite	102

Warnings and symbols used Page 7

Introduction Page 8

Intended use.... Page 8

Scope of delivery.... Page 8

Trademark notice Page 8

Description of parts ...... Page 8

Technical data Page 9

Safety notes Page 10

Safety instructions for batteries Page 12

Start-up Page 12

Power reserve.... Page 12

Inserting / Replacing the power reserve Page 12

Requirements for the set-up location. Page 13

Installation under a wall cupboard Page 13

Dismantling.... Page 13

Initial start-up Page 14

Switching the product on/off Page 14

Switching the LED light on/off Page 14

Mode selection Page 14

Volume adjustment.... Page 14

System settings Page 14

FM operation Page 16

Searching stations Page 16

Search functions.... Page 16

Audio settings.... Page 16

FM display modes Page 17

DAB operation Page 17

Full scan Page 17

Recalling a preset station.... Page 17

Manual tuning Page 17

Deleting unavailable stations Page 18

DAB display modes Page 18

Presetting currently active station Page 19

Recalling a preset station.... Page 19

Sleep timer Page 19

Alarm setting Page 19

Snooze function Page 20

Timer function Page 20

Setting and operating the kitchen timer.... Page 20

Cancelling the kitchen timer.... Page 21

Insert / change batteries ...... Page 21

Cleaning and care Page 21

Storage Page 21

Troubleshooting Page 21

Glossary Page 21

Simplified EU declaration of conformity Page 22

Disposal Page 22

Warranty Page 23

Warnings and symbols usedThe symbols shown are used in the operating instructions, on the packaging and on the product.
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.		WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.		ATTENTION! This symbol with the signal word “Attention” indicates a possible property damage.
	NOTE: This symbol in combination with “Note” provides additional useful information.		Protection class IIIThe radio (excluding the power adaptor) is to be supplied from a safety extra-low voltage (SELV) power source.
	Use the product in dry indoor spaces only.		Symbol for a Protection Class II product
	WARNING! EXPLOSIONHAZARD! A warning with this symbol and word “WARNING! EXPLOSION HAZARD” indicates the potential threat of explosion. Failure to observe this warning may result in serious or fatal injuries and potential property damage. Follow the instructions in this warning to prevent serious injuries , a danger to life or property damage!		This mandatory sign indicates to wear suitable protective gloves! Follow the instructions of this warning to avoid hand injuries caused by objects or contact with hot or chemical materials.
			This symbol means that the operating instructions must be observed before using the product.
	Alternating current/voltage Direct current/
	This symbol refers to the special rules of conduct associated with children.		Polarity of barrel connector
	CE mark indicates conformity with relevant EU directives applicable for this product.

DAB+ KITCHEN RADIO

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The DAB+ Kitchen radio (hereinafter called "product") is a consumer electronics device. It is used for the reception and playback of analogue and digital radio programs. This product may only be used privately and not for industrial or commercial purposes. This product may not be used in tropical climates. Any other use is considered improper. Any claims resulting from improper use or due to unauthorised modification of the product will be considered un-warranted. Any such use is at your own risk.

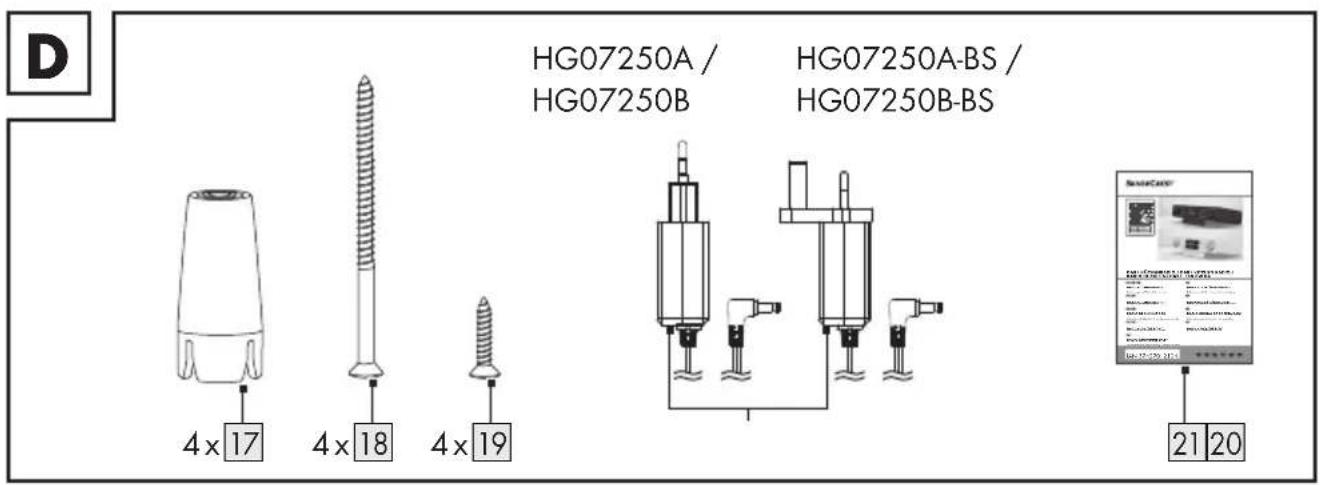

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packing materials before use.

1x DAB+ Kitchen radio
1x Power adaptor
1x Mounting plate (pre-assembled)
4x Spacers
4x Mounting screws (long)
4x Mounting screws (short)
1x Instructions for use

If you notice any damage or missing parts, contact the dealer from which you have purchased this product.

Trademark notice

The SilverCrest trademark and trade name is the property of their respective owners.
■ Any other names and products are trademarks or registered trademarks of their respective owners.

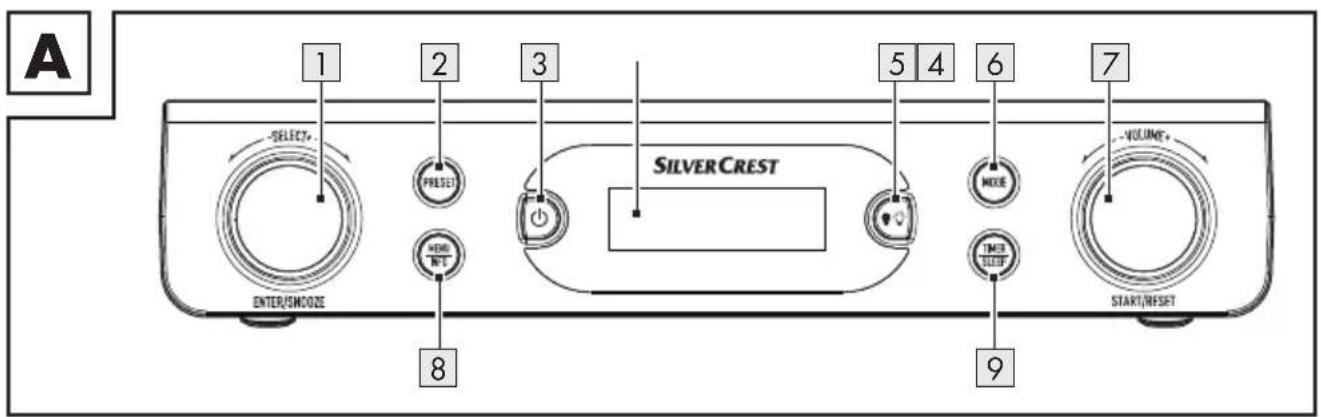

● Description of parts

Please refer to the fold out page.

1 Selectioncontroller
with push-button function
2 PRESET button
3 ⏻ Standby button
4 Display
5 Light button
6 MODE Mode button
7 VOLUME 1 START/RESET Volume/Start/Reset
8 MENU INFO Menu/Info
9 TIMER/SLEEP Timer/Sleep
10 Mounting plate
11 ◇-●-DC 5V Power adaptor connection socket
12 Wire aerial for radio reception

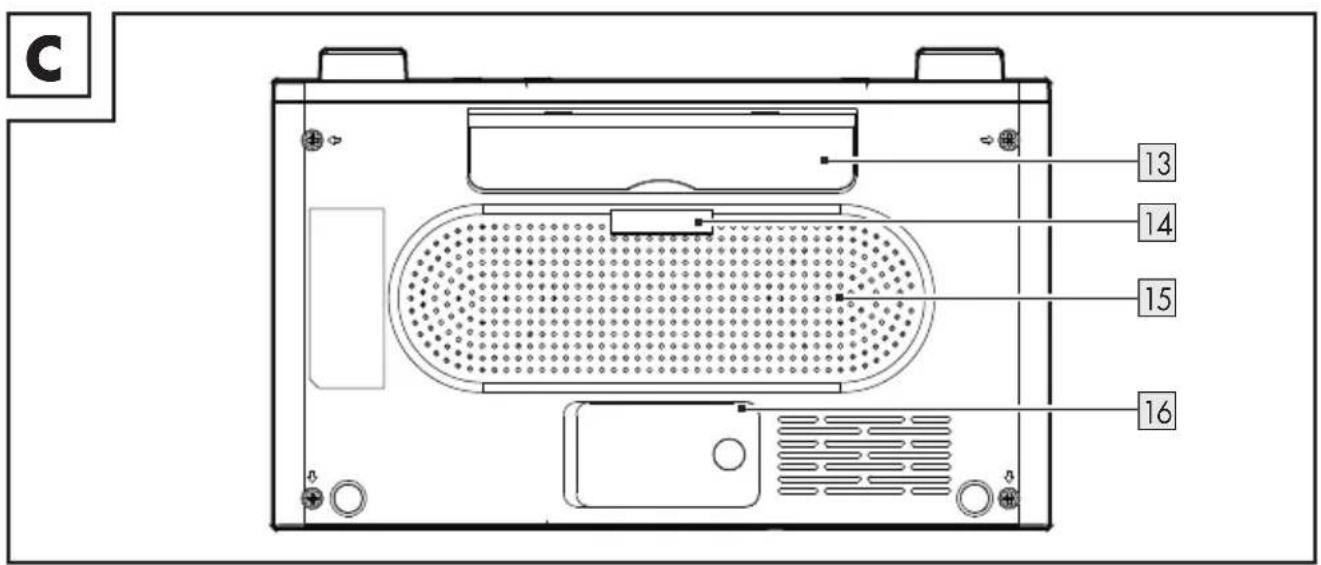

13 Fold-out foot
14 LED light
15 Loudspeaker
16 Battery compartment
17 Spacer (for under-cabinet installation)
18 Mounting screw (long)
19 Mounting screw (short)
20 Power adaptor
21 Instructions for use

- Technical data

Radio

Input voltage / current: 5 V / 1.5 A	===
Power reserve:	2 batteries (AA/LR6, 1.5 V ===)
DAB reception range: 174 to 240 MHz
FM reception range: 87.5 to 108 MHz
Station memory: 30 (DAB), 30 (FM)
Audio output power: 2 x 1.5 W RMS
Operating conditions: +10 to +35 °C	40 to 85 % (rel. humidity)
Storage temperature: -20 to +60 °C
Dimensions (W x H x D):	approx. 260 x 53 x 163 mm
Weight:	approx. 650 g
Protection class (radio):	III / ◆

Power adaptor

Description	Value
Distributor:	OWIM GmbH & Co. KGDistrict court Stuttgart: HRA 721742Stiftsbergstraße 174167 NeckarsulmGermany
Manufacturer's name:	Xiamen Xdroid Technology Co., Ltd.
Model identifier:	EU version: XZ0500-1500VGUK version: XZ0500-1500V
Input voltage:	100-240 V~
Input AC frequency:	50/60 Hz
Input current:	0.4 A
Output voltage:	5.0 V ---
Output current:	1.5 A
Output power: 7.5 W
Average active efficiency:	79.14 %
Efficiency at low load (10 %):	72.49 %
No-load power consumption:	0.08 W
Polarity of barrel connector at output:
Protection class:	II / ☐

Safety notes

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid!
No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!
- Inspect all products for visible damage before use. Never use a damaged product.
The frequency ranges specified in the technical data chapter represent the technical possibilities of the product. Please note that different regulations may exist for freely available frequencies in different countries. Receiving and / or using of the information may be illegal and possibly punishable.

⚠️ DANGER! RISK OF DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Packaging materials are not a toy. Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children shall not play with the product. The product is not a toy.

Risk of electric shock!

⚠ WARNING! Risk of electric shock!

Never open the housing of the product or of the power adaptor. In case of malfunction, repairs are to be conducted by qualified personnel only.
⚠ WARNING! Protect the product and the power adaptor from dripping and splashing water. Do not place containers filled with liquids (such as vases or drinks) on or near the product or the power adaptor. Do not immerse any product components in liquids. Never hold the product under running water.
- To avoid fire, do not place burning candles on or near the product.
⚠ WARNING! Do not touch the power adaptor with wet hands.

⚠️ CAUTION! Never use a damaged product. If you notice any damage, disconnect the power adaptor immediately from the mains network. Remove the battery from the product. Contact your retailer if the product is damaged.

■ Always turn the product off before disconnecting it from the power supply.
- Only use this product with the supplied power adaptor. Contact your retailer if the power adaptor is damaged. Refer to the technical data of this product.
- Only use the supplied power adaptor with this product.
To avoid damaging the cord, do not place any objects on it or chafe it on sharp edges. Keep it away from hot surfaces and open flames as well.
Lay out the cord in such a way that no unintentional pulling or tripping over is possible. Keep the power adaptor and its cord out of reach of children.
- When disconnecting the power adaptor from the electrical outlet, do not pull by the connection cord but by the power adaptor.
- Do not wrap the connection cord around the product.
■ Connect the power adaptor to an electrical outlet that is always easily reachable so that in case of an emergency the plug can be unplugged immediately.

Pull the power adaptor out of the power supply to completely disconnect the product from the mains network.
The power adaptor continues to draw a small amount of electricity, even without the radio being operated, as long as the power adaptor is connected to the power supply. To completely switch off the power adaptor, it must be disconnected from the mains network.
- Do not subject the product to physical shock or strong vibrations.
If smoke or unusual sounds are observed, immediately unplug the power adaptor from the power supply. Remove the battery from the product.
■ The power adaptor shall not be covered.
■ Disconnect the power adaptor from the power supply and remove the battery / batteries from the product when not in use and before cleaning.
- Let the product dry completely before connecting it to the mains supply and before storage. Allow the product to cool down completely before storage.

NOTE: This product is equipped with rubber feet to protect delicate surfaces. It cannot be ruled out that furniture care agents will attack or damage the rubber feet.

Safety instructions for batteries

⚠️ DANGER TO LIFE! Keep batteries out of reach of children. If a battery is accidentally swallowed seek immediate medical attention.

Swallowing a battery may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit

batteries and open them. Overheating, fire or bursting can be the result.

■ Never throw batteries into fire or water.
- Do not exert mechanical loads to batteries.

Risk of leakage of batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries, e.g. radiators / direct sunlight.
  If batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

■ WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries can cause burns on contact with the skin.

Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries, immediately remove them from the product to prevent damage.
■ Remove batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery!

• Insert batteries according to polarity marks (+) and (−) on the battery and the product.
  Use a dry lint-free cloth or cotton swab to clean the contacts in the battery compartment before inserting!
  ■ Remove exhausted batteries from the product immediately.

Start-up

Power reserve

The power reserve is used to store data/settings if the product has been accidentally disconnected from the power supply.

In the event of a power failure, the display 4 goes off. The clock continues to work but the alarm is disabled.

- Inserting / Replacing the power reserve

■ Open the battery compartment 16.
- Insert 2 batteries (type: 1.5 V, AA/LR6) into the battery compartment [16], following the polarity marks.
■ Close the battery compartment 16.

- Requirements for the set-up location

For the safe and trouble-free operation of the product, the set-up location must fulfil the following requirements:

When setting up the product, place it on a firm, flat and horizontal surface. Use the fold-out foot 13.
The surfaces of some items of furniture might contain components that can soften the rubber feet of the product. If necessary, place a mat under the product's rubber feet.
- Set up or mount the product in such a way that the provided ventilation openings and the loudspeaker 15 are not covered.
- Do not operate the product in a hot, wet or extremely damp environment or in the vicinity of flammable materials.
The mounting location must be selected so that the product is not exposed to vapours. Do not install the product directly over a hotplate.

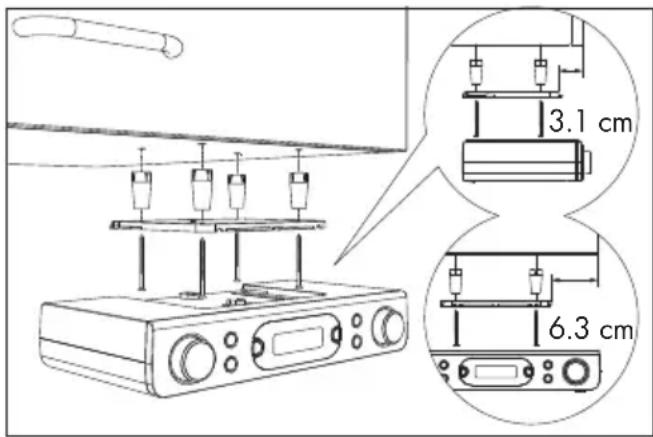

● Installation under a wall cupboard

Using the supplied mounting plate 10, you can install the product e.g. under a wall cupboard. Proceed as follows to mount the product:

- Slide the mounting plate 10 to the rear and remove it from the product.

Find a suitable installation location for the product (see "Requirements for the set-up location").

- Hold the mounting plate 10 under the installation location. Ensure that the front edge of the mounting plate is approx. 3.1 cm behind the front of the cupboard so that the product is flush with the cupboard after installation. The side edges of the mounting plate 10 must be spaced approx. 6.3 cm away from adjacent cabinets or walls.

■ Mark the 4 mounting points with a pencil.
Using a pin or nail, make a small depression at the respective marking points. In hardwoods, drill a hole with a depth of approx. 5 mm in the markings using a ∅ 2.5 mm wood drill bit. Be careful not to drill the hole all the way through.

If required, place the supplied spacers 17 between the cupboard and the mounting plate. If you are using the spacers 17, you will need the long mounting screws 18.

Screw the mounting plate 10 tight using the mounting screws (18 or 19).

• With the top of the product against the mounting plate 10, push the product back until it clicks into place.
• Check to ensure that the product is properly locked in place and safely route the power cable and the wire aerial.

Dismantling

Pull the product forwards off the mounting plate 10.

Unscrew the screws (18 or 19) on the mounting plate and remove the mounting plate 10 from the wall cupboard.

Initial start-up

You can also set up the product on a level surface. So as not to cover the ventilation slots and loudspeaker 15 on the bottom of the product, you must fold out the adjustable foot 13 of the product.
Connect the coaxial power connector of the power adaptor 20 to the power adaptor port 11.

Plug the power adaptor into a properly installed mains socket.

The product first displays a fictitious date and the time 00:00.

The date and time are set automatically.

When you switch on the radio, the product starts searching for a DAB station.

After this installation routine, the product is in standby mode.

- Switching the product on/off

■ Fully lay out the antenna 12.

Switching the product on / off

Switching on	Press 3
Switching off	Press 3 again (off = standby mode)

- Switching the LED light on/off

■ Switching the LED light on: Briefly press button 5.
■ Switching the LED light off: Briefly press button 5 again.

i NOTES:

The LED light 14 is located underneath the product.
If the LED light 14 is not switched off manually, it will switch off automatically after 120 minutes.

Mode selection

During operation, press the MODE button 6 shortly to switch between FM and DAB operation.

Volume adjustment

Volume VOLUME/START/RESET 7

Increase Turn to the right (clockwise direction)

Decrease Turn to the left (counter-clockwise direction)

System settings

■ Press and hold MENU/INFO 8 to display the menu.
Turn SELECT/ENTER/SNOOZE 1 to select .
Push SELECT/ENTER/SNOOZE 1 to confirm.
■ Turn SELECT/ENTER/SNOOZE 1 to select from:

System settings

1. Time

→ Set Time/Date
Set time
00:00
→ Set date
→ Auto Update (Automatic time update)
No Update
(No automatic time update)
Update from FM (Automatic time update from FM)
Update from DAB (Automatic time update from DAB)
Update from Any (Automatic time update from FM or DAB)
→ Set 12 / 24 hour (12 or 24 hour display)
←Set 24 hour (24 hour display)
→Set 12 hour (12 hour display)
→ Set date format
LD-MM-YYYY ("Day-Month-Year")
MM-DD-YYYY ("Month-Day-Year")

1. Alarm

→Alarm 1 - Alarm 2 (Choose alarm 1 or alarm 2 to setup)
→Alarm 1 Setup
→ Alarm off - Alarm on
→00:00 (To set the alarm time)
→Duration 15-30-45-60-90
(To set the alarm duration)
→Buzzer - DAB - FM
(To set the alarm source)
→ Channel select
(Only available for DAB or FM)
Daily - Once - Weekends - Weekdays
(To set repeat frequency)
→Volume: L6 - L16
→ Alarm off - Alarm on

1. Backlight

On level

→High - Medium - Low

(Light level)

→Night dimmer

←NO - YES

1. Language

→ English, Deutsch, Italiano, Français, Nederlands, Español, Português, Svenska, Dansk, Norsk, Suomi, Polski.

1. Factory settings

(Reset to factory settings)

↓NO

(No reset to factory settings)

→ YES

(Reset to factory settings)

NOTE: All the previously saved stations will be lost after factory reset.

1. SW version

→ Version number

Turn SELECT/ENTER/SNOOZE 1 = amend values | Push SELECT/ENTER/SNOOZE 1 = confirm value or selection | MENU/INFO 8 = 1 level back

● FM operation

■ Switch on the product.
To switch from DAB mode to FM mode, press MODE 6 1x.

- Searching stations

■ Press and hold MENU/INFO 8 for 2 seconds.
■ Turn SELECT/ENTER/SNOOZE 1 to select . Push SELECT/ENTER/SNOOZE 1 to confirm.
■ Turn SELECT/ENTER/SNOOZE 1 to set:

Menu item Function

Strong station Sets the product to search for stations with strong signal only.

All stations Sets the product to search for all stations.

■ Push SELECT/ENTER/SNOOZE 1 to confirm.

Search functions

Choose from 2 scanning functions to select a radio station.

Function Description

Auto scan	Fast turn SELECT/ENTER/SNOOZE 1 to start scanning in the desired direction.
Manual scan	Slowly turn SELECT/ENTER/SNOOZE 1 to search for FM stations manually (each press changes the frequency by 0.05 MHz).

Function Description

AMS

Press and hold SELECT/ENTER/SNOOZE 1 to automatically search for stations and to save them in the 30 preset slots of the product. The product starts at the lowest frequency. Depending on reception, not all 30 presets might be assigned.

Audio settings

■ Press and hold MENU/INFO 8 to display the menu.
■ Turn SELECT/ENTER/SNOOZE 1 to select

Menu item Function

Stereo allowed

Product searches for Mono and Stereo stations. Audio out: Combine Stereo or Stereo.

Forced mono

Product searches for Mono and Stereo stations. Audio out: Combine Stereo.

FM display modes

Press MENU/INFO 8 briefly to choose from:

Display Function

Signal strength	Shows a bar indicating the signal strength.
Program Type	Shows the genre of the programme that is being broadcasted.
Audio info	Shows if the station being received is in mono or stereo mode.
Time	Displays the current time provided automatically by the broadcaster.
Date	Displays the current date provided automatically by the broadcaster.
Radio text	Sets a scrolling message giving real-time information, e.g song title, news, headlines, etc.

■ Each time MENU/INFO 8 is pressed, the next item is displayed.

DAB operation

Switching to DAB mode: Press MODE 6 briefly.

Full scan

Perform a complete station search in the DAB mode:

■ Press and hold MENU/INFO 8.
Turn SELECT/ENTER/SNOOZE 1 to select .
■ Push SELECT/ENTER/SNOOZE 1 to confirm.
All detected stations are stored automatically in a station list.

● Recalling a preset station

- You can recall a previously saved station by pressing PRESET 2.

■ Turn SELECT/ENTER/SNOOZE 1 to select the desired station memory.

■ Push SELECT/ENTER/SNOOZE 1 to confirm.

- Manual tuning

■ Press and hold MENU/INFO 8.
■ Turn SELECT/ENTER/SNOOZE 1 to select .
■ Push SELECT/ENTER/SNOOZE 1 to confirm the selection.
■ Turn SELECT/ENTER/SNOOZE 1 to select a station from the station list. The signal strength is displayed. No sound is emitted by the product while manually tuning.
■ Push SELECT/ENTER/SNOOZE 1 to confirm the selection. The newly tuned station can be found in the station list.

- Deleting unavailable stations

■ Press and hold MENU/INFO 8.
■ Turn SELECT/ENTER/SNOOZE 1 to select .
■ Push SELECT/ENTER/SNOOZE 1 to confirm.
■ Turn SELECT/ENTER/SNOOZE 1 to select .
■ Push SELECT/ENTER/SNOOZE 1 to confirm.

NOTE: Unavailable stations can only be detected after another complete search (e.g. at a different location). In this case, the affected station is preceded by a question mark. After the "Delete" function has been performed, the correspondingly marked stations are no longer available in the station list.

DAB display modes

Press MENU/INFO 8 briefly to choose from:

Setting Function
Signal strength	Shows a bar indicating the signal strength.
Program Type	Shows the genre of the programme that is being broadcasted.
Frequency	Displays the frequency of the currently set station.
Ensemble	Displays the name of the multiplex containing the station you are listening to.
Signal error:	Displays the signal error rate.
Bitrate and Codec	Displays the radio mode and the received audio bit rate.
Time	Displays the current time provided automatically by the broadcaster.
Date	Displays the current date provided automatically by the broadcaster.
Radio text	Sets a scrolling message giving real-time information, e.g song title, news, headlines, etc.

■ Each time MENU/INFO 8 is pressed, the next item is displayed.

- Presetting currently active station

You can store up to 60 stations (30 FM and 30 DAB).

■ Press and hold PRESET 2.
■ Preset store<#:(Empty)> appears on the display 4.
■ Turn SELECT/ENTER/SNOOZE 1 to select a desired station memory.
■ Press SELECT/ENTER/SNOOZE 1 to confirm.
The station is stored. Preset # stored appears on the display 4.

NOTE: Station memories that are already occupied will be overwritten without further notice.

● Recalling a preset station

You can recall a previously saved station by pressing PRESET 2.
■ Turn SELECT/ENTER/SNOOZE 1 to select the desired station memory.
- Push SELECT/ENTER/SNOOZE 1 to confirm.

NOTE: Preset Empty is displayed if the preset number is unoccupied.

Sleep timer

In operation mode:

Press and hold TIMER/SLEEP 9 for approx. 2 seconds. Press TIMER/SLEEP repeatedly to choose the sleep time: Sleep off/15/30/45/60/90/120 minutes.
■ After the selected time has elapsed the product switches into standby mode.

• Checking the remaining sleep time: The interval remaining is shown in the display.
• Cancelling the sleep timer: Press and hold TIMER/SLEEP 9 repeatedly until Sleep off appears in the display.

Alarm setting

In standby or operation mode, press and hold MENU/INFO 8 for 2 seconds.

Switch on alarm setting

Turn SELECT/ENTER/SNOOZE 1 to select .
■ Push SELECT/ENTER/SNOOZE 1 to confirm.
■ Turn SELECT/ENTER/SNOOZE 1 to select .
■ Push SELECT/ENTER/SNOOZE 1 to select Alarm 1 or Alarm 2.
Turn SELECT/ENTER/SNOOZE 1 to select or .
■ Push SELECT/ENTER/SNOOZE 1 to confirm.

Set alarm setting

■ Push SELECT/ENTER/SNOOZE 1.
■ Turn SELECT/ENTER/SNOOZE 1 to set the hours.
■ Push SELECT/ENTER/SNOOZE 1 to confirm.
■ Turn SELECT/ENTER/SNOOZE 1 to set the minutes.
■ Push SELECT/ENTER/SNOOZE 1 to confirm.
■ Turn SELECT/ENTER/SNOOZE 1 to select the alarm duration (options: 15/30/45/60/90 minutes).
- Push SELECT/ENTER/SNOOZE 1 to confirm.
Turn SELECT/ENTER/SNOOZE 1 to select the alarm sound (options: , , ).

■ Push SELECT/ENTER/SNOOZE 1 to confirm.
■ Turn SELECT/ENTER/SNOOZE 1 to set the alarm repetition (options: , , , ).

■ Push SELECT/ENTER/SNOOZE 1 to confirm.

■ Turn SELECT/ENTER/SNOOZE 1 to select the volume of the alarm.

■ Push SELECT/ENTER/SNOOZE 1 to confirm.

Turn SELECT/ENTER/SNOOZE 1 to select or .

■ Push SELECT/ENTER/SNOOZE 1 to confirm.

- When the alarm is successfully set, appears on the display 4.

i NOTES:

- When the alarm sounds, press ⏻ 3 to turn the alarm off.

■ The volume gradually increases.

■ After the alarm duration has elapsed, the product will return to standby mode automatically.

or alarm: When the alarm sounds, the radio station appears on the display 4.

- Snooze function

In ON mode, press SELECT/ENTER/SNOOZE 1 while the alarm is ringing. The alarm reactivates after approx. 9 minutes.

- Timer function

The product has a practical kitchen timer with which you can monitor cooking and baking times, for example. You can set 2 kitchen timers.

- Setting and operating the kitchen timer

■ Press TIMER/SLEEP 9 to toggle between Timer 1 and Timer 2.
■ Turn VOLUME/START/RESET 7 to select the countdown time.
■ Push VOLUME/START/RESET 7 to confirm. T1 or T2 appears on the display 4. The countdown starts immediately.
■ Press TIMER/SLEEP 9 to check the countdown time.

A warning signal sounds at 30, 15, 10 and 5 seconds before the countdown elapses.
At the end of the countdown, an alarm signal sounds at maximum volume. Press any key to turn the alarm off. T1 or T2 disappears from the display 4.

i NOTES:

Timer 1 can be set from 1 minute up to 3 hours 59 minutes in increments of 1 minute. If you set the countdown between 1 and 4 minutes, the time will be shown in "mm:ss" format. If you set the countdown to 5 minutes or more, the time will be shown in "hh:mm" format.
Timer 2 can be set from 5 minutes up to 3 hours 55 minutes in increments of 5 minutes. The time will be shown in "mm:ss" format.
If you do not make any changes to the settings for about 15 seconds, the product will switch back to the previous operating mode without saving the settings.

- Cancelling the kitchen timer

Briefly press TIMER/SLEEP 9 to select the timer you wish to cancel (T1 or T2).
■ Push and hold VOLUME/START/RESET 7 for 2 seconds until Off appears in the display 4.

- Insert / change batteries

The battery compartment 16 is located on the bottom of the product.
■ Open the battery compartment 16.
- Insert 2 batteries (type: 1.5 V, AA/LR6) into the battery compartment according to the polarity marks.
■ Close the battery compartment 16.

● Cleaning and care

Before cleaning: Unplug the product from the power supply and remove the batteries.
⚠ WARNING! Never immerse the product nor the power adaptor in water or other liquids for cleaning purposes. Never immerse any of the product's components under running water.
- Clean the product with a slightly moistened cloth.
- Do not allow any water or other liquids enter the product's interior.
- Do not use solvent-based cleaning agents, abrasives, harsh cleaning solutions or hard brushes for cleaning.
■ Let all parts dry afterwards.

Storage

Before storing the product: Remove the batteries. Store the product in its original packaging.
■ Store the product in a dry, secure location away from children.

● Troubleshooting

Cause
Solution
■ The product will not turn on
- Check if the power adaptor is properly connected with the socket and the product.

No sound

- Adjust the volume.

■ Disturbed radio reception

■ Signal reception is too low. Adjust the aerial or move the unit to a stronger signal location.

■ FM station not found

■ Weak signal. Search manually.

■ DAB station not found

No DAB coverage in your area or poor reception. Adjust the position of the aerial.

Glossary

Multiplex: In DAB and DAB+ several radio programmes can be transmitted on each frequency. These radio stations are combined in a so-called multiplex. In this multiplex, additional services, such as pictures and text information, can also be transmitted.
Signal error: The greater the number of signal errors, the more distorted the audio signal arrives at the product. The built-in error protection can compensate for this to a certain extent without deteriorating the audio quality. Displaying the number of signal errors can be helpful in finding a better location to place the product.

● Simplified EU declaration of conformity

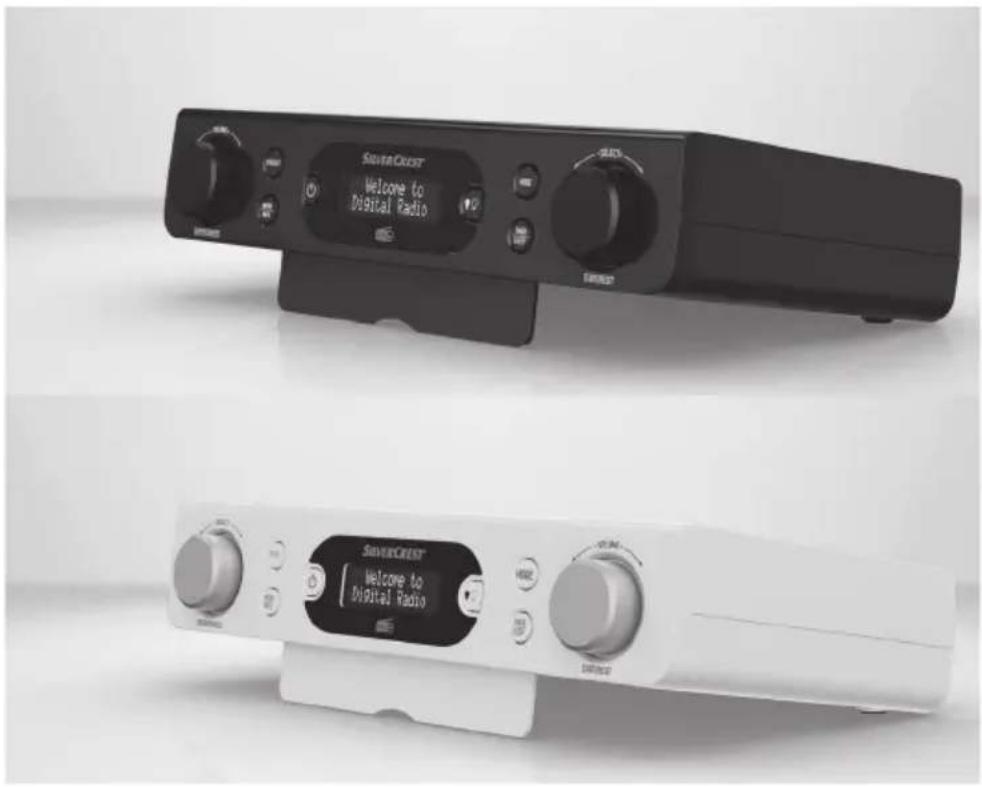

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, 74167 Neckarsulm, GERMANY declares that the product DAB+ kitchen radio HG07250A / HG07250B is in compliance with Directive 2014/53/EU, 2011/65/EU and 2009/125/EC.

The full text of the EU declaration of conformity is available at the following internet address: www.owim.com

● Disposal

Packaging:

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

Product:

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this product is subject to directive 2012/19/EU. This directive states at the end of the life this product must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you.

Protect the environment and dispose of properly.

The product is recyclable, subject to extended manufacturer responsibility, and collected separately.

The built-in rechargeable battery cannot be removed for disposal. Return the product completely to a collection site for used electronics.

Batteries:

Think about the environment and your personal health. Dispose empty batteries in separate collecting boxes. These can be found in many public buildings or in shops where batteries are sold.

Improper disposal of batteries can harm the environment!

Never dispose of batteries in your household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your local collection site.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 374270_2104) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

Demontering. Sidan 51

SIĆ RĘKAWICE OCHRONNE!

AGEN SIE SCHUTZ- HANDSCHUHE!
