USER MANUAL LD 174201 ECG

FULL-MOTION LED TV WALL MOUNT INSTRUCTION MANUAL

Read carefully and save for future use!

Please refer to a qualified professional to install the wall mount properly. Prior to the wall mount installation, check the contents of the assembly set and inform your vendor in case you discover any components are missing or are defective. Do not use defective components!! Use the wall mount solely for the purpose intended by the manufacturer. Make sure the wall is capable of supporting (especially in terms of weight) the wall mount prior to installing. Also make sure no power, water, gas or other lines are located behind the wall in the installation area. Keep the specified distance between the TV and wall (depends on the TV model). Install the wall mount to a safe location, which does not present a risk to anyone. Once the wall mount and flat screen TV are mounted, ensure that the stability and safety are sufficient. This inspection shall be repeated on a regular basis, every 2 months.

The equipment is intended to be installed on wooden crossbars or solid concrete walls. Prior to the installation, make sure the assembly surface has he necessary loading capacity to carry the total weight of the TV and mount. Never exceed the maximum capacity of the holder 25 kg including cables.

This product is designed for household use only. Using the product outdoors can result in product failure or injury.

The manufacturer is not liable for damages to the equipment and health caused by improper installation of the wall mount.

1. Read all instructions and make sure you understand them prior to the installation. If you are not sure about any part of the installation process, contact a professional technician for support.
2. The wall or surface on which the mount will be anchored to shall be capable of carrying the entire weight of the wall mount and TV. Reinforcement will be required otherwise.

3. The installation requires the cooperation of at least two people and the use of a mechanical security mechanism and suitable tools. Otherwise it could result in damage to property or serious injury or fatal injury.

4. Follow all instructions and recommendations concerning adequate ventilation and selecting a suitable location for anchoring the TV. See the your TV user's manual for more information.

5. The product contains smaller pieces, which upon being inhaled or swallowed can lead to choking. Keep these pieces away from children!

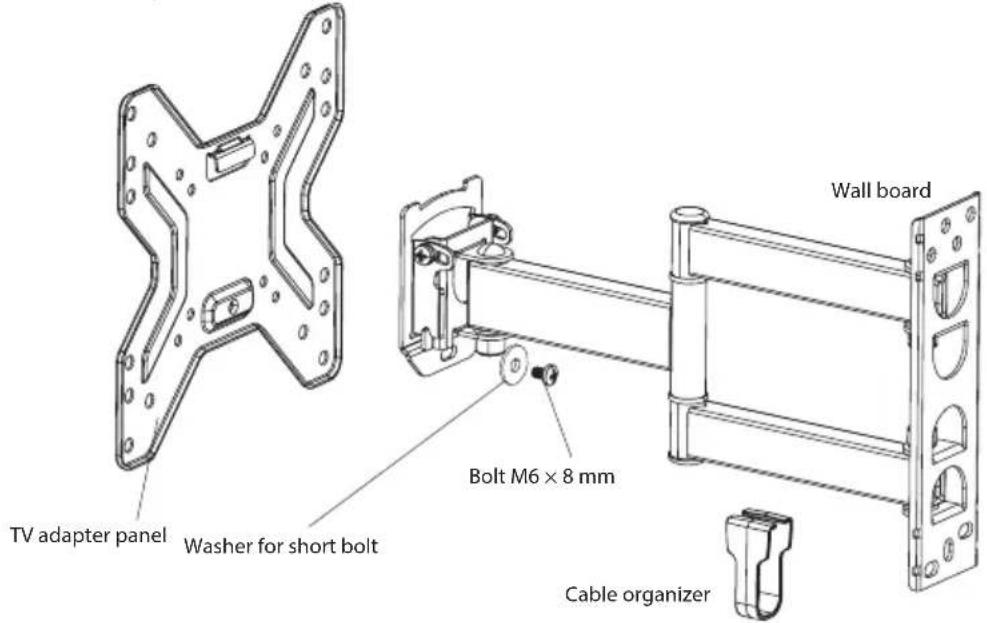

DESCRIPTION

Assembly set

A1 A2 A3 A4 A5 A6

B1 B2 B3

C1

Identification Unit(s) Description

A1 4 Bolt M4 × 20 mm

A2 4 Bolt M5 × 20 mm

A3 4 Bolt M6 × 20 mm

A4 4 Bolt M8 × 20 mm

A5 4 Spacer

A6 4 Washer for bolts

B1 3 Long bolt

B2 3 Dowel

B3 3 Washer for long bolt

C1 1 Magnetic level

ASSEMBLY

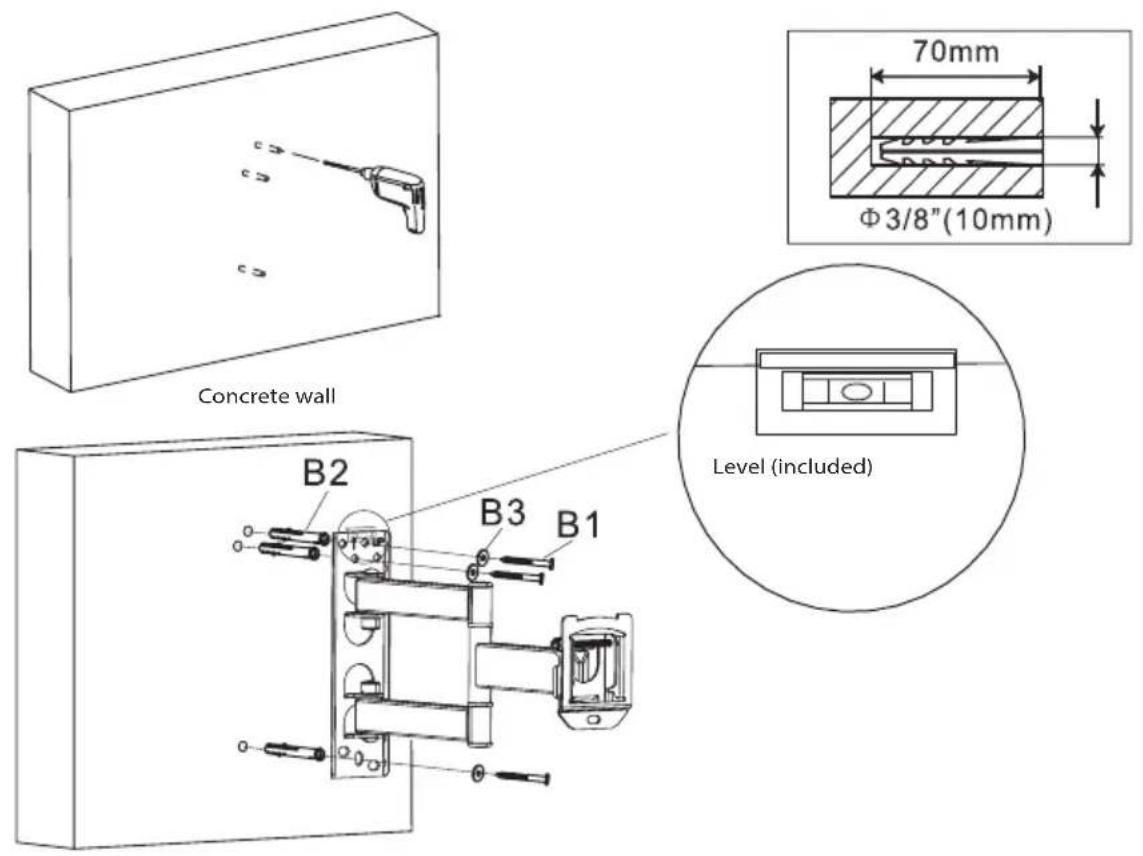

1A – Concrete wall assembly

Apply the wall board to the wall, align into a level position and use it as a template to mark three holes. Drill three holes 10 mm in diameter and 70 mm deep. Insert three dowels (B2) into the holes and fixate the wall board to the wall using long screws (B1) and washers (B3). Tighten the bolts firmly, but not too much.

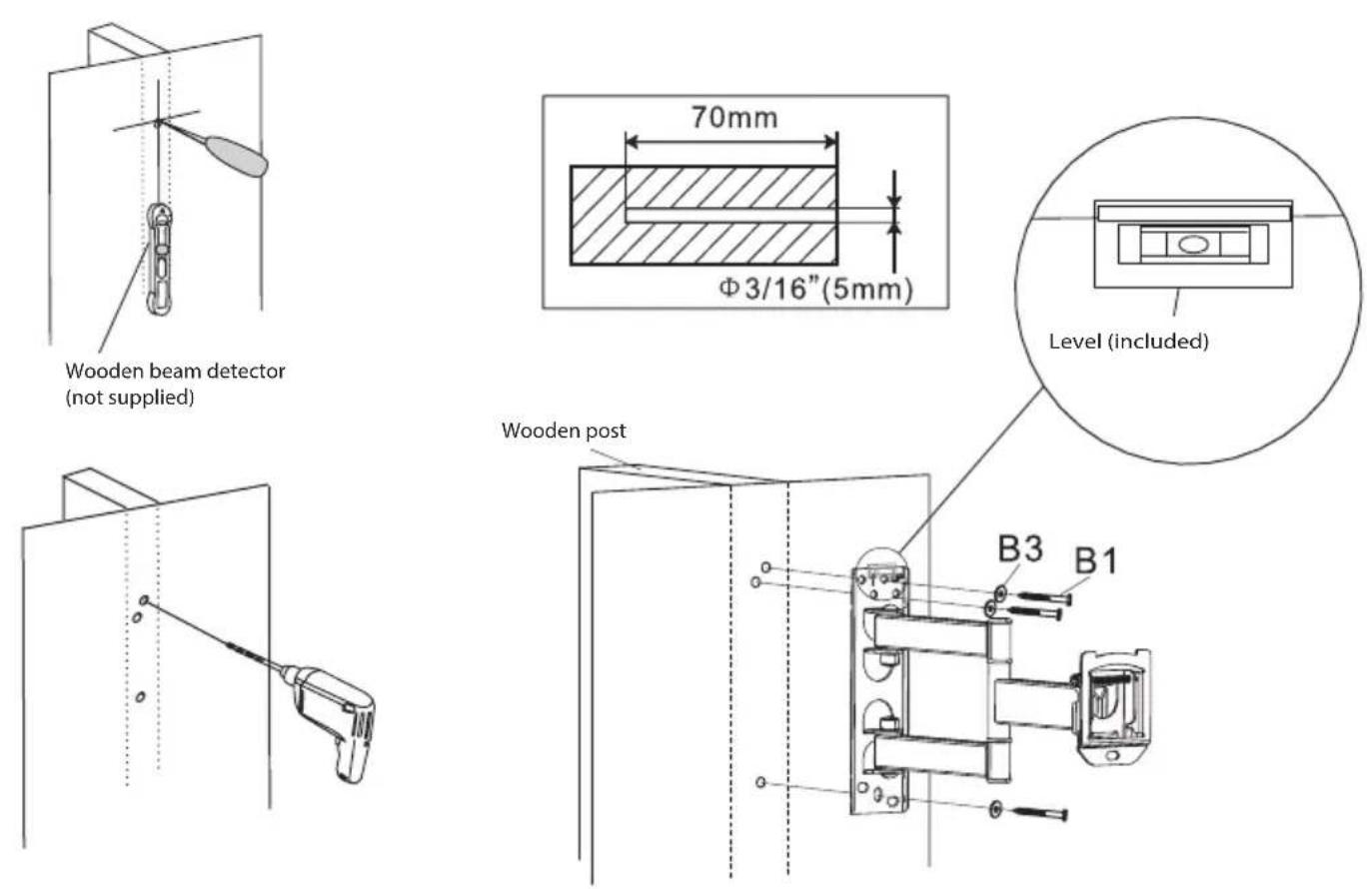

1B – Wooden crossbar assembly

Use the wall board as a template. Make sure that it is level, mark three mounting holes into the wooden post. Drill three holes 5 mm in diameter and 70 mm deep. Apply the wall board horizontally and fixate to the wall using three long bolts (B1) and washers (B3). Tighten the bolts firmly, but not too much.

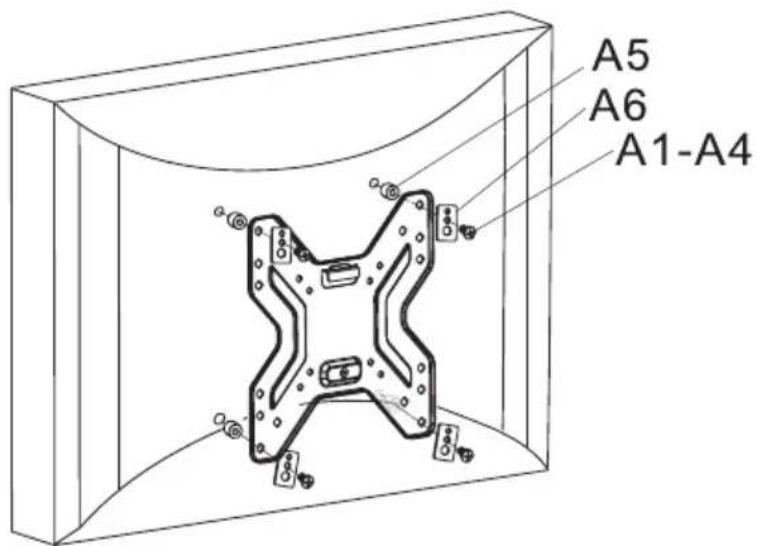

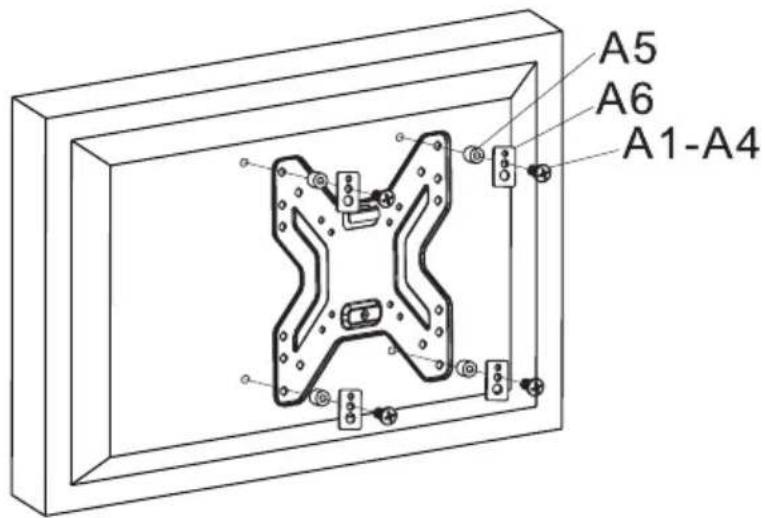

2A - Mounting the TV adapter panel to the TV with flat back

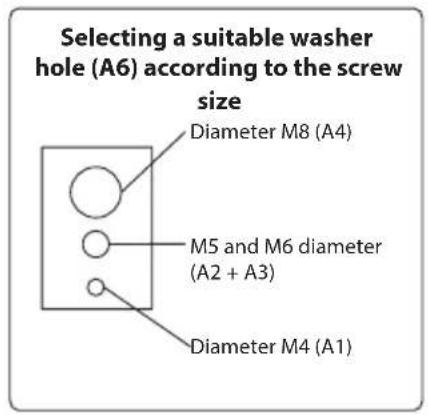

Check to see how the mounting holes are arranged on the back side of your television set. Select the proper bolts for your TV. Remove the TV adapter plate from the wall plate and attach it to the TV with the four screws (A1–A4), spacer (A5) and washer (A6). Tighten the bolts firmly, but not too much.

Warning: If the holes on the back of your TV are too shallow and none of the included screws fit into them, use the appropriate screws of your choice.

2B - Mounting the TV adapter panel to the TV with rounded back

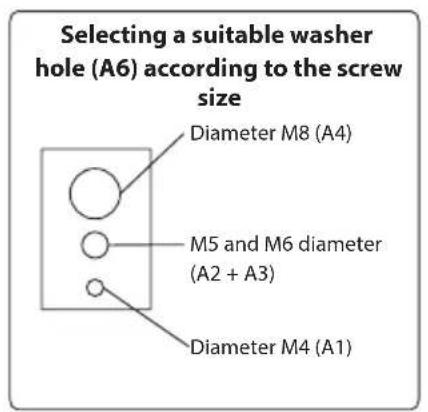

Check to see how the mounting holes are arranged on the back side of your television set. Select the proper bolts for your TV. Remove the TV adapter plate from the wall plate and attach it to the TV with the four screws (A1–A4), spacer (A5) and washer (A6). Tighten the bolts firmly, but not too much.

Warning: If the holes on the back of your TV are too shallow and none of the included screws fit into them, use the appropriate screws of your choice.

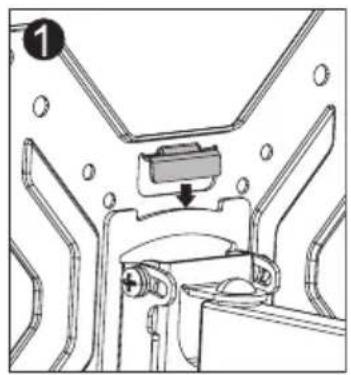

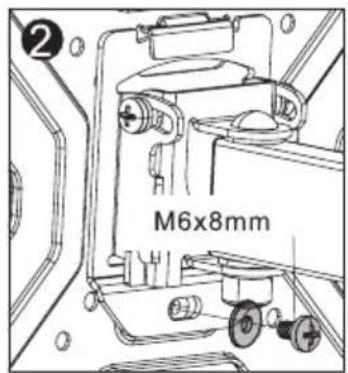

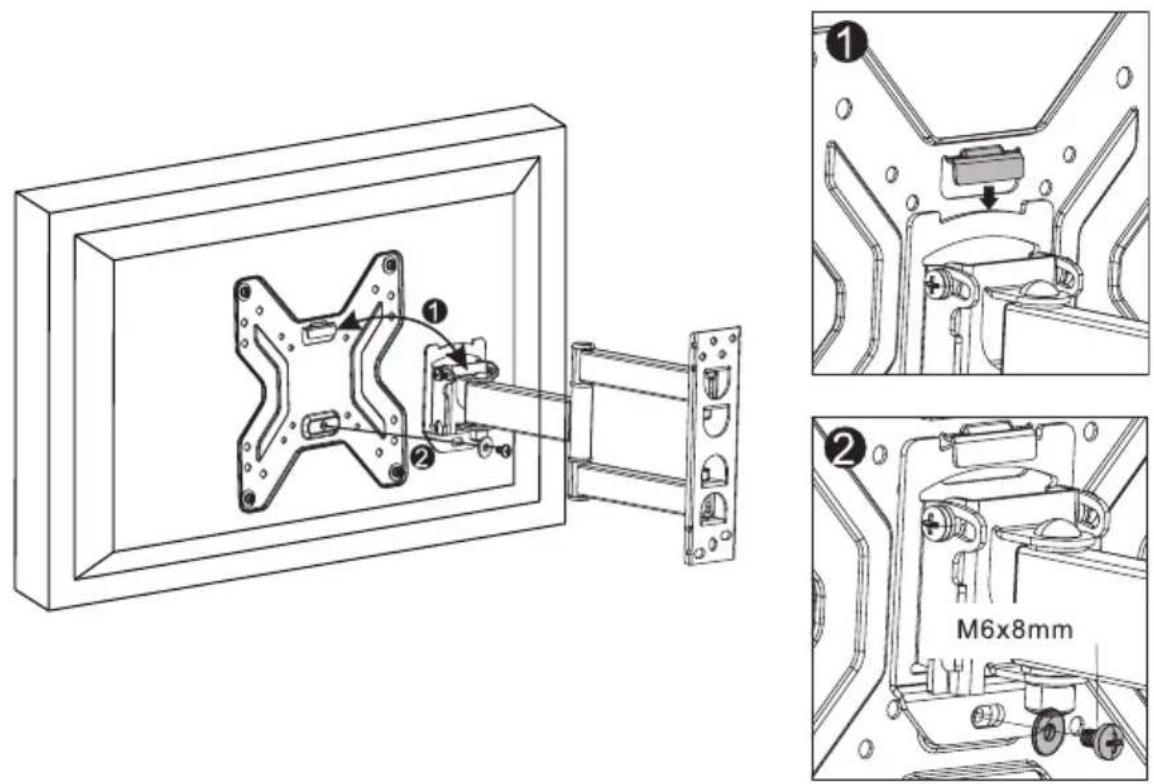

3 - Installing the adapter panel to the wall board

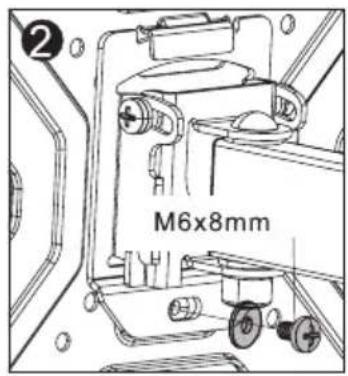

Mount the adapter panel to the wall arm so that the adapter flange is placed on the wall board rails. Tighten the M6 bolt on the wall board rails. Tighten the bolt firmly, but not too much.

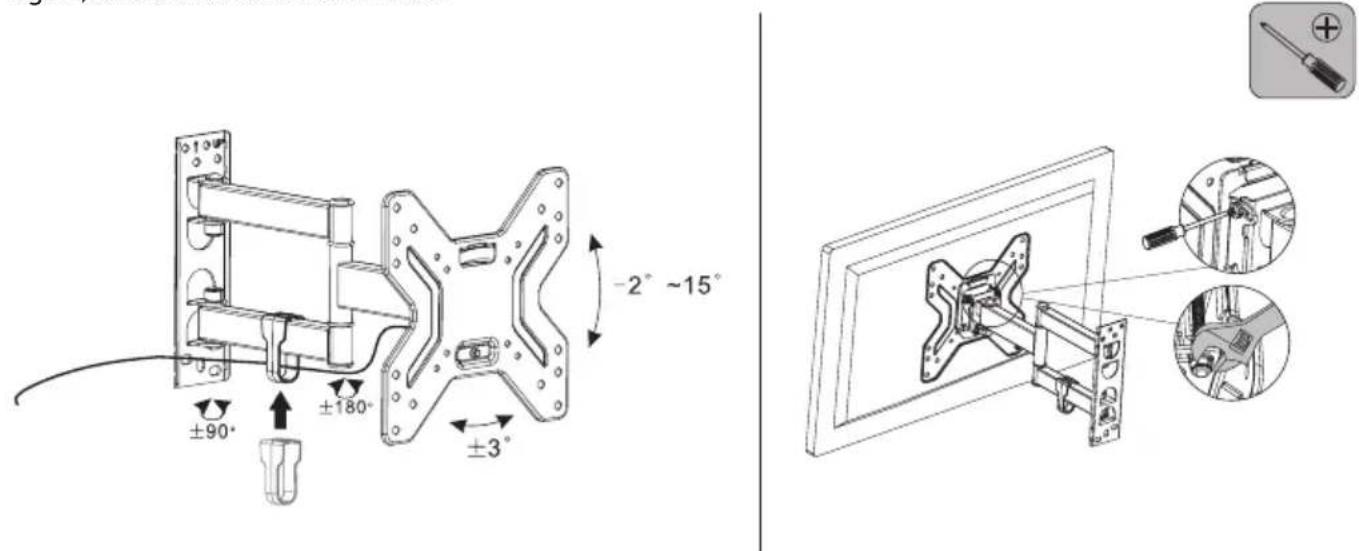

4 - Cable fixing, tilt angle adjustment and tightening

You can insert the wiring through the cable hole on the wall arm of the bracket. After pulling the cables through the hole, fit the enclosed cable organizer.

Loosen the screws on the wall arm plate to adjust the tilt angle of the TV as shown below. Loosen and tighten the screws using a Phillips screwdriver and wrench. After adjusting the desired angle, tighten the screws firmly again, but not with excessive force.

TECHNICAL SPECIFICATIONS

Panel size: 17" to 42"

Maximum TV weight: 25 kg

Compatibility: VESA 200×200

forward/back tilt: -2^ to +15^

Vertical axis rotation: 2 levels, ±90° and ±90°

Distance from the wall: 56–356 mm

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

The operating manual is available on internet at www.ecg-electro.eu.

Changes of text and technical parameters are reserved.

08/05
