ZRF1450 - Fan Zelmer - Free user manual and instructions

Product Type	Fan
Model	ZRF1450
Brand	Zelmer
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	45 W
Number of Speed Settings	3
Oscillation	Yes
Timer Function	Yes, up to 7 hours
Remote Control	Yes
Height Adjustment	Yes
Dimensions (H x W x D)	130 x 45 x 45 cm
Weight	5.2 kg
Blade Diameter	40 cm
Material	Plastic and metal
Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Overheat protection, stable base
Spare Parts Availability	Contact customer service or authorized dealers
Noise Level	≤ 60 dB
Included Accessories	Remote control, user manual

Frequently Asked Questions - ZRF1450 Zelmer

How to assemble the Zelmer ZRF1450 fan?

Refer to the user manual for step-by-step assembly. Typically, attach the base to the pole, secure the fan head, and fix the front grille with screws.

Can I use the fan with a remote control?

Yes, the ZRF1450 comes with a remote control for adjusting speed, oscillation, timer, and power on/off.

How to clean the fan?

Unplug the fan. Use a soft damp cloth to wipe the exterior. Do not use water or solvents. To clean blades, disassemble the front grille and gently wipe.

What safety precautions should I take?

Place the fan on a flat stable surface. Do not insert objects into the grille. Keep away from children and pets. Unplug during storms or when not in use.

The fan makes noise, what should I do?

Check if the blades are loose or obstructed. Ensure the fan is on a level surface. If noise persists, contact Zelmer support.

How to set the timer?

Press the timer button on the remote or control panel. Select desired hours (up to 7). The fan will automatically turn off after the set time.

Is the oscillation feature adjustable?

Yes, press the oscillation button to start or stop the fan's side-to-side movement.

What is the power consumption?

The fan consumes approximately 45 watts on the highest speed setting.

Where can I find replacement parts?

Contact Zelmer customer service or authorized dealers for spare parts like remote control, blades, or grille.

How to store the fan during winter?

Disassemble, clean, and store in a dry place. Keep the remote control separately. Cover to prevent dust.

USER MANUAL ZRF1450 Zelmer

Black electric fan with visible grille and base, no text or symbols on the fan body

PL INSTRUKCJE UŻYTKOWANIA Wentylator stojący
EN USER MANUAL Stand fan
DE BENUTZERHANDBUCH Standventilator
CZ NÁVOD K POUŽITÍ Stojanový ventilátor
SK NAVODILA ZA UPORABO Stojanový ventilátor

Technical diagram of a mechanical component with internal gear and shaft (no text or labels)

Fig. 3

Technical line drawing of a mechanical fan and impeller assembly (no text or symbols)

Fig. 4

Technical line drawing of a mechanical component with internal gear-like structure (no text or symbols)

Abstract line drawing with diagonal hatching and a central oval shape (no text or symbols)

DZIEKUJEMY ZA WYBÓR MARKI ZELMER. MAMY NADZIEJE, ŻE PRODUKT SPEŁNI PAŃSTWA OCZEKIWANIA.

OSTRZEŻENIE

WE WOULD LIKE TO THANK YOU FOR CHOOSING ZELMER. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

Please read the instructions for use carefully prior to using the product. store these in a safe place for future reference.

DESCRIPTION

1. Front grille
2. Blade mounting ring
3. Fan blade
4. Rear grille mounting nut
5. Rear grille
6. Motor shaft
7. Motor cover
8. Grille block nut
9. Grille ring

10. Control panel

11. Mounting screw to join the body to the pole

12. Plug
13. Adjustable rod
14. Stand height adjustment nut
15. Main stand
16. Round base
17. Seal
18. Mounting screw

Control panel and remote control

a. Power
b. SPEED button
c. MODE button
d. TIMER button
e. SWING button
f. Swing indicator
g. Speed indicators (high-mid-low)
h. Time indicators 0.5-1-2-4 hrs

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and

user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

It is necessary to disconnect the appliance before assembling, disassembling and cleaning.

IMPORTANT WARNINGS

This appliance is intended exclusively for domestic use for ventilation of rooms: do not use it for other purposes. Any other usage should be considered improper and dangerous. The manufacturer shall not be held responsible for any damage resulting from improper, incorrect and irresponsible use and/or for repairs made by unqualified technicians.

Do not insert fingers or any other objects through the fan's protector grille. The appliance must be kept out of the reach of children.

Do not use the appliance if it is not working properly, or if it appears to be damaged; if in doubt, take it to a professional, qualified technician.

Do not move the appliance while it is operating.

When the appliance is not being used, remove the plug from the mains socket. Do not touch the appliance with wet hands or feet.

Do not drag the appliance by the cable to move it.

Do not pull the cable or the appliance itself to remove the plug from the mains socket.

To clean the appliance, follow the instructions in the section of the manual dedicated to cleaning and maintenance.

EUROGAMA Sp. Z o.o. will not be held liable for any harm or damage which may occur to people, animals or objects as a result of failure to observe the aforementioned warnings.

INSTALLATION

After removing the packing, check the condition of the appliance; if in doubt, do not use it and take it to a professional, qualified technician. The packaging (plastic bags, polystyrene, fixtures, etc.) should be kept out of the reach of children, since they are a potential source of danger, and they should be disposed of in the appropriate specific containers for selective waste collection. Warning: any stickers or leaflets attached to the grille must be removed before using the appliance.

Before connecting the appliance, check that the voltage values indicated on the characteristics plate correspond to those of the electric mains supply. In the event that the mains socket and the appliance plug are incompatible, have the plug changed to one that is suitable by a professional, qualified technician. They will check that the cable part of the plug is adapted to the power used by the appliance. In general, the use of adapters or extension leads is not advisable; if this is necessary, they must be in accordance with the safety regulations and their amperage capacity must not be less than the maximum for the appliance.

Before each usage, check that the appliance is in good condition and that the power cord is not damaged: if in doubt, check with a professional, qualified technician.

The mains socket must be easily accessible in order to disconnect the appliance with ease in case of emergency.

EN

Position the appliance away from:

• sources of heat (e.g. open flames, gas ovens, etc.)
• deposits of liquids (e.g. sinks, etc.) to avoid falling into or splashing with water (minimum distance 2 metres)

fabrics (curtains, etc.) or loose materials, which may obstruct the ventilation grille; in addition, check that the front part is free of volatile materials (dust, etc.).

The supporting surface must be stable, flat and even (so that the appliance does not tip over).

ASSEMBLY

Warning: the fan may be used only if it is fully and properly assembled, that is to say, complete with the base and the grille.

Warning: always disconnect the appliance from the mains supply before assembling. If in doubt, have the operation checked or carried out by a qualified technician.

ASSEMBLE OF BASE

Set the column in place on the base and secure it using the "L" screw with washer while also engaging the counterweight.

Make sure column and base and counterweight are firmly coupled.

Loosen the Height Adjustment Collar on top of the Inner Tube. Pull the Inner Tube out from the Outer Tube to adjust the tube to the desired height and tighten the collar.

If necessary, slightly loosen the Set Screw by turning it anticlockwise. Slide the Switch Box down over the Inner Tube and tighten the Set Screw. Make sure the Set Screw is tightly secured.

ASSEMBLE OF BLADE AND GRILLE

Unscrew the plastic mounting nut from the front of the motor housing by rotating it anticlockwise.

Position the rear grille against the front of the motor housing with the handle uppermost, ensuing that the locating pegs on the motor housing are engaged correctly in the holes of the rear grille.

Tighten the Rear Grille Mounting Nut clockwise. DO NOT OVERTIGHTEN IT.

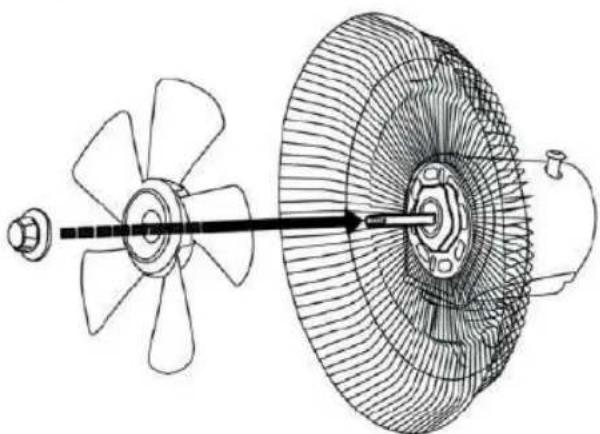

Push the fan blade onto the motor shaft, locating the slot at the back of the blade on the drive pin that passes through the motor shaft.

Tighten the blade cap by turning it anticlockwise.

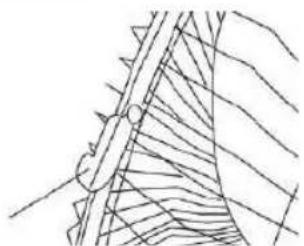

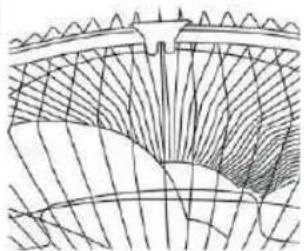

To fasten the front grill, it is best to place the main unit on a smooth even floor. Couple the front grill to the rear and hold in place with plastic ring, (a fixing screw is good at the bottom) and secure fastening by tightening screw

At the end of the operation, check that the protective grills are firmly coupled and attached to the motor.

USE

Before each use check that the appliance is in good condition and that the electric cable is not damaged; if the electric cable is damaged, it must be replaced by the manufacturer or by the technical assistance service or, in the event, by a qualified technician, in order to avoid any type of danger.

CONTROL PANEL

A. Power
B. SPEED button
C. MODE button
D. TIMER button
E. SWING button
F. Swing indicator
G. Speed indicators (high-mid-low)

H. Time indicators 0.5-1-2-4 hrs

I. Sleep mode indicator

1. Switch on the appliance by pressing the ON/OFF button (A) on the control panel. The fan starts to blow at low speed. The low speed indicator (G) lights up.
2. To change speed, press button (B) several times. Speed will change with each button stroke. The respective indicator (G) will light up.
3. For oscillation, press the SWING button (E). The swing indicator (F) light up and the fan starts oscillating. To stop oscillation, press button (E) once again.
4. Your fan has a timer function. After having switched the unit on, press the TIMER button (D) and the fan will operate for as long as you choose: Press the timer button several times and the setting will change with every button stroke. The respective indicator lights (H) light up. When the set time has elapsed, the fan switches off automatically. The fan can set the timer function from 0.5-7.5 hours, as specified by the sum of the Time Indicators that are lit.
5. The air flow can be adjusted by tilting the entire motor unit upward or downward. Loosen the neck screw (9) and adjust themotor until you have reached the desired vertical angle. Tighten the screw again.
6. To switch the fan off, press the ON/OFF button (A).
7. Always unplug the appliance when it is not used.
8. Ensure batteries are inserted in the correct direction. Do not mix battery types. When replacing, ensure both batteries are change simultaneously. 2xAAA size batteries are required.

The remote control settings:

• “ ⏻” of the remote control: to turn the fan on or turn it off in standby mode
• "SPEED" of the remote control: the symbol corresponding to the selected speed
  will light up: ( mIn; =mEd; =max).

• Mode: the three modes are selected by pressing the "MODE": button:

• Normal: constant ventilation

• Silent: constant and silent ventilation (symbol)
• Natural: intermittent ventilation (symbol “”), as shown in the diagrams shown here.

Maximum speed selected

Medium speed selected

Minimum speed selected

Timer: sets the operating time at which the unit shuts down. Press the "TIMER" button repeatedly: each press changes the time in 0.5 hour intervals (from 1/2 hour to 7.5 hours), and the selected duration will be shown on the control panel. To deactivate the timer, press the button until the timer turns off.

Swing (right-left): press the "SWING" button, turn it on and or turn it off to press again

During long periods of inactivity, disconnect the plug from the mains socket.

MANITENANCE AND CLEANING

Warning: before carrying out the normal cleaning operations, remove the plug from the mains sock- et.

To clean the appliance, use a soft, slightly damp cloth; do not use abrasive or corrosive products.

Do not immerse any part of the fan in water or any other liquid: if this happens, do not immerse your hand in the liquid and, first of all, remove the plug from the mains socket. Dry the appliance carefully and check that all the electrical parts are not wet: if in doubt, contact a qualified technician.

It is essential to keep the ventilation holes of the motor free of dust and fluff.

In case of long periods of non-use store the fan, protecting it from dust and moisture; we recommend using the original packaging.

If you decide to stop using the appliance, it is advisable to render it in operational by cutting the power cable (first ensuring that the plug has been disconnected from the mains socket) and making sure that parts which could be dangerous to children (e.g. the blade) may cause no harm.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU regarding electrical and electronic devices, known as WEEE (Waste electrical and electronic equipment), which establishes the applicable legal framework in the European Union regarding the elimination and recycling of electrical and electronic devices. Do not put this product in the bin. Take it to your closest electrical and electronic waste treatment centre.

The product may use batteries. Remove them before disposing of the product and deposit them in the special containers approved for this purpose.

We hope you are satisfied with this product.

Description	Symbol	Value	Unit
Maximum fan flow rate	F	48,9	m^3/min
Fan power input	P	43,1	W
Service value	SV	1,1	(m^3/min) / W
Standby power consumption	Psb	0,5	W
Fan sound power level	Lwa	60	dB(A)
Maximum air velocity	c	2,7	m/seg
Measurement standard for service value	IEC60879:1986(COR1:1992)

WIR MÖCHTEN UNS BEI IHNEN BEDANKEN, DASS SIE SICH FÜR ZELMER ENTSCHIEDEN HABEN. WIR HOFFEN, DASS DAS PRODUKT ZU IHRER ZUFRIEDENHEIT FUNKTIONIERT.

WARNUNG

ELIMINAREA PRODUSULUI

Избрана максимальна скорост

EUROGAMA Sp. Z o.o. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by EUROGAMA Sp. Z o.o.. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a EUROGAMA Sp. Z o.o. authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by EUROGAMA Sp. Z o.o., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty. This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Polish territory, please submit your query to the point of sale where you purchased the item or check for further aftersales information at www.zelmer.com

GARANTIE-ERKLÄRUNG
