ZFF0350 - Fan Zelmer - Free user manual and instructions

Product Type	Floor Fan
Brand	Zelmer
Model	ZFF0350
Power Input	42.78 W
Maximum Airflow	43.72 m³/min
Sound Power Level	60.40 dB(A)
Maximum Air Velocity	2.65 m/s
Service Value	1.02 (m³/min)/W
Standby Power Consumption	0 W (no standby)
Number of Speeds	3 (Low, Medium, High)
Oscillation	Not specified (likely no oscillation)
Handle	Yes
Power Cable Length	Approximately 1.5 m
Voltage / Frequency	220-240 V / 50 Hz
Material	Plastic and metal
Safety Features	Protective grille, tip-over switch not specified
Cleaning Method	Soft damp cloth, do not immerse
Maintenance	Keep motor ventilation holes free of dust
Warranty	2 years (EUROGAMA)
Compliance	WEEE Directive 2012/19/EU

Frequently Asked Questions - ZFF0350 Zelmer

How do I clean the Zelmer ZFF0350 fan?

Unplug the fan. Use a soft, slightly damp cloth to wipe the exterior. Do not use abrasive or corrosive products. Never immerse the fan in water. Keep the motor ventilation holes free of dust and fluff.

Can I use the fan outdoors?

No, the Zelmer ZFF0350 is designed for indoor use only. Do not expose it to rain or moisture.

How many speed settings does the fan have?

The fan has three speed settings: 1 (minimum), 2 (medium), and 3 (maximum). Select the speed using the button on the motor body.

Is the fan safe to use around children?

Yes, the fan has a protective grille to prevent finger insertion. However, children should be supervised and instructed about safe use. The appliance is not a toy.

What is the warranty period for the Zelmer ZFF0350?

The fan comes with a 2-year warranty from EUROGAMA Sp. Z o.o., covering manufacturing defects. It does not cover wear and tear or damage from misuse.

How noisy is the fan?

The maximum sound power level is 60.40 dB(A), which is comparable to a normal conversation.

What is the power consumption of the fan?

The fan consumes 42.78 W at maximum speed. It has no standby power consumption.

Can I use an extension cord with the fan?

It is not recommended. If necessary, use an extension cord with an amperage capacity at least equal to the fan's maximum and that complies with safety regulations.

How do I adjust the fan's tilt?

The vertical inclination can be adjusted by holding the motor body and tilting it up or down to the desired angle.

How should I store the fan when not in use?

Disconnect the fan. Store it in a dry place, protected from dust and moisture. Preferably use the original packaging. Keep out of reach of children.

USER MANUAL ZFF0350 Zelmer

Black Zeimer air fan with visible blades and mesh grille (no text or symbols on fan body)

PL INSTRUKCJE UŻYTKOWANIA Wentylator stojący
EN USER MANUAL Floor fan
DE BENUTZERHANDBUCH Bodenlüfter
CZ NÁVOD K POUŽITÍ Podlahový ventilátor
SK NAVODILA ZA UPORABO Podlahový ventilátor

HU HASZNÁLATI UTASÍTÁS Padlóventilátor
RO INSTRUCTIUNI DE UTILIZARE Ventilator podea
RU ИНСТРУКЦИЯ ПО ПРИМЕНЕНИЮ Напольный вентилятор
BG ИНСТРУКЦИИ ЗА УПОТРЕБА Подов вентилатор
UA ІНСТРУКЦІЯ ПО ЗАСТОСУВАННЮ Підлоговий вентилятор

DZIEKUJEMY ZA WYBÓR MARKI ZELMER. ŻYCZYMY SATYSFAKCJI Z UŻYTKOWANIA URZĄDZENIA.

OSTRZEŻENIE

WE WOULD LIKE TO THANK YOU FOR CHOOSING ZELMER. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

Please read the instructions for use carefully prior to using the product. Store these in a safe place for future reference.

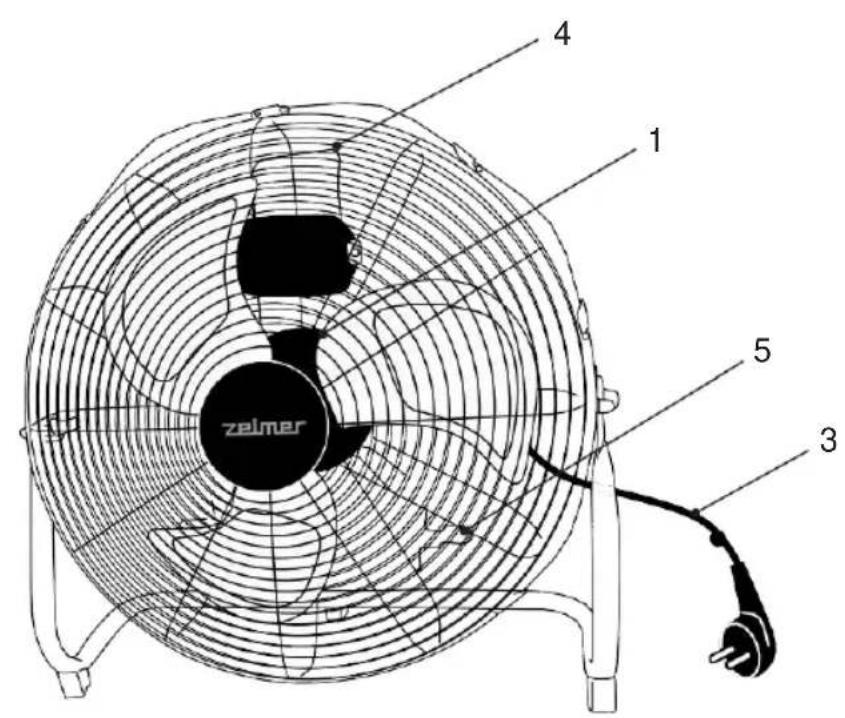

DESCRIPTION

1. Motor body

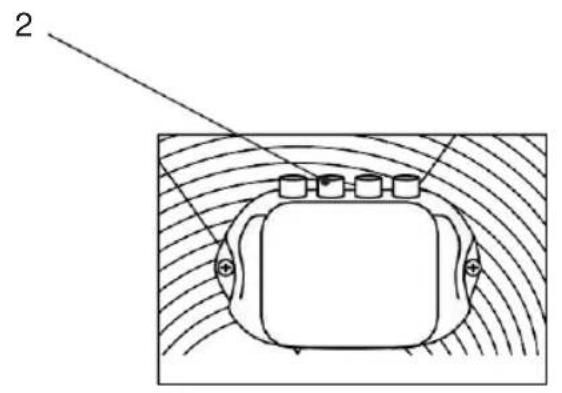

2. Selection buttons
3. Fan cable
4. Handle
5. Cable housing

SAFETY INSTRUCTIONS

This appliance may be used by children over 8 years of age, by people with physical, sensory or mental disabilities and by the inexperienced, provided they are correctly supervised and instructed regarding its safe use and are aware of the risks involved. Children must not play with the appliance or carry out unsupervised cleaning and user maintenance.

If the power cord is damaged it should be changed by the manufacturer's technical support service, or by a similarly qualified person, in order to avoid any danger.

It is necessary to disconnect the appliance before assembling, disassembling and cleaning.

IMPORTANT WARNINGS

This appliance is intended exclusively for domestic use for ventilation of rooms: do not use it for other purposes. Any other usage should be considered improper and dangerous. The manufacturer shall not be held responsible for any damage resulting from improper, incorrect and irresponsible use and/or for repairs made by unqualified technicians.

Do not insert fingers or any other objects through the fan's protector grille.

The appliance must be kept out of the reach of children.

Do not use the appliance if it is not working properly, or if it appears to be damaged; if in doubt, take it to a professional, qualified technician.

EN

Do not move the appliance while it is operating.

When the appliance is not being used, remove the plug from the mains socket.

Do not touch the appliance with wet hands or feet.

Do not drag the appliance by the cable to move it.

Do not pull the cable or the appliance itself to remove the plug from the mains socket.

To clean the appliance, follow the instructions in the section of the manual dedicated to cleaning and maintenance.

EUROGAMA will not be held liable for any harm or damage which may occur to people, animals or objects as a result of failure to observe the aforementioned warnings.

INSTALLATION

After removing the packing, check the condition of the appliance; if in doubt, do not use it and take it to a professional, qualified technician. The packaging (plastic bags, polystyrene, fixtures, etc.) should be kept out of the reach of children, since they are a potential source of danger, and they should be disposed of in the appropriate specific containers for selective waste collection. Warning: any stickers or leaflets attached to the grille must be removed before using the appliance.

Before connecting the appliance, check that the voltage values indicated on the characteristics plate correspond to those of the electric mains supply. In the event that the mains socket and the appliance plug are incompatible, have the plug changed to one that is suitable by a professional, qualified technician. They will check that the cable part of the plug is adapted to the power used by the appliance. In general, the use of adapters or extension leads is not advisable; if this is necessary, they must be in accordance with the safety regulations and their amperage capacity must not be less than the maximum for the appliance.

Before each usage, check that the appliance is in good condition and that the power cord is not damaged: if in doubt, check with a professional, qualified technician.

The mains socket must be easily accessible in order to disconnect the appliance with ease in case of emergency.

Position the appliance away from:

- sources of heat (e.g. open flames, gas ovens, etc.)

- deposits of liquids (e.g. sinks, etc.) to avoid falling into or splashing with water (minimum distance 2 metres)

- fabrics (curtains, etc.) or loose materials, which may obstruct the ventilation grille; in addition, check that the front part is free of volatile materials (dust, etc.).

The supporting surface must be stable, flat and even (so that the appliance does not tip over).

ASSEMBLY

Warning: the fan may be used only if it is fully and properly assembled, that is to say, complete with the base and the grille.

Warning: always disconnect the appliance from the mains supply before assembling. if in doubt, have the operation checked or carried out by a qualified technician.

USE

Before each use check that the appliance is in good condition and that the electric cable is not damaged; if the electric cable is damaged, it must be replaced by the manufacturer or by the technical assistance service or, in the event, by a qualified technician, in order to avoid any type of danger.

Insert the plug into the mains socket.

Ventilation: Select the required speed by pressing the speed selector using the following positions:

1 - Minimum speed 2 - Medium speed 3 - Maximum speed

To turn the fan off, turn the selector to the "0" position and then remove the plug from the mains socket.

Vertical inclination (high-low): this is adjusted by holding the motor body and tilting it in the desired direction.

During long periods of inactivity, disconnect the plug from the mains socket.

MANITENANCE AND CLEANING

Warning: before carrying out the normal cleaning operations, remove the plug from the mains socket.

To clean the appliance, use a soft, slightly damp cloth; do not use abrasive or corrosive products.

Do not immerse any part of the fan in water or any other liquid: if this happens, do not immerse your hand in the liquid and, first of all, remove the plug from the mains socket. Carefully dry the device and check that all the electrical parts are dry as well: if in doubt, contact a qualified technician.

It is essential to keep the ventilation holes of the motor free of dust and fluff.

In case of long periods of non-use store the fan, protecting it from dust and moisture; we recommend using the original packaging.

If you decide to stop using the appliance, it is advisable to render it inoperational by cutting the power cable (first ensuring that the plug has been disconnected from the mains socket) and making sure that parts which could be dangerous to children (e.g. the blade) may cause no harm.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU regarding electrical and electronic devices, known as WEEE (Waste electrical and electronic equipment), which establishes the applicable legal framework in the European Union regarding the elimination and recycling of electrical and electronic devices. Do not put this product in the bin. Take it to your closest electrical and electronic waste treatment centre.

We hope you are satisfied with this product.

ZFF0350 - ZFF0450
Description	Symbol	Value	Unit
Maximum fan flow rate	F	43,72 (ZFF0350)90,24 (ZFF0450)	m^3/min
Fan power input	P	42,78 (ZFF0350)101,81(ZFF0450)	W
Service value	SV	1,02 (ZFF0350)0,89 (ZFF0450)	(m^3/min) / W
Standby power consumption	Psb	-	W
Fan sound power level	Lwa	60,40 (ZFF0350)65,65 (ZFF0450)	dB(A)
Maximum air velocity	c	2,65 (ZFF0350)3,95 (ZFF0450)	m/seg
Measurement standard for service value	IEC60879:1986(COR1:1992)

WIR MÖCHTEN UNS BEI IHNEN BEDANKEN, DASS SIE SICH FÜR ZELMER ENTSCHIEDEN HABEN. WIR HOFFEN, DASS DAS PRODUKT ZU IHRER ZUFRIEDENHEIT FUNKTIONIERT.

ACHTUNG

ELIMINAREA PRODUSULUI

EUROGAMA Sp. Z o.o. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by EUROGAMA Sp. Z o.o.. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a EUROGAMA Sp. Z o.o. authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by EUROGAMA Sp. Z o.o., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty. This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Polish territory, please submit your query to the point of sale where you purchased the item or check for further aftersales information at www.zelmer.com

GARANTIE-ERKLÄRUNG
