Product Type	Wireless Rear View Camera System
Brand	Tracer
Model	Rview S1 Wireless
Camera Frame Dimensions	546 x 140 x 21 mm
Camera Resolution	756 x 582 pixels
Viewing Angle	120 degrees
Camera Inclination Adjustment	30 degrees
Night Vision	4 IR diodes
Monitor Screen Size	4.3 inches
Monitor Resolution	800 x 480 pixels
Power Supply (Camera & Monitor)	12 V DC, 60 mA each
Wireless Frequency	2.4 GHz
Wireless Range	6 m (in open air)
Camera Cable Length	50 cm (power/video)
Monitor Power Cable Length	100 cm
Box Contents	Camera frame, monitor, wireless transmitter & receiver, power cables, quick connectors
Mounting Type	License plate frame integrated
Safety	WEEE symbol; do not dispose as household waste
Maintenance	Clean with soft dry cloth; avoid harsh chemicals
Intended Use	Additional rear view for vehicles; not a replacement for mirrors

Frequently Asked Questions - Rview S1 Wireless Tracer

How do I install the camera on my vehicle?

Remove the original license plate and frame. Route the camera cable through a suitable opening (e.g., trunk handle). If no opening exists, drill a hole large enough for the cable connectors. Fix the frame using the upper plate clip and secure the bottom with screws or zip ties through the multi-purpose mounting holes. Connect the camera wires to the transmitter and vehicle taillight power.

Is this camera compatible with all vehicles?

The camera frame is designed for standard license plate mounting. It fits most vehicles with a 12V electrical system. However, installation may require minor modifications such as drilling. If unsure, consult a professional.

How is the system powered?

Both the camera and monitor are powered by the vehicle's 12V DC system. The camera connects to the reverse taillight circuit, so it activates automatically when you shift into reverse. The monitor can be connected to the same circuit or a constant 12V source.

What is the wireless range of the system?

The wireless transmitter and receiver operate at 2.4 GHz with a range of up to 6 meters (about 20 feet) in open air. Actual range may vary due to vehicle metal and obstructions.

Does the camera work at night?

Yes, the camera is equipped with 4 infrared (IR) diodes for night vision, providing a clear image in low-light conditions.

Where should I mount the monitor?

Place the 4.3-inch monitor on the dashboard in a location that does not obstruct your view of the road. Ensure the monitor's power cable can reach a 12V source.

Can I use this system with a different monitor or camera?

The system uses a dedicated 2.4 GHz wireless link. The transmitter and receiver are paired. Using third-party components may not work and is not recommended.

Why is there no image on the monitor when I shift into reverse?

Check that all connections are secure: camera to transmitter, transmitter power to taillight, receiver power to 12V, and monitor power. Verify the ground connections. Also ensure the taillight provides 12V when reverse is engaged. Test the camera by connecting it directly to a 12V source.

What is the warranty for this product?

Warranty details are provided by the manufacturer Tracer. Typically, electronic accessories come with a 1-year warranty against manufacturing defects. Contact Tracer or your retailer for specific terms.

How do I clean and maintain the camera and monitor?

Use a soft, dry cloth to clean the camera lens and monitor screen. Avoid abrasive cleaners or solvents. Do not immerse in water. For the camera frame, wipe gently with a damp cloth if needed.

USER MANUAL Rview S1 Wireless Tracer

1. During the installation, the camera set requires tampering with the vehicle's electrical system – therefore it is recommended that you visit a professional car service in order to install it.
2. In case you decide to install it yourself, follow this instruction manual; should you have any questions, contact the manufacturer or a professional car service.
3. The manufacturer shall not be held responsible for any damages to the product or vehicle resulting from improper installation of the camera set.
4. The rearview camera set cannot replace the rearview mirror and does not lessen the necessity for the driver to concentrate. When driving, do not rely solely on the image from the camera – it is only an additional, supporting view with a limited angle of vision (blind spots).
5. The manufacturer shall not be held responsible for any damages resulting from collision or damages to the vehicle(s) resulting from maneuvers carried out using solely the image from the camera.

BOX CONTENTS / TECHNICAL SPECIFICATIONS

	Registration plate frame with camera (1 pc.)Dimensions: 546 x 140 x 21 cmResolution: 756 x 582 pixViewing angle: 120 degreesCamera inclination adjustment: 30 degreesPower supply: 12 V / 60 mAPower cable length / video: 50 cmNight mode - 4 IR diodes
	Folding monitor (1 pc.)Resolution: 800x480 pixScreen diagonal: 4.3 inchesPower supply: 12 V / 60 mAPower cable length / video: 50 cm
	Wireless set – TRANSMITTER & RECEIVER 2.4 GHz (1 pc.)Power supply: 12 V / 60 mAFrequency: 2.4 GHzRange: 6 m
	SCREEN power supply cables (1 pc.)Cable length: 100 cm
	cable QUICK CONNECTOR / CONNECTOR (2 pcs.)

INSTALLATION OF THE SET

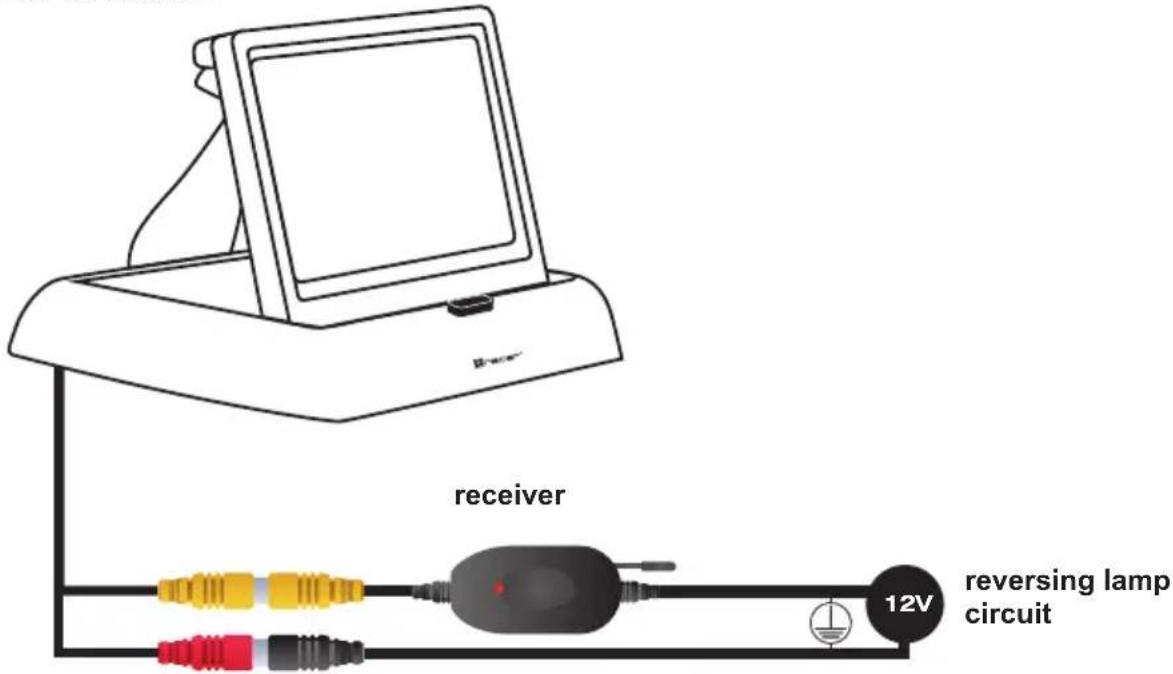

Monitor connection

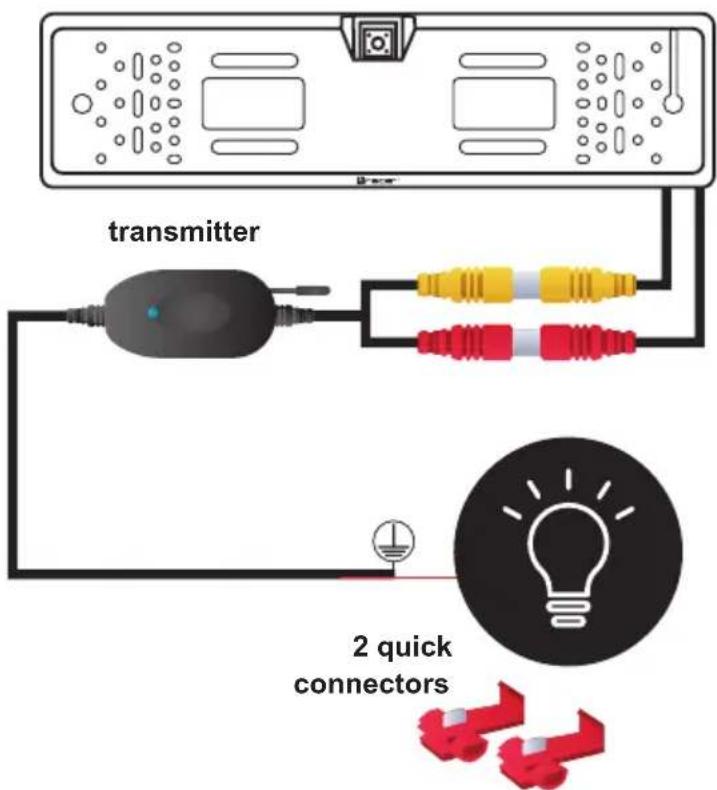

Rear view camera connection

MOUNTING THE CAMERA FRAME ON THE CAR

1. Remove the original plate along with the frame.
2. Locate the point (trunk handle, any other technical opening) where you can insert the cable (50 cm length) into the trunk.
3. If there is no factory-made inlet available, it is necessary to drill a hole with diameter allowing to insert first the yellow, and second – the red cinch cable fitted at the end of the frame wiring.

4. Before installing the frame, you have to decide how to fix the plate frame (see sec. 5)!

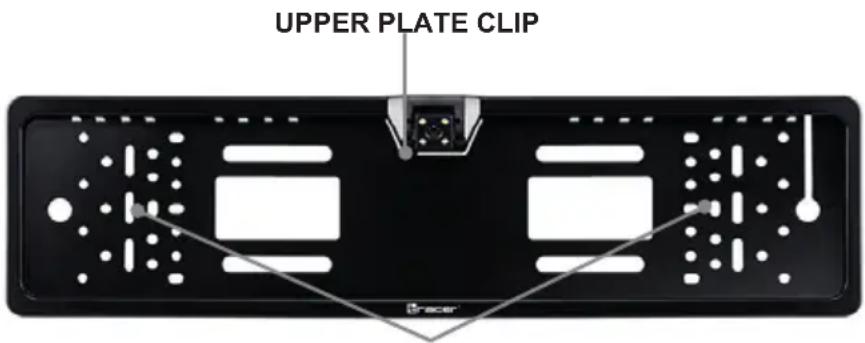

5. The plate is fixed at the top by the UPPER PLATE CLIP; however, at the bottom, it should be fixed individually by the user:

a. You may fix it using screws used to fix the frame to the body of the car.
b. You may fasten the plate to the frame using additional screws (not supplied), using MULTI-PURPOSE MOUNTING HOLES in the frame.
c. You may fix the plate to the frame using zip ties (not supplied), using MULTI-PURPOSE MOUNTING HOLES in the frame.

MULTI-PURPOSE MOUNTING HOLES:

• Fixing the registration plate
- Fastening the frame to the body of the car

1. Fasten the frame using original fixing of the factory-made plate frame; but first remember to insert the cables through the specially made hole in the car body.

1. Find the power cable connected to the taillight using the wiring diagram of the vehicle or using the 12V electric meter (not supplied).
2. Using the supplied QUICK CONNECTOR/CONNECTOR, fix the red wire of the 2.4 GHz TRANSMITTER CABLE to the taillight power cable (you can use the supplied (QUICK) CONNECTOR.
3. The black wire from the 2.4 GHz TRANSMITTER CABLE should be connected to the car ground.
4. Connect the red end of the FRAME WIRE to the red connector of the 2.4 GHz TRANSMITTER.
5. Connect the yellow end of the FRAME WIRE to the yellow connector of the 2.4 GHz TRANSMITTER.

CONNECTING THE SCREEN

1. Place the screen in the desired location on the dashboard.
2. Connect the red bundle from the 2.4 GHz RECEIVER and the red bundle of the MONITOR POWER CABLE to the reversing lamp circuit. To do that, you may use the CONNECTOR included in the set.
3. Connect the black wire from the 2.4 GHz RECEIVER and the black wire of the SCREEN POWER SUPPLY CABLE to the ground (car electrical system, radio, car cigarette lighter).
4. Connect the red wire of the SCREEN CABLE to the black plug of the SCREEN POWER SUPPLY CABLE.
5. Connect the yellow plug of the SCREEN CABLE to the yellow plug of the 2.4 GHz RECEIVER.

If you have performed all the steps correctly, when you put the car in reverse, the power supply from the taillight should activate the rearview camera. As soon as the VIDEO signal is received via the wireless set, the screen should activate as well; as a result, the screen should display the camera image.

BEZPEČNOSTNÍ PODMÍNKY

Symbol of electronic and electrical equipment waste (WEEE – Waste Electronic and Electrical Equipment).

Using the WEEE symbol means that this product cannot be treated as household waste. By providing appropriate recycling you help to save the natural environment. In order to get more detailed information about the recycling of this product, contact the local authority representative, waste treatment service provider or the store in which the product has been purchased.
