USER MANUAL Optima Mill TAURUS

Line drawing of a kitchen blender with three different shades of green and white (no text or symbols)

Exploded diagram of a blender with labeled parts from A to N, showing internal structure and component layout.

Fig. 1

Line drawing of a kitchen blender with a side view showing its internal structure and a base component (no text or symbols)

Line drawing of a hand holding a kitchen blender with a curved arrow indicating rotation (no text or symbols)

Fig. 2

Line drawing of a blender with a side panel, showing the process from top to bottom (no text or symbols)

Line drawing of a blender with control knob and scroll icon (no text or symbols)

Fig. 3

Technical line drawing of a mechanical device with an upward arrow indicating motion or assembly (no text or symbols present)

Line drawing of a mechanical component with a curved handle and base, showing no text or symbols.

Fig. 4

Line drawing of a kitchen appliance with a lid and base, showing a downward trend from top to bottom (no text or symbols)

Line drawing of a portable blender with a circular button and a scroll, emitting a 'click' icon (no text or symbols on the device itself)

Fig. 5

Line drawing of a kitchen blender with a hand holding the lid and scroll, showing a rotation arrow (no text or symbols)

Line drawing of a blender with a handle and internal components, showing a downward arrow indicating compression or disassembly (no text or symbols present)

Fig. 6

Line drawing of a hand holding a magnifying glass over a small object, with an arrow indicating downward motion (no text or symbols)

Español

Batidora

Optima

Optima Glass

Optima Legend

Optima Mill

Many thanks for choosing to purchase a TAURUS brand product. Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

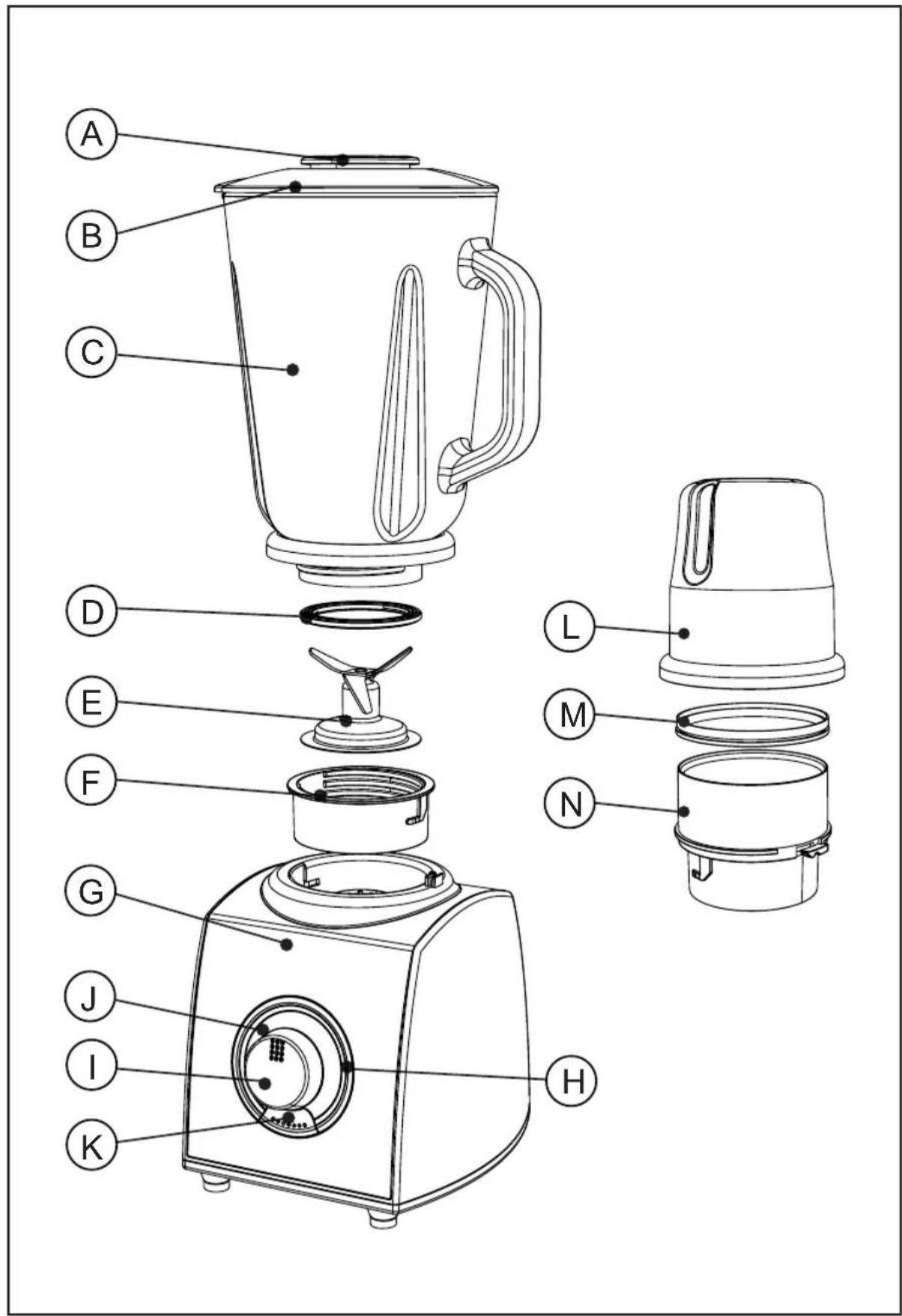

Description

A Measuring cup

B Jar Lid

C Jar

D Sealing Ring

E Blade Set

F Blade Fixing Ring

G Motor body

H Illuminated Ring (*)

I Speed Selector

J "Turbo" function

K Ice-Crush Button (*)

(**) Mill Accessory

L Lid

M Sealing Ring

N Grinder Bowl

(*) Only available in model Optima Legend

(**) Only available in model Optima Mill

Safety advice and warnings

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident. Failure to follow and observe these instructions may result in an accident.

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use. - This appliance must not be used by children. - Keep the appliance and its cable out of reach of children.

-- This appliance can be used by people unused to its handling, disabled people if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance is not a toy. Children should be supervised to ensure that

they do not play with the appliance.

- The blades are sharp and there is a risk of being cut. Proceed with caution and avoid direct contact with their edges.

- Be especially careful when handling the blades during operations of assembly and dismantling, emptying the goblet and cleaning.

- Always disconnect the appliance from the mains if left unattended and before assembly, dismantling or cleaning.

- If the mains connection is damaged, it must be replaced. Take the appliance to an authorised Technical Assistance Service In order to prevent any danger, do not attempt to dismantle or repair it yourself.

- Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

- Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

- Keep the working area clean and well lit. Cluttered and dark areas invite accidents.

- Keep children and bystanders away when using this appliance.

- The appliance must be used and placed on a flat, stable surface, which can support its weight.

- Do not use the appliance if the cable or plug is damaged.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

- Do not force the electrical wire. Never use the electric wire to lift up, carry or unplug the appliance.

- Do not wrap the cable around the appliance.

- Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.

- Do not use or store the appliance outdoors.

- Do not touch the plug with wet hands.

- Take the necessary measures to avoid starting the appliance involuntarily.

- Do not touch any of the appliance's moving parts while it is operating.

Use and care:

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance while the goblet is empty.

- Do not use the appliance if the on/off switch does not work.

- Do not turn the appliance over while it is in use or connected to the mains.

- Respect the MAX and MIN levels indicated on the jar.

- Disconnect the appliance from the mains when not in use, before cleaning, making any adjustment, battery charge or accessory change.

- This appliance is for household use only, not professional or industrial use.

- This appliance should be stored out of reach of children and/or the disabled.

- Keep the appliance in good condition. Check that the moving parts are not misaligned or locked and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

-Do not forget to place the sealing ring on the blade unit. Otherwise, leakage may occur.

-Do not run the jar blender for more than 2 minutes at a time. Do not run the mill for more than 30 seconds at a time (*). If the motor unit is overheated, switch off

and cool down the appliance before you let it run again.

-This product is not designed to cater hot liquid. Please do not mix hot liquid in the jar blender.

-To crush ice cubes, put no more than 4 ice cubes at one time. If you wish to add more ice, pull out the measuring cup and insert the ice cubes consecutively. - The table adjoined contains example recipes with ingredient quantities and operating times.

Service:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Instructions for use

Before use:

- Make sure that all the product's packaging has been removed. - Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

Use:

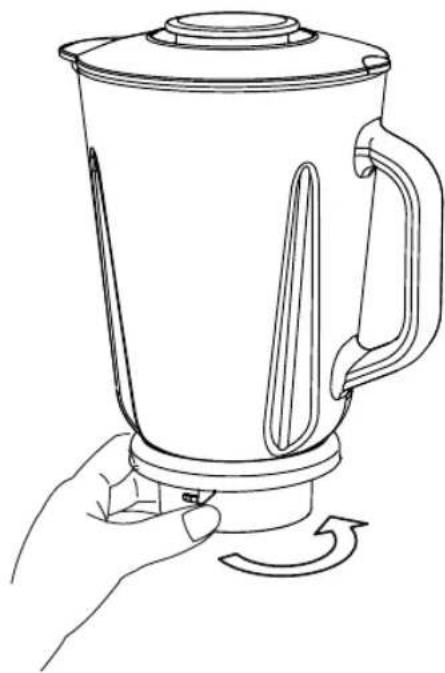

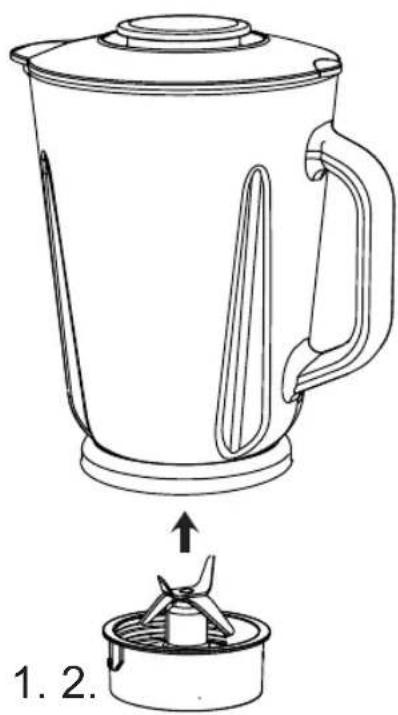

-Ensure the blade fixing ring is fixed properly to the jar (by turning counterclockwise) before putting on the motor body. (Fig.1)

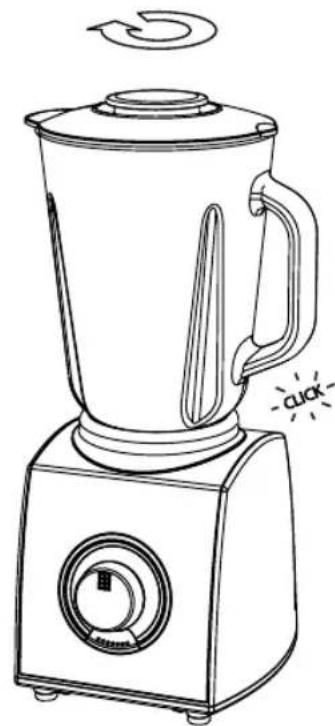

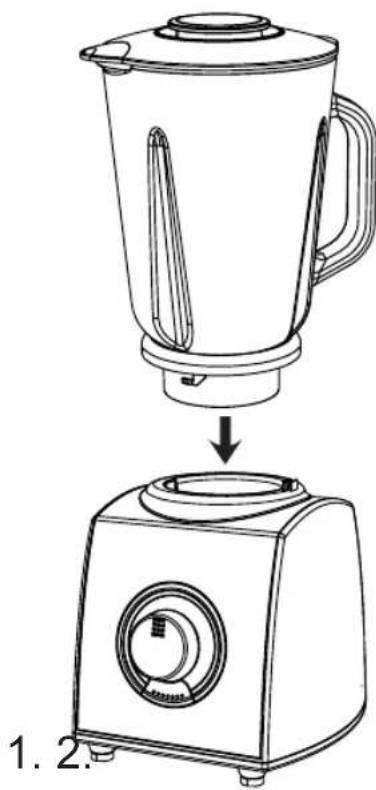

-Place the jar onto to the motor unit, turn clockwise until the lock clicks into place. (Fig.2)

-Put the ingredients, after having first chopped them into small piece, into the jar with liquid (do not exceed the maximum marker)

-Put the lid on the jar, make sure it is properly fixed in place.

-Put the measuring cup in the lid.

- Connect the appliance to the mains.- Choose desired speed and start blending.

- Choose desired speed and start blending.

-If you wish to add more ingredients pull out the measuring cup

-Add the ingredients and replace the measuring cup.

-To stop the appliance set the speed back to "0".

Once you have finished using the appliance:

-Select the "0" position at the speed selector.

- Unplug the appliance to the mains.

- Turn the mixing jar anticlockwise and remove it from the motor body.

- Clean the appliance

"Turbo" function

-The appliance works in highest speed to achieve optimal performance.

-Press this button to operate and release the button when you wish to stop operating.

"Ice-Crush" Function (\*)

-This function gives optimal result for ice-crushing, up to desired snowy level. - We recommend working by pressing the button in cycles of 3 seconds and repeating the operation until you obtain the desired result.

Mill Accessory (\*\*)

-Open the lid by turning it in clockwise direction.
-Put the ingredient into the grinder bowl (only dry ingredients). Do not overfill the bowl.

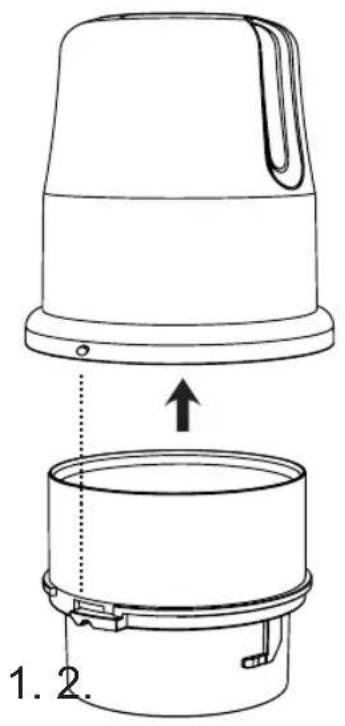

-Close the lid by turning counterclockwise until the lock clicks into place. (Fig.3)

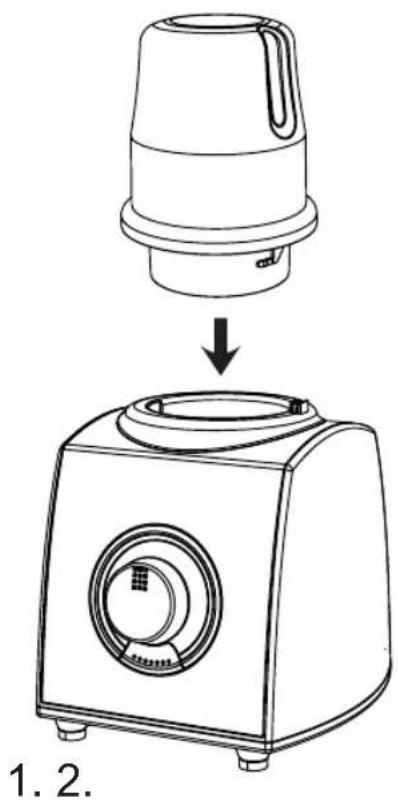

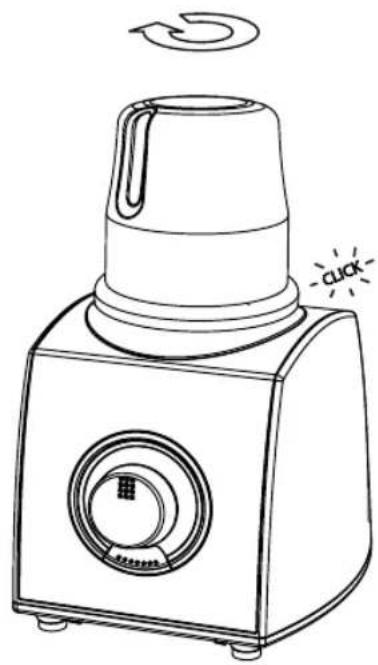

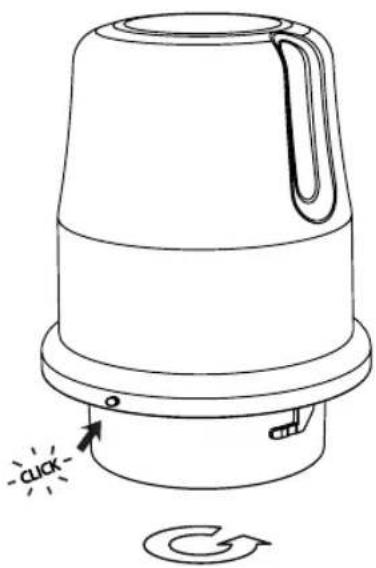

-Place the lid onto the grinder bowl. Turn the mill unit clockwise until the lock clicks into place. (Fig.4)
- Connect the appliance to the mains.
-Choose desired speed to start grinding.
-To stop the appliance set the speed back to "0".

Once you have finished using the mill unit:

-Select the "0" position at the speed selector.

- Unplug the appliance to the mains.

- Turn the mill unit counterclosewise and lift it from the motor body.

- Turn the lid clockwise to open it.

- Clean the appliance

Cleaning

- Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.

- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

- Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.

- Do not submerge the appliance in water or any other liquid, or place it under a running tap.

- During the cleaning process, take special care with the blades, as they are very sharp.

- It is advisable to clean the appliance regularly and remove any food remains. - If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

• The following pieces may be washed in a dishwasher:
• Goblet
• Jar lid
• Measuring cup
• Mill lid

Self-cleaning function:

- Put water and a small amount of washing up liquid in the jar.

- Select the function "turbo".

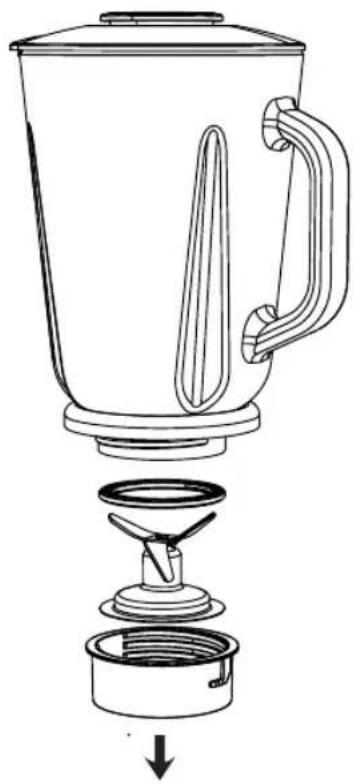

Removable Blades for Effective Cleaning (Jar Blender Only)

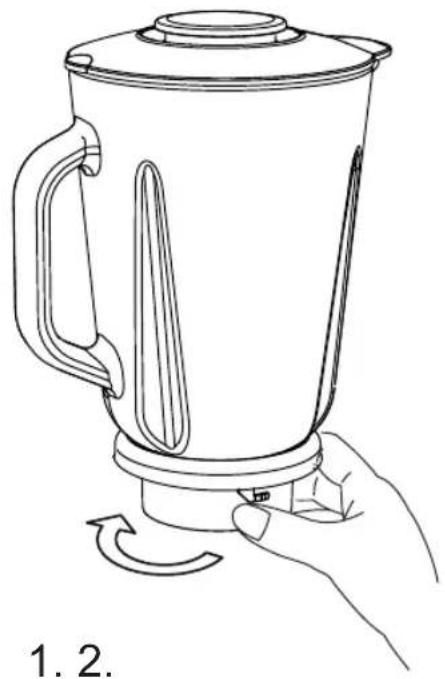

-Loosen the blade fixing ring by turning it in clockwise direction. (Fig. 5) -Remove the blade fixing ring, blade set, sealing ring and clean them. (Fig.5) -After cleaning, replace the blade set and turn blade fixing ring in opposite direction.

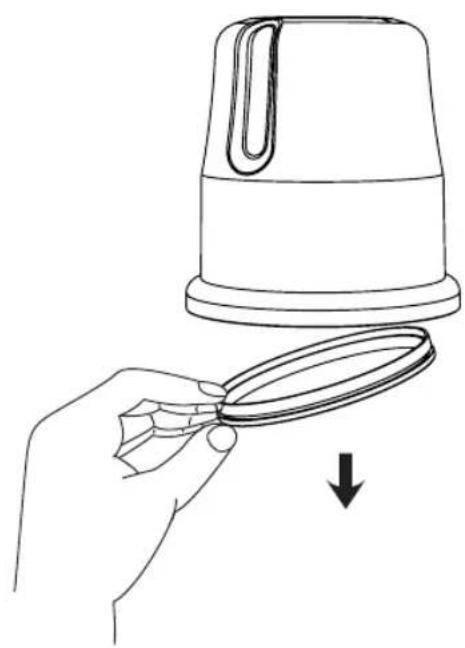

(**)Removable Mill's Sealing Ring for Cleaning -Remove the mill's sealing ring inside the lid. (Fig.6)

-Clean it and replace the ring in original position. (*) Only available in model Optima Legend

(**) Only available in model Optima Mill

Anomalies and repair

- Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

For EU product versions and/or in the case that it is requested in your country:

Ecology and recyclability of the product

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

This appliance complies with Directive 2006/95/EC on Low Voltage, with Directive 2004/108/EC on Electromagnetic Compatibility, with Directive 2011/65/EU on restrictions on the use of certain dangerous substances in electrical and electronic appliances.

RECIPES

COLD CREAM OF MELON SOUP

Ingredients:

1 plain yoghurt

100 g of single cream

salt

white pepper

half a squeezed lemon

700 g of crushed melon

Preparation:

Place all the ingredients in the blender container. Blend for 40 seconds at maximum speed. Serve very cold. Accompany with diced ham, croutons and melon balls.

Fast version
Place all the ingredients in the blender container	40 sec.	Max.speed

MARGARITA

Ingredients:

40 ml lemon juice

20 ml Cointreau

40 ml tequila

Table salt

Preparation:

Place all the ingredients in the container and blend at Turbo speed giving 2 or 3 turns.

Strain the resulting mix. Serve in a tall glass with the edge drenched in lemon-juice and covered with table salt.

Fast version	[CZYD]
Place all the ingredients in the blender container	2-3 turns	Turbo

COFFEE MILK SHAKE

Ingredients:

1 sachet of instant coffee

500 ml of milk

300 g of vanilla ice-cream

2 tablespoonsful of sugar (if required very sweet)

Preparation:

Place all the ingredients in the container and blend until a smooth mix is obtained. Serve immediately. For decoration top off with whipped cream with shavings of coloured fruit or cinnamon.

Fast version	[XXBT] _	[8344] _
Place all the ingredients in the blender container		Max. speed

BLOODY MARY

Ingredients:

50 ml vodka

120 ml tomato juice

10 ml lemon juice

1 dash of Tabasco sauce

1 dash of Worcestershire sauce

1 pinch of salt

1 pinch of pepper

2 ice cubes

Preparation:

Place all the ingredients in the container and blend at speed for 10 seconds. Add the 2 ice-cubes and serve. Decorate with a slice of lemon.

Fast version	[0203]	[T502]
Place all the ingredients in the blender container	10 sec.	Max.speed

Français

Mixeur

Optima

Optima Glass

Optima Legend

Optima Mill

Cher Client.

Color palette bar with grayscale gradient and a central crosshair (no text or symbols)

上

غَلَّطُ لَ نَيْتَ لَزِهِجَ لَطْلِقَنْحَزَلَكُجْلٍ مَعَتَبِاق

ل: ١ مم ت

: يح ي لكضبه وط لزجکا کیشکلات

مَعْمَاعُ لَى فِيْعَلَة كَعَبَةٍ وَذَ غَلَاً عَض

Optim(a) = 100 Optim(a) = 100 Legen Mill

عا ب دلا

أقص ١٠ خ١١ ٢ قَلَاب

Net weight: 1,8Kg approx.

Gross weight: 2Kg approx.

OPTIMA GLASS

Net weight: 3Kg approx.

Gross weight: 3,3Kg approx.

OPTIMA LEGEND

Net weight: 3Kg approx.

Gross weight: 3,3Kg approx.

OPTIMA MILL

Net weight: 3,3Kg approx.

Gross weight: 3,6Kg approx.
