USER MANUAL Connect 540 UHD MARMITEK

• To prevent short circuits, this product should only be used inside and only in dry spaces. Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.
• Do not expose the components of your systems to extremely high temperatures or bright light sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.
• This product is not a toy. Keep out of reach of children.
• Do not open the product (battery panel excepted): the device may contain live parts. The product should only be repaired or serviced by a qualified expert.
• Keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion.
• Only connect the adapter to the mains after checking whether the mains voltage is the same as the values on the identification tags. Never connect an adapter or power cord when it is damaged. In that case, contact your supplier.

1. INTRODUCTION

Congratulations on your purchase of the Marmitek Connect 540 UHD™! This HDMI Matrix Switcher allows you to connect four HDMI sources to two screens (TV or projector). This is ideal when, for example, you want to send the signal to another room with an HDMI Extender. Examples of HDMI sources are game consoles such as a PlayStation or Xbox, Blu-ray players, digital TV decoders and all other HDMI devices. The Connect 540 UHD™ supports Ultra HD (4k), Full HD (1080p) and all 3D formats, making it suitable for all your existing and future equipment.

Marmitek products are manufactured with great precision and are of high quality. Please read these instructions carefully and follow the instructions to optimally enjoy the possibilities of this product.

2. PACKAGE CONTENTS

1 x HDMI Matrix Switcher
1 x Remote Control (battery included)
1 x HDMI Cable
1 x Power Adapter
1 x User Manual

3. BENEFITS

• Connect two TVs or projectors and switch between 4 connected HDMI devices.
• HDMI matrix switcher allows you to watch other HDMI devices on 2 screens independently.
• If required, select your video resolution (4k2k, 1080p, 1080i) and audio format (HD Audio, DTS 5.1, Dolby Digital, PCM 2.0) on the HDMI output, using the unique EDID switch.
• Includes built-in repeater and equalizer for correcting any signal loss.

HDMI PROPERTIES

• Video bandwidth 300MHz (enables display of Ultra HD 4k and Full HD 1080p)
  • Supports all 3D formats (suitable for use with your own 3D equipment)
• Deep Color 36-bit (billions instead of millions of colours, better reproduction of subtle differences in gradation and a higher contrast ratio)
• Dolby TrueHD and DTS HD Master Audio (high quality audio support)

4. INSTALLATION

Installation tips:

• Turn off all devices (TV and HDMI sources) before connecting them to the Connect 540 UHD™. If a device cannot be turned off, please remove the plug from the socket.
• Only use High Speed HDMI® certified cables for the best picture and sound quality. Using too much force to connect or disconnect the HDMI cables may damage them.

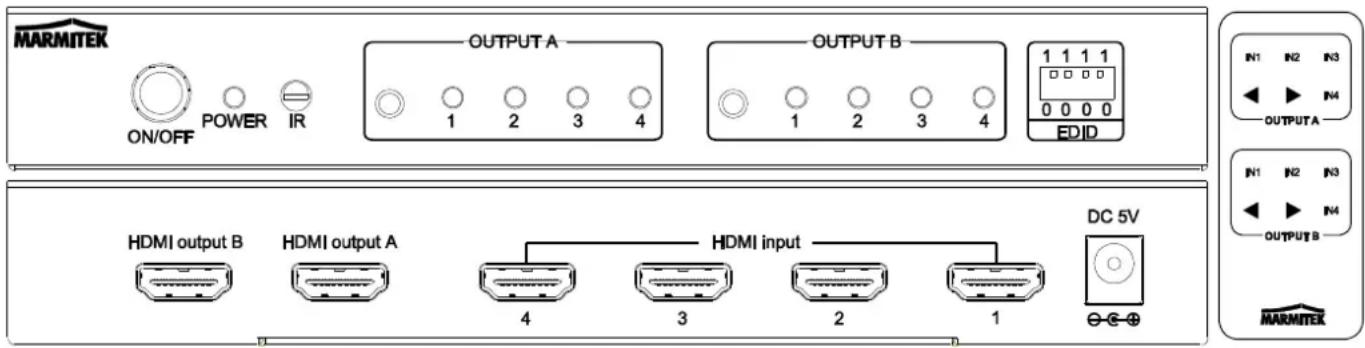

MARMITEK ON/OFF POWER IR OUTPUT A OUTPUT B 1 1 1 1 1 2 3 4 1 2 3 4 0 0 0 EDID HDMI output B HDMI output A HDMI input DC 5V 4 3 2 1 - ⊕ ⊕ ⊕ N1 N2 N3 ◀ ▶ ▶ ▶ OUTPUTA N1 N2 N3 ◀ ▶ ▶ ▶ OUTPUTB MARMITEK

1. Use an HDMI cable to connect the HDMI sources (such as game consoles, Blu-ray players and Digital TV Decoders) to the HDMI ports marked "HDMI input".
2. Use an HDMI cable to connect the TV to the HDMI port marked "HDMI output".
3. Connect the power adapter to the "DC 5V" and insert the plug into the socket.
4. Pull the plastic strip from the remote control's battery compartment to activate the battery and remove the protective film from the top.

5. USE

Switching between connected HDMI devices

The Connect 540 UHD ^™ allows you to choose which HDMI source is displayed on the TV. If you want to select another HDMI source, please use the remote control or the "OUTPUT A / B" button on the front.

EDID settings

EDID stands for Extended Display Identification Data and is used for communication between HDMI sources and screens, enabling you to determine the supported display resolutions and audio formats. The HDMI source requests this information from the screen and determines the best resolution or audio format. When using multiple screens (TVs or projectors), the best resolution and audio format that is supported by all connected screens is determined.

This may cause problems in some situations, for example, when one of the connected sources or screens does not fully support EDID. Using switches at the front, you can manually enter the required video resolution and audio format. See Appendix 1 on page 39 for an overview of the associated settings.

Tip: In standard situations, always use the automatic setting, which will result in sound and image on all connected screens. With manual settings, no image or sound may be displayed on one or more screens if the appropriate setting is not supported.

6. FREQUENTLY ASKED QUESTIONS

No (or poor) image and sound

If you experience poor or no picture after connecting the HDMI switcher, please try to identify the problem by connecting the devices to your screen (TV, monitor or projector) one by one. This allows you to determine whether the problem is with the HDMI sources, the HDMI cables, the HDMI switcher or the screen.

• Make sure the power adapter is connected and plugged in.
• For the best picture and sound quality, only use High Speed HDMI® certified cables.
• Do not use HDMI cables longer than those specified in the technical data.
• Check the HDMI cables and/or connectors for damage.
• Both the HDMI source and your screen should fully support HDMI.
• Check that your HDMI sources and screen support HDCP (High Bandwidth Digital Content Protection) copy protection.

Incorrect 3D display

• Please check whether the HDMI source is set to display 3D and/or it is set to automatic.
• Both the HDMI source and your HD screen should support the same 3D formats.
• Please check that 3D is displayed correctly by connecting the HDMI source directly to the HD display with an HDMI cable.

Any questions that are not answered here? Please visit www.marmitek.com

7. TECHNICAL DATA

Connections

HDMI input 4 x HDMI (19-pin female)

HDMI output 2 x HDMI (19-pin female)

HDMI cable length max. 15 metres

Video

Supported resolutions 480p, 576p, 720p, 1080i, 1080p and 4k2k@24/30

HDMI standards HDCP, CEC, EDID, DVI, all 3D formats, Deep Color (36-bit), x.v.Color

Video Bandwidth 10.2Gbps

Clock frequency 300MHZ

Audio

HDMI audio DTS-HD Master Audio, Dolby TrueHD, LPCM 7.1, DTS, Dolby-AC3 and 2.0CH

Switcher housing

Dimensions (H x W x D) 85 x 192 x 26mm

Weight 450 g

Environment

Ambient temperature +0 to +70°C

Ambient humidity 10% to 85%

Power

External power adapter 100-240VAC @50-60Hz, 5VDC @ 1A

Specifications may change without prior notice.

DECLARATION OF CONFORMITY

Hereby, Marmitek BV, declares that this Connect 540 UHD ^™ is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility

Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits

Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Commission Regulation (EC) No 278/2009 of 6 April 2009 implementing Directive 2005/32/EC of the European Parliament and of the Council with regard to ecodesign requirements for no-load condition electric power consumption and average active efficiency of external power supplies

MARMITEK BV - P.O. BOX 4257 - 5604 EG EINDHOVEN – THE NETHERLANDS

CE

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the

government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

COPYRIGHTS

Marmitek is a trademark of Pattitude B.V.

Connect 540 UHD ^™ is a trademark of Marmitek B.V. All rights reserved.

Every effort has been made to ensure that the information in this manual is accurate. Marmitek is not responsible for printing or clerical errors.

Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions.

Other company and product names mentioned herein may be trademarks of their respective companies. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Marmitek assumes no responsibility with regard to the performance or use of these products.

SICHERHEITSHINWEISE

DECLARATION OF CONFORMITY

Dimensions (H x L x P) 85 x 192 x 26mm

Poids 450 g

Environnement

DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

Dimensioni (A x L x P) 85 x 192 x 26mm

Peso 450 g

Ambiente

DECLARATION OF CONFORMITY

VEILIGHEIDSWAARSCHUWINGEN

HDMI standards HDCP, CEC, EDID, DVI, all 3D formats, Deep

Color (36bit), x.v.Color

Video Bandbreedte 10.2 Gbps

Clock frequentie 300 MHZ

Audio

HDMI audio DTS-HD Master Audio, Dolby TrueHD, LPCM 7.1,

DTS, Dolby-AC3 and 2.0CH

Behuizing Switcher

Afmeting (H x B x D) 85 x 192 x 26mm

Gewicht 450 g

Omgeving

DECLARATION OF CONFORMITY

APPENDIX: EDID SETTINGS

Tip: In standard situations, always use the automatic setting, which will result in sound and image on all connected screens. With manual settings, no image or sound may be displayed on one or more screens if the appropriate setting is not supported.

#	EDID Selector	Description
1	0000	1080p,Stereo Audio 2.0
2	0001	1080p,Dolby/DTS 5.1
3	0010	1080p,HD Audio 7.1
4	0011	1080i,Stereo Audio 2.0
5	0100	1080i,Dolby/DTS 5.1
6	0101	1080i,HD Audio 7.1
7	0110	3D,Stereo Audio 2.0
8	0111	3D,Dolby/DTS 5.1
9	1000	3D,HD Audio 7.1
10	1001	4K2K,Stereo Audio 2.0
11	1010	4K2K,Dolby/DTS 5.1
12	1011	4K2K,HD Audio 7.1
13	1100	N/A
14	1101	N/A
15	1110	N/A
16	1111	Automatic (default)
