TO1020 - Toaster VOX - Free user manual and instructions

Product Type	2-Slice Toaster
Brand	VOX
Model	TO1020
Number of Slots	2
Browning Control Levels	6 (1=lightest, 6=darkest)
Functions	Toast, Defrost, Reheat, Cancel
Carriage Handle	Manual lever with automatic pop-up
Crumb Tray	Removable, located at bottom
Cord Storage	Under the base
Safety Features	Cancel button, automatic shut-off, cool-touch housing (estimated)
Cleaning	Wipe exterior with soft dry cloth; empty crumb tray weekly
Voltage	As per rating label (e.g., 220-240V, typical)
Power Consumption	Approximately 800-900W (typical for 2-slice toaster)
Material	Plastic housing (typical)
Intended Use	Household and similar (kitchens, offices, farm houses, hotels, B&Bs)
Child Safety	Not for children under 8 without supervision; keep cord out of reach
Special Notes	For small bread slices (<85mm), risk of burning when removing
Waste Disposal	Environment friendly: take to appropriate waste disposal center

Frequently Asked Questions - TO1020 VOX

How many slices of bread can I toast at once?

You can toast up to 2 slices at a time.

How do I adjust the toasting level?

Turn the color control knob to one of the 6 positions (1=light, 6=dark). The middle setting gives a golden color.

What is the Defrost function for?

The Defrost button adjusts the toasting cycle for frozen bread. Press it before lowering the carriage handle.

How do I reheat cold toast?

Press the Reheat button, then lower the carriage handle. The toaster will run a fixed reheat cycle and pop up automatically.

What should I do if the toaster starts smoking?

Press the Cancel button immediately to stop the toasting cycle.

Can I toast buttered bread or pastries with fillings?

No, avoid toasting food with runny ingredients like butter to prevent fire or damage.

How do I clean the toaster?

Unplug and let cool. Wipe the exterior with a soft dry cloth. Remove and empty the crumb tray at the bottom regularly.

Why is my toast darker when I toast one slice compared to two?

Toasting one slice at the same setting will result in darker color than two slices because more heat is absorbed per slice.

Can I use an extension cord with the toaster?

The manual does not recommend an extension cord. Plug directly into a wall outlet with the correct voltage.

What should I do if bread gets jammed in the slot?

Unplug the toaster first. Then carefully remove the bread without damaging the internal heating elements.

USER MANUAL TO1020 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

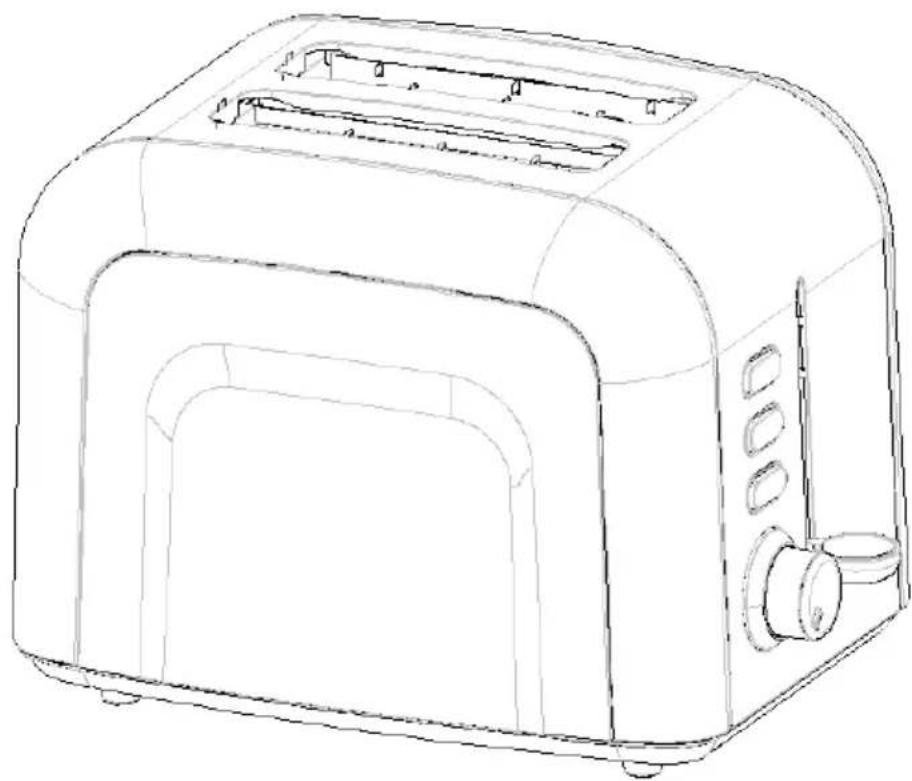

TO - 1020

OPERATING INSTRUCTIONS TOASTER

MANUALE DELL'UTENTE TOSTAPANE

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GBR

INSTRUCTION MANUAL TO - 1020

Line drawing of a modern toaster oven with front and side panels (no text or symbols)

Read this manual thoroughly before using and save it for future reference

IMPORTANT SAFEGUARDS

When using electrical appliance. Basic safety precautions should always be followed including the following:

1. Read all instructions.
2. Make sure that your outlet voltage corresponds to the voltage stated on the rating label of the toaster.
3. Do not touch hot surface. Use handles or knobs only.
4. To protect against electrical shock, do not immerse cord, plug, or any part of the toaster in water or other liquid.
5. Close supervision is necessary when it is used by or near children.
6. Unplug unit from outlet when not in use and before cleaning.
7. Do not operate any appliance with a damaged cord or plug, or in abnormal state. If its main cord is damaged, it must be replaced by the manufacturer, the nearest service agent or a qualified person.
8. Do not let the cord hang over edge of table or counter, or touch hot surface.
9. Do not place on or near a hot gas or electric burner, or in a heated oven.
10. Do not use the appliance for other than its intended use.
11. Oversize food, metal foil packages or utensils must not be inserted in the toaster as they may cause fire or electric shock.
12. Bread may burn, so toasters must not be used near or below curtains and other combustible materials, and must be watched.
13. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
14. Don't attempt to dislodge food when toaster is in operation
15. Be sure to take the bread out carefully after toasting so as to avoid injuries.
16. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
17. Keep the appliance and its cord out of reach of children less than 8 years.
18. Warning: If toast of small bread slices less than 85mm length, you must pay attention

to the potential risk of burning when taking out the slices.

1. The appliance is not intended to be operated by means of an external timer or separate remote-control system.
2. Don't use the appliance outdoors.
3. This appliance is intended to be used in household and similar applications such as:

– Staff kitchen areas in shops, offices and other working environments;
– Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments.

1. Save these instructions.

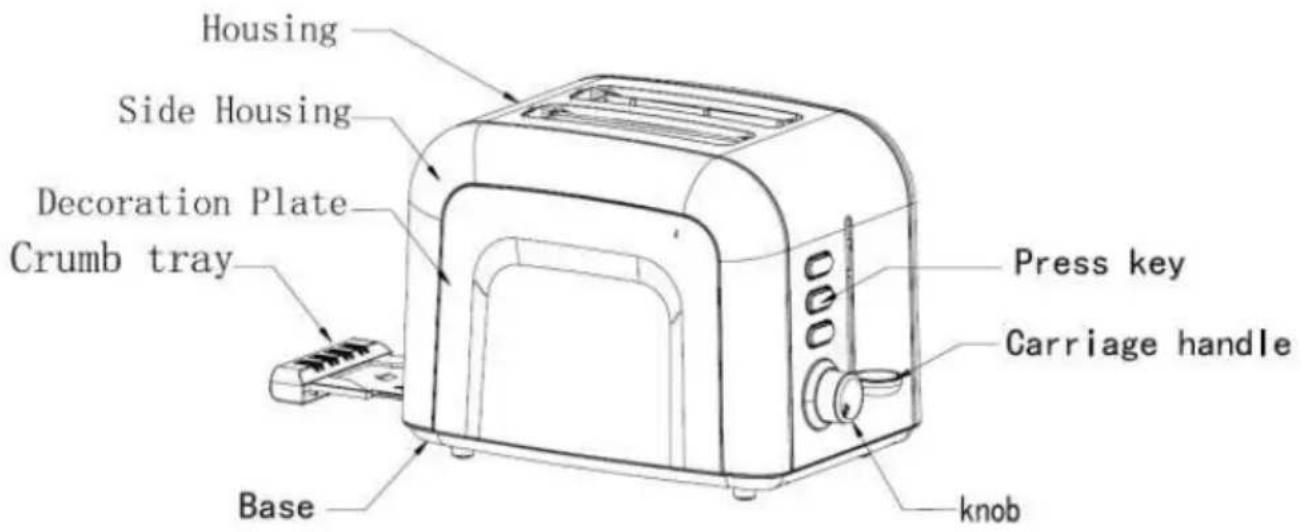

KNOW YOUR TOASTER

FOR THE FIRST USE

As there is manufacturing residue or oil remained in the toaster or heat element, usually it will emit the odor for the first use. It is normal and will not occur after several times use, for the first use it is suggested the operation according to the below steps, except without bread, then let the toaster cool down and begin toasting the first slice.

USING YOUR TOASTER

1. Put bread slice into the bread slot, which can be inserted two slices at most every time. If only toasting one side or irregular bread.

NOTE: 1) Make sure the crumb tray is completely positioned in place before using. 2) Before toasting on the toast rack, let the appliance cool down.

1. Plug the power cord into the outlet.

2. Set color control knob to your desired color. There is 6-position level (see fig.1), the lowest “1” is for light and the highest “6” is for dark. The bread slice can be toasted to golden color at the middle position.

Fig.1

NOTE: 1) Toasting color for one slice is darker than that for two bread slices at the same level.

2) If toasting continuously, toasting color for the latter bread is darker than that for the anterior bread at the same level.

1. Lower carriage handle down vertically until it is latched in place, the indicator of Cancel will be illuminated, and the appliance will begin toasting at once.

2. Once the read has been toasted to the preset color, the carriage handle will automatically pop up. Also you can uplift the carriage handle a little to remove the bread readily (see fig.2).

NOTE: During toasting, you may also observe the toasting color. If it is satisfactory, you can press the Cancel button to cancel the operation at any time.

1. If you want to toast frozen bread, firstly press Defrost button and the indicator of Defrost button will be illuminated, set color control knob to

Fig.2

your desired color, and then lower carriage handle down vertically until it is latched in place. In this mode bread will be toasted to your desired color.

1. If you want to warm cold toasted bread, firstly press the Reheat button and the indicator of Reheat button will be illuminated, and then lower carriage handle vertically until it is latched in place. In this mode toasting time is fixed, so long as time runs over, the carriage handle will automatically spring up and end up the reheating process.

CAUTION

1. Remove all protective wrappings prior to toasting.
2. If toaster starts to smoke, Press Cancel to stop toasting immediately.
3. Avoid toasting the food with extremely runny ingredients such as butter.
4. Never attempt to remove bread jammed in the slots without unplugging the toaster from the electrical outlet first. Be sure not to damage the internal mechanism or heating elements when removing bread.
5. In order to achieve uniform color we recommend that you should wait minimum 30s between each toasting so that color control can reset automatically.

CLEANING AND MAINTENANCE

1. Before cleaning, unplug from the appliance and let the appliance cool down completely.
2. Wipe the outside with soft dry cloth, never use metal polish.

3. Pull out crumb tray at the bottom of toaster and empty it. If toaster is used frequently, accumulated bread crumbs should be removed at least once a week. Make sure the crumb tray is completely closed before using the toaster again.

4. When not use or storage, the power cord may be wound under the bottom of toaster.

ENVIRONMENT FRIENDLY DISPOSAL

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

VOX ELECTRONICS

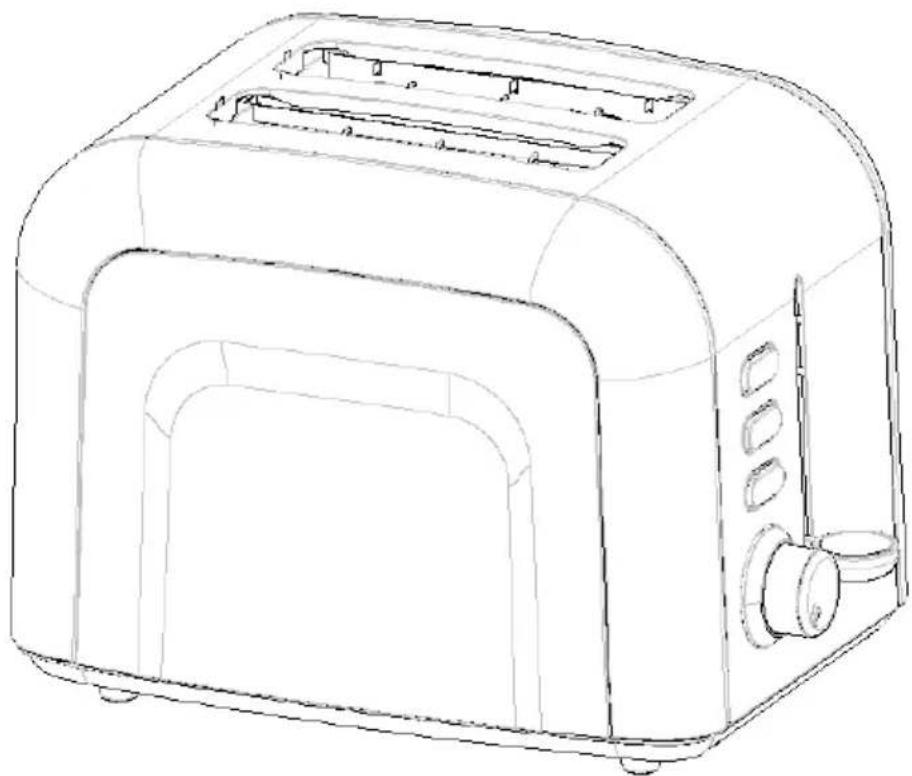

MANUALE DELL'UTENTE TO - 1020

Line drawing of a standard 3D toaster with front and back panels (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

DEU

Line drawing of a standard 3D toaster with front and back panels (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

RUS

Line drawing of a standard 3D toaster with front and back panels (no text or symbols)

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SRB

KORISNIČKO UPUTSTVO TO - 1020

Line drawing of a standard 3D toaster with no text or symbols

Pažljivo pročitajte ovo uputstvo pre korišćenja i sačuvajte ga za kasniju upotrebu

VAŽNA BEZBEDNOSNA UPUTSTVA

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ESP

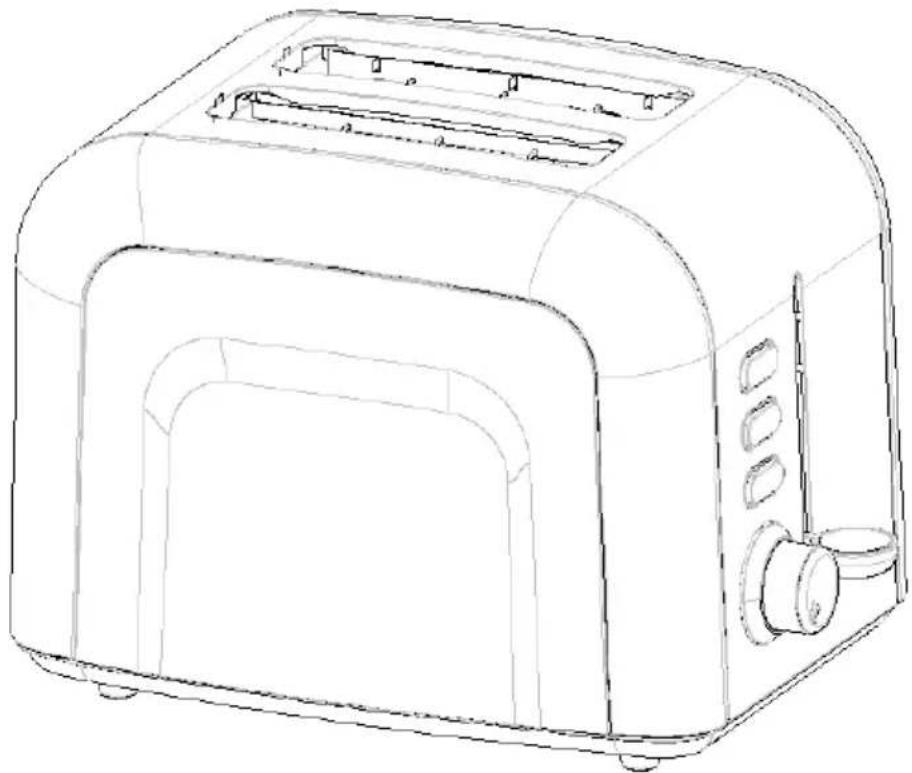

MANUAL DE INSTRUCCIONES TO - 1020

Line drawing of a modern toaster oven with front and back panels (no text or symbols)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

PRT

MANUAL DE INSTRUÇÕES TO - 1020

Line drawing of a modern toaster oven with front and side panels (no text or symbols)

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GRC

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

TO - 1020

Line drawing of a modern toaster oven with front and side panels (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

NAVODILA ZA UPORABO

TO - 1020

Line drawing of a modern toaster oven with handle and front panel (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

KORISNIČKE UPUTE

TO - 1020

Line drawing of a modern toaster with front and back panels (no text or symbols)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

BIH

MNE

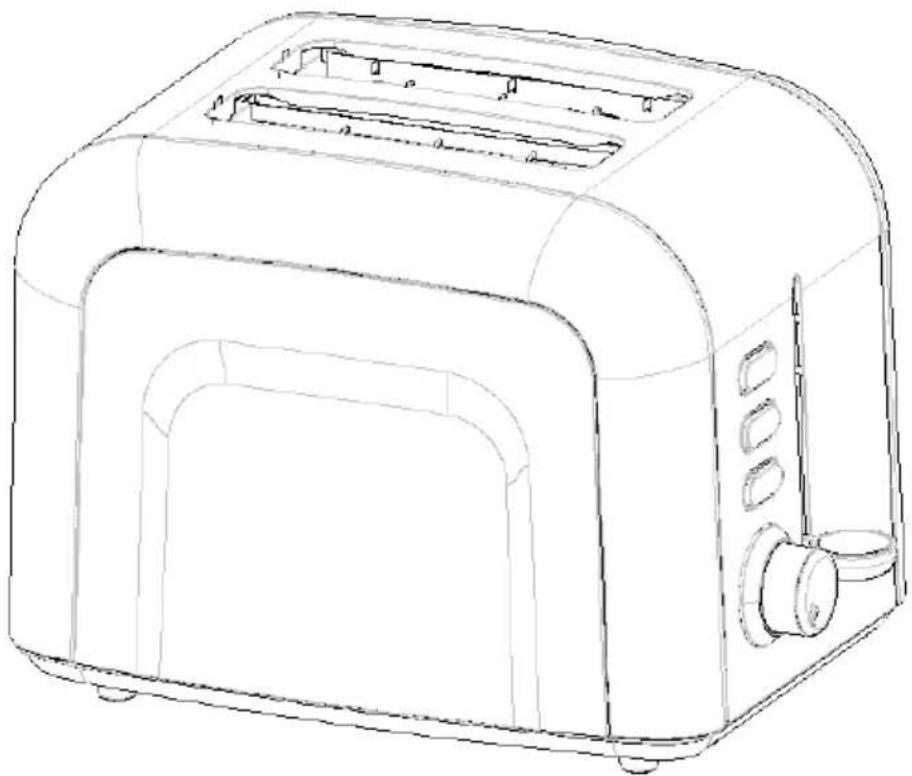

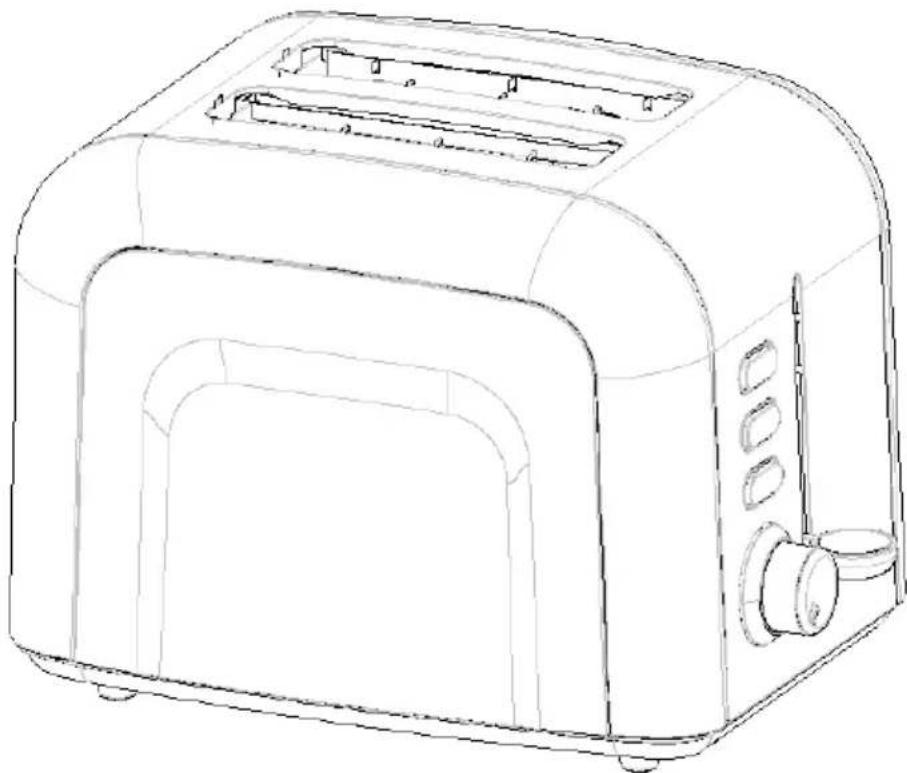

KORISNIČKO UPUTSTVO

TO - 1020

Line drawing of a modern toaster oven with front and back panels (no text or symbols)

Pažljivo pročitajte ovo uputstvo prije korišćenja i sačuvajte ga za kasniju upotrebu

VAŽNA BEZBJEDNOSNA UPUTSTVA

Prilikom upotrebe električnog aparata treba da se pridržavate osnovnih mjera bezbednosti uključujući sljedeće:

1. Pročitajte sve instrukcije.
2. Uvjerite se da li napon u zidnoj utičnici odgovara naponu uređaja koji se može naći na natpisnoj tablici pri dnu uređaja.
3. Nemojte dodirivati vruće površine. Koristite ručku ili dugmad.
4. Da biste izbjegli rizik od elektrošoka, nemojte uranjati kabl, utikač ili grijni dio u vodu ili bilo koju drugu tečnost.
5. Neophodan je strogi nadzor kada aparat koriste djeca ili se aparat koristi blizu njih.
6. Isključite aparat iz utičnice kada ga ne koristite i prije čišćenja.
7. Nemojte rukovati aparatom ukoliko je oštećen naponski kabl ili utikač ili ako se aparat oštetio na bilo koji način. Ukoliko je oštećen naponski kabl, mora ga zamijeniti proizvođać, najbliži servisni agent ili kvalifikovani tehničar.

8. Ne ostavljajte naponski kabl aparata da visi sa ivice stola, radne površine ili blizu bilo kakvog grijnog tela.

9. Ne ostavljajte uređaj na ili u blizini vrućih gasnih ili električnih ringli, ili ugrijane rerne.

10. Nemojte koristiti aparat u bilo koju svrhu osim onu za koju je namijenjen.

11. Ne stavljajte u toster hranu koja ne može da stane, aluminijumske folije ili kuhinjska pomagala jer može doći do požara ili strujnog udara.

12. Hjleb u tosteru može da izgori i zbog toga ga ne postavljajte u blizini ili ispod zavjesa ili drugih zapaljivih materijala.

13. Upotreba nastavaka ili dijelova koje ne preporučuje proizvođač mogu izazvati povrede.

14. Ne pokušavajte da vadite hranu iz tostera dok je u funkciji.

15. Pažljivo izvadite tostirani hljeb iz tostera kako biste izbjegli opekotine.

16. Uređaj mogu koristiti djeca starija od 8 godina kao i osobe sa smanjenim fizičkim, senzornim i mentalnim sposobnostima ili osobe sa nedostatkom iskustva i znanja ako su pod nazdorom ili im je objašnjeno od strane odgovorne osobe kako uređaj treba bezbjedno da funkcioniše i ako razumiju koje su sve potencijalne opasnosti vezane za rukovanje ovim uređajem. Djeca se ne smiju igrati sa ovim uređajem. Djeca ne smiju čistiti niti održavati ovaj uređaj osim ako imaju 8 i više godina i ako su pod nadzorom.

17. Držite uređaj i njegov kabl za napajanje van domašaja djece ispod 8 godina.

18. Upozorenje: ako tostirate hljeb čija je debljina manja od 85mm, obratite pažnju na potencijalni rizik od opekotina tokom vađenja tosta.

19. Uređaj nije predviđen da radi uz pomoć eksternog tajmera ili odvojenog sistema za daljinsko upravljanje.

20. Nemojte koristiti uređaj napolju.

21. Ovaj uređaj je namijenjen za kućnu upotrebu i slično korišćenje od strane:

- kuhinjskog osoblja u radnjama, kancelarijama i drugim radnim okruženjima;

- osoblja na farmama;

– od strane klijenata u hotelima, motelima i drugim prebivalištima;

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MKD

Line drawing of a modern toaster oven with front and side panels (no text or symbols)

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Abstract black-and-white geometric pattern with diagonal stripes inside a circle (no text or symbols)

VOX

ELECTRONICS

ALB

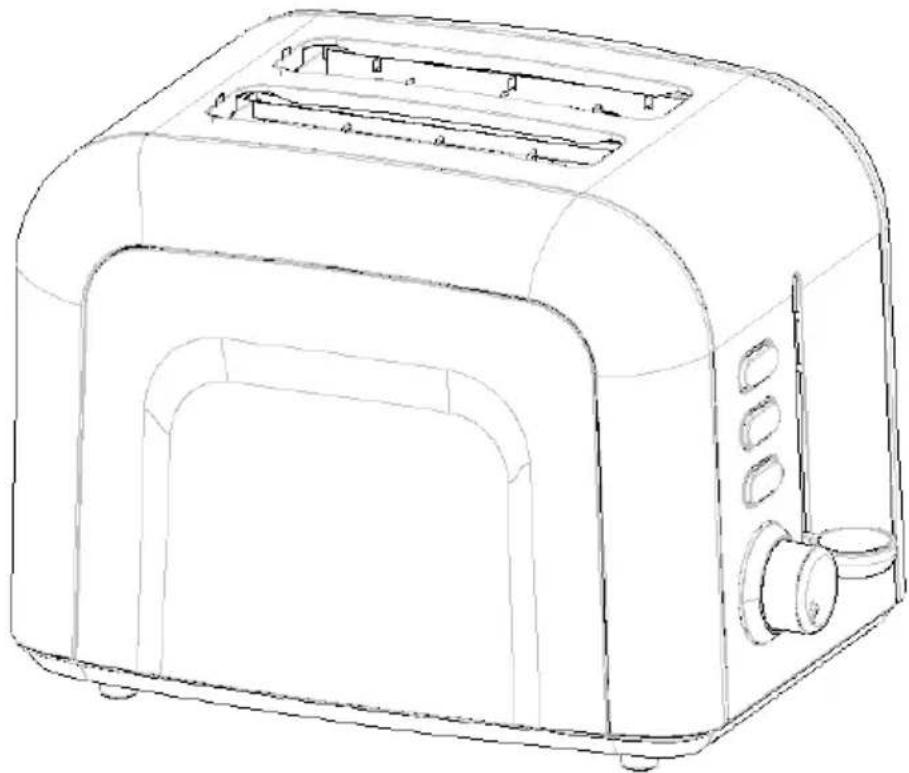

UDHËZIM PËR PËRDORIM TO - 1020

Line drawing of a modern toaster with front and back panels (no text or symbols)

Simple line drawing of a door handle with buttons and an arrow indicating upward motion (no text or symbols)

Foto 2

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)
