TO1703 - Toaster VOX - Free user manual and instructions

Product Type	Toaster
Brand	VOX
Model	TO1703
Dimensions (approx)	25 x 18 x 20 cm
Weight (approx)	1.2 kg
Power Consumption	800 - 900 W
Voltage	220-240 V, 50/60 Hz
Number of Slots	2
Functions	Toast, Reheat, Defrost, Cancel
Controls	Lever, Browning Dial, Function Buttons
Housing Material	Stainless Steel and Plastic
Cord Length	0.8 m
Removable Crumb Tray	Yes
Auto Shut-off	Yes
Non-slip Feet	Yes
Cleaning	Wipe exterior with damp cloth; empty crumb tray regularly
Safety Features	Overheat Protection
Spare Parts Availability	Crumb tray, heating elements (check VOX service center)
Repairability	Modular design for basic repairs; consult professional for complex issues

Frequently Asked Questions - TO1703 VOX

How do I adjust the browning level?

Turn the browning dial to your desired setting, from 1 (light) to 6 (dark). For consistent results, start with a medium setting.

What do the Reheat and Defrost functions do?

The Reheat function warms cold toast without further browning. The Defrost function adjusts the cycle to toast frozen bread evenly.

How do I clean the toaster?

Unplug the toaster and let it cool. Wipe the exterior with a damp cloth. Remove and empty the crumb tray regularly. Do not immerse in water.

Why does my toast come out unevenly browned?

Uneven browning can be caused by bread thickness, positioning, or a dirty crumb tray. Ensure the bread is centered and the tray is clean. Try a lower setting.

Can I toast bagels or thick slices?

Yes, but you may need to use the Bagel function if available, or adjust the browning dial. Do not force thick slices; use the slot width as a guide.

What should I do if the toaster stops working?

Check the power cord, outlet, and safety fuse. If the toaster has overheat protection, let it cool for 15 minutes and reset. If still not working, contact VOX service.

How do I prevent the toaster from smoking?

Smoking often occurs due to crumbs or food residue. Regularly empty the crumb tray and clean the interior with a dry brush. Avoid overfilling with butter or spreads.

Is an extension cord safe to use?

Use only a heavy-duty extension cord rated for at least 10 A. Ensure the cord is fully unwound and not coiled, to prevent overheating.

How do I replace the crumb tray?

The crumb tray slides out from the bottom. To replace, simply slide it back in until it clicks. Contact VOX for a replacement if lost.

What is the warranty period?

The standard warranty is 1 year from the date of purchase. Keep your receipt. For details, check the warranty card or contact VOX support.

USER MANUAL TO1703 VOX

GBR

SRB

SVN

BIH

HRV

ESP

GRC

MKD

ALB

PRT

TO 1702

INSTRUCTION MANUAL

TOASTER

MODEL: TO-1703

Line drawing of a standard 10-inch toaster with handle, cooling fan, and control knob (no text or symbols)

IMPORTANT SAFEGUARD

When using electrical appliance the basic safety precautions should always be followed, including the following:

1. Read all instruction.

2. Make sure that your outlet voltage corresponds to the voltage stated on the rating label of the toaster.

3. Do not touch hot surface. Use handles or knobs only.

4. To protect against electrical shock, do not immerse cord, plug, or any part of the toaster in water or other liquid.

5. Close supervision is necessary when it is used by or near children.

6. Unplug unit from outlet when not in use and before cleaning.

7. Do not operate any appliance with a damaged cord or plug, or in abnormal state. If its main cord is damaged, it must be replaced by the manufacturer, the nearest service agent or a qualified person.

8. Do not let the cord hang over edge of table or counter, or touch hot surface.

9. Do not place on or near a hot gas or electric burner, or in a heated oven.

10. Do not use the appliance for other than its intended use.

11. Oversize food, metal foil packages or utensils must not be inserted in the toaster as they may cause fire or electric shock.

12. Bread may burn, so toasters must not be used near or below curtains and other combustible materials, and must be watched.

13. The use of accessory attachments is not recommended by the appliance manufacturer as may cause injuries.

14. Don't attempt to dislodge food when toaster is in operation

15. Make sure to take the bread out carefully after toasting so as to avoid injuries

16. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

17. Keep the appliance and its cord out of reach of children less than 8 years.

18. Warning: if toast of small bread slices less than 85mm length, you must pay attention to the potential risk of burning when taking out the slices.

19. The appliance is not intended to be operated by means of an external timer or separate remote-control system.

20. Don't use the appliance outdoors.

21. This appliance is intended to be used in household and similar applications such as: — Staff kitchen areas in shops, offices and other working surrounding;

— Farm houses;
— By clients in hotels, motels and other residential types of accommodation environments;
— Bed and breakfast types of accommodation.

1. Save these instructions.

2. In view of foreseeable misuse (toast of small bread slices) the user has to be informed that taking out is related with a risk of burning.

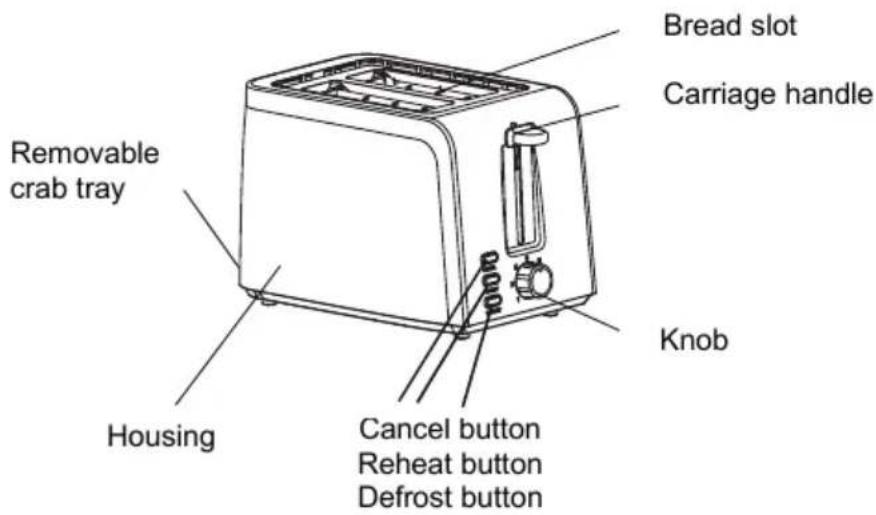

KNOW YOUR TOASTER

FOR THE FIRST USE

As there is manufacturing residue or oil remained in the toaster or heat element, it usually emits the odor for the first use. It is normal and will not occur after several times use, for the first use it is suggested to operate according to the below steps, except without bread, then let the toaster cool down and begin toasting the first slice.

USING YOUR TOASTER

1. Put a slice of bread into the bread slot, where the maximum two slices of bread can be put at a time. If only toasting one side or irregular bread, bread must be put on the toast rack which can only toasted one piece at a time. When toasting on the toast rack, raise rack control handle to make it uplift, then put bread on the toast rack. Press down the rack control handle to reset the rack when not in use.

Note: 1) Make sure the crumb tray is completely positioned in place before using.

2) Before toasting on the toast rack, let the appliance cool down.

1. Plug the power cord into the outlet.

2. Set color control knob to your desired color. There is 7-position level (see fig. 1), the lowest 1 is for white and the highest 7 is for dark. The bread slice can be toasted to golden color at the middle position.

Fig.1

Note: 1) Toasting color for one slice is darker than that for double bread slices at the same level.

2) If toasted continuously, toasting color for the latter bread is darker than the color of previous cycle at the same level.

1. Press the carriage handle down vertically until it is positioned in place, the indicator of Cancel will be illuminated, and the appliance will begin toasting at once.

Note: The carriage handle can only be latched when the appliance connects to the power supply.

1. Once the bread has been toasted to the preset color, the carriage handle will be automatically pop up. Also you can uplift the carriage handle a bit to remove bread readily.

NOTE: During the toasted process, you may observe the toasting color.

If it is satisfactory, you may interrupt the toasting process by pressing the Cancel button at any time, but never lift the carriage handle to cancel toasting.

1. If you want to toast some frozen bread, firstly press Defrost button and the indicator of Defrost button will be illuminated, set the color control knob to your desired color, and then lower carriage handle down vertically until it is latched in place. In this mode bread will be toasted to your desired color.

Fig.2

1. If you want to warm cold toasted bread, firstly press the Reheat button and the indicator of Reheat button will be illuminated and then lower the carriage handle vertically until it is latched in place. In this mode toasting time is fixed, so long as time runs over, the carriage handle will automatically spring up and end up the reheating process.

CAUTION:

1. Remove all protective wrappings prior to toasting.

2. If toaster starts to smoke, Press the press key to stop toasting immediately.

3. Avoid toasting the food with extremely runny ingredients such as butter.

4. Never attempt to remove bread jammed in the slots without unplugging the toaster from the electrical outlet first. Be sure not to damage the internal mechanism or heating elements when removing bread.

5. The bread slot is only applicable for toasting regular bread slice. Irregular bread of round bread can be toasted on the toast rack.

6. In order to achieve uniform color we recommend you should wait minimum 30s between each toasting so that color control can reset automatically.

CLEANING AND MAINTENANCE:

1. Before cleaning, unplug the appliance and let it cool down completely

2. Wipe the outside with soft dry cloth, never use metal polish.

3. Pull out crumb tray at the bottom of the toaster and empty it. If the toaster is used frequently, accumulated bread crumbs should be removed at least once a week. Make sure the crumb tray is completely closed before using the toaster again.

4. When not use or storage, the power cord may be wound under the bottom of toaster.

ENVIRONMENT FRIENDLY DISPOSAL

You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

SRB

UPUTSTVO ZA UPOTREBU

TOSTER

MODEL: TO-1703

Line drawing of a standard 10-inch toaster with handle, control knob, and side panel (no text or symbols)

VAŽNA BEZBEDNOSNA UPUTSTVA

Line drawing of a standard 3D toaster with handle, grille, and control knob (no text or symbols)

To navodilo pred uporabo pozorno preberite in ga shranite za v prihodnje.

POMEMBNA VARNOSTNA NAVODILA

Symbol of a trash bin crossed with a diagonal line and a horizontal line, representing no waste or elimination (no text or labels)

Line drawing of a standard 3D toaster with handle, keypad, and front panel (no text or symbols)

Pažljivo pročitajte ovo uputstvo prije korišćenja i sačuvajte ga za kasniju upotrebu

VAŽNA BEZBEDNOSNA UPUTSTVA

Prije upotrebe ovog električnog aparata trebalo bi uvijek ispuniti osnovne preduslove uključujući sljedeće:

1. Pročitajte sva uputstva.
2. Prije upotrebe provjeriti da li napon u zidnoj utičnici odgovara naponu uređaja koji se može naći na natpisnoj tablici pri dnu uređaja.

3. Ne dodirujte vruće površine uređaja već koristite ručke.

4. Da biste izbjegli rizik od strujnog udara, ne potapajte kabl za napajanje, utikač ili bilo koji drugi dio tostera u vodu ili neku drugu tečnost.

5. Upotreba uređaja od strane djece i nejakih osoba mora se odvijati pod bliskim nadzorom.

6. Isključite uređaj iz struje kad ga ne koristite i prije čišćenja.

7. Ne koristite uređaj sa oštećenim kablom za napajanje ili ako je uređaj prestao da radi ili se oštetio na bilo koji način. Vratite uređaj u najbliži ovlašćeni servis na pregled, popravku ili zamjenu.

8. Paziti da kabl za napajanje tokom upotrebe ne visi sa ivice stola, radne površine ili blizu bilo kakvog grijnog tela.

9. Ne postavljajte toster u blizini ili na površini plinskog ili električnog šporeta, kao i zagrijane rerne.

10. Koristiti uređaj samo u skladu sa njegovom predviđenom namjenom.

11. Ne stavljajte u toster hranu koja ne može da stane, aluminijumske folije ili kuhinjska pomagala jer može doći do strujnog udara.

12. Hljeb u tosteru može da izgori i zbog toga ga ne postavljajte u blizini ili ispod zavjesa ili drugih zapaljivih materijala.

13. Upotreba neoriginalnih nastavaka ili dijelova koje ne preporučuje proizvođač mogu izazvati požar, strujni udar i povrede.

14. Ne pokušavajte da vadite hranu iz tostera dok je u funkciji

15. Pažljivo izvadite tostirani hleb iz tostera kako biste izbjegli opekotine.

16. Uređaj mogu koristiti djeca starija od 8 godina kao i osobe sa smanjenim fizičkim, senzornim i mentalnim sposobnostima ili osobe sa nedostatkom iskustva i znanja ako su pod nazdorom ili im je objašnjeno od strane odgovorne osobe kako uređaj treba bezbjedno da funkcioniše i ako razumiju koje su sve potencijalne opasnosti vezane za rukovanje ovim uređajem. Djeca se ne smiju igrati sa ovim uređajem. Djeca ne smiju čistiti niti održavati ovaj uređaj bez nadzora osim ako imaju 8 i više godina i ako su pod nadzorom.

17. Držite uređaj i njegov kabl za napajanje van domašaja djece ispod 8 godina.

18. Upozorenje: ako tostirate tost hjleb čija je debljina manja od 85mm, obratite pažnju na potencijalni rizik od opekotina tokom vađenja tosta.

19. Uređaj nije predviđen da radi uz pomoć eksternog tajmera ili odvojenog sistema za daljinsko upravljanje.

20. Ne koristiti uređaj napolju.

21. Ovaj uređaj je namjenjen za kućnu upotrebu i slično korišćenje od strane:

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Line drawing of a standard 10-inch toaster with handle and control knob (no text or symbols)

VAŽNE BEZBJEDNOSNE UPUTE

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Line drawing of a standard 2.1D toaster with handle, keypad, and front panel (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with a blank rectangular base below (no text or symbols)

Line drawing of a standard 3D toaster with handle, grille, and control knob (no text or symbols)

Line drawing of a standard 10-inch toaster with handle and control knob (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

ЗАШТИТА НА ОКОЛИНАТА

Line drawing of a standard 3D toaster with handle and control knob (no text or symbols)

UDHËZIME RËNDËSISHME TË SIGURISË

Symbol of a trash bin with no text or labels, crossed by two diagonal lines and a solid black rectangle below (no text or symbols present)

MBETURINAVE EKOLOGJIKE

MANUAL DE INSTRUÇÕES

TORRADEIRA

MODELO: TO-1703

Line drawing of a standard 3D toaster with handle, grille, and control knob (no text or symbols)

Line drawing of a standard 3D toaster with handle and control panel (no text or symbols)

Carcaça
