Product Type	Hand Blender
Brand	VOX
Model	MS5008
Power Supply	220-240 V, 50/60 Hz
Power Consumption	300 W
Motor Unit Weight	Approx. 800 g
Cord Length	Approx. 1.2 m
Material	Motor unit: ABS plastic; Blending rod and blade: Stainless steel
Blending Jar Capacity	500 ml
Blending Max Operation Time	30 seconds per cycle, 3 minutes rest
Chopper Max Operation Time	15 seconds per cycle, 3 minutes rest
Whisk Max Operation Time	1 minute per cycle, 3 minutes rest
Max Quantity for Blending Banana	200 g banana + 300 g milk
Max Quantity for Chopping Meat	200 g (boneless)
Safety Features	Automatic shut-off when releasing button, sharp blade warning
Cleaning	Blending rod: dishwasher safe; Bowl and beater: hand wash; Motor unit: wipe with damp cloth
Attachments Included	Blending rod, blending jar (500ml), chopper bowl with lid, whisk
Warranty	2 years
Country of Origin	China
Certifications	CE

Frequently Asked Questions - MS5008 VOX

How to assemble the hand blender?

To attach the detachable shaft to the motor unit, turn the shaft anti-clockwise until tightened. To disassemble, turn in the opposite direction.

Can I crush ice with this blender?

No, the appliance cannot be used for chopping ice or blending hard and dry substances, as this may blunt the blade.

What is the maximum operation time for blending?

The maximum operation duration per cycle is 30 seconds. After each cycle, allow a 3-minute rest time before the next use.

How to clean the blender?

Unplug and remove the detachable rod. Wash the rod under running water or in the dishwasher. The jar, bowl, beater, and blade should be washed in warm soapy water (not dishwasher). Wipe the motor unit with a damp cloth only.

Can I blend hot liquids?

The manual does not recommend blending hot liquids. Allow food to cool before blending to avoid splashing and damage.

How to use the chopper attachment?

Place the chopper bowl on a level surface. Insert the blade, add food (max 200g meat, boneless), close the lid securely, then attach the motor unit. Press the speed button. Max operation time: 15 seconds with a 3-minute rest.

Why does the motor stop suddenly?

The blender may have an overload protection. Release the button, unplug, and allow it to cool for at least 3 minutes before resuming.

Can children use this appliance?

Children aged 8 years and above can use it under supervision. Cleaning and maintenance should not be performed by children unless supervised.

How to whisk egg whites?

Attach the whisk to the motor unit (turn anti-clockwise). Pour egg whites (typically 2 eggs) into a jar. Immerse the whisk and press the speed button. Max operation time: 1 minute with a 3-minute rest.

What should I do if the cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, authorized service agent, or a qualified technician to avoid hazard.

USER MANUAL MS5008 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MS - 5008

OPERATING INSTRUCTIONS HAND BLENDER

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GBR

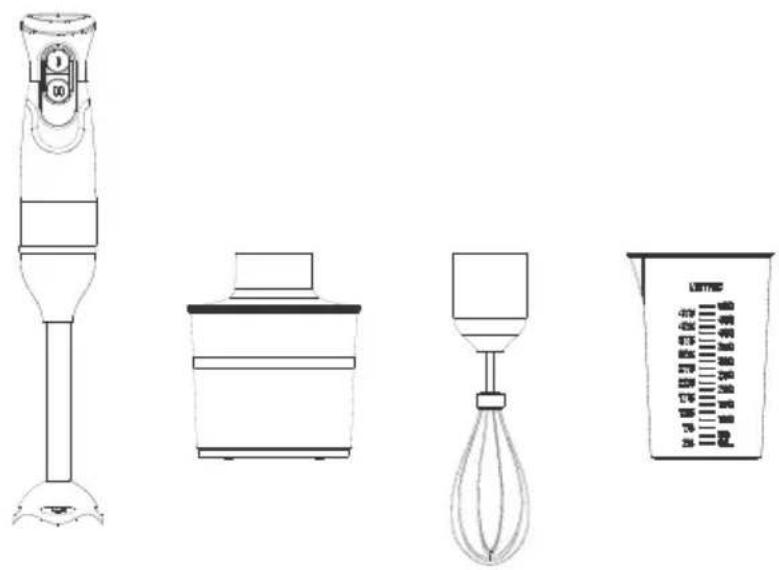

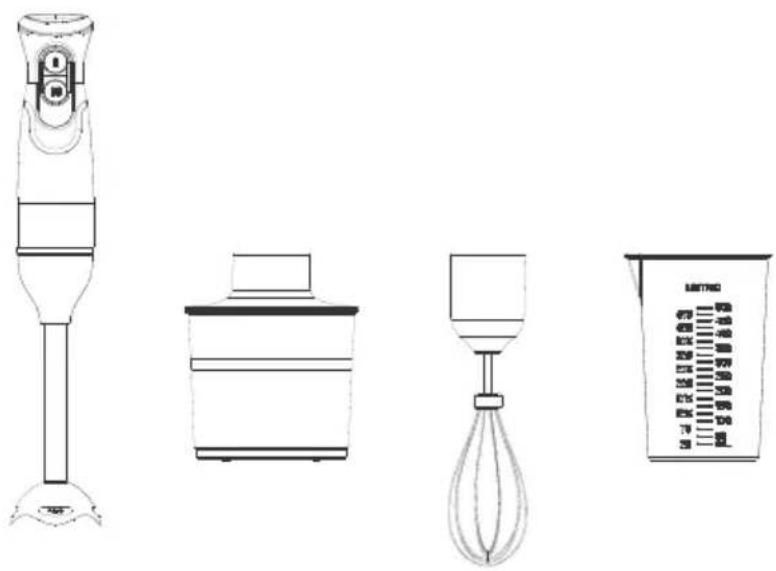

Line drawing of a handheld electronic device with a lever and indicator lights (no text or symbols)

Simple line drawing of a three-tiered appliance or container (no text or symbols)

HAND BLENDER

INSTRUCTION MANUAL

MS - 5008

Read this manual thoroughly before using and save it for future reference

IMPORTANT SAFEGUARDS

Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions.
2. Before using check that the voltage of wall outlet correspond to the one shown on the rating plate.
3. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
4. If the supply cord is damaged it must be replaced by the manufacturer or a authorized service agent or a qualified technician in order to avoid a hazard.
5. Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning;
6. Do not let cord hang over edge of table or hot surface.
7. Do not immerse upper part of blender into water as this would give rise to electric shock.
8. Close supervision is necessary when your appliance is being used near children or infirm persons.
9. Avoid contacting moving parts.
10. Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
11. The appliance cannot be used for chopping ice or blending hard and dry substance, otherwise the blade could be blunted.
12. To reduce the risk of injury, never place cutting blade on base without first putting bowl properly in place.
13. Make sure chopper lid is securely locked in place before operating appliance.
14. The use of accessory not recommended by the manufacturer may cause injuries to persons.
15. Do not operate the appliance for other than its intended use.
16. Children should be supervised to ensure that they do not play with the appliance.

17. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

18. The use of accessory not recommended by the manufacturer may cause injuries to persons.

19. Before removing the lid from the jar, release the button and unplug the appliance, wait until the blades have come to a complete stop.
20. Always remove the blade assembly before pouring contents from jar.
21. Make sure to switch off the appliance after each use of your food processor. Make sure the motor stops completely before disassembling.
22. The metal blades are extremely sharp, please handle carefully.
23. Always hold the blade stem instead of cutting edge when handling and cleaning the blade.
24. Be care of potential injury from misuse.
25. Save these instructions.

Know your blender (It is suitable for blending vegetable and fruit)

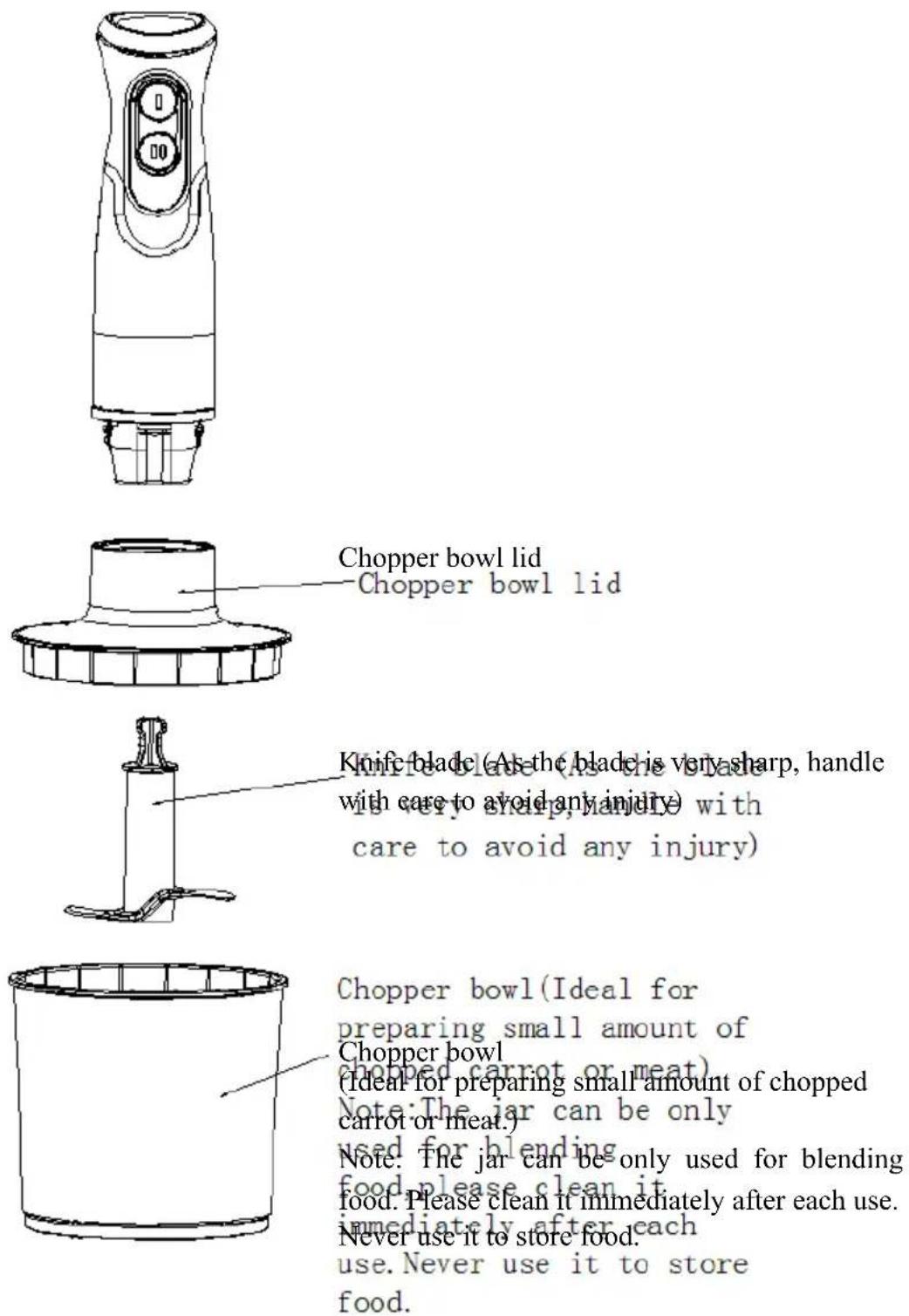

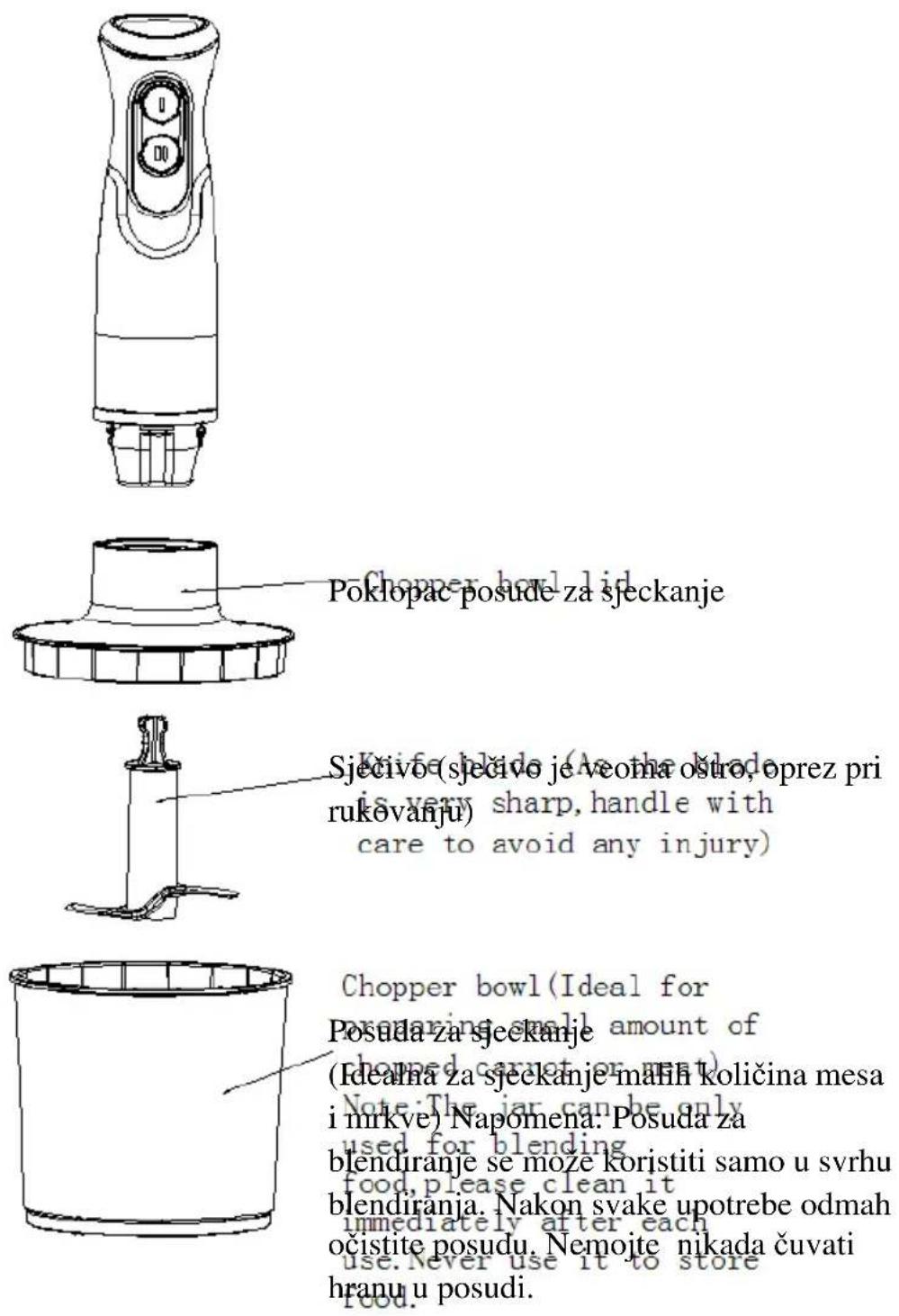

Know your accessory-chopper (Use for chopping meat and making garlic paste)

Know your accessory-beater (for mixing egg white)

Line drawing of a handheld electronic device with control buttons (no text or symbols)

Motor unit Motor unit motor unit clockwise to lock with whisk Turn the motor unit clockwise to lid lock with whisk lid.

Whisk Ideal for whisking egg white

Blending jar with measurement scale Blending jar with measurement scale Capacity 500 ml Ideal for preparing small amount of processed food. Note: The blending jar can be only processed food. Note: The blending jár can be only used for blending food. Please clean it immediately after each use. Never use it to store food.

Using your blender

Before the first use, clean the blender according to the section of “quick cleaning”. The time running unit without load can’t exceed 15s.

Important: Blades are very sharp, handle with care. Ensure that the hand-held blender is unplugged from the power outlet before assembling or removing attachments.

Instruction for blender

Max operation duration per time should less than 30 second, and 3 minute rest time must be maintained at two consecutive cycles.

1. To assemble the detachable shaft with the motor unit, turn the shaft anti-clockwise direction until tightened. To disassemble, just turn in the adverse direction.
2. Simply plug the hand-held blender to power outlet.
3. Lower the hand-held blender into food. Then press and hold the low speed button or high speed button to start operating.
4. To stop the hand-held blender by releasing the low speed button or high speed button.
5. When blending banana, cut small piece, and place it into blending jar, then add milk, the max quantify of banana can't exceed 200g, milk, 300g, in every blending.

Instruction for chopper

Max operation duration per time should less than 15 second, and 3 minute rest time must be maintained at two consecutive cycles.

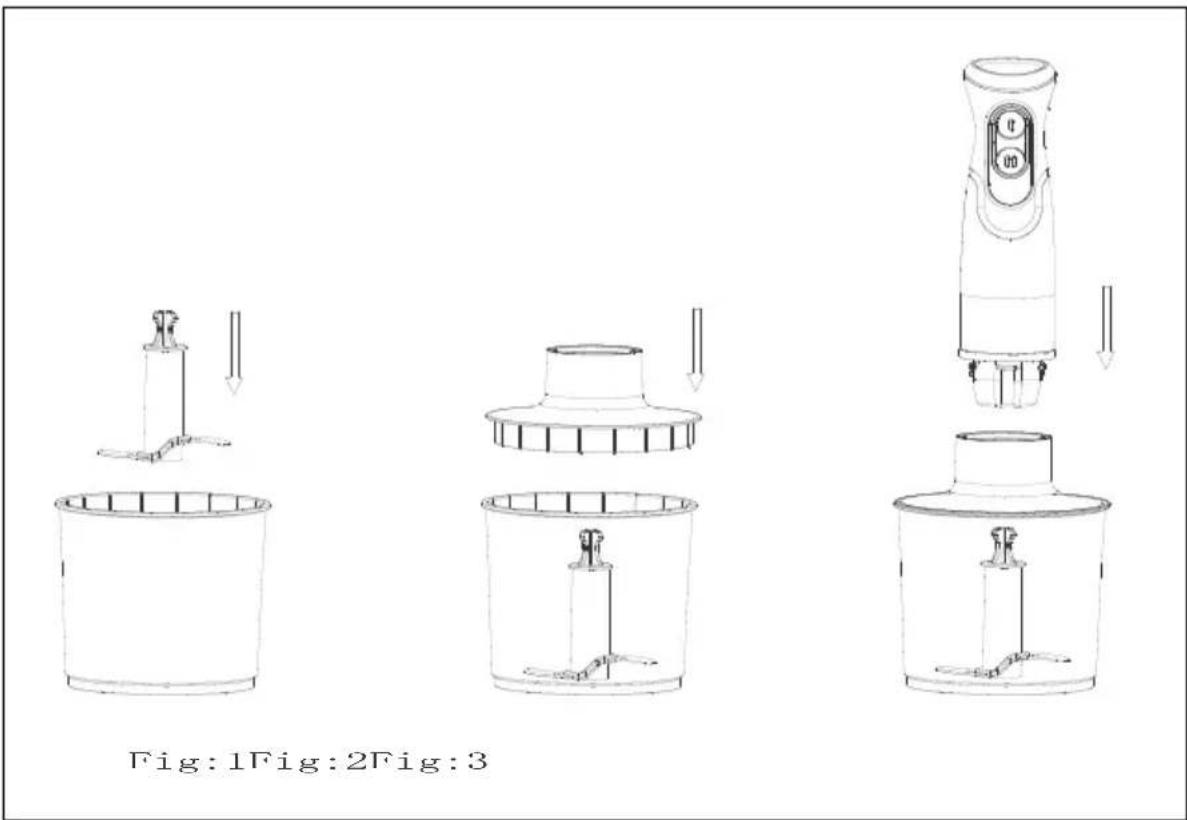

1. Place the chopper bowl on a clean, level surface.
2. Assemble the stainless chopping blade into the chopper bowl, as shown in Fig.1.
3. Place food into the chopper bowl.

Note: remove the bone of the meat, cut small piece, then place the meat into bowl, the max quantity of meat can't exceed 200g in every blending.

1. Attach the lid onto the chopper bowl, make sure the tuber on the inside wall of bowl aligns with the groove of lid, then put down and press the lid and it locks into position. (See Fig.2) The lid will spring up while you do not press it, you may remove it at that time.
2. Insert the motor unit into the hole of the chopper lid, press the motor unit to lock. The motor unit will spring up while you do not press it, you may remove it at that time. (See Fig.3)
3. Lower the hand-held blender into food. Then press and hold the low speed button or high speed button to start operating.
4. To stop the appliance by releasing the low speed button or high speed button of the motor unit.
5. After finishing chopping, unplug the power outlet firstly, then remove the motor unit from the chopper lid by turning it in anti-clockwise. Then, you can take up the motor unit and lid cover.

Caution:

-To reduce the risk of injury, never place cutting blade on base without first putting bowl properly in place.

- Be sure chopper lid is securely locked in place before operating appliance.

- During operating or after chopping, for safety, you shall disassemble the motor unit from the chopper lid firstly, then remove the chopper lid. Never remove the chopper lid with the motor unit in place.

Instruction for egg white beater

Max operation duration per time cannot exceed 1 minute, and 3 minute rest time must be maintained at two consecutive cycles.

1. To assemble the egg white beater with the motor unit, turn the whisk anti-clockwise direction until tightened. To disassemble, just turn in the adverse direction.

2. Simply plug the hand-held blender to power outlet.

3. Place egg white into the jar, generally, two eggs white is enough.

4. Lower the hand-held blender into food. Then press and hold the low speed button or high speed button to start operating.

5. To stop the hand-held blender by releasing the low speed button or high speed button of the motor unit.

CLEANING AND MAINTENANCE

1. Unplug the appliance and remove the detachable stem.
2. Wash the detachable blending rod under running water, without the use of abrasive cleaner or detergents. After finishing cleaning the detachable rod, place it upright so that any water which may have got in, can drain out. The rod is dishwasher-safe component.
3. Wash the jar, bowl, beater and blade in warm soapy water. The bowl and the beater are not recommended to place in dishwasher as the plastic component deteriorates through prolonged use of dishwasher cleaning.
4. Wipe the motor unit with a damp cloth. Never immerse it in water for cleaning as a electric shock may occur.
5. Dry thoroughly.

Caution: Blades are very sharp, handle with care.

Quick cleaning

Between processing tasks, hold the hand-held blender in the cup half filled with water and turn on for a few seconds.

Environment friendly disposal

Symbol of a trash bin with no text or numbers present

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal centre.

ITA

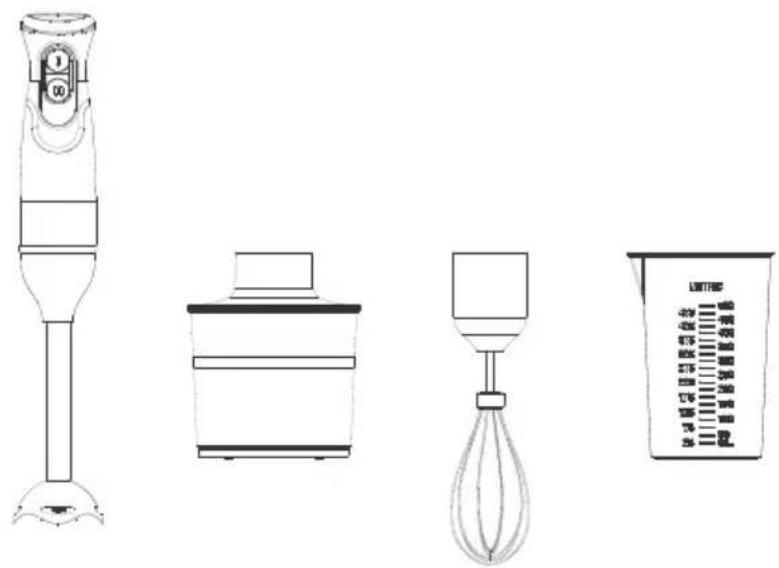

Line drawings of four kitchen utensils: a blender, a container, a whisk, and a measuring cup (no text or symbols)

FRULLATORE A IMMERSIONE

MANUALE DELL'UTENTE

MS - 5008

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

DEU

Line drawing of a handheld device with a vertical shaft and control knob (no text or symbols)

Simple line drawing of a rectangular container with a lid and side supports (no text or symbols)

STABMIXER

BEDIENUNGSANLEITUNG

MS - 5008

Technical line drawing of a handheld device with control buttons (no text or symbols)

Lebensmitteln: after each use. Neve use it to store food.

Symbol of a trash bin crossed with no visible text or labels

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

RUS

Technical line drawing of a handheld device with no visible text or symbols

Simple line drawing of a container with a lid (no text or symbols)

ПОГРУЖНОЙ БЛЕНДЕР

Line drawing of a handheld device with control buttons (no text or symbols)

Line drawings of kitchen utensils including a blender, a refrigerator, a whisk, and a measuring cup (no text or symbols)

ŠTAPNI BLENDER

KORISNIČKO UPUTSTVO

MS - 5008

Pažljivo pročitajte ovo uputstvo pre korišćenja i sačuvajte ga

za kasniju upotrebu

VAŽNA BEZBEDNOSNA UPUTSTVA

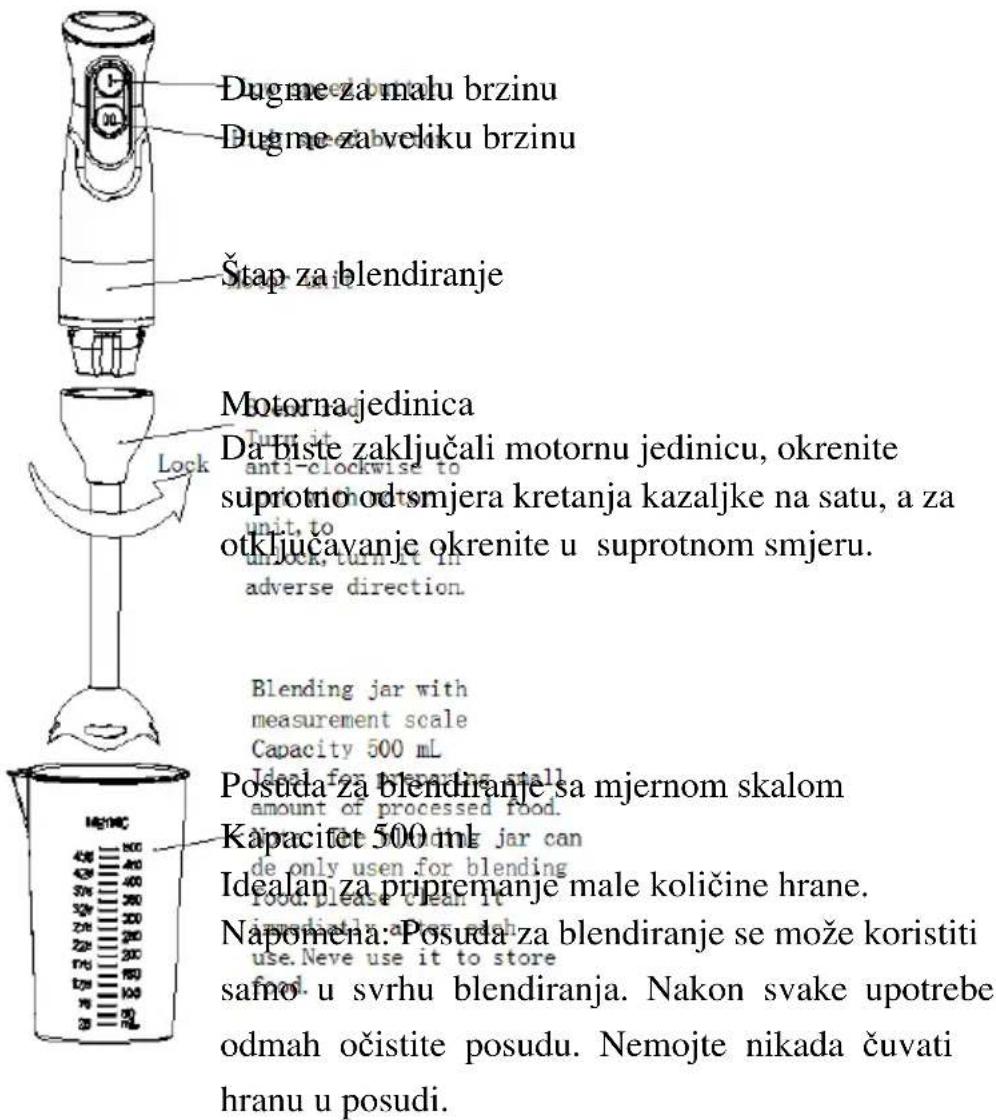

Technical line drawing of a handheld device with control buttons (no text or symbols)

Motorna jedinica Okrenite motornu jedinicu u Turn the motor unit smeru kazaljke na satur da biste zaključali mutilicu

Mutilica Ideal for whisking egg white Idealna za mučenje belanca

Posuda za blendiranje sa mernom Blending jar with measurement scale skalomy 500 mL Ideal for preparing small amount of processed food. Kapacitet 500 ml

Idealna za pripremu malih količina useo for blending food. please clean to immediately after each use. Neve Napomena: Posuđa za blendiranje se može koristiti samo u svrhu blendiranja. Nakon svake upotrebe odmah očistite posudu. Nemojte nikada čuvati hranu u posudi.

Upotreba blendera

Pre prve upotrebe, očistite blender u skladu sa odeljkom „brzo čišćenje“. Vreme rada uređaja bez opterećenja ne sme biti duže od 15 sekundi.

Symbol of a trash bin crossed with no visible text or numbers, accompanied by a black horizontal bar at the bottom (no text or symbols present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ESP

Line drawings of four kitchen utensils: a blender, a container, a whisk, and a measuring cup (no text or symbols)

BATIDORA DE MANO

Line drawing of a handheld device with control buttons (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Line drawings of kitchen utensils including a blender, a refrigerator, a glass with whisk, and a measuring cup (no text or symbols)

BATEDEIRA MANUAL

MANUAL DE INSTRUÇÕES

MS - 5008

Line drawing of a handheld device with two buttons labeled 'C' and 'DP', no text or symbols present.

Pure electrical circuit lines without any symbols

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GRC

Line drawing of a handheld electronic device with a cylindrical port and control knob (no text or symbols)

Simple line drawing of a three-tiered container or storage unit (no text or symbols)

ΜΙΞΕΡ ΧΕΙΡΟΣ

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

MS - 5008

Chopper bowl(Ideal for

preparing small amount of Δοχειο

Line drawing of a handheld device with control buttons (no text or symbols)

Μονάδα κινητήρα

Symbol of a trash bin crossed with no visible text or labels

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

ROČNI MEŠALNIK

NAVODILA ZA UPORABO

MS - 5008

Technical line drawing of a handheld device with control buttons (no text or symbols)

Motorna enota

Obrnite motorno enoto v smeri clockwise to lock with whisk

urinega kazalca, da bi pritrdili nastavek z metlico.

Metlica

Ideal for whisking egg white Kot nalašć za stepanje beljaka.

Ideal for preparing small amount of

use it to store food

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

Line drawing of a handheld electronic device with a cylindrical body and top handle (no text or symbols)

Simple line drawing of a rectangular container with a lid (no text or symbols)

ŠTAPNI BLENDER

KORISNIČKE UPUTE

MS - 5008

Technical line drawing of a handheld device with control buttons (no text or symbols)

Motorna jedinica Okrenite motornu jedinicu u Turn the motor unit smjeru kazaljke na satu da biste lid zaključali mutilicu

Mutikica Ideal for whisking egg white Idealna za mučenje bjelanaca

Posuda za blendiranje sa mjernom Blending jar with measurement scale Capacity 500 mL Kapacitet 500 ml placed food. Idealna za pripremu malih količina Note: The blending jar can de only hrane for blending food. please clean it immediately after each use. Never Napomena. Posuda za blendiranje se može koristiti samo u svrhu blendiranja. Nakon svake uporabe odmah očistite posudu. Nemojte nikada čuvati hranu u posudi.

Uporaba blendera

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

BIH

MNE

Line drawing of a handheld electronic device with a cylindrical body and top handle (no text or symbols)

Simple line drawing of a three-tiered appliance or container (no text or symbols)

ŠTAPNI BLENDER

KORISNIČKO UPUTSTVO

MS - 5008

Pažljivo pročitajte ovo uputstvo prije korišćenja i sačuvajte ga za kasniju upotrebu

VAŽNA BEZBJEDNOSNA UPUTSTVA

Prije upotrebe ovog električnog uređaja treba uvijek ispuniti osnovne preduslove uključujući sljedeće:

1. Pročitati sva uputstva.
2. Prije upotrebe provjeriti da li napon u zidnoj utičnici odgovara naponu uređaja koji se može naći na natpisnoj tablici pri dnu uređaja.
3. Ne koristite uređaj sa oštećenim kablom za napajanje ili ako je uređaj prestao da radi ili se oštetio na bilo koji način. Vratite uređaj u najbliži ovlašćeni servis na pregled, popravku ili zamjenu.
4. Ukoliko je kabl za napajanje oštećen, mora ga zamjeniti proizvođač ili ovlašćeni serviser ili kvalifikovani tehničar da bi se izbjegla svaka opasnost.
5. Uvijek isključite aparat iz utičnice kada ga ne koristite, prije nego što stavljate ili skidate dijelove i prije čišćenja.
6. Pazite da kabl za napajanje ne visi sa ivice stola ili radne površine..
7. Ne potapajte gornji dio blendera u vodu jer to može dovesti do električnog udara. 8. Neophodan je strogi nadzor kada se uređaj koristi u blizini djece ili nemoćnih osoba.
8. Izbjegavajte kontakt sa dijelovima koji se pomijeraju.
9. Tokom blendiranja držite ruke i posuđe van posude kako biste smanjili rizik od ozbiljnih povreda osoba ili oštećenja blendera. Možete koristiti strugač samo kada blender ne radi.
10. Uređaj se ne može koristiti za lomljenje leda i blendiranje tvrde i suve hrane, jer time može da se istupi sječivo.
11. Da biste smanjili rizik od povreda, nikada ne postavljajte sječivo na bazu bez prethodnog postavljanja posude na odgovarajuće mjesto.
12. Proverite prije rada uređaja da li je poklopac sjeckalice sigurno zaključan na svom mjestu.
13. Upotreba dodataka koje ne preporučuje proizvođač može izazvati povrede osoba.
14. Ovaj uređaj ne koristite u svrhe kojima nije namjenjen.
15. Djeca se ne smiju igrati s uređajem.
16. Ovaj uređaj mogu koristiti djeca uzrasta od 8 i više godina i osobe sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima ili nedostatkom iskustva i znanja ukoliko im je dat nadzor ili instrukcije u vezi sa korišćenjem aparata na siguran način i ukoliko razumiju potencijalne opasnosti.
17. Prije uklanjanja poklopca sa posude, otpustite dugme i isključite aparat, te sačekajte dok se noževi potpuno ne zaustave.
18. Uvijek izvadite sječivo prije nego što isipate sadržaj iz posude.
19. Isključite aparat nakon svake upotrebe. Provjerite da li je motor potpuno prestao

da radi prije nego što počnete sa rastavljanjem uređaja.

1. Metalna sječiva su veoma oštra, stoga morate pažljivo rukovati njima.
2. Nemojte nikada držati oštri dio sječiva, već pridržavajte osovinu sječiva prilikom čišćenja i rukovanja njime.
3. Ukoliko se uređaj nepravilno koristi, moguće su povrede.
4. Sačuvajte ovo uputstvo za buduću upotrebu.

UPOZNAJTE VAŠ BLENDER (pogodan za blendiranje voća i povrća)

Upoznajte vaš dodatak-sjeckalica (koristite za sjeckanje mesa i pravljenje namaza od bijelog luka)

Technical line drawing of a handheld device with control buttons (no text or symbols)

Motorna jedinica Okrenite motornu jedinicu u Turn the motor unit smjeru kazaljke na satu da biste lid zaključali mutilicu

Mutikica Ideal for whisking egg white Idealna za mučenje bjelanaca

Posuđa za blendiranje sa mjernom Blending jar with measurement scale skalom 500 mL Ideal for preparing small amount of processed food. Kapacitet 500 ml Ideal na pripremu malh količina usen for blending food. please clean it immediately after each use. Neve Napomena: Posuđa za blendiranje se može koristiti samo u svrhu blendiranja. Nakon svake upotrebe odmah očistite posudu. Nemojte nikada čuvati hranu u posudi.

Upotreba blendera

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MKD

РАЧЕН БЛЕНДЕР

КОРИСНИЧКО УПАТСТВО

MS - 5008

Technical line drawing of a handheld device with control buttons (no text or symbols)

Моторна единица

Motor unit Завртете ja моторната UKA the motor unit

Mishalka Ideal for whisking egg white

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or recycling (no text present)

Line drawings of four kitchen utensils: a blender, a microwave, a glass with whisk, and a measuring cup (no text or symbols)

BLENDER NË FORMË SHKOPI

UDHËZIM PËR PËRDORIM

MS - 5008

Line drawing of a handheld device with control buttons (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, accompanied by a black rectangular block below (no text or symbols present)
