Product Type	Hand Blender (Immersion Blender)
Brand	VOX
Model	MS5020
Intended Use	Blending vegetables and fruit
Speed Settings	2 speeds: Low and High
Maximum Continuous Operation	30 seconds per cycle
Rest Time Between Cycles	3 minutes minimum
Blade Material	Metal (sharp)
Detachable Shaft	Yes, dishwasher-safe
Motor Unit Cleaning	Wipe with damp cloth; do not immerse
Included Accessories	Blending jar, bowl, beater, blade, chopper attachment
Blending Capacity (Banana + Milk)	Max 200g banana + 300g milk per batch
Power Supply	Match voltage on rating plate
Safety Features	Auto shut-off not specified; requires manual release; sharp blade caution
Not Suitable For	Chopping ice or blending hard/dry substances
Child Safety	Use under supervision; not for children under 8 without supervision
Compliance	EU regulations (WEEE symbol)
Manual Languages	EN, DE, EL, ES, IT, MK, PT, RU, SL, SQ, SR, etc.

Frequently Asked Questions - MS5020 VOX

Can the VOX MS5020 hand blender blend ice?

No, the manual explicitly states the appliance cannot be used for chopping ice or blending hard and dry substances, as this could blunt the blade.

How do I clean the hand blender?

Unplug the appliance and remove the detachable stem. Wash the blending rod under running water (it is dishwasher-safe). Wash the jar, bowl, beater, and blade in warm soapy water. Wipe the motor unit with a damp cloth; never immerse it in water.

What is the maximum operating time?

Do not operate for more than 30 seconds at a time. After each cycle, allow a 3-minute rest period before using again.

Can I use the hand blender for hot liquids?

The manual does not specify hot liquids, but it is safe to blend warm ingredients. Avoid boiling liquids to prevent splashing. Use caution with hot foods.

How do I assemble and disassemble the blender?

To attach the detachable shaft to the motor unit, turn the shaft anti-clockwise until tightened. To remove, turn in the opposite direction. Always unplug before assembling or disassembling.

Is the blender suitable for making baby food?

Yes, it is suitable for blending vegetables and fruits, making it ideal for pureeing baby food. Ensure the pieces are small and add liquid as needed.

What should I do if the blender stops working?

Check if the power cord is damaged. If the appliance malfunctions, do not use it. Return it to an authorized service facility for examination or repair.

Can I put the motor unit in the dishwasher?

No. The motor unit must never be immersed in water. Wipe it with a damp cloth only. The detachable rod is dishwasher-safe, but not the bowl or beater (plastic components may deteriorate).

What attachments come with the blender?

The set includes a blending rod, jar, bowl, beater, blade, and a chopper attachment. Use only accessories recommended by the manufacturer.

How should I store the hand blender?

Store in a dry place. Ensure the appliance is unplugged and cleaned. Do not let the cord hang over edges. Keep out of reach of children.

USER MANUAL MS5020 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MS - 5020

OPERATING INSTRUCTIONS HAND BLENDER

HAND BLENDER

INSTRUCTION MANUAL

MS - 5020

Read this manual thoroughly before using and save it for future reference

IMPORTANT SAFEGUARDS

Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions.
2. Before using check that the voltage of wall outlet correspond to the one shown on the rating plate.
3. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
4. If the supply cord is damaged it must be replaced by the manufacturer or a authorized service agent or a qualified technician in order to avoid a hazard.
5. Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning;
6. Do not let cord hang over edge of table or hot surface.
7. Do not immerse upper part of blender into water as this would give rise to electric shock.
8. Close supervision is necessary when your appliance is being used near children or infirm persons.
9. Avoid contacting moving parts.
10. Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
11. The appliance cannot be used for chopping ice or blending hard and dry substance, otherwise the blade could be blunted.
12. To reduce the risk of injury, never place cutting blade on base without first putting bowl properly in place.
13. Make sure chopper lid is securely locked in place before operating appliance.
14. The use of accessory not recommended by the manufacturer may cause injuries to persons.
15. Do not operate the appliance for other than its intended use.
16. Children should be supervised to ensure that they do not play with the appliance.

17. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

18. Before removing the lid from the jar, release the button and unplug the appliance, wait until the blades have come to a complete stop.

19. Always remove the blade assembly before pouring contents from jar.

20. Make sure to switch off the appliance after each use of your food processor.

Make sure the motor stops completely before disassembling.

1. The metal blades are extremely sharp, please handle carefully.
2. Always hold the blade stem instead of cutting edge when handling and cleaning the blade.
3. Be care of potential injury from misuse.
4. Save these instructions.

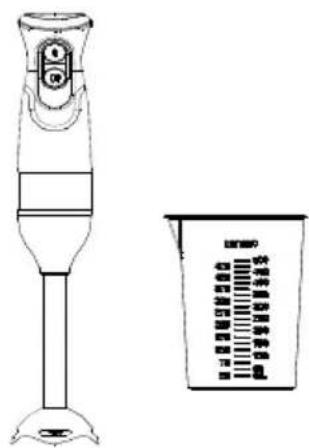

Know your blender (It is suitable for blending vegetable and fruit)

Using your blender

Before the first use, clean the blender according to the section of “quick cleaning”. The time running unit without load can’t exceed 15s.

Important: Blades are very sharp, handle with care. Ensure that the hand-held blender is unplugged from the power outlet before assembling or removing attachments.

Instruction for blender

Max operation duration per time should less than 30 second, and 3 minute rest time must be maintained at two consecutive cycles.

1. To assemble the detachable shaft with the motor unit, turn the shaft anti-clockwise direction until tightened. To disassemble, just turn in the adverse direction.
2. Simply plug the hand-held blender to power outlet.
3. Lower the hand-held blender into food. Then press and hold the low speed button or high speed button to start operating.
4. To stop the hand-held blender by releasing the low speed button or high speed button.
5. When blending banana, cut small piece, and place it into blending jar, then add milk, the max quantify of banana can't exceed 200g, milk, 300g, in every blending.

CLEANING AND MAINTENANCE

1. Unplug the appliance and remove the detachable stem.
2. Wash the detachable blending rod under running water, without the use of abrasive cleaner or detergents. After finishing cleaning the detachable rod, place it upright so that any water which may have got in, can drain out. The rod is dishwasher-safe component.
3. Wash the jar, bowl, beater and blade in warm soapy water. The bowl and the beater are not recommended to place in dishwasher as the plastic component deteriorates through prolonged use of dishwasher cleaning.
4. Wipe the motor unit with a damp cloth. Never immerse it in water for cleaning as a electric shock may occur.
5. Dry thoroughly.

Caution: Blades are very sharp, handle with care.

Quick cleaning

Between processing tasks, hold the hand-held blender in the cup half filled with water and turn on for a few seconds.

Environment friendly disposal

Symbol of a trash bin with no text or numbers present

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal centre.

ITA

FRULLATORE A IMMERSIONE

MANUALE DELL'UTENTE

MS - 5020

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

STABMIXER

BEDIENUNGSANLEITUNG

MS - 5020

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

ПОГРУЖНОЙ БЛЕНДЕР

ŠTAPNI BLENDER

KORISNIČKO UPUTSTVO

MS - 5020

Pažljivo pročitajte ovo uputstvo pre korišćenja i sačuvajte ga

za kasniju upotrebu

VAŽNA BEZBEDNOSNA UPUTSTVA

Symbol of a trash bin crossed with no signage or text, accompanied by a horizontal bar (no text or numbers present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ESP

Line drawing of a handheld device with a cylindrical body and a handle (no text or symbols)

BATIDORA DE MANO

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

BATEDEIRA MANUAL

MANUAL DE INSTRUÇÕES

MS - 5020

Pure electrical circuit lines without any symbols

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GRC

ΜΙΞΕΡ ΧΕΙΡΟΣ

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

MS - 5020

Symbol of a trash bin crossed with no visible text or labels

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

ROČNI MEŠALNIK

NAVODILA ZA UPORABO

MS - 5020

Symbol of a trash bin crossed with no visible text or numbers, accompanied by a black rectangular block below (no text or symbols present)

ŠTAPNI BLENDER

KORISNIČKE UPUTE

MS - 5020

VAŽNE SIGURNOSNE UPUTE

Pure electrical circuit lines without any symbols

ŠTAPNI BLENDER KORISNIČKO UPUTSTVO MS - 5020

Pažljivo pročitajte ovo uputstvo prije korišćenja i sačuvajte ga za kasniju upotrebu

VAŽNA BEZBJEDNOSNA UPUTSTVA

Prije upotrebe ovog električnog uređaja treba uvijek ispuniti osnovne preduslove uključujući sljedeće:

1. Pročitati sva uputstva.
2. Prije upotrebe provjeriti da li napon u zidnoj utičnici odgovara naponu uređaja koji se može naći na natpisnoj tablici pri dnu uređaja.
3. Ne koristite uređaj sa oštećenim kablom za napajanje ili ako je uređaj prestao da radi ili se oštetio na bilo koji način. Vratite uređaj u najbliži ovlašćeni servis na pregled, popravku ili zamjenu.
4. Ukoliko je kabl za napajanje oštećen, mora ga zamjeniti proizvođač ili ovlašćeni serviser ili kvalifikovani tehničar da bi se izbjegla svaka opasnost.
5. Uvijek isključite aparat iz utičnice kada ga ne koristite, prije nego što stavljate ili skidate dijelove i prije čišćenja.
6. Pazite da kabl za napajanje ne visi sa ivice stola ili radne površine..
7. Ne potapajte gornji dio blendera u vodu jer to može dovesti do električnog udara. 8. Neophodan je strogi nadzor kada se uređaj koristi u blizini djece ili nemoćnih osoba.
8. Izbjegavajte kontakt sa dijelovima koji se pomijeraju.
9. Tokom blendiranja držite ruke i posuđe van posude kako biste smanjili rizik od ozbiljnih povreda osoba ili oštećenja blendera. Možete strugač samo kada blender ne radi.
10. Uređaj se ne može koristiti za lomljenje leda i blendiranje tvrde i suve hrane, jer time može da se istupi sječivo.
11. Da biste smanjili rizik od povreda, nikada ne postavljajte sječivo na bazu bez prethodnog postavljanja posude na odgovarajuće mjesto.
12. Proverite prije rada uređaja da li je poklopac sjeckalice sigurno zaključan na svom mjestu.
13. Upotreba dodataka koje ne preporučuje proizvođač može izazvati povrede osoba.
14. Ovaj uređaj ne koristite u svrhe kojima nije namjenjen.
15. Djeca se ne smiju igrati s uređajem.
16. Ovaj uređaj mogu koristiti djeca uzrasta od 8 i više godina i osobe sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima ili nedostatkom iskustva i znanja ukoliko im je dat nadzor ili instrukcije u vezi sa korišćenjem aparata na siguran način i ukoliko razumiju potencijalne opasnosti.
17. Prije uklanjanja poklopca sa posude, otpustite dugme i isključite aparat, te sačekajte dok se noževi potpuno ne zaustave.
18. Uvijek izvadite sječivo prije nego što isipate sadržaj iz posude.
19. Isključite aparat nakon svake upotrebe. Provjerite da li je motor potpuno prestao

da radi prije nego što počnete sa rastavljanjem uređaja.

1. Metalna sječiva su veoma oštra, stoga morate pažljivo rukovati njima.
2. Nemojte nikada držati oštri dio sječiva, već pridržavajte osovinu sječiva prilikom čišćenja i rukovanja njime.
3. Ukoliko se uređaj nepravilno koristi, moguće su povrede.
4. Sačuvajte ovo uputstvo za buduću upotrebu.

UPOZNAJTE VAŠ BLENDER (pogodan za blendiranje voća i povrća)

Upotreba blendera

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MKD

РАЧЕН БЛЕНДЕР

КОРИСНИЧКО УПАТСТВО

MS - 5020

Symbol of a trash bin crossed with no visible text or labels

BLENDER NË FORMË SHKOPI

UDHËZIM PËR PËRDORIM

MS - 5020

Symbol of a trash bin crossed with no visible text or numbers
