Product Type	Hand Blender
Brand	VOX
Model	MS2106
Dimensions (L x Diameter)	Approx. 40 x 6 cm (15.7 x 2.4 in)
Weight	Approx. 0.5 kg (1.1 lbs)
Power Consumption	500 W
Power Source	120-240 V, 50/60 Hz
Cord Length	1.2 m (4 ft)
Blending Shaft Material	Stainless Steel
Speed Settings	Variable speed with turbo boost
Main Functions	Blending, mixing, pureeing, chopping (with accessory)
Accessories Included	Blending shaft, whisk attachment, measuring beaker (600 ml)
Ergonomic Handle	Soft-grip, non-slip
Dishwasher Safe Parts	Yes (blending shaft, whisk, beaker)
Cleaning Method	Detachable shaft for easy rinsing; hand wash motor unit with damp cloth
Safety Features	Automatic shut-off, overheating protection, safety lock
Spare Parts Available	Blending shaft, whisk, beaker, sealing ring
Repairability	User-replaceable shaft and accessories; motor unit serviceable by authorized center
Color	White with silver accents

Frequently Asked Questions - MS2106 VOX

How do I clean the hand blender?

Detach the blending shaft and rinse it under running water. The shaft, whisk, and beaker are dishwasher safe. Wipe the motor unit with a damp cloth; do not immerse in water.

What are the speed settings?

The blender has variable speed control and a turbo boost button for extra power. Adjust the speed while blending by pressing the button gradually or using the turbo for short bursts.

Can I blend hot liquids?

Yes, but let liquids cool to below 80°C (176°F) before blending. Do not fill the beaker more than halfway when blending hot liquids to avoid splashing.

What accessories are included?

The package includes a stainless steel blending shaft, a whisk attachment for whipping cream or eggs, and a 600 ml measuring beaker.

Is the blender suitable for crushing ice?

The standard blending shaft is not designed for ice crushing. Use a dedicated ice crusher or pulse with the turbo function briefly, but avoid regular ice crushing to prevent damage.

What does the safety lock do?

The safety lock prevents the blender from operating unless the attachment is properly locked into place. This ensures safe handling and prevents accidental start-up.

How do I replace the blending shaft?

Press the release button on the motor unit, then pull the old shaft off. Line up the new shaft's notch with the motor unit's slot and push until it clicks. Always unplug before changing attachments.

Why does the blender stop during use?

This may be due to overheating protection. Let the blender cool down for 5-10 minutes. Also check if the load is too heavy; reduce speed or quantity.

Can I purchase spare parts?

Yes, spare parts such as blending shafts, whisk attachments, beakers, and sealing rings are available from VOX service centers or authorized dealers.

What is the warranty period?

VOX offers a standard 2-year warranty from the date of purchase. Register your product online or keep the receipt for warranty claims.

USER MANUAL MS2106 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MS-2106

OPERATING INSTRUCTIONS HAND BLENDER UPUTSTVO ZA UPOTREBU RUČNI BLENDER MANUAL DE USUARIO BATIDORA DE MANO MANUAL DO USUÁRIO VARINHA MÁGICA ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΤΗ ΜΠΛΕΝΤΕΡ ΧΕΙΡΟΣ NAVODILA ZA UPORABO ROČNI MEŠALNIK UPUTE ZA UPORABU RUČNI BLENDER UPUTSTVO ZA UPOTREBU RUČNI BLENDER ΥΠΑΤСТВА ЗА РАКУВАЊЕ РАЧЕН БЛЕНДЕР MANUALI I PERDORUESIT BLENDER DORE

INSTRUCTION MANUAL

HAND BLENDER

Model: MS-2106

1. FOREWORD

Thank you for choosing our VOX Hand blender products. This product is one of our new products researched and developed independently.

Characterized by simplicity generosity, easy operation, functional maturation and easy cleaning, this product is a good helper of a household kitchen. And it is suitable for blending, cutting and mixing a variety of food.

2. SPARE PARTS AND INSTALLATION DRWAING

3. MAIN FEATURES

1) More functional accessories. Depending on the type, it can match blending rod, chopper, egg white, beaker, etc.

2) In accordance with the type you choose, the device speed is selectable and adjustable. Therefore it is convenient to processing various types of food material.
3) Turn-lock clasp separation structure designed in the main unit and each functional accessories. It is convenient to use any combination of different accessories

4. USER INSTRUCTIONS

1) How to use the blending blade

It is especially suitable for processing dip, sauce, soup, mayonnaise, baby or aged people food and mixed drinks, milk shake, etc.

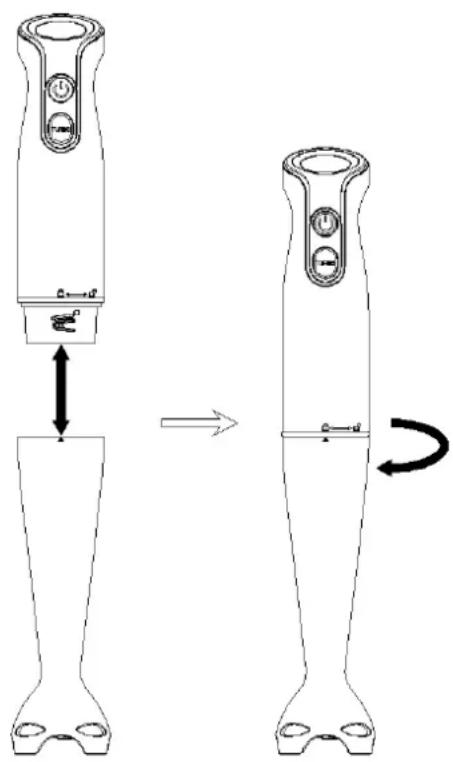

① Install the blending blade turn-lock clasp on the main unit

② Cut the food into cubes not larger than 15 mm^3 , then put them into beaker and add some cold boiled water, or drinking water, milk, water, milk, etc.


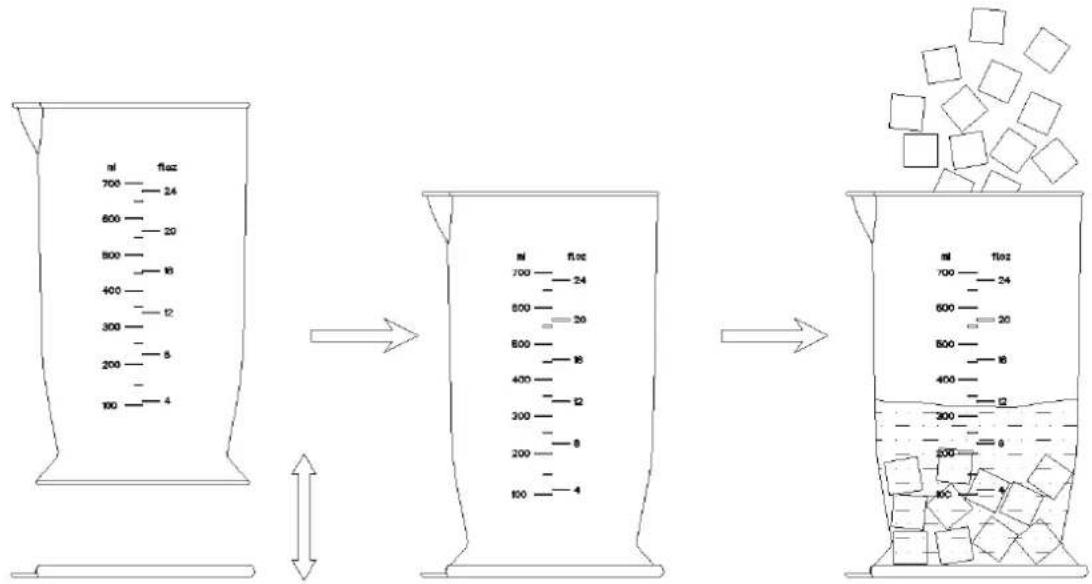

beaker and cup mat
place the cup mat under the beaker
add food

and water into beaker

③ plug the power cord into a power socket

Simple line drawing of a cable inserted into a square socket (no text or symbols)

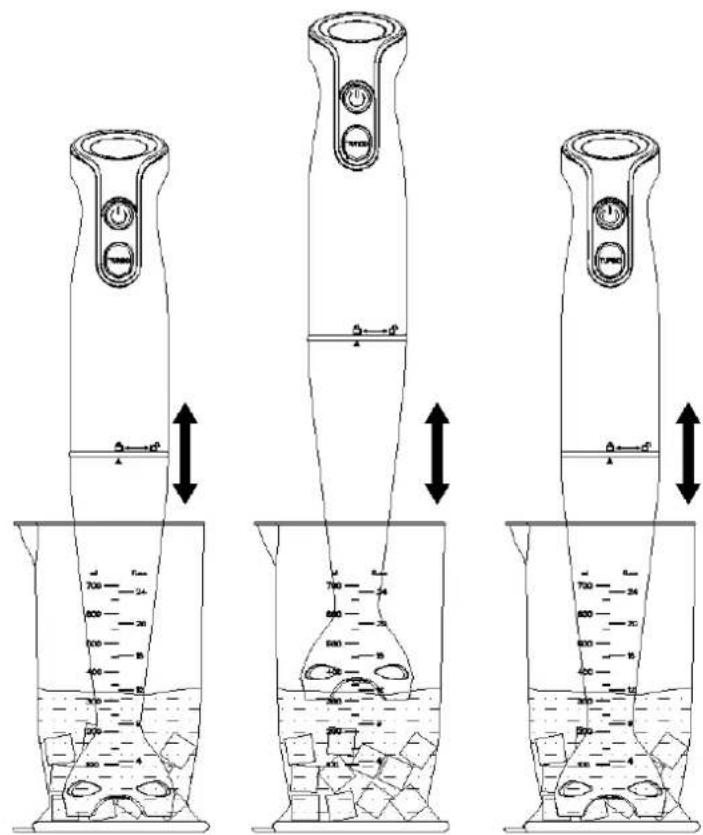

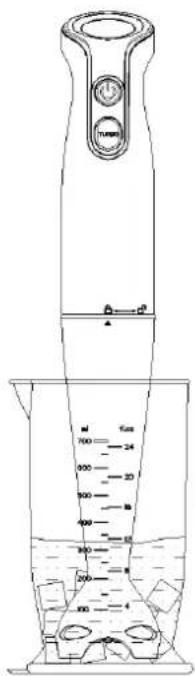

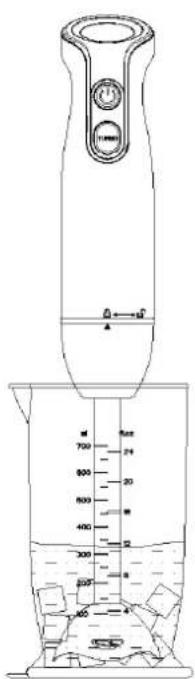

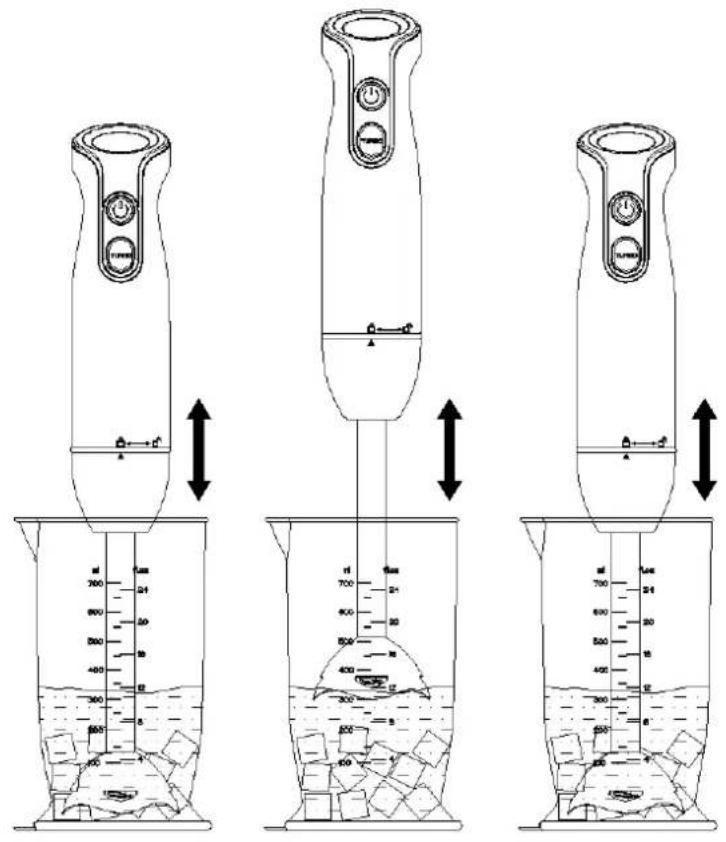

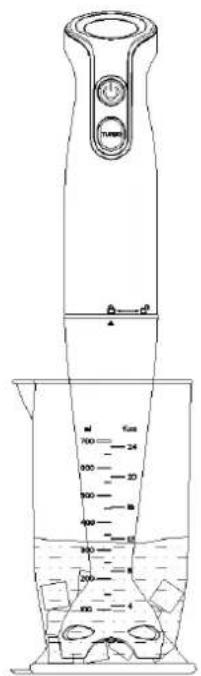

④Put the blending blade into the beaker

⑤The product will continue to work by pressing on the high or low speed button. In order to

blend the food well and quickly, please use your one hand to hold the beaker and other hand to hold the main unit doing up and down reciprocating movement. If you want to stop this product, just press on the switch button.

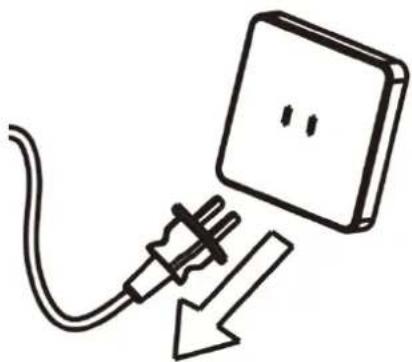

⑥ Pull the plug out of the power socket after working.

Simple line drawing of an electrical plug connected to a wall-mounted socket (no text or symbols)

Attention :

√ The accessories continuous working time should be less than 1 minute. After working 1

minute, they need to rest for 1 minute.

√ Respect 1 minute operating and 1 minute rest per a cycle. After continuously working

5 cycles, it must rest for 30 minutes to cool the motor.

- In order to ensure the sealing effect of blending blade, please do not allow the blending blade to work without immersing into liquids.

2) How to use the chopper

This accessory is especially suitable for chopping meat, ginger, garlic, and making carrot granule, chili sauce, etc.

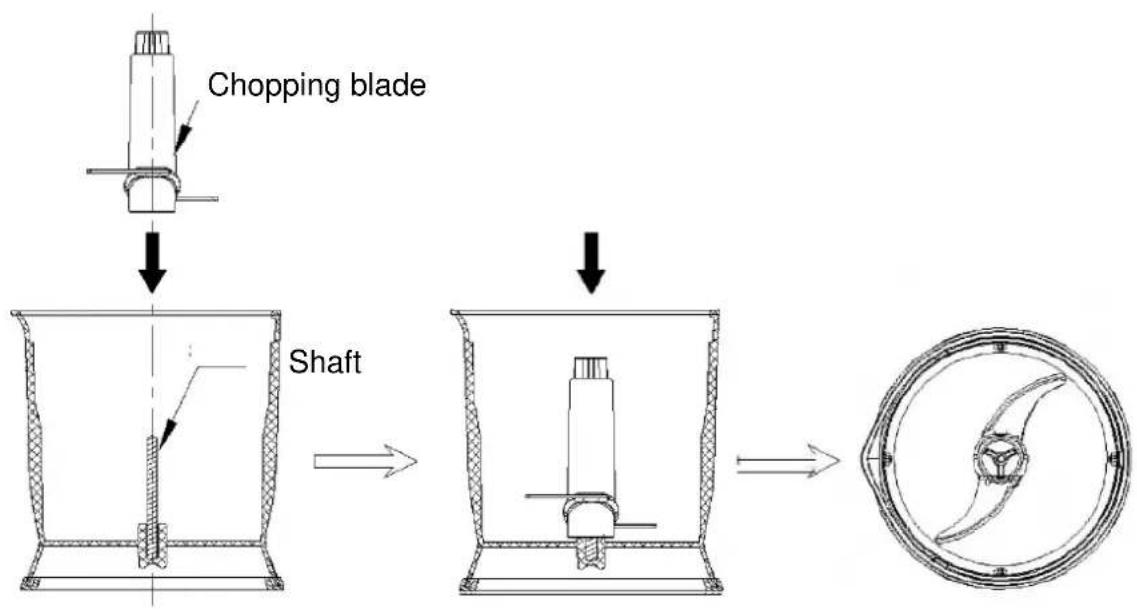

① Set the chopping blade into the chopper shaft

② Cut the food material into appropriate shape and size. For example: cut meat into

2cm*2cm* 6cm size; cut onion into 4-6 disc, etc. Put the ready food into chopper and lock the chopper lid.

Meat cut into strip-type


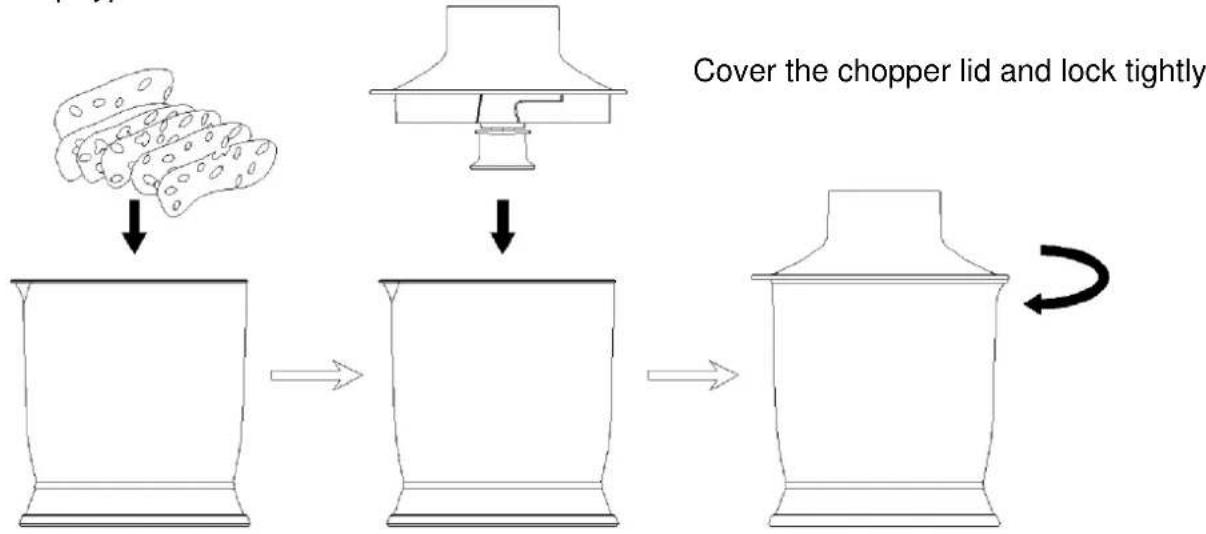

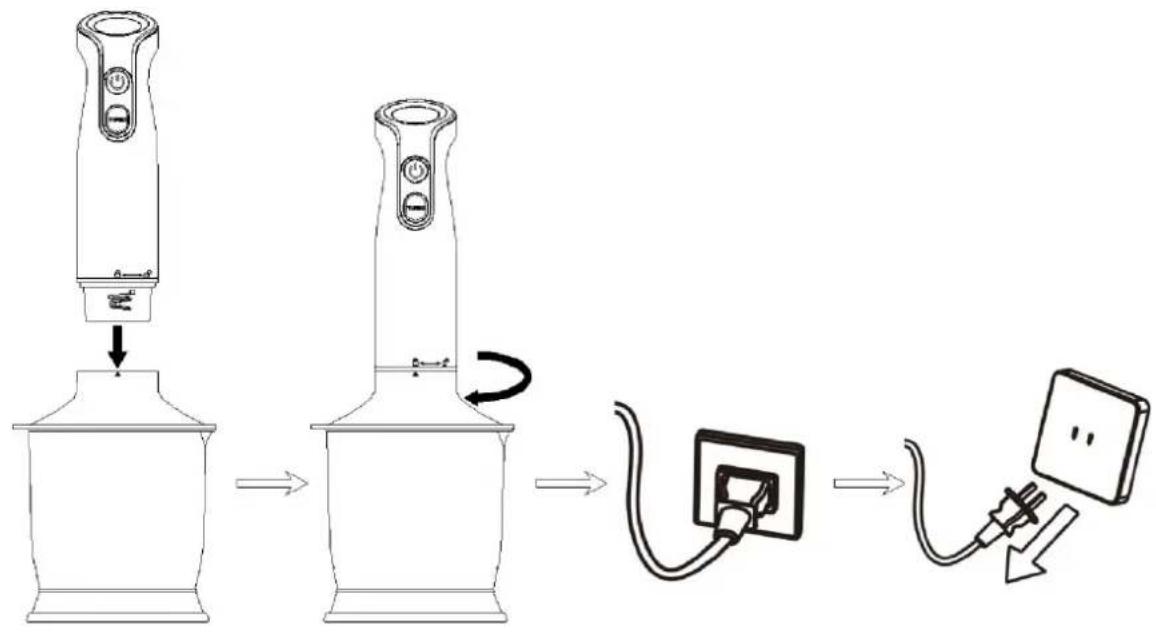

③ Let the main unit turn-lock clasp to the chopper lid, and then plug in and press the switch button. Once the food material chopped to your expected effect, just release the switch button, and the product will stop working. Finally, you should unplug the power cord firstly and then pour out the processed food.

Attention:

● Maximum capacity cannot exceed 200 grams per time when chopping meat.
● The continuous operating time should less than 10 seconds when meat chopping.
After working one time, they need to rest for 2 minutes.

- Respect 10 seconds operating and 2 minute rest per a cycle. After continuous work of 3 cycles, it must rest for 30 minutes for motor cooling.

Some operation tips:

• High speed button should be used when meat chopping, especially the turbo function, as it only takes about 10 second and the meat foam tastes better. Overtime processing will destroy the meat fibers and is of no good taste.
• The low speed button use is recommended when chopping carrots, ginger, garlic and pepper particles. Turning to the low speed to operating around 15 seconds makes better effect.
• The best food material for meat processing: Lean beef without tendon, lean pork without pigskin and bone. The proportion of fat meat should not exceed one fifth of the whole piece of chopping meat, otherwise it affects the chopping effect.

3) How to use the egg white beating components

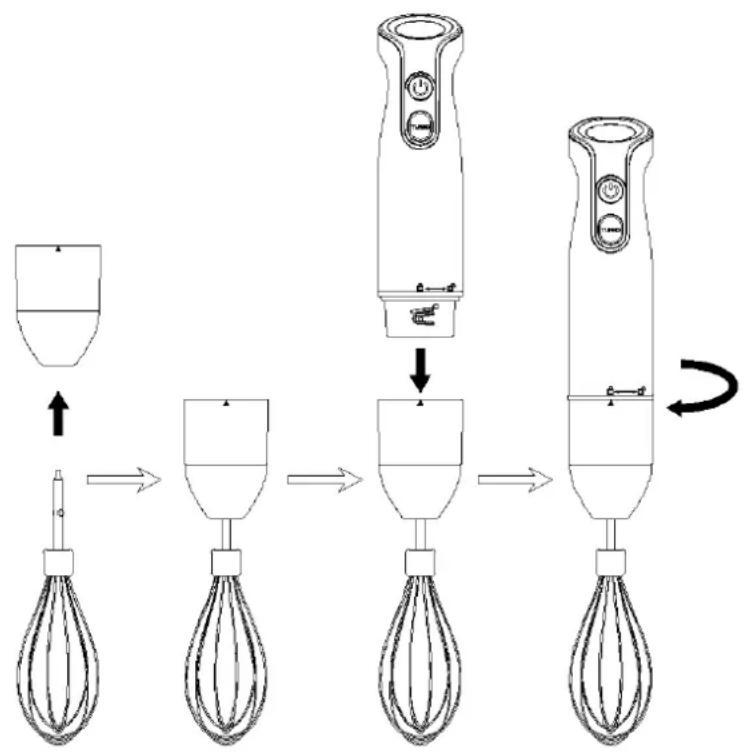

① Inserting the whisk into egg white beating components, and then lock it to the main unit.


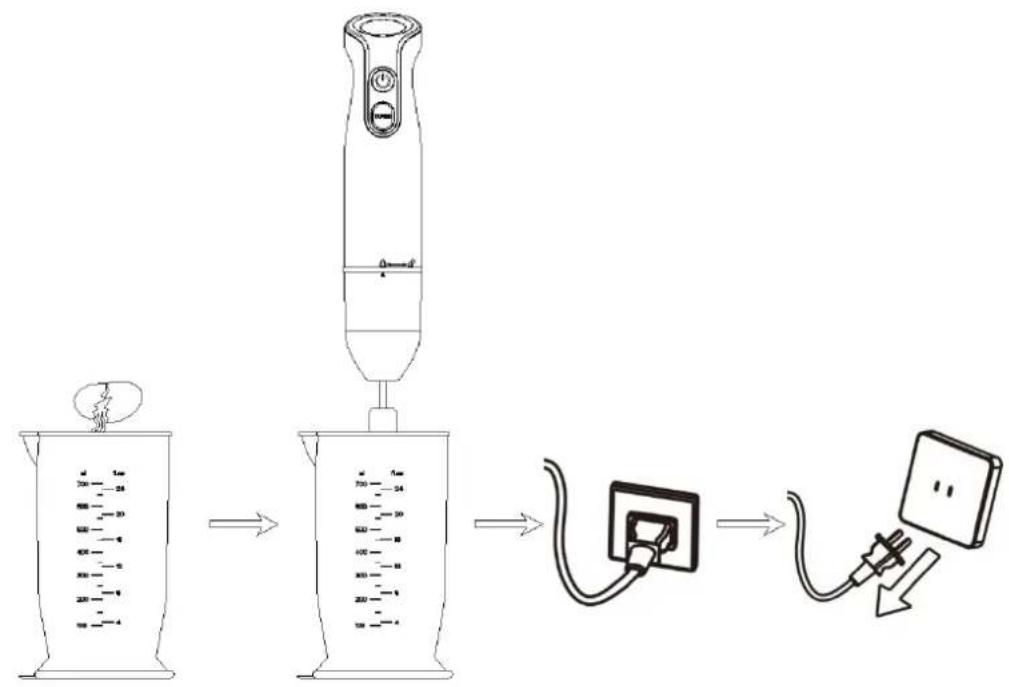

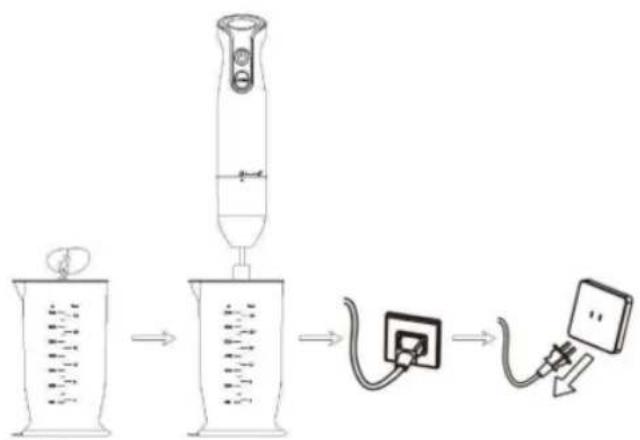

② Adding egg whites of 2-3 eggs into beaker, and then put the whisk into it. Plug in and use high speed button to work. Once the egg white formed foam, hand off the switch button and the product will stop working. Finally, unplug the power cord.

Warm prompt:

The optimum efficiency after mixing: Put the cup upside down, and there is no egg white liquid flow out.

5. REFERENCE TABLE FOR FOOD PROCESSING SIZE AND CAPACITY

Food material	Processing size	Maximum processing capacity of chopper	Maximum processing capacity of beaker	Processing time (seconds)	Speed button choosing
beef	2cm×2cm×6cm	200g	/	8-10	high speed button
carrot	cut into 4 pieces	300g	200g+300g (food+water)	30-40	low speed button
garlic	Peeling disc	100g	/	20-30	low speed button
onion	cut into 8-16 disc	300g	/	5-10	low speed button
apple	cut into 4-8 disc	500g	200g+300g (food+water)	30-40	low speed button
egg white	/	/	egg white of 3-4 eggs	60	high speed button

6. IMPORTANT SAFEGUARDS

1) In order to avoid a risk of electric shock or fire, please do not use power supply except for AC 220V-240V.
2) Please exclusive use a socket with more than 6A specification. If share use the socket with other electrical appliances, the socket circuit part may produce abnormal heat and catsh fire.
3) Please do not use the ironmongery hard things to scrape the product.

4) You must pull out the power cord plug after using to avoid the risk of electric shock, electric icleakage fire disaster.

5) The product will automatically stop working when overheats. Please unplug the power cord plug.

6) Please disconnect the machine's power supply connection before dis-assembly and assembly and cleaning or when not in use.

7) Please do not put overheating (over 60 degree centigrade) and overmuch food material into cup in order to avoid liquid spills, overflow, and resulting in personal injury.

8) The use of attachments not recommended or sold by manufacturer may cause personal injury.

9) Ensure all parts are installed in place and locked tight during the operation.

10) This product continuous working time should be less than 1 minute. After working 1 minute, they need to rest for 1 minute. Respect 1 minute operating and 1 minute rest per a cycle. After continuous operating of 5 cycles, it must rest for 30 minutes to cool the motor.

11) The beaker, chopper, food processing cup, etc. are not microwave proof.

7. WARNING

1) In addition to the professional repair technicians, other person please do not dis-assembly, repair and refit the product, as it will give rise to on fire, electric leakage and abnormal operation.

2) Please place this product out of reach of children.

3) Please do not use wet hand to pull or plug the power cord in order to avoid electric shock and court-circuit.

4) Please do not wet or immerse the main unit in order to avoid electric shock and court-circuit.

5) For indoor household only, please do not use for commercial purposes.

8. CLEANING AND MAINTENANCE

1) You should unplug the power cord plug before cleaning.
2) Do not touch the sharp blade.
3) Please use dry dishcloth to wipe the product body. It is strictly prohibited to let the main unit rinse with water or immerse into water.
4) Please do not use metal brush, nylon brush, household cleanser, diluent and other similar cleaning supplies to clean this product, as they may damage the product surface structure.
5) Please use soft dry cloth to wipe the dirt on the power cord.
6) The cleaning requirements of each functional accessories.

CleaningAccessories	scrubbing	Rinsing	Immersion cleaning	Dishwasher	Remark
Blending blade	√	√	×	×	Do not immerse into water
Egg white beating components	√	×	×	×	Do not immerse into water
Whisk	√	√	√	√
Chopper lid	√	×	×	×	Do not immerse into water
Chopper	√	√	√	√
Chopping blade	×	√	√	√

9. COMMON PROBLEM ANALYSIS

phenomenon	Reasons	Handling method
The motor running, but the blade doesn’t work	1) The functional accessories does not lock well with the main unit2). The blade is entangled by food material and stuck	1) Lock them well2) Pull the plug out, and then take out the food material and cut them into small pieces
The product suddenly stops working during processing	1) Working time shoul strictly according to the instruction manual2) Excluding this problem after checking	1) Too long time in use, and the motor is overheated and damaged2) The plugs loose or power failure
Abnormal vibration or excessive noise	1) The functional accessories does not lock well with the main unit2) Too much food material has been put in	1) Lock them well2) Pull the plug out, and then take out the excess food material, and choose low speed operating
The product does not work after plugging in the power cord and pressing the on-off key	1) Power failure or power socket in the closed state or plug loose2) Electronic board damage or motor damage	1) Excluding this problem after checking2) Have a repair service

Remark:

If still unable to troubleshooting after the above phenomenon analysis, please contact our maintenance personal or the dealer. Non-professional personnel are forbidden to disassembly.

UPUTSTVO ZA UPOTREBU

RUČNI BLENDER

Model: MS-2106

1. PREDGOVOR

Hvala Vam što ste izabrali naš VOX Ručni blender. Ovaj uređaj je jedan od naših najnovijih proizvoda, koji se svakodnevno pojavljuju i razvijaju sve više na tržištu.

Simple line drawing of a cable inserted into a square socket (no text or symbols)

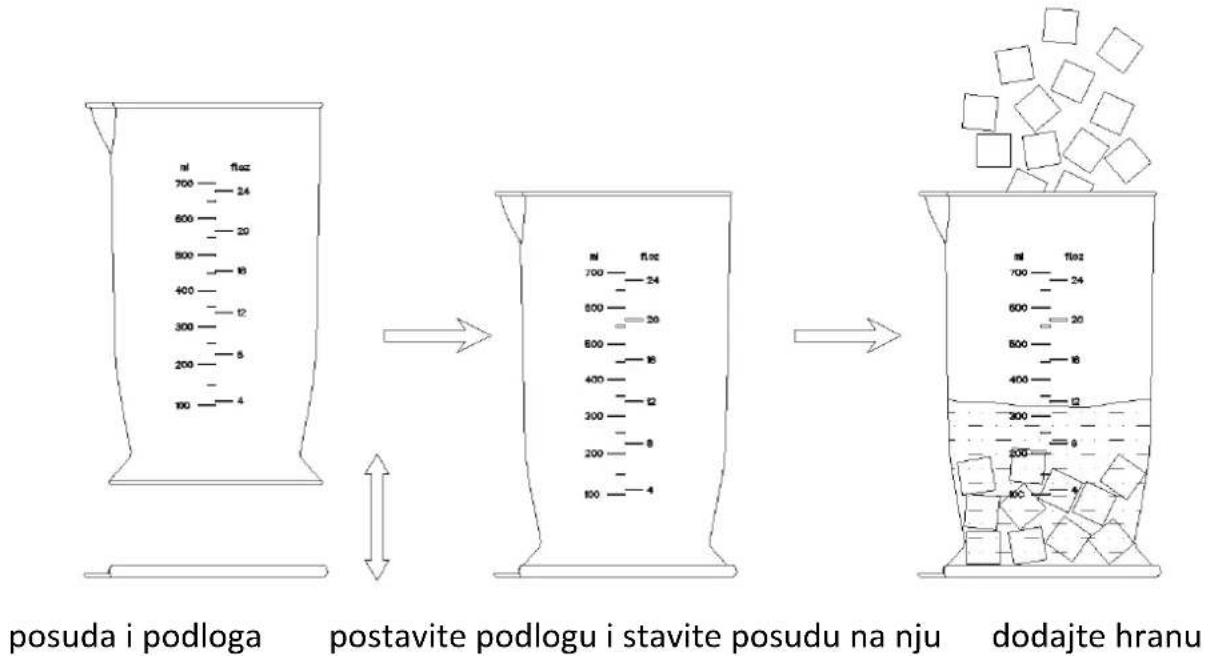

④ Stavite blender u posudu

⑤Uređaj će nastaviti s radom pritiskom na dugme za sporiji ili brži rad.

⑥Po završetku isključite utikač iz utičnice.

Simple line drawing of an electrical plug connected to a wall-mounted socket (no text or symbols)

Pažnja :

I Neprestani rad dodataka treba da bude manji od 1 minuta. Nakon rada od 1 minuta, treba sačekati 1 minut da se uređaj odmori.

I Rad od 1 minuta i odmor od 1 minuta tretira se kao jedan ciklus rada. Nako uzastopnih 5 ciklusa, motoru je potrebno 30 minuta da se ohladi.

√ Da biste se uverili da li je blender dobro spojen, molimo da ga ne puštate u rad a da ga prethodno ne uronite u tečnost.

2) Kako da koristite čoper

Ovaj dodatak je posebno pogodan za seckanje mesa, dumbira, belog luka, pravljenje smese od šargarepe, čili sosa, itd.

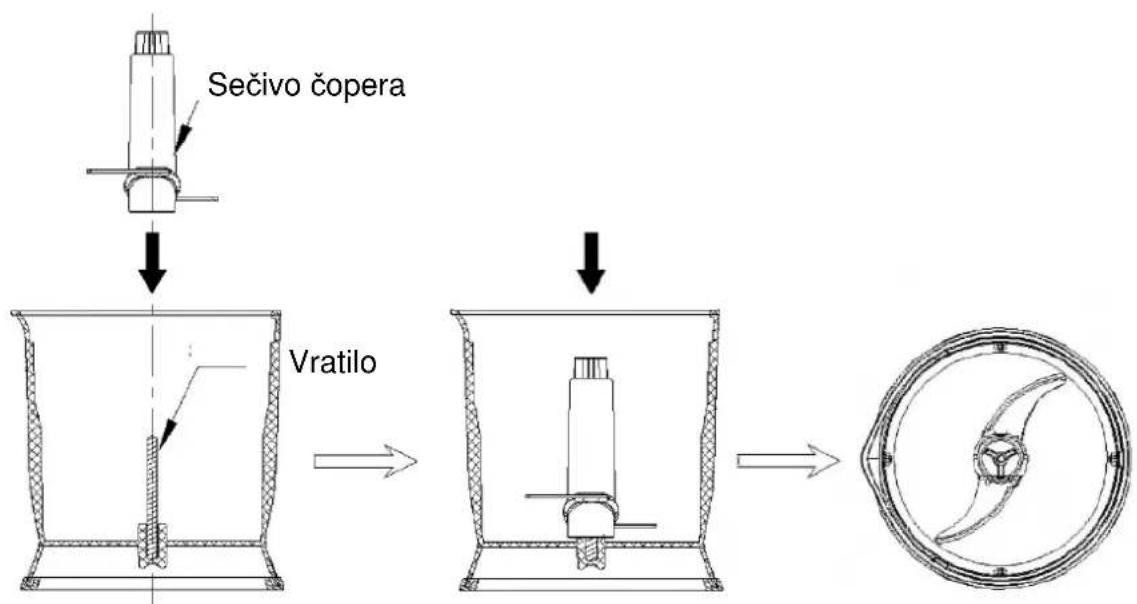

① Postavite sečivo na vratilo u posudi

② Isecite hranu na delove odgovarajućeg oblika i veličine. Na primer: isecite meso na kockice veličine 2cm*2cm* 6cm; luk isecite na 4-6 režnjeva, itd. Stavite spremljenu hranu u čoper i zaključajte poklopac čopera.

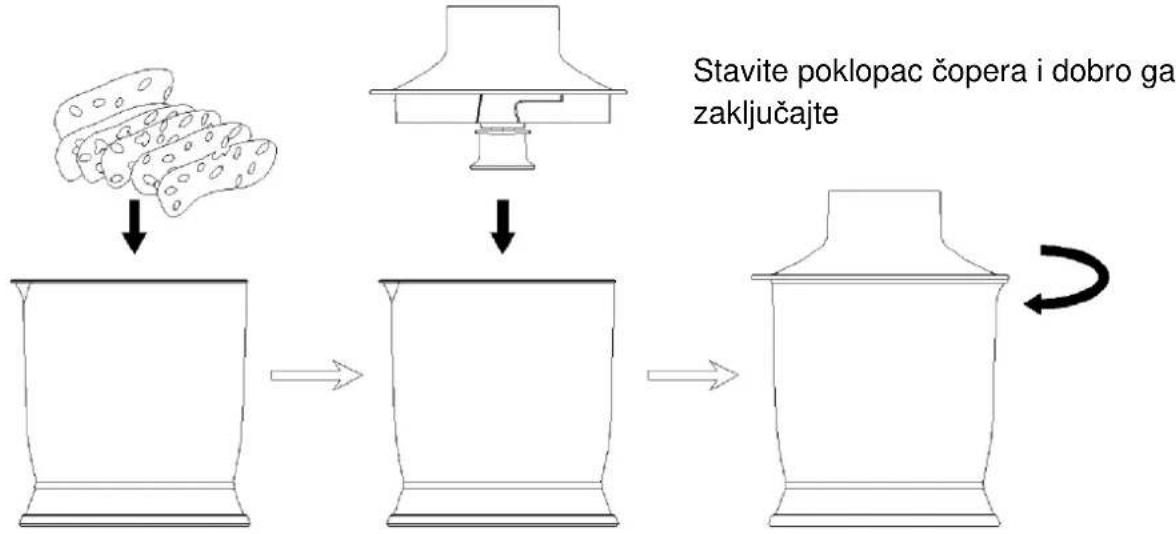

Isecite meso na trake

Pažnja:

√ Maksimalna količina ne sme preći više od 200 grama prilikom jedne obrade kada seckate meso
√ Neprestan rad uređaja treba da bude kraći od 10 sekundi kada seckate meso. Nakon jedne obrade potrebno je 2 minuta za odmaranje uređaja.
√ Obrada od 10 sekundi i 2 minuta odmora smatra se jednim ciklusom. Nakon 3 uzastopna ciklusa, potrebna je pauza od 30 minuta da bi se motor ohladio.


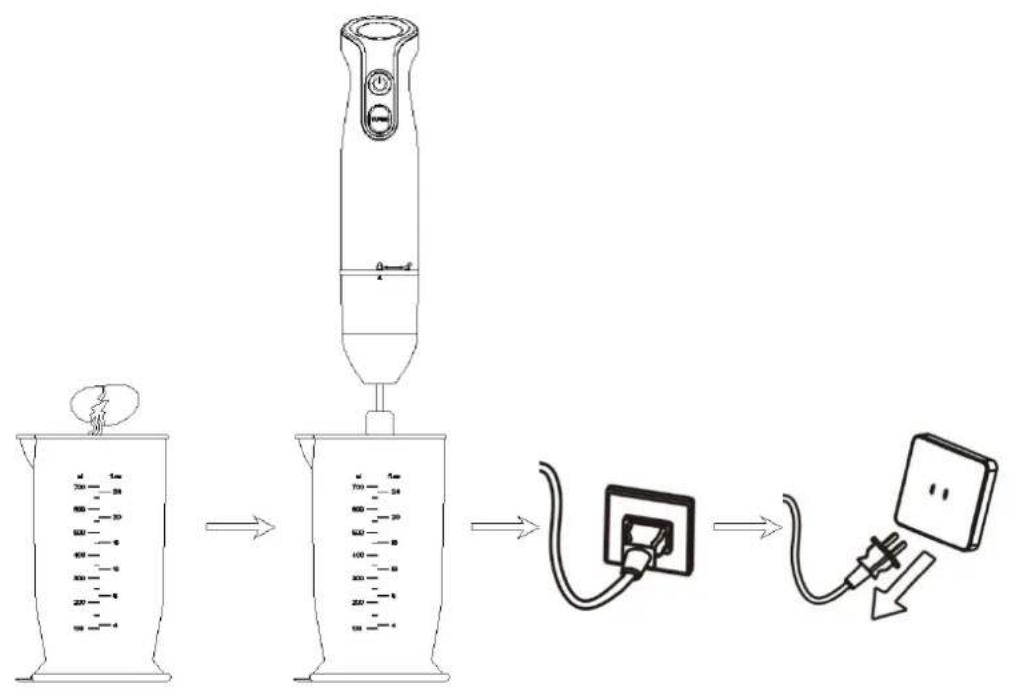

② Dodajte belanca od 2-3 jajeta u posudu, zatim ubacite žicu u posudu. Uključite utikač u uitčnicu i pritisnite dugme za brzi rad. Kada se formira pena, pustite dugme i uređaj će se zaustaviti. Na kraju, isključite uređaj s napajanja.

1. REFERENTNA TABELA ZA KOLIČINU HRANE ZA OBRADU

Tip hrane	Veličina Maksimalna količina za seckanje		Maksimalna količina koju treba staviti u posudu	Vreme obrade (sekunde)	Izbor brzine
junetina	2cm×2cm×6cm	200g / 8-10			brži rad
šargarepa	iseći na 4 dela	300g	200g+300g sporiji rad (hrana+voda)	30-40
beli luk češnjevi		100g	/ 20-30		sporiji rad
crni luk	iseći na 8-16 disc	300g	/	5-10	sporiji rad
jabuka	iseći na 4-8 delova	500g	200g+300g (hrana+voda)	30-40	sporiji rad
belanca /	/ belanca od 3-4	jaja 60 brži rad

6. VAŽNA BEZBEDNOSNA UPOZORENJA

Simple line drawing of a plug inserted into a socket (no text or symbols)

Simple line drawing of an electrical socket connected to a plug, with a downward arrow indicating a decrease or direction (no text or symbols)

Atención:

Atención:

MANUAL DE INSTRUÇÕES

VARINHA MÁGICA

Model:MS-2106

1. INTRODUÇÃO

κύπελλο και σουβέρ

Simple line drawing of a plug inserted into a socket (no text or symbols)

Simple line drawing of an electrical outlet connected to a plug, with a downward arrow indicating power or current flow (no text or symbols)

Προσοχή:

Χρήσιμη συμβουλή:

Simple line drawing of a cable inserted into a square socket (no text or symbols)

Vstavite palico za blendiranje v vrč

Aparat bo obratoval s pritiskom na gumb za visoko ali na gumb za nizko hitrost. Da bi se hrana dobro mešala, z eno roko držite vrč, z drugo pa glavno enoto mešalnika ter premikajte

mešalnik gor in dol med blendiranjem. Če želite ustaviti aparat, preprosto pritisnite stikalo.

Simple line drawing of an electrical plug connected to a wall-mounted socket (no text or symbols)

Pozor:

• Čas neprekinjenega delovanja aparata ne sme presegati ene minute. Po eni minuti neprekinjenega delovanja mora slediti premor v dolžini ene minute.
• Upoštevajte pravilo o 1-minutnih obratovalnih ciklih. Po petih zaporednih ciklih, aparat mora počivati 30 minut, da bi se ohladil motor.
  Da bi nastavek za blendiranje ohranil svojo učinkovitost, ne sprožajte obratovanja

mešalnika preden palico za blendiranje ne vstavite v tekočino.

③ Vstavite pogonsko enoto v nastavek na pokrovu sekljalnika in jo zaklenite z obratom, nato pa

Pozor:

Opomba:

▼ Isijecite hranu na komade ne veće od 15 mm ^3 , zatim ih stavite u posudu s mjerama i dodajte malo hladne prokuvane vode, pijaće vode, mlijeka, itd.

Simple line drawing of a cable inserted into a square socket (no text or symbols)

④ Stavite blender u posudu

⑤Uređaj će nastaviti s radom pritiskom na gumb za sporiji ili brži rad.

Da biste dobro i brzo izblendirali hranu, molimo vas da jednom rukom držite posudu, a drugom uređaj koji treba da pokrećete usklađenim pokretima gore dole. Ukoliko želite da zaustavite rad uređaja, dovoljno je da pritisnete gumb za uključivanje/isključivanje uređaja.

⑥Po završetku isključite utikač iz utičnice.

Simple line drawing of an electrical plug connected to a wall-mounted socket (no text or symbols)

Pažnja :

- Neprestani rad dodataka treba da bude manji od 1 minuta. Nakon rada od 1 minuta, treba sačekati 1 minut da se uređaj odmori.

- Rad od 1 minuta i odmor od 1 minuta tretira se kao jedan ciklus rada. Nako uzastopnih 5 ciklusa, motoru je potrebno 30 minuta da se ohladi.

- Da biste se uvjerili da li je blender dobro spojen, molimo da ga ne puštate u rad a da ga prethodno ne uronite u tekućinu.

2) Kako da koristite čoper

② Dodajte bjelanca od 2-3 jajeta u posudu, zatim ubacite žicu u posudu. Uključite utikač u uitčnicu i pritisnite gumb za brzi rad. Kada se formira pjena, pustite gumb i uređaj će se zaustaviti. Na kraju, isključite uređaj s napajanja.

1. REFERENTNA TABELA ZA KOLIČINU HRANE ZA OBRADU

Tip hrane	Veličina Maksimalna količina za sjeckanje	Maksimalna količina koju treba staviti u posudu	Vrijeme obrade (sekunde)	Izbor brzine
junetina	2cm×2cm×6cm	200g / 8-10		brži rad
mrkva	isjeći na 4 dijela	300g	200g+300g sporiji rad (hrana+voda)	30-40
češnjak češnjevi		100g	/ 20-30
crni luk	iseći na 8-16 disc	300g	/	5-10
jabuka	iseći na 4-8 delova	500g	200g+300g (hrana+voda)	30-40
bjelanca	/ / bjelanca od 3-4	jaja 60 brži rad

6. VAŽNA BEZBJEDNOSNA UPOZORENJA

1) Da biste izbjegli rizik od požara ili strujnog udara, molimo koristite uređaj isključivo pri naponu od AC 220V-240V.
2) Molimo ne koristite utičnicu jaču od 6A. Ukoliko dijelite utičnicu sa drugim električnim uređajima, može doći do pregrijavanja strujnog kola utičnice i može se zapaliti.
3) Molimo da ne koristite neke metalne predmete da ne biste oštetili uređaj.

▼ Isijecite hranu na komade ne veće od 15 mm ^3 , zatim ih stavite u posudu s mjerama i dodajte malo hladne prokuvane vode, pijaće vode, mlijeka, itd.

Simple line drawing of a cable inserted into a square socket (no text or symbols)

④ Stavite blender u posudu

⑤Uređaj će nastaviti s radom pritiskom na dugme za sporiji ili brži rad.

⑥Po završetku isključite utikač iz utičnice.

Simple line drawing of an electrical plug connected to a wall-mounted socket (no text or symbols)

Pažnja :

- Neprestani rad dodataka treba da bude manji od 1 minuta. Nakon rada od 1 minuta, treba sačekati 1 minut da se uređaj odmori.

- Rad od 1 minuta i odmor od 1 minuta tretira se kao jedan ciklus rada. Nako uzastopnih 5 ciklusa, motoru je potrebno 30 minuta da se ohladi.

- Da biste se uvjerili da li je blender dobro spojen, molimo da ga ne puštate u rad a da ga prethodno ne uronite u tečnost.

2) Kako da koristite čoper

② Dodajte belanca od 2-3 jajeta u posudu, zatim ubacite žicu u posudu. Uključite utikač u uitčnicu i pritisnite dugme za brzi rad. Kada se formira pena, pustite dugme i uređaj će se zaustaviti. Na kraju, isključite uređaj s napajanja.

1. REFERENTNA TABELA ZA KOLIČINU HRANE ZA OBRADU

Tip hrane	Veličina Maksimalna količina za sjeckanje	Maksimalna količina koju treba staviti u posudu	Vrijeme obrade (sekunde)	Izbor brzine
junetina	2cm×2cm×6cm	200g / 8-10		brži rad
mrkva	isjeći na 4 dijela	300g	200g+300g sporiji rad (hrana+voda)	30-40
bijeli luk češnjevi		100g	/ 20-30
crni luk	iseći na 8-16 disc	300g	/	5-10
jabuka	iseći na 4-8 delova	500g	200g+300g (hrana+voda)	30-40
bjelanca	/ / bjelanca od 3-4	jaja 60 brži rad

6. VAŽNA BEZBJEDNOSNA UPOZORENJA

1) Da biste izbjegli rizik od požara ili strujnog udara, molimo koristite uređaj isključivo pri naponu od AC 220V-240V.
2) Molimo ne koristite utičnicu jaču od 6A. Ukoliko dijelite utičnicu sa drugim električnim uređajima, može doći do pregrijavanja strujnog kola utičnice i može se zapaliti.
3) Molimo da ne koristite neke metalne predmete da ne biste oštetili uređaj.

4) Morate isključiti uređaj sa napajanja po završetku upotrebe kako biste izbjegli rizik od strujnog udara, ili veće nezgode.
5) Uređaj će se automatski zaustaviti ukoliko dođe do pregrijevanja. Molimo isključite utikač.
6) Molimo isključite uređaj s napajanja prije rastavljanja i sastavljanja dijelova, kao i prilikom čišćenja i kada ga ne koristite.
7) Molimo da ne stavljate previše toplu hranu (preko 60 stepeni) kao ni preveliku količinu hrane u posudu, kako biste izbjegli da se tečnost izlije, iscuri i dovede do povrede korisnika.
8) Upotreba dodataka koji nisu preporučeni ili kupljeni od proizvođača može uzrokovati ličnu povredu.
9) Provjerite da su svi dijelovi dobro postavljeni i dobro zaključajte prilikom upotrebe.
10) Uzastopni rad ovog uređaja treba da traje manje od 1 minuta. Nakon ovog perioda potrebno je odmoriti uređaj 1 minut. Minut rada i minut odmora smatra se jednim ciklusom rada uređaja. Nakon uzastopnih 5 ciklusa rada, potrebno je 30 minuta da se motor uređaja ohladi.
11) Posuda s merama, čoper, posuda za obradu hrane, itd nisu dozvoljeni za upotrebu u mikrotalasnoj rerni.

7. UPOZORENJE

1) Osim profesionalnih servisera, druge osobe ne smiju same rastavljati, popravljati i ponovo sastavljati uređaj, jer to može dovesti do požara, električnog curenja i nepravilnog rada.
2) Čuvajte ovaj uređaj van domašaja djece.
3) Nemojte mokrim rukama priključivati ili isključivati utikač kako biste izbjegli strujni udar.
4) Nemojte stavljati glavnu jedinicu pod mlaz vode niti je uranjati u vodu, kako biste izbegli strujni udar.
5) Samo za upotrebu u domaćinstvu, molimo ne koristite u komercijalne svrhe.

8. ČIŠĆENJE I ODRŽAVANJE

1) Prije čišćenja isključite utikač iz utičnice.
2) Ne dodirujte oštrice.
3) Molimo koristite čistu, suvu krpu za brisanje uređaja. Strogo je zabranjeno potapati jedinicu s motorom u vodu ili prati pod mlazom vode.
4) Molimo da ne koristite metalne sundere, četke, sredstva za čišćenje, razređivače i druga slična sredstva za čišćenje ovog uređaja, jer mogu oštetiti površinu uređaja.
5) Molimo koristite meku, suvu krpu da očistite nečistoće sa strujnog kabla.
6) Zahtjevi za čišćenje svakog pojedinačnog dodatka:

Капак на рачката

Technical line drawing of a conical mechanical component with a flanged top and base (no text or symbols)

Капак на сецкалка

Сечило на сецкалка

Simple line drawing of a cylindrical object with a base and top, no text or symbols present

Simple line drawing of a cylindrical container with a flange at the base and a separate ring below (no text or symbols)

Сецкалка

Simple line drawing of a whisk inside a wire (no text or symbols)

Маталка

3. ГЛАВНИ ФУНКЦИИ

Сад и подлога

Simple line drawing of a cable inserted into a square socket (no text or symbols)

Simple line drawing of an electrical plug connected to a wall-mounted socket (no text or symbols)

Внимание :

Внимание:

1. РЕФЕРЕНТНА ТАБЕЛА ЗА КОЛИЧИНА НА ХРАНА ЗА ОБРАБОТКА

1. TABELA REFERENTE PËR SASINË E USHQIMIT PËR PËRPUNIM
