Product type	Off-road motorcycle / Enduro / Supermotard
Brand	HUSQVARNA
Model	HVA TE TC SMR 310 2010
Category	Motorcycle
Length (TE)	2267 mm
Max width	820 mm
Max height (TE)	1285 mm
Seat height (TE)	963 mm
Displacement	297.6 cm³ (310)
Engine type	Single-cylinder 4-stroke, liquid cooling
Bore x Stroke	83 mm x 55 mm
Compression ratio	12.9:1
Fuel system	Electronic injection (TE, SMR) / Keihin FCR-MX 41 carburetor (TC)
Ignition	Inductive discharge electronic ignition (TE-SMR) or capacitive discharge (TC)
Starting	Electric and/or kick (TE); electric (SMR); kick (TC)
Transmission	6-speed, hydraulic clutch
Frame	Single-spine tubular steel frame
Front suspension	Inverted telescopic fork Ø 50 mm (TE 310), adjustable compression and rebound
Rear suspension	Progressive hydraulic monoshock, adjustable
Front brake	Wave fixed disc Ø 260 mm (TE, TC) or floating disc Ø 320 mm (SMR), hydraulic
Rear brake	Wave floating disc Ø 240 mm, hydraulic
Fuel tank capacity	17.2 L (including 1.8 L reserve)
Engine oil capacity (drain)	1.5 L (1.7 L with filter)
Battery	12V - 6 Ah (sealed type)
Spark plug	NGK CR8EB, gap 0.7 mm

Frequently Asked Questions - HVA TE TC SMR 310 2010 HUSQVARNA

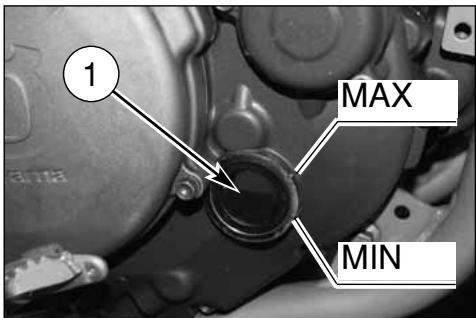

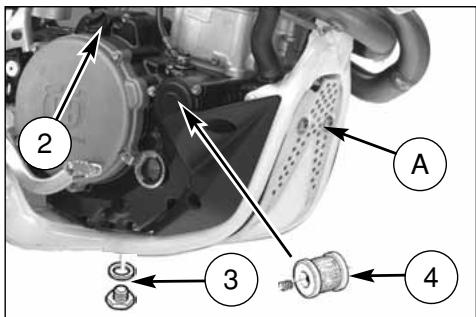

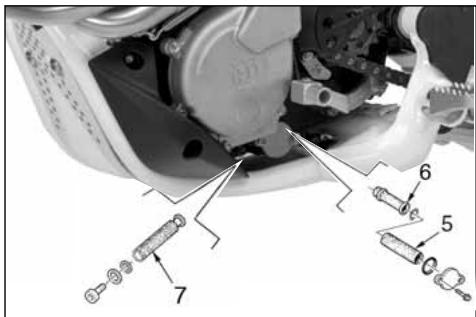

What engine oil to use and what is its capacity?

Use a quality engine oil as specified in the lubrication table. The capacity is 1.5 L for a simple drain, and 1.7 L with oil filter replacement.

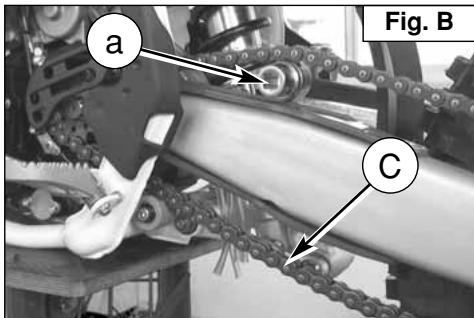

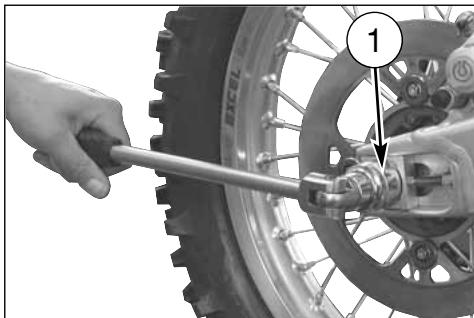

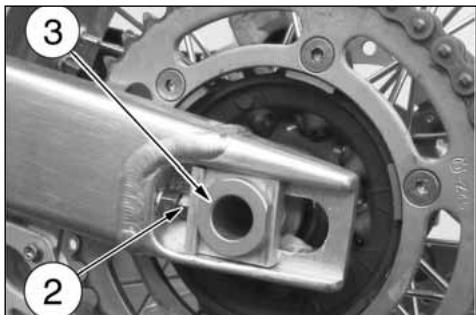

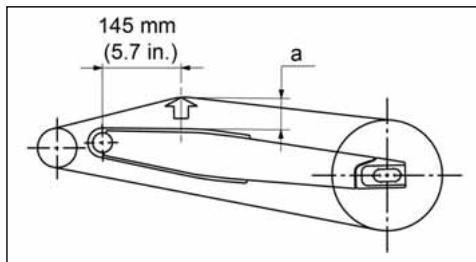

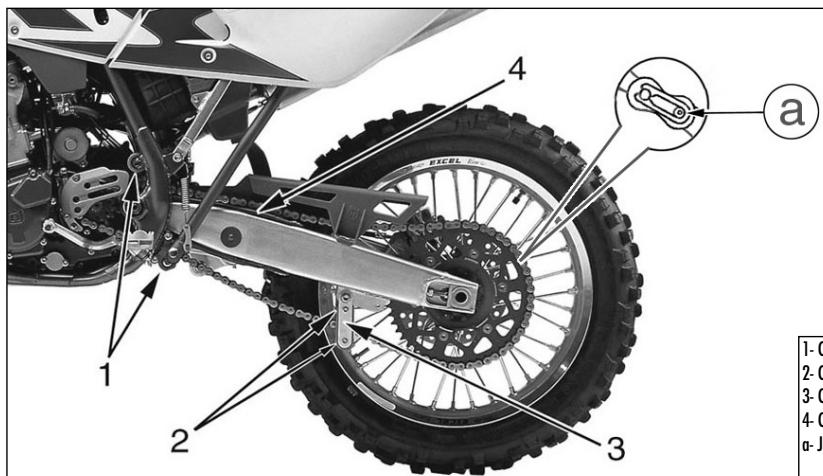

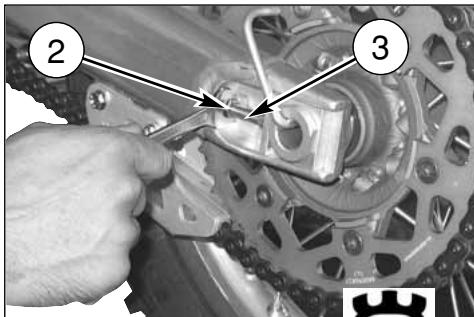

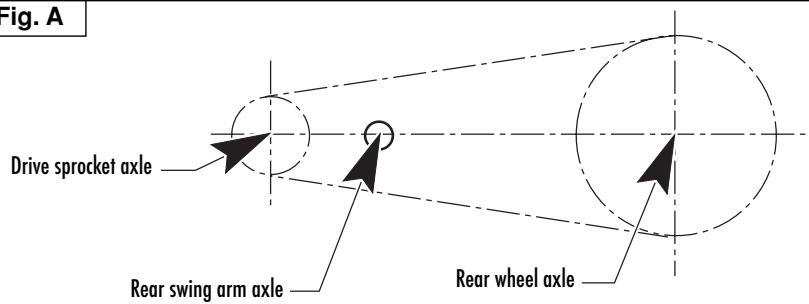

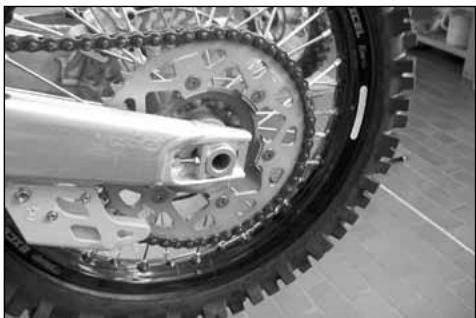

How to adjust the drive chain tension?

Place the motorcycle on a stand, loosen the rear wheel nut (27 mm wrench), then the chain adjuster locknuts (12 mm wrench). Adjust the adjuster screws to get a slack of 35 mm on the lower chain run. Tighten the locknuts and wheel nut.

What type of spark plug and gap are recommended?

The recommended spark plug is a NGK CR8EB with an electrode gap of 0.7 mm. An incorrect gap can cause starting difficulties or reduced performance.

What tire pressure for road use?

For front tires: 1.1 kg/cm² (TE/TC) or 1.4 kg/cm² (SMR). For rear: 1.6 kg/cm² (SMR) or 0.8-0.9 kg/cm² (TE/TC). Adjust pressure according to terrain (sport or road).

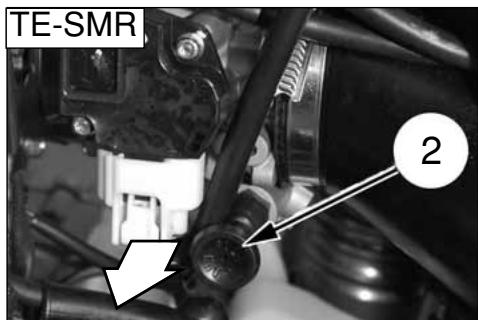

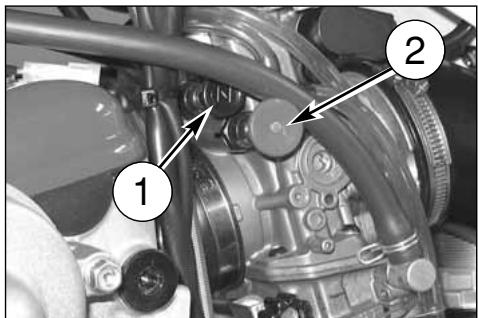

How to start the engine cold on a TE/SMR model?

1. Turn on the ignition. 2. Pull the choke (black button). 3. Pull the clutch lever. 4. Make sure the gearbox is in neutral. 5. Press the start button. As soon as the engine idles, close the choke. Do not accelerate abruptly when cold.

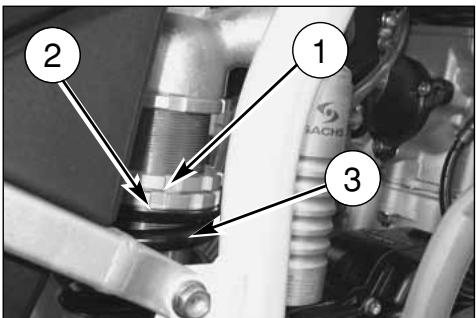

How to adjust the rear shock spring preload?

Remove the seat and right side panel. Loosen the locknut of the adjuster ring using a hook spanner. Turn the adjuster ring to increase or decrease preload. The recommended static sag is 100 mm (cold shock) or 95 mm (hot). Tighten the locknut to 5 Kgm.

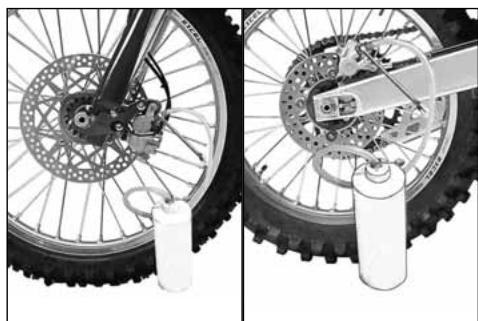

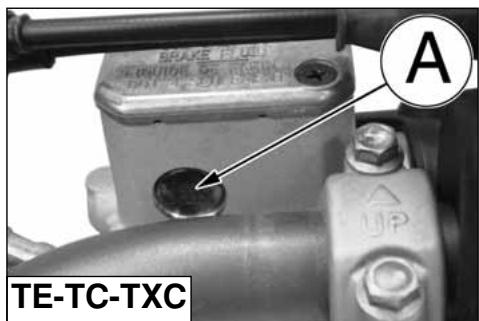

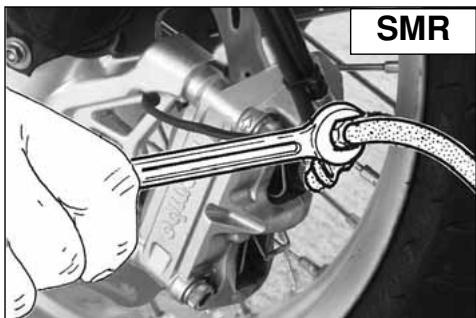

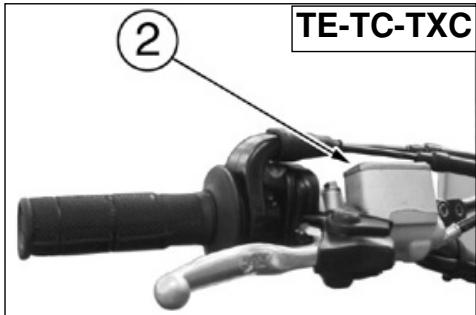

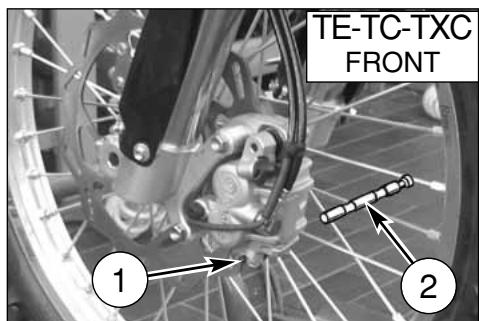

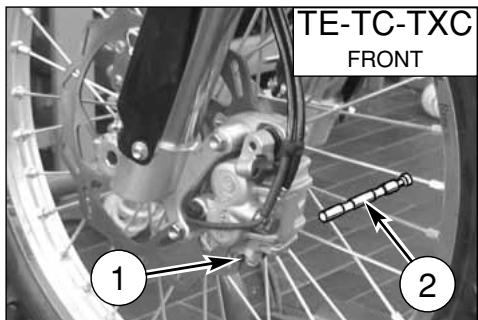

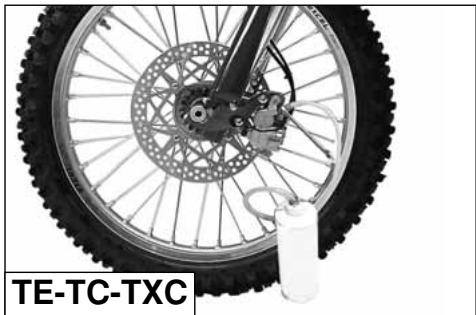

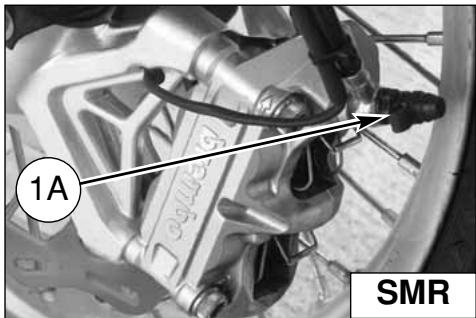

What is the bleeding procedure for the front brake circuit?

Remove the bleed screw cap. Attach a clear hose to the screw and submerge the other end in a container. Open the bleed screw, pump the brake lever several times until fluid comes out without bubbles. Hold the lever, close the screw. Check the reservoir level and add DOT 4 fluid.

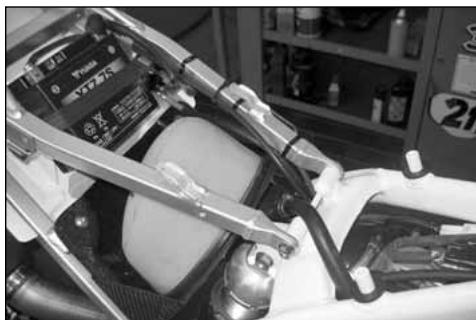

How to clean the air filter?

Remove the seat and battery. Remove the air filter. Wash it with a specific detergent (CASTROL FOAM AIR FILTER CLEANER) or gasoline. Rinse thoroughly, then soak it with special foam filter oil. Squeeze out excess and reinstall the filter ensuring good sealing. Never use gasoline or low flash point solvents.

What fuel to use and how to manage the reserve?

Use unleaded 98 octane gasoline. The total tank capacity is 17.2 L, including 1.8 L reserve. On injection models (TE/SMR), the reserve is indicated by an orange light on the dashboard. On carburetor models (TC), the fuel tap allows switching to reserve.

How to maintain the battery and when to charge it?

The battery is sealed maintenance-free. Check its voltage: if it is below 12.5 V, recharge it with a constant voltage charger at 14.4 V. For a 12V-6Ah battery, use a current of 0.6 A for 8 hours (slow charge). Avoid fast charging. Store the battery in a dry place if the motorcycle is unused for a long time.

USER MANUAL HVA TE TC SMR 310 2010 HUSQVARNA

To the best knowledge of HUSQVARNA MOTORCYCLES S.R.L. the material contained herein is accurate as of the date this publication was approved for printing. HUSQVARNA MOTORCYCLES S.R.L. reserves the right to change specifications, equipment, or designs at any time without notice and without incurring obligation. Illustrations in this manual are merely for demonstration purposes and could not exactly match the detail described.No part of this manual can be reproduced without permission in writing of the copyright holder.

1st Edition (04-09)

Unless specified, data and prescription are referred to all t he models.

Anteriore (SMR)........SANREMO in lega leggera: 3,50x17"

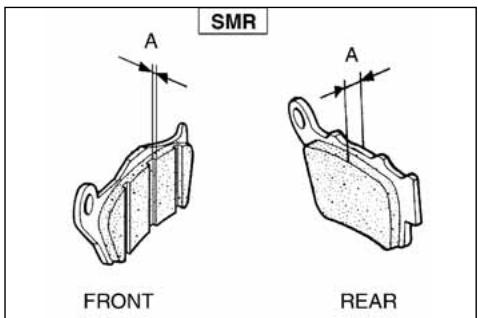

USURA PASTIGLIE (SMR)

Welcome to the Husqvarna motorcycling Family!

Your new Husqvarna motorcycle is designed and manufactured to be the finest in its field.

The instructions in this book have been prepared to provide a simple and understandable guide for your motor-cycle's operation and care.

Follow the instructions carefully to obtain maximum performance and your personal motorcycling pleasure. Your owner's manual contains instructions for owner care and maintenance.

The main work of repair or maintenance requires the attention of a skilled mechanic and the use of special tools and equipment.

Your Husqvarna dealer has the facilities, experience and original parts necessary to properly render this valuable service.

This "Owner's Manual" is part and parcel of the motorcycle, hence, this had to remain with the motorcycle even when sold to another user.

This motorcycle uses components designed thanks to systems and state of the art technologies which are thereafter tested in competition.

In competition motorcycles, every detail is verified after each race in order to always guarantee better performance. For correct functioning of the vehicle, it is necessary to follow the maintenance and control table found on Appendix A.

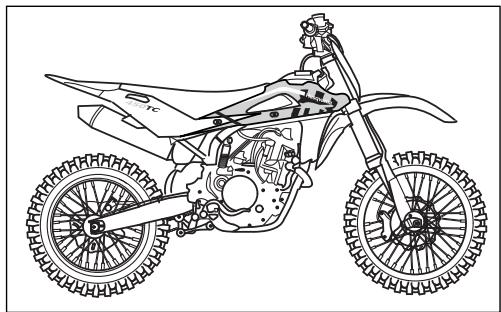

IMPORTANTNOTICES

1) The TC and TXC models are guaranteed COMPETITION motorcycles exempt from functional defects, the suggested maintenance table for competition use is shown on Appendix A.

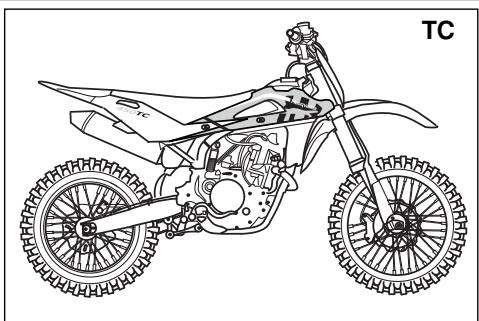

MOTOCROSS

2) TE and SMR are STREET LEGAL motorcycles (with LIMITED POWER ENGINE); they are guaranteed exempt from functional defects and covered with legal guarantee, if the STANDARD CONFIGURATION is maintained and the suggested maintenance table, shown on Appendix A (page A8) is observed.

If TE and SMR are transformed in COMPETI-TION MOTORCYCLES (with FULL POWER EN-GINE), the suggested maintenance table for competition use is shown on Appendix A.

ENDURO

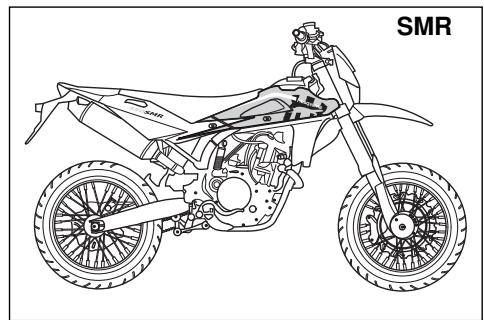

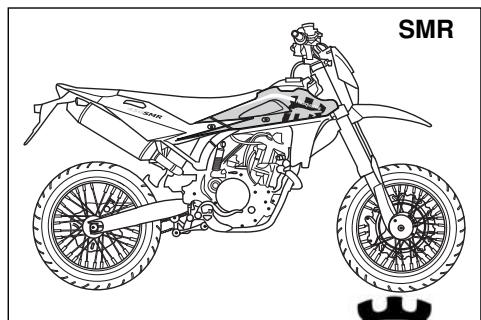

SUPERMOTARD

IMPORTANT

The reference for recognition of the guarantee will be the MOTORYCLE CONFIGURATION, as shown below:

A) STANDARD MOTORCYCLE, STREET LEGAL: with LIMITED POWER ENGINE
B) COMPETITION MOTORCYCLE, RACING USE: with FULL POWER ENGINE

This motorcycles was not designed for long trips with the engine always at maximum rpm as can occur whilst travelling on roads or highways. Long trips at full throttle can cause severe damage to the engine.

This motorcycles is setup for competition use and therefore guarantees maximum performance with the rider alone. It is thereby not recommended to use the vehicle on circuits or off-road with a passenger.

ALWAYS keep in mind that these motorcycles have been designed strictly for competition use, that is, for conditions of usage very different from those presented on the road.

ALWAYS keep in mind that these motorcycles have been designed strictly for competition use, that is, for conditions of usage very different from those presented on the road.

In order to maintain the vehicle's "Guarantee of Functionality", the client must follow the maintenance program indicated in the user's manual by carrying out maintenance checks at authorized HUSQVARNA dealers. The cost for substitut

ing parts and for the labour necessary in order to respect the maintenance plan, is charged to the client.

NOTE: the guarantee is EXTINGUISHED in the case where the motorcycle is rented.

Important Notice

Read this manual carefully and pay special attention to statements preceded by the following words:

Warning*: Indicates a possibility of severe personal injury or loss of life if instructions are not followed.

Caution*: Indicates a possibility of personal injury or equipment damage if instructions are not followed.

Note*: Gives helpful information.

Parts Replacement

When parts replacement is required, use only Husqvarna ORIGINAL parts.

Warning*: After an upset, inspect the motorcycle carefully. Make sure that the throttle, brake, clutch and all other systems are undamaged. Riding with a damaged motorcycle can lead to a serious crash.

Warning*: Never attempt to start or operate your motorcycle unless you are wearing appropriate protective clothing. Always wear a motorcycle helmet, motorcycle boots, gloves, goggles and other appropriate protective clothing.

Warning*: This motorcycle is a state of the art competition bike. Do not attempt to start or ride this motorcycle until you have received expert instruction and are in excellent physical condition.

PRECAUTIONS FOR CHILDREN WARNING

• Park the vehicle where it is unlikely to be bumped into or damaged. Even slight or involuntary bumps can cause the vehicle to topple over, with subsequent risk of serious harm to people or children.
  To prevent the vehicle from tipping over, never park it on soft or uneven ground, nor on asphalt strongly heated by the sun.
  Engine and exhaust pipes become very hot during riding. Always park your motorcycle where people or children can not easily reach these parts, in order to avoid serious burns.

TABLE OF CONTENTS

PRESENTATION 2

IMPORTANTNOTICES 2

IDENTIFICATION DATA. 5

TECHNICAL DATA 8

LUBRICATION TABLE, SUPPLIES. 10

CONTROLS 11

RIDING 20

• References to the "left" or "right" of the motorcycle are in the sense of a person facing forwards.

Z: number of teeth
A: Austria

AUS: Australia
B: Belgium
BR: Brazil
CDN: Canada
CH: Switzerland
D: Germany
E: Spain
F: France
FIN: Finland
GB: Great Britain
I: Italy
J: Japan
USA: United States of America

• Where not specified, all the data and the instructions are referred to any and all Countries.

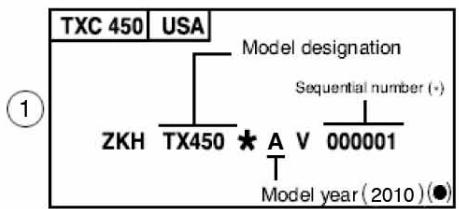

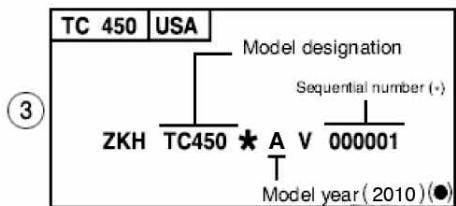

VEHICLE IDENTIFICATION NUMBER (V.I.N.)

The full 17 digit serial, or Vehicle Identification Number, is stamped on the steering head tube (R.H. side).

①

②

3

4

5

1. Frame serial number
2. Engine serial number

(^*) :Progressiv nr.
() : Year of the model

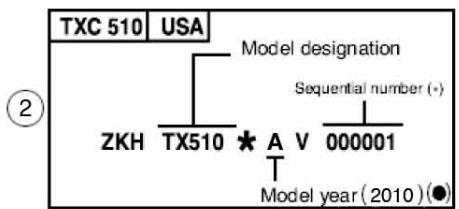

VEHICLE IDENTIFICATION NUMBER (V.I.N.)

The full 17 digit serial, or Vehicle Identification Number, is stamped on the steering head tube (R.H. side).

(^*) :Progressivn.
() : Year of the model

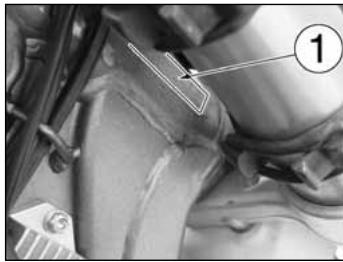

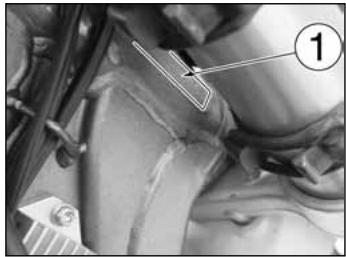

1. Frame serial number

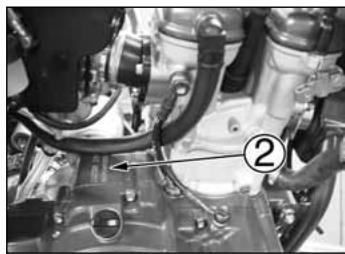

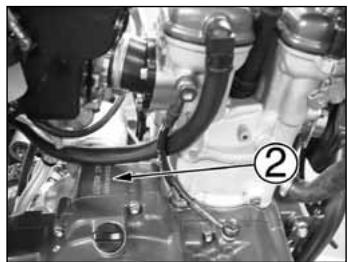

2. Engine serial number

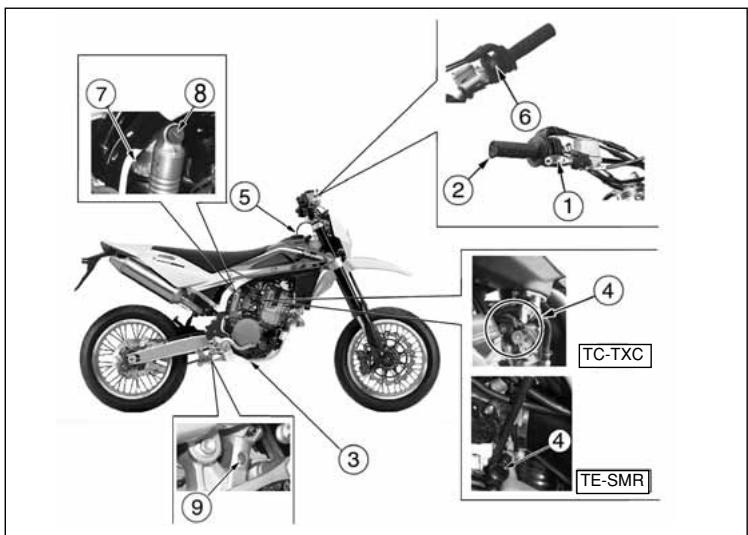

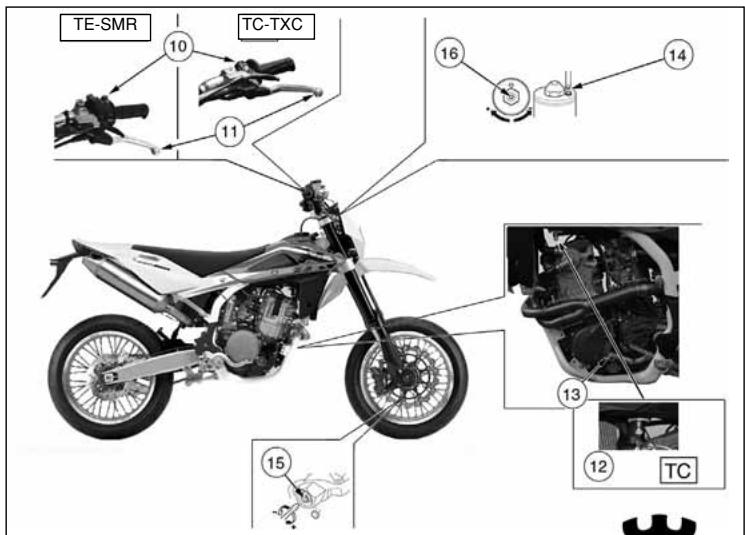

Control location

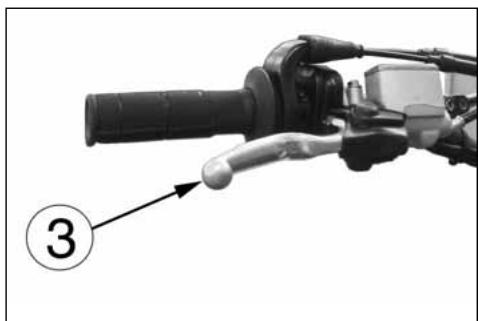

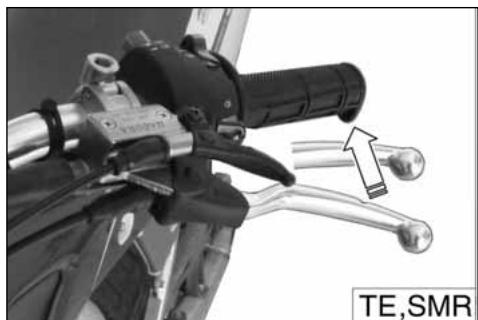

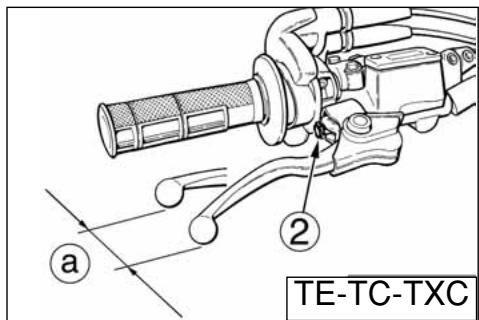

1. Front brake lever

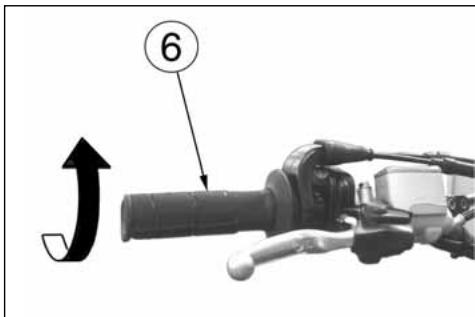

2. Throttle grip

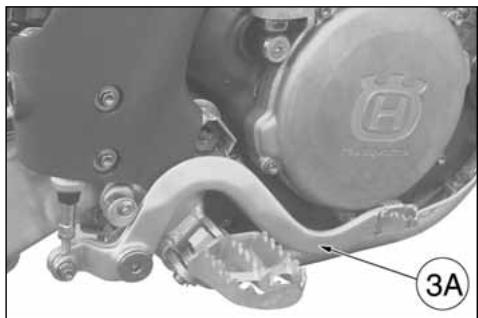

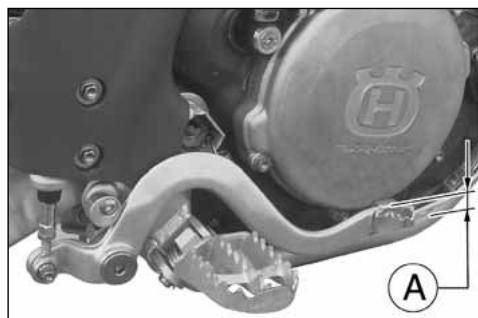

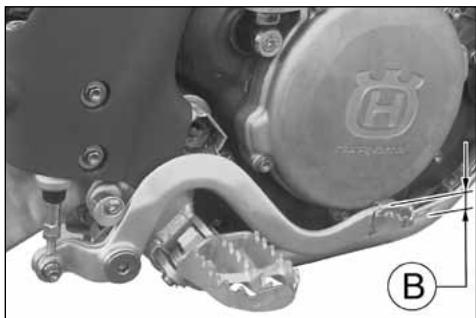

3. Rear brake control pedal
4. Choke (L.H. side)

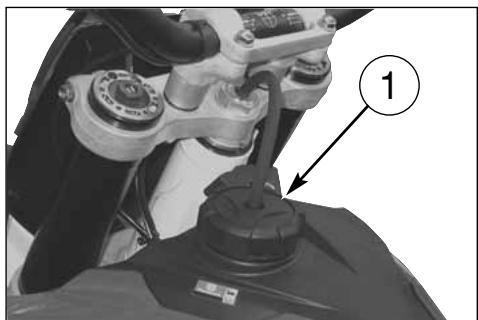

5. Fuel tank filler cap

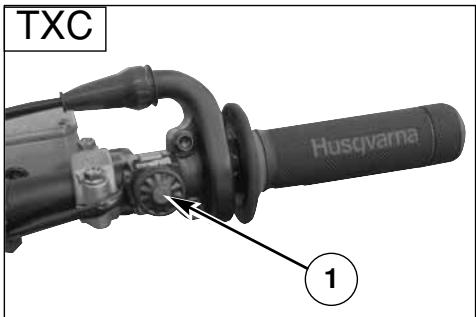

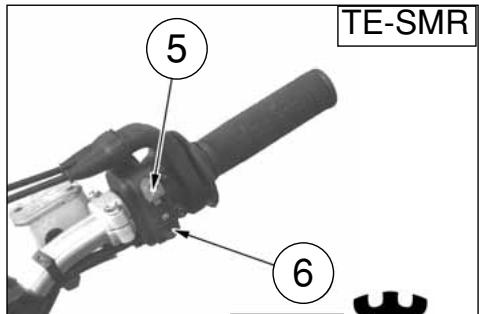

6. R.H. commutator (engine electric start)
   7.Rear shock absorber spring preload adjustment

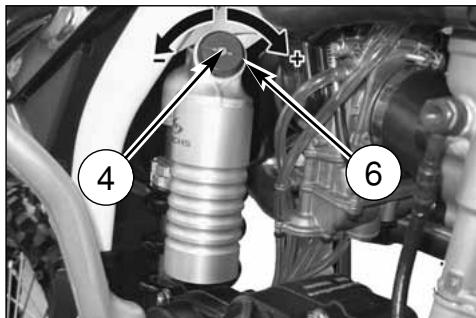

7. Rear shock absorber compression damper adjustment (low and high damping speeds)

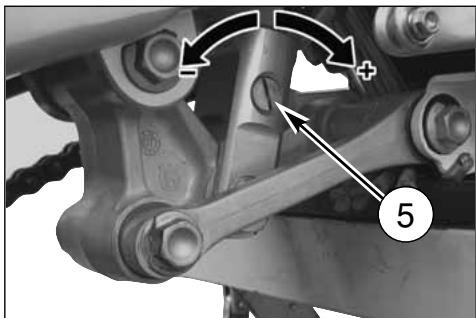

8. Rear shock absorber extension damper adjustment

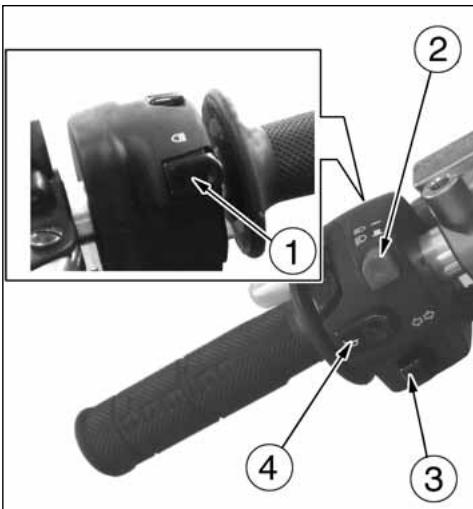

9. L.H. commutator (TE, SMR)

10. Engine stop button (TC-TXC)

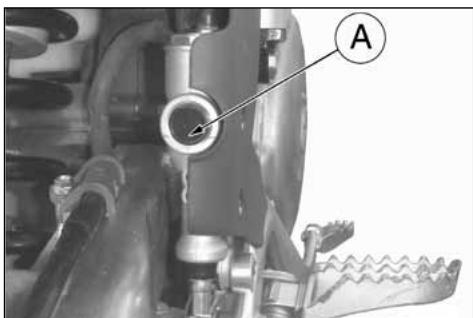

    11.Clutch control lever
11. Fuel cock (TC-TXC)

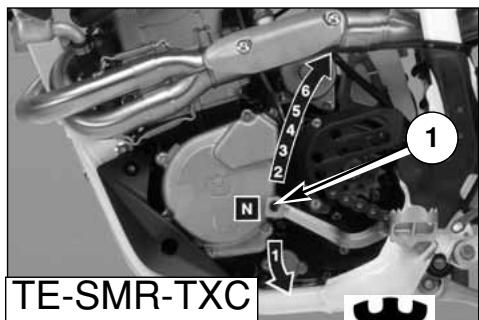

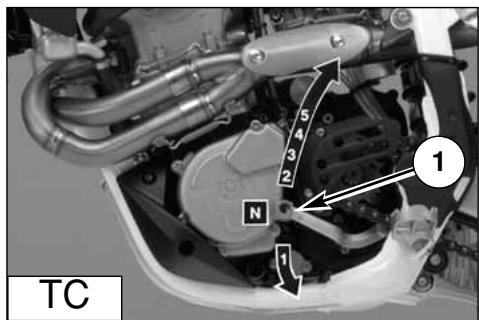

12. Gearbox control pedal
13. Air bleeding screw on front fork leg

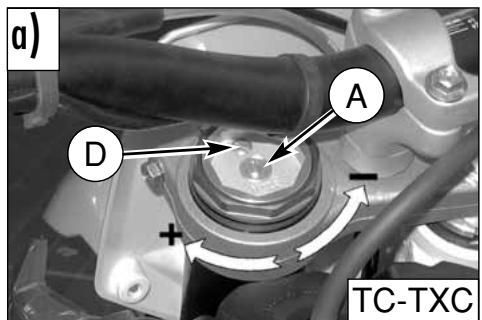

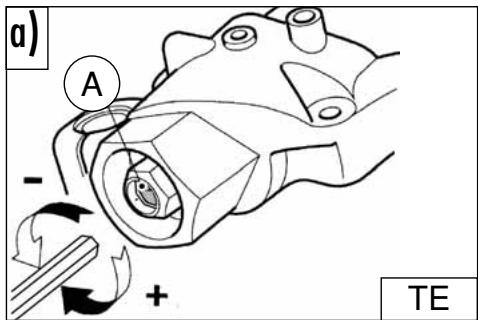

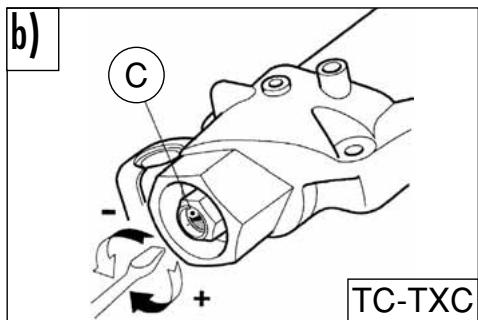

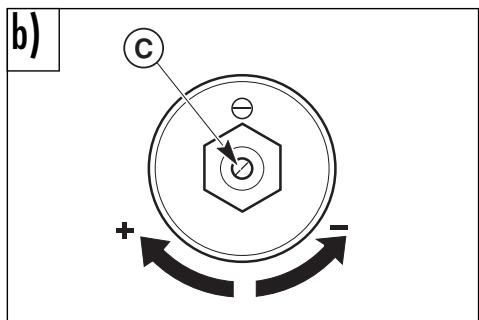

14. Compression damper adjustment (front fork leg bottom side)

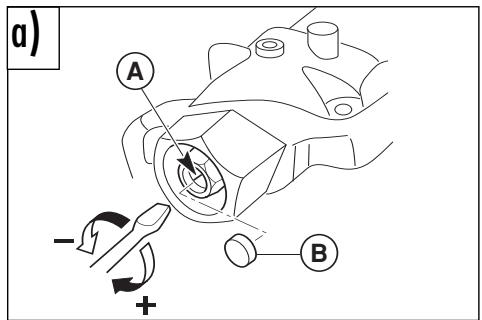

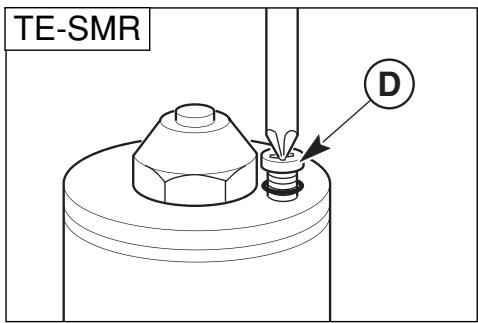

15. Extension damper adjustment (front fork leg top side)

TECHNICAL DATA

ENGINE Type.........single cylinder, 4 stroke

Cooling. liquid with electric fan on TE-SMR models Bore (310) 3,27 in.

Bore (450-510) 3.81 in.

Stroke (310) 2.17 in.

Stroke (450) 2.39 in.

Stroke (510) 2.67 in.

Displacement (310) 18,16 cu. in.

Displacement (450) 27.39 cu.in.

Displacement (510) 30.56 cu. in

Compression ratio. 12,9:1

Starting (TC)..... kick start (with automatic decompressor)

Starting (SMR).....electric (with automatic decompressor)

Starting (TE-TXC).....electric and kick start (with automatic decompressor)

TIMING SYSTEM

Type... double overhead camshaft; 4 valve

Valve clearance (with engine cold)

Intake 0.004 ÷ 0,006 in.

Exhaust 0.006 ÷ 0,008 in.

LUBRICATION

Type.....Dry sump with two oil pump rotor and cartridge filter

IGNITION

Type .........Electronic, inductive (TE-SMR) or capacitive (TC-TXC)

discharge, with adjustable advance (digital control)

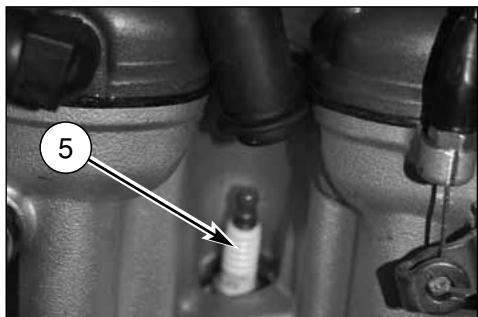

Spark plug type. NGK CR8EB

Spark plug gap. 0.027 in.

FUEL SYSTEM

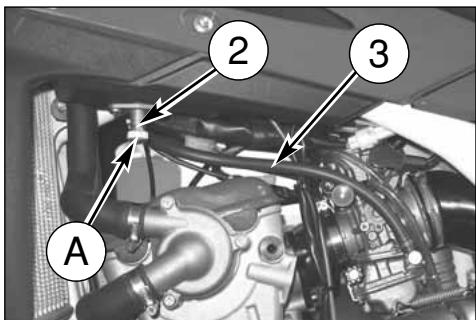

Type (TE-SMR) Electronic injection feed

Type (TC 450, TXC 450-510).Keihin" FCR-MX 41 with acceleration pump and throttle position sensor

Venturi diameter 1.61 in.

High speed jet 180

Low speed jet 45

Starting jet 85

Starting air jet. 0.16 in.

Main air jet 200

Low air jet 100

Floater 11.2

Throttle piston. 15 M

Metering pin .OBDVR

Metering pin slot 5th

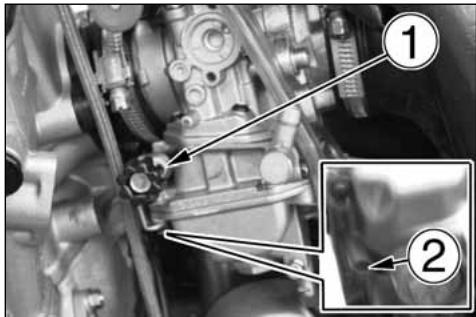

Idle mixture adjusting screw . roundso 2

PRIMARY DRIVE

Drive pinion gear- Clutch ring gear (TE 310) Z 24 Z 88

Drive pinion gear- Clutch ring gear (450-510) 23-63

Transmission ratio (310) 3,666

Transmission ratio (450-510) 2,739

CLUTCH

Type... oil bath multiple disc clutch, hydraulic control

TRANSMISSION

Type.........constant mesh gear type

Transmission ratio (TE-SMR-TXC)

1st gear. 2,000 (z 28/14)

Transmission ratio (TC)

Transmission ratio (TC 450) 3,571

Transmission ratio (SMR 450-510) 2,800

FINAL RATIOS

1st gear (TE 310) 28,205
1st gear (TE-TXC 450-510) 19,806
1st gear (TC 450) 18,261
1st gear (SMR 450-510) 15,339
2nd gear (TE 310) 22,721
2nd gear (TE-TXC 450-510) 15,955
2nd gear (TC 450) 14,130
2nd gear (SMR 450-510) 12,356
3rd gear (TE 310) 18,803
3rd gear (TE-TXC 450-510) 13,204
3rd gear (TC 450) 12,357
3rd gear (SMR 450-510) 10,226
4th gear (TE 310) 15,329
4th gear (TE-TXC 450-510) 10,764
4th gear (TC 450) 10,633
4th gear (SMR 450-510) 8,336
5th gear (TE 310) 12,974
5th gear (TE-TXC 450-510) 9,111
5th gear (TC 450) 9,338
5th gear (SMR 450-510) .7,056
6th gear (TE 310) 11,491
6th gear (TE-TXC 450-510) 8,069
6th gear (SMR 450-510) .6,249

FRAME

Type....Steel single tube cradle (roud, rectangular, ellipsoidal tubes); light alloy rear frame

FRONT SUSPENSION

Type. "Upside-down" telescopic hydraulic front fork with advanced axle (adjustable in compression and rebound stroke);

a) USA-AUS model excluded: stanchions tubes 0.189 in. (TE 450-510, TC 450) or 0.197 in. (TE 310, SMR 450-510);

b) USA-AUS model: stanchions tubes 1.89 in. (TE 310-450-510, TC 450) or 1.97 in. (SMR 450-510);

Legs axis stroke. [TE, TC, TXC] 11.8 in.; (SMR) 9.84 in.

REAR SUSPENSION

Type.........progressive with hydraulic single shock absorber

Wheel stroke (TC-TXC-TE) 11.6 in.

Wheel stroke (SMR) 11.4 in.

FRONT BRAKE

Typefixed disc 0.10.23 mm "Wave" type with hydraulic control and floating caliper (TE, TC); floating disc 0.12.59 mm "Wave" type with hydraulic control and fixed radial caliper (SMR)

REAR BRAKE

Type.... floating disc, 9.45 in. "Wave type with hydraulic control and floating caliper

RIMS

Front (TE, TC, TXC).....TAKASAGO "Excel" in light alloy: 1,6x21"

Front (SMR) SANREMO in light alloy: 3,50 × 17^

Rear (TE, TXC) TAKASAGO "Excel" in light alloy: 2,15x18

Rear (TC).....TAKASAGO "Excel" in light alloy: 1,85x19"(250); 2,15x19"(450-510)

Rear (SMR) .SANREMO in light alloy 4,25× 17^

TIRES

Front

(TE, USA model excluded -TXC) . . . Michelin ENDURO

COMP. 3 or Pirelli MT 83 Scorpion; 90/90x21"

(TE, USA model).... Metzeler MCE Karoo; 90/90x21"

(TC) ... Pirelli 51R-MT 32A or Dunlop D756; 80/100 x 21"

(SMR) . Pirelli MTR 21 DRAGON-EVO; 120/70-17"

Rear

(TE, USA model excluded -TXC) ... Michelin ENDURO COMP.

3 or Pirelli MT 83 Scorpion; 120 / 90 × 18'' (310); 140 / 80 × 18'' (450-510);

(TE USA model). Metzeler MCE Karoo; 120/90x18" (310); 140/80x18" (450-510)

(TC) .Pirelli NHS (57) MT 32 or Dunlop D756; 110/90x19" (450)

(SMR). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pirelli MTR 22 DRAGON-EVO; 150/60x17"

Cold tire pressure

(front TC) 0,9÷1,0 Kg/cm2

(1) (^*) (TXC). 0,9÷1,0 Kg/cm2

(front TE) (%) 1,1 Kg/cm2

(front SMR) (^*) 1,4 kg/cm2

(front SMR) (%) rider only. 1,8kg / cm2

(front SMR) (%) 2,0 kg/cm2

rider and passenger

(rear TC). 0,8÷0,9 Kg/cm2

(rear TE) (^*) TXC 0,8÷0,9 Kg/cm2

(rear TE) (%) 1,0 Kg/cm2

(rear SMR) (^*) 1,6 kg/cm2

(rear SMR) (%) 2,0 kg/cm2 rider only

(rear SMR) (%) 2,2 kg/cm2 rider and passenger

(^*) In case of racing use - (%) Road use

DIMENSION, WEIGHT, CAPACITY

Wheelbase

(TC-TE-TXC) 58.38 in.
(SMR). 56.89 in.

Overall length

(TC) 86.42 in.
(TE) 89.25 in.
(SMR) 85.16 in.
(TXC) 85.94 in.

Overall width 32.30 in.

Overall height
(TC-TE-TXC) 50.59 in.
(SMR) 49.21 in.
Saddle height
(TC). 38.11 in.
(TE-TXC) 37.91 in.
(SMR) 36.22 in.

Minimum ground clearance

(TC-TE-TXC) 11.81 in.

(SMR). 9.64 in.

Dry weight

(TC 450) .228.2
(TE 310) . 1b.235.9
(TE 450-510) .lb.244.7
(SMR 450-510). lb. 265.7
(TXC 450-510) ... [b 238,]

Fuel tank capacity (TE-SMR, 1.58 Imp. Qt./ 1.9 U.S. Qt. reserve included) 1.58 Imp. Gall./ 1.9 U.S. Gall

Coolant capacity 2.0÷2.4 Imp. Pints;
2.3÷2.7 U.S. Pints

Transmission oil

Oil and oil filter replacement.....Imp.Quarts 1.5,U.S.Quarts 1.8
Oil replacement. Imp. Quarts 1.3, U.S. Quarts 1.6

TABLE FOR LUBRICATION, SUPPLIES

Engine, gearbox and primary drive lubricating oil

Final drive chain lubrication

CASTROL CHAIN LUBE RACING

Front fork oil

Marzocchi: CASTROL SYNTHETIC FORK OIL 5W - Kayaba: KHL15-11

Oil for rear shock absorber

CASTROL SYNTHETIC FORK OIL 5W

Electric contact protection

CASTROL METAL PARTS CLEANER

Fillers for radiator

AREXONS TURAFALLE LIQUIDO

CONTROLS

FUEL COCK (TC-TXC)

The left-side tap (2) is a screw tap: screw the ring nut (A) to close the tap, loosen the ring nut to open the tap.

WARNING*: Be careful not to touch the hot engine while operating the fuel valve.

A fuel filter is incorporated in the fuel valves. Accumulation of dirt in the filter will restrict the flow of the fuel to the carburetor. Therefore, the fuel filter should be serviced periodically.

1 Loosen the input plug (1) on the fuel tank and close the tap;
2 Remove the fuel hose (3) from the carburetor and insert the hose in a vessel;
3 Open the tap and drain the fuel out of the tank;
4 Remove the fuel valve by removing the screws. Wash the fuel screen filter in cleaning solvent;
5 Reassemble the fuel valve in the reverse order of removal. Open the tap and check for leaks.

FUEL INJECTION ENGINE (TE-SMR)

On vehicles which are fitted with a fuel injection engine, the fuel pump is built into the fuel tank and there is no tap mounted on the fuel supply system. The quantity of remaining fuel is indicated on the digital dash-board by the special warning light (see on page 14).

1. Fuel tank cap
2. Fuel cock
3. Fuel hose
   A. Tap ring nut

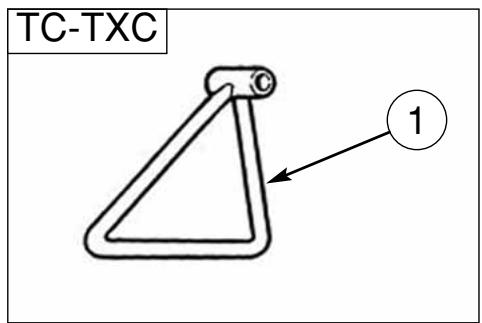

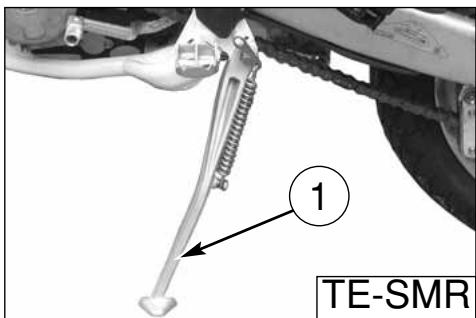

SIDESTAND

A sidestand (1) is supplied with every motorcycle.

WARNING*: The stand is designed to support the weight of the MOTORCYCLE ONLY. Do not sit on the motorcycle using the stand for support as this could cause structural failure to the stand and could cause serious bodily injury.

Periodically check the side stand (see "Periodical maintenance card"); check that the springs are not damaged and that the side stand freely moves. If the side stand is noisy, lubricate the fastening pivot (A).

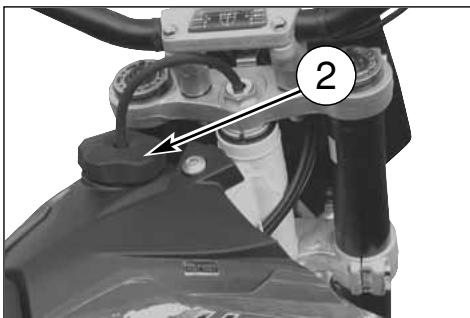

FUEL

Recommended fuel: premium grade unleaded fuel. (R.O.N. 98).

Note*: Do not continue operation if the engine pings or knocks. The engine will be damaged and could seize.

WARNING*: If "knocking" or "pinging" occurs, try a different brand of gasoline or higher octane grade.

WARNING*: Gasoline is extremely flammable and can be explosive under certain conditions. Always stop the engine and do not smoke or allow flames or sparks in the area where the motorcycle is refueled or gasoline is stored.

WARNING*: Do not overfill the tank. After refueling, make sure the tank cap (2) is closed securely.

CARBURETOR CHOKE (TC-TXC)

The starter knob, located on the left side of the carburetor, is used to enrich the mixture during the engine start.

Pull out the knob to open the starter, and pull the lever upwards to close it.

The carburetor is equipped with two knobs:

1) BLACK KNOB: COLD start (°)
2) RED KNOB: WARM start (°)

(°) See page 23

COLD START (TE-SMR)

For a cold start, the models with a fuel injection engine are fitted with a black knob (3) located on the left of the throttle body.

Pull the knob outwards to open the starter and push inwards to close.

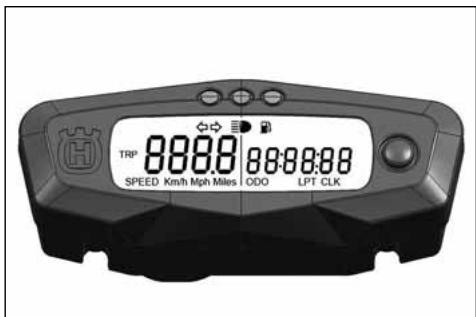

DIGITAL INSTRUMENT, WARNING LIGHTS (TE-SMR)

The motorcycle is equipped with a digital instrument; on the instrument are located 3 warning lights too: high beam, blinkers and fuel reserve.

1- BLUE warning light "HIGH BEAM"
2-GREEN warning light "BLINKERS"
3- ORANGE warning light "Fuel reserve" (1,8 I - 1.58 Imp. qt - 1.9 U.S. qt)

Turning the ignition key to the position "IGNITION" the instrument display illuminates (amber colour).

NOTES

• When linked to the battery, for the first 2 seconds, the instrument shows the version of the checking SW; after the check, the instrument shows the last planned function.
• When the motorcycle engine is OFF, the instrument doesn't also show its functions.

• To select the instrument functions and to set to zero the functions, use the SCROLL knob (A).

• The instrument functions are the following, as shown below.

1-SPEED/ODO (figure 1, page 14)
2- SPEED / CLOCK (figure 2, page 15)
3- SPEED/TRIP (figure 3, page 15)
4. SPEED / CHRONO (figure 4, page 15)
5- SPEED/RPM (engine r.p.m. numerical value) (figure 5, page 16)
1- SPEED / ODO (figure 1, page 14)

IMPORTANT: in case of FUEL INJECTION SYSTEM malfunction on the right side of the instrument display will be displayed the warning message "FAIL": (see page 16): in this case contact your local HUSQVARNA Dealer.

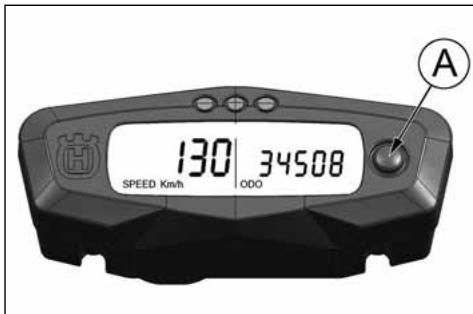

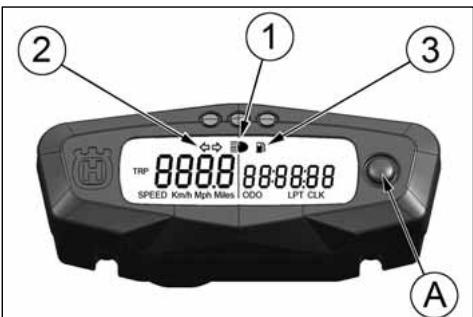

1-SPEED (Km/h or mph) /ODO (figure 1)

• SPEED: motorcycle speed-maximum value: 299Km/h or 299mph ;
  -ODO: odometer-maximum value: 99999 km;

To replace kilometers with miles or miles with kilometers proceed as follows:

1) set to figure 1, stop the engine and push the knob SCROLL (A);
2) turn the ignition key to the IGNITION position, holding pushed the button SCROLL (A) until the symbol "Km/h" will be displayed;
3) then the symbols "Km/h" and "Mph Miles" will be displayed alternatively. Push again the SCROLL (A) button when the unit you wish to use is displayed.

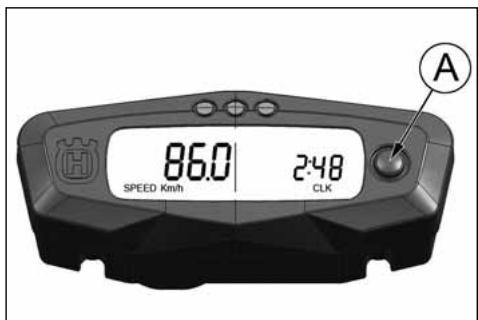

2-SPEED / CLOCK (figure 2)

• SPEED: motorcycle speed maximum value: 299 Km/h o 299 mph;
• CLOCK: clock- Reading from 0:00 to 23:59:59;

To reset the clock, push the knob SCROLL (A) for more than 3 seconds in order to increase the hours; release the knob and then, after 3 seconds, it is possible to increase the minutes;

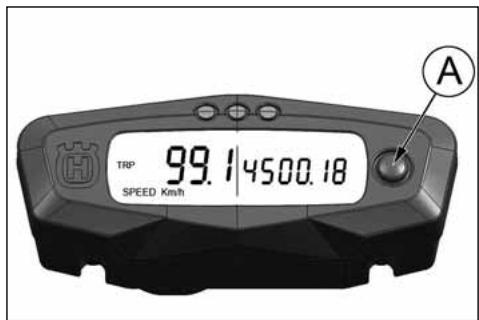

3-SPEED/TRIP1 (figure 3)

• SPEED: motorcycle speedmaximum value: 299 Km/h o 299 mph
• TRIP 1: distance-maximum value: 999.9km (the data will be lost after battery detachment).

To setup the TRIP, push the SCROLL (A) button holding down more than 3 seconds

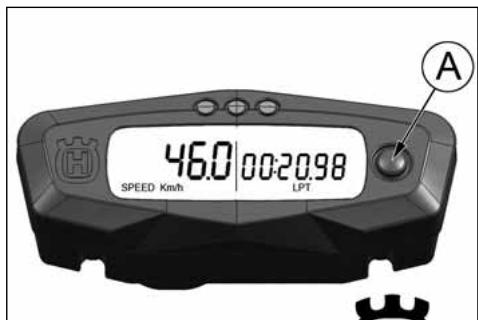

4-SPEED/CHRONO(STP) (figure 4)

• SPEED: motorcycle speed maximum value: 299 Km/h o 299 mph;
• STP 1: miles/kilometers covered time;
• Reading from 0:00 to 99:59:59 (the data will be lost after battery detachment).

To activate the function STP 1, push the knob SCROLL (A) for more than 3 seconds.

• 1st step: function ON;
• 2nd step: stop to the counters;
• 3rd step: STP 1 zero-setting; TRIP 1 and AVS 1 data zero-setting;
• 4th step: function ON;
• 5th step: stop to the counters;

and so following

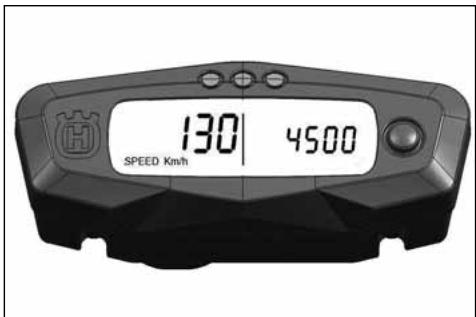

5- SPEED / DIGITAL RPM (figure 5)

The instrument display shows even then informations of the "Neutral" condition and of any possible "Malfunction" of the FUEL INJECTION SYSTEM; this last condition is showed with absolute priority with respect to any other information.

NEUTRAL: if the speed is under 20Km / h (12,5 mph), the "Neutral" condition the instrument displays the N character before the value of the speed.

MALFUNCTION: in case of FUEL INJECTION SYSTEM malfunction on the right side of the instrument display will be displayed the warning message "FAIL".

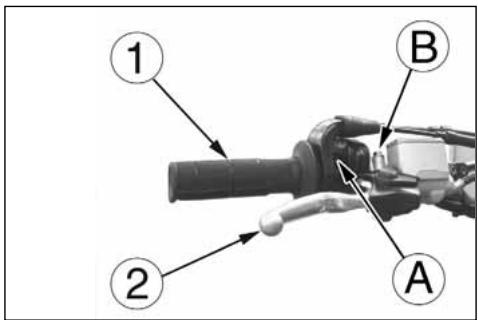

THROTTLE CONTROL

The throttle knob (1), is located on the right hand side of the handlebar. The position of the throttle control can be adjusted by loosening the two fastenig screws.

CAUTION

Do not forget to tighten the screws (A) after the adjustment.

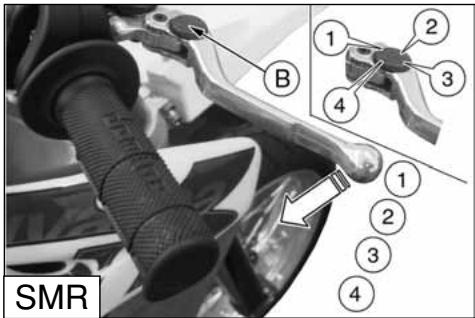

FRONT BRAKE CONTROL

The brake control lever (2) is located on the right hand side of the handlebar. The position of the throttle control can be adjusted by loosening the two fastening screws.

CAUTION

Do not forget to tighten the screws (B) after the adjustment.

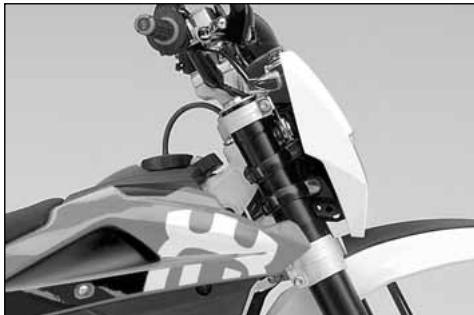

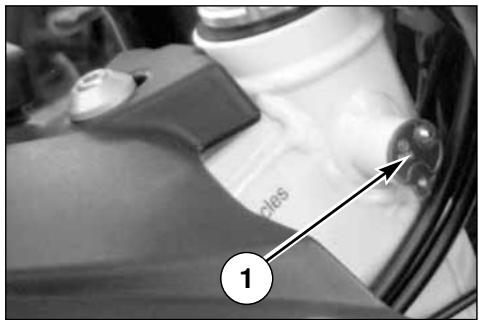

STEERING LOCK (TE-SMR)

The motorcycle is equipped with a steering lock (1) on the R.H. side of the steering head tube.

To lock it, proceed as follows:

turn the handlebar leftwards, place the key in lock and turn counterclockwise. Push the key inwards (if necessary, turn to and from). Turn the key clockwise and remove it from the lock.

To unlock the steering lock, reverse the above procedure.

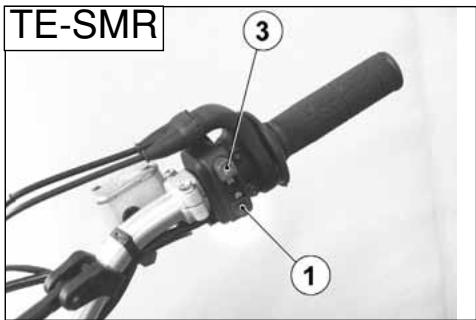

R.H. HANDLEBAR COMMUTATOR (TE-TXC-SMR)

The right commutator has the following controls:

1) Engine start button
3) Engine start-stop switch (TE-SMR)

L.H. HANDLEBAR COMMUTATOR (TE-SMR)

CONTROLS:

1) D High beam flash (self cancelling)
2) Selection control High beam

Selection control Low beam

3) Left turn signals (automatic return) Right turn signals (automatic return)
To deactivate the turn signals, press the control lever after its returning to center.
4) Warning horn

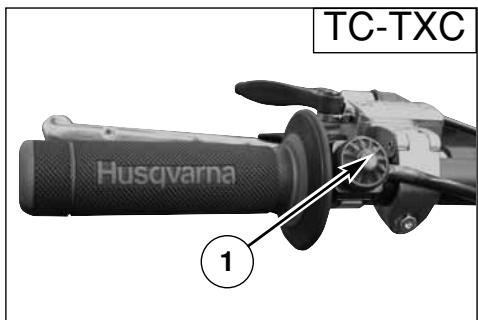

ENGINE STOP BUTTON (TC-TXC)

On the left side of the handlebar, near the clutch control, is located the engine stop button.

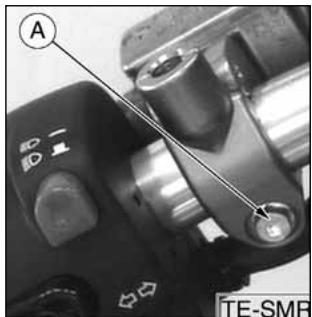

CLUTCH CONTROL

The hydraulic clutch control lever is located on the left-hand side of the handlebar and is protected against dirt with a rubber guard.

The clutch control position on the handlebar can be adjusted by loosening the lower fastening screw (A).

CAUTION

Do not forget to tighten the screw after the adjustment.

REAR BRAKE CONTROL

The rear brake control (1) is placed on the right-hand side of the motorcycle. On models TE and SMR as stop switch, during the braking action, causes the rear light to come on.

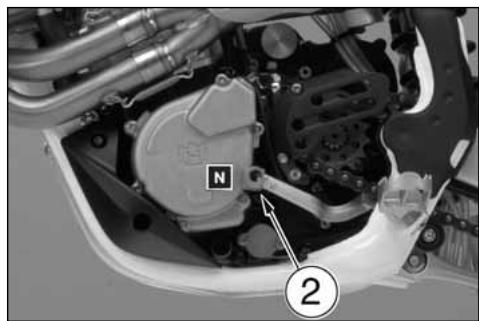

GEAR SHIFT CONTROL

The lever (1) is placed on the left-hand side of the engine. The operator must release the lever after each gear change to allow it to return to its central position before another gear change can be made.

Neutral position (N) is between first (low) and second gears. First gear is engaged by pushing the lever downwards; all the other gears are engaged, by pushing the lever upwards.

The position of the gear shift lever on the shaft can be varied by:

• loosening screw,
• pulling lever out;
• placing lever in new position on the shaft when the operation is over tighten the screw and then tightening the screw.

CAUTION*: Do not shift gears without disengaging the clutch and closing the throttle. The engine could be damaged by overspeed and shock.

WARNING*: Do not downshift when traveling at a speed that would force the engine to overrev in the next lower gear, or cause the rear wheel to lose traction.

N: Neutral

N: Neutral

RIDING

Before each ride, to prevent accidents or failures during ride, make sure to go through following list.

1. Check all fluids

A. Engine-transmission oil level
B. fuel level
C. coolant level

Make sure all caps are properly adjusted.

WARNING*: Don't remove radiator cap when hot!

1. Check all controls

A. Throttle handgrip
B. Clutch lever

Make sure cables are not damaged and turn smoothly.

1. Check brakes

Look for brake fluid leaks and worn hoses. Check for proper functioning.

1. Check suspensions

Compress fork and rear suspensions. Look for oil leaks and ensure proper functioning.

1. Check wheels

Check spokes and look for worn bearings.

Check rims and tyres.

Check tyre pressure.

1. Check chain rollers and sprockets

Check wear on chain rollers and sprockets

Ensure chain is correctly adjusted and lubricated.

1. Check air filter and intake system

Check that air filter is clean

Check all rubber connections and clamps.

1. Check exhaust system Check hook up, look for cracks Check muffler.

2. Check torque

A. Spark plug (see page 34).

B. General check of torque

1. Check steering action

Check bearing play.

1. Check the electric system (TE-SMR).

Start the engine and check that the front and rear lamps, the stop light, the turn signals the cluster warning lights and the horn are working correctly.

WARNING*: Failure to perform these checks every day before you ride may result in serous damage or a severe accident.

RUNNING IN

Before using the motorcycle for sporting activities run in the engine for two hours at least to increase the life and the performance of the engine.

During the first half-hour of driving we advise keeping a low speed and avoiding sudden accelerations. Never open the throttle fully.

Change the oil and carry out all the necessary maintenance operations. After the first half-hour of driving, lightly increase the rev number, but never run the engine at full throttle. Never keep low speeds when the high gears are inserted.

Slowly drive the motorcycle for two hours before using it for sporting activities.

CHECKS WHILE RUNNING IN

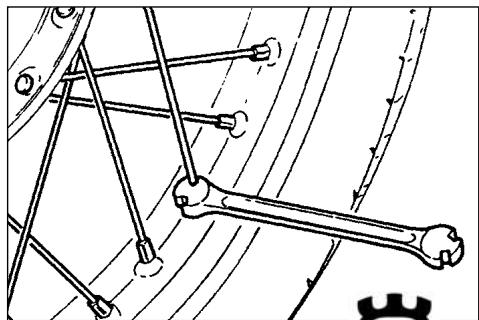

• SPOKE TENSION OF WHEELS (see page 69);
  -TIGHTENING OF WHEELS;
  -FORK PIN TIGHTENING;
• CHAIN ADJUSTMENT (see page 49);
• STEERING BEARING PLAY (see page 36);
• HANDLEBAR TIGHTENING;
• ENGINE GRIP TO FRAME;
• SUCTION FITTING GRIP;
• HEAD AND CYLINDER NUTS GRIP;

OTFEN CHECK THE BATTERY CHARGE CONDITION (see page 78)

ENGINE START (TE-SMR)

With cold engine, as after a prolonged inactivity of the motorcycle or in presence of a low external temperature, proceed as follows:

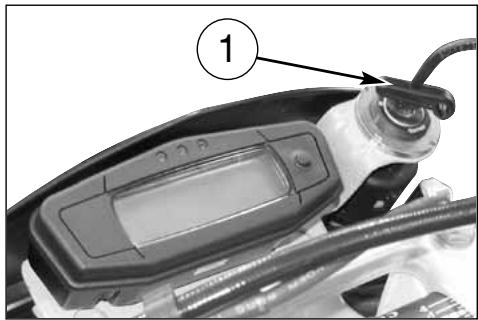

1) set ignition key (1) in IGNITION position (the buzz that you hear when you turn the key to IGNITION is caused by the fuel pump which puts the feeding system under pressure);
2) pull the starter knob (2);

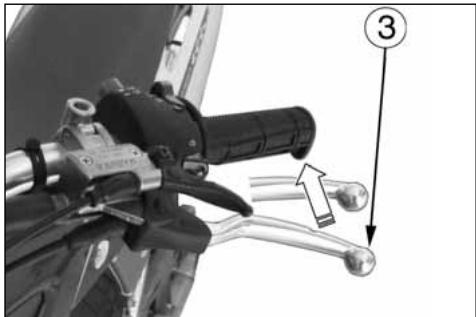

3) pull the clutch lever (3);

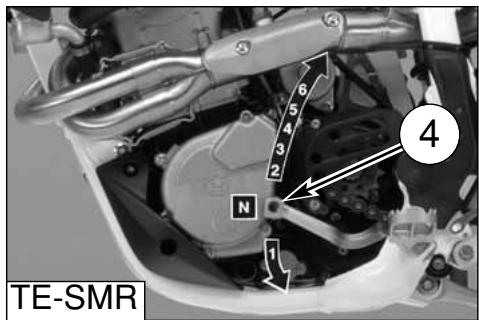

4) shift gear pedal (4) in neutral position then release the clutch control lever;
5) press the engine start-stop switch (5) then the start button (6). Put the starter knob (2) in its initial position as soon as the engine is idling. When starting with an already warmed up engine DO NOT USE the starter. When a cold engine has just been started, do not increase revs, to ensure an adequate oil warm-up and circulation.

NOTE

A safety switch is set on the clutch lever support. This switch allows you ONLY to start the engine with idle gearbox, or with the gear engaged and the clutch lever pulled.

IMPORTANT

NEVER START WITH DISCONNECTED BATTERY.

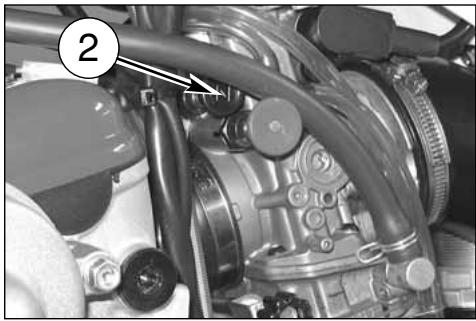

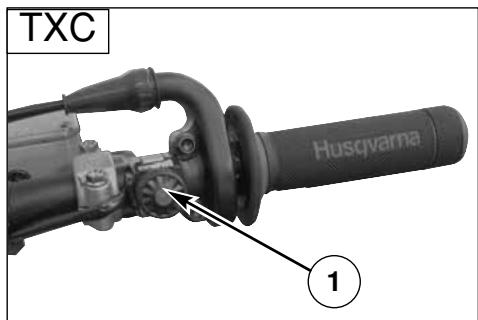

ENGINE START (TXC)

Make sure the fuel tap is in the OPEN position, then shift gear pedal in neutral position.

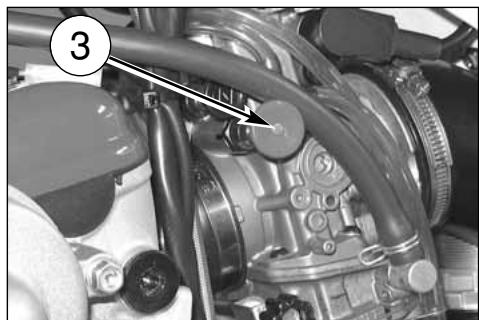

Pull the starter knob (BLACK knob (2) for cold starting*, RED knob (3) for warm starting), pull the clutch control lever, then press the engine start button (1).

Release the clutch control lever.

*: after a prolonged inactivity of the motorcycle or in presence of a low external temperature.

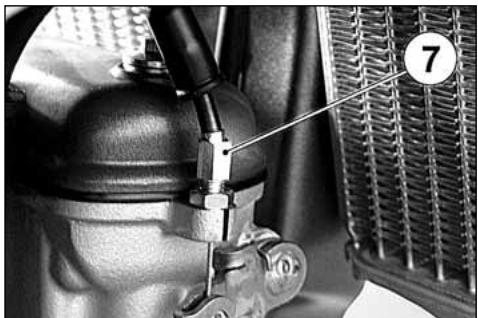

STARTING DECOMPRESSOR

Though the engine is provided with an automatic decompressor, can be necessary, in some cases (carburetor flooding or starting difficulties due to a battery inadequate charge), to use the manual starting decompressor on the L.H. side of the handlebar. In these cases, pull the lever (5) whilst simultaneously pressing the starter button, release the lever (5) keeping the button pressed and afterwards release the latter as well.

In order to adjust the lever decompressor free play (approximately 3mm 0.12 in.), the lever holder is provided with the adjuster (6); the adjustment can be also effected with the tightener (7) on the R.H. side of the engine (use this tightener if it is not possible to obtain the correct free play with the adjuster on the handlebar).

ENGINE START (TC-TXC)

Proceed as follows:

1) make sure the fuel tap (A) is in the Open position;

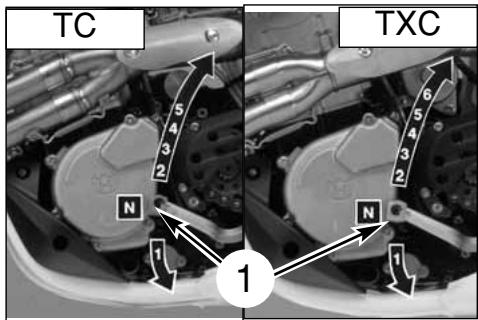

2) shift gear pedal (1) in neutral position.

3) pull the starter knob (BLACK knob 2 for cold starting *, RED knob 3 for warm starting)

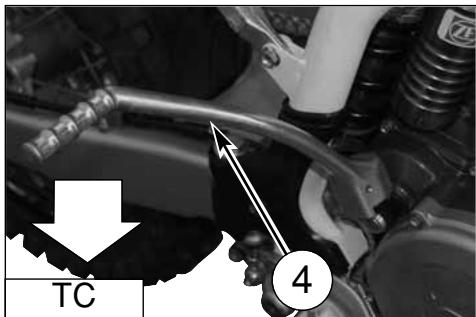

4) lower the starter pedal (4) until a certain resistance is noticed (piston at T.D.C.);

*: after a prolonged inactivity of the motorcycle or in presence of a low external temperature.

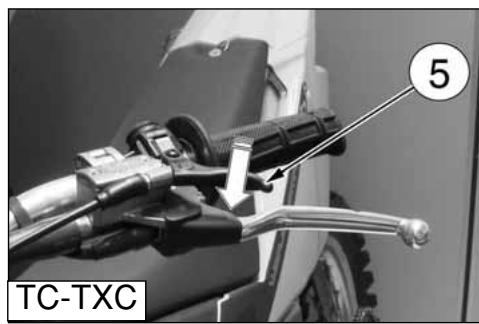

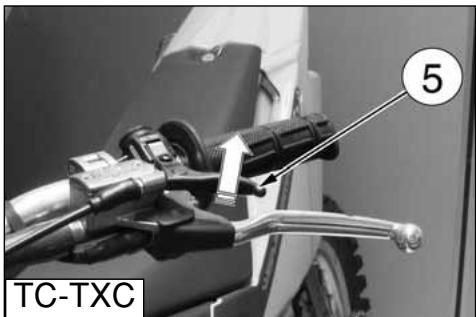

5) pull the lever (5) and lower further, by a limited stroke, the pedal until the abovementioned resistance is overcome (surpassing of T.D.C.);

6) at this point, release the lever (5) and the pedal (4);

7) in the case of COLD STARTING, completely rotate the throttle (6) twice (in the case of warm starting DO NOT carry out this operation);

8) COMPLETELY lower the pedal (4) until the engine starts.

WARM STARTING: BEFORE MOTORCYCLE STARTING, PRESS RED CHoke KNOB (3) ON CARBURETOR TOWARD THE INSIDE IN ORDER TO DEACTIVATE THE STARTING DEVICE.

In case the engine does not start, repeat this procedure.

IMPORTANT NOTE IN CASE OF COLD STARTS AT LOW TEMPERATURES

It is recommended to briefly warm-up the engine at idle until, after having disengaged the starter, there is a normal response from the engine when opening the throttle.

In this way the oil can reach all the surfaces needing lubrication and the coolant will reach the necessary temperature for correct engine function.

Avoid overheating the engine.

IMPORTANT

Never accelerate the engine after a cold start.

WARNING*: Exhaust contains poisonous carbon monoxide gas. Never run the engine in a closed garage or in a confined area.

In the case of using a kick-starter, follow carefully the instructions on the page 23 keep in mind the undermentioned note.

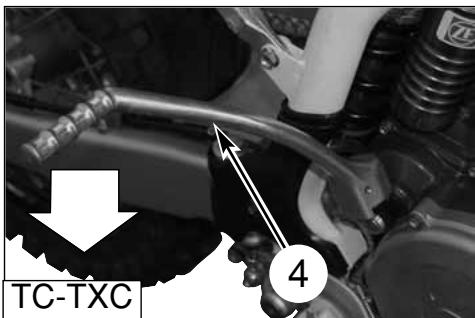

Kick start pedal

WARNING*: This high performance motorcycle can some times «kick back» strongly when you are starting it.

Do not attempt to start this motorcycle unless you are wearing high top heavy sided riding boots. You could seriously hurt you leg if the kickstarter kicked back and your foot slipped.

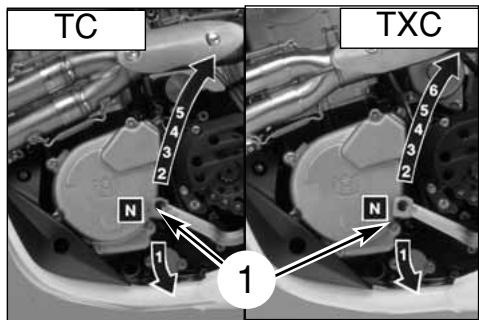

HOT START (TC-TXC)

If it is a problem to start the engine when hot, or following a fall, proceed as follows:

1) the transmission (1) should be placed in neutral;

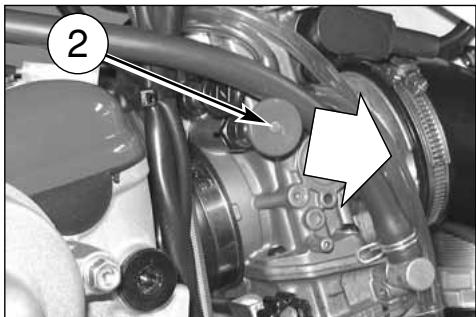

2) pull the RED knob of the starter (2);

3) pull the clutch lever (3);
4) push the kick-starter pedal (4) to start the vehicle.

5) Then release the clutch lever (3).

BEFORE MOVING OFF, DEACTIVATE THE RED KNOB (2) OF THE STARTER ON THE CARBURET- TOR.

STOPPING THE MOTORCYCLE AND THE ENGINE

• Close the throttle (1) completely so that the engine will help slow down the motorcycle.
• For normal braking, gradually apply both front and rear brakes while down shifting (for maximum deceleration, apply the front and rear brakes firmly).

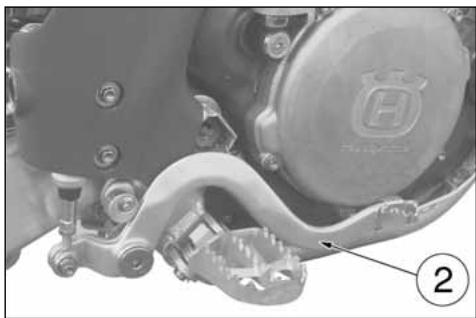

• When stopped, pull the clutch lever and shift gear lever (2) in neutral position.

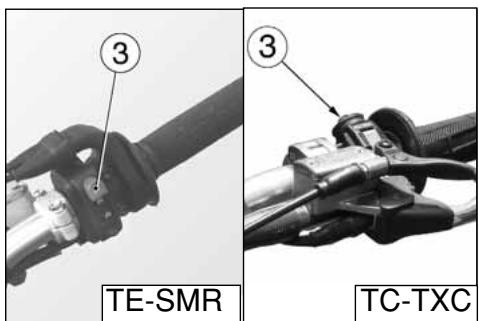

• Press the engine stop RED button (3).

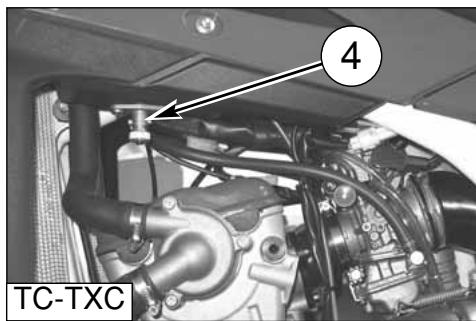

• TC-TXC: close the fuel cock (4).

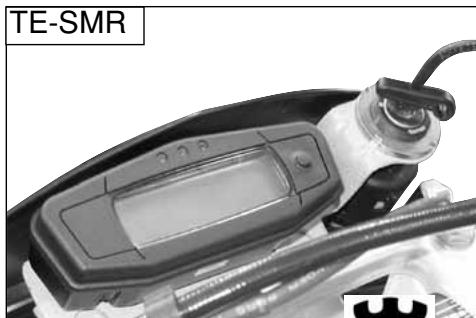

• TE-SMR: turn towards left the ignition key.

WARNING*: Independent use of the front or rear brake may be advantageous under certain conditions. Use caution when using the front brake, especially on slippery surfaces. Improper use of the brakes can lead to a serious crash.

WARNING*: In the event of stuck throttle or other malfunction which causes the engine to run uncontrollably, immediately depress the engine stop button and hold it down. Control the motorcycle by normal use of the brakes and steering while holding the engine stop button down.

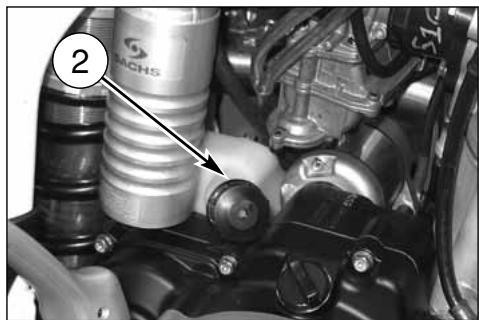

CHECKING THE OIL LEVEL

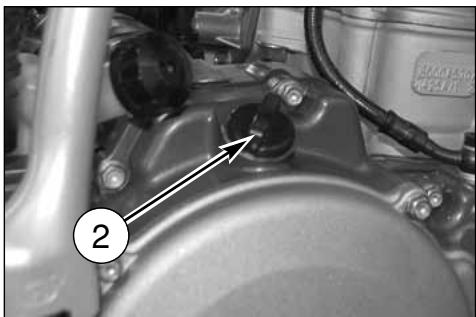

Keeping the motorbike level and in a vertical position, check the oil level through the inspection (1) window on the right crankcase. Make sure the level is in between the MIN and MAX notches.

Note*: Have this operation made with warmed-up engine.

WARNING*: Be careful not to touch hot engine oil.

ENGINE OIL REPLACEMENT AND BAG FILTERS-FILTER CARTRIDGE CLEANING OR REPLACEMENT

WARNING*: Be careful not to touch hot engine oil.

Drain the oil with WARM ENGINE; proceed as follows:

• remove oil filler cap (2);
• remove the engine guard (A)
• place an oil drain pan under the engine block
• remove the oil drain cap (3)

• drain the used oil completely then clean the magneto on the cap;

• remove the three filters (5), (6) and (7) on the L.H. side of the engine, check O-Rings for wear then clean filters with fuel; reassemble using the reverse procedure;

• in order to replace the filter cartridge (4), unscrew the three fastening screws then the filter cartridge cover;
• after filters replacement, reassemble the drain cap (3), the engine guard (A) then pour the recommended oil quantity.

COOLANT LEVEL CHECK

Check level (1) in right-hand radiator when engine is cold (place the motorcycle so that it is perpendicular to the ground). The coolant should be approximately 10mm above cells and besides, on TE-TXC and SMR models, it doesn't exceed the middle of the expansion tank (2) located in front of the rear shock absorber.

The radiator cap is provided of two unlocking positions, the first being for the previous pressure discharge in the cooling system.

WARNING

Avoid removing radiator cap when engine is hot, as coolant may spout out and cause scalding.

WARNING

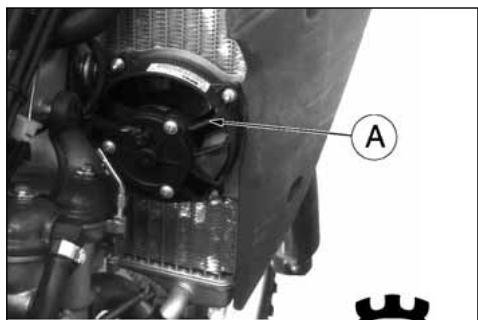

TE-SMR: Because the cooling fan (A) can be activated even when the start switch is in OFF position, always keep at a safe distance from the fan vanes.

NOTE

Difficulties may arise in eliminating coolant from varnished surfaces. If this occurs, wash off with water.

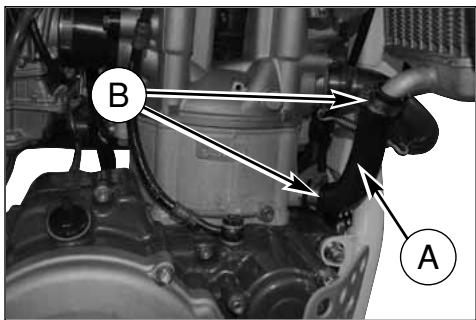

REPLACEMENT OF COOLING FLUID

Place a vessel on the R.H. side of the cylinder, under the coolant drain screw (1).

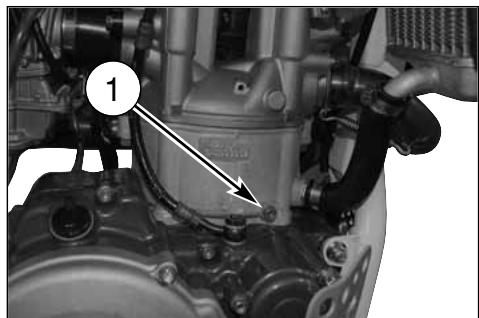

FIRST remove the screw (1) then SLOWLY open the R.H. radiator cap; slope the motorcycle on the right side to drain the coolant easily in the vessel. Reassemble the screw (1).

Pour the necessary quantity of coolant in the radiator then warm up the engine in order to eliminate any possible air bubble.

Periodically check the connecting hoses (see "Periodical maintenance card"): this will avoid coolant leakages and consequent engine seizure: If hoses (A) show cracks, swelling or hardenings due to sheats desiccation, their replacement shall be advisable.

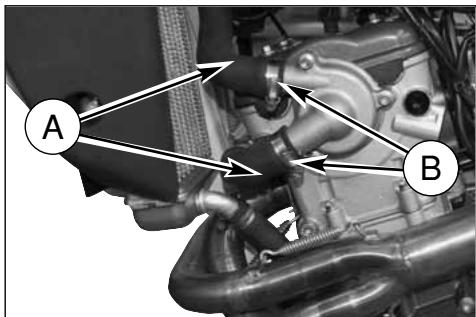

Check the correct tightening of the clamps (B).

THROTTLE CABLE ADJUSTMENT

To check the correct adjustment of the throttle operate as follows:

• remove the upper rubber cap (1);
• by moving cable (2) back and forth check for 2mm . clearance;
• should the clearance be incorrect, unblock the counter ring-nut (3) and turn the adjusting screw (4) (by unscrewing it, the clearance is reduced, while by screwing screw (4) it is increased);
• tighten the counter ring-nut again (3).

WARNING*: Operation with damaged throttle cable could result in an unsafe riding condition.

WARNING*: Exhaust gas contains poisonous carbon monoxide gas. Never run the engine in a closed area or in a confined area.

NOTE

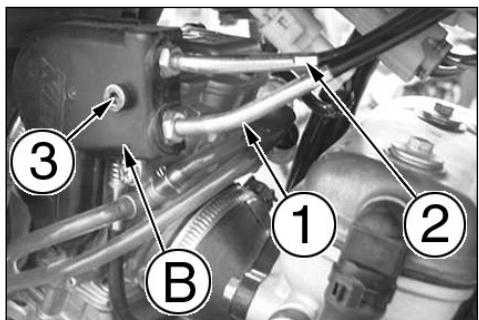

In case of throttle control cables (1) and (2) replacement it is necessary to respect, during reassembly, the measure (10mm / 0.4 in.), as shown in the picture. Then reassemble guard cover (B) using screw (3) and adjust throttle control cables on handlebar as described at side.

To replace throttle control cables, first remove tha fuel tank.

ADJUSTING THE CARBURETTOR (TC-TXC)

Adjust the carburettor with warm engine and with the throttle in closed position.

Work as follows:

• Turn slow running adjusting screw (1) on the left side of the bike, until the engine is turning over at fairly high rpm (turn the screw clockwise to increase the rpm, and anticlockwise to decrease the rpm).
• Turn adjusting screw (2) clockwise until the fully closed position is reached then turn back 1,5 turns (TXC 250) 2,0 turns (450-510)
• progressively loosen adjusting screw (1) to obtain the slow running required.

ADJUSTING THE IDLE (TE-SMR)

Adjust the carburetor with warm engine and with the throttle control in closed position. Proceed as follows:

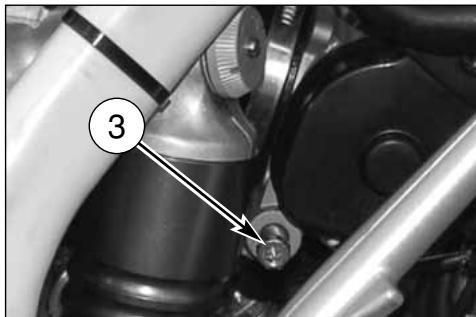

• turn the idle speed adjustment screw (3) on the throttle body, located on the right side of the vehicle, until the idle speed of 1600 RPM is reached (turn clockwise to increase the speed and anti-clockwise to reduce the speed).

ADJUSTING THE IDLE (TC-TXC)

Adjust the carburetor with warm engine and with the throttle control in closed position. Proceed as follows:

• Turn slow running adjusting screw (1) on the left side of the bike, near the fuel cock (turn the screw clockwise to increase the rpm, and anticlockwise to decrease the rpm).

SPARK PLUG CHECK

Use NGK CR8EB spark plug (2); the gap is 0.027 in.

A wider gap may cause difficulties in starting engine and in overloading coil.

A gap that is too narrow may cause difficulties when accelerating, when idling the engine or when performing at low speeds.

Clean the dirt away from the base of the spark plug before removing it from the cylinder after removing the cap (1).

It is very useful to examine the state of the spark plug just after it has been removed from the engine since the deposits on the plug and the colour of the insulator provide useful indications.

Correct heat rating:

The tip of the insulator should be dry and the colour should be light brown or grey.

High heat rating:

In this case, the insulator tip is dry and covered with dark deposits. Low heat rating:

In this case, the spark plug is overheated and insulator tip is vitreous, white or grey in colour.

CAUTION*: Select a spark plug with a colder or hotter heat range carefully and cautiously. A spark plug with too hot a heat range may lead to preignition and possible engine damage. A spark plug with too cold a heat range may foul as the result of too much carbon buildup.

Before refitting the plug, thoroughly clean the electrodes and the insulator using a brass-metal brush.

Apply a little graphite grease to the spark plug thread; fit and screw the spark plug by hand then tighten to the torque of 10 ÷ 12 Nm-7.4 ÷ 8.9 ft/lb. Loosen the spark plug then tighten it again to the torque of 10 ÷ 12 Nm-7.4 ÷ 8.9 ft/lb.

Spark plugs which have cracked insulators or corroded electrodes should be replaced.

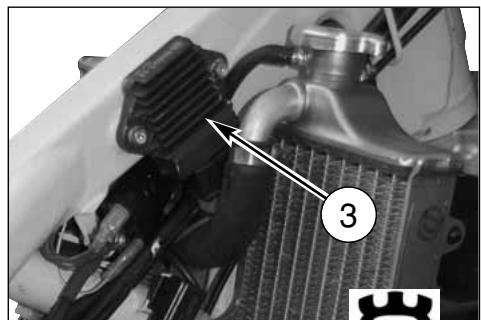

VOLTAGE REGULATOR (TXC-TE-SMR)

The voltage regulator (3) is fitted to the right side of the chassis, on the front.

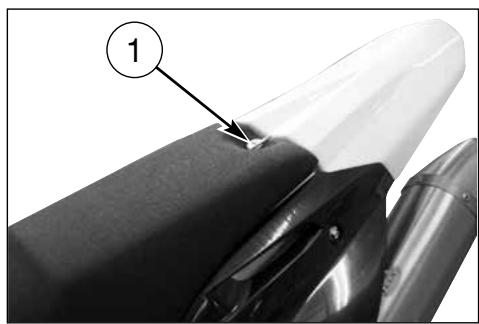

AIR FILTER CHECK (TC-TXC)

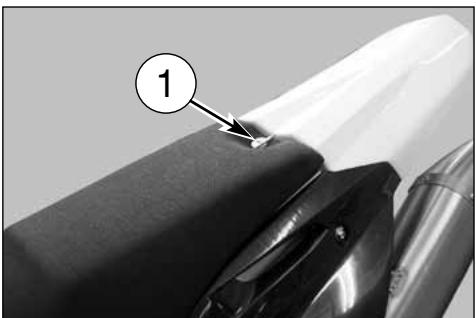

Turn rear pin (1) counterclockwise, remove the saddle from the front afstening screw.

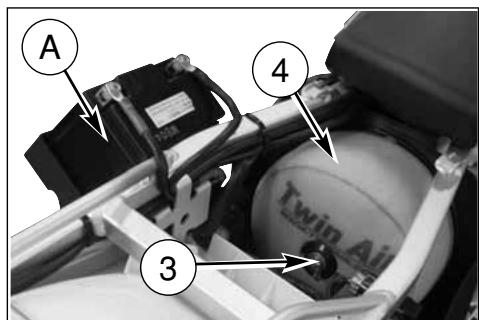

TXC: Take out the battery (A) and place it sideways on the vehicle.

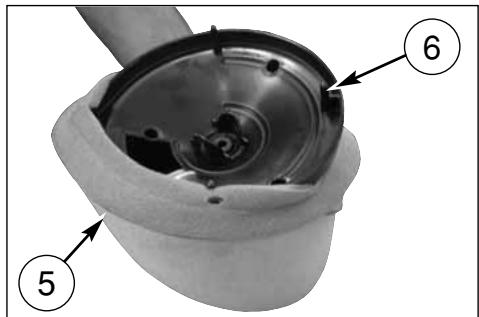

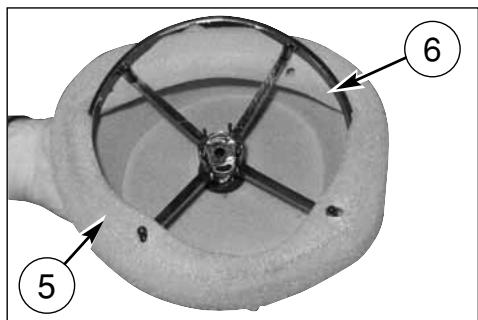

Remove screw (3) and the filter (4). Separate filter (5) from frame (6).

AIR FILTER AND CLEANING

Wash the filter with a specific detergent (AGIP" Filter clean foam air detergent fluid" or similar) then dry it fully (wash filter with gasoline only in case of necessity).

Plunge the filter in special oil for filters (AGIP "Foam air filter protection oil" or similar), then wring it to drain superfluous oil.

CAUTION*: Do not use gasoline or a low flash-point solvent to clean the element. A fire or explosion could result.

CAUTION*: Clean the element in a well ventilated area, and do not allow sparks or flames anywhere near the working area.

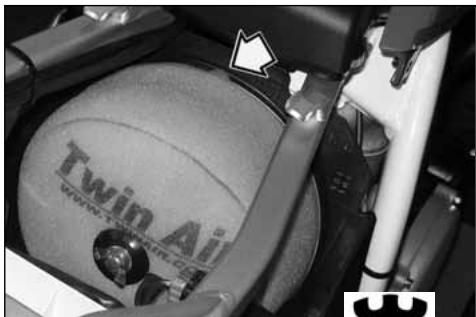

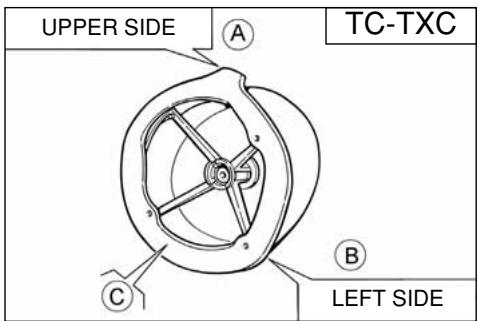

ASSEMBLY

To ensure tight fit, slightly (C) grease filter edge on side facing filter housing.

While re-inserting the filter into its housing, make surs that piece (A) is turned upwards and edge (B) is on the left lower side of the filter case. Reassemble the parts previously removed (battery: connect the positive cable first).

CAUTION*: If the element assembly is not installed correctly, dirt and dust may enter and the engine resulting in rapid wear of the piston rings and cylinder.

AIR FILTER CHECK (TE-SMR)

Turn rear pin (1) counterclockwise, remove the saddle from the front afstening screw.

Take out the battery (A) and place it sideways on the vehicle. Remove screw (3) and the filter (4). Separate filter (5) from frame (6).

AIR FILTER AND CLEANING

Wash the filter with a specific detergent (CASTROL FOAM AIR FILTER CLEANER or similar) then dry it fully (wash filter with gasoline only in case of necessity).

Plunge the filter in special oil for filters (CASTROL FOAM AIR FILTER OIL or similar) then wring it to drain superfluous oil.

CAUTION*: Do not use gasoline or a low flash-point solvent to clean the element. A fire or explosion could result.

CAUTION*: Clean the element in a well ventilated area, and do not allow sparks or flames anywhere near the working area.

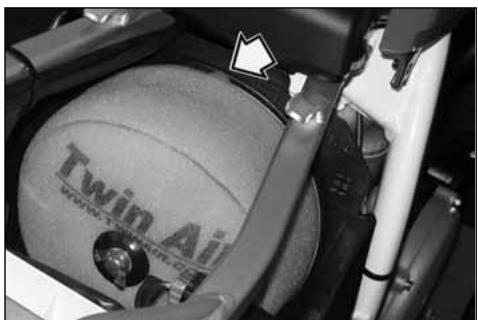

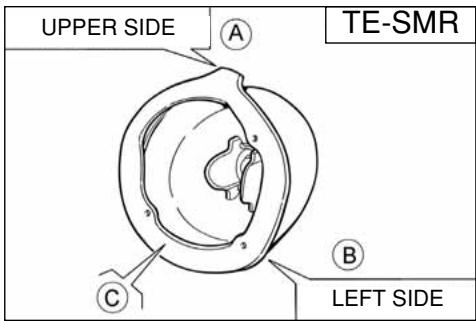

ASSEMBLY

To ensure tight fit, slightly (C) grease filter edge on side facing filter housing.

While re-inserting the filter into its housing, make surs that piece (A) is turned upwards and edge (B) is on the left lower side of the filter case. Reassemble the parts previously removed (battery: connect the positive cable first).

CAUTION*: If the element assembly is not installed correctly, dirt and dust may enter and the engine resulting in rapid wear of the piston rings and cylinder.

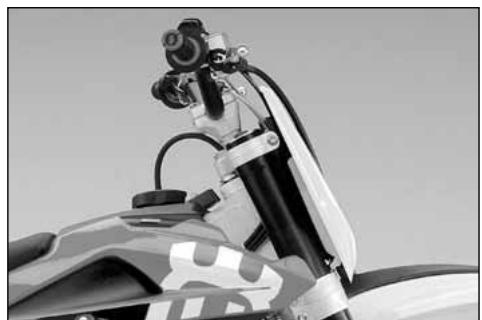

STEERING WHEEL BALL PLAY ADJUSTMENT

To ensure maximum safety, the steering wheel should always be regulated so that the handlebars steering the motorcycle rotate freely without play. To check steering wheel adjustment, place kick stand or other support under the engine so that the front wheel is raised from ground.

Place slight pressure on the tips of the handlebars to rotate steering wheel; the handlebars should also rotate without effort.

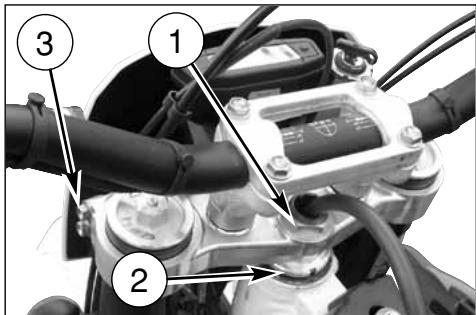

• loosen steering sleeve nut (1).
• Loosen four screws that fix steering head to fork rods (3).
  Turn the steering ring nut (2) clockwise of the steering sleeve proper tool, to adjust play properly.
• Tighten steering sleeve nut (1) to a torque setting of 57.9 ÷ 65.1 Lb/ft ; (78.4 ÷ 88.3 Nm) .
• Tighten four screws on the steering head (3) to a torque of 22.5 ÷ 26.5 Nm ( 16.6 ÷ 19.5 Lb/ft ).

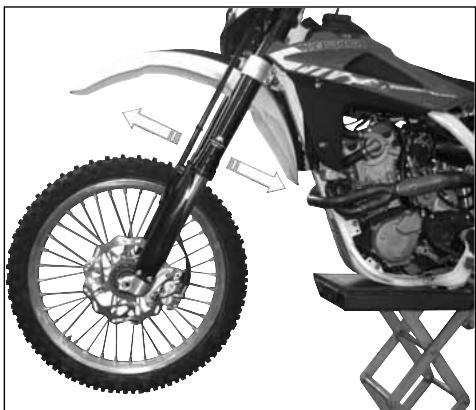

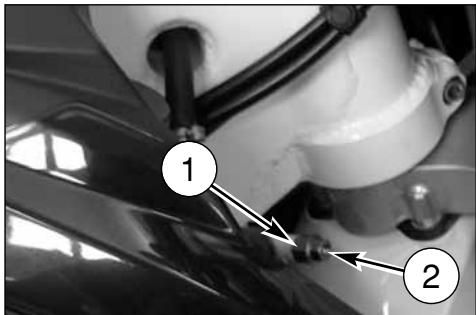

LOCK ADJUSTMENT

The lock can be changed, using the adjusting units on the sides of the steering tube, as follows: loosen the ring nut (1) and turn the adjusting screw (2) until you have the desired angle, then tighten the ring nut again (1). Change by the same amount on both sides.

CAUTION*: Do not ride a motorcycle with damaged steering stem bearings. An unsafe handling condition can result.

On the SMR model the lever position can be adjusted (4 adjustments) for any driver hand size. To decrease the lever distance from the handle grip, turn the adjuster (B) CLOCKWISE. To increase the lever distance from the handle grip, turn the adjuster (B) COUNTERCLOCKWISE.

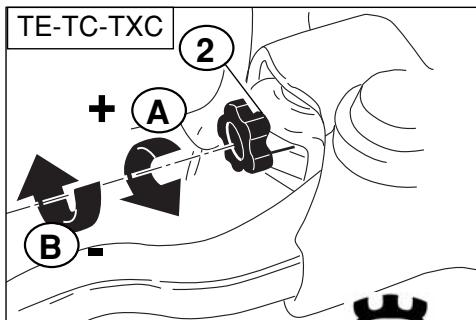

On the TE, TXC and TC models the adjuster (2), located on the control lever, allows adjusting of the free play (a). Free play (a) must be at least 3mm (0.1 in.).

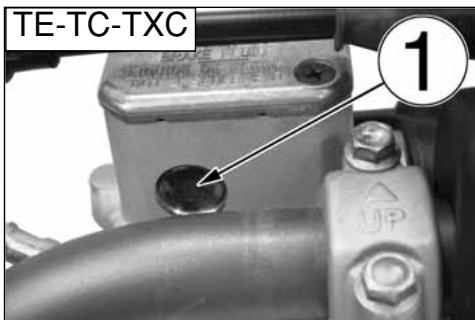

The level of the fluid in pump reservoir must never be below the minimum value (1), which can be checked from the window

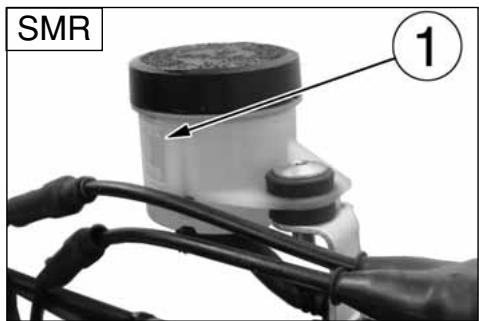

on the rear side of the pump body (TE, TC). For SMR model, check the level on the fluid reservoir.

A decrease of the fuel level will let air into the system, hence an extension of the level stroke.

WARNING*: If the brake lever feels mushy when it is applied, there may be air in the brake lines or the brake may be defective. Since it is dangerous to operate the motorcycle under such conditions, have the brake checked immediately by an authorized HUSQVARNA dealer.

CAUTION*: Do not spill brake fluid on to any painted surface or lenses.

CAUTION*:Do not mix two brands of fluid. Change the brake fluid in the brake line if you wish to switch to another fluid brand.

CAUTION*: Brake fluid may cause irritation. Avoid contact with skin or eyes. In case of contact, flush thoroughly with water and call a doctor if your eyes were exposed.

A: to increase clearance

B: to decrease clearance

REAR BRAKE PEDAL POSITION ADJUSTMENT

The position of the rear foot brake pedal as to the footrest may be adjusted according to the individual needs. For the adjusting proceed as follows:

• loosen the screw (1);
• turn the cam (2) in order to adjust the brake pedal idle stroke (A);
• the operation done, tighten the screw (1).

The adjusting operation carried out, adjust the idle stroke of the pedal as follows.

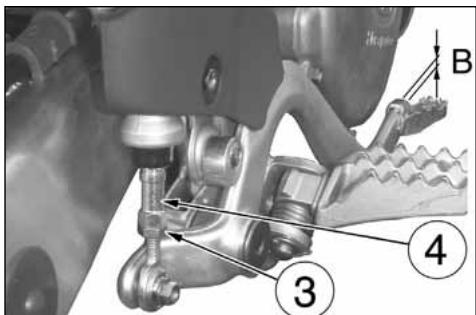

REAR BRAKE IDLE STROKE ADJUSTMENT

The rear brake foot pedal should have a (B) 5mm (0.2 in.) idle stroke before starting the true braking action.

Should this not happen, operate as follows:

• loosen nut (3);
• operate the pump rod (4) to increase or decrease the idle stroke;
• tighten nut (3) at the end of the operation.

WARNING

When the idle stroke figures are not met, the brake pads will be subjected to a fast wear that may bring to the TOTAL BRAKE IN-EFFECTIVENESS.

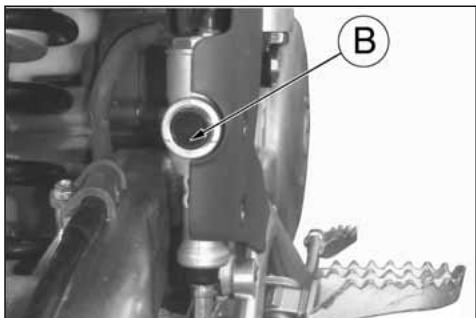

CHECKING THE FLUID LEVEL

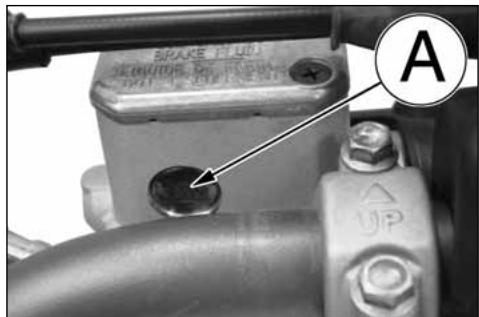

The level (A) must be set between the pump tank notches.

ADJUSTMENT OF THE CONTROL LEVER AND CHECK OF THE HYDRAULIC CLUTCH FLUID LEVEL

Free play (A) must be at least 3mm (0.1 in.).

The lever position can be adjusted for any driver hand size.

To decrease the lever distance from the handle grip, rotate the adjuster (B) CLOCKWISE.

To increase the lever distance from the handle grip, rotate the adjuster (B) COUNTERCLOCKWISE.

To check the fluid level, proceed as follows:
- remove screws (1), cover (2) and rubber pump diaphragm on the handlebar clutch control;

• by keeping the master cylinder (3) in horizontal position, check the fluid level is NOT BELOW 4mm (0.16 in.) from the upper surface (D) of the pump body;
• if necessary, add fluid until the correct level is reached see TABLE FOR LUBRICATION-SUPPLIES for the fluid type page 10.

CAUTION*: NEVER use brake fluid.

Reassembly the removed parts using the reverse procedure.

Periodically check the connecting hose (see "Periodical maintenance card"): if the hose (C) show is bent or cracked, its replacement is advised.

HYDRAULIC CLUTCH BLEEDING

Proceed as follows:

• remove screws (1), cap (2) and rubber pump diaphragm;

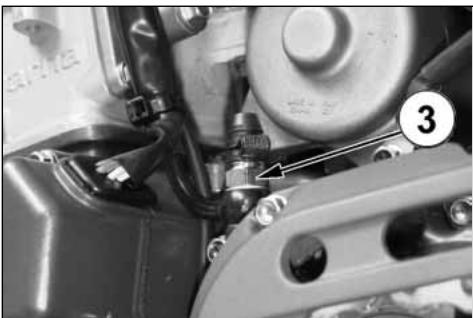

• remove the bleeding nipple (3);
• mount a syringe in the bleeding nipple hole, then refill with fresh fluid see LUBRICATION TABLE on page 12.

CAUTION *:NEVER use brake fluid.

• refill until fluid is discharged from the lower hole (B) on the pump body WITHOUT BUBBLEs.

The fluid level MUST NEVER BE below 4mm from the top (A) of the clutch pump body (see picture). Reassemble the removed parts.

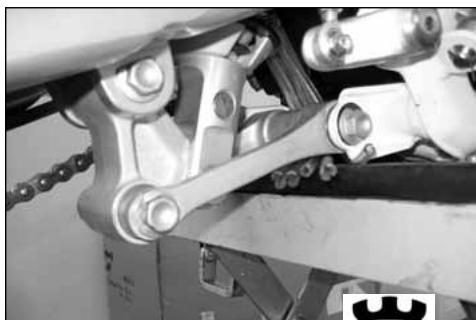

ADJUSTING THE SUSPENSIONS ACCORDING TO PARTICULAR TRACK CONDITIONS

The following information is a useful guide for setting up the suspensions according to the road conditions.

Always start from the standard calibration before making any change on the suspensions. Afterwards, increase or decrease the adjusting clicks one at a time.

HARD GROUND

Fork: softer compression adjustment.

Shock absorber: softer compression adjustment.

The softer adjustment for the two suspensions is also used both in compression and in extension when driving at top speed, in order to have better grip of the tires.

SANDY GROUND

Fork: have a harder compression adjustment, or replace the standard spring with a harder one, and make a softer compression adjustment and a harder extension adjustment at the same time.

Shock absorber: have a harder compression, and especially a harder extension adjustment. Work on the spring preload to lower the motorcycle rear side.

MUDDY GROUND

Fork: have a harder compression adjustment, or replace the standard spring with a harder one.

Shock absorber: have a harder compression and extension adjustments, or replace the standard spring with a harder one.

Work on the spring preload to lift the motorcycle rear side.

We advise replacing the springs of both suspensions to compensate the weight increase due to the piling of the mud.

NOTE:

When the fork results as either too soft or too hard for any adjustment conditions, check the oil level inside the forkrod.

The level can either be too low or too high. Remember that too

much oil inside the fork will involve a more frequent air drainage. When the suspensions do not react to the changes of calibration, check that the adjusting units are not blocked.

The standard calibrations and the adjustment procedures are shown below.

ADJUSTING THE COMPRESSION FORK (TE 310/EU - SMR 450, 510)

a) Compression (Lower register)

Standard calibration: -12 clicks.

Remove plug (B) and turn register (A) clockwise until the position of fully closed is reached then, turn back by the mentioned clicks. To obtain a smoother braking action, turn the register anticlockwise. Reverse the operation in order to obtain a harder action.

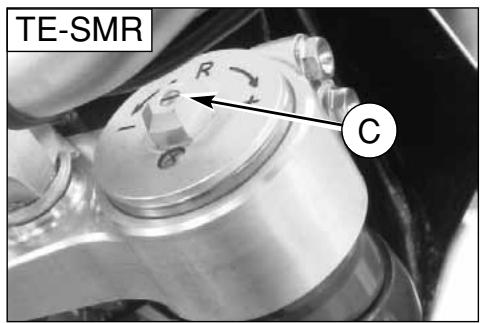

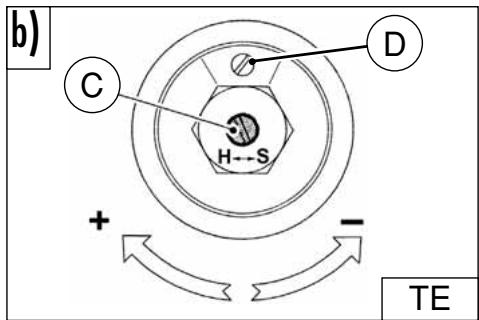

b) EXTENSION (upper register)

Standard calibration: - 12 clicks.

To reset standard calibration turn register (C) clockwise to reach the position of fully closed; then, turn back by the mentioned clicks. To obtain a smoother braking action, turn the register anticlockwise. Reverse the operation in order to obtain a harder action.

c) AIR VENT (to carry out after each competition, or monthly). Set the motorcycle on a central stand and release the fork fully and loosen the air vent valve (D). Once this operation is over, tighten the valve.

WARNING: Never force the adjusting screws beyond the maximum opening and closure positions.

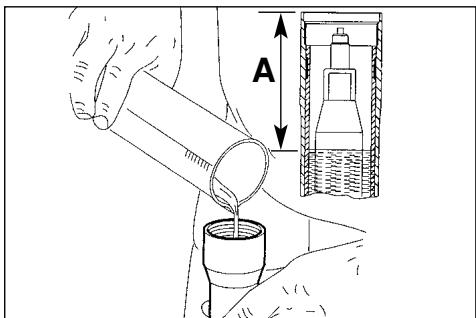

OIL FORK LEVEL

For the regular fork operation, both legs must be provided with the necessary oil quantity. Remove the forkrods form the fork to check the oil level inside the forkrods. Work as follows:

• remove the power rod caps;
• remove springs from the stems letting the oil drop into the latter;
• bring forks to stroke end;
• check that the level is at distance "A" below the upper limit of rods.

NOTE

Flexibility index for the serial springs:

$$ \mathrm {K} = 4, 8 \mathrm {N} / \mathrm {m m} (\mathrm {T E}) $$

$$ \mathrm {K} = 5 \mathrm {N} / \mathrm {m m} (\mathrm {S M R}) $$

NOTE

Always replace both the spring and the spacers to keep the preload value unchanged.

OIL QUANTITY IN EACH FORK LEG

-TE: 725~cm^3 (44.2 cu. in.)
- SMR: 740~cm^3 (45.1 cu. in.)

A=100mm (3.94 in.) - SMR

A=120mm (4.72 in.)-TE

ADJUSTING THE COMPRESSION FORK (TC 450; TXC 450-510; TE 310-450-510)

a) Compression (TC,TXC: upper register; TE: Lower register)
Standard calibration: -7 clicks (TC-TXC);
Standard calibration: -10 clicks (TE);
Remove plug (B) and turn register (A) clockwise until the position of fully closed is reached then, turn back by the motioned clicks. To obtain a smoother braking action, turn the ister anticlockwise. Reverse the operation in order to obtain harder action.

b) EXTENSION (TC-TXC: lower register; TE: upper register)
Standard calibration: - 10 clicks (TE).
Standard calibration: - 13 clicks (TC-TXC).
To reset standard calibration turn register (C) clockwise to reach the position of fully closed; then, turn back by the mentioned clicks. To obtain a smoother braking action, turn the register anticlockwise. Reverse the operation in order to obtain a harder action.

c) AIR VENT (to carry out after each competition, or monthly). Set the motorcycle on a central stand and release the fork fully and loosen the air vent valve (D). Once this operation is over, tighten the valve.

WARNING: Never force the adjusting screws beyond the maximum opening and closure positions.

OIL FORK LEVEL

For the regular fork operation, both legs must be provided with the necessary oil quantity. TE: remove the forkrods form the fork to check the oil level inside the forkrods. Work as follows:

• remove the power rod caps;
• remove springs from the stems letting the oil drop into the latter.
• bring forks to stroke end;
• check that the level is at distance of 5.51in below the upper limit of rods.

NOTE

Flexibility index for the serial springs:

$$ \begin{array}{l} \mathrm {K} = 8. 8 \mathrm {N} / \mathrm {m m} (\mathrm {T E}) \ K = 9. 6 \mathrm {N} / \mathrm {m m} (\mathrm {T C - T X C}) \ \end{array} $$

NOTE

Always replace both the spring and the spacers to keep the preload value unchanged.

OIL QUANTITY IN EACH FORK LEG

• TC-TXC: 352cm^3 (21.5 cu. in.)
• TE: 643~cm^3 (39.2 cu. in.)

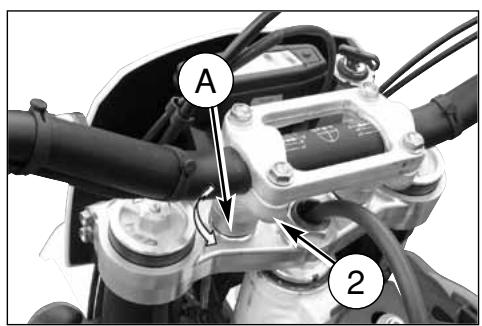

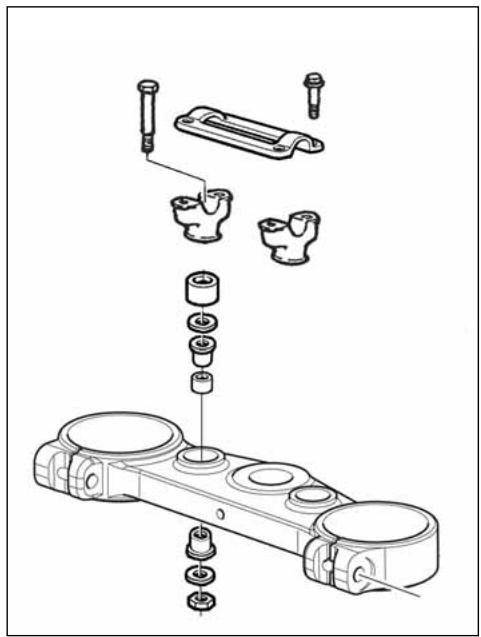

HANDLEBAR POSITION AND HEIGHT CHANGE

The handlebar position (a) and height (b) can be changed for better suited Your driving requirements. To effect these operations, remove the upper clamp (1) and the lower one (2), after removing the fixing srews (3) and (4).

a) Handlebar position change

Turn the lower clamp (2) 180^ to move forward or backward (10mm - 0.04in) the handlebar position with respect to the original setup.

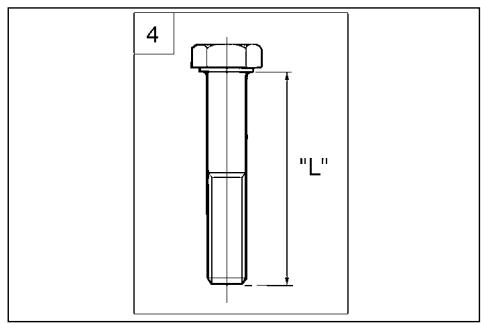

b) Handlebar height change

Remove the lower spacer (A) then replace the screw (4) with a new one of L = 65 mm (2.56 in.) height.

Once these operations are completed, tighten the screws (3) to 2,75-3,05 kgm (27-30 Nm; 19.9-22 Lb/fts) and the screws (4) to 2,0-2,2 kgm (19,6-21,6 Nm; 14.5-15.9 Lb/fts).

The rear shock absorber must be adjusted according to the rider weight and track conditions.

Proceed as follows:

1. With motorcycle on the stand, measure distance (A).
2. Take the normal riding position on the motorcycle with all your riding apparel.
3. With somebody's help, take the new distance (A).

B: axis of the panel screw

C: axis of rear wheel pin

1. The difference between these two measurements constitutes the "SAG" of the motorcycle's rear end.
   Suggested SAG: 4 in. with cold shock absorber. 3.7 in. with warmed up shock absorber.
2. To get the right SAG according to your weight, adjust the shock absorber spring preload as described at side.

WARNING*: Never disassemble shock absorber, which contains highly compressed nitrogen. Contact your Dealer for such major service. Do not incinerate.

ADJUSTING THE SHOCK ABSORBER SPRING PRELOAD

Proceed as follows:

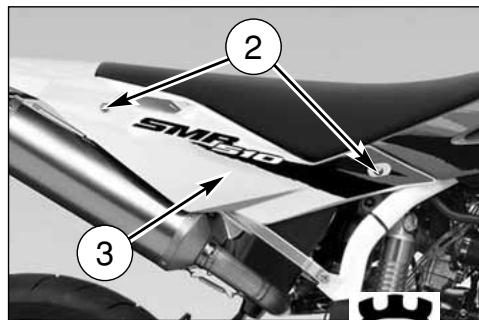

1. First turn counterclockwise fastening rear pin (1) then remove saddle, screws (2) and R.H. side panel (3).

1. Clean ringnut (1) and adjusting nut (2) of the spring (3).
2. Either with a hook wrench or an aluminium punch, loosen the ringnut.
3. Turn the adjusting nut as required.
4. When the adjusting operation is over (according to your weight and riding style), tighten the ringnut. (Torque for both ringnuts: 5 Kgm; 49 Nm; 36.2 ft/lb).
5. Reassemble R.H. side panel and saddle.

WARNING*:Be careful not to touch hot exhaust pipe while adjusting the shock absorber.

SHOCK ABSORBER DAMPING ADJUSTMENT

Adjustment of the compression stroke is independent from the rebound stroke.

A) COMPRESSION - Standard calibration:

1) Low damping speed:

• 15 clicks (±2 clicks)

(register 4)

2) High damping speed:

• 15 clicks (±2 clicks)

(register 6)

To reset the standard calibration, turn upper registers (4) and (6) clockwise until reaching fully closed position.

Return then back for the mentioned clicks. In order to obtain a smooth braking action, turn the registers anticlockwise.

Reverse the operation in order to obtain a harder braking action.

B) EXTENSION - Standard calibration:

• 18 clicks (±2 clicks)

To reset the standard calibration, turn lower register (5) clockwise until reaching fully closed position. Return then back for the mentioned clicks. In order to obtain a smooth braking action, turn the register anticlockwise. Reverse the operation in order to obtain a harder braking action.

CHAIN ADJUSTMENT (Fig. A)

Chain should be checked, adjusted and lubricated as per the Maintenance Chart to ensure security and prevent excessive wear. If the chains become badly worn or is poorly adjusted (i.e., if it is too loose or too taught), it could escape from sprocket or break.

To adjust the rear chain it is necessary to lower the rear part of motorcycle so to line up the drive sprocket axle, the rear swing arm axle and the rear wheel axle as shown on drawing. Than let turn three times the rear wheel. Now the chain should not be tight.

Fast adjustment (Fig. B).

In the point shown in the figure, fit a bush (a), 35mm diameter (or alternatively a shim in the same size) and make sure the lower branch (C) of the chain is slightly taut. If it is not, proceed as follows:

• on the right side, with a 27 mm Allen screwdriver, loosen the locking nut (1) of the wheel pin;
• with a 12mm screwdriver, loosen the check nuts (2) on both chain stretchers and work on the screws (3) to achieve the right tension;
• when the adjustment is over, tighten the check nuts (2) and the wheel pin nut (1).

When the adjustment is over check the wheel for alignment.

Fig. A

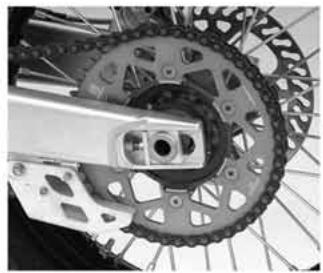

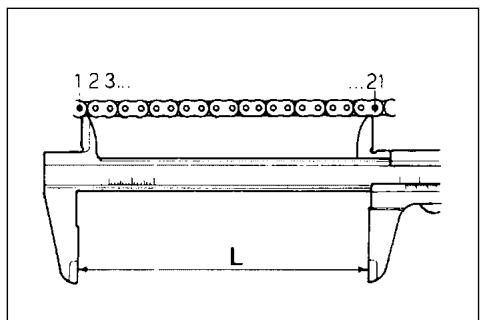

CHECKING THE WEAR OF CHAIN, PINION AND SPROCKET

Proceed as follows:

• fully stretch the chain with the adjusting screws.
  -mark 20 chain links.
• measure the distance "A" between 1st pin center and 21st pin center.

STANDARD	WEAR LIMIT
317,5 mm	323 mm
12,5 in	12,72 in

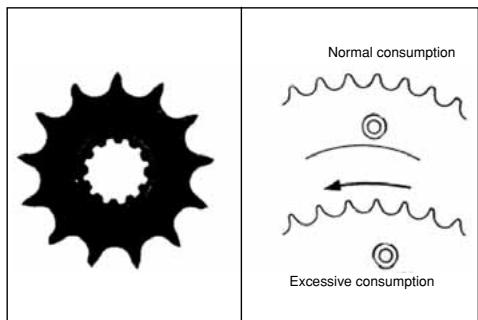

Check the pinion damages or wear and replace it should the wear degree be as the one shown in figure.

Remove the wheel and check the wear of the rear sprocket teeth. The below figure shows the outline of teeth in normal and excessive wear. Should the sprocket be badly worn out, replace it by loosening the six fastening screws to the hub.

WARNING*: Misalignment of the wheel will result in abnormal wear and may result in an unsafe riding condition.

Note*: In muddy and wet conditions, mud sticks to the chain and sprockets resulting in an overtight chain. The pinion, the chain, and the rear sprocket wheel wear increases when running on muddy ground.

LUBRICATING THE CHAIN

Lubricate the chain following these instructions.

WARNING * : Never use grease to lubricate the chain. Grease helps to accumulate dust and mud, which act as abrasive and hepl to rapidly wear out the chain, the sprocket, and the crown.

Disassembling and cleaning

When particularly dirty, remove and clean the chain before lubrication.

Work as follows:

1 - Set a stand or a block under the engine and see that the rear wheel is lifted from the ground.

Remove: screws (1), transmission sprocket guard (2), clip (3), master link (4) and transmission chain (5);

To reassemble, reverse the above procedure.

2 - Check that the chain is neither worn out nor damaged. If the rollers or the links are damaged, replace the chain by following the instructions given in the Periodical Maintenance Table.
3 - Check that neither the sprocket nor the crown are damaged.
4 - Wash and clean the chain as described hereunder.

Washing the chain without OR ()

Wash using either oil or diesel oil. When using gasoline or tricloetilene, clean and lubricate the chain to prevent oxidation.

Washing the chain with OR (·)

Wash using oil, diesel oil, or paraffin oil. Never use gasoline, tricloroetilene, or solvents, as the OR may suffer damages. Use instead special sprays for chains with OR.

Lubricating the chain without OR ()

First dry, then plunge the chain in a bisulphide molybdenum lubricant, or in high viscosity engine oil. Warm up the oil before use.

(*) : TC

(^*) : TE-TXC-SMR

Lubricating the chain with OR (·)

Lubricate all metallic and rubber (OR) elements using a brush, and use engine oil with SAE 80-90 viscosity for the internal and external parts.

5 - If the chain has been cut, reassemble using a joint.
6 - Assemble the joint spring (a) by turning the closed side to the chain direction of rotation as shown in figure below.

NOTE*: Even if all the joints are reusable when in good conditions, for safety purposes we advise using new joints when reassembling the chain.

7 - Accurately adjust the chain as described on page 47.

WARNING: The chain oil has NEVER to get in contact with the tires or the rear brake disk.

Chain tension rollers, chain driving roller, chain guide, chain runner

Check the wear of the above mentioned elements and replace them when necessary.

WARNING*: Check the chain guide alignment, and remember that a bent element can cause a rapid wear of the chain. In this case, a chain fleeting from the sprocket may ensue.

1-Chain tension roller
2-Chain driving roller
3-Chain guide
4-Chain slider
a- Joint spring

REMOVING THE FRONT WHEEL

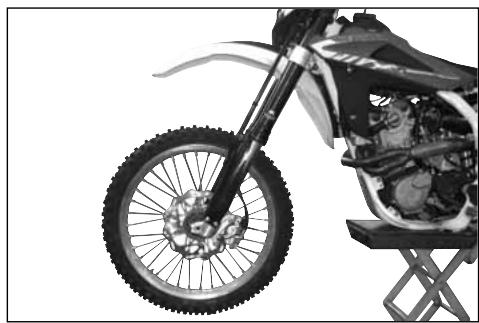

Set a stand or a block under the engine and see that the front wheel is lifted from the ground. Loosen the bolts (1) holding the wheel axle (2) to the front fork stanchions.

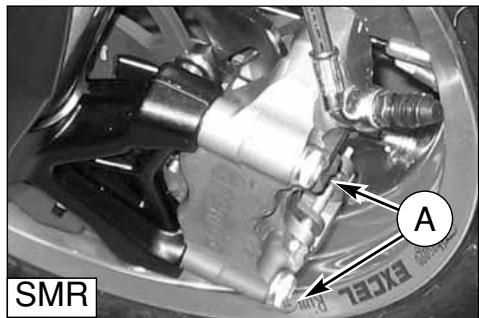

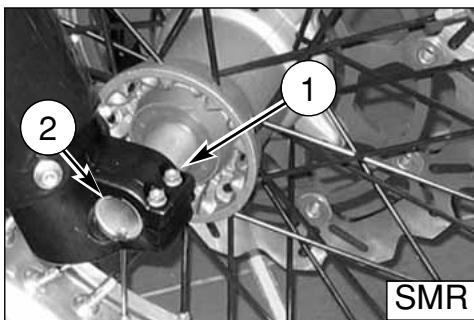

SMR: remove the two screws (A) and the brake caliper.

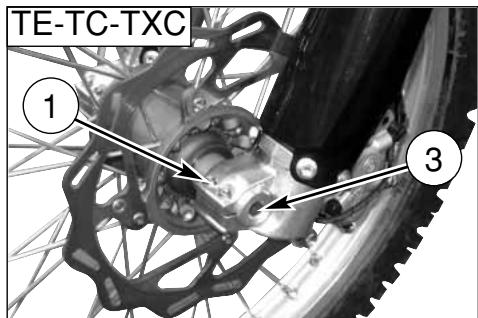

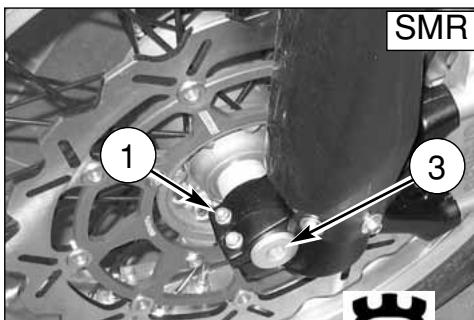

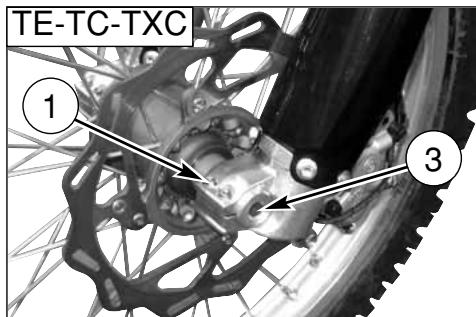

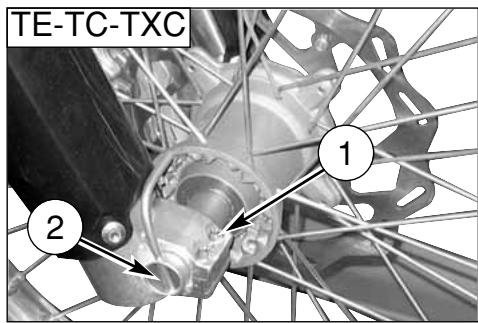

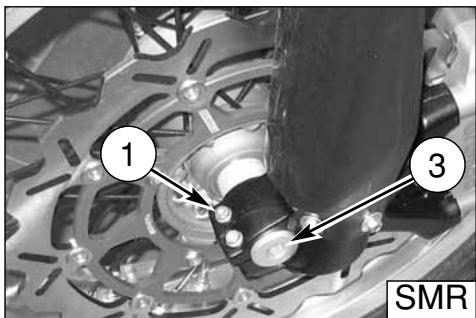

Hold the head of the wheel axle (2) in place, unscrew the bolt (3) on the opposite side; draw the wheel axle out.

NOTES

Do not operate the front brake lever when the wheel has been removed; this causes the caliper piston to move outwards. After removal, lay down the wheel with brake disc on top.

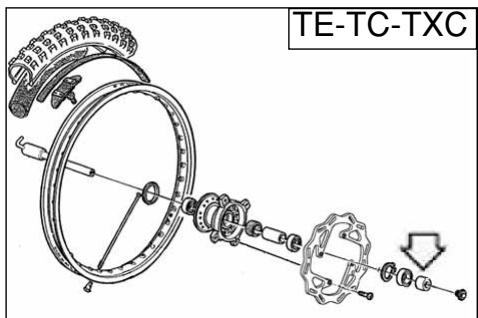

REASSEMBLING THE FRONT WHEEL

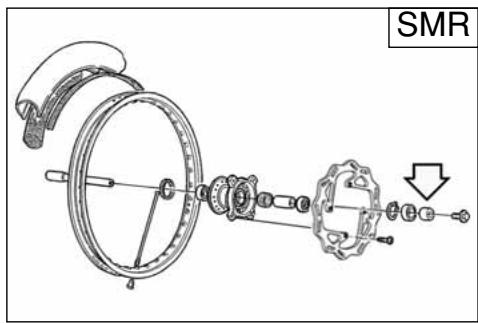

Fit the L.H. spacer on the wheel hub.

TE-TC-TXC: Fit the wheel between the front fork legs so that the brake disc is fitted into the caliper.

SMR: Fit the wheel between the front fork legs.

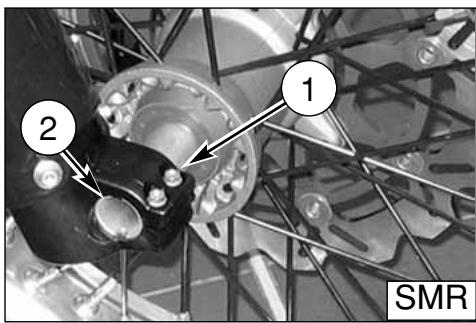

Fit the wheel axle (2) from the R.H. side, after greasing it and push it to the stop on the L.H. leg; during this operation, the wheel should be turned. Tighten the screw (3) on the fork L.H. side but DO NOT lock it. Now, pump for a while, pushing the handlebar downwards until you are sure that the fork legs are perfectly aligned.

Lock: the screws (1) on the R.H. leg (10,4Nm / 1,05Kgm / 7.7 ft-lb), the screw (3) on the L.H. side (51,45Nm / 5,25Kgm / 38ft - lb) ,the screws (1) on the L.H. leg (10,4Nm / 1,05Kgm / 7.7 ft-lb).

SMR: fit the brake caliper on the disc; assemble the caliper on its holding plate and tighten the screws (A) at 25,5 Nm/ 2,6 Kgm/ 18.8 ft-lb.

Check that the brake disc slides between the caliper pads without any friction.

NOTE

After reassembly, pump the brake control lever until the pads are against the brake disc.

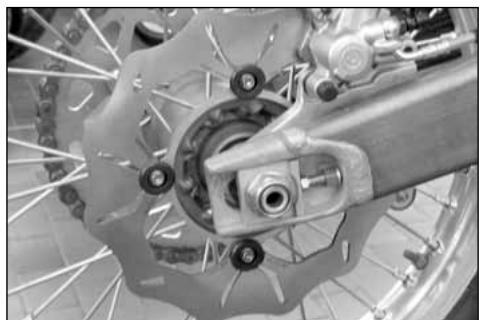

REMOVING THE REAR WHEEL

Unscrew the nut (1) of the wheel pin (3) and extract it. It is not necessary to unloose the chain adjusters (2); in this way, the chain tension will remain unchanged after the reassembly. Extract the complete rear wheel, by taking care of the spacers located at the hub sides.

To reassemble, reverse the above procedure remembering to insert the disc into the caliper.

NOTES

Do not operate the rear brake pedal when the wheel has been removed; this causes the caliper piston to move outwards. After removal, lay down the wheel with brake disc on top. After reassembly, pump the brake control pedal until the pads are against the brake disc.

TIRES

Care should be taken to keep the tires properly inflated. See tire data for correct tire inflation pressure (page 11). Replace the tire if its wear exceeds what is shown on the table below.

MINIMUM HEIGHT OF THE TREAD

FRONT	3 mm (TC,TE,TXC); 2 mm (SMR)
REAR	3 mm (TC,TE,TXC); 2 mm (SMR)

BRAKES

The major components are brake master cylinder with its lever (front) or pedal (rear),brakeline, caliper assembly and disc.

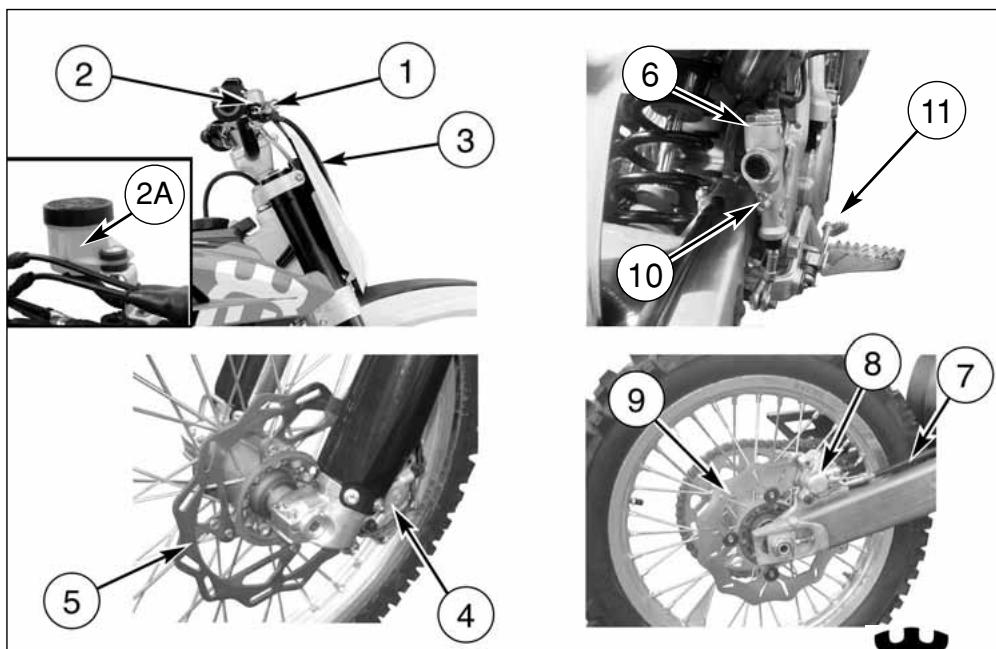

LEGEND

1. Front brake control lever
2. Front brake pump with oil reservoir (TE, TC,TXC)
3. Front brake pump (SMR)
   2A. Oil reservoir (SMR)

4. Front brake hose

5. Front brake caliper

6. Front brake disc
7. Rear brake oil tank
8. Rear brake hose
9. Rear brake caliper
10. Rear brake disc
11. Rear brake pump
12. Rear brake control pedal

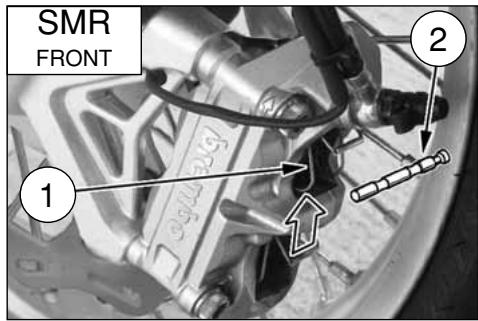

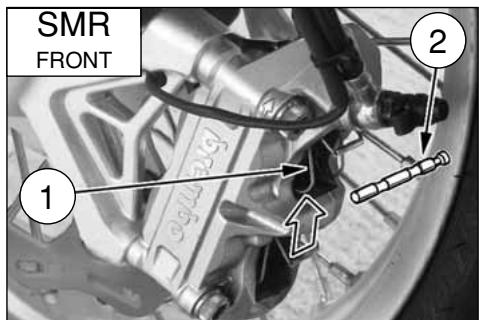

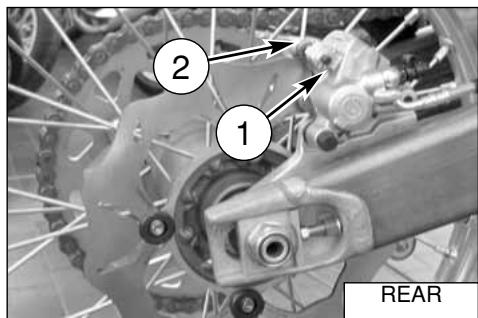

BRAKE PADS REMOVAL

• Remove springs (1).
• Remove pins (2).
• Remove pads.

CAUTION!

Don't operate the brake lever or pedal while removing the pads.

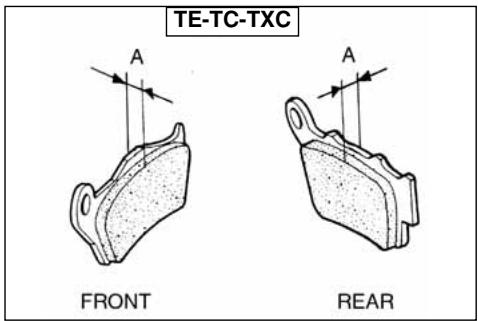

PADS WEAR (TE-TC-TXC)

Inspect pads for wear.

Service limit "A" is: 3,8 mm (0.15 in.).

If service limit is exceeded, always replace the pads in pairs.

PADS WEAR (SMR)
a) In front: thickness "A" must never be lower than the one pointed out by the wear control notches.
b) At the back: thickness "A" must never be lower than 3,8 mm.

If service limit is exceeded, always replace the pads in pairs.

PADS CLEANING

Be careful that no disc brake fluid or any oil gets on brake pads or discs. Clean off any fluid or oil that inadvertently gets on the pads or disc with alcohol.

Replace the pads with new ones if they cannot be cleaned satisfactorily.

PADS INSTALLATION

Install new brake pads.
- Reassemble the two pins (2) and the springs (1).

WARNING!

Do not attempt to ride the motorcycle until the brake lever or pedal are

fully effective. Pump the brake lever or pedal until the pads are against the discs.

The brake will not function on the first application of the lever or pedal.

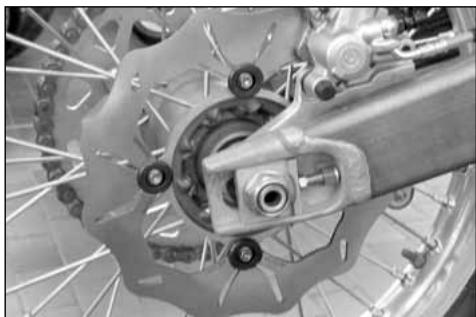

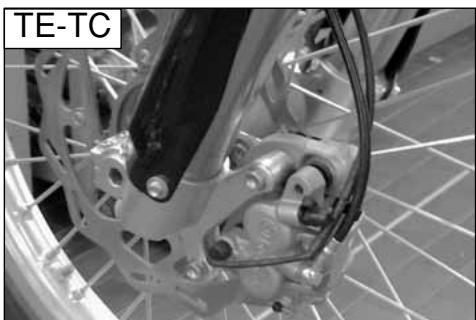

BRAKE DISC WEAR

Measure the thickness of each disc at the point where it has worn the most. Replace the disc if it has worn past the service limit.

Disc Thickness

DISC	STANDARD	SERVICE LIMIT
Front (TE-TC-TXC)	3 mm 0.118 in	2,5 mm 0.098 in
Front (SMR)	5 mm 0.197 in	4,5 mm 0.177 in
Rear	4 mm 0.157 in	3,5 mm 0.138 in

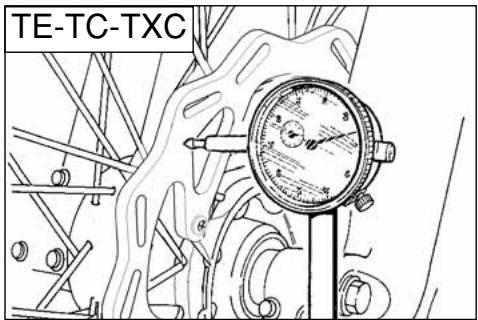

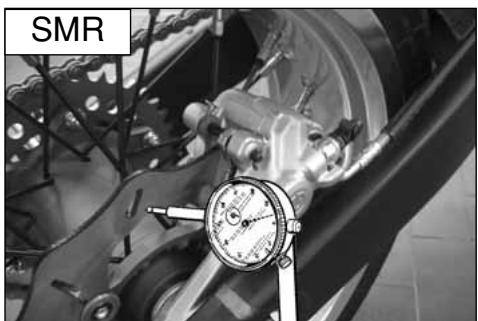

DISC WARPAGE

Measure disc warpage. Service limit for both discs is 0,15mm (0.006 in.)

Replace the disc if warpage is more than service limit.

DISC CLEANING

Poor braking can also be caused by oil on the disc. Oil or grease on the disc must be cleaned off with a high flash-point oil free solvent, such as acetone or lacquer thinner.

FLUID CHANGE

The brake fluid should be checked and changed in accordance with the Periodic Maintenance Chart or whenever it is contaminated with dirt or water. Don't change the fluid in the rain or when a strong wind is blowing.

CAUTION!

• Use only brake fluid from a sealed container (DOT 4). Never use old brake fluid.
• Never allow contaminants (dirt, water, etc.) to enter the brake fluid reservoir.
• Don't leave the reservoir cap off any length of time to avoid moisture contamination of the fluid.
• Handle brake fluid with care because it can damage paint.
• Don't mix two types of fluid for use in the brake. This lowers the brake fluid boiling point and could cause the brake to be ineffective. It may also cause the rubber brake part to deteriorate.

To replace the fluid, proceed as follows:

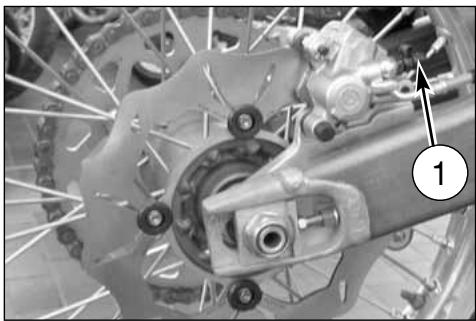

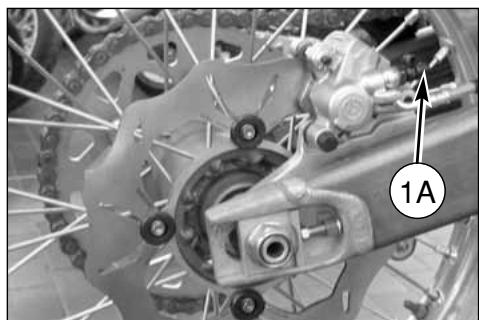

• Remove the rubber cap on the bleeding valve (1) or (1A).
• Attach a clear plastic hose to the bleeding valve on the brake caliper and turn the other end of the hose into a container.

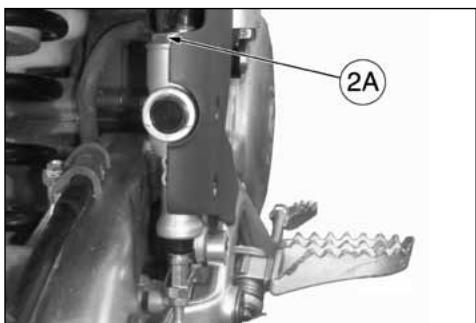

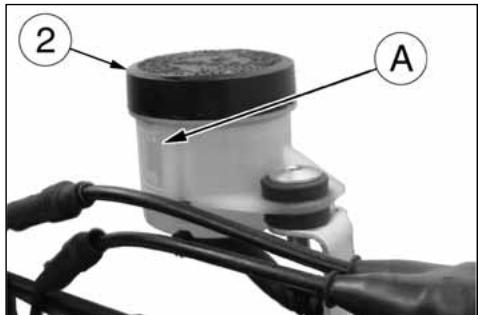

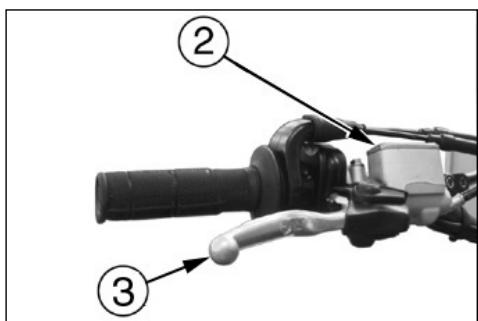

• Remove fluid reservoir cap (2)or (2A: 21 mm wrench) and the rubber.
• Loosen bleeding valve on the brake caliper.

• Pump with brake lever (3) or brake pedal (3A) in order to push brake fluid out of line.
• Close the bleeding valve and fill the reservoir with fresh brake fluid.
• Open the bleeding valve, apply the brake using the brake lever or pedal, close the bleeding valve with the brake lever or pedal applied and then quickly release the lever or pedal.
• Repeat this operation until the brake line is filled and clear fluid starts coming out of the plastic hose: now close the bleeding valve.

-Restore the brake fluid level (A) or (B) then reassemble the rubber and the fluid reservoir cap page 58).

After the brake fluid replacement, it is necessary to operate the braking system bleeding (see pages 60 and 63).

WARNING!

Brake fluid quickly ruins painted surfaces; any spilled fluid should be completely wiped up immediately.

• Brake fluid may cause irritation. Avoid contact with skin or eyes. In case of contact, flush thoroughly and call a doctor if your eyes were exposed.

Periodically check the connecting hoses (see "Periodical maintenance card"): if the hoses (A) and (B) are worn or cracked, their replacement is advised.

The braking system must be bled after the fluid replacement or when, due to air in the circuit, the lever stroke is long and spongy.

Proceed as follows:

• Remove the rubber cap on the bleeding valve (1).
• Attach a clear plastic hose to the bleeding valve on the brake caliper and turn the other end of the hose into a container (make sure that the end of the hose is submerged in brake fluid during the entire bleeding operation).

• Remove fluid reservoir cap (2), the rubber and fill the reservoir with fresh brake fluid.
• Open the bleeding valve and pump with brake lever (3) several times until the fluid, clear and without bubbles, comes out of the hose: now close the bleeding valve.
• Restore the brake fluid level (A) then reassemble the rubber and the fluid reservoir cap (2).

WARNING!

During the bleed operation the fluid level inside the reservoir must never be lower than the minimum level.

Tightening torque for bleed valve is 1,2 ÷ 1,6 ~kgm ( 12 ÷ 16 Nm; 8.8 ÷ 11.8 ft · lb ).

As the braking fluid is a very corrosive substance, in the case it comes in contact with your eyes wash them abundantly with water.

During the bleeding of the braking circuit keep the handlebar turned leftwards. This is the way to lift the

pump tank and to make easier the bleeding of the braking system.

If the lever stroke gets stretchy and the braking action results as poor in the case of falls during competitions,

or after repair work in shops, repeat the bleeding operation described above.

As the bleeding operation does not fully eliminate the air inside the circuit, the small quantity of air re

g inside will be eliminated after a ime of use of the brake. In this case er, the action of the lever will be and the stroke shorter.

FRONT BRAKING SYSTEM BLEEDING (SMR)

The braking system must be bled after the fluid replacement or when, due to air in the circuit, the lever stroke is long and spongy.

Regarding the front braking system, first proceed to bleed the upper braking system control (bleeding valve 1), then the brake caliper (bleeding valve 1A). In both cases, proceed as follows:

• Remove the rubber cap on the bleeding valve (1) or (1A).

• Attach a clear plastic hose to the bleeding valve on the brake caliper and turn the other end of the hose into a container (make sure that the end of the hose is submerged in brake fluid during the entire bleeding operation).

• Remove fluid reservoir cap (2), the rubber and fill the reservoir with fresh brake fluid.

• Open the bleeding valve and pump with brake lever several times until the fluid, clear and without bubbles, comes out of the hose: now close the bleeding valve.

-Restore the brake fluid level (A) then reassemble the rubber and the fluid reservoir cap.

WARNING!

During the bleed operation the fluid level inside the reservoir must never be lower than the minimum level.

Tightening torque for bleed valve is 1,2 ÷ 1,6 kgm (12 ÷ 16 Nm; 8.8 ÷ 11.8 ft-lb).

As the braking fluid is a very corrosive substance, in the case it comes in contact with your eyes wash them abundantly with water.

During the bleeding of the braking circuit keep the handlebar turned leftwards. This is the way to lift the tank and to make easier the bleeding braking system.

If the lever stroke gets stretchy and the braking action results as poor in the case of falls during competitions, a repair work in shops, repeat the long operation described above.

As the bleeding operation does not fully eliminate the air inside the circuit, the small quantity of air reing inside will be eliminated after a time of use of the brake. In this case, the action of the lever will be and the stroke shorter.

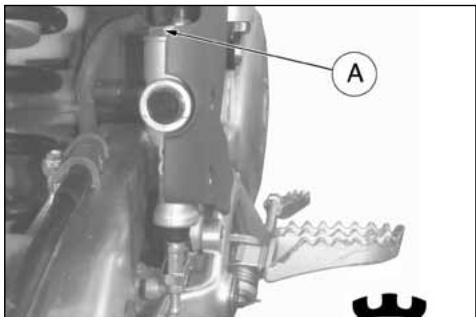

REAR BRAKING SYSTEM BLEEDING

The braking system must be bled after the fluid replacement or when, due to air in the circuit, the pedal stroke is long and spongy.

To bleed the system:

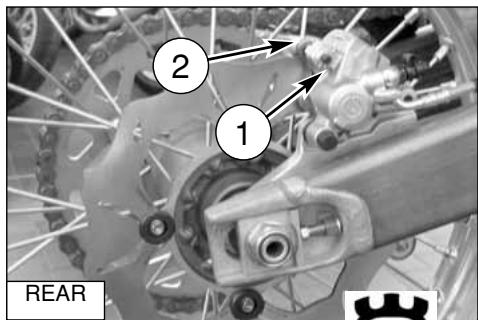

• Remove the reservoir cover (A) (21 mm wrench) rubber boot and top up with (DOT 4) brake fluid.

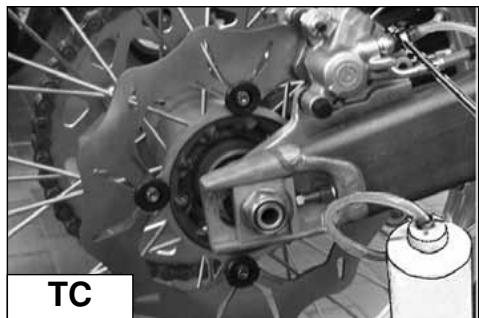

• Attach a clear plastic hose to the bleed valve (1) on the caliper and turn the other end of the hose into a container.

-Depress the pedal (2) and keep it full down.
- Loosen the bleed union letting out fluid (at first, only air will come out), then, closing the union slightly.
- Release the pedal and wait for a few seconds before repeating the operation until only fluid come out of the tube.

• Close the bleed union to the prescribed torque and check the fluid level (B) inside the reservoir before reassemble the cap (1).

If the bleeding operation has be done correctly, the pedal will have no mushy feel. If not, repeat the operation.

NOTE

Should the motorcycle, due to a fall during a competition or shop repairs, show some elasticity of the brake lever stroke, with a subsequent braking efficiency decrease, you'll to repeat the circuit bleeding as above described.

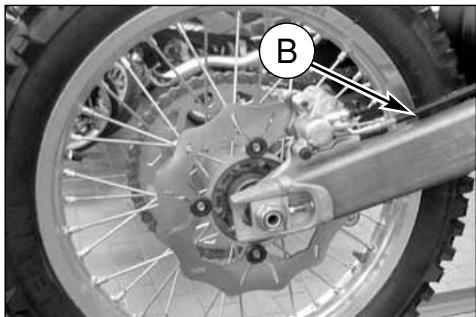

WARNING!

During the bleed operation the fluid level inside the reservoir must never be lower than the minimum level.

Tightening torque for bleed valve is 1,2 ÷ 1,6 kgm (12 ÷ 16 Nm; 8.8 ÷ 11.8 ft-lb).

EXHAUST MUFFLER (TC-TE-TXC)

The muffler reduces the noise of the exhaust gases, but it is an integral part of the exhaust as well. As such, its conditions affect the motorcycle performance.

When the noise on the exhaust is too high, it means that the deadening material set on the holed tube inside the muffler is deteriorated.

WARNING: Check the deadening material after every competition and replace it if necessary.

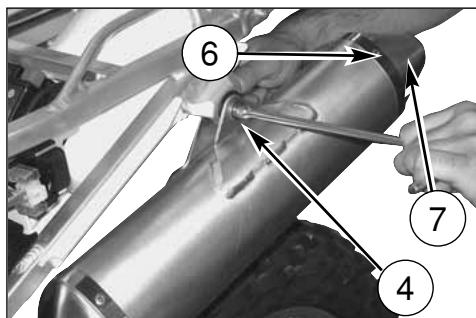

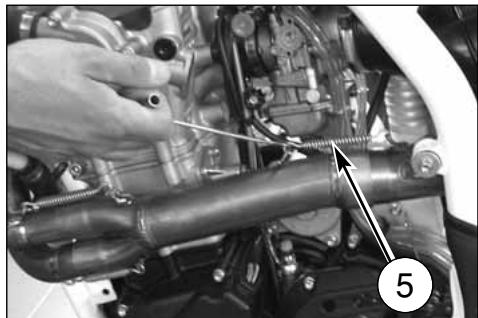

REPLACING THE MUFFLER DEADENING MATERIAL

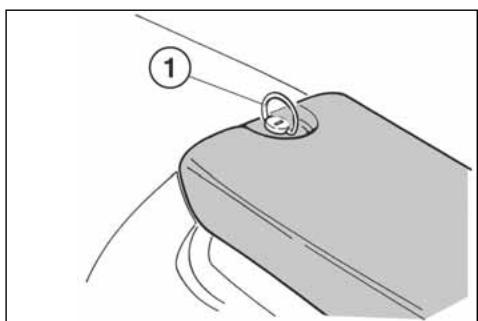

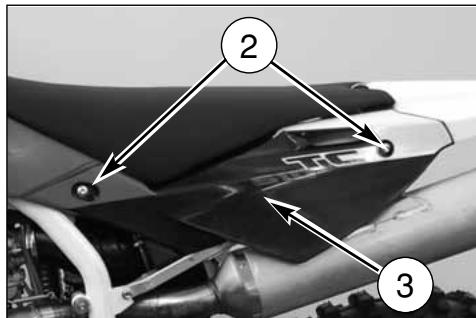

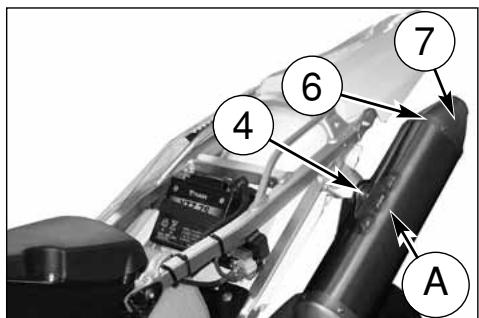

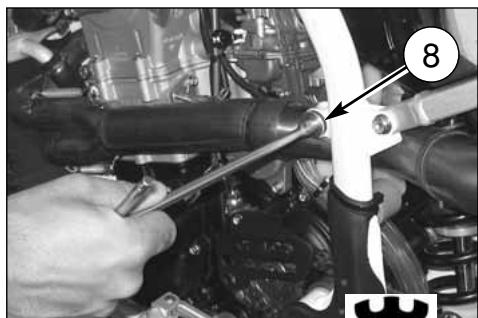

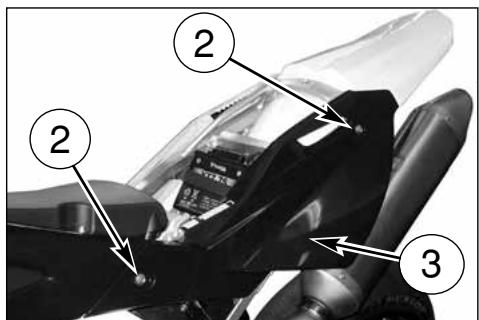

First turn counterclockwise fastening rear pin (1) then remove saddle, screws (2) and L.H. side panel (3). Using an 8mm T-shaped spanner on the outside and a 10mm T-shaped spanner on the inside, remove the locking screw (4) of the muffler. Remove the spring (5) and with an 8mm T-shaped spanner remove the screw (8); then pull out the muffler. Remove the six rear rivets (6), clamp and the exhaust terminal (7).

Remove inner pipe and replace the deadening material. Reassemble L.H. side panel and saddle.

NOTE: When diffculties are found in removing the muffler, lightly beat with a rubber or plastic hammer.

EXHAUST MUFFLER (SMR)

The muffler reduces the noise of the exhaust gases, but it is an integral part of the exhaust as well. As such, its conditions affect the motorcycle performance.

When the noise on the exhaust is too high, it means that the deadening material set on the holed tube inside the muffler is deteriorated.

WARNING*: Check the deadening material after every competition and replace it if necessary.

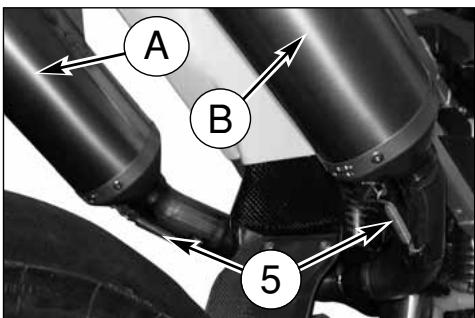

REPLACING THE MUFFLER DEADENING MATERIAL

Remove the saddle after turning the locking back pin (1) anticlockwise, loosen the screws (2) with an 8-mm T-shaped spanner and remove the side panel (3) (do the same on the right side). Using an 8 mm T-shaped spanner on the outside and a 10 mm T-shaped spanner on the inside, remove the locking screw (4) of the muffler. Remove the spring (5) and pull out the muffler (A) o (B). Remove the four rear rivets (6), clamp and the exhaust terminal (7).

Remove inner pipe and replace the deadening material. Reassemble L.H. side panel and saddle.

NOTE*: When difficulties are found in removing the muffler, lightly beat with a rubber or plastic hammer.

OVERHAULING THE WHEELS

The tables hereunder show the type of control the rim and wheel axle are to be submitted to.

Note*: if the rim is badly, it should be replaced.

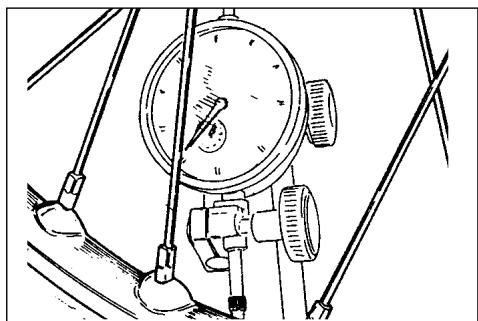

DEFORMATION RIM

	STANDARD	MAX.LIMIT
Side skid	less than 0,5 mm (0.02 in)	2 mm (0,078 in)
Eccentricity	less than 0,8 mm (0.03 in)

WHEEL SPOKES

Check to make sure that all the nipples are tight; tighten them if necessary.

Remember that an insufficient stretch jeopardizes the motorcyle stability.

For an instant check, use a metal point (for instance, a screwdriver) to beat the spokes with. A live sound accounts for an accurate tightening, while a dull sound means that a new tightening is necessary.

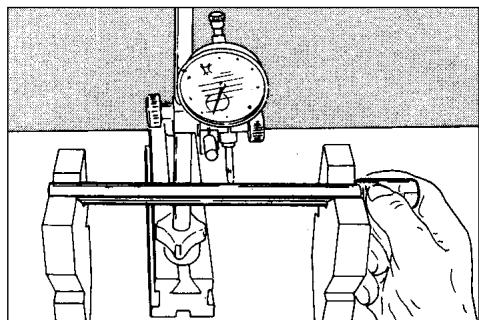

WHEEL RIM AXLE BENDING

If the bending figure is over the allowable max. limit, straighten or replace the axle.

If the wheel axle cannot be straightened within the max. limits (0,2mm - 0,008 in.) stated, replace it.

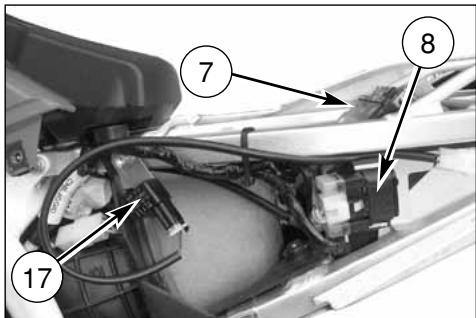

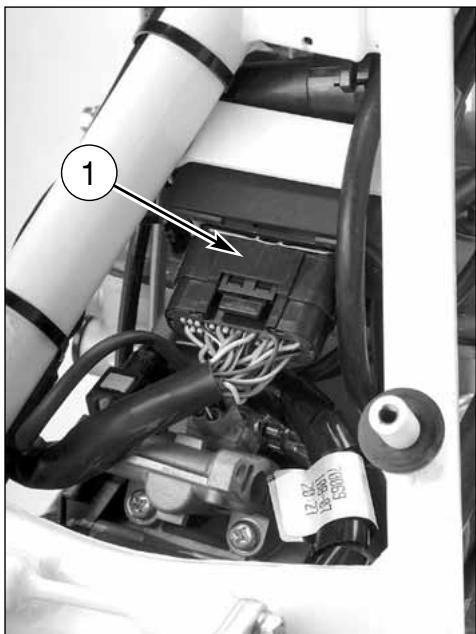

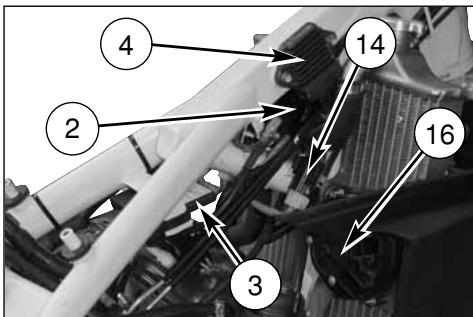

ELECTRICAL COMPONENTS LOCATION (TE-SMR)

The ignition system includes the following elements:

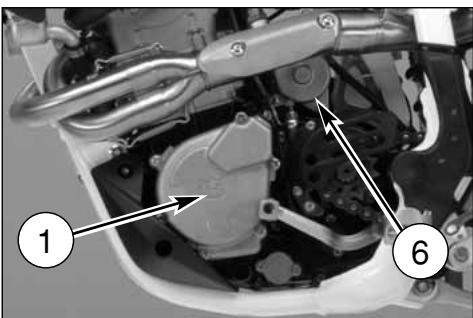

• Generator (1), in oil bath, on the inner side of L.H. crankcase cover;
  Electronic ignition coil (2) under the fuel tank;
• Electronic power unit C.D.I. (3) under the fuel tank;
• Voltage regulator (4) under the fuel tank;
• Spark plug (5) on the R.H. side of cylinder head;
• Starting motor 12V-450W (6) behind the cylinder;
• Electric start remote control switch (8) on the left side of the rear frame.
• M.A.Q.S. sensor (pressure, throttle control position, air temperature) (10) on the throttle body.

The electric system includes the following elements:
- Battery 12V-6Ah (7) under the saddle;
- Flashing indicator device (17) on the left side of the rear frame;

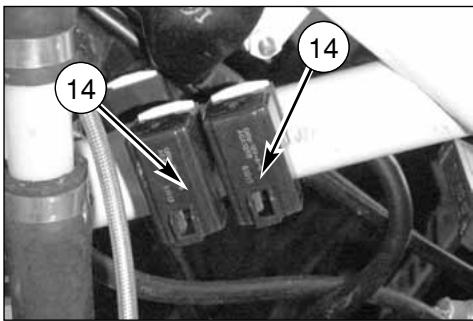

• Relay (14) for light and injection system, on the L.H. side of the frame;
• Relay (14) for the electric fan, on the R.H. side of the frame;
  Electric fan (16);

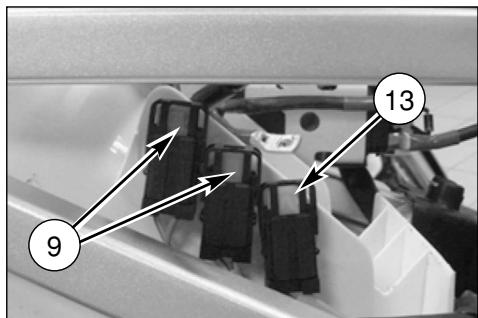

• Two fuses (9) 15A and one (13) 20A, on the right side of the rear mudguard;

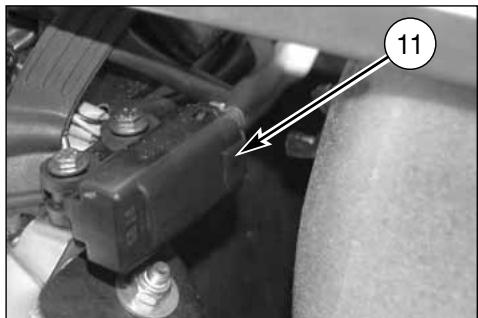

• Fall sensor (11) on the right side of the rear frame;

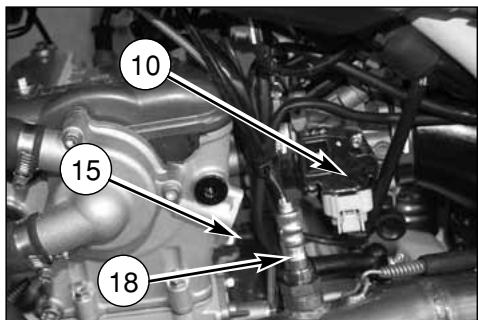

• Coolant temperature sensor (15);
  Lambda probe (18);

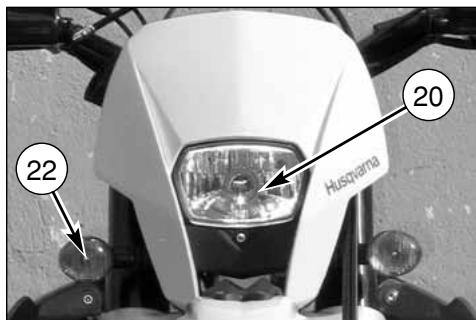

• Headlamp (20) with two filaments bulb of 12V-35/35W and parking light bulb of 12V-5W;

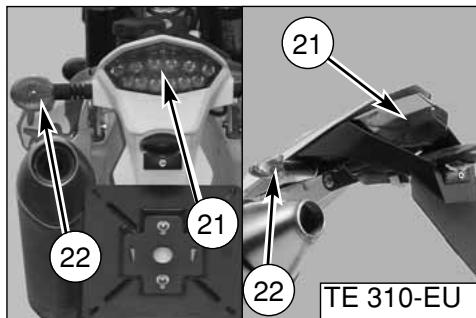

• LED back light (21) (except TE 310/Europe);
• Back light (21) with 12V-21W stop light, 12V-5W parking light (TE 310/Europe);

• Turn signals bulb (22) of 12V-10W;

• Fuel pump (19) inside the fuel tank.

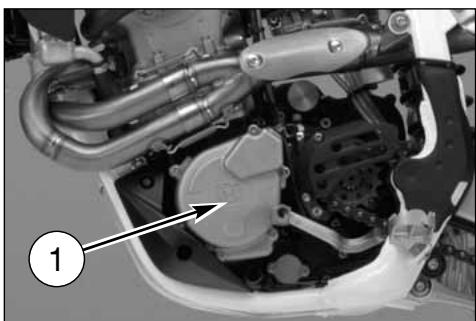

ELECTRICAL COMPONENTS LOCATION (TC-TXC)

The ignition system includes the following elements:
- Generator (1) on the inner side of L.H. crankcase cover;

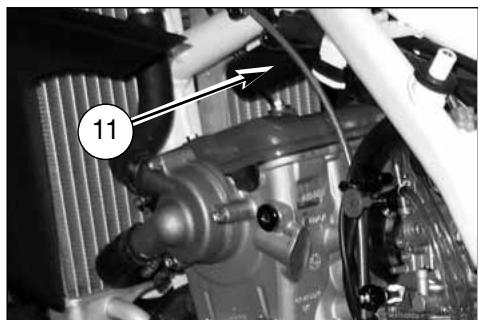

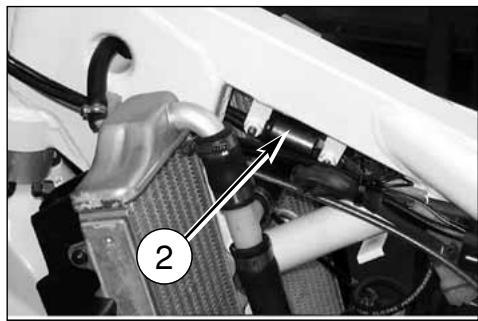

• Electronic coil (2) and condenser (11; TXC) under the fuel tank;

• Electronic power unit C.D.I. (3) under the fuel tank;

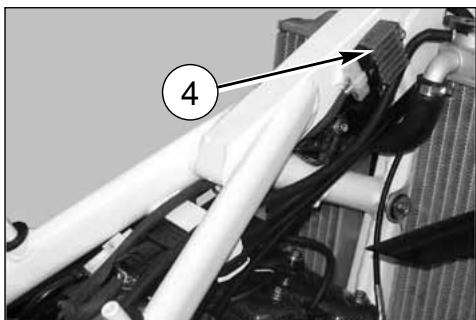

• Voltage regulator (4) under the fuel tank;

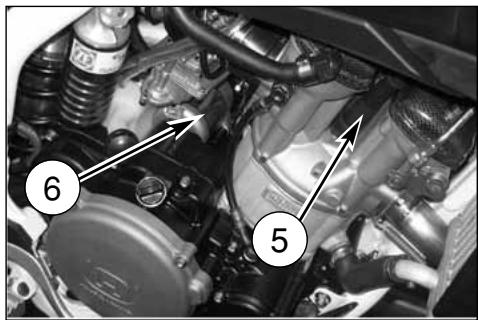

• Spark plug (5) on the R.H. side of cylinder head;

• Starting motor 12V-450W (6) behind the cylinder (TXC);

• Electric start remote control switch (7) on the left side of the rear frame (TXC);

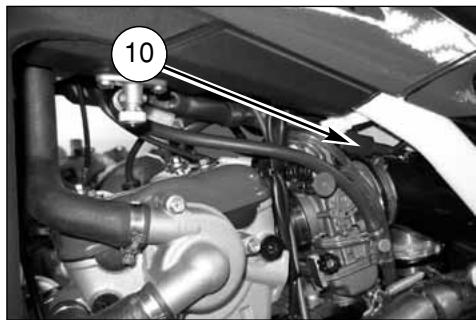

• Potentiometer (10) on the carburettor.

The electric system includes the following elements (TXC):
- Battery 12V-6Ah (8) under the saddle;
- Two fuses (9) 20A, on the electric starter contactor (7).

Cable colour coding

B	Blue
B/Bk	Blue/Black
Bk	Black
Br	Brown
Br/Bk	Brown/Black
Br/R	Brown/Red
Br/W	Brown/White
G	Green
G/Bk	Green/Black
G/Gr	Green/Grey
G/R	Green/Red
Gr	Grey
Gr/B	Grey/Blue
Gr/Bk	Grey/Black
O	Orange
O/Bk	Orange/Black
O/G	Orange/Green
Pk	Pink

R	Red
R/Bk	Red/Black
Sb	Sky blue
V	Violet
W	White
W/B	White/Blue
W/Bk	White/Black
W/G	White/Green
W/R	White/Red
W/V	White/Violet
W/Y	White/Yellow
Y	Yellow
Y/Bk	Yellow/Black
Y/Br	Yellow/Brown
Y/G	Yellow/Green
Y/O	Yellow/Orange
Y/Sb	Yellow/Sky blue
Y/R	Yellow/Red

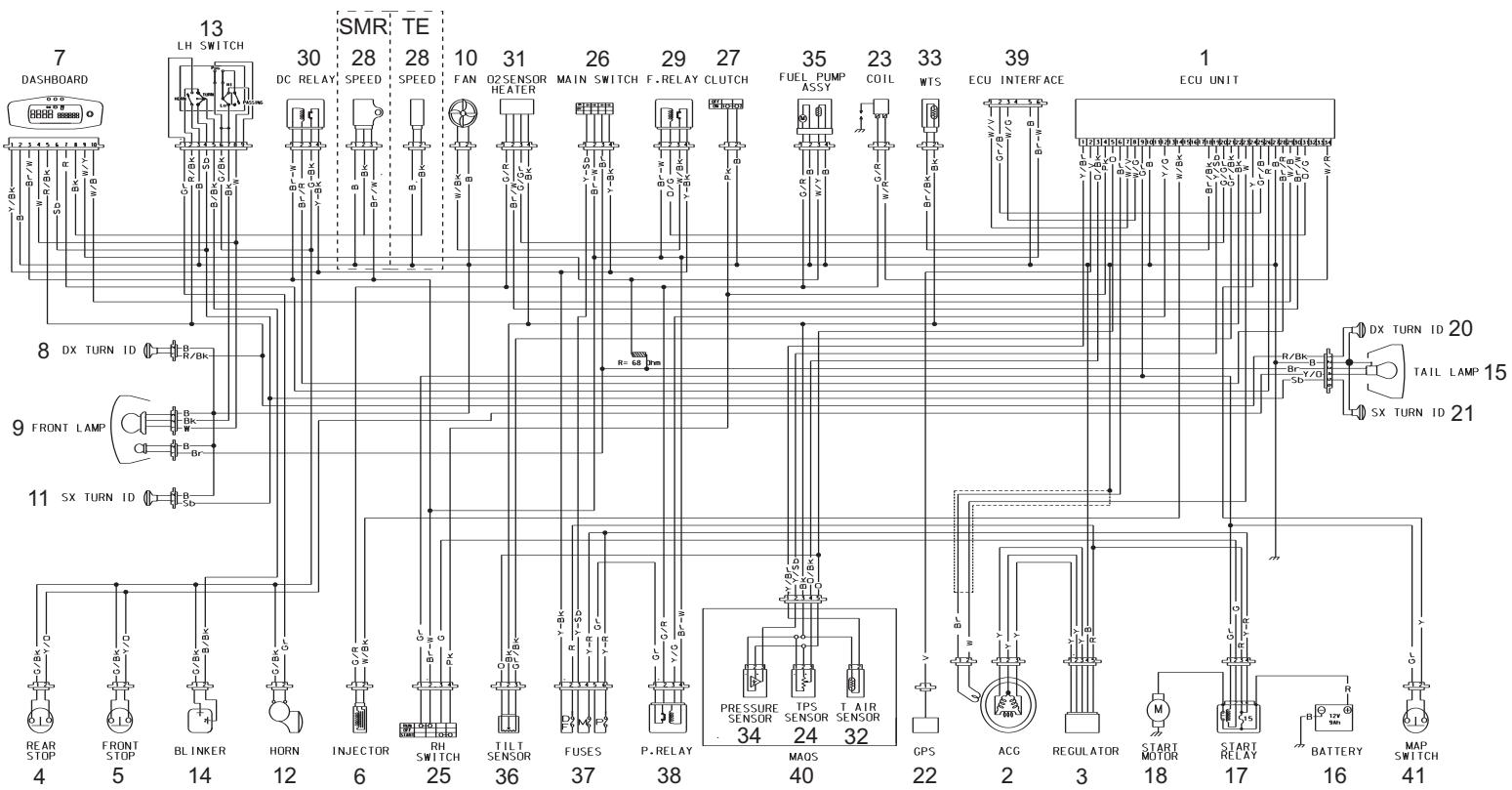

KEY TO ELECTRIC DIAGRAM (TE-SMR)

1. Fall sensor

2. Fuses

3. Power relay

4. Power unit interface

40.M.A.Q.S. (34 + 24 + 32)

1. Electronic power unit
2. Alternator
3. Voltage regulator
4. Rear stop switch
5. Front stop switch
6. Injector
7. Instrument
8. R.H. front turn indicator
9. Front headlamp
10. Cooling fan
11. L.H. front turn indicator
12. Horn
13. L.H. commutator
14. Turn indicators flasher
15. Tail light
16. Battery
17. Electric start remote control switch
18. Starting motor
19. Spark plug
20. R.H. rear turn indicator
21. L.H. rear turn indicator
22. Gear shift position sensor
23. H.T. coil
24. Sensor position throttle control (40)
25. R.H. switch
26. Ignition switch
27. Clutch microswitch
28. Speed sensor
29. Relay for electric fan
30. Direct current relay
31. LAMBDA probe
32. Air temperature sensor (40)
33. Coolant temperature sensor
34. Pressure sensor (40)
35. Fuel pump

(^*) : it stops the engine in case of a fall

Cable colour coding

B Blue
Br Brown
Bk Black
G Green
Gr Grey
Gr/R Grey/Red
0 Orange
P Pink
R Red
Sb Sky blue
Violet
W White
Y Yellow

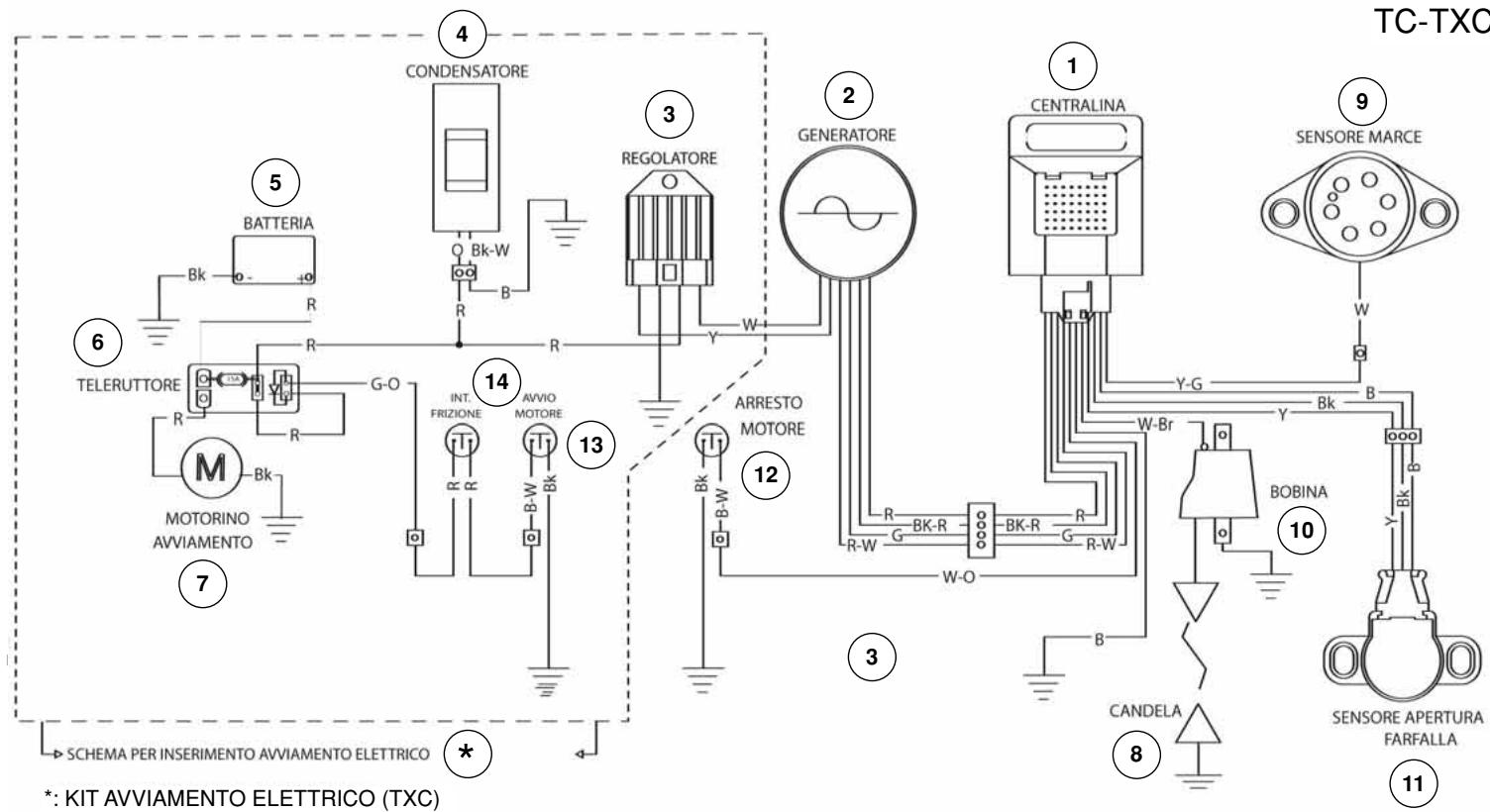

KEY TO ELECTRIC DIAGRAM (TC-TXC)

1. Electronic power unit
2. Alternator
3. Voltage regulator
4. Condenser
5. Battery
6. Electric start remote control switch
7. Starting motor
8. Spark plug
9. Gear shift position sensor
10. Electronic coil
11. Carburetor throttle position sensor
12. Engine stop
13. Engine start
14. Clutch microswitch

BATTERY

The sealed battery does not require any maintenance work. When electrolyte leaks, or other failures to the electrical system are detected, apply to the HUSQVARNA Dealer.

If the vehicle remains unused for long periods, it is recommended to remove battery from electrical system and store it in a dry place.

• After an intensive use of the battery, it's advisable a standard low charge (12V-6Ah battery: 0.6A for 8 hours).
  Rapid recharging is advised only in situations of extreme necessity since the life of lead elements is drastically reduced (6A for 0.5 hours with 12V-6Ah batteries).

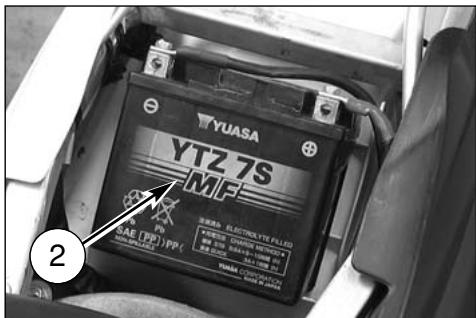

BATTERY CHARGER

To gain access to the battery (2):
- first turn counterclockwise fastening rear pin (1) then remove the saddle;

• first remove the BLACK or BLUE negative cable, then the RED positive cable (when reassembling, first connect the RED positive cable, then the BLACK or BLUE negative cable);
• remove the battery (3) from its housing.

Check, using a voltmeter, that battery voltage is not less than 12.5 V.

If not, the battery needs to be charged.

Using a battery charter with a constant voltage, first connect the RED positive cable to the battery's positive terminal then the BLACK or BLUE negative cable to the battery's negative terminal.

Apply to the constant voltage of 14.4V a current of "x" Ampere as results in the below diagram (depending on the amount of charging required).

The voltage reaches a constant value only after a few hours, therefore it is suggested NOT to measure it immediately after having charged or discharged the battery.

Always check the charge level before reinstalling it on the vehicle.

The battery should be kept clean and the terminals coated with grease.

WARNING*: The battery contains sulfuric acid. Avoid contact with skin, eyes or clothing. Antidote: EXTERNAL - Flush with water. INTERNAL - Drink large quantities of water or milk. After milk take magnesia, beaten eggs or vegetable oil. Call physician immediately. Eyes: Flush with water for no less than 15 minutes and get prompt medical attention.

WARNING*: In case on unused of the battery it has to be, in any case, re-charged with slow cycle (0,6A for 8 hours for batteries 12V-6Ah) at least every 3 weeks.

INDICATIVE VALUES RELATIVE TO THE CHARGING TIME DEPENDING ON BATTERY STATUS
VOLTAGE * (V)	% CHARGE	CHARGE TIME (THE "AMPERE" RATED CURRENT TO APPLY IS: 0,1x BATTERY RATED CAPACITY)
>12,7	100
~12,5	75	4h
~12,2	50	7h
~12,0	25	11h
~11,8	0	14h

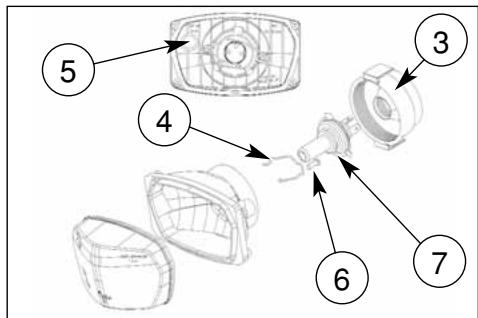

HEADLAMP BULBS REPLACEMENT (TE-SMR)

To gain access to the healamp bulbs, proceed as follows:

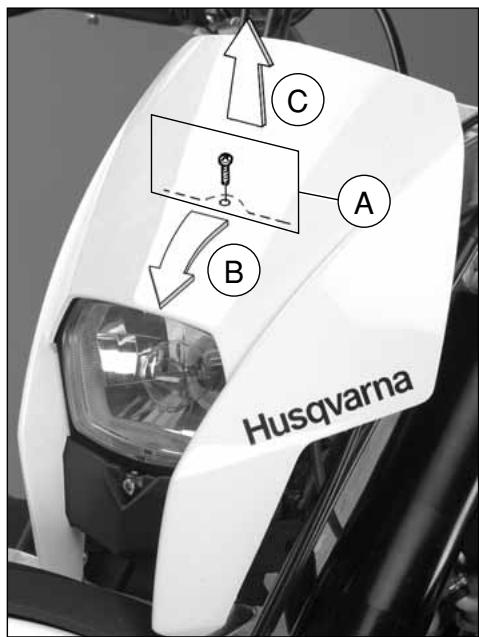

• remove the upper fastening screw of the headlamp carrier to the instrument panuel support (A);
• push forward the headlamp carrier (B) and pull it towards the high (C) in order to uncouple from the two lower supports.

• remove the headlamp carrier;

• remove the two filaments bulb (7) connector (2) and the boot (3);

• remove the screw (6);
• release the bulb holding spring (4) and then the bulb itself.

To replace the parking light bulb (5) extract it from the inside cover.

After replacement, reverse operations for reassembly.

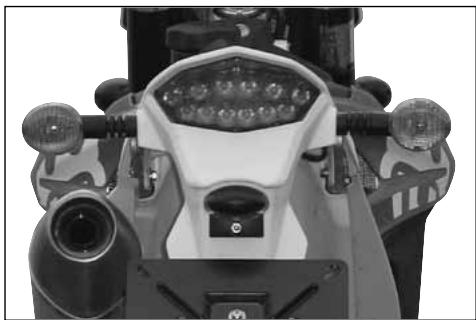

TAIL LIGHT (excluded TE 310/Europe)

The back light is a LED light.

REAR TAIL LIGHT BULB REPLACEMENT (TE-SMR)

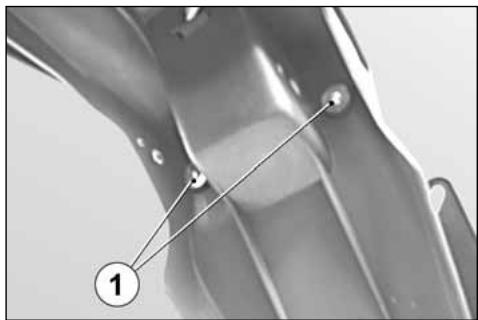

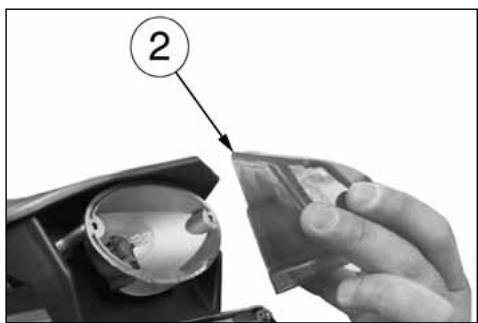

Remove the two fastening screws (1) in the inner side of the rear fender and the lens (2).

Pull the lamp (3) inside, turn it counterclockwise then remove it from the lamp holder.

After replacement, reverse operations for reassembly.

NOTES: make sure not to tighten the screws excessively.

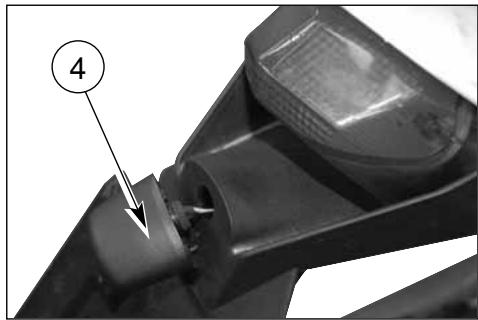

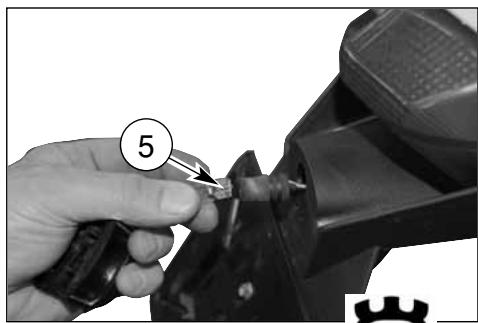

REPLACING THE NUMBER PLATE LAMP (TE-SMR)

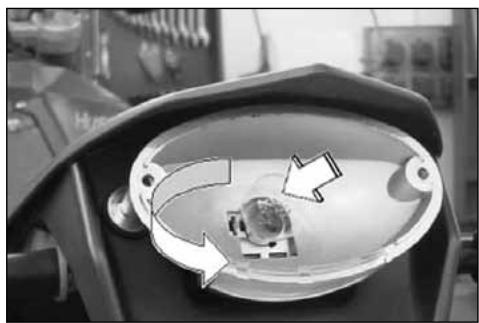

Pull out the number plate lampholder (4) from the back of the vehicle. Pull out the lampholder and the bulb. Rotate the bulb (5) to remove from the lampholder.

Once the bulb has been replaced, reverse the above procedure.

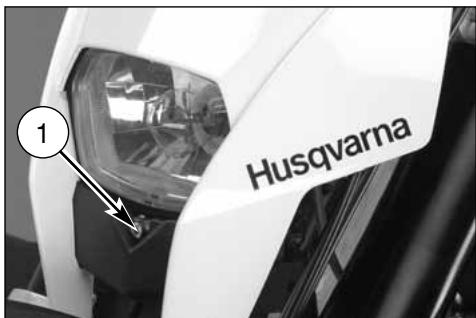

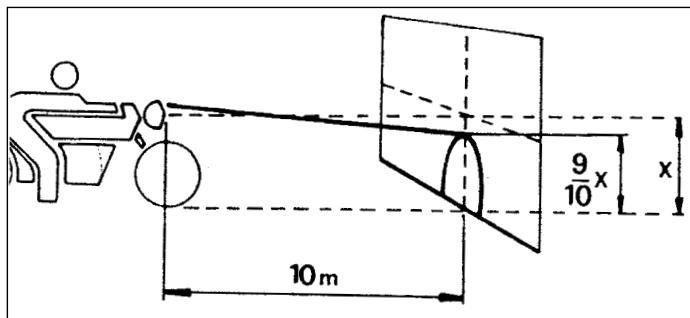

ADJUSTMENT OF HEADLIGHT (TE-SMR)

When checking the proper orienting of headlight, inflate tires at right pressure, sat a person on the saddle and place the motorcycle perpendicular with its longitudinal axis 10 meter (33 ft) from a wall or screen. Then trace an horizontal line equal to the height of headlight center and a vertical one in line with its longitudinal axis.

If possible, execute this operation in a shadowy place. When the low beam is on, the upper boundary limit between dark and lit zone should be 9/10 th of headlight center from group.

Adjust the preadlamp aiming by turning screw (1) to lower or lift the high beam.

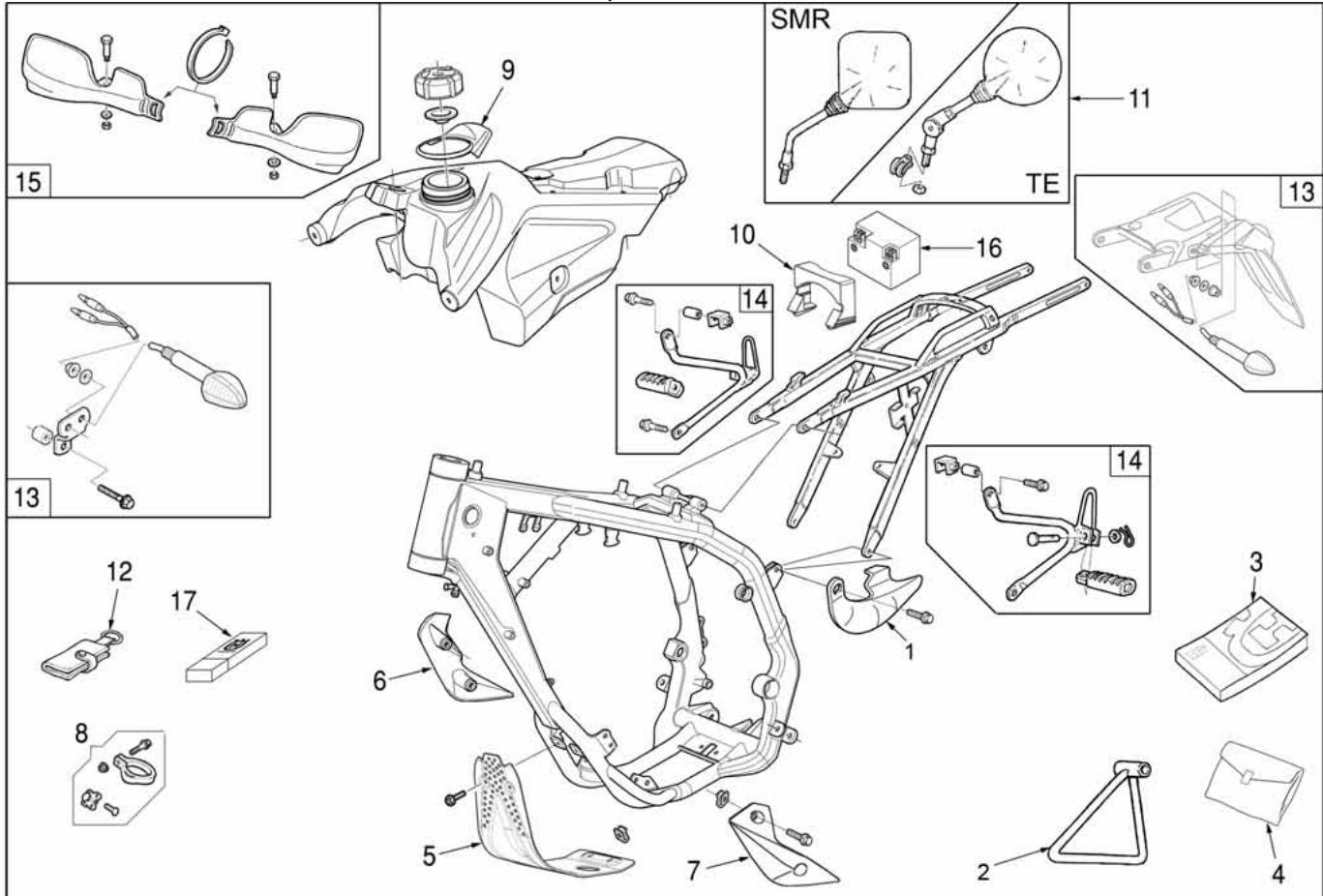

EQUIPMENT

Pos.	Code Nr.	NAME	MODELS
1	8000B1747	HEAT GUARD (1)	(TE-SMR-TC-TXC)
2	800074016	SIDE STAND (1)	(TC-TXC)
3	8000H1343	MULTILANGUAGE QUICK MANUAL (1)	(TE-SMR-TC-TXC)
4	8000A4296	CARBURETOR KIT KEIHIN 41 (1)	(TC-TXC 450/510)
5	8000B0157	ENGINE GUARD (1)	(TE-SMR-TC-TXC)
6	8000H0188	R.H. ENGINE PROTECTION (1)	(TE-TC-TXC)
7	8000H0187	L.H. ENGINE PROTECTION (1)	(TE-TC-TXC)
8	8000B1530	HOOK KIT FOR RACE STARTING (1)	(TC-TXC)
9	8000B1390	PLUG PROTECTION (1)	(TE-SMR-TC-TXC)
10	8000H0159	BATTERY HOLDER (1)	(TE-SMR-TXC)
11	8A0065437	R.H. REARVIEW MIRROR (1)	(TE)
	8B0065437	L.H. REARVIEW MIRROR (1)	(TE)
	8A00H1673	R.H. REARVIEW MIRROR (1)	(SMR)
	8000H1673	L.H. REARVIEW MIRROR (1)	(SMR)
12	800097615	HUSQVARNA KEY HOLDER (1)	(TE-SMR)
13	8000H1393	BLINKERS KIT (1)	(TE)
	8000H1701	BLINKERS KIT (1)	(SMR)
14	8000H1702	PASSenger FOOTREST KIT (1)	(SMR)
15	8000H1394	HAND GUARDS KIT	(TE)
16	8000A1891	BATTERY 6AH	(TE-SMR-TXC)*
	8000H0864	BATTERY 7AH	(TE-SMR)*
17	8000H1700	"USB" MEMORY	(TE-SMR-TXC)

*: In alternative

EQUIPMENT

OPTIONAL PARTS LIST (TE)

Pos.	Code Nr.	NAME	MODELS
1*	8A0096837	REAR SPROCKET Z=47 (1)	310
	8B0096837	REAR SPROCKET Z=48 (1)	310-450-510
	8C0096837	REAR SPROCKET Z=49 (1)	310-450-510
	8D0096837	REAR SPROCKET Z=50 (1)	450-510
2*	800063829	DRIVE SPROCKET Z=14 (1)	310-450-510
	800063827	DRIVE SPROCKET Z=12 (1)	310-450-510
	800063830	DRIVE SPROCKET Z=15 (1)	310-450-510
3*	8000H0772	LICENCE PLATE HOLDER KIT RACING (1)	310-450-510
4	8000H0503	ENGINE GASKET KIT (1)	310
	8000H0942	ENGINE GASKET KIT (1)	450-510
5	8000B0373	ENGINE SEALS KIT (1)	310
	8000B0364	ENGINE SEALS KIT (1)	450-510
6	800098504	REAR SHOCK ABS. SPRING (K=5,4 Kg/mm) (1)	450-510
	8000H0076	REAR SHOCK ABS. SPRING (K=5,6 Kg/mm) (1)	310
7	8000H0590	DOUBLE MODE BUTTON (1)	310-450-510

OPTIONAL PARTS LIST (SMR)

Pos.	Code Nr.	NAME	MODELS
1*	8A00A4859	REAR SPROCKET Z=43	450-510
	8B00A4859	REAR SPROCKETZ=44	450-510
	8G00A4859	REAR SPROCKET Z=45	450-510
2*	800063829	DRIVE SPROCKET Z=14	450-510
3*	8000H0772	LICENCE PLATE HOLDER KIT RACING (1)	450-510
4	8000A5982	ENGINE GASKET KIT	450-510
5	8000B0364	ENGINE SEALS KIT	450-510
8*	8000B0591	KICKSTARTER KIT	450-510

OPTIONAL PARTS LIST (TC)

Pos.	Code Nr.	NAME	MODELS
1	8A0096837	REAR SPROCKET Z=47 (1)	450
	8B0096837	REAR SPROCKET Z=48 (1)	450
	8C0096837	REAR SPROCKET Z=49 (1)	450
2	800063827	DRIVE SPROCKET Z=12 (1)	450
	800063828	DRIVE SPROCKET Z=13 (1)	450
	800063830	DRIVE SPROCKET Z=15 (1)	450
4	8000H0943	ENGINE GASKET KIT (1)	450
5	8000A5736	ENGINE SEALS KIT (1)	450
6	800098504	REAR SHOCK ABS. SPRING (K=5,4 Kg/mm) (1)	450

OPTIONAL PARTS LIST (TXC)

Pos.	Code Nr.	NAME	MODELS
1	8B0096837	REAR SPROCKET Z=48 (1)	450-510
	8C0096837	REAR SPROCKET Z=49 (1)	450-510
	8D0096837	REAR SPROCKET Z=50 (1)	450-510
2	800063827	DRIVE SPROCKET Z=12 (1)	450-510
	800063829	DRIVE SPROCKET Z=14 (1)	450-510
	800063830	DRIVE SPROCKET Z=15 (1)	450-510
3	8000H0219	LICENCE PLATE HOLDER KIT RACING (1)	450-510
4	8000H0942	ENGINE GASKET KIT (1)	450-510
5	8000B0364	ENGINE SEALS KIT (1)	450-510
6	800098504	REAR SHOCK ABS. SPRING (K=5,4 Kg/mm) (1)	450-510
7	8000B1546	NOISE REDUCTION DEVICE (1)	450-510

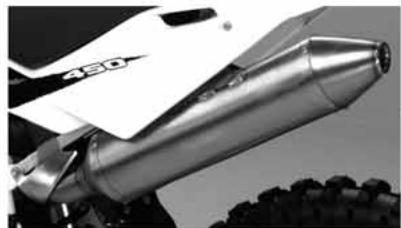

11	8000B0452	SILENCER (TITANIUM) (1)	450-510

*: For racing only

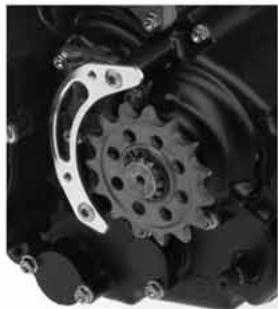

OPTIONAL PARTS

2

3

6

11

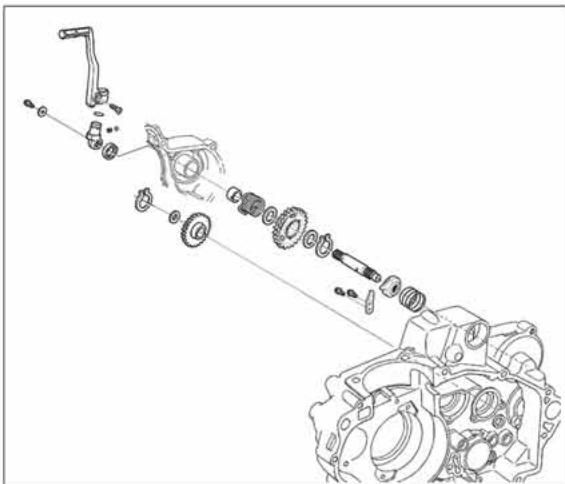

8

APPENDIX

AFTER-RACE CHECK POINTS

After racing, first clean the motorcycle and then inspect the entire motorcycle, with special attention to the items listed in «MAINTENANCE» table (Appendix A), such as the air cleaner, carburetor, brakes, etc.

Carry out general lubrication, and make adjustment as necessary.

STORAGE (TC-TCXC)

When the motorcycle is to be stored for any length of time, is should be prepared for storage as follows:

• Clean the entire motorcycle thoroughly.
• first carry out the operation mentioned hereunder, then fill the tank with fuel mixed with a stabilizer:

place the hose (1) in a basin, loosen the drain screw (2) set on the lower side of the basin, then drain the fuel and tighten the screw again.

WARNING

Never litter the environment with fuel, and let the engine running in open air, never in closed rooms.

• Lubricate the drive chain and all the cables.
• Spray oil on all unpainted metal surfaces to prevent rusting. Avoid getting oil on rubber parts or in the brakes.
• Set the motorcycle on a box or stand so that both wheels are raised off the ground. (If this cannot be done, put boards under the front and rear wheels to keep dampness away from the tire rubber).
• Tie a plastic bag over the exhaust pipe to prevent moisture from entering.
• Put a cover over the motorcycle to keep dust and dirt from collecting on it.

To put the motorcycle back into the use after storage.

• Make sure the spark plug is tight.
• Fill the fuel tank.
• Run the engine to warm the oil then drain the oil.
• Put in fresh transmission oil (page 28).
• Check all the points listed under the inspection and Adjustment Section (Appendix A).
• Lubricate the points (listed in the Lubrication Section (Appendix A).

CLEANING

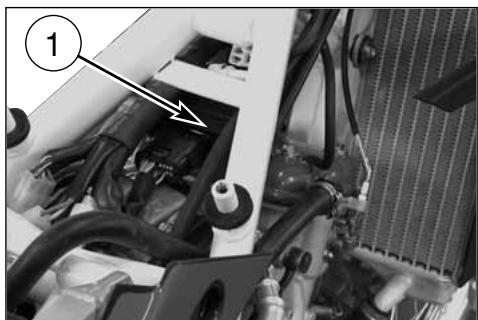

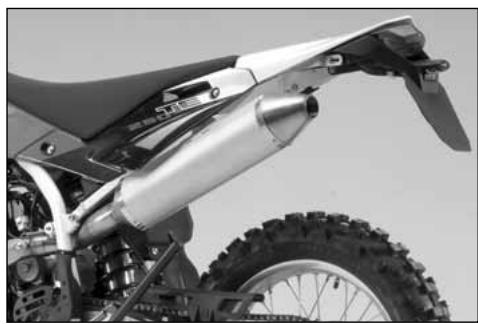

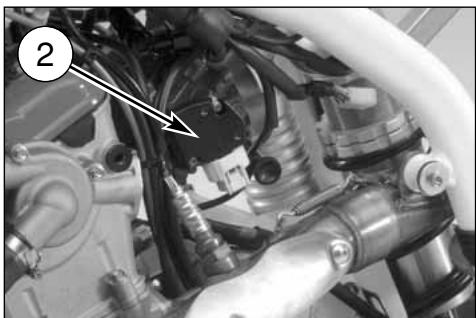

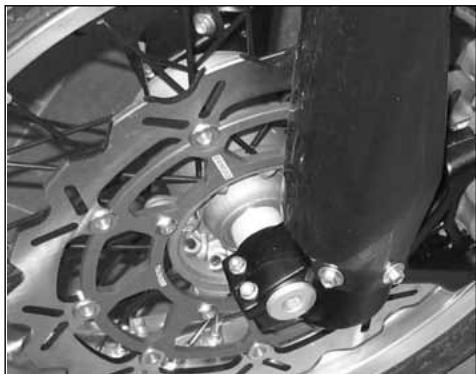

IMPORTANT RECOMMENDATION

Premised that, before the motorcycle washing, it is necessary to protect opportunely from the water the following parts:

a) Rear opening of the muffler;
b) Clutch and brake levers, hand grips, handlebar commutators;
c) Air cleaner intake;
d) Fork head, wheel bearings;
e) Rear suspension links,

it is necessary ABSOLUTELY TO AVOID THAT HIGH PRESSURE JETS OF WATER OR AIR come to contact with THE ELECTRICAL PARTS AND FUEL INJECTION PARTS, especially the electronic control unit (1) and the sensors group M.A.Q.S. (2) (page 87).

IMPORTANT RECOMMENDATION

Premised that, before the motorcycle washing, it is necessary to protect opportunely from the water the following parts:

a) Rear opening of the muffler;
b) Clutch and brake levers, hand grips, handlebar commutators;
c) Air cleaner intake;
d) Fork head, wheel bearings;
e) Rear suspension links,

it is necessary ABSOLUTELY TO AVOID THAT HIGH PRESSURE JETS OF WATER OR AIR come to contact with THE ELECTRICAL PARTS and any parts of the INJECTION SYSTEM, especially the electronic central unit (1) and the M.A.Q.S. unit (2).

After washing

• Remove the plastic bags, and clean the air cleaner intake.
• Lubricate the points listed in the Maintenance Table (Appendix A).
• Briefly warm-up the engine
• Test the brakes before riding the motorcycle.

WARNING*: Never wax or lubricate the brake disc. Loss of braking and an accident could result. Clean the disc with an oilless solvent such as acetone. Observe the solvent warnings.

PRE-DELIVERY INSPECTION

Description	Operation	Pre-delivery
Engine oil	Check level	☐
Two-stroke mix oil level	Check level	☐ ※
Coolant	Check / Restore level	☐
Cooling system	Check for leakage	☐
Electric fans	Check operation	☐ ※ ※
Spark plugs	Check / Replace	☐
Throttle body / Carburettor	Check and adjust	☐
Brakes / Clutch fluid	Check level	☐
Brakes / Clutch	Check operation	☐
Brakes / Clutch	Check lines for leakage	☐
Throttle control	Check operation	☐
Throttle control	Check / Adjust play	☐
Choke control	Check operation	☐
Flexible controls and transm.	Check / Adjust	☐
Drive chain	Check / Adjust	☐

Description	Operation	Pre-delivery
Tyres	Check pressure	☐
Side stand	Check operation	☐
Side stand switch	Check operation	☐
Electrical equipment	Check operation	☐
Instrument panel	Check operation	☐
Lights / Visual signals	Check operation	☐
Horn	Check operation	☐
Headlight	Check operation	☐
Ignition switch	Check operation	☐
Locks	Check operation	☐
Screws and nuts	Check / Tighten	☐
Hose clamps	Check / Tighten	☐
General lubrication		☐
General test		☐

:only for motorcycles with 2 stroke engine
:only for some models

NOTES FOR USA/CDN MODEL

DISCLAIMER OF WARRANTY

IN ACCEPTING DELIVERY OF THIS MOTORCYCLE THE BUYER OR TRANSFEREE ACKNOWLEDGES THAT HE HAS THOROUGHLY INSPECTED THE MOTORCYCLE, AND FURTHER AGREES TO ACCEPT THE MOTORCYCLE AS IS WITH ALL DEFECTS OR FAULTS, CONCEALED OR OBVIOUS. HE FURTHER AGREES THAT NO WARRANTYES ATTACH, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. THE BUYER OR TRANSFEREE INDEMNIFIES AND HOLDS HARMLESS HUSQVARNA MOTORCYCLES S.R.L., ITS AGENTS AND EMPLOYEES. FOR ANY FAILURE OF PERFORMANCE, COST OF SERVICE, OR REPAIR. TC-TXC: THE BUYER FURTHER ACKNOWLEDGES THAT THIS MOTORCYCLE IS NOT INTENDED FOR USE ON PUBLIC STREETS, ROADs, HIGHWAYS, OR TRAILS UNDER PUBLIC JURISDICTION AND THAT USE ON SUCH MAY VIOLATE STATE AND FEDERAL LAW.

Noise emission warranty

HUSQVARNA MOTORCYCLES S.R.L.. warrants that this exhaust system, at the time of sale, meets all applicable U.S. EPA Federal noise standards. This warranty extends to the first person who buys this exhaust system for purposes other than resale, and to all subsequent buyers.

Tampering warning

Tampering with Noise Control System Prohibited.

Federal law prohibits the following acts or causing thereof:

(1) The removal or rendering inoperative by any person other than for purposes of maintenance, repair, or replacement, of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use, and
(2) the use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.

Among those acts presumed to constitute tampering are the acts listed below.

1) Removal of, or puncturing the muffler, baffles, header pipes or any other component which conducts exhaust gases.
2) Removal or puncturing of any part of the intake system.
3) Lack of proper maintenance.
4) Replacing any moving part of the vehicle, or parts of the exhaust or intake system, with parts other than those specified by the manufacturer.

Warning statement

This product should be checked for repair or replacement if the motorcycle noise has increased significantly through use.

Otherwise, the owner may become subject to penalties under state and local ordinances.

SPARK ARRESTER

The TE (USA), TXC TC models are equipped with a U.S. Forest Service approved spark arrester for maximum efficiency and performance.

"SPARK ARRESTER" MAINTENANCE AND CLEANOUT INSTRUCTIONS

Proceed as follows:

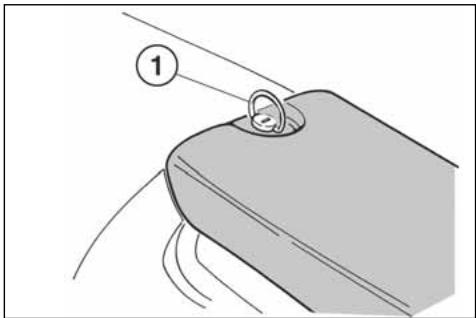

A: First turn counterclockwise fastening rear pin (1) then remove saddle, screws (2) and L.H. side panel (3). Using an 8 mm T-shaped spanner on the outside and a 10 mm T-shaped spanner on the inside, remove the locking screw (4) of the muffler.

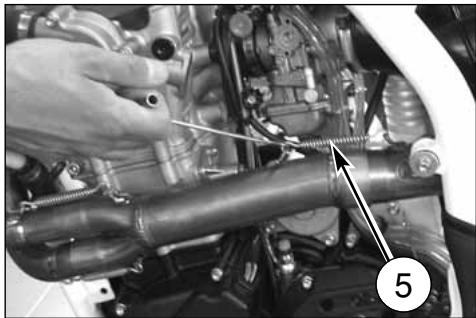

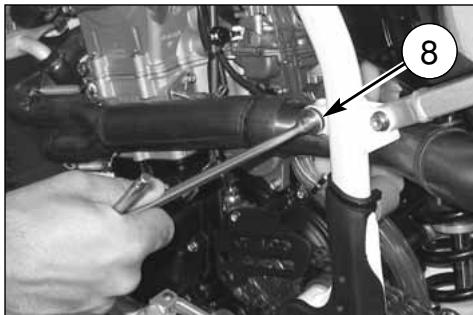

B: Remove the spring (5) and with an 8 mm T-shaped spanner remove the screw (8); then pull out the muffler.

Note*: If silencer or exhaust are difficult to remove, help to slide them apart by tapping gently with a rubber or plastic hammer.

C: remove the six rivets (6) and the endcap (7) from silencer's body;

D: examine SPARK ARRESTER conditions and remove, if necessary, carbon particles from the SPARK ARRESTER screen;

E: if necessary, inflate air on the SPARK ARRESTER screen, in the opposite direction in respect of the exhausted gas flow;

F: assemble the front endcap on the silencer's body, mounting the screws in the correct position, providing a tight connection between endcap and silencer's body, using, if necessary, a silicone paste;
G: re-assemble the silencer on motorbike, then L. H. side panel and saddle.

Due to the SPARK ARRESTER position on the silencer, if you need only to check the SPARK ARRESTER conditions you can:

A: disassemble the silencer from motorbike;
B: check SPARK ARRESTER conditions simply looking into the silencer from front endcap opening;
C: if the check is positive, you can proceed in re-assembling the silencer on the motorbike;
D: if the check is negative, proceed with the maintenance and cleanout procedure.

NOTES FOR "AUS" MODEL

Tampering Warning:

Tampering with Noise Control System Prohibited. Federal law prohibits the following acts or causing thereof:

1) The removal or rendering inoperative by any person other than for purposes of maintenance, repair, or replacement, of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use, and
2) The use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.

Among those acts presumed to constitute tampering are the acts listed below.

1) Removal of, or puncturing the muffler, baffles, header pipes or any other component which conducts exhaust gases.
2) Removal or puncturing of any part of the intake system.
3) Lack of proper maintenance.
4) Replacing any moving part of the vehicle, or parts of the exhaust or intake system, with parts other than those specified by the manufacturer.

This product should be checked for repair or replacement if the motorcycle noise has increased significantly through use. Otherwise, the owner may become subject to penalties under state and local ordinances.

ALPHABETIC INDEX

Page

A

Adjusting the carburetor 32

Adjusting the clutch 39

Adjusting the driven transmission 49

Adjusting the fork 42, 44

Adjusting the front brake control lever 37

Adjusting the headlamp. 82

Adjusting the idle 32

Adjusting the rear brake idle stroke 38

Adjusting shock absorber hydraulic

brake 48

Adjusting shock absorber preload spring 47

Adjusting the rear brake pedal position 38

Adjusting the steering bearing play 34

Adjusting the suspensions according

to the track special conditions 41

Adjusting the throttle cable 31

B

Battery 78

Brakes. 55

Brake disc cleaning 59

Broke disc warpage 58

Brake disc wear 58

Brake pad assembly 57

Brake pad wear 56

Brake pad disassembly 56

C

Carburettor 8

Carburettor starter 13

Chain lubrication 50

Checks after every competition 88

Checks during running in 20

Check of air filter 34

Check of chain, pinion, crown wear 50

Check of clutch fluid level 39

Check of cooling fluid 29

Check of front brake fluid level 37

Check of engine oil 28

Check of rear brake fluid level 39

Cleaning the air filter 34

Clutch 8

Clutch control 18

Coolant replacement 30

Cooling fluid 10

Control position. 7

D

Digital instrument 14

Driven transmission chain 8

E

Engine assembling fits. 72

Electric diagram 75, 77

Electric elements 70

Engine lubrication 10

Engine oil replacement 28

Engine start (TC) 23

Engine start (TE-SMR) 21

Engine stop 27

F

Filling the braking system 60

Fluid change 59

Fork oil level 43, 45

Fuel 14

Fuel cock 11

Front brake control 19

Front braking system bleeding 62-64

Front fork 9

G

Gearbox control. 19

Gearbox outlet pinion 8

General cleaning 88

H

Handlebar commutators 18

Handlebar position change 46

Headlamp bulbs replacement 80

Hydraulic clutch bleeding 40

1

Ignition 11

Important notice 3

Injection 11

L

Lamp light plate replacement 81

Long inactivity 88

M

Motorcycle stop 27

Muffler on the exhaust 67

0

Oil filters replacement 28

Overhauling the wheels. 69

P

Pad cleaning 57

Parts replacement 3

Pilot lights. 14

Preliminary checks 20

R

Rear brake control 19

Rear braking system bleeding 65

Rear pinion 8

Rear damper 9

Rear taillight bulb replacement .80

Removing the front wheel 52

Removing the rear wheel. 54

Running in 21

S

Steering lock 17

Side stand 12

Spark arrester 94

Spark plug 8

Spark plug check 33

Starting decompressor 22

T

Throttle control 17

Tires 9,55

V

Vehicle identification number 5

Voltage regulator. 33

W

Wheel pin bending 69

Wheel spokes 69

Wheels 9,52

H

Husqvarna

PRESENTATION

Jet starter air. mm 4

(●)froid (arriere TE) 1,0 Kg/cm²

DIMENSIONS, POIDS, CAPACITE

Empattement (TC-TE) mm 1483

Empattement (SMR) mm 1445

ROBINETS CARBURANT (TC)

1. Bouchon reservoir carburant
2. Robinet carburant
3. Tuyanterie carburant
   A. Bague robinet

BEQUILLE LATERALE

Tarage standard: -12 clicks.

Tarage standard: -12 clicks.

Tarage standard: -7 clicks (TC);

Tarage standard: -10 clicks (TE).

AVANT	3 mm (TC,TE); 2 mm (SMR)
ARRIÈRE	3 mm (TC,TE); 2 mm (SMR)

FREIN

REEMPLACEMENT DU FLUIDE

AUSPUFFDAMPFER (SMR)

Golpes, although he is a good man. He's also very good.

(12÷16 Nm; 8.8÷11.8 ft-lb).

SOSTITUIRE LA VITERIA IN CASO DI DETERIORAMENTO- REPLACE SCREWS AND NUTS IF WORN- AU CAS DE DETERIORATION, REMPLACER LES BOULONS

DOPO PERCORRENZE SU FANGO O SABBIA EFFETTUARE UNA VERIFICA GENERALE- GENERAL CHECK AFTER RACING USE ON MUDDY OR SANDY GROUNDS- APRES USAGE SUR DES TERREINS BOUEUX OU SABLEX, EFFECTUER UN CONTROLLE GENERAL

TE-TC 310, 450, 510 - 2010 KONKURRENZ-MOTORRAD, das Machen EINEN WETTKAMPF MIT von der VERWENDUNG: mit VOLLEM MACHT-MOTOR MOTOCICLO DE COMPETICION, PARA USO AGONISTICO: A LLENA POTENCIA	WARTUNGSTABELLE (Für DIESE KONTROLLEN Wenden SIE SICH AN IHREN VERTRAGSHÄNDERL HUSQVARNA)- ESQUEMA DE MANTENIMIENTO PERIODICO (PARA EFFECTUAR ESTAS OPERACIONES DIRIJASE A SU CONCESSIONARIO HUSQVARNA)
	COUPON-CUPON		COUPON- CUPON	COUPON- CUPON	COUPON-CUPON	COUPON- CUPON
TEILE- PARTICULAR	NACH DER ERSTEEN 3 STUNDEN-DESPIÉS DE LAS PRIMERAS 3 horas	ALLE-CADA	ALLE-CADA	ALLE-CADA	ALLE-CADA	ALLE-CADA	WECHSELN WENN NOTIG- SUBSTITUIR SI NECESARIO
		4h MX/8h EN	8h Mx/16h EN	16h MX/32h EN	32h MX/64h EN	40h MX/80h EN
HINTERBE MRESSCHEIBE- DISCO FRENO TRASERO			C				x
HINTERBREMSFLUSSIGKEIT- FLUIDO INSTALLación FRENANTE TRASERA		C				S	39-59
BREMSBELAEGE- PASTILLAS FRENOS		C					x
BREMSPUMPE/BREMSSETTEL SCHLAUCH-TUBERIAS BOMBA/PINZA INSTALCIONES FRENantes		C					59
TREIBSTOFFROHR-TUBERIAS CARBURANTE		C				S	x
GERAU.SCHDAMPFENDES MATERIAL FÜR AUSPUFF-MATERIAL FONOABSORBENTE SILENCIADOR			S				x
AUSPUFFROHR UND SCHALLDMPFER-TUBO DE ESCAPE Y SILENCIADOR		C					x
RADSPEICHENSSPANNUNG-TENSION RADIOS RUEdas	C		C				69
RADNABENLAGER- COJINETES CUBOS RUEdas					S		x
KRANZ-CORONA TRASERA			S				x
SCHRAUBENANZIEHUNG FÜR HINTERKRANZ-TORSION TORNILLOS CORONA TRASERA	C		C				50
SEKUNDÄRE ÜBERTRAGUNGSKETTE- CADENA TRANSMISión SECUNDARIA	C, L		S				x
KONTROLLE VERSCHRAUBUNG KALTGESENKBOLZEN- CONTROL GENERAL AJUSTE TUERCAS	C			C			#

LEGENDE-LEYENDA
h:STUNDEN-HORAS
S: WECHSELN- SUBSTITUCION
C: KONTROLLIEREN-CONTROL
P: REINIGEN- LIMPIEZA
R: REVISION- REVISION
L: SCHMIERUNG/BESCHMEIREN-ENGRESAJE/LUBRICACION
MX: MOTOCROSS
EN:ENDURO
: SIEHE WERKSTATTHANDBUCH-VER MANUAL DE OFICINA
ANMERKUNG-NOTAS

DICHTUNGWECHSE: BEI JEDEM DEMONTAGE- SUBSTITUIR LAS EMPACURAS EN EL CASO DE DESMONTAJE

SCHRAUBEN VERSCHLEISS: WECHSELN-SUBSTITUIR TORNILLOS Y TUERCAS EN EL CASO DE DESGASTE

SCHLAMMIGES UND SANDIGES GELÄNDEN: EIN ALLGEMEINE KONTROLLE DURCHFühren- DESPUÉS DE LA CARRERA SOBRE UN TERRENO FANGOSO O ARENOSO, EFFECTUAR UN CONTROL GENERAL

SMR 450, 510- 2010 - TE 310, 450, 510 - 2010	SCHEMA DI MANUTENZIONE PERIODICA (DA EFFETUARE PRESSO IL CONCESSIONARIO HUSQVARNAPERIODIC MAINTENANCE SCHEDULE (SEE YOUR HUSQVARNA DEALER FOR THESE SERVICES)ESQUÉME ENTRETIEN PERIODIQUE (EFFECTUER PAR LE VÔTURE CONCESSIONAIRE HUSQVARNA)
PARTICOLARE- ITEM- PARTICULAIRE	TAGLIANDOCOUPOCCOUPN	TAGLIANDOCOUPON-N-COUPON	TAGLIANDOCOUPON
SMR 450, 510 - 2010 - TE 310, 450, 510 - 2010-MOTOCICLO DI SERIE, PER USO STRADALE (A POTENZA LIMITATA):SMR 450, 510- 2010; TE 310, 450, 510 - 2010-STANDARD MOTORCYCLE, STREET LEGAL (with LIMITED POWER ENGINE):SMR 450, 510- 2010; TE 310, 450, 510 - 2010-MOTOCYCLE DE SÉRIE, POUR USAGE ROUTIER (AVEC LA PUISSANCE LIMITE):SMR 450, 510- 2010; TE 310, 450, 510 - 2010	DOPO I PRIMI 1000KMAFTER FIRST 1000 KmAPRÉS LES PREMIERS 1000 Km	OGNI 5000 KMEVERY 5000 KmTOUS LES 5000 Km	OGNI 10000KMEVERY 10000 KmTOUS LES 10000 Km	SOSTITUIRE SENECESSARIOPLACEMENT IFNECESSARYREPLACER SINECESSAIRE	VEDERE PAGINASEE PAGEVOIR PAGE
SMR 450, 510 - 2010-MOTOCICLO DA COMPETIZIONE, PER USO AGONISTICO (A PIENA POTENZA)- COMPETITION MOTORCYCLE, RACING USE (with FULL POWER ENGINE)- MOTOCYCLE DE COMPÉTITION, POUR USAGE SPORTIF (AVEC LA PLEINE PUISSANCE)	DOPO LE PRIME 3 OREAPRÉS LES PREMIERS 3 heures	OGNI 5 OREEVERY 5 hoursTOUS LES 5heures	OGNI 15 OREEVERY 15 hoursTOUS LES 15 heures
VALVOLE- VALVE- SOUPAPES	C (GIOCOCLEARANCE- JEAU) (*)	C (GIOCO- CLEARANCE-JEAU) (*)	S (#)		#
MOLLE VALVOLE- VALVE SPRING- RESSORTS SOUPAPES			C	X	#
SCODELLINI, SEMICONI VALVOLE- VALVE CUP, VALVE HALF CONE- CUVETTS, DEMI-CONE SOUPAPES			C	X	#
BILANCIERI DI ASPIRAZIONE/SCARICO-ROCKER ARM (INTAKE-EXHAUST)- CULBUTEURS D'ASPIRATION ETD'ECHAPPEMENT			C	X	#
ALBERO A CAMME- CAMSHAFT- ARBRE DISTRIBUTION			C	X	#
CATENA DISTRIBUTION- VALVE TIMING CHAIN- CHAINDEISTRIBUTION			S	X	#
PATTINO CATENA DISTRIBUTION- VALVE TIMING CHAIN SLIDER- GLISSÈRE CHAIN DISTRIBUTION		C	S	X	#
INGRANAGGIO CONDOTTO DISTRIBUTION- VALVE TIMING DRIVEN GEAR- ENGRENAGE CONDIUTDISTRIBUTION			C	X	#
INGRANAGGIO CONDUTTORI DISTRIBUTION- VALVE TIMING DRIVING GEAR- ENGRENAGE CONDUCTEURDISTRIBUTION			C	X	#
TENDITORE CATENA DISTRIBUTION- VALVE TIMING CHAIN TENSIONER- TENDEUR CHAIN DISTRIBUTION			C	X	#
SISTEMA DECOMPRESSOR- STARTER DECOMPRESSOR SYSTEM- SYSTème DECOMPRESEUR DEMARRAGE			C	X	23
RACCORDO DI ASPIRAZIONE- INTAKE MANIFOLD- RACCORD ADMISSION		C	S	X	#
CILINDRO COMPLETO- CYLINDER ASSY.- CYLINDRE COMPL.			C	X	#
PISTONE COMPLETO- PISTON ASSY.- PISTON COMPL.			S (*)	X	#
BIELLA MOTORE COMPLETA- CONNECTING ROD ASSY.- BIELLE COMPL.			S	X	#
CUSCINETTI BASAMENTO- CRANKCASE BEARINGS- ROULEMENTS CARTERS			S	X	#
OLIO MOTORE E FILTRO OLIO- ENGINE OIL/OIL FILTER CARTRIDGE-HUILE MOTEUR/FILTRH UULE		S	S	X	29
POMPA OLIO- OIL PUMP- POMPE HUILE			C	X	#
TUBAZIONE LUBRIFICAZIONE POMPA OLIO/BASAMENTO- OIL PUMP/CRANKCASE HOSE-TUYAU POMPHUE-CARTERS			C	X	#
COPPIA INGRANAGGI TRASM. PRIMARIA- SET OF MATCHED PRIMARY- ENGRENAGES TRANSM. PRIMARIE		C	X	X	#
MOZZO FRIZIONE- CLUTCH HUB- MOYEAU PORTE- DISQUE EMBRAYAGE		C	X	X	#
DISCHI FRIZIONE- CLUTCH DISCS- DISUES EMBRAYAGE		C	S	X	#
PIATTO SPINGIDISCHI FRIZIONE- CLUTCH DISCS PRESSURE PLATE- POUSSE DISUES EMBRAYAGE			C	X	#
MOLLE FRIZIONE- CLUTCH SPRING- RESSORT EMBRAYAGE			C	X	#

(*):SOSTITUIRE OGNI 10000 Km O 40 ORE - REPLACE EVERY 10000Km OR 40 HOURS - REMPLACEMENT TOUS LES 10000 Km OU 40 HEURES

SMR 450, 510- 2010 - TE 310, 450, 510 - 2010	WARTUNGSTABELLE (Für DIESE KONTROLLEN WENDEN SIE SICH AN IHREN VERTRAGSHÄNDER HUSQVARNA) ESQUEMA DE MANTENIMIENTO PERIODICO (PARA EFFECTUAR ESTAS OPERaciones DIRIJASE A SU CONCESSIONARIO HUSQVARNA)
TEILE- PARTICULAR	COUPON- CUPÔN	COUPON- CUPÔN	COUPON- CUPÔN
SMR 450, 510 - 2010 - TE 310, 450, 510 - 2010 - ÜBLICHES MOTORRAD, STRABE GESetzLICH (mit beschränktem MACHT-MOTOR): SMR 450, 510- 2010; TE 310, 450, 510 - 2010 - MOTOCICLO DE SERIE, PARA USO VIAL (A POTENCY LIMITADA): SMR 450, 510- 2010; TE 310, 450, 510 - 2010	NACH DEN ERSTEN 1000Km- DESPUES LOS PRIMEROS 1000Km	ALLE 5000 KM CADA 5000 KM	ALLE 10000Km CADA 10000Km	WECHSELN WENN NÖTTIG- SUBSTITUIR SI NECESARIO	SIEHE SEITE VER PAGINA
SMR 450, 510 - 2010 -MOTOCICLO DA COMPETIZIONE, PER USO AGONISTICO (A PIENA POTENZA) - COMPETITION MOTORCYCLE, RACING USE (with FULL POWER ENGINE) - MOTORCYCLE DE COMPÉTICTION, POUR USAGE SPORTIF (AVEC LA PLEINE PUSSANCE)	NACH DEN ERSTEN 3 STunden- DESPUES LAS PRIMERAS 3 HORAS	ALLE 5 STunden CADA 5 HORAS	ALLE 15 STunden CADA 15 HORAS
VENTIL- VÁLVULAS	C (BETRIEBSSPIEL - JUEGO) (*)	C (BETRIEBSSPIEL - JUEGO) (*)	S (#)		#
VENTILFEDER- RESORTES VÁLVULAS			C	X	#
TELLER, HALB KEGEL- CUBETAS, SEMI-CONOS VÁLVULAS			C	X	#
KIPPHEBEL (ANSAUGEN-AUSPUFFROHR)- BALANCIN DE ASPIRACION -ESCAPE			C	X	#
NOCKENWelle- EJE DISTRIBUTION			C		#
VENTILSTEIERUNGKETTE- CADENA DISTRIBUTION			S		#
VENTILSTEIERUNGKETTEGREETBAHN- PLATO CADENA DISTRIBUTION		C	S		#
VENTILSTEIERUNGZAHNRAD- ENGRENJAJE CONDUCTO DISTRIBUTION			C	X	#
VENTILSTEIERUNGANTRIEBSRAD- ENGRENJAJE CONDUCTOR DISTRIBUTION			C		#
VENTILSTEIERUNGKETTESPANNER- TENSOR CADENA DISTRIBUTION			C		#
DEKOMPRESSOR- GRUPO DECOMPRESSOR			C	X	23
ANSCHLUSS- EMPALME DE ASPIRACION		C	S	X	#
ZYLINDER KPL - CLINDRO COMPLETO			C	X	#
KOLBEN KPL - PISTÔN COMPRETO			S (*)		#
PLEUELSTANGE KPL - BIELA MOTOR COMPLETA			S		#
GEHAUSELAGER- COJINETE DE CARTER			S		#
MOTORÜL/WECHSELFILTER- ACEITE MOTOR/FILTRO ACEITE MOTOR	S	S	S		29
ÖLPUMPE- BOMBA ACEITE			C		#
SCHMIERUNGBOHR FÜR ÖLPUMPE/GEHAUSE- TUBO LUBRICACION BOMBA ACEITE/BANCADA			C		#
STIRNRADEPAAR- GRUPO ENGEN, TRANSM. PRIMARIA		C		X	#
KUPPLUNGSCHIEBEINHALTERNABE- CUBO PORTA DISCOS EMBRAGE		C		X	#
KUPPLUNGSCHIEBE- DISCOS EMBRAGE		C	S	X	#
KUPPLUNGRUCKPLATTE- PLATO EMPUJA DISCOS EMBRAGE			C		#
KUPPLINGFEIDER- RESORTE EMBRAGE			C	X	#
KUPPLUNGKORB- CAMPANA EMBRAGE			C	X	#
KUPPLINGSTEIERSTANGE- VARILLA DESEMBRAGE			C		#
RITZEL- PINÔN CADENA		C	S		50
ANLASSEANTRIEBSRAD- ENGRENJAJE DE ARRANQUE			C	X	#
ANLASSERHEBEL- PALANCA ARRANQUE			L		#
GANGSCHALTUNGHEBEL- PEDAL MANDO CAMBIOL				X	20
ZUNDKERZE- BUJIA ENCENTIDO		P	S		34
ZUNDKERZEESTECKER- PIPA BUJIA ENCENTIDO		C	C	X	#
VERGASER-CARBURADOR			P		#

(*)WECHSELN ALLE 10000 KM ODER 40 STUNDEN - SUBSTITUCION CADA 10000 Km O BIEN 40 HORAS

SMR 450, 510- 2010 - TE 310, 450, 510 - 2010	SCHEMA DI MANUTENZIONE PERIODICA (DA EFFETTUARE PRESSO IL CONCESSIONARIO HUSQVARNA PERIODIC MAINTENANCE SCHEDULE (SEE YOUR HUSQVARNA DEALER FOR THESE SERVICES) ESQUÉME ENTRETIEN PERIODIQUE (EFFECTUER PAR LE VÔTURE CONCESSIONAIRE HUSQVARNA)
PARTICOLARE- ITEM- PARTICULAIRE	TAGLIANDO COUPON COUPON	TAGLIANDO COUPON N-COUPON	TAGLIANDO COUPON COUPON
SMR 450, 510- 2010 - TE 310, 450, 510 - 2010-MOTOCICLO DI SERIE, PER USO STRADALE (A POTENZA LIMITATA): SMR 450, 510- 2010; TE 310, 450, 510 - 2010-STANDARD MOTORCYCLE, STREET LEGAL (with LIMITED POWER ENGINE): SMR 450, 510- 2010; TE 310, 450, 510 - 2010-MOTOCYCLE DE Série, POUR USAGE ROUTIER (AVEC LA PUISSANCE LITÉ): SMR 450, 510- 2010; TE 310, 450, 510 - 2010	DOPO I PRIMI 1000Km AFTER FIRST 1000 Km APRès LES PREMIERS 1000 Km	OGNI 5000 KM EVERY 5000 Km TOUS LES 5000 Km	OGNI 10000Km EVERY 10000 Km TOUS LES 10000 Km	SOSTITUIRE SE NECSSARIO REPLACE IF NECSSARIO REMPLACER SI NECSSAIRE	VEDERE PAGINA SEE PAGE VOIR PAGE
SMR 450, 510- 2010 - TE 310, 450, 510 - 2010-MOTOCICLO DA COMPETIZIONE, PER USO AGONISTICO (A PIENA POTENZA)- COMPETITION MOTORCYCLE, RACING USE (with FULL POWER ENGINE)	DOPO LE PRIME 3 ORE AFTER FIRST 3 hours APRès LES PREMIERS 3 heures	OGNI 5 ORE EVERY 5 hours TOUS LES 5heures	OGNI 15 ORE EVERY 15 hours TOUS LES 15 heures
ASTINA DISINESTO FRIZIONE - CLUTCH DISENGAGEMENT ROD-BILLE COILLESSAU DÉBRAGE EMBRAYAGE			C		#
PIGNONE USCITA CAMBIO- DRIVE SPROCKET- PIGNON CHAIN DE TRANSMISSION		C	S		50
INGRANAGGI AVVIAMENTO- STARTING GEARS- ENGRENAGE DEMARRAGE			C	X	#
PEDALE AVVIAMENTO- STARTING PEDAL- LEVIER DÉMARRAGE			L		#
PEDALE COMANDO CAMBIO - GEAR CONTROL PEDAL- LEVIER COMM. DE VITESSE				X	20
CANDELA ACCENSIONE - SPRICK PLUG- BOUGIE D'ALLUMAGE		P	S		34
PIPETTA CANDELA- SPARK PLUG CAP- PIPETTE BOUGIE D'ALLUMAGE		C	C	X	#
CARBURATORE- CARBURETOR- CARBURATEUR			P		#
VALVOLA GAS CARBURATORE- CARBURETOR THROTTLE VALVE- SOUPAPE DE GAZ DU CARBURATEUR			C	X	#
FILTRIO ARIA- AIR FILTER- FILTRÉ À AIR		PL	PL	X	35
RADIATORI- RADIATORS- RADIATOURS
TUBAZIONI ACQUA E FASCETTE- COOLANT HOSES AND CLAMPS-TUYAU EAU ET COLLIER		C	C		31
TUBAZIONI RADIATORI/POMPA ACQUA- RADIATORS HOSE/WATER PUMP- TUYAU RADIATOURS/POMPE EAU		C	C		31
PEDANE APPOGGIAPIEDI, PERNI, MOLLE- FOOTRESTS, FOOTREST PINS AND SPRINGS- REPOSE PIEDS, PIVOTS, RESSORTS				X	#
PERNI FISS, TELAINETTO, PERNI FISS, MOTORE- SADDLE FRAME FASTENING BOLTS, ENGINE FASTENING BOLTS- PIVOTS DE FIXATION CADRE SIEGE, PIVOTS DE FIXATION MOTEUR	C		C		#
CAVALETTETTO LATERALE- SIDE STAND- BEQUILLE LATERALE		C			12
RULLO GUIDACATENA, CUSCINETTO- CHAIN GUIDE ROLLER, BEARINGS- AIGUILLE GUIDE-CHAINE, ROULEMENT		C	C	X	51
TESTA DI STERZO, BASE DI STERZO CON PERNO- STEERING HEAD, STEERING CROWN WITH PIN- Tête DIRECTION, SOCLE DE DIRECTION AVEC PIVOT			L		#
FORCELLA ANTERIORIE- FRONT FORK- FOURCHE AVANT			R		#
ATTACCHI MANUBRIO CON FISSAGGI- HANDLEBAR HOLDERS AND FASTENING SET- DEMI-PALIERS GUIDON AVEC FIXAGE	C		C		46
BUSSOLA FORCELLONE POSTERIORIE- REAR SWING ARM BUSHINGS- DOUBLE FOURCHE ARRIÈRE			C		#
PATTTINO CATENA POSTERIORIE- REAR CHAIN SLIDER- GLISSÈRE CHAINE ARRIÈRE			C	X	51
BUSSOLE LEVERAGGI SOSPENSIONE POST- REAR SUSPENSION LINKS BUSHINGS- DOUBLE LLES LEVIER SUSPENSION ARRIÈRE			C	X	#
GUIDACATENA/COPRICATENA- REAR CHAIN GUIDE/ REAR CHAIN GUARD- GUIDE CHAIN/ CARTER DE CHAINE	C	C		X	51
SMR 450, 510- 2010 - TE 310, 450, 510 - 2010	WARTUNGSTABELLE (Für DIESE KONTROLLEN WENDEN SIE SICH AN IHREN VERTRAGSHÄNDER HUSQVARNA) ESQUEMA DE MANTENIMIENTO PERIODICO (PARA EFFECTUAR ESTAS OPERACIONES DIRIJASE A SU CONCESSIONARIO HUSQVARNA)
TEILE- PARTICULAR	COUPON- CUPÔN	COUPON- CUPÔN	COUPON- CUPÔN
SMR 450, 510- 2010 - TE 310, 450, 510 - 2010 - ÜBLICHES MOTORRAD, STRAße GESETZLICH (mit beschränktem Macht-MOTOR): SMR 450, 510- 2010; TE 310, 450, 510 - 2010 - MOTOCICLO DE SERIE, PARA USO VIAL (A POTENCY LIMITADA): SMR 450, 510- 2010; TE 310, 450, 510 - 2010	NACH DEN ERSTEN 1000Km- DESPUES LOS PRIMEROS 1000Km	ALLE 5000 KM CADA 5000 KM	ALLE 10000Km CADA 10000Km	WECHSELN WENN NÖTIG- SUBSTITUIR SI NECESARIO	SIEHE SEITE VER PAGINA
SMR 450, 510- 2010 - MOTOCICLO DA COMPETIZIONE, PER USO AGONISTICO (A PIANA POTENZA) - COMPETITION MOTORCYCLE, RACING USE (with FULL POWER ENGINE) - MOTOCYCLE DE COMPETITION, POUR USAGE SPORTIF (AVEC LA PLEINE PUSSANCE)	NACH DEN ERSTEN 3 STUNDEN- DESPUES LAS PRIMERAS 3 HORAS	ALLE 5 STUNDEN CADA 5 HORAS	ALLE 15 STUNDEN CADA 15 HORAS
VERGASERDROSSELKAPLE- VALVÁLA GAS CARBURADOR			C	X	#
LUFTFILTER- FILTR OIRE		PL	PL	X	35
KÜHLER- RADIADORES			C		#
WASSERROHR UND SCHELLEN- TUBOS AGUA Y BANDAS		C	C		31
ROHR FÜR KÜHLER/WASSERPUMPE- TUBO RADIADORES/BOMBA AGUA		C	C		31
FUSSRASTER, BOLZEN, FEDER- POSAPIES, PERNOS, RESORTES				X	#
HINTERRAHMENBOLZEN, MOTORBOLZEN- TORNILLOS FIJACION BASTIDOR TRASERO, TORNILLOS FIJACION MOTOR	C		C		#
SEITENSTÄNDER- HORQUILLA LATERAL		C			12
KETTENFührungsrolle, LAGER- RODILLO GUIA-CADENA, COJÍNETE		C	C	X	51
VORDERGABELLENKKOPF, GABELBUCKE MIT BOLZEN- Cabeza DE DIRECCION, BASE DE DIRECCION CON PERNO			L		#
VORDERGABEL- HORQUILLA DELANtera			R		#
LENKERBÜGELBOLZEN- CABALLETES DEL MANILLAR CON PERNOS FIJACION	C		C		46
HINTERGABELBUCHSE- MANGUITOS HORQUILLA TRASERA			C		#
KETTENGLEITBAHN- PLATO CADENA TRASERA			C	X	51
BUCHSE FÜR HEBELWERKHINTERHAUFHANG- MANGUITOS PALANCAS SUSPENSION TRASERA			C	X	#
KETTENFührungs/ KETTENKASTEN- GUIA-CADENA/ CUBRE-CADENA	C	C		X	51
NADELKAFIG FÜR HINTERGABELBOLZEN- COJÍNETE DE RODILLOS PERNO HORQUILLA TRASERA		L	L		#
HINTERSTOXSDAMPFER- AMORTIGUADOR TRASERO			C		#
NADELKAFIG UND BOLZEN FÜR HEBELWERKHINTERHAUFHANG- COJÍNETE DE RODILLOS, PERNOS PALANCAS HORQUILLA TRASERA		L			#
GASGRFF KPL. - MANDO GAS COMPLETO		CL			32
KUPPLUNGSTEIERUNG KPL. - MANDO EMBRAGE COMPLETO		C (...)	R (#)		(*): 39
DECOMPRESSORKABEL UND GASKABEL- CABLES DECOMPRESSOR Y GAS		C	L	X	23, 32
VORDERE BREMSSECHEBE- DISCO FRENO DELANTERO			C	X	58
VORDERBREMSFLUSSIGKEIT- FLUIDO INSTALLACION FRENANTE DELANtera		C	S		37, 57
HINTERE BREMSSECHEBE- DISCO FRENO TRASERO			C	X	58
HINTERBREMSFLUSSIGKEIT- FLUIDO INSTALLACION FRENANTE TRASERA		C	S		39, 59
BREMSBELAEGE- PASTILLAS FRENOS	C	C	C	X	56
BREMSPUMPE-BREMSSATTEL SCHLAUCH- TUBERIAS BOMBA - PINZA INSTALACIONES FRENANTES			C	X	59

SMR 450, 510-2010 - TE 310, 450, 510 - 2010	SCHEMA DI MANUTENZIONE PERIODICA (DA EFFETUARE PRESSO IL CONCESSIONARIO HUSQVARNA PERIODIC MAINTENANCE SCHEDULE (SEE YOUR HUSQVARNA DEALER FOR THESE SERVICES) ESQUÉME ENTRETIEN PERIODIQUE (EFFECTUER PAR LE VOTRE CONCESSIONAIRE HUSQVARNA)
PARTICOLARE- ITEM- PARTICULAIRE	TAGLIANDO COUPON COUPON	TAGLIANDO COUPON N-COUPON	TAGLIANDO COUPON
SMR 450, 510-2010 - TE 310, 450, 510 - 2010-MOTOCICLO DI SERIE, PER USO STRADALE (A POTENZA LIMITATA): SMR 450, 510-2010; TE 310, 450, 510 - 2010-STANDARD MOTORCYCLE, STREET LEGAL (with LIMITED POWER ENGINE): SMR 450, 510-2010; TE 310, 450, 510 - 2010-MOTOCYCLE DE SERIE, POUR USAGE ROUTIER (AVEC LA PUISSANCE LIMITÉ): SMR 450, 510-2010; TE 310, 450, 510 - 2010	DOPO I PRIMI 1000Km AFTER FIRST 1000 Km APRES LES PREMIERS 1000 Km	OGNI 5000 KM EVERY 5000 Km TOUS LES 5000 Km	OGNI 10000Km EVERY 10000 Km TOUS LES 10000 Km	SOSTITUIRE SE NECSSARIO REPLACE IF NECSSARIO REMPLACER SI NECSSAIRE	VEDERE PAGINA SEE PAGE* VOIR PAGE
SMR 450, 510-2010-MOTOCICLO DA COMPETIZIONE, PER USO AGONISTICO (A PIENA POTENZA)- COMPETITION MOTORCYCLE, RACING USE (with FULL POWER ENGINE)- MOTOCYCLE DE COMPETITION, POUR USAGE SPORTIF (AVEC LA PLEINE PUSSANCE)	DOPO LE PRIME 3 ORE AFTER FIRST 3 hours APRES LES PREMIERS 3 heures	OGNI 5 ORE EVERY 5 hours TOUS LES Sheures	OGNI 15 ORE EVERY 15 hours TOUS LES 15 heures
GABBIE A RULLI, SPINOTTI LEVERAGEGII SOSPENSION POST- REAR SUSPENSION LINKS NEEDLE BEARINGS AND GUDGEON PIN - CAGE À AIGUILLES, AXES LEVIER SUSPENSION ARRIÈRE	L				#
AMMORTIZATORE POSTERIORE-REAR SHOCK ABSORBER-AMMORTISSEUR ARRIÈRE	C		C		#
COMANDO GAS COMPLETO- THROTTLE CONTROL ASSY- COMMANDE GAZ COMPL.	CL				32
COMANDO FRIZIONE COMPLETO- CLUTCH CONTROL ASSY- COMMANDE EMBRAYAGE COMPL.	C (*)	R (#)			(*):39
CAVI DECOMPRESSOR E GAS- THROTTLE AND STARTING DECOMPRESSOR CABLES- CÂBLES DECOMPRESSUR ET GAZ	C	L	X		23 - 32
DISCO FRENO ANTERIORE- FRONT BRAKE DISC- DISQUE FREIN AVANT	C	C	X		58
FLUIDO IMPIANO FRENANTE ANTERIORE- FRONT BRAKE SYSTEM FLUID- FLUIDE SYSTE MDE FREINAGE AVANT	C	S			37 - 59
DISCO FRENO POSTERIORE- REAR BRAKE DISC- DISQUE FREIN ARRIÈRE	C	C	X		58
FLUIDO IMPIANO FRENANTE POSTERIORE- REAR BRAKE SYSTEM FLUID- FLUIDE SYSTE MDE FREINAGE ARRIÈRE	C	S			39 - 59
PASTIGLIE FRENI- BRAKE PADS- PASTILLES DU FREINS	C	C	X		56
TUBAZIONI POMPA/PINZA IMPIANTI FRENTANI- BRAKE SYSTEM PUMP-CALIPER HOSES-TUYAU POMPE/ETRIER SYSTÉME DE FREINAGE	C	C	X		59
TUBAZIONI CARBURANTE- FUEL HOSES- TUYAU CARBURANT	C	C	X		#
MATERIALIA FONOASSORBENTE SILENZIATORE- EXHAUST SILENCER PACKING- MATERIAL INSONORISANT SILENCIEUX D'ECHAPPEMENT	C	C	X		67
TUBO DI SCARIO E SILENZIATORE- EXHAUST PIPE AND SILENCER- TUYAU ET SILENCIEUX D'ECHAPPEMENT	C	C	X		#
TENSIONE RAGGI RUOTE- WHEEL SPOKES TENSION- TENSION BRAS RUOES	C	C	C		69
CUSICINETTI MOZZI RUOTE- WHEEL HUB BEARINGS- ROULEMENTS MOYEAUS RUOES	C	C	X		#
CORONA POSTERIORE- REAR DRIVEN SPROCKET- COURONNE ARRIÈRE	C	C	S		#
SERRAGGIO VITO CORONA- REAR DRIVEN SPROCKET SCREWS TIGHTENING- SERRAGE VIS COURONNE ARRIÈRE	C	C	C		50
CATENA TRASMISSION SECONDARIA- REAR TRANSMISSION CHAIN- CHAINE ARRIÈRE	CL	CL	S		50
SERRAGGIO BULLONERA- BOLTS AND NUTS TIGHTNESS GENERAL CHECK - CONTRôle SERRAGE DES BOULONS	C	C			#

LEGENDA- KEY FOR MAINTENANCE SCHEDULE- LEGENDE
S: SOSTITUZIONE- REPLACEMENT- REMPLACEMENT
C:CONTROLLO-CHECK-CONTROLE
P: PULIZIA-CLEANING- NETTOYAGE
R: REVISIONE- OVERHAUL- REVISION
L: INGRASSAGGIO/LUBRIFICAZIONE- GREASING/LUBRICATION-LUBRIFICATION/GRAISSAGE

NOTE-NOTE-NOTE

SOSTITUIRE LE GUARNIZIONI IN OCCASIONE DI OGNI SMONTAGGIO- EVERY REMOVAL REPLACE ALL GASKETS-TOUTES LES DEMONTAGES, REMPLACER LES GARNITURES

SOSTITUIRE LA VITERIA IN CASO DI DETERIORAMENTO- REPLACE SCREWS AND NUTS IF WORN- AU CAS DE DÉTERIORATION, REMPLACER LES BOULONS

DOPO PERCORRENZE SU FANGO O SABBIA EFFETTUARE UNA VERIFICA GENERALE- GENERAL CHECK AFTER RACING USE ON MIDDY OR SANDY GROUNDSD

APRÉS USAGE SUR DES TERREINS BOUEUX OU SABLEUX, EFFECTUER UN CONTROLE GENERAL

SMR 450, 510- 2010 - TE 250, 310, 450, 510 - 2010	WARTUNGSTABELLE (Für DIESE KONTROLLEN WENDEN SIE SICH AN IHREN VERTRAGSHÄNDERL HUSQVARNA) ESQUEEMA DE MANTENIMIENTO PERIODICO (PARA EFFECTUAR ESTAS OPERaciones DIRIJASE A SU CONCESSIONARIO HUSQVARNA)
TEILE- PARTICULAR	COUPON- CUPÔN	COUPON- CUPÔN	COUPON- CUPÔN
SMR 450, 510- 2010 - TE 310, 450, 510 - 2010 - ÜBLICHES MOTORRAD, STRAße GESetzLICH (mit beschränktem Macht-MOTOR): SMR 450, 510- 2010; TE 310, 450, 510 - 2010 - MOTOCICLO DE SERIE, PARA USO VIAL (A POTENCY LIMITADA): SMR 450, 510- 2010; TE 310, 450, 510 - 2010	NACH DEN ERSTEN 1000Km- DESPUES LOS PRIMEROS 1000Km	ALLE 5000 KM CADA 5000 KM	ALLE 10000Km CADA 10000Km	WECHSELN WENN NÖTTG- SUBSTITUIR SI NECESARIO	SIEHE SEITE VER PAGINA
SMR 450, 510- 2010 -MOTOCICLO DA COMPETIZIONE, PER USO AGONISTICO (A PIENA POTENZA) - COMPETITION MOTORCYCLE, RACING USE (with FULL POWER ENGINE) - MOTOCYCLE DE COMPETITION, POUR USAGE SPORTIF (AVEC LA PLENE PUSSANCE)	NACH DEN ERSTEN 3 STUNDEN- DESPUES LAS PRIMERAS 3 HORAS	ALLE 5 STUNDEN CADA 5 HORAS	ALLE 15 STUNDEN CADA 15 HORAS
TREIBSTOFFROHR- TUBERIAS CARBURANTE			C	X	#
GERÄUSCHDAMPFENDES MATERIAL FÜR AUSPUFF- MATERIAL FONOABSORBENTE SILENCIADOR				X	67
AUSPUFFROHR UND SCHALLDAMPFER- TUBO DE ESCAPE Y SILENCIADOR		C		X	#
RADSPIECHENSSPANNUNG- TENSION RADIOS RUELAS	C		C		69
RADNABENLAGER- COJINETES CUBOS RUELAS			C	X	#
KRANZ- CORONA TRASERA			S		#
SCHRAUBENANZIEHUNG FÜR HINTERKRANZ- TORSION TORNILLOS CORONA TRASERA	C	C	C		50
SEKUNDARE ÜberTRAGUNGSKETTE- CADENA TRANSMIÑON SECUNDARIA	CL	CL	S		50
KONCONTROLLE VERSCHRAUBUNG KALTGESKENKBOLZEN- CONTROL GENERAL AJUSTE TUERCAS	C	C			#

LEGENDE-LEYENDA

S: WECHSELN- SUBSTITUCION

C: KONTROLLIEREN-CONTROL

P: REINIGEN- LIMPIEZA

R: REVISION- REVISION

L: SCHMIERUNG-BESCHMEIREN-ENGRESAJE-LUBRICACION

: SIEHE WERKSTATTHANDBUCH- VER MANUAL DE OFICINA

ANMERKUNG-NOTAS

DICTUNGWECHSE: BEI JEDEM DEMONTAGE- SUBSTITUIR LAS EMPACURAS EN EL CASO DE DESMONTAJE

SCHRAUBEN VERSCHLEISS: WECHSELN-SUBSTITUIR TORNILLOS Y TUERCAS EN EL CASO DE DESGASTE

SCHLAMMIGES UND SANDIGES GELÄNDEN: EIN ALLGEMEINE KONTROLLE DURCHFühren- DESPUÉS DE LA CARRERA SOBRE UN TERRENO FANGOSO O ARENOSO, EFFECTUAR UN CONTROL GENERAL

MEMORANDUM

MEMORANDUM

MEMORANDUM

MEMORANDUM

MEMORANDUM
