Product type	Tiller (rotary tiller)
Brand	Husqvarna
Model	TR263
Tilling width	620 mm
Tilling depth	100 – 160 mm
Engine	WM170FB/P-2
Fuel	Gasoline (octane rating ≥ 90)
Fuel tank capacity	4.8 L
Engine oil capacity	0.6 L
Displacement	212 cm³
Maximum power	6.1 hp (4.5 kW) at 3,600 rpm
Speeds	Forward (tilling and transport), reverse, neutral
Gearbox oil capacity	1.8 L
Net weight	102 kg
Gross weight	115 kg
Package dimensions (L × W × H)	1,280 × 740 × 660 mm
Main functions	Soil tilling, forward/reverse, transport
Maintenance and cleaning	Regular cleaning, check oil and fuel levels, replace air filter
Safety	Use of protective equipment (helmet, shoes, gloves), maintain a safety distance of 20 m
Spare parts and repairability	Original parts recommended, contact an authorized workshop for repairs

Frequently Asked Questions - TR263 HUSQVARNA

What type of fuel to use for the Husqvarna TR263 tiller?

Use gasoline with an octane rating above 90. Do not use an oil-gasoline mixture.

How to start the engine of the TR263?

Open the fuel valve, set the choke to position A, set the throttle to full, press the on/off switch, set the gear lever to neutral (N), then pull the starter handle.

What is the maximum tilling depth?

The tilling depth can be adjusted between 100 and 160 mm.

How to engage reverse?

Raise the PTO lever to the STOP position, set the trigger to position R (reverse), then push the trigger lock and clutch lever toward the handle. Disengage the clutch before reversing.

What daily maintenance is recommended?

Before each start, check the engine oil and fuel levels, check for leaks, and ensure all screws are tightened.

When should the engine oil be changed?

The engine oil and gearbox oil must be changed every 50 hours or every 3 months.

What safety precautions should be observed?

Always wear a helmet, safety shoes, and gloves. Maintain a distance of at least 20 m from other people. Do not work on a slope greater than 20°.

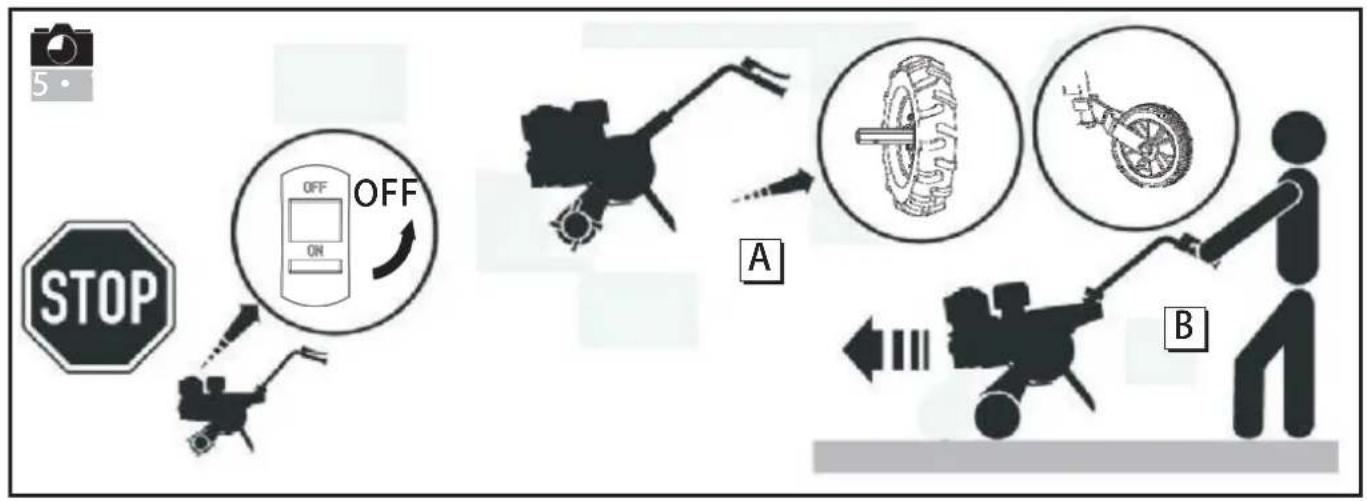

How to transport the tiller?

Stop the engine, replace the cast iron wheel with the tire, mount the rear wheel. Use a ramp to load/unload and secure the machine with approved straps.

What to do in case of abnormal vibration?

Immediately stop the engine, let it cool, disconnect the spark plug cable. Check for any damage. If vibrations persist, contact an authorized workshop.

Where to find the nameplate and what does it contain?

The nameplate is located on the machine. It indicates the serial number, reference, tilling width, displacement, oil capacities, weight, and fuel type.

USER MANUAL TR263 HUSQVARNA

Gear box oil capacity

Nominal power

Net weight

Fuel (octan/cetan)

HUSQVARNA AB
SE-561 82 HUSKVARNA
SWEDEN

Contents

CONTENTS

Contents 2

KEY TO SYMBOLS

Symbols 3

Explanation of warning levels 3

SAFETY INSTRUCTIONS

General 4

Preparation 4

Use 4

Maintenance 5

Transport and storage 5

Fueling. 5

ASSEMBLING AND ADJUSTMENTS

Unpacking 6

Assembly 6

Description of the components 6

Type plate 6

Transport wheel 6

STARTING AND STOPPING

Before starting 7

Start the machine 7

Use 7

Forwards 7

Reverse 7

Stopping 7

Moving the machine. 7

MAINTENANCE AND SERVICE

Maintenance schedule. 8

General 8

TECHNICAL DATA

Technical data. 9

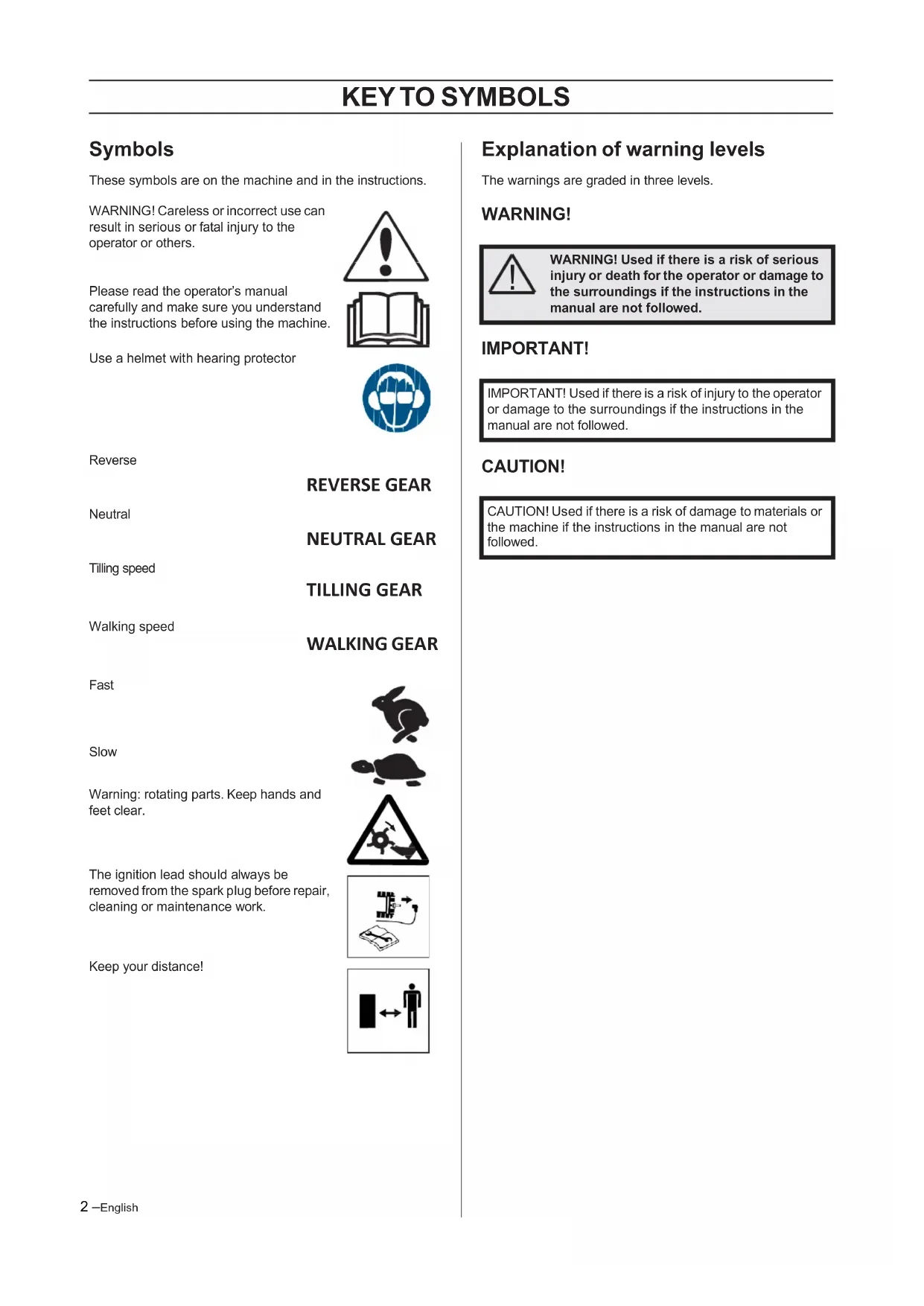

Symbols

These symbols are on the machine and in the instructions.

WARNING! Careless or incorrect use can result in serious or fatal injury to the operator or others.

Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Use a helmet with hearing protector

Reverse

REVERSE GEAR

Neutral

NEUTRAL GEAR

Tilling speed

TILLING GEAR

Walking speed

WALKING GEAR

Fast

Slow

Warning: rotating parts. Keep hands and feet clear.

The ignition lead should always be removed from the spark plug before repair, cleaning or maintenance work.

Keep your distance!

Explanation of warning levels

The warnings are graded in three levels.

WARNING!

WARNING! Used if there is a risk of serious injury or death for the operator or damage to the surroundings if the instructions in the manual are not followed.

IMPORTANT!

IMPORTANT! Used if there is a risk of injury to the operator or damage to the surroundings if the instructions in the manual are not followed.

CAUTION!

CAUTION! Used if there is a risk of damage to materials or the machine if the instructions in the manual are not followed.

General

These instructions are for your safety. Read them carefully.
- Read all the instructions in this operator's manual and on the machine before you start it. Ensure you understand them and then observe them.
If you have any problems or questions about the tiller, please contact your Husqvarna dealer for more information.

WARNING! Only use the machine for the purpose it is designed for, tilling the ground. Any other use may be dangerous or cause damage to the machine.

• Learn how to use the machine and its controls safely and learn to how to stop quickly. Also learn to recognize the safety decals.
• The operator is responsible for any unsafe situations or risks that people and property are exposed to.
• Never start to work with the machine before the working area is clear and you have a firm foothold. Look out for any obstacles with unexpected movement. Take great care when working on sloping ground.
  Only allow the machine to be used by adults who are familiar with its use.
• Never allow children or other persons not trained in the use of the machine to use or service it. Local laws may regulate the age of the user.
• Keep unauthorized persons at a distance. Children, animals, onlookers and helpers should be kept outside the safety zone of 20m . Stop the machine immediately if anyone approaches.
• Never use the machine if you are tired, if you have consumed alcohol, if you are taking other drugs or medication that can affect your vision, judgement or coordination.
  Pay particular attention on hard ground. The machine has the tendency to be much less stable on cultivated ground.

WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

• Never use the machine when barefoot. Always wear protective shoes or protective boots, preferably with steel toes. Never wear loose-fitting clothing, jewelry or similar that can get caught in moving parts. Use hearing protection to minimize the risk of hearing impairment.

Preparation

• Inspect the working area. Remove all loose objects, such as stones, broken glass, nails, steel wire, string, etc. that could be projected by the machine.
• Check the entire machine before starting. Replace worn or damaged parts. Check that there are no fuel leaks and that all guards and covers are complete and fastened securely. Check all nuts and screws.
• Check that the electrical cables are intact and in good condition.

Use

• Never use the machine to transport people.
• Compliance with and strict adherence to the conditions of operation, service and repair as specified by the manufacturer also constitute essential elements of the intended use.
• Stop the engine when the machine is not in use.
• Walk with the machine, do not run.
  Pay close attention when pulling the machine towards you or reversing the direction of rotation.
• Keep a safe distance from the rotating blades, set by the length of the steering column. Keep your hands and feet away from the rotating blades.
• The engine and the exhaust system become very hot during operation. Risk of burn injuries if touched.
• Only use the machine in daylight or in other well-lit conditions.
• Do not use the machine on ground that slopes more than 20^ .
  Work across slopes, not up or down.

WARNING! Under no circumstances should you modify the original design of the machine without approval from the manufacturer. Always use original spare parts. Unauthorized modifications and/or accessories may lead to serious injury or death to the user or others.

The warranty is not valid if non genuine parts are used.

Stop the engine immediately if the following occurs:

• Excessive vibration and / or noise.
• Mechanical jam preventing motor from turning.
• Difficulties to engage or disengage the clutch.
  A collision with a foreign object.
  Deterioration of the engine stop cable.

If the engine halt cable is severed, use the starter control to stop the engine. For more information see section "Start the engine"

Allow the machine to cool down. Disconnect the HT lead from the spark plug. Check that the machine is not damaged. If the machine is damaged, hand it in to an authorized service workshop for repair.

Maintenance

Always stop the engine before repair, cleaning, maintenance work or when changing the tools on the machine.
- Regular maintenance is essential for safety and to maintain the levels of performance.
- Wear heavy-duty gloves when changing the tools on the machine.
- Replace the rotating blade in complete sets to keep them balanced. Always use genuine parts.
- Check that nuts and screws are tight.
- Never use a machine that has a faulty muffler. Contact an authorized service workshop.

IMPORTANT! For your own safety, do not alter the characteristics of the machine. Do not change the engine speed settings and do not run the engine at excess speed.

Transport and storage

• Allow the machine to cool before putting it in storage.
• Store the machine and fuel in such a way that there is no risk that leaking fuel or fumes can cause any damage.
• The machine should always be stored in a dry place away from open fire, sparks or intense heat.
• Fuel and fuel vapour are highly flammable. Take care when handling fuel and oil. Bear in mind the risk of fire, explosion and inhaling fumes.
• When storing and transporting fuel always use approved containers intended for this purpose.
• Do not try to lift the machine. Use a method of handling adapted to the weight of the machine and to the situation.
  Take extra care when loading it onto or off a vehicle or trailer. Use a suitable ramp.
• Use an approved trailer to transport the machine. Secure the machine with approved tightening straps. Ensure that no part of the machine are squashed or damaged by the tightening straps. It is a good idea to cover the machine.
• For more information about moving of the machine during work, see section "Moving".

Fueling

• Always stop the engine and let it cool for a few minutes before refuelling.
• Refuel in a well ventilated area with the engine turned off.

WARNING! Petrol is highly inflammable. Exercise care and refuel outdoors. Fire, open flame and smoking are prohibited.

Clean the area around the fuel cap. Tighten the fuel cap carefully after refuelling. If the cap is not properly tightened the cap might vibrate lose and fuel may escape from the fuel tank creating a fire hazard. Move the machine at least 3m from the refueling point before starting it.

• Bear in mind the risk of fire, explosion and inhaling fumes. Do not fill so that the fuel runs over. Wipe up all spillage on the ground and machine. If you spill fuel on yourself or your clothes. Change your clothes. Move the machine at least 3 metres away from the refuelling area before starting.
• The engine emits carbon monoxide, which is a colourless, poisonous gas. Do not use the machine in enclosed spaces.

Unpacking

Illustration: 1· 1

IMPORTANT! Make sure to not cut the cables or scratch the machine when cutting the edges of the case.

References	Content of the case
A	Engine parts
B	Wheel axle
C	Back tire cover
D	Side cover, R
E	Handlebar cover
F	Iron wheel
G	Tine Assy, R
H	Rear wheel
I	Drag bar
J	Wheel
K	Tine cover
L	Shifting lever
M	Tidy cover
N	Hardware bag
O	Tool bag

Assembly

Illustration: 1·2

WARNING! Inappropriate assembly of this rotary tiller could cause severe injuries. Ensure that you follow all the instructions carefully.

Fitting the handlebar. (Figure 1)
Fitting the wheels. (Figure 2)
Fitting the tine cover. (Figure 3)
Fitting the right tine assay. (Figure 4)
Fitting the side cover. (Figure 5)
Fitting the drag bar and support wheel. (Figure 6)
Fitting the back cover. (Figure 7)
Fitting the shifting lever. (Figure 8)
Fitting the PTO lever. (Figure 9)
Fitting the handlebar cover. (Figure 10)
Fitting the tidy cover. (Figure 11)
- Tidy the cables. (Figure 12)

• Put the cables through the holding spring.

• Fit the cables in cable clip.

• Adjust the height of the handle by engage the right lever. (Figure 13)
  Fitting the clutch control. (Figure 14)

• Turn to proper side and fasten the bolt.

Any dismantling operation must only be performed by an authorized service workshop.

CAUTION! After assembling the machine completely, tighten the bolts and screws with moderation. Do not overtighten.

Description of the components

Illustration: 1·3

1 Engine
2 Bumper
3 PTO lever
4 Shifting lever
5 Handlebar
6 Throttle control
7 Drag bar
8 Tine cover
9 Tine
10 Iron wheel
11 ON/OFF switch
12 Lever for handle height adjust
13 Clutch control

Type plate

Illustration: 1 • 4

1 Serial number
2 Article number
3 Tilling scope
4 Gear shifting
5 Engine displacement
6 Engine oil Quality (viscosity):
7 Engine oil capacity
8 Gear box oil quality
9 Gear box oil capacity
10 Nominal power
11 Net weight
12 Fuel

Transport wheel

Illustration: 1·5

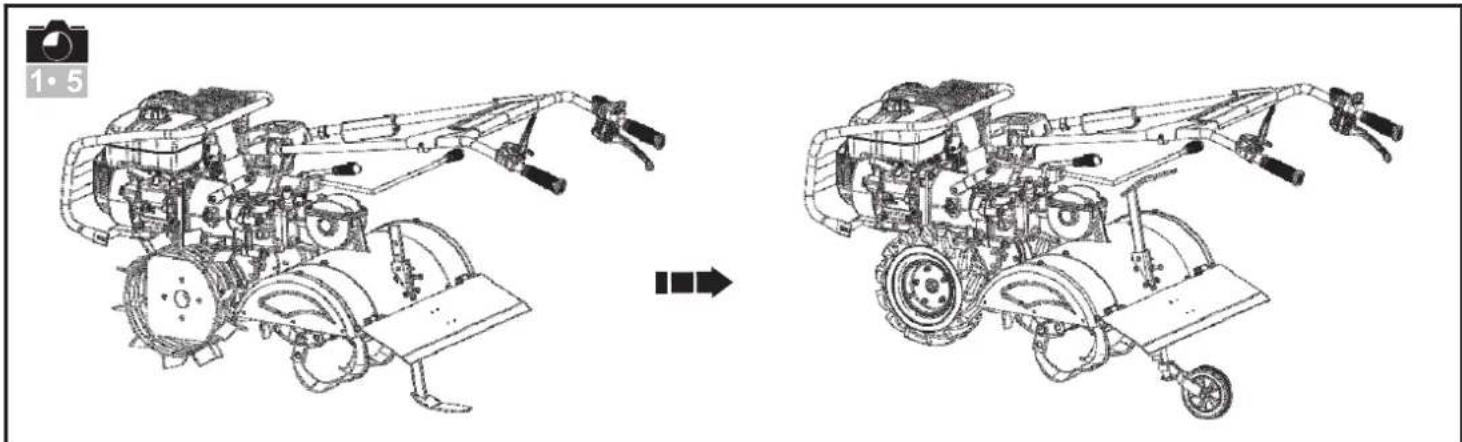

Change the cultivator from working status to transporting status. Change the iron wheel to tyre, assemble the rear wheel.

For more information about moving of the machine, see section "Moving".

Before starting

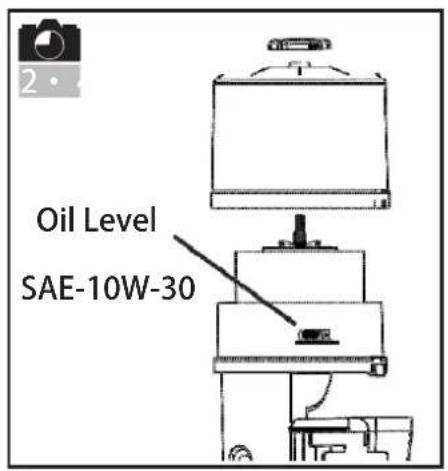

• Check the engine oil level and top up if necessary. Illustration: 2 - 1
• Check the oil level of the gear box, and top up if necessary. Illustration: 2·2

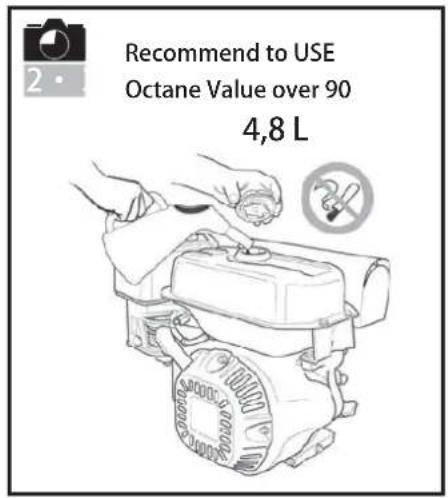

• Check the fuel level. Fill if necessary. Illustration: 2 • 3
• Recommended to use: Octane Value over 90.

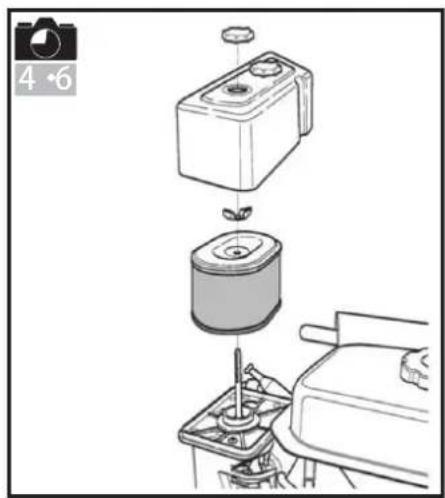

  Oiling the air filter Illustration: 2·4

Start the machine.

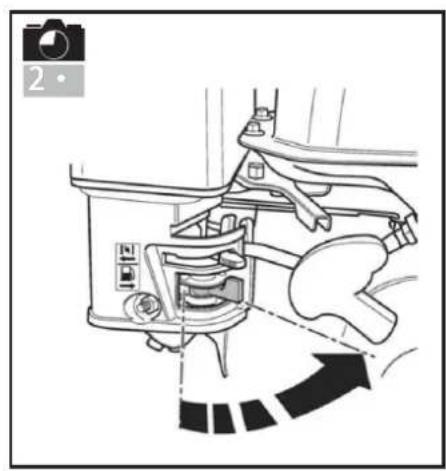

• Open the fuel tap. Illustration: 2 · 5
• Set the choke control in the A position. Illustration: 2 • 6
  Throttle control Illustration: 2-7
• Push the throttle control to full throttle position.

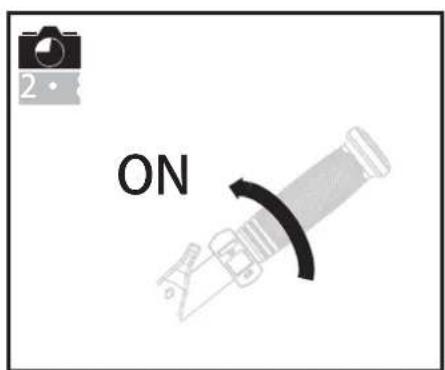

• Set the on/off switch to ON to attain start throttle setting. Illustration: 2 - 8

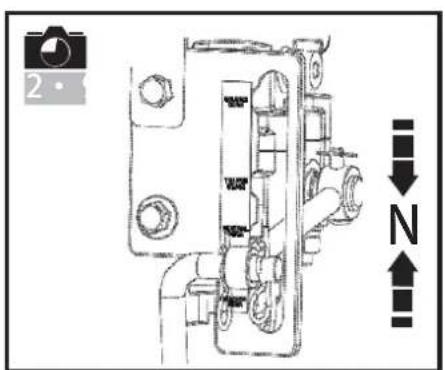

• Shifting lever Illustration: 2 - 9

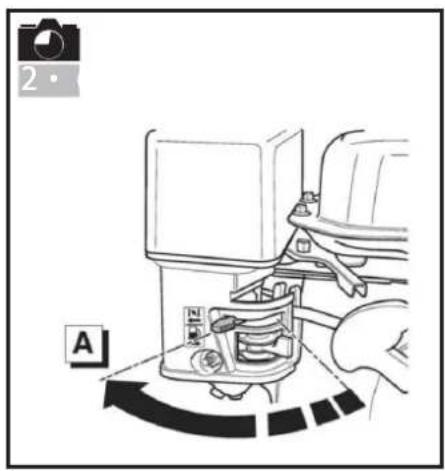

• Put the gear shift lever in the "N" position (neutral).
  Pull the recoil start handle Illustration: 2 - 10

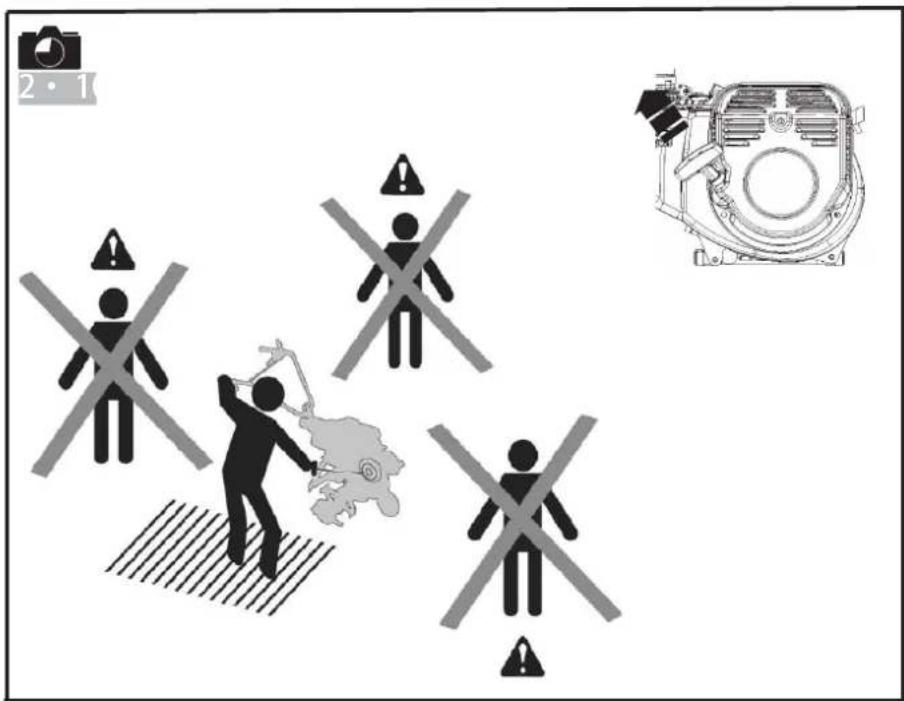

WARNING! When the machine starts, remain in the safety zone

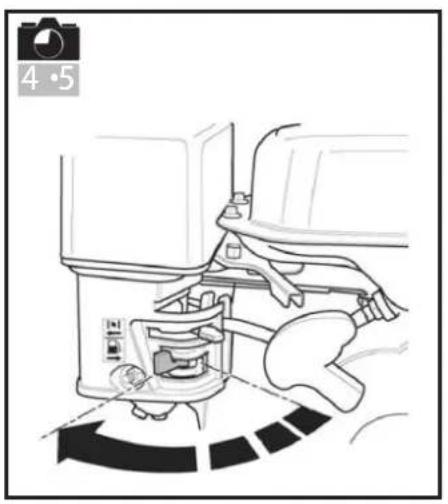

• Set the choke control in the B position. Illustration: 2 • 11

Use

WARNING! Keep unauthorized persons at a distance. Children, animals, onlookers and helpers should be kept outside the safety zone of 20m . Stop the machine immediately if anyone approaches.

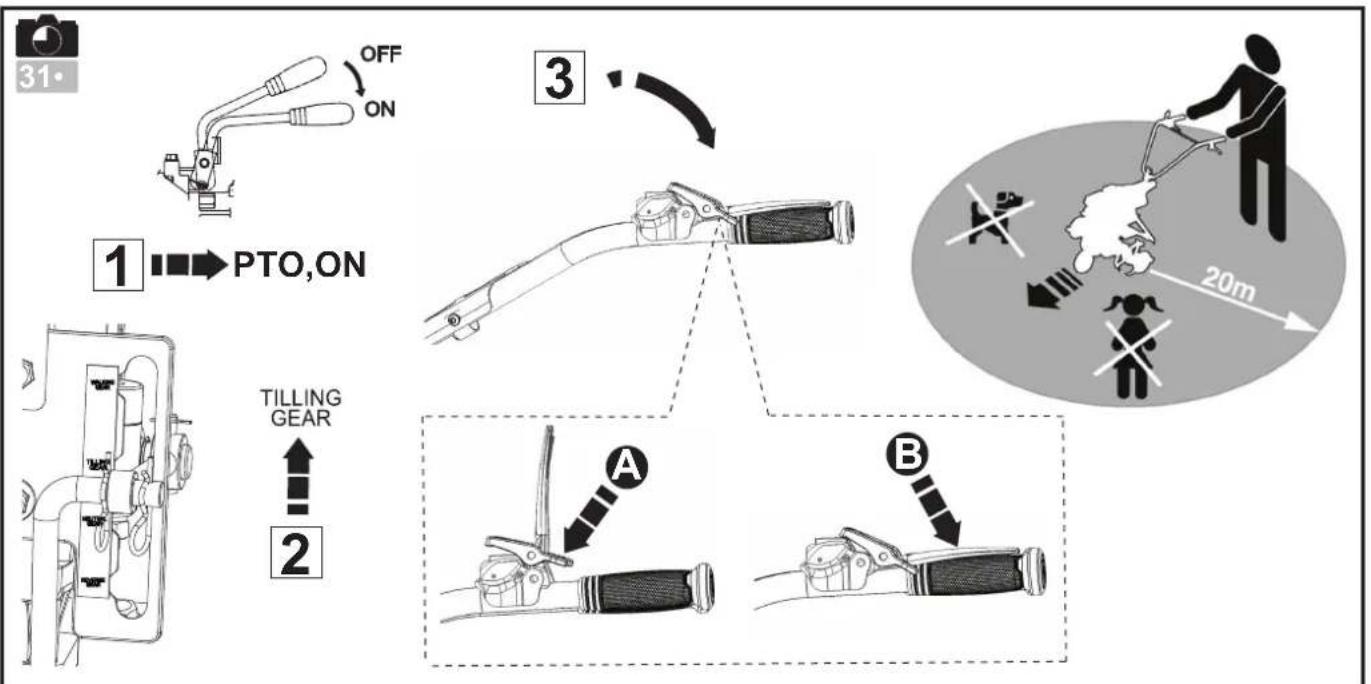

Forwards

Illustration: 3·1

• Push down PTO lever to ON.

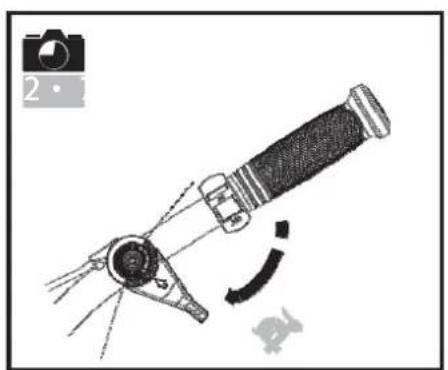

• Use the shifting lever to control the drive speed.

Tilling speed

TILLING GEAR

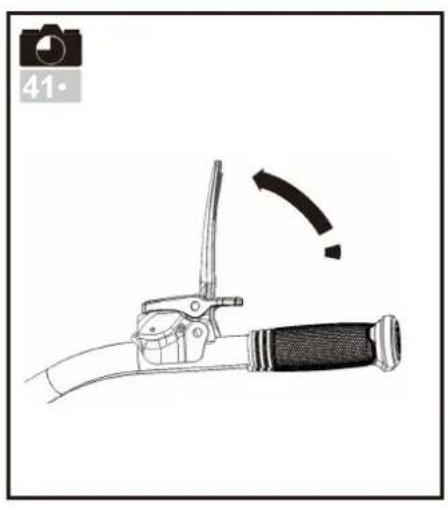

• Press down the trigger lock on the handle (A) and push the clutch lever in towards the handle (B).
• The cultivator starts to rotate when you push the clutch down towards the handle and stops rotating when you release the clutch.

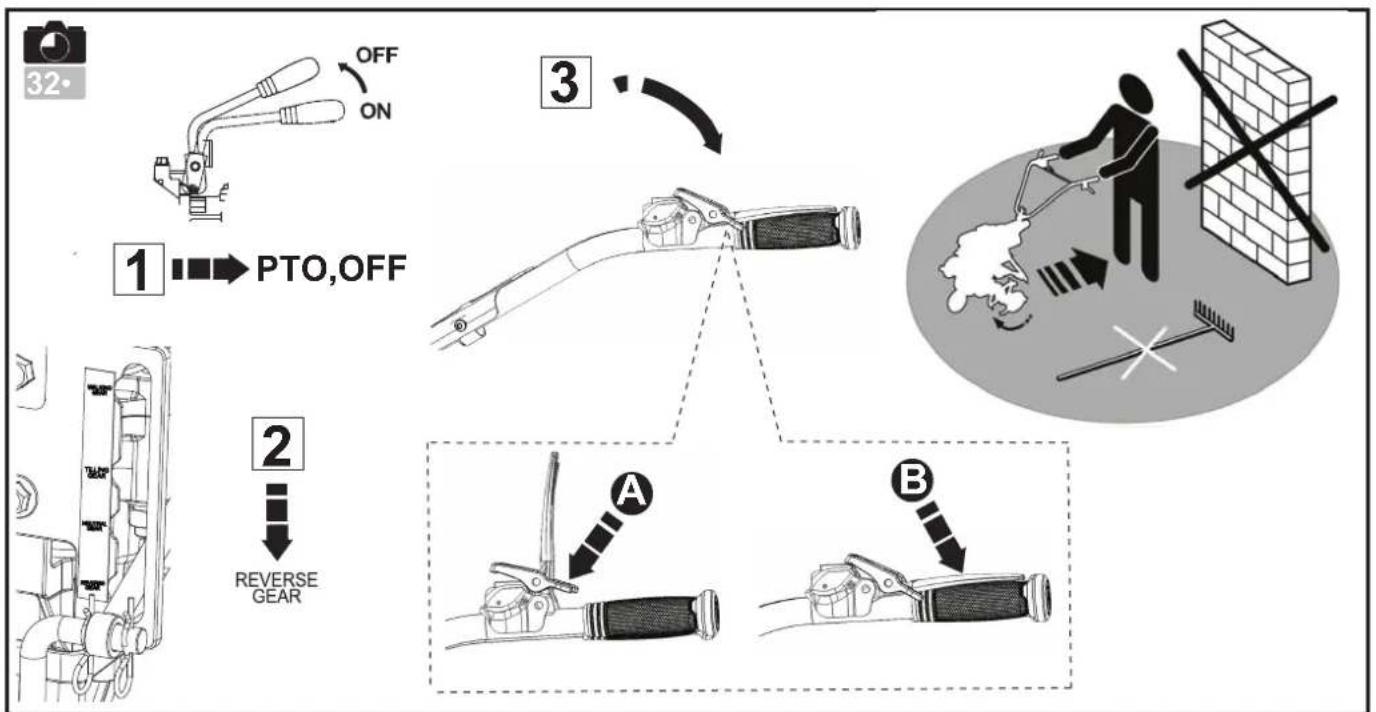

Reverse

Illustration: 3·2

IMPORTANT! The cultivator starts to rotate when you push the clutch down towards the handle and stops rotating when you release the clutch. It is important to release the clutch lever before using reverse.

Pull PTO lever up to OFF.
- Slide the control to "R" position.

REVERSE GEAR

WARNING! The use of reverse is dangerous! Ensure that there are no obstacles behind you and reduce the engine revs before engaging the clutch.

• Press down the trigger lock on the handle (A) and push the clutch lever in towards the handle (B).

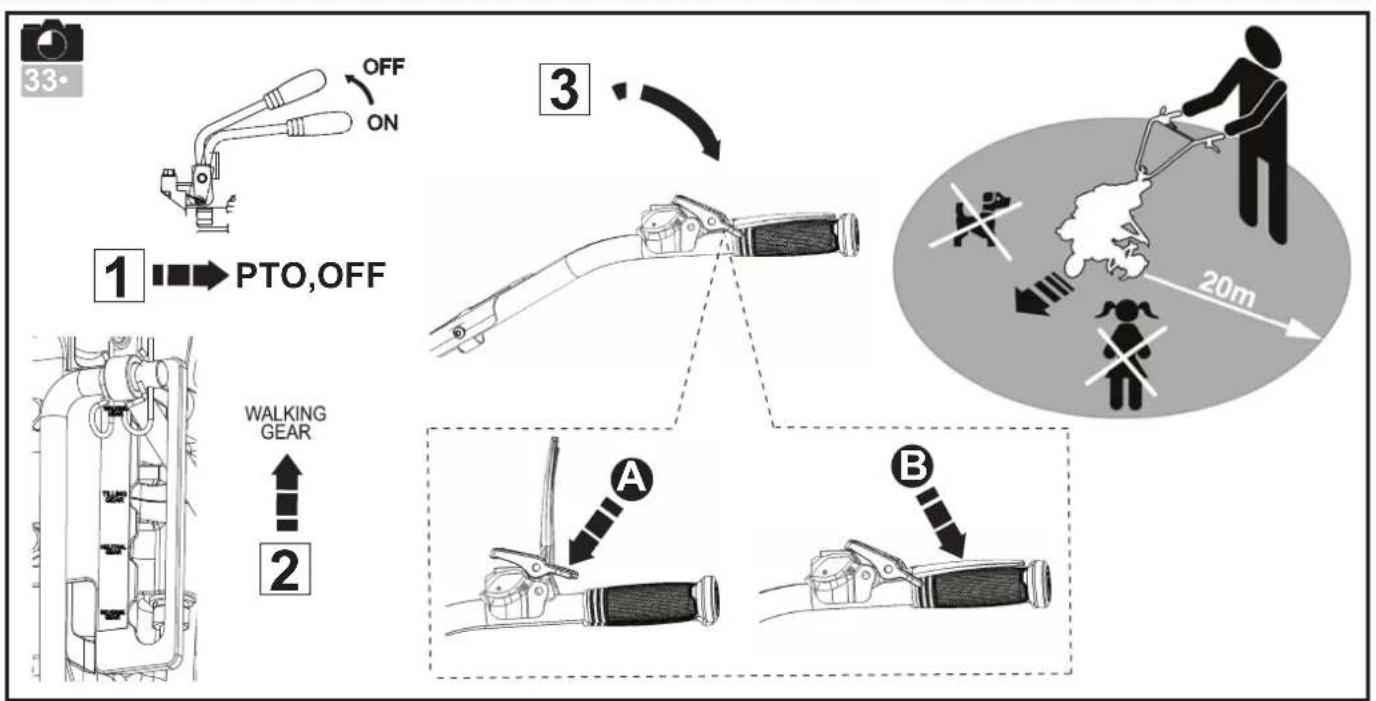

Transferring

Illustration: 3·3

Pull PTO lever up to OFF.

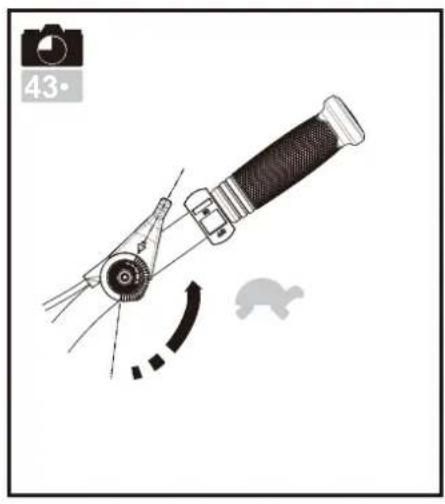

- Use the shifting lever to control the drive speed.

WALKING GEAR

• Press down the trigger lock on the handle (A) and push the clutch lever in towards the handle (B).
  To transfer the tiller in field and on road.

Stopping

• Release the clutch lever. Illustration: 4 • 1
• Put the gear shift lever in the "N" position (neutral). Illustration: 4 - 2

NEUTRAL GEAR

• Move the throttle control to the MIN. position. Illustration: 4· 3

Use the stop switch to switch off the engine. Illustration: 4 - 4
- Close the fuel tap. Illustration: 4 · 5

Moving the machine

Illustration: 5 • 1

• The engine must be switched off before moving. See instructions under section Stopping.
• Change the iron wheels to tyres and assemble the rear wheel when transporting. (Figure A)

MAINTENANCE AND SERVICE

Maintenance schedule

The following is a list of the maintenance steps that must be performed on the machine.

Maintenance	Illustration	Daily maintenance before starting	Maintenance interval in hours
			20 hours or every month	50 hours or every 3 months	100 hour or every 6 months	300 hours or once a year
Clean the machine.		X
Check that nuts and screws are tight and without damage.		X
Clean the air filter. Replace if necessary.	4·6	X		X*		X**
Check the engine's oil level	2·1, 2·4	X
Check the oil level of the gear box, and top up if necessary.	2·2	X
Check for any leakage of fuel, engine oil and lubrication.		X
Check the fuel level. Fill if necessary.	2·3	X
If the machine starts to vibrate abnormally, immediately check.		X
Change the oil and lubrication of the engine and the gearbox.			X		X
Clean the fuel filter and its surrounding components.					X X**
Clean the spark plug and the spark plug cap.					X
Replace the spark plug.						X
Check/Adjust the play in the engine valves						X**
Clean the combustion chamber						X**
Check the fuel circuit						X**

• Clean more often in condition of use where the air is dusty or laden with aerial debris.
  ** Not essential except in the event of performance problems. Contact an authorized service workshop.

WARNING! Remove the foam plastic filter. Wash the filter well in tepid soapy water. After cleaning, rinse the filter well in clean water. Squeeze out and allow the filter to dry. NOTE! High pressure compressed air can damage the foam. Do not use compressed air or solvent with petroleum to clean the air filter.

General

WARNING! Before carrying out repair work, cleaning or inspection, the machine must be in standstill and turned off.

Never make adjustments with the machine running

Always use genuine parts.

• Never wear jewelry, watches or similar when cleaning, carrying out repair work on or inspecting the machine.

Do not modify safety equipment. Check regularly to be sure it works properly.

Always exercise care and use your common sense. Avoid all situations which you consider to be beyond your capability. If you still feel uncertain about operating procedures after reading these instructions, you should consult an expert before continuing. Contact an authorized service workshop.

Technical data

	TR262
Tilling width, mm	620
Tilling depth, mm	100 - 160
Engine	WM170FB/P-2
Fuel	Petrol
Fuel tank capacity, liters	4,8
Oil tank capacity, liter	0,6
Cylinder displacement, cm3	212
Max power hp (kW) @ rpm	6,1(4,5) @3600
Gears	R, N, T, W
Oil capacity gearbox, liters	1,8
Gross weight, kg	115
Net weight, kg	102
Packaging size, mm	1280×740×660

IMPORTANT! When the service life of this product has been served and it is no longer used it should be returned to the dealer or to an applicable station for recycling.

IMPORTANT! We reserve the right to change specifications and designs without prior notice so as to implement improvements. Note that no legal claims are valid on the basis of information in this manual. Use only genuine parts for repairs. The warranty is not valid if non genuine parts are used.

Sommaire

SOMMAIRE

Table des matieres 9

EXPLICATIONS DES SYMBOLES

Symboles. 10

Commandedacceleration,illustration:2·7

Original instructions
