PRO C1600-M - Saw Cocraft - Free user manual and instructions

Product Type	Circular Saw
Brand	Cocraft
Model	PRO C1600-M
Power Supply	220–240 V AC, 50 Hz
Power Output	1600 W
No-Load Speed	5800 rpm
Cutting Depth at 90°	65 mm
Cutting Depth at 45°	45 mm
Saw Blade Size	185 mm diameter, 20 mm arbor
Weight	3.9 kg
Sound Pressure Level (LpA)	96.2 dB(A), K=3 dB
Sound Power Level (LwA)	107.2 dB(A), K=3 dB
Vibration (Rear Handle)	2.41 m/s², K=1.5 m/s²
Vibration (Front Handle)	3.246 m/s², K=1.5 m/s²
Bevel Capacity	0–45°
Key Features	Plunge cut capability, dust extraction port, spindle lock, lower guard
Safety Features	Lower blade guard, trigger lock button, double insulation (Class II)
Included Accessories	Parallel guide, dust extractor port adaptor, Allen key
Maintenance	Clean with damp cloth; store in dry, dust-free place
Standards Compliance	EN 60745, EMC Directive 2014/30/EU

Frequently Asked Questions - PRO C1600-M Cocraft

How do I change the saw blade on the Cocraft PRO C1600-M?

First, unplug the saw. Press the spindle lock (16) to prevent rotation. Use the included Allen key to loosen the blade bolt (5) by turning it anticlockwise. Lift the lower guard using the retracting handle (3), remove the flange washer (11) and old blade. Note there is a loose washer under the blade. Install the new blade in reverse order, ensuring the rotation direction matches the arrow on the guard. Tighten the blade bolt securely.

What is the maximum cutting depth of this saw?

At 90°, the maximum cutting depth is 65 mm. At 45° bevel, it is 45 mm.

How do I adjust the cutting depth?

Unplug the saw. Loosen the depth adjustment locking knob (20) by turning it anticlockwise. Tilt the baseplate to the desired depth using the scale (18). Tighten the knob to lock.

How do I set the bevel angle?

Unplug the saw. Loosen the bevel adjustment knob (9) anticlockwise. Set the desired angle (0–45°) using the scale (8). Tighten the knob.

What safety precautions should I take when using this saw?

Always wear safety glasses, ear defenders, and a face mask. Keep hands away from the cutting area; use both handles. Ensure the lower guard closes freely. Do not operate in wet conditions. Use an RCD if operating in damp locations. Read the full manual for all warnings.

Why is my saw vibrating heavily?

Check that the blade is in good condition and correctly fitted. If the blade is dull, damaged, or improperly mounted, it can cause vibrations. Also ensure the blade bolt is tight.

Can I use this saw for plunge cuts?

Yes, the PRO C1600-M supports plunge cuts. For a plunge cut, manually raise the lower guard using the retracting handle (3) and lower the saw into the material. Release the guard once the blade enters the workpiece. Ensure the baseplate is stable.

How do I attach the dust extractor?

Attach the included dust extractor port adaptor to the saw using the provided screws. Then connect a suitable vacuum hose to the adaptor. This helps reduce dust.

What maintenance does this circular saw require?

Always unplug before maintenance. Clean the saw with a lightly moistened cloth and mild detergent. Keep motor ventilation openings free of debris. Store in a dry, dust-free location. If the power cord is damaged, have it replaced by a qualified electrician.

What is the spindle lock used for?

The spindle lock (16) is pressed to lock the spindle when changing the blade. This prevents the blade from rotating while you loosen or tighten the blade bolt.

USER MANUAL PRO C1600-M Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General Power Tool Safety Warnings - Personal Safety

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Instructions Specific to Circular Saws

Cutting procedures

a) DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
b) Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.
c) Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.
d) Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control.
e) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and could give the operator an electric shock.
f) When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding.
g) Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
h) Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation

Further safety instructions for all saws

Kickback causes and related warnings

• Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;
• When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;
• If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.
b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.
d) Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
e) Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
g) Use extra caution when sawing into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.

Lower guard function

a) Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.
b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
c) Lower guard may be retracted manually only for special cuts such as “plunge cuts” and “compound cuts”. Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically.
d) Always observe that the lower guard is covering the blade before placing saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.

Guard function

a) Check guard for proper closing before each use. Do not operate the saw if guard does not move freely and enclose the blade instantly. Never clamp or tie the guard so that the blade is exposed. If saw is accidentally dropped, guard may be bent. Check to make sure that guard moves freely and does not touch the blade or any other part, in all angles and depths of cut.
b) Check the operation and condition of the guard return spring. If the guard and the spring are not operating properly, they must be serviced before use. Guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
c) Assure that the base plate of the saw will not shift while performing the "plunge cut" when the blade bevel setting is not at 90^ . Blade shifting sideways will cause binding and likely kick back.
d) Always observe that the guard is covering the blade before placing saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.

Vibration

• The measurement of the vibration emission level declared in this instruction manual has been carried out in accordance with a standardised test method described in EN 60745 and can be used for comparing one power tool with another.
• The measurement method may also be used for a preliminary assessment of vibration exposure.
• The declared vibration emission level applies when the power tool is used in accordance with this instruction manual. If however, the power tool is used for other purposes and with other accessories or has not been properly maintained, the vibration emission level could increase significantly over the total working period.
• For an exact assessment of the vibration exposure, the times when the tool is switched off or running idle should also be taken into account. This significantly reduces the vibration exposure over the total working period. Decide upon safety measures to protect the operator from the effects of vibration during all types of use.

Product safety symbols

Read the entire instruction manual.

Always use safety glasses, ear defenders and a face mask.

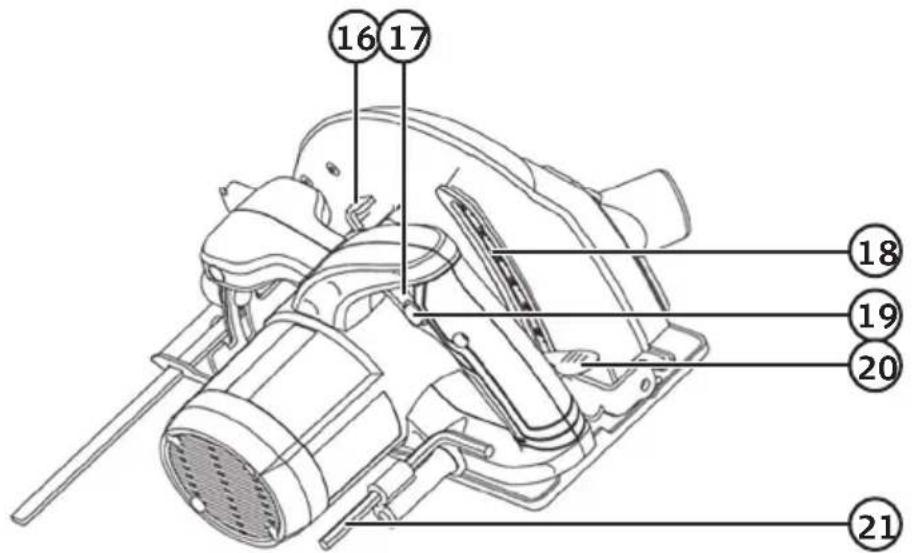

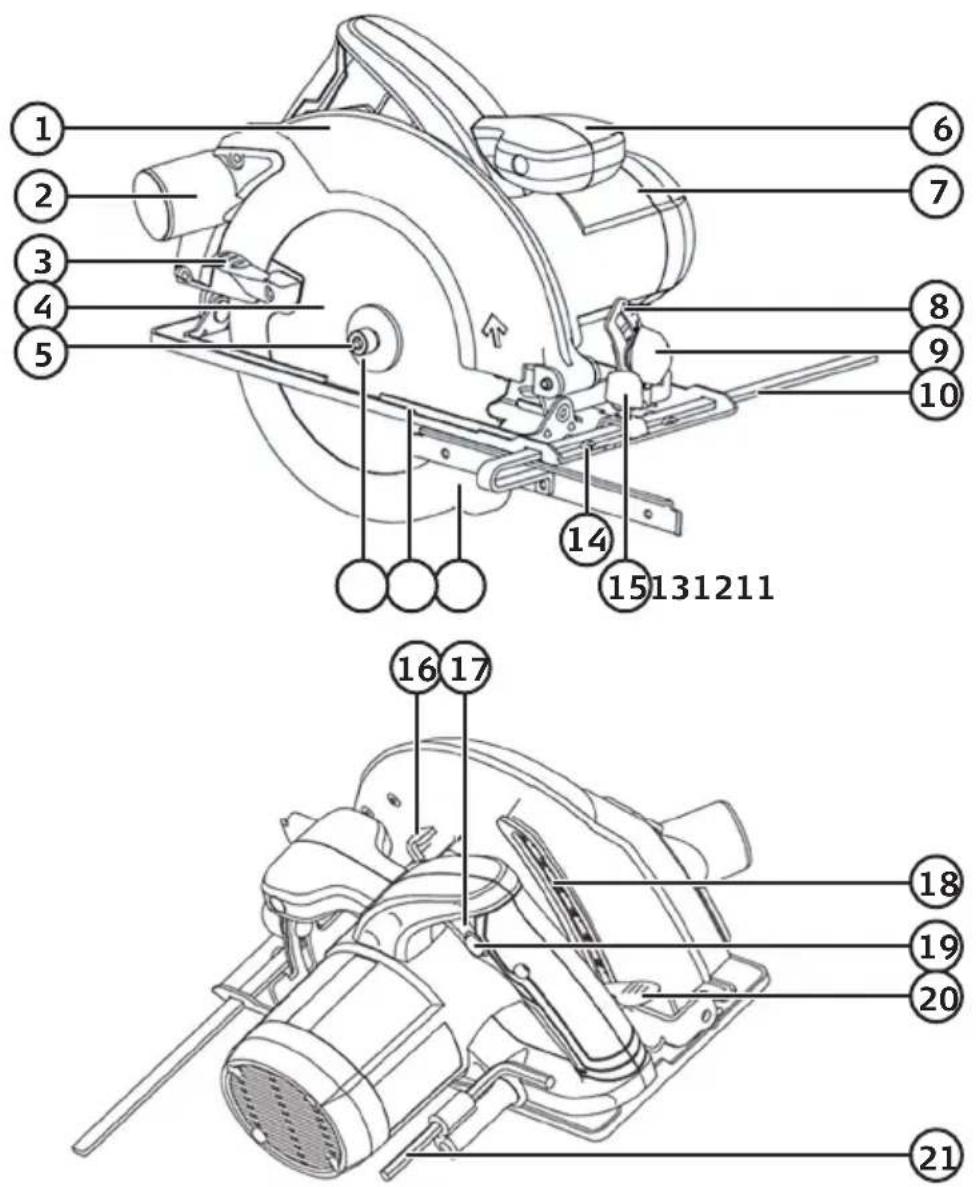

Product description

1. Upper blade guard
2. Dust extractor port adaptor
3. Lower guard retracting handle
4. Saw blade
5. Blade bolt
6. Front handle
7. Motor housing
8. Bevel angle scale
9. Bevel adjustment knob
10. Parallel guide

11. Flange washer

12. Baseplate (shoe)

13. Lower blade guard
14. Sight line mark
15. Parallel guide locking knob
16. Spindle lock
17. Power trigger
18. Cutting depth scale
19. Trigger lock button
20. Depth adjustment locking knob
21. Allen key

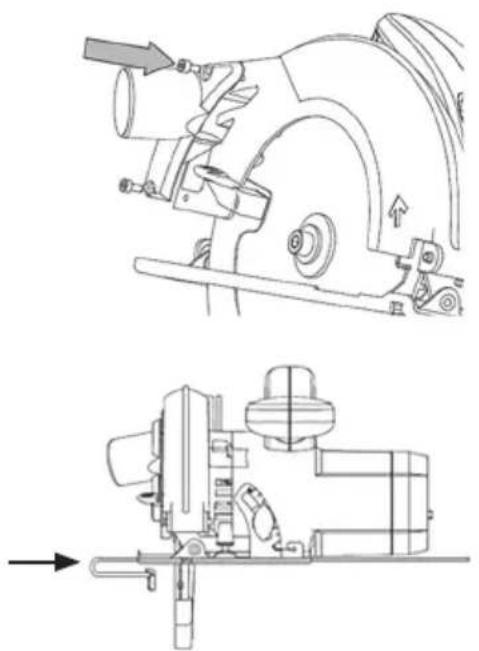

Assembly

Attach the dust extractor port adaptor using the included screws.

Parallel guide

Attach the parallel guide by sliding it into its clamps.

Technical line drawing of a mechanical assembly with two views: top shows a saw cutting tool, bottom shows a disassembled machine component (no text or labels)

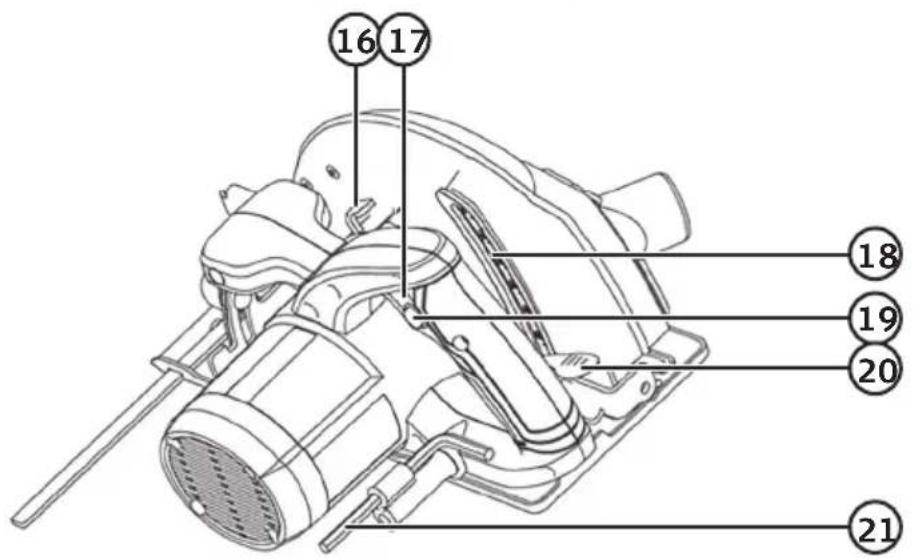

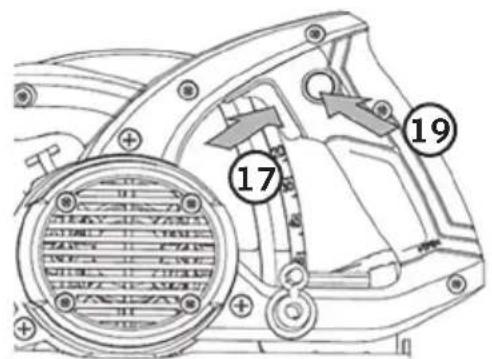

Controls and functions Switching on/off

On

Hold in the trigger lock button (19) and then pull the power trigger (17). Release the trigger lock button.

Off

Release the trigger.

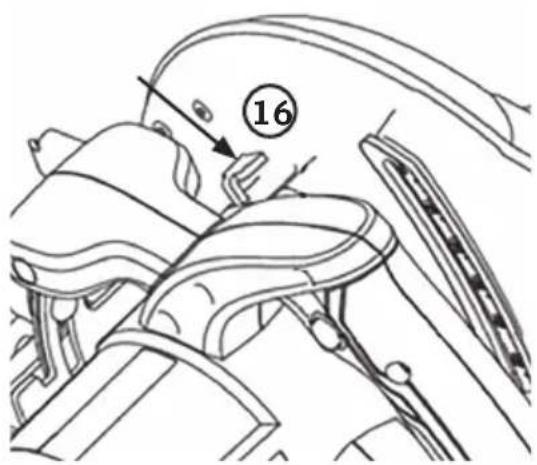

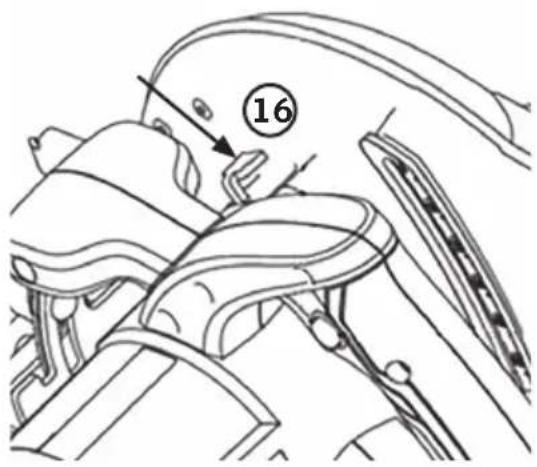

Spindle lock

Press in the spindle lock button (16) to lock the spindle when changing the blade.

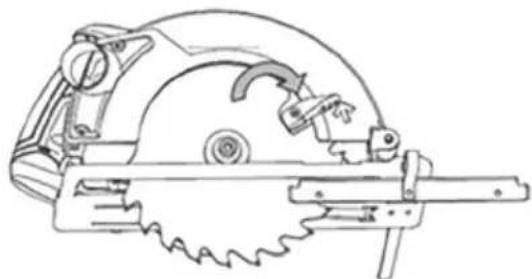

Lower guard retracting handle

Lift the handle up to raise the guard.

Technical line drawing of a mechanical cutting tool with a circular cutter and blade (no text or symbols)

Settings

Warning: Always unplug the saw before making any adjustments or repairs.

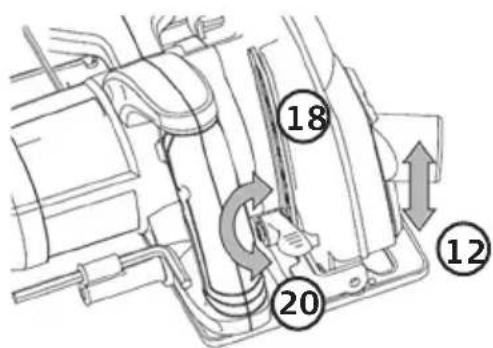

Setting the cutting depth

1. Raise the adjustment locking knob (20).
2. Tilt the baseplate (12) to the desired cutting depth using the scale (18) as a guide.
3. Lower the locking knob to lock the baseplate at the new angle.

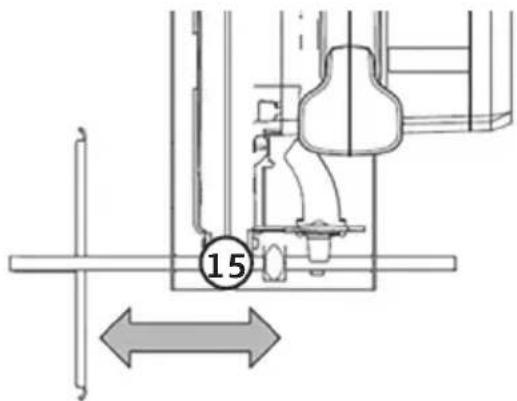

Setting the parallel guide

1. Undo the locking knob (15) by turning it anticlockwise.
2. Set the desired width.
3. Tighten the locking lever.

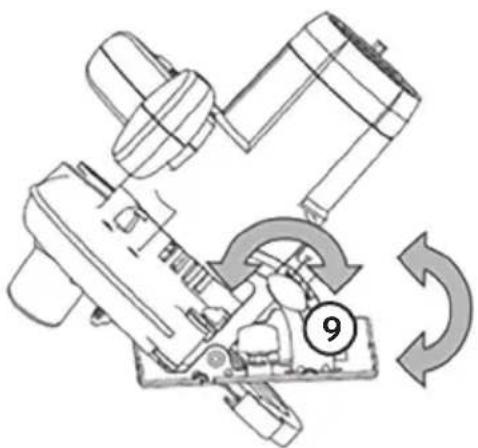

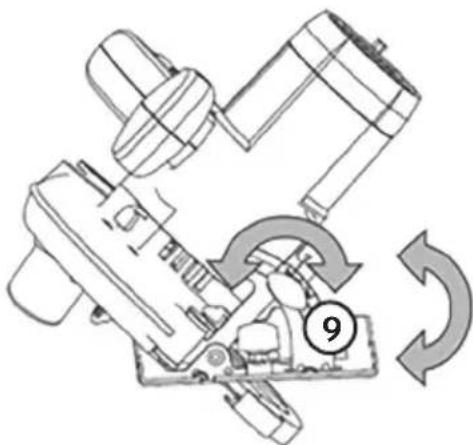

Setting the bevel angle

1. Undo the locking knob (9) by turning it anticlockwise.
2. Set the desired angle (0–45°) using the scale (8).
3. Tighten the locking lever.

Mechanical assembly diagram showing a motor and gear mechanism with no visible text or symbols

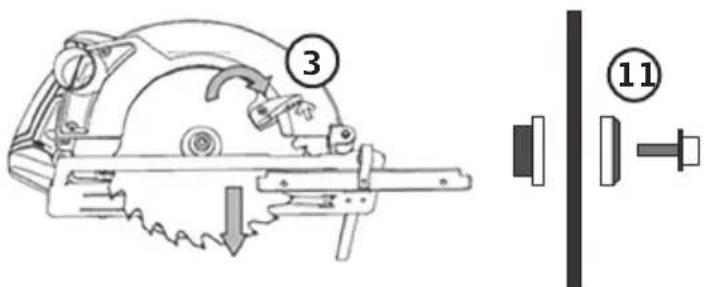

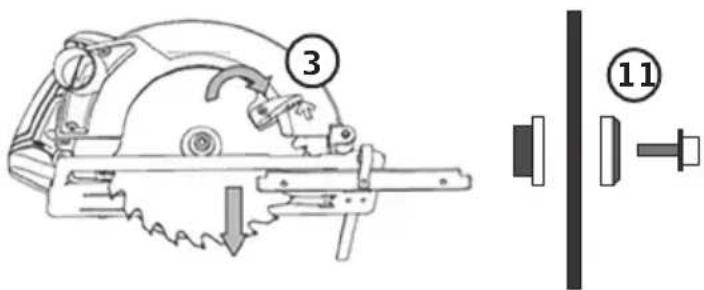

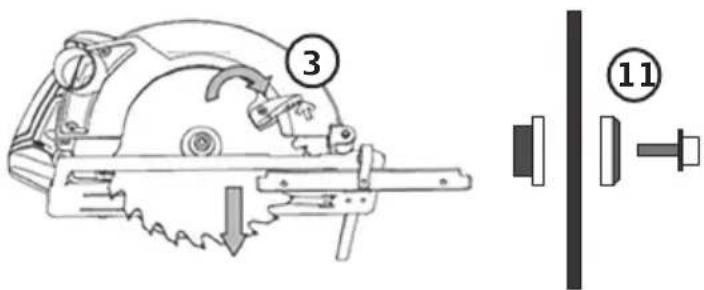

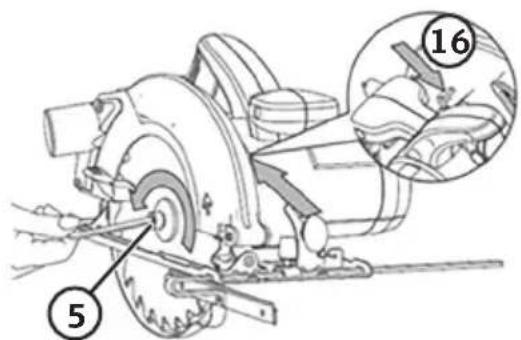

Changing the blade

1. Hold in the spindle lock (16) to prevent the blade rotating.
2. Remove the blade bolt (5) by turning it anti clockwise using the included Allen key (21).

1. Lift up and hold the lower blade guard using the retracting handle (3).

2. Remove the flange washer (11) and then the saw blade.

Note: There is a loose washer under the saw blade, be careful not to lose it when removing the blade.

1. Attach the new blade in the reverse order. Make sure that it rotates in the right direction. Note: Make sure that the blade is centred and fitted correctly. Make sure that the blade bolt is tight before switching the saw on.

Care and maintenance

• Always unplug the saw before making any adjustments or repairs.
- Clean the product using a lightly moistened cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
- Keep the motor ventilation openings free from contaminants.
- If the circular saw is not to be used for an extended period, it should be unplugged and stored in a dry and dust-free location out of reach of children.
- If the mains lead is damaged in any way it must be replaced by a qualified electrician.

Troubleshooting guide

The saw does not start. •	Make sure that the mains lead is undamaged and securely plugged into a wall socket.• Make sure that the wall socket live.
The saw runs slowly. • Remember not to use too much force on the blade when cutting. Let it work at its own pace.• Is the blade worn? Replace if necessary.
Heavy vibrations. • Check that the blade is in good condition and is correctly fitted.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Specifications

Voltage 220–240 V AC, 50 Hz

Power output 1600 W

No-load speed 5800 rpm

Cutting depth at 90° 65 mm

Cutting depth at 45^ 45 mm

Saw blade 185/20 mm

Weight 3.9 kg

LpA (sound pressure) 96.2 dB(A), K: 3 dB

LwA (sound power) 107.2 dB(A), K: 3 dB

Vibration value,

rear handle

front handle

a_h 2.41 m/s ^2 , K: 1.5 m/s ^2

a_h 3.246 m/s ^2 K: 1.5 m/s ^2

Cirkelsåg

Art.nr 40-9929 Modell PSC185GH.1

Technical line drawing of a mechanical assembly with two views: top shows a saw cutting tool, bottom shows a mounted machine component (no text or symbols)

Handtag för nedre klingskydd

Technical line drawing of a mechanical cutting tool with a circular cutter and blade (no text or symbols)

Inställningar

Mechanical assembly diagram showing a valve mechanism with rotating arrows and a numbered component (no text or symbols)

Byte av sågklinga

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Specifikationer

Spänning 220–240 V AC, 50Hz

Effekt 1600 W

Varvtal obelastad 5800/min

Technical line drawing of a mechanical assembly with two views: top shows a saw cutting tool, bottom shows a close-up of a mechanical component (no text or symbols)

Spindellås

Technical line drawing of a mechanical cutting tool with a circular cutter and saw (no text or symbols)

Innstillinger

Mechanical assembly diagram showing a motor and gear mechanism with no visible text or symbols

Skifte av sageklinge

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Spesifikasjoner

Spenning 220–240 V AC, 50Hz

Effekt 1600 W

Turtall ubelastet 5800/min.

Technical line drawing of a mechanical assembly with two views: top shows a saw cutting tool, bottom shows a motor or gear assembly (no text or labels)

Technical line drawing of a mechanical cutting tool with a circular cutter and blade (no text or symbols)

Asetukset

Mechanical assembly diagram showing a motor and gear mechanism with no visible text or symbols

Sahanterän vaihto

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Tekniset tiedot

Jännite 220–240 V AC, 50 Hz

Teho 1600 W

Technical line drawing of a mechanical assembly with two views: top shows a saw blade and tool, bottom shows a motor or pump component (no text or symbols)

Technical line drawing of a mechanical cutting tool with a circular cutter and blade (no text or symbols)

Einstellungen

Mechanical assembly diagram showing a motor and gear mechanism with rotational arrows (no text or symbols)

Sägeblattwechsel

Pflege und Wartung

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Technische Daten

Spannung 220–240 V AC, 50 Hz

Leistung 1600 W

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Machinery Directive 2006/42/EC

EN 60745-1:2009

+A11:2010

EN 60745-2-5:2010

EMC Directive 2014/30/EU

EN 55014-1:2006

+A1:2009+A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

Henrik Alfredsson

Manager Technique & Quality

Insjön, Sweden, 2017-01-31

CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN

Sverige

Postal 10 - 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutschland

Kundenservice Hotline: [phone]

E-Mail: [e-mail]

Homepage

www.clasohlson.de
