Brand	HUSQVARNA
Model	ROYAL 43 S
Machine type	Self-propelled petrol lawnmower
Cutting width	42 cm
Cutting height	20 to 75 mm
Propulsion	Self-propelled
Starting system	Pull cord starter
Fuel	Petrol
Original blade reference	511-7183-00/3
Drive belt reference	512688201
Blade bore	16 mm
Year of production	From 1997

Frequently Asked Questions - ROYAL 43 S HUSQVARNA

Is the HUSQVARNA ROYAL 43 S an electric or petrol lawnmower?

The ROYAL 43 S is a petrol engine lawnmower. The ROYAL 43 EL model is the electric version of the same range. The suffix S indicates it is self-propelled; the suffix SE refers to the variant with electric start.

What is the cutting width of the HUSQVARNA ROYAL 43 S?

The cutting width is 42 cm. This deck is suitable for medium-sized gardens, up to approximately 1,000 to 1,500 m² of lawn.

How do you adjust the cutting height?

The cutting height is adjustable from 20 to 75 mm. Adjustment is done via the mechanism on the chassis or by centralized wheel adjustment. Choose a higher height during dry periods to protect the grass.

Is the ROYAL 43 S self-propelled?

Yes. The S in the model specifically indicates self-propelled drive, provided by a drive belt system (original reference 512688201). This assistance is particularly useful on sloped terrain.

How do you start the HUSQVARNA ROYAL 43 S?

The ROYAL 43 S starts with a pull cord starter. Ensure the tank has petrol, hold down the safety lever on the handle, then pull firmly and swiftly on the starter rope. The SE version has an electric start.

The engine won't start. What should I do?

Check the following first:

• The petrol level in the tank
• The condition of the spark plug (clean or replace if dirty)
• The air filter (clean if necessary)
• The safety lever on the handle (must be held down during starting)

If the problem persists after these checks, consult an authorized Husqvarna repairer.

How do you change the blade on the HUSQVARNA ROYAL 43 S?

The original blade has the reference 511-7183-00/3 (42 cm cut, 60 mm width, 3 mm thickness, 16 mm bore). Disconnect the spark plug before any intervention, tilt the mower, unscrew the central nut, and mount the new blade respecting the cutting direction (sharp edge facing down).

Where can I find spare parts for the ROYAL 43 S?

Original parts are available from specialized garden machinery dealers: blade (ref. 511-7183-00/3) on matijardin.fr, drive belt (ref. 512688201) on espacemotoculture.fr. For engine parts, provide the number engraved on the engine block to your Husqvarna dealer.

How do you maintain the engine at the end of the season?

Before winter storage:

• Change the engine oil (replace with SAE 30 oil or as recommended by the engine manufacturer)
• Drain the petrol tank or add a fuel stabilizer
• Clean the air filter and check the spark plug
• Clean under the cutting deck to prevent corrosion

The drive belt is worn. What should I do?

The original drive belt has the reference 512688201. Replacing it requires removing the protective cover and accessing the transmission system. If you are not familiar with this type of work, seek help from an authorized Husqvarna garden machinery workshop.

How do you maintain the grass catcher?

Empty the catcher after each use. Rinse it with clear water and let it dry completely before storing. A dirty catcher reduces suction power and can cause grass clogs under the deck.

What area can the ROYAL 43 S mow?

With a 42 cm cutting width and self-propelled drive, the ROYAL 43 S is suitable for areas of approximately 600 to 1,500 m². For larger or steeper lawns, a riding mower would be more appropriate.

USER MANUAL ROYAL 43 S HUSQVARNA

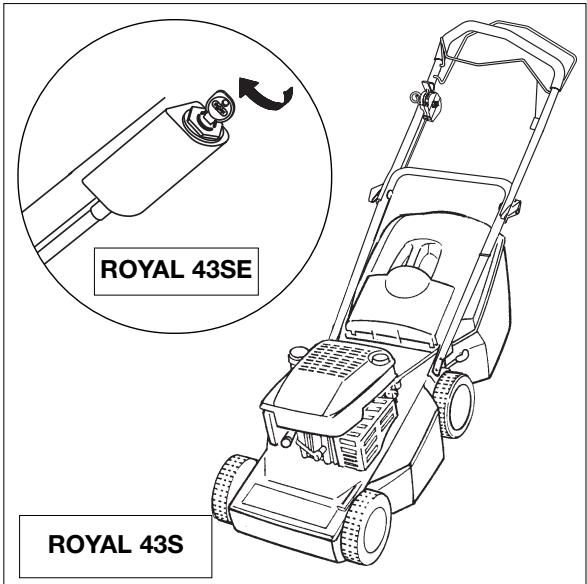

Line drawing of a lawn mower with labeled model (ROYAL 43), no other text or symbols present.

ROYAL 43SE ROYAL 43S

Simple line drawing of an open book with no text or symbols visible

ROYAL 43 ROYAL 43S ROYAL 43SE

CE

Operator's Manual

Read the operator's manual carefully and make sure that you understand the contents before using the lawnmower.

Betriebsanleitung

1. Handle Assembly
2. Grass collector
3. Bottle of oil
4. Instruction Manual
5. Operator Presence Control (OPC)
6. Powerdrive Lever (Royal 43S/SE)
7. Throttle Control (if fitted)
8. Rating Label
   9 Warning Label
9. Keystart (Royal 43SE)
10. Battery Charger (Royal 43SE)

D - INHALT

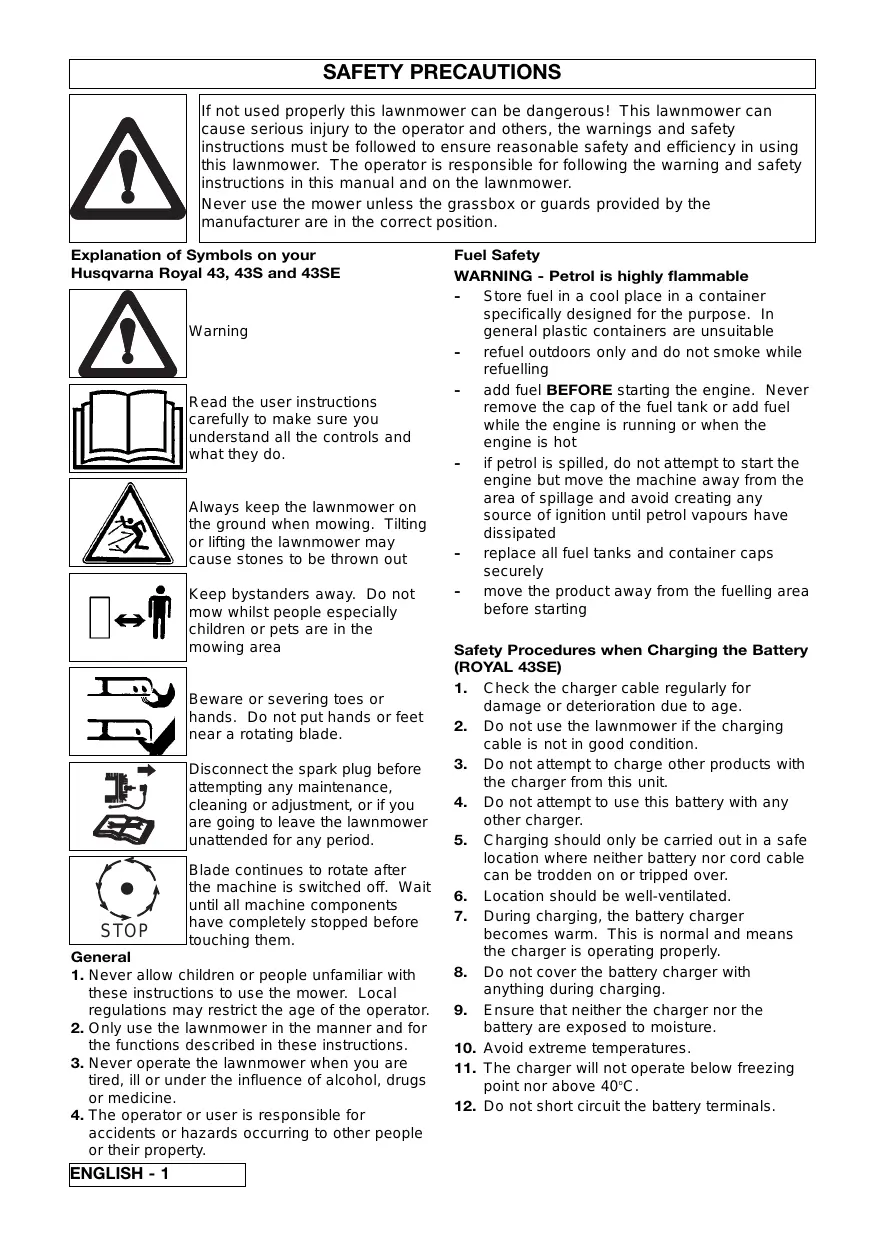

Warning symbol with exclamation mark inside a triangle (no text or numbers)

If not used properly this lawnmower can be dangerous! This lawnmower can cause serious injury to the operator and others, the warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using this lawnmower. The operator is responsible for following the warning and safety instructions in this manual and on the lawnmower.

Never use the mower unless the grassbox or guards provided by the manufacturer are in the correct position.

Explanation of Symbols on your Husqvarna Royal 43, 43S and 43SE

Warning

Read the user instructions carefully to make sure you understand all the controls and what they do.

Always keep the lawnmower on the ground when mowing. Tilting or lifting the lawnmower may cause stones to be thrown out

Diagram showing a person figure with bidirectional arrow between two rectangular shapes, likely indicating bidirectional interaction or relationship.

Keep bystanders away. Do not mow whilst people especially children or pets are in the mowing area

Beware or severing toes or hands. Do not put hands or feet near a rotating blade.

Pure mechanical diagram showing a cam and a book with an arrow, no text or symbols present

Disconnect the spark plug before attempting any maintenance, cleaning or adjustment, or if you are going to leave the lawnmower unattended for any period.

STOP

Blade continues to rotate after the machine is switched off. Wait until all machine components have completely stopped before touching them.

General

1. Never allow children or people unfamiliar with these instructions to use the mower. Local regulations may restrict the age of the operator.
2. Only use the lawnmower in the manner and for the functions described in these instructions.
3. Never operate the lawnmower when you are tired, ill or under the influence of alcohol, drugs or medicine.
4. The operator or user is responsible for accidents or hazards occurring to other people or their property.

ENGLISH - 1

Fuel Safety

WARNING - Petrol is highly flammable

• Store fuel in a cool place in a container specifically designed for the purpose. In general plastic containers are unsuitable
• refuel outdoors only and do not smoke while refuelling
• add fuel BEFORE starting the engine. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot
• if petrol is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until petrol vapours have dissipated
• replace all fuel tanks and container caps securely
• move the product away from the fuelling area before starting

Safety Procedures when Charging the Battery (ROYAL 43SE)

1. Check the charger cable regularly for damage or deterioration due to age.
2. Do not use the lawnmower if the charging cable is not in good condition.
3. Do not attempt to charge other products with the charger from this unit.
4. Do not attempt to use this battery with any other charger.

5. Charging should only be carried out in a safe location where neither battery nor cord cable can be trodden on or tripped over.

6. Location should be well-ventilated.

7. During charging, the battery charger becomes warm. This is normal and means the charger is operating properly.

8. Do not cover the battery charger with anything during charging.

9. Ensure that neither the charger nor the battery are exposed to moisture.

10. Avoid extreme temperatures.

11. The charger will not operate below freezing point nor above 40^ C.

12. Do not short circuit the battery terminals.

SAFETY PRECAUTIONS

Preparation

1. Do not mow barefoot or in open sandals. Always wear suitable clothing, gloves, and stout shoes.
2. The use of ear protection is recommended.
3. Make sure the lawn is clear of sticks, stones, bones, wire and debris; they could be thrown by the blade.
4. Before using always visually inspect to see that blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades together with their fixings in sets to preserve balance.
5. Have faulty silencers replaced.

Use

1. Do not operate the engine in a confined space where exhaust fumes (carbon monoxide) can collect.
2. Use the lawnmower only in daylight or good artificial light.
3. Avoid operating your lawnmower in wet grass, where feasible.
4. Take care in wet grass, you may lose your footing.
5. On slopes, be extra careful of your footing and wear non-slip footwear.
6. Mow across the face of slopes, never up and down.
7. Exercise extreme caution when changing direction on slopes.
8. Mowing on banks and slopes can be dangerous. Do not mow on banks or steep slopes.
9. Do not walk backwards when mowing, you could trip. Walk never run.
10. Never cut grass by pulling the mower towards you.
11. Release the Operator Presence control to stop the engine before pushing the mower across surfaces other than grass and when transporting the lawnmower to and from the area to be mowed.
12. Never operate the lawnmower with damaged guards or without guards in place.
    13 Do not overspeed the engine or alter governor settings. Excessive speed is dangerous and shortens lawnmower life.
13. Disengage all blade and drive clutches before starting. (page 6)
14. Always start the lawnmower carefully with feet well away from the blades.
15. Do not tilt lawnmower when starting the engine

16. Do not put hands near the grass discharge chute whilst engine is running.

17. Never pick up or carry a lawnmower while the engine is running

18. Spark plug wire may be hot - handle with care.
19. Do not attempt any maintenance on your lawnmower when the engine is hot.
20. Release the Operator Presence Control, to stop the engine, and wait until the blade has stopped:-

- before leaving the mower unattended for any period;

1. Release the Operator Presence Control, to stop the engine, wait until the blade has stopped, disconnect the spark plug lead and wait until the engine has cooled:-

2. before refuelling

3. before clearing a blockage;
4. before checking, cleaning or working on the appliance;
5. if you hit an object. Do not use your lawnmower until you are sure that the entire lawnmower is in a safe operating condition;
6. if the lawnmower starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury.
7. Reduce the throttle setting during engine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of mowing.

Maintenance and storage

1. Keep all nuts, bolts and screws tight to be sure the lawnmower is in safe working condition.
2. Check the grass collector frequently for wear or deterioration.
3. Replace worn or damaged parts for safety.
4. Only use the replacement blade, blade bolt, spacer and impeller specified for this product.
5. Never store the lawnmower with fuel in the tank inside a building where fumes can reach an open flame or spark.
6. Allow the engine to cool before storing in any enclosure.
7. To reduce fire hazard, keep the engine, silencer, battery compartment and fuel storage area free of grass, leaves or excessive grease.
8. If the fuel tank has to be drained, this should be done outdoors.
9. Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine.

PRODUCT RATING LABEL

B

Product Number ....

Model Number ....

Serial Number.....

Date of Purchase ....

Place of Purchase....

- PLEASE KEEP PROOF OF PURCHASE-

Your product is uniquely identified by a silver and black product rating label. To ensure you have full product information when obtaining spares or advice from one of our approved service centres or if you need to contact our customer service department you should make a note in the space provided of the information shown in Fig B

ASSEMBLY INSTRUCTIONS

Handle Assembly

Fitting the Lower handle to the Lawnmower

1. Remove handle knobs.
2. Fit the lower handle ensuring that the formed ends are located properly in corresponding slots either side of the lawnmower.(C1)
3. Secure the handle with the plastic washers and handle knobs provided. Make sure that the Lower Pull Cord Guide is on the right-hand side when viewed from the rear.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fitting the Upper Handle to the Lower Handle

1. Attach the upper handlebar.
2. Insert the bolts from the inside.(C2) Note: Place washer between wing nut and handlebar.

Pure mechanical diagram showing a curved pipe with a bolt and two separate components (no text or symbols)

Recoil Starter

1. Disconnect the spark plug lead.

2. Pull the Operator Presence Control to release the brake on the engine. (D1 - Royal 43) (D2 - Royal 43S/SE)

3. Locate cord in the pull cord guide on the lower handle.(D3).

4. Locate cord in the pull cord guide on the upper handle.(D4)

You must release the brake by pulling the OPC lever to the handle before pulling out the cord.

D1 ROYAL 43

D2 ROYAL 43S/SE

Diagram of a rope or cable structure with no visible text or symbols

Line drawing of a medical procedure with a tool and tubing (no text or symbols)

ASSEMBLY INSTRUCTIONS

Grassbox Assembly

Assembling the Grassbox Screen

- Do not cut or separate the 3 parts of the grassbox screen.

1. Fold the screen sides inwards.(E1)
2. Align the matching tabs and slots and press firmly together. Ensure clips are engaged. The assembled screen should appear as illustrated.(E2)

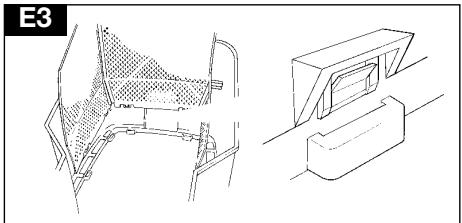

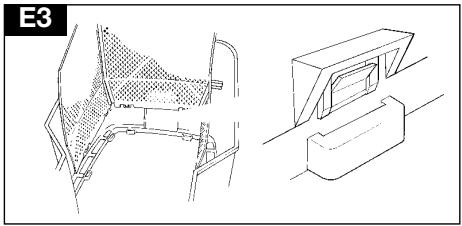

Fitting the Grassbox Screen to the Grassbox Lower

Locate the tabs on the bottom of the grassbox screen into the slots in the base of the grassbox lower and push home.(E3)

Fitting the Grassbox Lid

1. Place the upper lid onto the lower grassbox.(E4)
2. Align the clips with the slots. Push the two halves together, starting from the rear of the box and working forward.(E5) Ensure that all clips are securely connected.

Fitting Fully Assembled Grassbox to Lawnmower

1. Lift safety flap. Locate lugs of the full assembled grassbox into the slots in the top of the deck. Fit location studs on safety flap into location holes on grassbox lid.(E6)
2. Removal is the reverse procedure.

Please Note :- Ensure no gap remains between the safety flap and the grassbox

Where grass collection is not required you can use the lawnmower without the grassbox. Ensure the safety flap is fully closed

Grass Collection Indicator

- IMPORTANT! The machine must be running for the grass collection indicator to operate. Follow instructions in the Use - starting and stopping section.

1. Your lawnmower has a grass collection indicator which tells you when the grassbox needs emptying. When the indicator is visible, grass is being collected.(E7)
2. When the indicator starts to drop it's time to empty the grassbox.(E8)
3. Release the OPC Lever and remove the grassbox for emptying.

Emptying the Grassbox

1. Hold the grassbox as illustrated.(E9)
2. Loose grass will automatically clear on restarting the machine. If the ball indicator does not rise, then manually clean out the discharge shoot.
3. Ensure the discharge chute is clean and

Diagram of a mechanical or structural component with curved arrows indicating motion (no text or symbols)

Line drawing of a folded garment or patterned garment with no visible text or symbols

Technical line drawing of a vehicle interior and exterior view (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical component with mounting holes and a circular feature (no text or symbols)

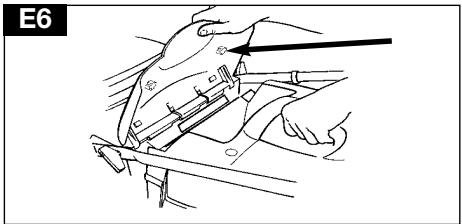

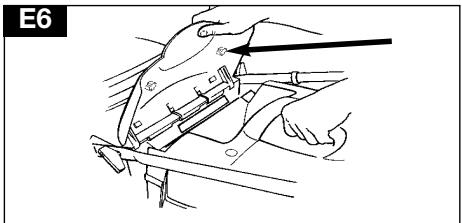

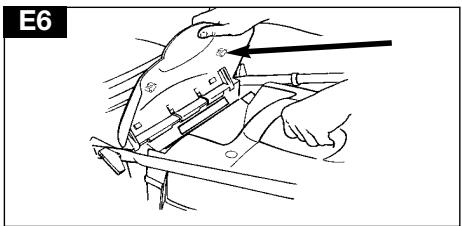

E6

Line drawing of a device casing with a handle and lid, labeled 'E7' in the top-left corner (no other text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Line drawing of a mechanical component with hands operating it (no text or symbols)

free from debris.

ENGINE NOTES

Oil

1. Check oil level periodically and after every five hours of operation.
2. Add oil as necessary to keep the level to the FULL mark on the dipstick.

3. Use a good quality SAE 30 four stroke oil.

4. To fill with oil:- a) Remove oil filler cap.(F1) b) Fill to the FULL mark on the dipstick.(F2)

5. Change the oil after the first five hours operation and thereafter every 25 working hours.

6. Always change the oil while the engine is warm - but not hot - never attempt any maintenance on a hot engine.

Mechanical assembly diagram showing a pin inserted into a housing component (no text or symbols)

Illustration of a hand pouring liquid into a funnel using a lathe tool (no text or symbols)

Petrol

1. Use fresh regular grade lead free petrol.
2. NEVER USE LEADED PETROL Using leaded petrol will make the exhaust smoke and cause irreparable damage to engines fitted with a catalytic

converter.

1. Do not fill the fuel tank when the engine is hot.

2. Do not fill the fuel tank while smoking.

3. Do not fill the fuel tank while the engine is running.

4. To avoid introducing dirt into the fuel system, wipe all grass and dirt from the petrol filler cap before unscrewing it.(G1)

5. It is recommended that you fill the tank through a funnel with a filter.(G2)

6. Wipe away spillages before starting.

Line drawing of a car engine compartment with a hand holding a circular component (no text or symbols)

Illustration of a hand pouring liquid into a funnel (no text or symbols)

Please Note :- move the product away from the fuelling area before starting

STARTING - PRIMING THE ENGINE

Please Note:- When starting the engine for the first time, fill with oil and petrol as described above in the Oil and Petrol section.

Priming is usually unnecessary when restarting a warm engine. However, cool weather may require priming to be repeated.

Starting the engine for the first time

1. Advance engine speed control to FAST “*” as illustrated in the Use - starting and stopping section.

2. Push primer bulb (H) firmly five times

3. Follow instructions in the Use - starting and stopping section.

4. If engine fails to start after three pulls of the pull cord, push primer bulb three times and r

Line drawing of a car interior with visible engine and exhaust components (no text or symbols)

Starting engine thereafter

1. Move engine speed control to FAST “” position and push primer bulb firmly three times before starting engine. (if engine stopped because it ran out of fuel, refuel engine - push primer bulb three times.

USE

Starting & Stopping Royal 43

Starting

1. Connect the spark plug lead.
2. Move the Engine Speed Control to the FAST ' 🔍' position before starting.(J1)
3. Pull the operator presence control (OPC) to release the brake on the engine and the blade.(J2)
4. Pull the recoil starter fully towards you until you feel the full resistance, return the handle slowly then pull the handle firmly towards you to its full extent.(J3)
5. After the engine has started, allow to run for 30 seconds before commencing to use.

Stopping

1. Release the OPC lever.(J2)

THROTTLE CONTROL (if fitted)

1. Fig. J4 represents the FAST (run) position.
2. Fig. J5 represents the SLOW (idle) position.

Starting & Stopping Royal 43S

Starting

1. Follow steps 1-2 for the Royal 43.
2. Pull the operator presence control (OPC) to release the brake on the engine and the blade.(J6).
3. Follow steps 4-5 for the Royal 43.

Mechanical component diagram showing a lever mechanism with no visible text or symbols

J2 ROYAL 43

J3

J4 FAST SLOW

J5 FAST SLOW

J6 ROYAL 43S

Engaging the Drive

1. Forward drive is engaged and disengaged with the Powerdrive lever at the top of the handle.(J7)
2. Releasing the Powerdrive Lever stops the forward drive automatically.

Stopping

1. Release the powerdrive lever.(J7)
2. Release the OPC lever.(J6)

Starting & Stopping Royal 43SE

Starting

1. Follow steps 1-3 for the Royal 43S
2. Turn the key and hold until the engine starts.(J8) The key will return to the original position when released.
3. If the engine fails to start when you turn the key your battery may need charging.(See page 7)

Engaging the Drive - See Royal 43S Stopping - See Royal 43S

How to Mow

• Due to engine lubrication limitations, the mower should not be used on slopes in excess of 30^ .
• Start mowing from the outside edge of the lawn, mowing in strips in alternate directions
• Mow twice a week in the growing season, your lawn will suffer if more that one third of its length is cut at one time and this may also result in poor collection.

Please Note:-

Do not overload your Lawnmower

When mowing in long thick grass a first cut with the cutting height adjusted to its highest setting, see Cutting Height, will help reduce engine overload and will help prevent damage to your lawnmower.

Cutting Height Adjustment

1. Pull the height adjustment lever away from the location slots and move it to the selected position.(K).

J7 ROYAL 43S

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

MAINTENANCE

IMPORTANT

Release the Operator Presence Control, to stop the engine, wait until the blade has stopped and disconnect the spark plug lead:-

- before clearing a blockage;

- before checking, cleaning or working on the appliance

IMPORTANT

Never use water for cleaning your lawnmower. Do not clean with chemical, including petrol, or solvents - some can destroy critical plastic parts.

Cleaning

• Disconnect the spark plug lead.
• Turn machine on it's side with the exhaust uppermost.
• Remove grass from under the deck with a brush.(L1 and L2)

• Using a soft brush - remove grass clippings from the engine air intakes and exhaust (L3), cutting height adjustment area, around the wheels (L4) and the grass collector.

• Wipe over the surface of your lawnmower with a dry cloth.

L1

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a car interior showing a brush applying material to the wheel (no text or symbols)

Illustration of a hand operating a mechanical device with a textured component (no text or symbols visible)

Cutting System

Removing the Blade

• Disconnect the spark plug lead.

• Turn machine on it's side with the exhaust uppermost.

• Use spanner to loosen blade bolt by turning anti-clockwise.(M)

• Remove the blade bolt, blade and spacer washer.

• Inspect for damage and clean as necessary.

Fitting the Blade

1. Fit the blade to the machine with the sharp edges pointing away from the machine.
2. Re-assemble blade bolt through blade and spacer washer.
3. Hold firmly and tighten blade bolt firmly with a spanner. Do not over tighten.

IMPORTANT

Do not attempt any maintenance on your lawnmower when the engine is hot.

Always handle the blade with care - sharp edges could cause injury. USE GLOVES. Renew your metal blade after 50 hours mowing or 2 years whichever is the sooner - regardless of condition. If the blade is cracked or damaged replace it with a new one.

How to Charge the Battery (ROYAL 43SE)

1. Stop your lawnmower.

2. Disconnect the spark plug.

3. Remove the cap from the charging point at the bottom of the wiring loom.(N)

4. Plug charger lead into connection on battery loom.(N)

5. Plug the battery charger into a domestic electric socket.

6. Charging will then commence.

7. Charge for 24 hours.

8. After charging, disconnect the charger from the socket and charging point.(N)

9. Replace the cap on the charging point.(N)

10. The unit is now ready for use.

N Wiring Loom charging point cap

ENVIRONMENTAL INFORMATION

Electrolux Outdoor Products are manufactured under an Environmental Management System (ISO 14001) using, where practical, components manufactured in the most environmentally responsible manner, according to company procedures, and with the potential for recycling at the end of the products' life.

• Packaging is recyclable and plastic components have been labelled (where practical) for categorised recycling.
• Awareness of the environment must be considered when disposing of ‘end-of-life’ product.
• If necessary, contact your local authority for disposal information.

BATTERY DISPOSAL

• The battery should be taken to an Approved Service Centre or your local Recycling Station.
• Do NOT dispose of used battery with household waste
• Lead/Acid batteries can be harmful and should be disposed of through the recognised recycling facility in accordance with European Regulation
• Do NOT dispose of battery to water.
• Do NOT incinerate

DISPOSAL OF FUELS AND LUBRICATING OILS

• Wear protective clothing when handling any fuels and lubricants.
• Avoid contact with skin.
• Remove petrol and engine oil before transporting the product.
• Contact your local authority for information of your nearest Recycling/Disposal Station.

- Do NOT dispose of used fuels/oils with household waste

- Waste fuels/oils are harmful, but can be recycled and should be disposed of through the recognised facilities.

- Do NOT dispose of used fuels/oils to water.

- Do NOT incinerate

MAINTENANCE

Battery Replacement

1. The battery is located underneath a cover behind the engine.
2. Stop the lawnmower and disconnect the spark plug.
3. Remove the screws from the cover.
4. Remove cover to gain access to the battery.

IMPORTANT:-Replacement batteries will need to be charged before use.

Ensure that neither the charger nor the battery are exposed to moisture

The battery pack can be replaced by unclipping the battery from its housing and disconnecting the battery pack from the battery leads.

General Guidance on Rechargeable Battery

1. Charging time is 24 hours.
2. Under normal usage the battery will be charged during the running of the engine.
3. To keep in prime condition the battery should be charged at least once every six months.
4. Exceeding the charging period may shorten the battery life.
5. Protect electric cable. Never carry the battery charger by the electric cable only.
6. If after an extended usage period the battery quickly runs down after a full 24 hour charging period, a replacement battery is probably needed.
7. Do not attempt to open the main body casing.
8. Clean only with a dry soft cloth.
9. Never use a damp cloth or flammable liquids such as petrol, white spirits, thinners etc.
10. Dispose of old batteries safely.

The engine brake cable should always be adjusted to stop the engine within 3 sec. CAUTION! For adjustment contact your authorized service dealer.

At the End of the Mowing Season

1. Replace blade, bolts, nuts or screws, if necessary.
2. Clean your lawnmower thoroughly.
3. Ask your local Service Centre to clean the air filter thoroughly and carry out any service or repairs required.
4. Drain engine of oil and petrol.

Storing your Lawnmower

1. Do not store your lawnmower immediately after use.
2. Wait until the engine has cooled to avoid a potential fire hazard.
3. Clean your lawnmower
4. Store in a cool, dry place where your lawnmower is protected from damage.

We strongly recommend that your product is serviced at least every twelve months, more often in a professional application.

Engine Maintenance Schedule

Follow the hourly or calendar intervals, whichever occur first. More frequent service is required when operating in adverse conditions

First 5 hours - Change oil.

Every 5 hours or daily - Check oil lever. Clean finger guard. Clean around muffler.

Every 25 hours or every season - Change oil if operating under heavy load or high ambient temperature. Service air cleaner.

Every 50 hours or every season - Change oil. Inspect spark arrester, if equipped.

Every 100 hours or every season - Clean cooling system*. Replace spark plug.

* Clean more often under dusty conditions, or when airborne debris is present or after prolonged operation cutting tall, dry grass.

Engine Servicing & Guarantee

The engine fitted to your lawnmower is guaranteed by the Engine Manufacturer. To obtain further information contact your dealer.

Fault Finding

Engine Will Not Start

1. Ensure OPC Lever is in the start position.
2. Check that the throttle control lever is in the ' 🔗' position.
3. Check that there is sufficient fuel in the tank and the cap air vent is clear.
4. Remove and dry the spark plug.
5. Petrol may be stale, replace. Once petrol has been replaced, it may take a little time for fresh petrol to filter through.
6. Check that the blade bolt is tight. A loose bolt could cause difficult starting.
7. If the engine will still not start, immediately disconnect the spark plug lead.
8. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Engine Will Not Turn Over (43SE only)

1. Ensure OPC Lever is in the start position.
2. Battery flat - start your lawnmower manually.
3. If the engine will still not turn over, immediately disconnect the spark plug lead.
4. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Lack of Engine Power and/or Overheating

1. Check that the throttle control lever is in the ' 🔍' position.
2. Disconnect the spark plug lead and allow the engine to cool down.
3. Clean grass clippings and debris from around the engine and air inlets and the underside of the deck including the chute.
4. Clean the engine air filter (Ask your local Approved Service Centre to clean the engine air filter thoroughly).
5. Petrol may be stale, replace. Once petrol has been replaced, it may take a little time for fresh petrol to filter through.
6. If the engine still lacks power and/or is overheating, immediately disconnect the spark plug lead.
7. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Excessive Vibration

1. Disconnect the spark plug lead.
2. Check that the blade is correctly fitted, see page 7.
3. If the blade is damaged or worn replace it with a new one.
4. If vibration persists, immediately disconnect the spark plug lead.
5. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle

Achtung

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a curved pipe with a bolt and a separate bracket (no text or symbols)

Zugstarter

Diagram of a rope knot with labeled section D3, showing rope routing and clamping mechanism (no text or symbols beyond label)

Line drawing of a medical procedure with a tool and tubing (no text or symbols)

MONTAGEANWEISUNGEN

Montage des Grasfangkorbs

Montage des Rahmens

Diagram of a mechanical or structural component with curved arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with meshed components and a close-up view of a bracket (no text or symbols)

Technical line drawing of a mechanical component (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

E6

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a handle and base (no text or symbols)

Line drawing of a mechanical component with hands operating it (no text or symbols)

ANGABEN ZUM MOTOR

Öl

Mechanical assembly diagram showing a screwdriver inserted into a housing component (no text or symbols)

Illustration of a hand pouring liquid into a funnel using a stand mixer (no text or symbols)

Benzin

Top-down view of a car's dashboard and steering wheel (no text or symbols visible)

Line drawing of a hand pouring liquid into a funnel (no text or symbols)

Line drawing of a car interior with visible engine and dashboard components (no text or symbols)

Mechanical component diagram showing a lever mechanism with no visible text or symbols

J2 ROYAL 43

Line drawing of a person's seatbelt being adjusted for a cable or grip (no text or symbols)

Mechanical assembly diagram showing a clamping device with rotating arm (no text or symbols)

Mechanical assembly diagram showing a cam mechanism with a tool and a labeled component (no text or symbols present)

WARTUNG

WICHTIG

Technical line drawing of a car wheel assembly with a hand tool (no text or symbols)

Line drawing of a car tire being brushed with a brush (no text or symbols)

Illustration of a hand using a tool to clean or repair a mechanical component (no text or symbols visible)

Schneidwerk

Messer ausbauen

Warning symbol with exclamation mark inside a triangle

Warning symbol with exclamation mark inside a triangle

Avertissement

Pure mechanical diagram showing a cam and a book with an arrow, no text or symbols present

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a curved pipe with a bolt and two separate components (no text or symbols)

Diagram of a rope knot with labeled section D3, showing rope routing and clamping mechanism (no text or symbols beyond label)

Line drawing of a medical procedure with hands holding a tool, no text or symbols present

INSTRUCTIONS DE MONTAGE

Diagram of a mechanical or structural component with arrows indicating motion direction (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with meshed components and a 3D component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical component with no visible text or symbols

E6

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a trash bin with a handle and side panel (no text or symbols)

Line drawing of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

NOTES SUR LE MOTEUR

Huile

Mechanical component diagram showing a pin inserted into a housing (no text or symbols)

Illustration of a hand pouring liquid into a funnel using a lathe tool (no text or symbols)

Essence

1. Utiliser de l'essence sans plomb ordinaire fraîche.
2. NE JAMAIS UTILISER D'ESSENCE AU PLOMB

Top-down view of a car's dashboard and steering wheel (no text or symbols visible)

Illustration of a hand pouring liquid into a funnel (no text or symbols)

Line drawing of a car's front engine compartment with visible wiring and components (no text or symbols)

Mechanical component diagram showing a lever mechanism with no visible text or symbols

J2 ROYAL 43

Line drawing of a person's seatbelt being adjusted for a cable or rope (no text or symbols)

Mechanical assembly diagram showing a robotic arm with rotating components (no text or symbols)

Mechanical assembly diagram showing a cam mechanism with a tool and a highlighted part (no text or symbols)

ENTRETIEN

IMPORTANT

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical diagram showing a hand operating a circular component with a tool, labeled L2 (no text or symbols present)

Illustration of a hand brushing a car's grille and tire (no text or symbols)

Mechanical assembly diagram showing hands operating a component with a meshed part (no text or symbols visible)

Système de Coupe

Dépose de la lame

Vibrations excessives

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Illustration of a hand using a tool to cut a circular object with a ruler, no text or symbols present

Pure mechanical diagram showing a curved pipe with a bolt and two separate parts (no text or symbols)

Terugloopstarter

Diagram of a rope knot with labeled section D3, showing rope routing and clamping mechanism (no text or symbols beyond label)

Line drawing of a medical procedure on a limb, showing a tool and clip (no text or symbols)

MONTAGE-INSTRUCTIES

Diagram of a mechanical or structural component with curved arrows indicating motion (no text or symbols)

Line drawing of a folded garment or patterned garment with no visible text or symbols

Technical line drawing of a vehicle interior and exterior view (no text or symbols)

Technical line drawing of a mechanical component (no text or symbols)

Line drawing of a mechanical component with mounting holes and a circular feature (no text or symbols)

E6

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a handle and base (no text or symbols)

Line drawing of a mechanical component with hands and a textured base (no text or symbols)

MOTOR-INFORMATIE

Olie

Mechanical assembly diagram showing a pin inserted into a housing component (no text or symbols)

Illustration of a hand pouring liquid into a funnel using a lathe (no text or symbols)

Benzine

Line drawing of a car's front engine compartment showing valve and drum (no text or symbols)

Illustration of a hand pouring liquid into a funnel (no text or symbols)

Line drawing of a vehicle's front suspension system with no visible text or symbols

Mechanical component diagram showing a lever mechanism with no visible text or symbols

J2 ROYAL 43

Line drawing of a person's seatbelt being adjusted for a cable or grip (no text or symbols)

J4 FAST SLOW

J5 FAST SLOW

J6 ROYAL 43S

Mechanical assembly diagram showing a clamping device with rotating components (no text or symbols)

Technical line drawing of a mechanical component with a tool and circular features (no text or symbols)

ONDERHOUD

BELANGRIJK

Technical line drawing of a mechanical assembly with hands operating a circular component (no text or symbols)

Mechanical diagram showing a hand operating a car tire with a tool inserted, labeled L2 (no text or symbols on the diagram itself)

Line drawing of a car interior with a brush applying material to the engine compartment (no text or symbols)

Illustration of a hand operating a mechanical device with a textured component (no text or symbols visible)

Snijmechanisme

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a curved pipe with a bolt and two separate components (no text or symbols)

Snorstarter

Diagram of a rope knot with labeled section D3, showing rope routing and clamping mechanism (no text or symbols beyond label)

Line drawing of a medical procedure on a hand holding a tool, labeled D4 (no text or symbols present)

MONTERINGSANVISNING

Diagram of a mechanical or structural component with curved arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with meshed components and a close-up view of a bracket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical component with no visible text or symbols

E6

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a handle and base (no text or symbols)

Line drawing of a mechanical component with hands operating it (no text or symbols)

MERKNADER OM MOTOREN

Olje

Mechanical assembly diagram showing a pin inserted into a housing component (no text or symbols)

Illustration of a hand pouring liquid into a funnel using a stand mixer (no text or symbols)

Bensin

Line drawing of a car's front engine compartment showing valve and drum (no text or symbols)

Line drawing of a hand pouring liquid into a funnel (no text or symbols)

Line drawing of a car's front and side engine compartment (no text or symbols)

Mechanical component diagram showing a lever mechanism with no visible text or symbols

J2 ROYAL 43

Line drawing of a person holding a tool, with an arrow indicating direction (no text or symbols)

1. Fig. J4 viser FAST (run) stilling.
2. Fig. J5 viser SLOW (tomgang) stilling.

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Technical line drawing of a mechanical component with an arrow pointing to a circular feature (no text or symbols)

VEDLIKEHOLD

VIKTIG

Slå av motoren, vent til kniven har stoppet og kople fra tennpluggledningen:-

Technical line drawing of a mechanical component with no visible text or symbols

Technical illustration of a mechanical assembly with a tool and component (no text or symbols)

Illustration of a hand brushing a car wheel with a brush (no text or symbols)

Illustration of a hand operating a mechanical device with a textured component (no text or symbols visible)

Klippesystem

Fjerning av kniven

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a curved pipe with a bolt and two separate components (no text or symbols)

Käynnistysvaijeri

Diagram of a rope or cable structure with no visible text or symbols

Line drawing of a medical procedure with a tool and tubing (no text or symbols)

KOKOONPANO-OHJEET

Diagram of a mechanical or structural component with curved arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with cross-sectional views (no text or symbols)

Technical line drawing of a mechanical component (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

E6

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a handle and base (no text or symbols)

Line drawing of a mechanical component with hands operating it (no text or symbols)

MOOTTORIA KOSKEVIA TIETOJA

Öljy

Mechanical assembly diagram showing a pin inserted into a housing component (no text or symbols)

Illustration of a hand pouring liquid into a funnel using a stand mixer (no text or symbols)

Bensiini

Line drawing of a car engine compartment with a hand holding a circular component (no text or symbols)

Line drawing of a hand pouring liquid into a funnel (no text or symbols)

Line drawing of a car's front wheel assembly (no text or symbols)

Mechanical component diagram showing a lever mechanism with no visible text or symbols

J2 ROYAL 43

Line drawing of a person holding a tool, with an arrow indicating direction (no text or symbols)

Vaihteen lukitus

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Technical line drawing of a mechanical component with a tool and circular features (no text or symbols)

KUNNOSSAPITO

TÄRKEÄÄ

Illustration of a robotic car with a hand using a tool, no text or symbols present

Close-up of a hand brushing a car engine component (no visible text or symbols)

Line drawing of a hand using a tool to clean or repair a mechanical component (no text or symbols visible)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a curved pipe with a bolt and two separate components (no text or symbols)

Ryckstart

Diagram of a rope knot with labeled section D3, showing rope routing and clamping mechanism (no text or symbols beyond label)

Line drawing of a medical procedure on a hand holding a tool, labeled D4 (no text or symbols present)

MONTERINGSINSTRUKTIONER

Gräsuppsamlare

Diagram of a mechanical or structural component with curved arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with meshed components and a close-up view of a bracket (no text or symbols)

Technical line drawing of a mechanical component (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

E6

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a handle and base (no text or symbols)

Line drawing of a mechanical component with hands operating it (no text or symbols)

MOTOR

Olja

Mechanical assembly diagram showing a pin inserted into a housing component (no text or symbols)

Illustration of a hand pouring liquid into a funnel using a stand mixer (no text or symbols)

Bensin

Top-down view of a car's front wheel and dashboard (no text or symbols visible)

Line drawing of a hand pouring liquid into a funnel (no text or symbols)

Line drawing of a car's front compartment showing engine, dashboard, and exhaust components (no text or symbols)

Påföljande starter

Mechanical component diagram showing a lever mechanism with no visible text or symbols

J2 ROYAL 43

J3

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Mechanical assembly diagram showing a cam mechanism with a tool and a circular component (no text or symbols)

UNDERHÅLL

VIKTIGT

Diagram of a mechanical assembly with gears and a tool, no visible text or symbols

Mechanical component diagram showing a brush applying material to a vehicle (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Klippsystem

Demontering av kniv

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a curved pipe with a bolt and a separate bracket (no text or symbols)

Rekylstarter

Diagram of a rope knot with labeled section D3, showing rope routing and knot termination (no text or symbols beyond label)

Line drawing of a medical procedure on a human arm, showing hand placement and laparoscopic cable (no text or symbols)

Diagram of a mechanical or structural component with curved arrows indicating motion (no text or symbols)

Line drawing of a folded garment or patterned garment with no visible text or symbols

Technical line drawing of a vehicle interior and exterior view (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical component with no visible text or symbols

E6

Line drawing of a device casing with a handle and lid, labeled 'E7' in the top-left corner (no other text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Line drawing of a mechanical component with hands and a textured base (no text or symbols)

MOTORINFORMATION

Olie

Mechanical assembly diagram showing a screwdriver inserted into a component (no text or symbols visible)

Illustration of a hand pouring liquid into a funnel using a stand mixer (no text or symbols)

Benzin

Line drawing of a car dashboard with a hand inserting a component (no text or symbols)

Line drawing of a hand pouring liquid into a funnel (no text or symbols)

Line drawing of a car's front engine compartment showing valve and gear assembly (no text or symbols)

Mechanical component diagram showing a lever mechanism with no visible text or symbols

J2 ROYAL 43

Illustration of a person holding a tool with an arrow indicating direction (no text or symbols present)

J4 FAST SLOW

J5 FAST SLOW

J6 ROYAL 43S

Tilkobling af træk

Mechanical assembly diagram showing a rotating component with no visible text or symbols

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

VEDLIGEHOLDELSE

VIGTIGT

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a car interior showing a brush applying material to the wheel (no text or symbols)

Line drawing of a hand operating a mechanical device with a textured component (no text or symbols)

Klippesystem

Afmontering af kniv

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a screw and bracket assembly without any text, numbers, or symbols

Arranque manual

Diagram of a rope knot with labeled section D3, showing rope routing and clamping mechanism (no text or symbols beyond label)

Line drawing of a medical procedure on a limb, showing a tool and clip (no text or symbols)

Recogedor de hierba

Diagram of a mechanical or structural component with curved arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with meshed components and a close-up view of a bracket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical component or bracket with mounting holes and a circular feature (no text or symbols)

E6

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with a handle and base (no text or symbols)

Line drawing of a mechanical component with hands operating it (no text or symbols)

NOTAS ACERCA DEL MOTOR

Aceite

Mechanical component diagram showing a screwdriver inserted into a housing (no text or symbols)

Illustration of a hand pouring liquid into a funnel using a stand mixer (no text or symbols)

Gasolina

Top-down view of a car dashboard with a hand holding a circular component (no visible text or symbols)

Line drawing of a hand pouring liquid into a funnel (no text or symbols)

Line drawing of a car's front engine compartment showing valve and gear assembly (no text or symbols)

Mechanical component diagram showing a lever mechanism with no visible text or symbols

J2 ROYAL 43

Line drawing of a person holding a tool, with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a clamping device with no visible text or symbols

Arranque y parada de la Royal 43SE

Arranque

Technical line drawing of a mechanical component with a tool and circular features (no text or symbols)

MANTENIMIENTO

IMPORTANTE

Mechanical assembly diagram showing hands operating a circular component with levers and gears (no text or symbols)

Mechanical diagram showing a tool interacting with a car body (no text or symbols visible)

Line drawing of a vehicle's wheel assembly with a brush applying material (no text or symbols)

Line drawing of a hand operating a mechanical device with a textured handle (no text or symbols)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Pure mechanical diagram showing a curved pipe with a bolt and two separate parts (no text or symbols)

Diagram of a rope or cable structure with no visible text or symbols

Line drawing of a medical procedure on a patient's arm, showing hand placement and laparoscopic cable (no text or symbols)

INSTRUÇÕES DE MONTAGEM

Diagram of a mechanical or structural component with curved arrows indicating motion (no text or symbols)

Line drawing of a folded garment or patterned garment with no visible text or symbols

Technical line drawing of a vehicle interior and exterior view (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical component with no visible text or symbols

E6

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with a handle and base (no text or symbols)

Line drawing of a mechanical component with hands operating it (no text or symbols)

NOTAS SOBRE O MOTOR

Óleo

Mechanical assembly diagram showing a screwdriver inserted into a component (no text or symbols)

Illustration of a hand pouring liquid into a funnel using a stand mixer (no text or symbols)

Gasolina

Line drawing of a car engine compartment with a hand holding a circular component (no text or symbols)

Line drawing of a hand pouring liquid into a funnel (no text or symbols)

Line drawing of a car's front compartment showing engine, dashboard, and exhaust components (no text or symbols)

Arranque Posterior do Motor

Mechanical component diagram showing a lever mechanism with no visible text or symbols

J2 ROYAL 43

J3

Engrenamento

Mechanical assembly diagram showing a robotic arm with rotating components (no text or symbols)

Technical line drawing of a mechanical component with a tool and circular features (no text or symbols)

MANUTENÇÃO

IMPORTANTE

Mechanical assembly diagram showing a rotating component with levers and gears (no text or symbols)

Mechanical assembly diagram showing a motor or gear mechanism with no visible text or symbols

Line drawing of a vehicle's brush applying paint to a car (no text or symbols)

Illustration of a hand cleaning a car wheel rim (no text or symbols)

Sistema de Corte

Remoção da Lâmina

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Illustration of a hand using a tool to cut a circular object with a ruler, no text or symbols present

Pure mechanical diagram showing a curved pipe with a bolt and a separate bracket (no text or symbols)

Cavo di accensione

Diagram of a rope or cable structure with no visible text or symbols

Line drawing of a medical procedure on a patient's arm, showing hand placement and laparoscopic cable (no text or symbols)

Diagram of a mechanical or structural component with curved arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with meshed components and a close-up view of a bracket (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical component with no visible text or symbols

E6

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with a handle and base (no text or symbols)

Line drawing of a mechanical component with hands operating it (no text or symbols)

NOTE SUL MOTORE

Olio

Mechanical assembly diagram showing a screwdriver inserted into a component (no text or symbols visible)

Illustration of a hand pouring liquid into a funnel using a lathe tool (no text or symbols)

Benzina

Line drawing of a car's front engine compartment showing valve and gear (no text or symbols)

Line drawing of a hand pouring liquid into a funnel (no text or symbols)

Line drawing of a car interior with visible structural components and no text or symbols

Mechanical component diagram showing a lever mechanism with no visible text or symbols

J2 ROYAL 43

Line drawing of a person holding a tool, with an arrow indicating direction (no text or symbols)

J4 FAST SLOW

J5 FAST SLOW

J6 ROYAL 43S

Mechanical assembly diagram showing a clamping tool with rotating arm (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and an arrow pointing to a feature (no text or symbols present)

MANUTENZIONE

IMPORTANTE

Mechanical diagram showing a hand using a tool to cut a circular component with visible teeth and a label 'L2' (no text or symbols on the diagram itself)

Illustration of a hand brushing a vehicle's brush and tire (no text or symbols)

Line drawing of a hand cleaning a car engine component (no text or symbols)

Sistema di taglio

Electrolux Outdoor Products

Aycliffe Industrial Park

NEWTON AYCLIFFE

Co.Durham DL5 6UP

ENGLAND

Telephone - (00) 44 1325 300303 Fax - (00) 44 1325 310339

UK Customer Helpline- 01325 300303 Fax - 01325 310339

Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice. Electrolux Outdoor Products manufacture products for a number of well known brands under various registered patents, designs and trademarks in several countries.

© Electrolux Outdoor Products Ltd. Registered Office, Electrolux Works, Oakley Road, Luton LU4 9QQ Registered number 974979 England

From the Electrolux Group. The world's No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
