USER MANUAL EL-2910R SHARP

ELECTRONIC PRINTING CALCULATOR

Notes for handling Lithium batteries:

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Disposethe used batteries according to the manufacturer's instructions.

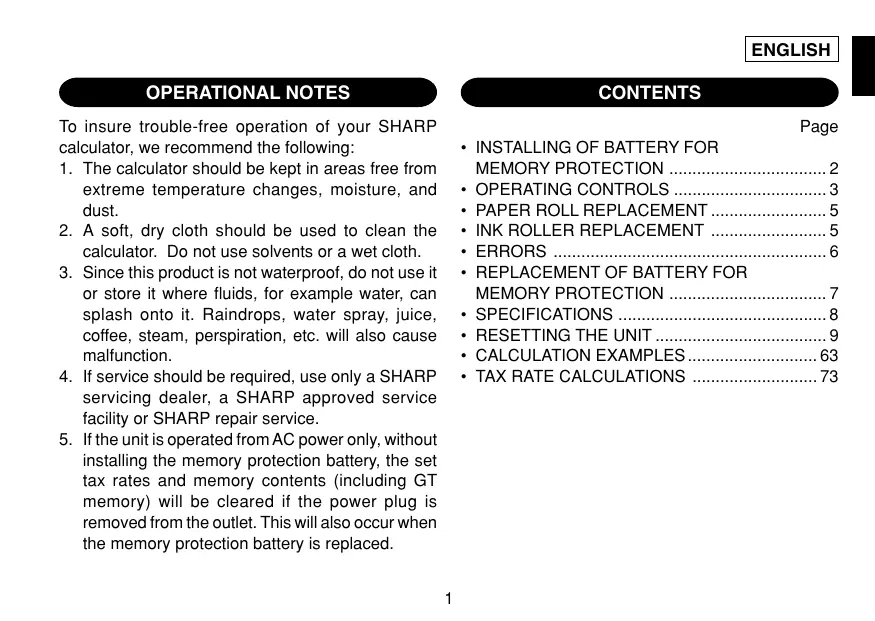

To insure trouble-free operation of your SHARP calculator, we recommend the following:

1. The calculator should be kept in areas free from extreme temperature changes, moisture, and dust.
2. A soft, dry cloth should be used to clean the calculator. Do not use solvents or a wet cloth.
3. Since this product is not waterproof, do not use it or store it where fluids, for example water, can splash onto it. Raindrops, water spray, juice, coffee, steam, perspiration, etc. will also cause malfunction.
4. If service should be required, use only a SHARP servicing dealer, a SHARP approved service facility or SHARP repair service.
5. If the unit is operated from AC power only, without installing the memory protection battery, the set tax rates and memory contents (including GT memory) will be cleared if the power plug is removed from the outlet. This will also occur when the memory protection battery is replaced.

CONTENTS

Page

• INSTALLING OF BATTERY FOR MEMORY PROTECTION 2
  OPERATING CONTROLS 3
  PAPER ROLL REPLACEMENT 5
• INK ROLLER REPLACEMENT 5
• ERRORS 6
• REPLACEMENT OF BATTERY FOR MEMORY PROTECTION
  SPECIFICATIONS 8
• RESETTING THE UNIT 9
  CALCULATION EXAMPLES 63
  TAX RATE CALCULATIONS 73

INSTALLING OF BATTERY FOR MEMORY PROTECTION

Before using for the first time, remove the attached lithium battery, and install it in the equipment according to the following procedure.

If the power cord is unplugged by accident when operating with AC power only, the set tax rate and the contents of memory will be lost.

1) Turn the power switch "OFF" and unplug the power supply plug from the outlet.
2) Remove the battery cover on the back of the unit. (Fig. 1)
3) Wipe the battery well with a dry cloth and place the plus "+" side upward. (Fig. 2)
4) Replace the battery cover by reversing the removal procedure.

Fig. 1

Fig. 2

5) Press the RESET switch on the back of the unit (See page 9).

After battery installation

• Connect the power supply plug to an outlet and turn the power switch "ON".
  Check that "0." is displayed. If "0." is not displayed, remove the battery, reinstall it, and check the display again.
• On the battery replacement date label found on the back of the unit, write down the month and year when the battery is installed, as a reference for the next battery replacement.

OPERATING CONTROLS

POWER SWITCH; PRINT / ITEM COUNT MODE SELECTOR:

"OFF": Power OFF

Power ON. Set to the non-print mode.

"P": Power ON. Set to the print mode.

"P·IC": Power ON. Set to the print mode.

Each time + or - is pressed, in the case of additional and subtraction, or M^+ or M^- is pressed, in the case of memory calculations, the associated item counter is incremented by one. Select the "P-IC" position to print the counter values.

• The count is printed when the calculated result is obtained.
• Pressing of * , C/CCE C/CCE clears the counter.

Note: The counter has a maximum

capacity of 3 digits (up to +999). If the count exceeds the maximum, the counter will recount from zero.

DECIMAL / ADD MODE SELECTION:

"F": Floating.

"63210": Fixed.

"A": Add mode.

ROUNDING SELECTOR:

"An answer is rounded up.
"5/4": An answer is rounded off.
"An answer is rounded down.

GRAND TOTAL / RATE SETTING MODE SELECTOR:

"GT": This selector will accumulate the following: (^* + ^n will be printed.)

• Addition and subtraction totals obtained with * .

Neutral, GT OFF.

"RATE SET": Set the key to position to enter (or change) the tax rate.

PAPER FEED KEY

LAST DIGIT CORRECTION KEY

GRAND TOTAL KEY

NON-ADD KEY

SUBTOTAL KEY

CLEAR / CLEAR ENTRY KEY

TOTAL KEY

EQUAL KEY

CHANGE SIGN KEY:

Changes the algebraic sign of a number (i.e., positive to negative or negative to positive).

MARKUP KEY:

Used to perform mark-ups and mark-down.

RECALL AND CLEAR MEMORY KEY

RECALL MEMORY KEY

PERCENT CHANGE KEY

TAX-INCLUDING KEY

PRE-TAX KEY

DISPLAY SYMBOLS:

M : Memory symbol

Appears when a number is in the memory.

• : Minus symbol

Appears when a number is negative.

: Error symbol

Appears when an overflow or other error is detected.

PAPER ROLL REPLACEMENT

Never insert paper roll if torn. Doing so will cause paper to jam. Always cut leading edge with scissors first.

1) Insert the leading edge of the paper roll into the opening. (Fig. 1)
2) Turn the power on and feed the paper by pressing (Fig. 2)
3) Lift the attached metal paper holder up and insert the paper roll to the paper holder. (Fig. 3)

Fig. 1

Fig. 2

Fig. 3

DO NOT PULL PAPER BACKWARDS AS THIS MAY CAUSE DAMAGE TO PRINTING MECHANISM.

INK ROLLER REPLACEMENT

If printing is blurry even when the ink roller is in the proper position, replace the roller.

Ink roller: Type EA-781R-BK (Black)
Type EA-781R-RD (Red)

WARNING

APPLYING INK TO WORN INK ROLLER OR USE OF UNAPPROVED INK ROLLER MAY CAUSE SERIOUS DAMAGE TO PRINTER.

1) Set the power switch to OFF.
2) Remove the printer cover. (Fig. 1)
3) Remove the ink roller by turning it counterclockwise and pulling it upward. (Fig. 2)
4) Install the correct color new ink roller and press it in the correct position. Make sure that the ink roller is securely in place. (Fig. 3)
5) Put back the printer cover.

Fig. 1

Fig. 2

Fig. 3

Cleaning the printing mechanism

If the print becomes dull after long time usage, clean the printing wheel according to the following procedures:

1) Remove the printer cover and the ink roller.
2) Install the paper roll and feed it until it comes out of the front of the printing mechanism.
3) Put a small brush (like a tooth brush) lightly to the printing wheel and clean it by pressing

4) Put back the ink roller and the printer cover.

Notes: Do not rotate the printing mechanism manually, this may damage the printer.

• Never attempt to turn the printing belt or restrict its movement while printing. This may cause incorrect printing.

ERRORS

There are several situations which will cause an overflow or an error condition. When this occurs, will be displayed. The contents of the memory at the time of the error are retained.

If is displayed at the time of the error, "..." will be printed in black and CCE must be used to clear the calculator.

Error conditions:

1. When the integer portion of an answer exceeds 12 digits.

2. When the integer portion of the contents of the memory exceeds 12 digits.

$$ (E x. \boxed {*} M) 9 9 9 9 9 9 9 9 9 9 9 9 \boxed {M +} 1 \boxed {M +}) $$

1. When any number is divided by zero. (Ex. 5 ÷ 0 =).

2. This unit is equipped with a key input buffer (12 row max.), and it may give an error message if you exceed the buffer limit by pressing keys sequentially during printing.

REPLACEMENT OF BATTERY FOR MEMORY PROTECTION

Time for battery replacement

Replace with a new battery once 2 year.

Method of battery replacement

Use one lithium battery (CR2032).

Note: When replacing the battery, the set tax rate and the memory contents will be lost. You may want to write down the tax rate and other important numbers on a sheet of paper.

1) Turn the power switch "OFF" and unplug the power supply plug from the outlet.
2) Remove the battery cover on the back of the unit. (Fig. 1)
3) Remove the exhausted battery and install one new lithium battery. Wipe the battery well with a dry cloth and place the plus "+" side upward. (Fig. 2)
4) Replace the battery cover by reversing the removal procedure.

Fig. 1

Fig. 2

5) Press the RESET switch on the back of the unit (See page 9).

After battery replacement

• Connect the power supply plug to an outlet and turn the power switch "ON".

Check that "0." is displayed. If "0." is not displayed, remove the battery, reinstall it, and check the display again.

• Reset the tax rate.
• On the battery replacement date label found on the back of the unit, write down the month and year when the battery is replaced, as a reference for the next battery replacement.

Precautions on battery use

• Do not leave an exhausted battery in the equipment.
• Do not expose the battery to water or flame, and do not take it apart.
• Store batteries out of the reach of small children.

SPECIFICATIONS

Operating capacity: 12 digits
Power supply: Operating: AC: 220V-230V, 50Hz
Memory backup: 3V ... (DC)
(Lithium battery CR2032 × 1)

Memory Protection Battery lifespan: Approx. 2 years. (tested and confirmed at 25^ (77^) ; may change due to usage environment)

PRINTING SECTION

Printer: Mechanical printer Printing speed: Approx. 3.0 lines/sec.

Printing paper: 57 mm (2-1/4") - 58 mm (2-9/32") wide

80 mm (3-5/32") in diameter (max.)

Operating temperature: 0^ - 40^ (32^ - 104^)

Power consumption: 74 mA

Weight: Approx. 1.3 kg (2.87 lb.) (with battery)

Accessories: 1 lithium battery, 1 battery replacement date label (attached on the unit's back body), 1 paper roll, 2 ink rollers (installed), and operation manual

RESETTING THE UNIT

Strong impacts, exposure to electrical fields, or other unusual conditions may render the unit inoperative, and pressing the keys will have no effect. If this occurs, you will have to press the RESET switch on the bottom of the unit. The RESET switch should be pressed only when:

• an abnormal event occurs and all keys are disabled.
• you install or replace the battery.

Notes:

• Pressing the RESET switch will clear the stored tax rate and other data stored in the memory.
• Use only a ballpoint pen to press the RESET switch. Do not use anything breakable or anything with a sharp tip, such as a needle.
  After pressing the RESET switch, connect the power supply plug to an outlet. Turn the power switch "ON" and check that "0." is displayed.

DEUTSCH

"OFF": Mise hors tension.

TECLA DE USO MULTIPLE:

Seutiliza pararealizaraumentoorebajas.

Aprox. 3,0 lines/seg.

Papel de impresión:

57 mm - 58 mm de ancho,

80 mm de diametro (max.)

Temperatura: 0^ - 40^

Potencia: 74 mA

Dimensiones: 221 mm (An.) × 305 mm (Pr.) × 72 mm (Al.)

Peso: Aprox. 1,3kg (con pila)

CORRECTIETOETS VOOR LAATSTE CIJFER

EINDTOTAAL-TOETS

NIET-TOEVOEGEN TOETS

SUBTOTAAL TOETS

WISSEN / INVOER WISSEN TOETS

TOTAAL TOETS

GELIKTEKEN TOETS

POSITIEF/NEGATIEF-OMSCHAKELTOETS:

1. Press C/CCE prior to beginning any calculation.
2. Before performing memory calculation, first clear the memory, and to before performing grand total memory calculation, first clear the grand total memory.

Memory: Press +M .

Grand total memory: Press Gt twice.

1. If an error is made while entering a number, press CCE or and enter the correct number.
2. Negative values are printed with “-” symbol in red.

$$ \begin{array}{c} \text {O N} \ \text {O F F} \bullet \text {P P I C} \ \boxed {\square} \end{array} = \text {" P "}, \quad \begin{array}{c} \text {G T} \bullet \text {R A T E S E T} \ \boxed {\square} \end{array} = \text {" } \bullet , $$

$$ \begin{array}{l} \uparrow 5 / 4 \downarrow \ \hline \end{array} = D o n t \text {c a r e .}, \quad \begin{array}{l} F 6 3 2 1 0 A \ \hline \end{array} = " F" $$

RECHNUNGSBEISPIELE

A. 25 × 3 = 75 25 × 4 = 100

25 × 3 =	25.	25·× 3·=
	75.	75·*
4 =	100.	4·=
		100·*

B. 36 ÷ 4 = 9 136 ÷ 4 = 34

36÷4	36.	36·÷4·=9·*
136=	9.	136·=34·*
	34.

PERCENT / PROZENTE / POURCENTAGE / PERCENTAJES / PERCENTUALI / PROCENT / PERCENTAGE

A. 500 × 14.2% = 71

500 × 14.2 %	500.	500• × 14•2 %
	71.	71• *

B. 500 × ( 1 + 14.2% ) = 571

500 × 14.2 %	500.	500· × 14.2 %
	71.	71· *
+	571.	571·+%

C. 500 × (1 - 14.2%) = 429

500 × 14.2 %	500.	500·× 14.2 %
	71.	71·*
-	429.	429·-%

MEMORY CALCULATION / SPEICHERRECHNUNG / CALCUL AVEC MÉMOIRE / CÁLCULO DE MEMORIA / CALCOLI CON MEMORIA / RÄKNING MED MINNE / GEHEUGENBEREKENGEN

(8732 × 3) - (42730 ÷ 8) = 20854.75

8732	*1×M+	8,732.	8·732·×3·=
		M 26,196.	26·196·M+
42730	÷M-	M 42,730.	42·730·÷8·=
		M 5,341.25	5·341·25 M-
○M	M 20,854.75	20,854.75	20·854·75 M◇
		20,854.75	20·854·75 M*

EXAMPLE: Calculate the dollar difference (a) and the percent change (b) between two yearly sales figures 1,500 in one year and 1,300 in the previous.

TAX RATE CALCULATIONS

STEUER-BERECHNUNGEN

CALCULS DE TAXE

CALCULOS CON EL TIPO DE IMPUESTO

EXAMPLE 1: Set a 5% tax rate.

GT·RATE SET
5	5.
GT·RATE SET	0.	5·%

EXAMPLE 2: Calculate the tax on $800 and calculate the total including tax. (tax rate: 5%)

EXAMPLE 3: Perform two calculations using 840 and 525, both of which already include tax. Calculate the tax on the total and the total without tax. (tax rate: 5%)

THE VOLTAGE USED MUST BE THE SAME AS SPECIFIED ON THIS CALCULATOR. USING THIS CALCULATOR WITH A VOLTAGE HIGHER THAN THAT SPECIFIED IS DANGEROUS AND MAY RESULT IN A FIRE OR OTHER TYPE OF ACCIDENT CAUSING DAMAGE. SHARP WILL NOT BE HELD RESPONSIBLE FOR ANY DAMAGE RESULTING FROM USE OF THIS CALCULATOR WITH OTHER THAN THE SPECIFIED VOLTAGE.

WARNING

The socket outlet shall be installed near the equipment and shall be easily accessible.

Vorsicht!

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.
