Product Type	Lawn Raker / Scarifier
Brand	Cocraft
Model	LR36 (YT6701-UK / YT6701)
Rated Voltage	230–240 V, 50 Hz
Power	1,800 W
Speed (No Load)	3,600 rpm
Working Width	360 mm
Weight	14 kg
Noise Level (LpA)	86.9 dB(A) (KpA 3 dB)
Noise Level (LwA)	102 dB(A) (KwA 3 dB)
Vibration Level	3.944 m/s² (K 1.5 m/s²)
Height Adjustment	4 settings: +5 mm, 0 mm, -5 mm, -10 mm
Handle Adjustment	Yes, with lock levers
Grass Collector	Included, easy attach/detach
Safety Features	Safety cut-off button, start lever, double insulation, 30 mA RCD recommended
IP Protection	Not specified, use in dry conditions
Power Supply	Mains powered, extension lead required for outdoor use
Intended Use	Domestic only, not for professional use or hire
Maintenance	Clean with damp cloth, check bolts, keep ventilation ports clear
Reparability	Use only genuine spare parts, repairs by qualified technicians

Frequently Asked Questions - LR36 Cocraft

How do I start the lawn raker?

Press and hold the safety cut-off button, then clasp the start lever without releasing the button. Release the safety cut-off while holding the start lever.

How do I adjust the working height?

Use the height adjustment lever to select one of four settings: +5 mm (above normal), 0 (normal), -5 mm (below normal), or -10 mm (below normal). Always set to highest height when starting.

What safety precautions should I take before use?

Read the manual, wear long trousers and sturdy shoes, remove objects from the area, ensure the mains lead is intact, and only use during daylight or good lighting.

Can I use an extension cord?

Yes, only use an extension lead approved for outdoor use. Connect it to the mains lead socket and route it through the handle's strain-relief. The mains outlet must be protected by a 30 mA RCD.

How do I stop the machine?

Simply release the start lever. The blades will continue to rotate briefly after shutdown.

What should I do if the machine vibrates abnormally?

Immediately turn off and unplug the machine. Check the blades and rake tines for damage or debris. Replace or repair if necessary before restarting.

How do I clean and maintain the lawn raker?

After use, unplug and let cool. Clean the exterior with a lightly damp cloth and mild detergent. Keep the ventilation ports clear. Regularly check bolts and nuts for tightness.

How do I empty the grass collector?

Turn off and unplug the machine. Lift the discharge cover, detach the collector, empty it, and clean the discharge chute with a tool (never use hands or feet). Reattach by hooking the pins into the notches.

What is the correct way to use the machine on slopes?

Always scarify across slopes, not up and down. Be extra careful when changing direction. Do not use on steep slopes. Keep the mains lead trailing on already-scarified area.

Where should I store the lawn raker?

Store in a dry, sheltered place out of reach of children. Ensure it is cool, clean, and all bolts are tightened. Unplug and allow to cool before storing.

USER MANUAL LR36 Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Blue and black lawn mower with mesh cover, shown from top-down view (no text or symbols visible)

Art.no Model

18-4458

31-5275

YT6701-UK

YT6701

Ver. 20151006

Original instructions

Bruksanvisning i original

Lawn Raker/Scarifier

Art.no 18-4458 Model YT6701-UK

31-5275 YT6701

Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services.

Safety

Warning!

Read the instruction manual before operating this machine

CE marking

Double insulation

To avoid electric shock avoid cutting the grass after it has rained. Do not leave the lawnmower outdoors during rain.

The blades will continue to rotate after the motor has been turned off.

Extremely sharp cutting blades. The blades will continue to rotate after the motor has been turned off. Unplug the mains lead before carrying out any maintenance, repairs or service.

Keep bystanders at a safe distance.

Keep the mains lead away from the rotating cutting blade.

General safety instructions

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The product should only be used as described in the instruction manual.
• Remember that it is the user who is ultimately responsible for any accidents or hazards that cause possible injury to others and to property.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The lawn raker should be connected to a mains outlet protected by a 30 mA RCD.
• Never use the lawn raker when you are tired, sick, under the influence of alcohol or medicine.

Pre-work safety precautions

• Read the entire instruction manual carefully.
• Never let children or others use the lawn raker without having read the instruction manual. Check for any local regulations that may stipulate a minimum operating age.
• Never use the lawn raker in the presence of bystanders, especially children or animals.
• Always use appropriately designed footwear and long trousers. Never use the lawn raker while barefoot or wearing open-toed sandals.
• Never wear loose-fitting clothing or clothes which have any loose hanging straps, bands, etc.
• Always inspect the area to be scarified before starting work. Remove any objects from the area to be scarified that can be thrown by the lawn raker.
• Make sure that the lawn raker is completely assembled and that all parts are whole and functioning normally before commencing work.
• Check that all cables are whole and undamaged. Also check the lawn raker's fixed motor cable.
• Never use the lawn raker if any of its cables or connections is damaged.
• Make sure that all screws and bolts are properly tightened and that all safety devices are in place before commencing work.

Operating safety precautions

• The lawn raker is not designed for professional use or to be used for hire. The product is only intended for domestic use.
• Only use extension leads approved for outdoor use.
• Only use the lawn raker during daylight hours or under good lighting conditions.
• The lawn raker should only be connected to a 230–240 V, 50 Hz mains outlet protected by a 30 mA RCD.
• Avoid scarifying wet grass.
  • Always cut at an easy pace. Do not hurry.
• Be extra careful when scarifying on slopes.
  • Always scarify across slopes. Never up and down.
  • Always be extra careful when changing directions on a slope.
• Never scarify on steep slopes.
  • Always be extra careful when backing or pulling the lawn raker towards yourself.
• Always turn off the lawn raker and pull the plug from the mains whenever crossing other surfaces, such as gravel, asphalt, etc.
• Never use the lawn raker if any part of the body has been damaged. Never use the lawn raker without having the collector attached.
• Make sure that the lawn raker stands steady on all four wheels before starting. Keep hands and feet away from the rotating blades at all times.
• Turn off the lawn raker and pull out the plug from the wall socket, whenever taking a pause from work.
• Turn off the lawn raker and pull out the plug from the wall socket, whenever emptying the collector, cleaning or carrying out any other type of maintenance.
• Turn off the lawn raker and pull out the plug from the wall socket, whenever the blades strike any unidentified object. Check the lawn raker's blades and rake tines. Repair any eventual damage before restarting the lawn raker.
• If any abnormal vibration or noise is detected, turn off the lawn raker and unplug it immediately. Check the blades and rake tines, tighten any loose screws and repair any damage before recommencing work.
• Always be aware of the location and position of the mains lead while scarifying. Make sure that the mains lead does not come into contact with the lawn raker or its rotating blades.

Product description

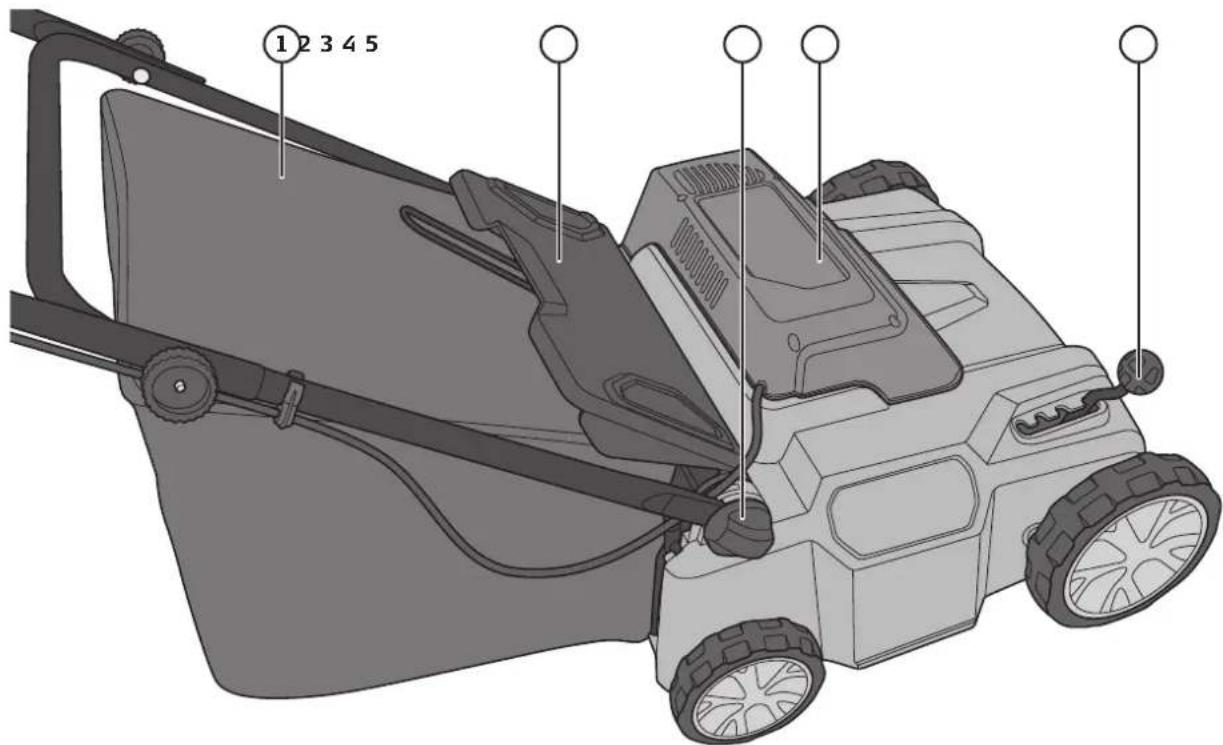

1. Collector
2. Discharge cover
3. Bottom handle chassis connection
4. Motor cover
5. Height adjustment lever

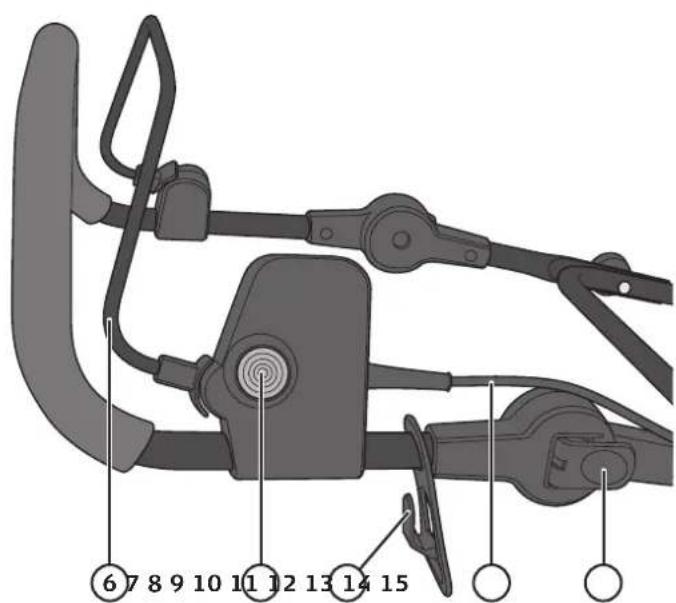

1. Start lever
2. Safety cut-off
3. Strain-relief
4. Motor cable
5. Upper handle adjustments

Mechanical linkage diagram showing a bracket with attached components and six circular fasteners (no text or symbols)

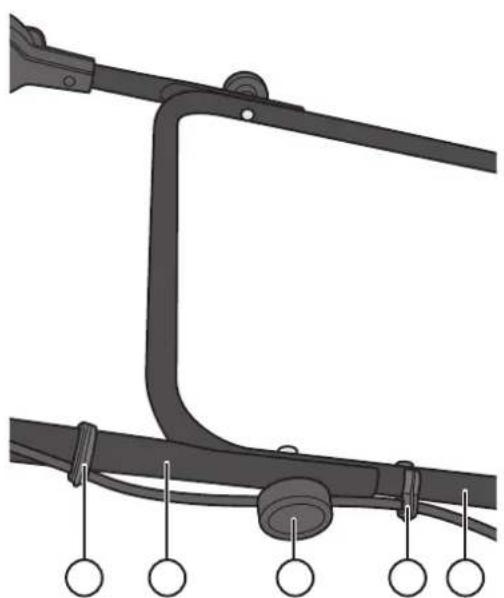

1. Cable clips
2. Upper handle
3. Retaining nut and bolt for upper and lower handle
4. Cable clips
5. Bottom handle

Assembly Handle assembly

Mechanical component diagram showing a lever mechanism with no visible text or symbols

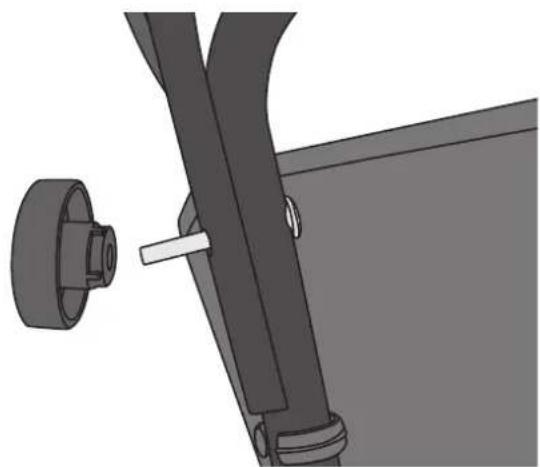

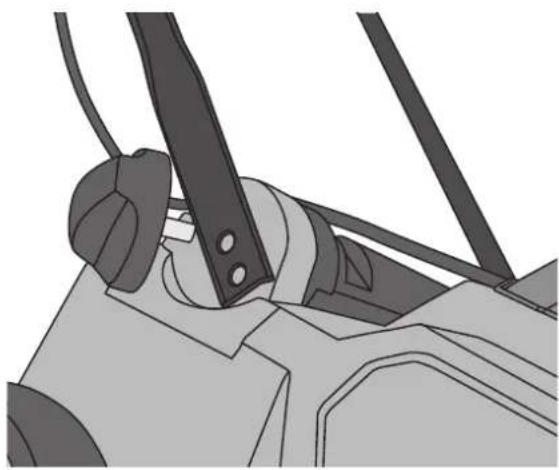

1. Connect the lower handle to the lawn raker's chassis connection and secure it with the lock knobs.

Mechanical assembly diagram showing a wheel fastener and bracket (no text or symbols)

1. Align the upper handle's bolt holes over the lower handle and secure them with the supplied bolts and knobs.

2. Secure the motor cable to the handle using the supplied cable clips.

Collector

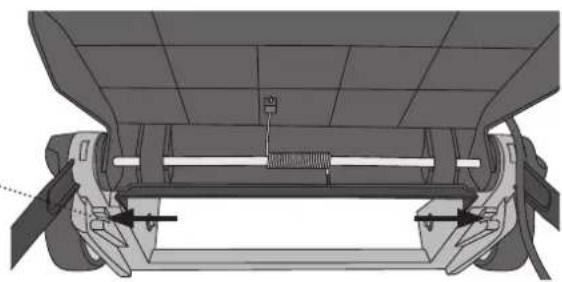

1. Hold the collector near the discharge chute and open the discharge cover.

Mechanical assembly diagram showing a vehicle with attached components and wiring (no text or symbols)

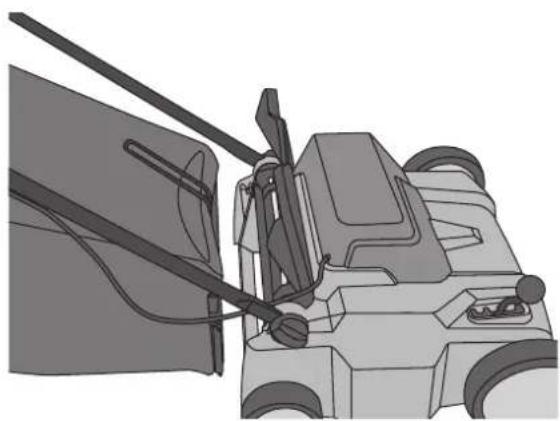

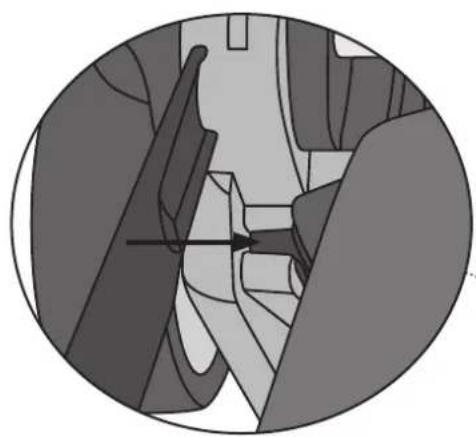

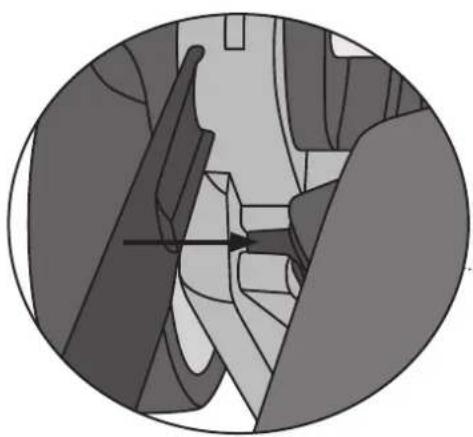

1. Hook the collector's retaining pins into the lawn raker's retaining notches.

Illustration of a garment pattern with measurement lines and connectors (no text or symbols)

Cross-sectional diagram of a mechanical assembly (no text or labels visible)

Mechanical assembly diagram showing a vehicle chassis with mounting brackets and structural components (no text or symbols)

Operating instructions Connecting the mains lead

Note: Only use an extension lead approved for outdoor use.

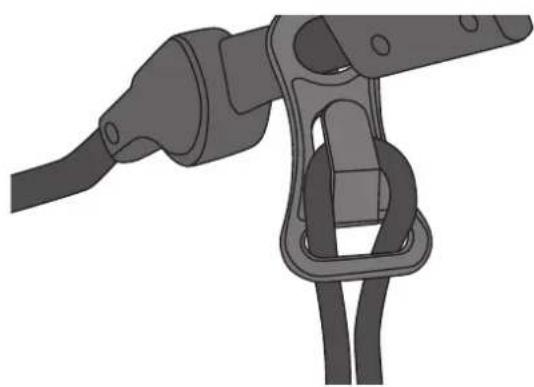

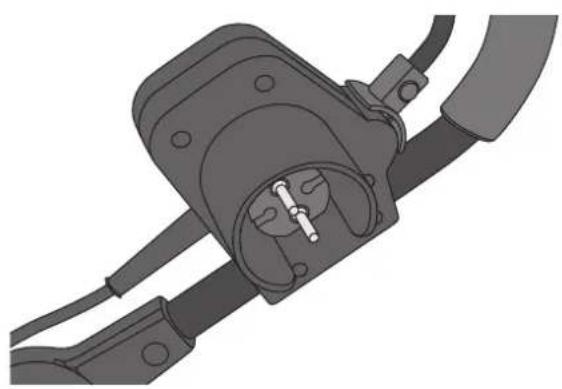

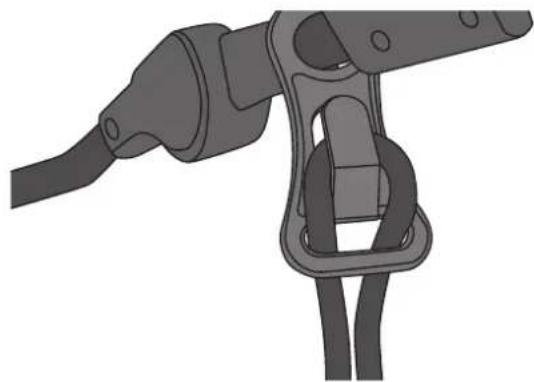

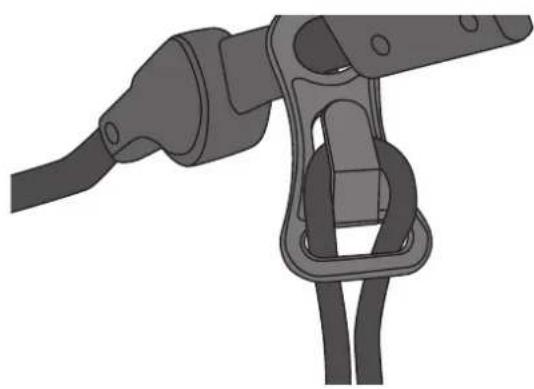

1. Connect the extension lead to the lawn raker's mains lead socket and run the lead through the handle's strain-relief.

Mechanical component diagram showing a connector with wires and connectors (no text or symbols)

Illustration of a mechanical clamp or bracket with no visible text or symbols

1. The extension lead should only be connected to a 230–240 V, 50 Hz mains outlet protected by a 30 mA RCD.

Starting

Note: Make sure that the lawn raker does not contact the lawn and possibly pull away when starting. Place the lawn raker to its highest height setting to ensure a generous free ground clearance and always start on low-grass area that can be easily worked. Thereafter, adjust the working height to the appropriate setting.

Diagram of a mechanical component with a hand holding a circular knob, showing internal slots and a handle (no text or symbols)

Mechanical component diagram showing a curved pipe joint with a circular target and arrow indicator (no text or symbols)

Mechanical assembly diagram showing a curved component with a knob and directional arrow (no text or symbols)

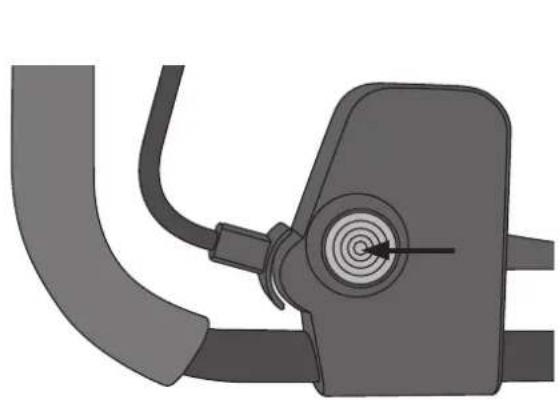

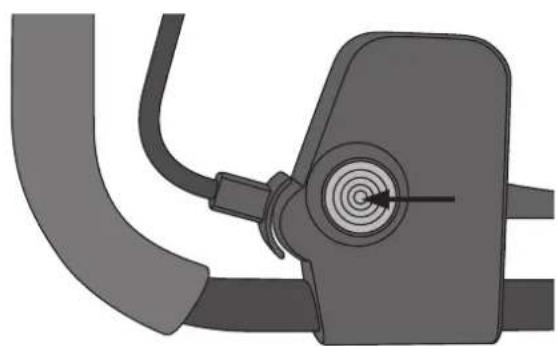

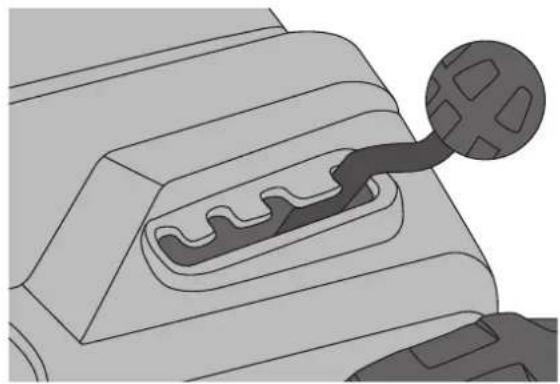

1. Press and hold down the safety cut-off button. 2. Clasp the start lever (8) without releasing
   the safety cut-off button, when starting.
2. Release the safety cut-off while clasping the start lever with both hands.

Stopping

Turn off the lawn raker by releasing the start lever.

Working height

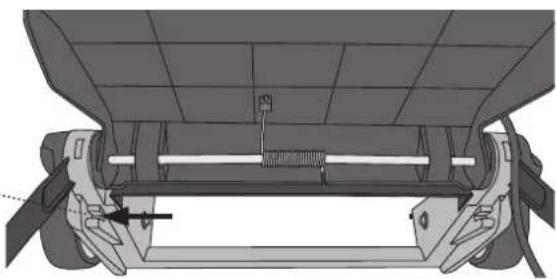

The working height is adjusted by manoeuvring the height adjustment lever to the desired position.

4 settings are available:

• 5 mm: 5 mm above normal setting
  • 0: Normal setting
• -5 mm: 5 mm below normal setting
• -10 mm: 10 mm below normal setting

Adjusting the upper handle position

1. Open the handle's lock levers on both sides.
2. Adjust the handle to the desired position.
3. Close the lock levers to lock.

Mechanical assembly diagram showing a clamping mechanism with rotational motion arrows (no text or symbols)

Scarifying

• Make sure that the extension lead always trails behind or lies on an area that has already been scarified.
• Be extra careful not to damage the extension lead or pinch it while working.
• Scarify with a slight overlap to achieve the best results.

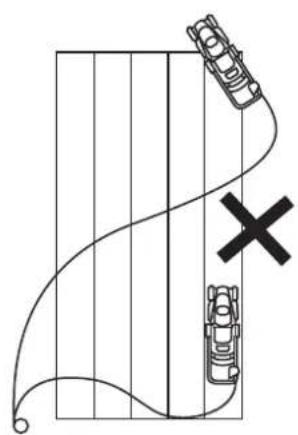

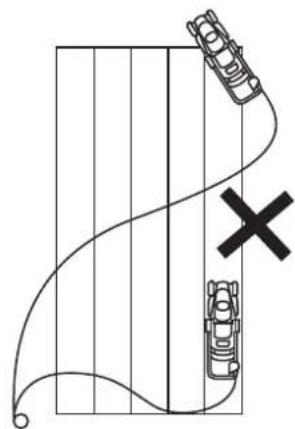

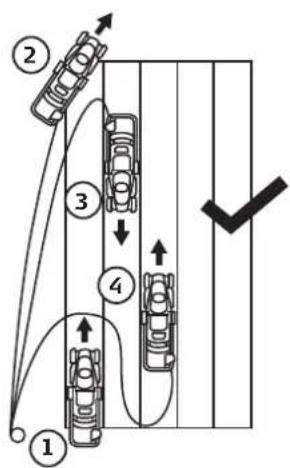

Protecting the extension lead while scarifying:

Simple line drawing of a car on a curved path with a cross symbol (no text or labels)

Emptying the collector

1. Turn off the lawn raker and pull the plug from the wall socket.
2. Lift the discharge cover and detach the collector.
3. Empty the grass and clean the discharge chute from any excessive grass and debris. Use a proper tool for cleaning the chute. Never use your hands or feet.

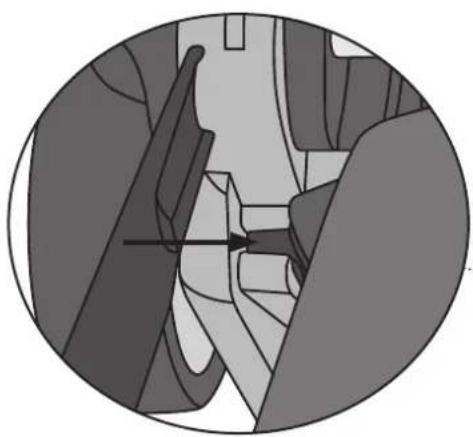

4. Lift the discharge cover and reattach the collector.

Storage and maintenance

Note: Turn off the lawn raker, pull out the plug and let it cool before carrying out any service or maintenance.

Care and maintenance

• Clean the lawn raker's exterior using a lightly moistened cloth. Only use mild cleaning agents, never solvents or corrosive chemicals.

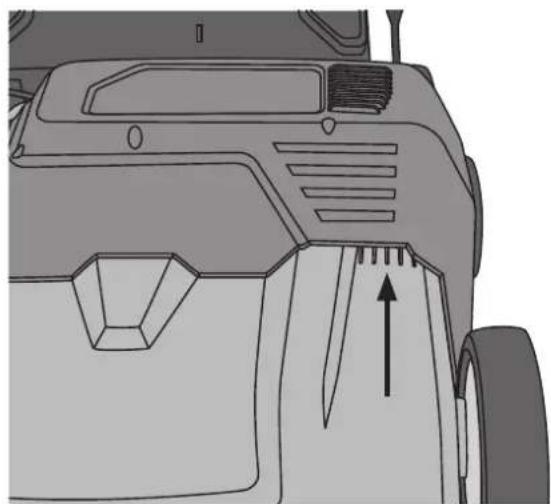

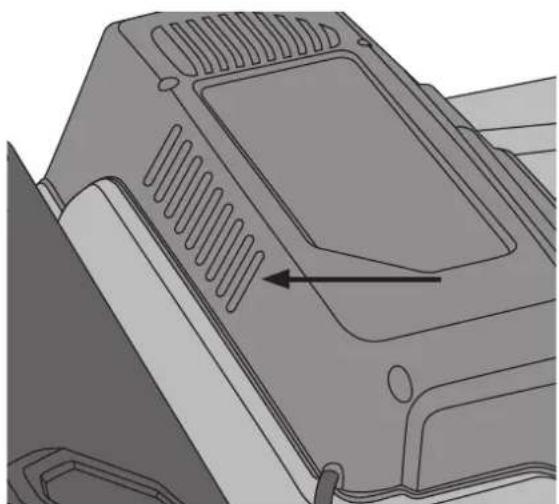

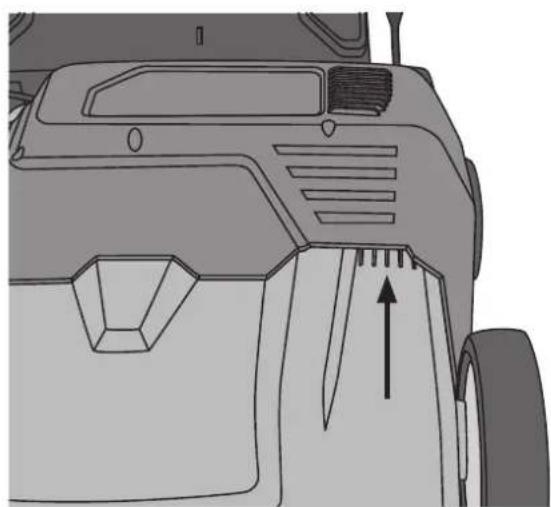

  • Make sure that the ventilation ports on the motor cover are clean and free from contaminants.

Technical line drawing of a mechanical component with ventilation slots and a central opening (no text or symbols)

Technical line drawing of a vehicle's rear door and side panel, showing structural components without any text or symbols

• Inspect the lawn raker regularly to make sure that all bolts and nuts are securely tightened and that there is no visible damage.
• Regular checks should be made to ensure that the lawn raker is always in good running condition.
  • Repairs must only be carried out by qualified service technicians and only using genuine spare parts.
• Always keep the blade, rake tines and blade housing free and clear of grass and debris to ensure optimal performance.
• Regularly check the lawn raker's blades and rake tines. Make sure they are undamaged and in good condition.

Storage

• Make sure the lawn raker is off, pull out the plug and let it cool before storing.
• Clean the lawn raker thoroughly and check for any signs of visible damage.
• Check that all screws, bolts, nuts, etc are securely tightened.
• Store the lawn raker in a dry, sheltered place out of the reach of children.

Troubleshooting guide

The lawn raker does not start.	The extension lead is not connected correctly.Check that the wall socket is live.Unplug the lawn rake and make sure that the blade and rake tines rotate freely and are not hindered by grass and debris in the blade housing or discharge chute.
The motor loses power. Check for adequate working height. If the lawn raker is set too low the motor may struggle and lose power.Unplug the lawn rake and make sure that the blade and rake tines rotate freely and are not hindered by grass and debris in the blade housing or discharge chute.
Abnormal vibrations occur. Check the lawn raker's blades and rake tines. Replace parts or repair if needed.Unplug the lawn rake and make sure that the blade and rake tines rotate freely and are not hindered by grass and debris in the blade housing or discharge chute.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Specifications

Rated voltage 230–240 V, 50 Hz

Power 1,800 W

Speed 3,600 rpm

Working width 360 mm

Weight 14 kg

Noise level LpA: 86,9 dB(A) (KpA: 3 dB)

LwA: 102 dB(A) (KwA: 3 dB)

Vibration value 3.944 m/s ^2 (K: 1.5 m/s ^2 )

Mossrivare/vertikalskärare

Art.nr 18-4458 Modell YT6701-UK

31-5275 YT6701

Mechanical linkage diagram showing a bracket with attached components and six circular fasteners (no text or symbols)

Mechanical component diagram showing a lever and shaft assembly (no text or symbols)

Cross-sectional diagram of a mechanical assembly (no visible text or labels)

Mechanical assembly diagram showing a lever mechanism with a pulley and mounting bracket (no text or symbols)

Mechanical assembly diagram showing a vehicle with attached components and wiring (no text or symbols)

Illustration of a garment pattern with measurement lines and connectors (no text or symbols)

Mechanical assembly diagram showing a vehicle chassis with mounting brackets and structural components (no text or labels)

Användning

Mechanical component with attached wires and connectors (no visible text or symbols)

Illustration of a mechanical clamp or bracket with no visible text or symbols

Diagram of a mechanical component with a knob inserted, showing internal structure (no text or symbols)

Mechanical component diagram showing a curved pipe with a circular target and arrow indicator (no text or symbols)

Mechanical component diagram showing a curved arm and connector (no text or symbols)

Mechanical component diagram showing a curved joint with rotational arrow (no text or symbols)

Mossrivning

Technical illustration of a device casing with ventilation slots and a directional arrow indicating movement (no text or symbols)

Technical line drawing of a vehicle's rear engine compartment showing intake manifold and exhaust pipe (no text or symbols)

Mechanical linkage diagram showing a bracket with attached components and six circular fasteners (no text or symbols)

Mechanical component diagram showing a lever mechanism with no visible text or symbols

1. Fest håndtakets underdel til moseriveren og lås med låsemutteren.

Mechanical assembly diagram showing a lever mechanism with a pulley and mounting bracket (no text or symbols)

Mechanical assembly diagram showing a vehicle with attached components and wiring (no text or symbols)

Illustration of a garment pattern with measurement arrows indicating measurement points (no text or symbols)

Cross-sectional diagram of a mechanical assembly (no visible text or labels)

Mechanical assembly diagram showing a vehicle chassis with mounting brackets and structural components (no text or labels)

Bruk

Mechanical component diagram showing a lever interacting with a slot (no text or symbols)

Mechanical component diagram showing a curved pipe with a circular feature and a threaded end (no text or symbols)

Mechanical component diagram showing a curved arm and connector (no text or symbols)

Mechanical component diagram showing a lever and curved arm with rotational arrow (no text or symbols)

Moseriving

Simple line drawing of a car on a curved path with a cross symbol (no text or labels)

Technical illustration of a device casing with ventilation slots and a directional arrow indicating movement (no text or symbols)

Side profile diagram of a vehicle's front and rear engine compartment showing structural components (no text or symbols)

Mechanical linkage diagram showing a bracket with attached components and six circular fasteners (no text or symbols)

Mechanical component diagram showing a lever and shaft assembly (no text or symbols)

Mechanical assembly diagram showing a wheel fastener and bracket (no text or symbols)

Mechanical assembly diagram showing a vehicle with attached components and wires (no text or symbols visible)

Illustration of a garment pattern with measurement lines and connectors (no text or symbols)

Cross-sectional diagram of a mechanical assembly (no visible text or labels)

Mechanical assembly diagram showing a vehicle chassis with mounting brackets and structural components (no text or labels)

Käyttö

Mechanical component diagram showing a connector with wires and connectors (no text or symbols)

Illustration of a mechanical clamp or clamping device with no visible text or symbols

Mechanical component diagram showing a lever interacting with a slot (no text or symbols)

Mechanical component diagram showing a curved pipe with a circular feature and a pointer arrow (no text or symbols)

Mechanical component diagram showing a curved arm and connector (no text or symbols)

Mechanical component diagram showing a lever and curved arm with rotational motion arrows (no text or symbols)

Sammaleenpoisto

Simple line drawing of a car on a curved road with a cross symbol (no text or labels)

Technical illustration of a mechanical component with a highlighted section and directional arrow (no text or symbols)

Side profile diagram of a vehicle's front and rear engine compartment showing structural components (no text or symbols)

Mechanical linkage diagram showing a bracket with attached components and six circular fasteners (no text or symbols)

Mechanical component diagram showing a lever and shaft assembly (no text or symbols)

Mechanical assembly diagram showing a wheel fastener and bracket (no text or symbols)

Mechanical assembly diagram showing a vehicle with attached components and wiring (no text or symbols)

Illustration of a garment pattern with measurement arrows indicating measurement points (no text or symbols)

Cross-sectional diagram of a mechanical assembly (no visible text or labels)

Mechanical assembly diagram showing a vehicle chassis with mounting brackets and a central shaft (no text or symbols)

Anwendung

Mechanical component diagram showing a connector with wires and connectors (no text or symbols)

Illustration of a mechanical clamp or bracket with no visible text or symbols

Mechanical component diagram showing a lever interacting with a slot (no text or symbols)

Mechanical component diagram showing a curved pipe joint with a circular target and arrow indicator (no text or symbols)

Mechanical component diagram showing a curved arm and connector with a knob (no text or symbols)

Mechanical assembly diagram showing a clamping mechanism with rotational motion arrows (no text or symbols)

Den Rasen lüften

Technical illustration of a mechanical component with a highlighted section and directional arrow (no text or symbols)

Side view of a vehicle's front bumper and dashboard (no text or symbols visible)

Declaration of Conformity

Klas Balkow

President

Insjön, Sweden, 2013-12-03

Sverige

10 - 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutschland
