Product Type	Cordless Grass Trimmer (Lawn Mower)
Model	PRO Edition GA36-B
Power Source	36 V Li-ion Battery (removable)
Battery Capacity	2.5 Ah
Charging Time	1 hour
Charger Input	230 V AC, 50/60 Hz
Charger Output	36 V DC, 3.6 A
No-Load Speed	7200 rpm
Cutting Diameter	300 mm
Line Diameter	1.6 mm
Weight (incl. battery)	3.4 kg
Noise Level (LpA)	80 dB(A), K=3 dB(A)
Noise Level (LwA)	96 dB(A), K=3 dB(A)
Vibration Level	1.61 m/s², K=1.5 m/s²
Adjustable Shaft	Telescopic with locking knob
Handle	Front and auxiliary handle, adjustable
Trimmer Head Angles	4 positions, plus 90° rotation for edging
Edging Wheel	Included, removable
Plant Guard	Foldable, two positions
Safety Features	Safety lock button, guard, automatic shut-off
Battery Protection	Deep discharge and overload protection
Storage	Space for spare spool and line

Frequently Asked Questions - PRO Edition GA36-B Cocraft

How do I start the grass trimmer?

Attach the battery securely. Press and hold both the trigger safety lock button (1) and the power trigger (2) simultaneously. The trimmer will start. Release the power trigger to stop.

How do I feed out more trimmer line?

While the trimmer is running, bump the trimmer head on the ground to press the spool button. Each bump feeds out 1-2 cm of line. Excess line is automatically cut by the blade on the guard.

How long does it take to charge the battery?

The charging time is approximately 1 hour. The first two charges should be at least 6 hours for optimal battery life.

Can I use the trimmer in wet conditions?

No. The grass trimmer must not be exposed to rain or moisture. The battery and electrical parts can be damaged and risk of electric shock increases.

How do I adjust the trimmer head angle?

Press the release catch (12) and turn the trimmer head to one of 4 fixed positions. For edging, press the catch (11) and rotate 90°.

What safety gear should I wear?

Always wear safety glasses, sturdy footwear, long trousers, and gloves. Keep bystanders at least 5 meters away.

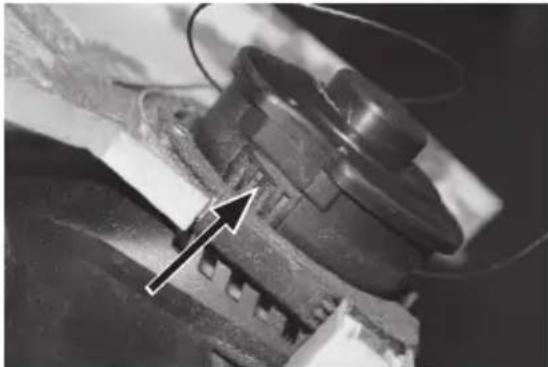

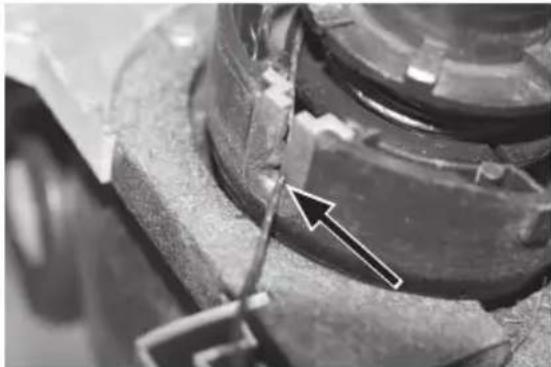

How do I replace the line spool?

Remove the battery. Press the tabs on the trimmer head cover and remove it. Take out the old spool, being careful not to lose the spring. Insert a new spool, feed the line ends through the slots, and snap the cover back on.

Why won't my trimmer start?

Possible causes: battery is discharged (charge it), safety lock and trigger not fully depressed, or battery not properly attached. Check all connections.

How should I store the trimmer?

Store in a dry place out of children's reach. Remove battery for storage. Charge the battery fully at least every 6 months if storing long-term.

What is the cutting diameter and line type?

The cutting diameter is 300 mm. Use only trimmer line of 1.6 mm diameter. Never attach metal cutting lines.

USER MANUAL PRO Edition GA36-B Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Close-up of a black handheld device with red indicator lights and a white handle, against a textured dark background (no visible text or symbols)

Ver. 20160329

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Table of contents

Safety....4

General Safety Requirements - EN 60745-1....4

Specific Safety Instructions for Grass Trimmers .... 7

Grass trimmer symbol explanation....8

Buttons and functions....9

Assembly instructions....11

Front handle 11

Trimmer guard....11

Plant guard 11

Operating instructions ....12

Charging the battery 12

Battery charge status indication....12

Switching on 13

Adjusting the trimmer head angle....13

Edging....13

Trimmer line....14

Care and maintenance....15

Troubleshooting guide....15

Responsible disposal....15

Specifications 16

Grass trimmer....16

Battery 36 V li-ion 16

Battery charger 16

Safety

General Safety Requirements - EN 60745-1

General safety instructions for power tools

Warning: Read all the instructions. Failure to adhere to the following instructions may lead to electric shocks, fires and/or serious injury.

SAVE THESE INSTRUCTIONS.

The term “power tools” in the warning text below refers to your handheld mains operated or battery operated tool.

1) Work area safety

a) Keep the work area clean and well illuminated. Cluttered and poorly lit areas invite accidents.
b) Do not use power tools in explosive environments, such as in the presence of flammable liquids, gases or dust. Power tools generate sparks that can easily ignite dust or fumes.
c) Keep children and other bystanders away from the area where you are using the power tool. Distractions can cause you to lose concentration and control of the tool.

2) Electrical safety

a) The power tool plug must fit correctly into the wall socket. Never modify the plug in any way. Never use an adaptor together with earthed power tools. Unmodified plugs and suitable wall sockets minimize the risk of electric shocks.
b) Avoid physical contact with earthed objects such as pipes, radiators, ovens and refrigerators. There is an increased risk of receiving an electrical shock if your body is earthed.
c) Do not expose the power tool to rain or other wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the mains lead. Never use the lead to carry the tool or pull the plug from a wall socket. Keep the lead away from heat, oil, sharp edges and moving parts. Damaged or tangled leads increase the risk of electric shock.
e) When using power tools outdoors, use an extension lead that is suitable for this purpose. The use of an extension lead designed for outdoor use decreases the risk of electric shocks.
f) If the use of the power tool in a wet environment is unavoidable, a wall socket equipped with a residual current device (RCD) should be used. Use of an RCD significantly reduces the risk of electric shock.

3) Personal safety

a) Pay attention to what you are doing and use common sense when using power tools. Never use power tools if you are tired or under the influence of drugs, alcohol or medication. One moment of inattention while using a power tool may result in a serious injury.

b) Wear protective clothing. Always wear safety glasses. Using protective clothing such as dust masks, non-slip safety shoes, helmets and ear defenders decreases the risk of injury.

c) Avoid accidental starts. Make sure that the power switch is set to OFF before plugging the power tool into a wall socket, fitting the battery or picking up/ carrying the power tool. Carrying a power tool with your finger on the power switch/trigger or connecting the power tool to a wall socket when the power switch is set to ON is inviting an accident.

d) Remove all service tools/keys before switching on the power tool. A service tool left on a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This ensures better control over the power tool in unexpected situations.

f) Wear suitable clothing. Do not wear loose-fitting clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose-fitting clothes, jewellery or long hair could become caught in moving parts.

g) If equipment for dust extraction or collecting is available make sure it is connected and used properly. Use of dust collection equipment can reduce dust related hazards.

4) Use and maintenance of the power tool

a) Do not force the power tool. Use a power tool suitable for the work you are about to perform. The proper power tool will perform the task better and safer if used at the correct feed rate.

b) Never use the power tool if the power switch does not switch the tool on and off properly. All power tools that cannot be controlled by the power switch are dangerous and must be repaired.

c) Unplug the lead from the wall socket or remove the battery before making any adjustments, changing accessories or storing the power tool. These precautions reduce the risk of the power tool starting unexpectedly.

d) Store power tools that are not being used out of children's reach. Do not allow people who are unfamiliar with the tool or these instructions to operate the tool. Power tools can be dangerous if they fall into the hands of inexperienced users.

e) Maintain power tools. Check for any incorrect settings, parts that catch, broken parts or anything else which may cause the power tool to malfunction. If something is damaged it must be repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp blades are less likely to bind and are easier to control.
g) Use the power tool, and any accessories in accordance with these instructions, take into consideration the working conditions and the work that is to be performed. Using the power tool for a purpose other than that for which it is intended could result in a dangerous situation.

5) The use and maintenance of cordless power tools

a) Only charge the battery using a charger recommended by the manufacturer. A charger suitable for one type of battery pack can pose a fire hazard if used for another type of battery pack.
b) Only use the cordless power tool with specially designated battery packs. Use of other battery packs may create a risk of injury and fire.
c) When the battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws or other small objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under extreme conditions or if the battery is mistreated, electrolyte may leak from the battery pack. Avoid contact with this liquid. If contact accidentally occurs, rinse your skin with water. If the electrolyte contacts your eyes, seek medical help. Electrolyte which has leaked from the battery pack can cause irritation or burns.

6) Service

a) Repairs and service should only be performed by qualified tradesmen, and only with original spare parts. This guarantees that the safety of the power tool is maintained.

Specific Safety Instructions for Grass Trimmers

• Never allow children or persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator.
• Never let children operate or play with the grass trimmer. Keep it out of reach of children.
• Wear sturdy footwear, long trousers, safety glasses and gloves.
• Keep anyone standing close by at a safe distance from the grass trimmer.
• Keep children and pets out of the work area. Stones and other debris can be ejected by the grass trimmer. Switch the grass trimmer off immediately should any onlookers, adults, children or pets, come within 5 metres.
• Only use the grass trimmer in good light conditions.
• If the grass trimmer has been subjected to any shocks or impacts it must be checked for damage. Any defect or damage must be repaired before the grass trimmer is used. Make sure the trimmer head is securely fastened on. If it is loose or damaged the grass trimmer must not be used.
  • Always inspect the grass trimmer before use.
• The safety guard must always be fitted before the grass trimmer is used. The grass trimmer must not be used if the safety guard is damaged or missing.
• Before starting to use the grass trimmer, check the area to be trimmed for foreign objects such as stones or cables.
  • Always hold the grass trimmer firmly. Hold it in both hands.
• Never attach metal cutting lines to this grass trimmer.
• Keep the ventilation openings of the trimmer head free from debris. Remove any grass or leaves.
• The line will continue to rotate after the motor has been turned off. Wait until the line has completely stopped before servicing.
• The grass trimmer must not be exposed to rain or moisture.
• Make sure that you are familiar with all the controls and settings before using the grass trimmer.
• Keep hands and feet away from the trimmer head and line at all times and especially when switching the motor on.
• Be careful when adjusting the trimmer line; do not switch the motor on until you are holding the grass trimmer in the correct way.
• Only use the grass trimmer with parts and accessories recommended by the manufacturer.
• Always remove the battery before inspecting, cleaning or adjusting the grass trimmer and when it is not in use.
• Keep proper footing and balance at all times.
• Avoid directing the trimmer head towards immovable objects when the trimmer head is spinning, as they could damage the grass trimmer.
• Do not attempt to stop the trimmer head with hands or feet, let it stop by itself.
• Avoid operating the grass trimmer on gravel paths, gravel covered yards or other places where stones could be ejected.

Grass trimmer symbol explanation

WARNING! Grass trimmers can be dangerous.

Silhouette icon of a person using a laptop inside a circle (no text or symbols)

Read the instruction manual.

Prohibition sign showing a showerhead with raindrops crossed out, enclosed in a circle (no text or symbols)

Do not expose the grass trimmer to rain or moisture.

Simple line drawing of a person wearing sunglasses inside a circle (no text or symbols)

Wear eye protection.

Keep all persons and animals at a safe distance from the grass trimmer.

Buttons and functions

1. Trigger safety lock button
2. Power trigger
3. Battery connection
4. Storage space for trimmer spool and line
5. Locking knob for adjusting the length of the telescopic shaft
6. Front handle
7. Auxiliary handle lock
8. Edging wheel bracket
9. Plant guard
10. Motor housing ventilation slots
11. Catch for rotating the trimmer head 90°
12. Catch for adjusting the trimmer head angle
13. Trimmer guard
14. Trimmer line head
15. Charger
16. Full charge indicator
17. Charging indicator
18. Battery
19. Battery release buttons
20. Battery charge status indicator

Assembly instructions

Note: Remove the battery from the grass trimmer if one is fitted.

Front handle

1. Slide the front handle onto the bracket until it clicks into place. Once the handle has been fitted to the bracket it can't be removed again.

2. Undo the locking knob (7) and adjust the handle to the desired position.

Trimmer guard

1. Slide the trimmer guard into place.

2. Secure the trimmer guard using the included screws.

Close-up of a mechanical component with a lever and handle, showing an arrow indicating direction (no text or symbols)

3D rendered mechanical device with a pointed tip and arrow indicator (no text or symbols)

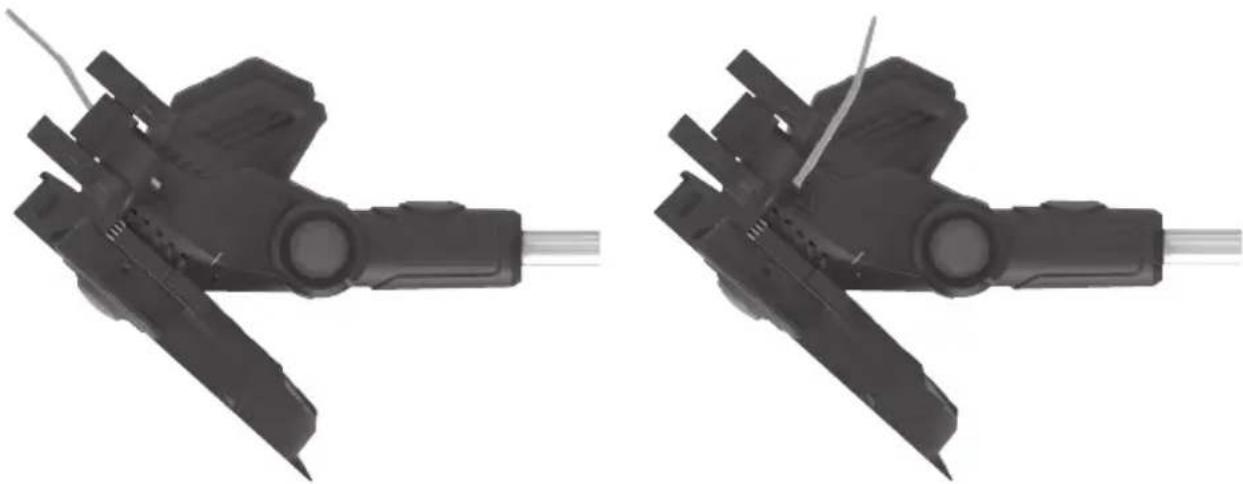

Plant guard

The plant guard is attached to prevent damage to plants and fragile objects.

Stick the ends of the plant guard into the holes (9) on each side. The plant guard has two positions. Extended for trimming and folded up for when the trimmer is not in use.

Two black mechanical components with attached wires, shown from different angles (no text or symbols visible)

Operating instructions Charging the battery

Temperature range for charging and storing the battery: 0–40 °C.

1. Press in the buttons (19) on the battery and remove it from the grass trimmer.

2. Plug the charger into a wall socket (230 V, 50 Hz). The charging indicator (17) will flash green when the charger is connected to the mains.

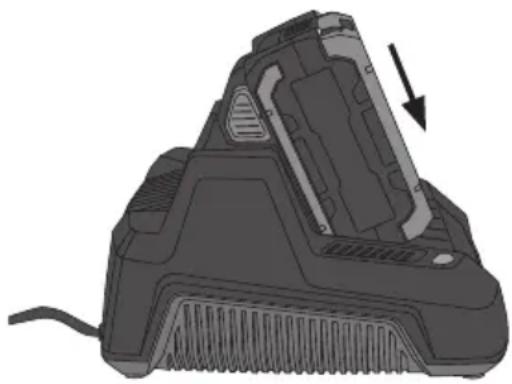

3. Insert the battery into the charger, making sure that it clicks securely into place.

3D rendering of a handheld vacuum cleaner with a black arrow indicating the component (no text or symbols visible)

1. The charging indicator (16) shines red when charging is in progress.
2. The charging indicator (16) goes out and the full charge indicator (17) shines green when the battery is fully charged.
3. Press in the buttons on the battery and remove it from the charger when it is fully charged.
4. Unplug the charger from the wall socket when it is not in use.

Battery charge status indication

Press in the red button on the battery to check the charge status. If all the green lights come on the battery is fully charged. If only one green light comes on the battery is discharged and needs to be charged before it is used.

Note:

- The lithium-ion battery has a built-in electronic deep discharge protection which prevents partial power from being delivered. Full power is provided at all times until the electronic protection engages, turning off the trimmer and signifying that the battery needs to be recharged. The grass trimmer will be switched off automatically. Do not attempt to continue work after this point as doing so may damage the battery. A battery recharge is now required before any work is resumed.

- The battery also has a built-in electronic overload protection. If the grass trimmer is worked too hard, the electronics automatically cut the power and the tool stops. Release the trigger and wait a few seconds before switching the trimmer on again.

- The lithium-ion battery has no memory which means that it can be charged at any time regardless of battery level.

- Charge the battery for at least 6 hours the first and second time it is charged.

- For long-term storage the battery should be fully charged at least every 6 months.

Switching on

Before switching the trimmer on, check that:

• the trimmer and its battery are whole and undamaged.
- the safety lock button (1) and power trigger (2) are easily depressed and that they do not stick or function abnormally in any way.
• both handles are clean and easily gripped.

1. Attach the battery making sure that it clicks securely into place.
2. Hold both the safety lock button and power trigger pressed in. The grass trimmer will now start.
3. Release the power trigger to switch the grass trimmer off.

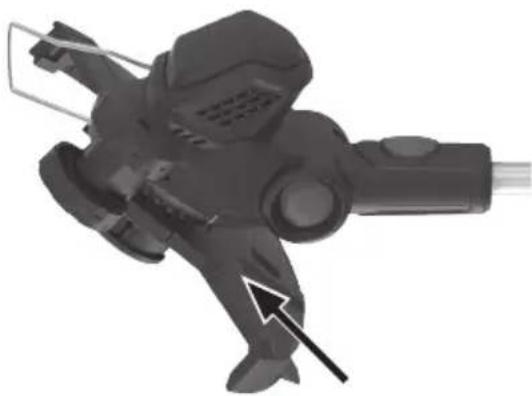

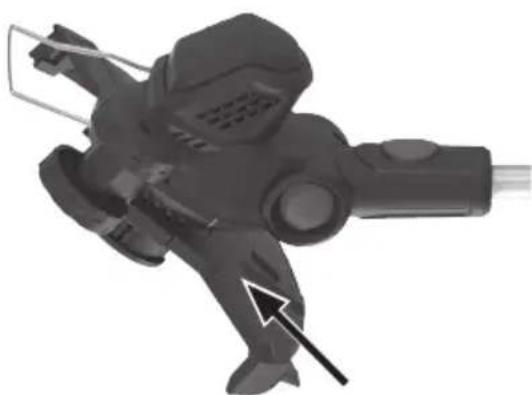

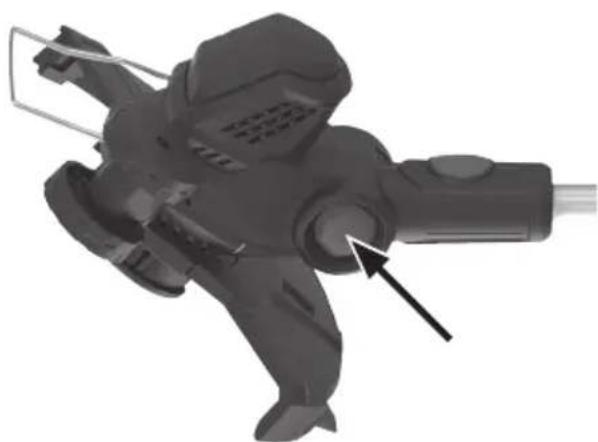

Adjusting the trimmer head angle

1. The trimmer head can be set to 4 different positions.
2. Press in the release catch (8) and turn the trimmer head to the desired angle. Make sure that the trimmer head clicks into one of the fixed positions.
3. Press the button in again to turn the trimmer head back to its original position.

3D rendered mechanical component with a pointer arrow pointing to a specific part (no text or symbols visible)

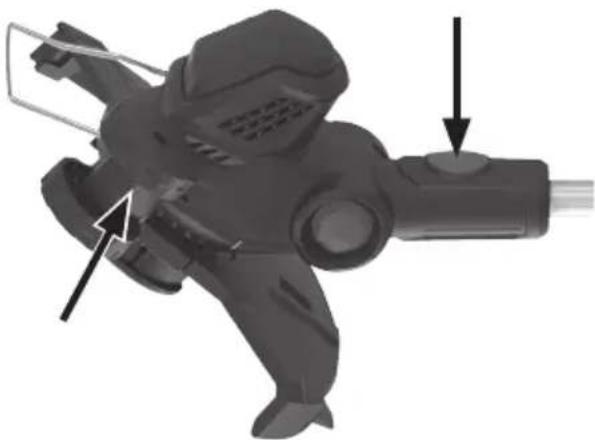

Edging

The trimmer head can be rotated through 90 degrees for trimming edges.

1. Slide the edge trimmer support wheel into place.

2. Press in the release catch (11) turn the trimmer head 90°, refer to the arrow on the catch, it shows which way the head should be turned. Make sure that the trimmer head clicks into the new position.

3. When you have finished edging: press in the release catch on the support wheel and remove it. Press in the catch and turn the trimmer head back to its original position.

3D rendered mechanical device with directional arrows indicating movement or force (no text or symbols)

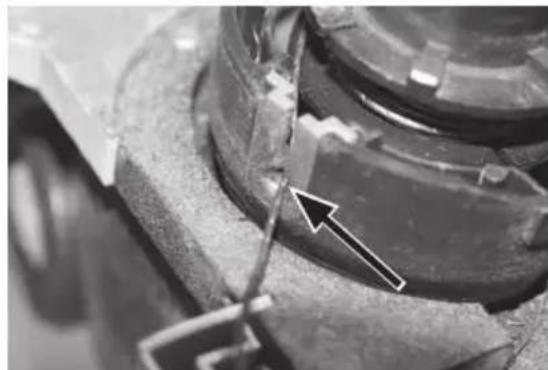

Trimmer line

Feeding out more line

If the trimmer line breaks off during operation, it is simple to feed out more line.

1. Switch the trimmer on.
2. Bump the trimmer head repeatedly on the ground so that the button on the line spool is pressed in.
3. Each time the button is depressed, 1–2 cm trimmer line is fed out.
4. If too much trimmer line is fed out, the excess is automatically cut off by the blade built into the blade guard.

Replacing the line spool

Note: Remove the battery from the grass trimmer if one is fitted.

Close-up of mechanical components with a white arrow pointing to a specific part (no visible text or symbols)

1. Press in the tabs on either side of the trimmer head cover and remove it.
2. Remove the old line spool.
   Note: Be careful not to lose the spring located under the line spool.
3. Replace the spool with a new one.
4. The ends of the trimmer line are fastened to the spool.

Close-up of a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

1. Unfasten the ends of the trimmer line from the spool and pass them through the slots in the trimmer head.

2. Refit the cover back onto the trimmer head and make sure that it locks securely into place.

3. Note: Wear safety glasses and make sure that there are no bystanders nearby when starting the grass trimmer after new line has been fitted because any excess cut off line will fly out at high speed.

Care and maintenance

• Check regularly to ensure that no grass and twigs have built up around the trimmer head.
• Check before every use, that the power trigger and trigger safety lock button are intact and work properly.
• Clean the exterior of the trimmer with a soft brush or cloth, do not use water, solvents or polish.
• Make sure that the ventilation slots (10) on the motor housing are clean and free from contaminants.
• The grass trimmer should be stored in a dry place out of the reach of children.
• The battery should be stored in an ambient temperature of 0–40 °C.
• For long-term storage the battery should be fully charged at least every 6 months.

Troubleshooting guide

The grass trimmer will not start.	· The battery is discharged.· Make sure that you have fully depressed both the safety lock and power trigger.
Poor battery operating time.	· The battery is not fully charged.· The battery needs replacing.
The battery does not charge.	· The mains lead is not securely plugged into the wall socket.· Check to see if there is power at the wall socket.· The battery is not correctly inserted into the charger.· The battery or charger contacts are dirty.· Note: Unplug the charger from the wall socket before cleaning the contacts.· The charger or its cable is damaged.· The battery is defective and must be replaced.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Specifications

Grass trimmer

Battery 36 V/2.5 Ah lithium-ion battery

No-load speed 7200 rpm

Cutting diameter 300 mm

Line diameter 1.6 mm

Noise level LpA 80 dB(A), K: 3 dB(A)

LwA 96 dB(A), K: 3 dB(A)

Vibration 1.61 m/s ^2 , K: 1.5 m/s ^2

Weight (incl. battery) 3.4 kg

Battery 36 V li-ion

Capacity 2.5 Ah

Charging time 1 hour

Battery charger

Power supply 230 V AC, 50/60 Hz

Output voltage 36 V DC

Output current 3.6 A

Grästrimmer 36 V

Art.nr 31-8730 Modell BLR01-R3-300

Prohibition sign showing raindrops crossed out by a diagonal line (no text or symbols)

Simple line drawing of a person wearing sunglasses inside a circle (no text or symbols)

Close-up of a mechanical component with a lever and handle, showing an arrow indicating direction (no text or symbols)

Skyddskåpa

3D rendered mechanical device with a pointed tip and arrow indicator (no text or symbols)

Plantskydd

Two black mechanical components with attached wires, shown from different angles (no text or symbols visible)

3D rendering of a mechanical device with a downward arrow indicating a component (no text or symbols visible)

Two identical 3D-rendered mechanical devices with arrows pointing to features, no visible text or symbols.

Trimmertråd

Förlängning

Close-up of mechanical components with a white arrow pointing to a specific part (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangle below (no readable text or symbols)

Specifikationer

Grästrimmer

Batteri 36 V/2,5 Ah litiumjonbatteri

Varvtal obelastad 7200 v/min

Klippdiameter 300 mm

Tråddiameter 1,6 mm

Ljudnivå LpA 80 dB(A), K: 3 dB(A)

LwA 96 dB(A), K: 3 dB(A)

Vibration 1,61 m/s ^2 , K: 1,5 m/s ^2

Vikt med batteri 3,4 kg

Batteri 36 V li-jon

Kapacitet 2,5 Ah

Laddtid 1 tim

Batteriladdare

Nätanslutning 230 V AC, 50/60 Hz

Utspänning 36 V DC

Prohibition sign showing raindrops falling from a cloud above a diagonal line (no text or symbols)

Utsett ikke gresstrimmeren for regn eller fuktighet.

Simple line drawing of a person wearing sunglasses inside a circle (no text or symbols)

Bruk vernebriller.

Hold andre personer på trygg avstand fra maskinen.

Close-up of a mechanical component with a lever and handle, showing an arrow pointing to the right side (no text or symbols visible)

3D rendered mechanical device with a pointed tip and lever mechanism (no text or symbols visible)

Plantevern

Two black mechanical components with attached wires, shown from different angles (no text or symbols visible)

Bruk

Lading av batteri

3D rendering of a portable electric shaver with a black arrow indicating compression or disassembly (no text or symbols)

3D rendered mechanical component with a pointer arrow pointing to a specific part (no text or symbols visible)

Kantklipping

3D rendered mechanical component with arrows indicating assembly or movement (no visible text or symbols)

Trimmertråd

Forlengelse

Hvis tråden slites av mens du jobber, forlenges den enkelt.

Close-up of mechanical components with a white arrow pointing to a specific part (no visible text or symbols)

1. Trykk inn låsen (en på hver side) på hver side av lokket og løft av lokket.
2. Ta ut den gamle trådkassetten. Obs! Vær forsiktig sånn at du ikke mister fjæren som sitter under kasse- tten.
3. Sett på plass en ny kassett.
4. Trimmerträden er festet i festet på kassetten.

Close-up of mechanical components with a white arrow pointing to a detail (no visible text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangle below (no readable text or symbols)

Spesifikasjoner

Gresstrimmer

Batteri 36 V/2,5 Ah li-ionbatteri

Turtall ubelastet 7200 o/min.

Klippediameter 300 mm

Tråddiameter 1,6 mm

Prohibition sign showing raindrops falling from a cloud, enclosed in a circle (no text or symbols)

Simple line drawing of a person wearing sunglasses inside a circle (no text or symbols)

Käytä suojalaseja.

Close-up of a mechanical component with a cylindrical shaft and a vertical pin, showing an arrow indicating direction (no text or symbols)

3D rendered mechanical device with a pointed tip and lever mechanism (no text or symbols visible)

Kasvisuoja

Two black mechanical components with attached wires, shown from different angles (no text or symbols visible)

Käyttö

Akun lataaminen

3D rendering of a mechanical device with a downward arrow indicating a component (no text or symbols visible)

Two identical 3D-rendered mechanical devices with arrows pointing to features, no visible text or symbols.

Trimmerin siima

Pidentäminen

Close-up of mechanical components with a white arrow pointing to a specific part (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Tekniset tiedot

Ruohotrimmeri

Akku 36 V/2,5 Ah, litiumioniakku

Prohibition sign showing raindrops falling from a cloud above a diagonal line, enclosed in a circle (no text or symbols)

Simple line drawing of a person wearing sunglasses inside a circle (no text or symbols)

Augenschutz tragen.

Mechanical component with a lever and pin, showing a right-hand rule arrow (no text or symbols)

3D rendered mechanical device with a pointed tip and arrow indicator (no text or symbols)

Pflanzenschutzbügel

Two black mechanical components with attached wires, shown from different angles (no text or symbols visible)

3D rendering of a black electric shaver with a downward arrow indicating compression or disassembly (no text or symbols present)

Mechanical device with a black arrow pointing to a component (no visible text or symbols)

Kantentrimmen

Mechanical device with highlighted components and directional arrows (no text or symbols)

Nylonfaden

Verlängerung

Close-up of mechanical components with a white arrow pointing to a specific part (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing to a detail (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Technische Daten

Rasentrimmer

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Machinery directive 2006/42/EC

EMC directive 2004/108/EC

Low voltage directive 2006/95/EC

EN 50636-2-91:2014 E

N 55014-1:2006+A1:2009

+A2:2011

EN 55014-2:1997+A1:2001

+A2:2008

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 60335-1:2012

+A11:2014

EN 60335-2-29:2004

+A2:2010

EN 62233:2008

Henrik Alfredsson

Manager Technique & Quality

Insjön, Sweden, 2015-12-01

Sverige

Postal 10 - 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutschland

Kundenservice
