Product type	Ice maker
Brand	Team
Model	LCB 2
Ice production	10–12 kg / 24 hours
Storage capacity	1 kg
Refrigerant	R134a (CFC-free)
Cycle time	Approximately 10 minutes for 8 ice cubes
Power supply	230 V ~ 50 Hz (check rating plate)
Materials	Plastic, metal (compressor)
Functions	Automatic ice cube production, stops when basket is full, water level detection (empty reservoir indicator), full basket indicator, on/off button
Maintenance and cleaning	Clean the exterior with a damp cloth; drain the reservoir via the drain plug; never immerse the appliance; do not use abrasive products
Safety	Do not touch the ice cube rods with bare hands (risk of cold burns); do not use near a heat source; unplug before cleaning; do not leave unattended
Spare parts and repairability	Contact a qualified service center; do not open the appliance yourself; parts not commercially available
General information	Household use only; do not use outdoors; stop the appliance for 1 hour after 5 hours of use; wait 2 hours after installation before first use

Frequently Asked Questions - LCB 2 TEAM

How to start the Team LCB 2 ice maker?

After plugging in the appliance, press the ON/OFF button. The ON/OFF indicator changes from red to green, indicating that the ice making cycle begins. Make sure the water tank is filled and the ice basket is in place.

What to do if the 'empty reservoir' indicator lights up even though there is water?

This may be due to using non-mineral water (purified or distilled). Use mineral water. If the problem persists, the pump may be faulty: contact customer service.

Why are my first ice cubes smaller?

The first cycles produce smaller ice cubes. After 3 to 4 cycles, they reach normal size. This is normal.

How to clean the ice maker?

Unplug the appliance and let it cool down. Empty the water tank by unscrewing the drain plug at the back. Clean the exterior with a slightly damp cloth. Never immerse the appliance and do not use abrasive products.

What to do if the 'basket full' indicator lights up even though the basket is not full?

The infrared lamp may be obstructed or have water droplets. Check and gently wipe the lamp with a soft cloth. Otherwise, the problem may be a poor connection.

Can I use the appliance continuously?

No, the appliance is not designed for continuous use. After 5 hours of use, stop it for at least 1 hour to allow the compressor to cool down.

What to do if the ice cubes are stuck together or fall in a block?

This can happen if the water or ambient temperature is too low. Turn off the appliance and restart it after a few minutes. If the problem persists, contact customer service.

The appliance does not turn on, what should I check?

Check that the outlet works and the fuse has not blown. If the cable is damaged, it must be replaced by a professional. Make sure the voltage matches that of the appliance.

How to drain the water from the machine?

Place a container under the drain at the back, unscrew the plug and remove the small rubber stopper. Let the water drain, then replace the rubber stopper and screw the plug back on.

Is it normal for the compressor to make a dull noise?

A dull noise may indicate voltage too low or too high. Turn off the appliance and wait until the voltage returns to normal. If the noise persists, contact customer service.

USER MANUAL LCB 2 TEAM

EISWÜRFELMASCHINE

ICE CUBE MAKER

MACHINE À GLAÇONS

IJSBLOKJESMAKER

MAQUINA DE HIELO

MÁQUINA DE GELO EM CUBOS

MACCHINA DA GHIACCIO

APARAT PRODUS CUBURI DE GHEATA

ΛΕΔΟ ΓΕΝΕΡΑΤΟΡ

CE

I/B Version 100920

TEAM ICB 2

220-240V\~ 50Hz 140W

2 TEAM ICB 2 - 100920

D

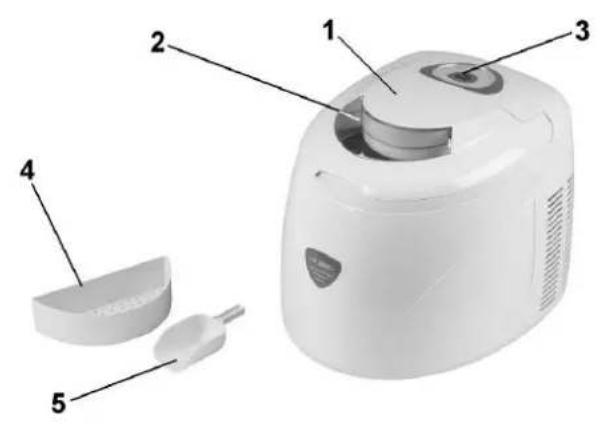

1. Lid
2. Lid window

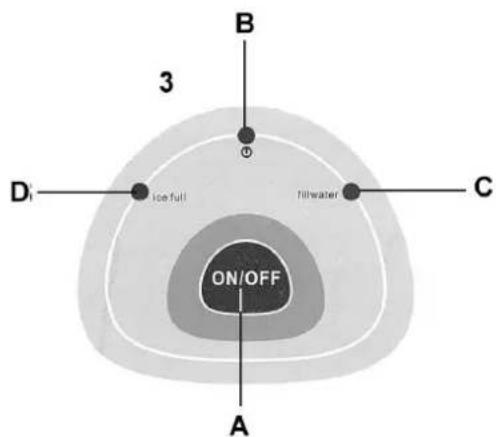

3. Control panel

A. ON/OFF button
B. ON/OFF indicator
C. "Fill water" indicator
D. "Ice full" indicator

1. Ice basket

2. Ice shovel

3. Water tank
4. Water tray
5. Ice making tube
6. Plug
7. "Ice full" detector
8. Drain plug

F

4 TEAM ICB 2 - 100920

1

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use.
From time to time check the appliance for damages. If it is damaged it should be repaired by a competent qualified electrician (1). If the power cord is damaged, it must be replaced by an identical power cord or a cord similar to the original one and showing the same characteristics. In case of doubt or if you do not find an identical power cord, please contact the nearest customer service.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever even if you have removed the power cord.
□ Never use the appliance near hot surfaces.
Before cleaning or storing the appliance, always unplug it and let it cool down.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Especially the power cord and its connector as the latter is equipped with a specific safety regulation.
☐ Stand the appliance on a table or flat surface to prevent it from falling down.
It is absolutely necessary to keep this appliance clean at all times as it comes into contact with food.
☐ Make sure the cord does not come into contact with the hot parts of the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ Never touch the bullet-shaped ice cubes with your naked hand as you would risk frost bite.
☐ Do not place the appliance near heat sources or in direct sunlight.
☐ In order to prevent the appliance from tipping over, do not move the appliance when it is filled.
☐ Do not let the appliance switched on if you do not use it for a long period of time.
☐ Do not touch the appliance if your hands or feet are wet.
☐ Do not move the appliance when it is in use.
☐ If the appliance does not function properly, unplug it and contact a competent qualified electrician".
☐ Avoid sudden temperature changes, such as adding hot water in the ice basket.
☐ Do not tip the appliance over.
☐ If the ice maker is brought in from outside in the wintertime, give it a few hours to warm up to room temperature before plugging it in.
☐ Only use drinkable water to prepare ice.
☐ Never block the ventilation grid.

1) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

10 TEAM ICB 2 - 100920

CHARACTERISTICS

Ice output: 10-12kg / 24 hours

Ice storage: 1kg

High efficiency compressor CFC-free: R134a

Water storage: 2.0 L

UNPACKING THE APPLIANCE

IMPORTANT: This appliance is heavy, so to avoid any risk of injury or fall, let someone help to take the appliance out of its cardboard box.

• Do not use the lid to lift up the ice maker, as this could damage the appliance.
  • Do not put your appliance upside down, as this would damage the compressor.
• Put the ice maker on a stable level surface which is able to hold its weight.
• For sufficient ventilation, please let a free space of 20 cm at the back and at the sides of the appliance.
• This appliance is not intended for a continuous use. Therefore it is necessary to switch it off for at least 1 hour after 5 hours of use.

INSTALLATION INSTRUCTIONS

• As with any other cooling appliance, your ice maker should not be started up immediately after its installation.
• Please wait at least 2 hours before starting up the appliance after its installation.
• Use an earthed socket.

USE

• After having unpacked the appliance, clean the water tank and ice basket thoroughly.
- Pour drinkable water in the water tank.
• Put the ice basket in the appliance in such a way that it covers the water tank.
• Plug in the appliance (the ON/OFF indicator lamp becomes red).
- Press the ON/OFF button to start the ice making process (the ON/OFF indicator lamp becomes green).
- Press the ON/OFF button to switch off the appliance (the ON/OFF indicator lamp becomes red).
- If the water tank is getting empty, the "FILL WATER" pilot light will turn on. In that case, press the ON/OFF button and fill water in the water tank. Wait for 3 minutes before pressing the ON/OFF button to resume the ice making process.
- When the "ICE FULL" pilot light switches on, it means that you should empty the ice basket. In that case, press the ON/OFF button, empty the ice basket and press the ON/OFF button to resume the ice making process.
- It takes about 10 minutes to make 8 ice cubes. The ice cubes of the first series will be rather small, then they will become larger and larger and they will reach the definitive size after 3 or 4 cycles.
• Unplug the appliance after use and empty the tank (cf. CLEANING).

CLEANING

• Unplug the appliance.
- When you have just used the appliance, do not touch the bullet-shaped ice cubes with your naked hand as they are cold/frozen and you would risk getting your fingers burned.
- Empty the tank. To do so, put a receptacle under the emptying drain situated at the back of the appliance, unscrew the drain plug and remove the small rubber piece that blocks

up the drain. When the tank is empty, put the rubber piece back in place and screw back the plug.

MAKE SURE NOT TO LOSE THE SMALL RUBBER PIECE AND TO ALWAYS PUT IT BACK IN PLACE BECAUSE OTHERWISE THE TANK WILL NOT BE WATERTIGHT ANYMORE.

• Clean the outside only with a slightly damp cloth.
• NEVER USE THIS APPLIANCE IN THE PROXIMITY OF WATER. DO NOT IMMERSE THE APPLIANCE IN WATER OR ANY OTHER LIQUID.
• Do not use any abrasive products or solvents.
  • Do not put any part of your appliance in the dishwasher.
• We will not accept any responsibility for defects resulting from wrong use due to the non-observance of the instruction manual. No guarantee claims will be accepted if the appliance has been opened or damaged previously.

TROUBLESHOOTING

Problem	Possible Cause	Suggested Solutions
The compressor works abnormally with a buzzing noise.	The voltage is lower/higher than recommended.	Stop the ice maker and do not restart until the voltage is normal.
“Fill water” warning light is ON but there is water in the water tank.	The water pump fails.	Contact the after sales service.
	The water cannot be detected; non-mineral purified water or distilled water may be used.	Use mineral water.
“Ice full” warning light is ON but there is little ice in the ice basket.	The infrared lamp may be blocked or there are water drops on the lamp.	Check whether the infrared lamp is blocked, and wipe the lamp with a soft cloth.
“Fill water” & “Ice full” warning lights flicker simultaneously.	Ice may be jammed under the water tray.	Remove the ice & restart the equipment.
	The ice cubes are too big or stick together, thus the water tray is seized.	Turn off the appliance, remove the ice cubes & restart the equipment.
	Poor contact of the travel switch occurs.	Contact the after sales service.
ON/OFF lamp on display is not ON.	Blown fuse / No power.	Replace fuse / Turn power on.
The ice falls like a single block, with a lot of cubes sticking together.	The water temperature in the water storage box or the ambient temperature is too low.	Stop the machine and reset the ice making cycle. Restart the machine after turning it off.
The compressor operates, but no ice can be made.	The refrigerant leaks.	Contact the after sales service.
	The solenoid valve leaks.
Ice making is normal, but ice dumping function fails.	The solenoid valve fails.	Contact the after sales service.
	The computer board fails.
The equipment stops suddenly after ice making for some time.	Excessively high environmental temperature results in start-up of the thermal protector of the equipment.	Turn off the appliance & restart it 1 hour later.

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
