B800HC - Hand blender GORENJE - Free user manual and instructions

Product Type	Hand blender with jar and mill attachment
Brand	Gorenje
Model	B800HC
Category	Hand blender
Motor Power (estimated)	500-800 W
Voltage	220-240 V (check local mains)
Jar Capacity (estimated)	1.5 L
Speed Settings	4 speeds plus pulse
Functions	Blending, Smoothie, Pulse, 4-speed selection
Blade Material (assumed)	Stainless steel
Jar Material (assumed)	Plastic (BPA-free likely)
Safety Features	Do not immerse motor unit; sharp blade caution; automatic stop when overloaded (typical)
Maximum Food Temperature	60°C
Cord Length (estimated)	1.0 m
Weight (estimated)	1.5 kg
Dimensions (estimated)	25 x 15 x 15 cm (motor unit)
Accessories Included	Jar with lid and inner lid, mill attachment with bowl, cleaning brush
Dishwasher Safe Parts	Not specified; hand wash recommended
Warranty (typical)	2 years (check local)
Repairability	Only Gorenje service agency for blade/power cord replacement

Frequently Asked Questions - B800HC GORENJE

How do I use the pulse function?

Press and hold the PULSE button for short bursts. Release to stop. Ideal for chopping dry ingredients or cleaning the blades.

Can I blend hot liquids?

Yes, but the temperature must not exceed 60°C. Allow hot food to cool slightly before blending.

How to clean the blade assembly?

Unplug and disassemble. Wash blades and jar with warm soapy water and the provided brush. Avoid touching sharp blades. Do not immerse motor unit.

What is the maximum capacity of the jar?

Do not fill beyond the maximum mark on the jar (approximately 1.5 L). Overfilling may cause leaks or motor strain.

Can I use the mill for wet ingredients?

No. The mill is intended for dry goods only (e.g., nuts, coffee beans). Do not fill more than one third.

Is the blender jar dishwasher safe?

The manual does not specify dishwasher safety. To preserve parts, hand wash with warm water and mild detergent is recommended.

What should I do if the blender stops working?

Check power connection, ensure the switch is on, and all parts are properly assembled. If still not working, contact Gorenje service.

How can I add ingredients while blending?

Turn the inner lid anticlockwise to remove it, then add ingredients through the opening. Replace the inner lid before continuing.

Can I blend ice cubes?

Yes, use the SMOOTHIE function or pulse setting. Crush ice in short bursts. Do not operate for more than 60 seconds continuously.

How should I store the blender?

Store in a dry environment. Do not place any parts in a microwave oven. Keep cord neatly wrapped.

USER MANUAL B800HC GORENJE

B800HC

Nastavni mešalnik	Navodila za uporabo	SI
Mikser	Upute za uporabu	BIH HR
Mikser	Uputstvo za upotrebu	BIH SRB MNE
Миксер	Упатства за употреба	MK
Blender	Instruction manual	GB
Mixer	Manual de utilizare	RO
Mixér	Návod na použití	CZ
Mixér	Návod na obsluhu	SK
Mixer	Használati utasítás	H
Миксер	Инструкции за употреба	BG
Mixer	Instrukcja obsługi	PL
Змішувач	Інцтрукція з експлуатації	UA
Мешалка	Инструкция по эксплуатации	RUS
Frullatore	Istruzioni per l'uso	I
Mixer	Gebrauchsanweisung	D

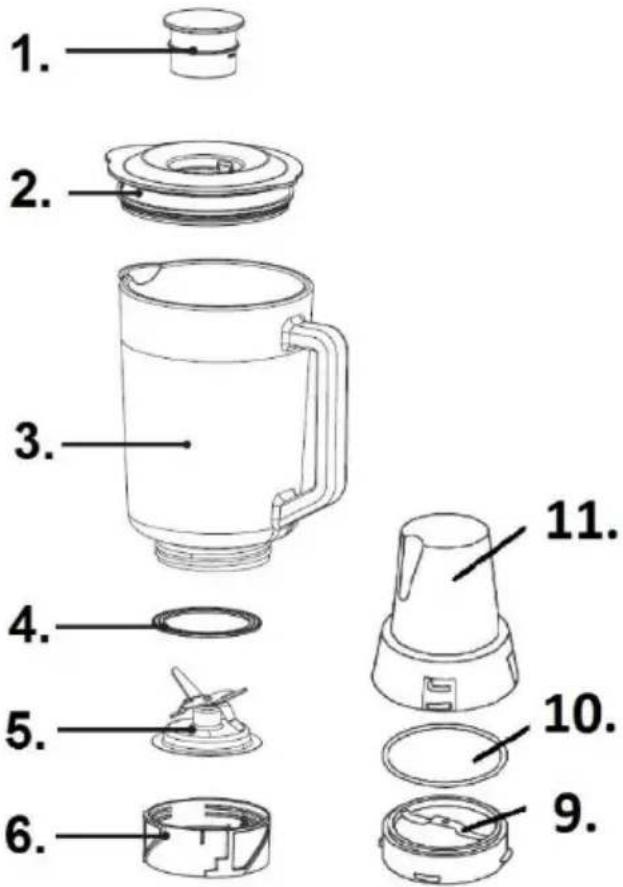

SL Instructions for use ....3

1. Inner lid
2. Lid
3. Jar
4. Jar sealing ring
5. Blending blade assembly
6. Jar base

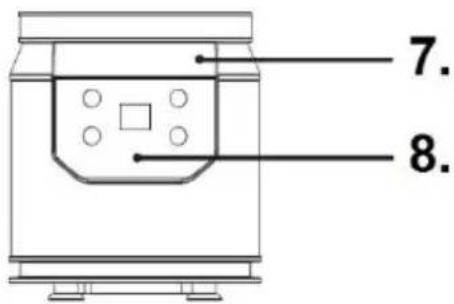

7. Base
8. Touch control panel
9. Mill base
10. Seal
11. Bowl

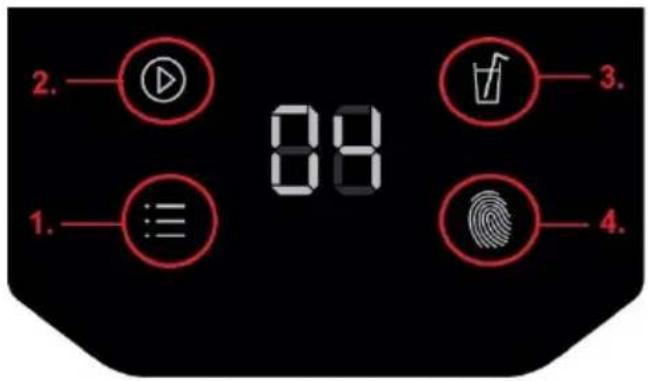

Touch control panel:

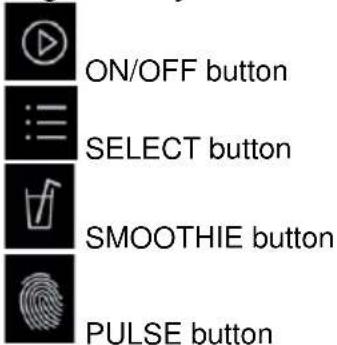

Legend of symbols:

ON/OFF button

SELECT button

SMOOTHIE button

PULSE button

1. Touch "SELECT" to choose between four speeds. "1" is low speed, "4" is high speed.
2. Touch "ON/OFF" to start or stop the appliance.
3. Touch "SMOOTHIE" to make smoothies, ice, etc.
4. Touch "PULSE" for pulse function and for cleaning after use.

Important

Read this user manual carefully before using the appliance and save it for future reference.

Danger

Do not immerse the motor unit in water or rinse it under the tap.

Warning

1. This appliance is intended for household use only.
2. Read all instructions before use, see all diagrams, and keep these instructions for further reference.
3. Do not operate the appliance for more than 60 seconds at a time when blending heavy loads, and allow it to cool down sufficiently afterwards.
4. Check that the voltage indicated on the base of the appliance matches the local mains voltage before connecting the appliance.
5. Do not let the cord hang over the edge of a table or counter, and do not let the cord come into contact with hot surfaces, including the stove.
6. Never use accessories or parts made by other manufacturers that are not recommended or sold by the manufacturer, as this may cause a risk of injury to persons.
7. Do not use the appliance if its power cord, plug, blade device, or other part is damaged. In the event of any damage to the power cord or blade device of this product, it can only be replaced with a special one for use with this product or by Gorenje's special servicing agency.
8. Do not place hands in the jar while the appliance is operating.
9. Do not remove the jar or grinding cup from the base when the appliance is in operation.
10. Make sure all parts are correctly mounted before switching on the appliance.
11. Make sure the motor and blade have completely stopped before disassembling and cleaning.
12. Avoid touching the sharp blades, especially when the appliance is plugged in.
13. Do not immerse the motor base, plug, or cord in water or any other liquid.
14. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
15. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
16. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
17. Please follow the above safety precautions.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Using the appliance

Preparing for use:

1. Wash all detachable parts (see chapter cleaning)
2. Be sure all parts are properly assembled and in place before use.
3. The temperature for the food to be mixed shall not exceed 60°C, the volume of food to be processed shall not exceed the maximum mark level on the jar.

USING BLENDER:

1. Install the jar sealing ring over the blending blade assembly.

1. Install the blending blade assembly over the jar base.

1. Attach the jar base to the jar by turning it in the direction of the arrow.

1. Put the ingredients that are not bigger than 2 centimeters in the jar.

1. Press the lid into place.

1. Install the jar onto the base.

Tips: While the motor is running, if you want to add ingredients you can:

I: Turn the inner lid off the lid in the anticlockwise direction.

II. Add the ingredients into the jar through the opening in the lid.

1. After you have done your work, push the "ON/OFF" button, unplug the appliance, and pour out the content.

TIPS FOR USE:

Liquid ingredients: dairy produce, juice, soup, drink, paste, milk shake etc.

A combination of soft ingredients: milk, papaya, mayonnaise etc.

Make cooked pulpy ingredients: baby food etc.

Using the mill

1. Unplug the appliance.
2. Turn the mill upside down.
3. Turn the mill base clockwise to release it, and lift it out of the mill.
4. Put the goods to be ground into the bowl. Dry goods only. For best results, don't fill in more than one third.
5. Replace the mill base inside the mill, and turn it anticlockwise to lock it in place.
6. Turn the mill right way up.
7. Lower the mill onto the motor unit, then turn it clockwise to lock it in place.
8. Choose the PULSE function and use short bursts until you achieve the desired grind size.
9. After releasing the PULSE button, wait until the blades stop moving.
10. Turn the mill anti-clockwise to unlock it, and lift it off the motor unit.
11. Turn the mill upside down.
12. Tap the mill a couple of times to move all the grounds into the bowl.
13. Turn the mill base clockwise to release it, and lift it out of the mill.
14. Empty the bowl.

Cleaning and care

CLEANING

The appliance is easier to clean if you do so immediately after use.

1. Unplug the appliance, remove the jar and grinding cup from the base, remove the blending blade assembly from the jar, and remove the grinding blade assembly from the grinding cup.
2. Clean these parts with the cleaning brush in warm water with some washing-up liquid, and rinse them under the tap.
3. Clean the base with a damp cloth; never immerse the motor base in water nor rinse it under the tap.
4. Avoid touching the sharp blades, especially when the appliance is plugged in.

CARING

1. Please store the appliance in a dry environment.
2. Never put the jar, or any other parts, in a microwave oven.

Troubleshooting

1. If, during use, the product is subjected to such abnormality as noise, smell, smog, and increased temperature, disconnect the power supply and stop using it.
2. In case the appliance fails to work, please check whether the power supply is properly connected, whether the switch is rotated to the on position, and whether the fittings are in place.
3. If the appliance still does not function well after the above inspections, consult the designated servicing agency.

Environment

This marking indicates that this product should not be disposed of with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE

WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

We reserve the right to any modifications!

General description

11.
