USER MANUAL RAZE 4 Origin Niceboy

Simple line drawing of a trash bin with no text or symbols

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

USB-C charging cable

Audio cable

Operating instructions

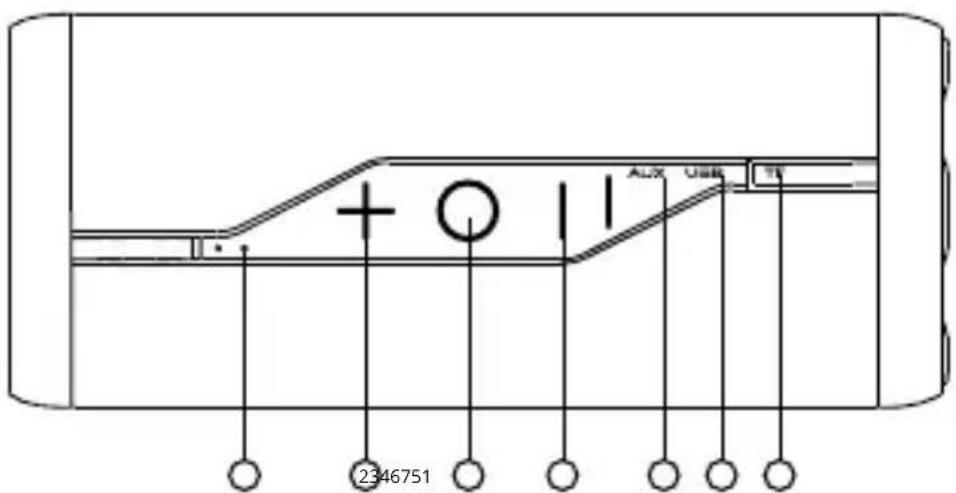

PRODUCT DESCRIPTION

1. LED indicator
2. Increase volume / Next song
3. Power On / Power Off / Playback / Pause / Change Mode / Hands-free
4. Decrease volume / Previous song
5. 3.5 mm jack AUX input
6. USB-C charging input
7. SD card slot

+ ○ || AUX USB 2346751

CHARGING

We recommend that you fully charge the speaker before using it for the first time to maximize battery life. It takes approximately 2-3 hours to fully charge. An acoustic signal will indicate a low battery. To charge the loudspeaker battery, connect the supplied USB-C cable to the charging port (6) and connect it to any charging adapter (5V voltage and at least 1A output current) or to a USB in a PC. During charging, the LED indicator remains red (1) and turns off after the charging is fully completed.

POWER ON / OFF

To turn the loudspeaker on or off, press and hold the „O“ button (3) for 2-3 seconds. After 10 minutes of inactivity, the loudspeaker will turn off automatically to save energy.

CONNECTING TO BLUETOOTH

1. Press the „O“ button (3) for 2-3 seconds to turn the loudspeaker on. The loudspeaker is now in pairing mode for Bluetooth connectivity. Pairing mode is signalled by flashing of the blue operating LED (1).
2. Activate Bluetooth on your device. Select "Niceboy RAZE 4 Origin" in the list of available devices.
3. The device will connect to the loudspeaker. A successful pairing is signalled by an acoustic prompt and the blue operating LED (2) will remain lit.

To disconnect form Bluetooth, press the "O" button (3) three times.

PLAYBACK

To start or pause a track, briefly press the "O" button (3). To control the volume, briefly press buttons "+" (2) and "-" (4). Press and hold these buttons to skip to the next or previous track.

AUX MODE

1. Insert the included 3.5mm jack cable into the audio input (5) and the loudspeaker will automatically switch to the appropriate mode.

2. Use the device to which you have connected the loudspeaker to control the music being played.

To control the volume of the loudspeaker, briefly press buttons "+" (2) and "-" (4).

By pressing the "O" button (3) you will switch the sound off (mute), press it again to switch the sound on (unmute).

FM MODE

The FM Mode is activated by pressing the “O” button (3) twice; then press both buttons “+” (2) and “-” (4) simultaneously to search and save radio stations automatically. To stop the automatic search, briefly press the “O” button (3). To switch between the radio stations, press and hold the “+” (2) and “-” (4) buttons.

For better signal reception, connect the USB-C cable to the input (6). The cable alternates as an auxiliary antenna.

MICRO SD CARD

1. After inserting the SD card, the loudspeaker will automatically switch to the appropriate mode.

The device supports data storage devices with a maximum capacity of 32GB and MP3 and WAV audio formats.

PHONE CALLS

To answer and then end the phone call, press the "O" button (3). Press the same button twice to reject an incoming call.

TRUE WIRELESS (TWS) CONNECTION

Thanks to the True Wireless (TWS) technology, you can connect two Niceboy RAZE 4 Origin loudspeakers and play music at the same time.

1. Turn both Niceboy RAZE 4 Origin loudspeakers on and make sure they are not connected to any Bluetooth device (mobile, notebook etc.).
2. Briefly press "+" (2) and "-" (4) button on one of the loudspeakers. An acoustic prompt will announce a successful connection of loudspeakers. An LED indicator on one of the loudspeakers (1) will remain blue while on the other loudspeaker the LED will flash blue - this means they are in pairing mode for Bluetooth connection.
3. Now you can open the Bluetooth settings on your device. Select "Niceboy RAZE 4 Origin" in the list of available devices. An acoustic prompt will announce a successful pairing.

PARAMETERS

Bluetooth version: 5.0

Supported codecs: SBC

Supported profiles: A2DP, AVRCP, HFP

Power output: 20W

Impedance: 6 Ω

Sensitivity: >75dB

Frequency range: 70 Hz–18 kHz

Bluetooth transmission distance: 10 meters

Frequency FM: 87.5MHz \~ 108MHz

Supported data devices: micro SD card, max. 32GB

Battery: Li-Ion 2000 mAh

Battery life: 20 hours (at 50% volume)

Waterproof level of protection: IP67

RTB Media s.r.o. hereby declares that the type of radio equipment RAZE 4 ORIGIN complies with Directives 2014/53 / EU, 2014/30 / EU, 2014/35 / EU, and 2011/65 / EU. The full content of EU Declaration of Conformity is available on the following websites: https://niceboy.eu/cs/podpora/prohlaseni-o-shode-mM38CtmYvX693IHvwu4CWpk3vjGrvnC

USER INFORMATION FOR DISPOSING ELECTRICAL AND ELECTRONIC DEVICES (HOME USE)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

This symbol located on a product or in the product's original documentation means that the used electrical or electronic products may not be disposed together with the communal waste. In order to dispose of these products correctly, take them to a designated collection site, where they will be accepted for free. By disposing of a product in this way, you are helping to protect precious natural resources and helping to prevent any potential negative impacts on the environment and human health, which could be the result of incorrect waste disposal. You may receive more detailed information from your local authority or nearest collection site. According to national regulations, fines may also be given out to anyone who disposes of this type of waste incorrectly. User information for disposing electrical and electronic devices.

(Business and corporate use)

In order to correctly dispose of electrical and electronic devices for business and corporate use, refer to the product's manufacturer or importer. They will provide you with information regarding all disposal methods and, according to the date stated on the electrical or electronic device on the market, they will tell you who is responsible for financing the disposal of this electrical or electronic device.

Information regarding disposal processes in other countries outside the EU. The symbol displayed above is only valid for countries within the European Union.

For the correct disposal of electrical and electronic devices, request the relevant information from your local authorities or the device seller.
