RAZE SUPERSONIC XL - Loudspeaker Niceboy - Free user manual and instructions

Product Type	Wireless Speaker
Brand	Niceboy
Model	RAZE SUPersonic XL
Bluetooth Version	5.0
Transmission Range	10 m
Power Output	24 W
Impedance	4 Ω
Sensitivity	>88 dB
Frequency Range	100 Hz – 10 kHz
Supported Audio Formats	MP3, WMA, WAV
Battery Type	Li-Ion
Battery Capacity	2400 mAh
Battery Life	12 hours (at 50% volume)
Charging Time	Approx. 3 hours
Charging Port	USB-C
Waterproof Rating	IPX6
Supported Codecs	SBC
Supported Profiles	A2DP, AVRCP, HFP
Handsfree Calls	Yes
TWS Function	Yes
FM Radio	Yes
USB Playback	Yes (max 32 GB)
Micro SD Card	Yes (max 32 GB)
AUX Input	Yes (3.5 mm)
Lighting Modes	Yes

Frequently Asked Questions - RAZE SUPERSONIC XL Niceboy

How do I pair the speaker via Bluetooth?

Press and hold the on/off button for 3 seconds to turn the speaker on. The speaker enters pairing mode (operating LED flashes). Activate Bluetooth on your device and select 'Niceboy RAZE Supersonic XL' from the list. A successful pairing is confirmed by a tone and steady LED.

How long does it take to charge fully?

A full charge takes approximately 3 hours. Use the supplied USB-C cable with a 5V/1A charger. The four charging LEDs indicate progress; all four stay lit when fully charged.

How do I use the FM radio?

First, connect the supplied USB-C cable to the charging port to serve as an antenna. Short press the mode switch button (3) to select FM mode. Long press the play button (4) to auto-search and store stations. Short press to stop scanning, then use previous/next buttons to switch stations.

How do I connect two speakers via TWS?

Turn on both speakers and ensure they are not connected to any Bluetooth device. On one speaker, long press the mode switch button (3) until a tone indicates successful interconnection. Then pair your device to 'Niceboy RAZE Supersonic XL' for stereo sound.

How do I reset the speaker to factory settings?

With the speaker turned on, press and hold the on/off button (8) for 8 seconds. The speaker will turn off and restart, completing the factory reset.

Is the speaker waterproof?

Yes, the speaker has an IPX6 rating, meaning it can withstand powerful water jets. However, do not submerge it in water.

What is the battery life?

The battery lasts up to 12 hours at 50% volume. Actual battery life varies with volume level and lighting mode usage.

Why is there no sound from the speaker?

Check that the speaker is turned on, paired correctly, and volume is not muted. Ensure the correct input mode is selected. If using Bluetooth, try re-pairing. If using AUX or USB, verify the cable or storage device. A factory reset may resolve persistent issues.

How do I skip tracks?

Short press the Next track button (9) to skip forward, or the Previous track button (7) to go back. This works in Bluetooth, USB, and SD card modes.

Can I use a USB flash drive?

Yes, the speaker supports USB flash drives up to 32 GB formatted with MP3, WMA, or WAV files. Insert the drive into the USB port (13) and playback starts automatically.

USER MANUAL RAZE SUPERSONIC XL Niceboy

User Manual / Wireless Speaker

CZ

OBSAH BALENÍ

POPIS PRODUKTU

OPIS VÝROBKU

https://niceboy.eu/sk/raze-supersonic-xl

INFORMÁCIE PRE POUŽÍVATELOV NA LIKVIDÁCIU ELEKTRICKÝCH A ELEKTRONICKÝCH ZARIADENÍ (DOMÁCNOSTI)

Niceboy RAZE Supersonic XL wireless speaker USB-C charging cable Audio cable Instruction manual

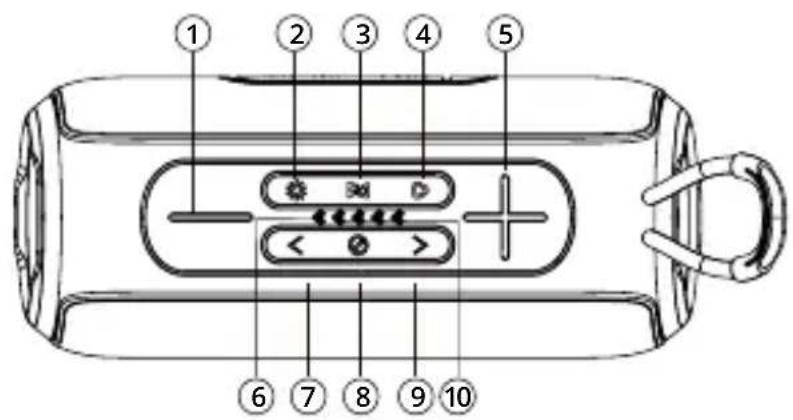

PRODUCT DESCRIPTION

1. Volume reduction button
2. Lighting control
3. TWS button / mode switch
4. Play / Pause / Answer / End / Reject call / Last dialed number
5. Volume increase button
6. Operating LED indicator
7. Previous track button
8. On / Off
9. Next track button
10. LED charging indicator
11. 3.5 mm AUX jack input
12. Micro SD card slot

13. USB-C charging port

14. Charging USB - output, port for a USB flash disk

CHARGING

We recommend that you fully charge the speaker before using it for the first time to maximize battery life. A full charging takes approximately 3 hours. Low battery is indicated by an audio signal. To charge the speaker's battery, plug the supplied USB-C cable into the charging port (14) and connect it to any charging adapter (5 V voltage and at least 1 A output current) or to a USB port in a PC. You can follow the charging progress thanks to the 4 charging LED diodes (10), after a full charge is complete, all 4 diodes will be lit.

POWER ON / OFF

To turn the speaker on or off, press and hold button (8) for 3 seconds.

If the speaker is left inactive, it will turn off automatically after 15 minutes to save power.

CONNECTING TO A DEVICE

1. Press and hold the on/off button (8) for 3 seconds to turn the speaker on. The speaker is now in pairing mode for wireless connectivity. Pairing mode is indicated by the flashing of the operating LED (6).
2. Activate Bluetooth on your device. Select "Niceboy RAZE Supersonic XL" in the list of available devices.
3. The device will connect to the speaker. A successful pairing is indicated by a tone and the operating LED (6) lighting up.

When switched on again, the speaker automatically connects to the last paired device.

PLAYBACK

To start or pause a track, short-press button (4). Control the volume by short- or long-pressing button (1) or (5). Short-pressing button (7) or (9) skips to the next or previous track.

AUX MODE

1. Plug the enclosed 3.5 mm jack cable into the audio port (11); the speaker will automatically switch to the corresponding mode.
2. Control what music the speaker plays using the device the speaker is connected to.
   Control the volume by short- or long-pressing button (1) or (5).

USB FLASH DRIVE AND MICRO SD CARD

Insert a data storage device into the corresponding port (12), (13).

The speaker automatically switches to playback mode, indicated by a tone.

To start or pause a track, short-press button (4). Control the volume by short- or long-pressing button (1) or (5). Short-pressing button (7) or (9) skips to the next or previous track.

The device supports data storage devices with a maximum capacity of 32 GB and MP3, WMA, WAV audio format.

FM MODE

Connect the supplied USB-C cable to the charging port (14), it serves as an antenna. Short press the button (3), the FM mode will announce an acoustic prompt; long press the button (4) to search and automatically store stations. You end the automatic search with a short pressing the same button (4). After completing the search, switch between stations by briefly pressing buttons (7) and (9).

PHONE CALLS

To answer and afterwards end a phone call, press button (4). Long-press the same button to reject an incoming call. Press the button twice to redial the last number called.

LIGHTING MODES

Pressing button (2) switches between individual colour modes. Long-pressing the button turns the light off, short-pressing turns it back on.

Note: Power consumption increases when a lighting mode is active.

TRUE WIRELESS (TWS) CONNECTION

True Wireless (TWS) technology enables you to connect two Niceboy RAZE Supersonic XL speakers and play music simultaneously in stereo.

1. Turn both Niceboy RAZE Supersonic XL speakers on and make sure they are not connected to any Bluetooth device (mobile, notebook etc.).

2. Long-press button (3) on one of the speakers.

A tone will indicate a successful interconnection of the speakers.

1. You can now open Bluetooth settings on your device. Select "Niceboy RAZE Supersonic XL" in the list of available devices. A tone will indicate a successful pairing..

FACTORY SETTINGS

In case of technical problems, reset the speaker to factory settings. The speaker must be turned on. Press and hold button (8) for 8 seconds. The speaker will turn off then back on again. The reset is now complete.

PARAMETERS

BT version: 5.0

Frequency band: 2.4 GHz

Radiofrequency power: ≤ 2.5 mW

Transmission range: 10 meters

Supported codecs: SBC

Supported profiles: A2DP, AVRCP, HFP

Power output: 24 W

Impedance: 4 Ω

Sensitivity: >88 dB

Frequency range: 100 Hz – 10 kHz

Supported data storage devices: USB flash drive, micro SD card, max. 32 GB

Supported audio formats: MP3, WMA, WAV

Battery: Li-Ion 2400 mAh

Battery life: 12 hours (at 50% volume)

Waterproofness: IPX6

SAFETY INFORMATION

Listening to music at very high volume can damage your hearing. Do not expose the device to fluids or humidity. Do not expose the device to extreme temperatures or try to disassemble it. Protect the device from sharp objects and falls from height. Batteries – improper handling (prolonged charging, short circuit, breakage by other objects, etc.) may result in fire, overheating or battery leakage.

The battery or accumulator that may be included with the product has a service life of six months, as it is a consumable. The manual is available for download in electronic form at www.niceboy.eu in the support section. NICEBOY s.r.o. hereby declares that radio device type Niceboy RAZE Supersonic XL complies with Directives 2014/53/EU, 2014/30/EU, 2014/35/EU, and 2011/65/EU. The full EU Declaration of Conformity is available at the following website: https://niceboy.eu/en/raze-supersonic-xl

INFORMATION FOR USERS ON DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT (HOUSEHOLDS)

The above symbol on the product or accompanying documentation means that used up electrical or electronic products must not be disposed of as communal waste. To dispose of the product correctly, bring it to designated waste collection points, where it will be disposed of free of charge. Proper disposal of the product helps preserve valuable natural resources and prevent potential negative impact on the environment and human health caused by improper waste disposal. For more information, contact local authorities or the nearest waste collection point. Improper disposal of this type of waste may result in a fine pursuant to national legislation.

Information for Users on Disposal of Electrical and Electronic Equipment (Corporate Use) To properly dispose of electrical and electronic equipment for corporate use, contact the manufacturer or importer of the product. They will provide you information on disposal methods for the product and will inform you on who is obligated to fund the disposal of the electrical device based on the date the product was put on the market. Information on Disposal in Countries outside the European Union. The above symbol only applies in EU countries. To properly dispose of electrical and electronic equipment, request more information from your local authority or the seller of the product.
