RAZE Fusion - Speaker Niceboy - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Niceboy
Model	RAZE Fusion
Dimensions (approx.)	20 x 10 x 10 cm
Weight (approx.)	0.8 kg
Power Source	Built-in rechargeable battery via USB-C
Battery Life (approx.)	8-12 hours
Bluetooth Version	5.0
Wireless Range	Up to 10 meters
Audio Inputs	Bluetooth, USB, microSD card, AUX
Speaker Configuration	Full-range driver with passive radiator
Output Power (approx.)	20 W
Frequency Response	80 Hz - 20 kHz
Controls	Power, Volume, Play/Pause, Next/Previous, Hands-free
Microphone	Built-in for hands-free calling
Water Resistance	IPX5 (splash proof)
Maintenance	Clean with a soft dry cloth. Keep away from extreme temperatures.
Safety	Do not disassemble. Avoid dropping. Use only included charger.
Spare Parts	Contact Niceboy support for replacement battery or charger.
Repairability	Not user-serviceable. Refer to authorized service center.
General Information	Designed for indoor and outdoor use with rich stereo sound.

Frequently Asked Questions - RAZE Fusion Niceboy

How do I pair my phone with the RAZE Fusion speaker?

Turn on the speaker and enable Bluetooth on your phone. Select 'RAZE Fusion' from the list of available devices. If prompted, enter 0000 as the PIN.

How long does the battery last?

The battery lasts approximately 8-12 hours at moderate volume. Charging time is about 3 hours via USB-C.

Is the RAZE Fusion waterproof?

It has an IPX5 rating, meaning it is splash-proof but not fully waterproof. Avoid submerging in water.

Can I use a microSD card with this speaker?

Yes, insert a microSD card with MP3 files into the slot. The speaker will automatically play music from the card.

How do I reset the speaker?

If the speaker is unresponsive, hold the Power button for 10 seconds to force a restart. Alternatively, press the reset hole with a paperclip.

Can I connect two RAZE Fusion speakers together?

Some Niceboy models support TWS pairing. Check the manual: press the TWS button on both speakers simultaneously to create a stereo pair.

What if the sound is distorted?

Reduce the volume on both the speaker and your device. Ensure the Bluetooth connection is stable and the speaker is not near interference sources.

How do I clean the speaker?

Use a soft dry cloth to wipe the exterior. Do not use any liquids or abrasive cleaners.

Is the speaker compatible with voice assistants?

The built-in microphone allows hands-free calling, but it does not activate Siri or Google Assistant. Check the manual for specific functions.

What should I do if the speaker won't charge?

Verify the USB-C cable and charger are working. Try a different cable or power source. If still not charging, contact Niceboy support.

USER MANUAL RAZE Fusion Niceboy

User Manual / Wireless Speaker

CZ

OBSAH BALENÍ

NABÍJENÍ

NABÍJANIE

https://niceboy.eu/sk/declaration/raze-fusion

INFORMÁCIE PRE POUŽÍVATELOV NA LIKVIDÁCIU ELEKTRICKÝCH A ELEKTRONICKÝCH ZARIADENÍ (DOMÁCNOSTI)

Niceboy RAZE Fusion wireless speaker

USB-C charging cable

Instruction manual

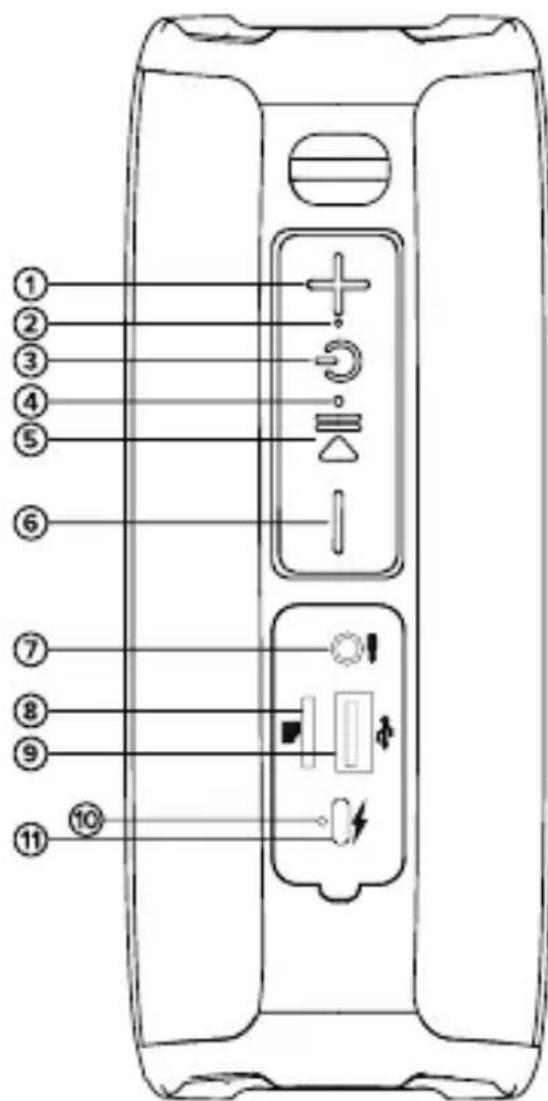

PRODUCT DESCRIPTION

1. Volume increase button / Next track
2. Microphone
3. On / off / light mode button / TWS
4. Operating LED indicator
5. Playback / Pause / Accept / End / reject a call / the last number called / Change modes
6. Volume decrease / Previous track
7. AUX input for 3.5 mm jack
8. Input for micro SD card
9. Charging USB - output, input for USB flash drive
10. LED charging indicator
11. Charging USB-C input

CHARGING

We recommend that you fully charge the speaker before using it for the first time to maximize battery life. A full charging takes approximately 3 hours. Low

battery is indicated by an audio signal. To charge the speaker's battery, plug the supplied USB-C cable into the charging port (11) and connect it to any charging adapter (5 V voltage and at least 1 A output current) or to a USB port in a PC. Charging is indicated by a red charging LED (10); the LED turns off once the battery is fully charged.

POWER ON / OFF

To turn the speaker on or off, press and hold button (3) for 3 seconds.

*If the speaker is left inactive, it will turn off automatically after 10 minutes to save power.

CONNECTING TO A DEVICE

1. Press and hold the on/off button (3) for 3 seconds to turn the speaker on. The speaker is now in pairing mode for wireless connectivity. Pairing mode is indicated by the flashing of the blue operating LED (4).
2. Activate Bluetooth on your device. Select "Niceboy RAZE Fusion" in the list of available devices.
3. The device will connect to the speaker. A successful pairing is indicated by a tone and the blue operating LED (4) lighting up.

*When switched on again, the speaker automatically connects to the last paired device.

PLAYBACK

To start or pause a track, short-press button (5). Control the volume by short-pressing button (1) or (6). Long-pressing button (1) or (6) skips to the next or previous track.

AUX MODE

1. Plug the 3.5 mm jack cable into the audio port (7); the speaker will automatically switch to the corresponding mode.
2. Control what music the speaker plays using the device the speaker is connected to. Control the speaker's volume by short-pressing button (1) or (6).

USB FLASH DRIVE AND MICRO SD CARD

Insert a data storage device into the corresponding port (8), (9).

The speaker automatically switches to playback mode, indicated by a tone.

To start or pause a track, short-press button (5). Control the volume by short-pressing button (1) or (6). Long-pressing button (1) or (6) skips to the next or previous track.

*The device supports data storage devices with a maximum capacity of 32 GB and MP3.

FM MODE

Connect the enclosed USB-C cable to the charging port (11) and it will act as an antenna. Long press button (5) and FM mode will be announced with an audio signal; short press button (5) to automatically search and save radio stations. You can stop the automatic search function by short pressing the same button (5). While out of the search function you can switch between radio stations by long pressing buttons (1) and (6).

PHONE CALLS

To answer and afterwards end a phone call, press button (5). Long-press the same button to reject an incoming call. Press the button twice to redial the last number called.

LIGHTING MODES

Short pressing button (3) switches between individual colour modes.

Note: Power consumption increases when a lighting mode is active.

TRUE WIRELESS (TWS) CONNECTION

Using True Wireless (TWS) technology, you can connect two Niceboy RAZE Fusion speakers and play music simultaneously in stereo.

1. Turn on both speakers and make sure they are not connected to any Bluetooth device (cell phone, laptop, etc.).
2. Double-press the button (3) on one of the speakers to start speaker pairing. An acoustic signal announces the successful completion of the speaker connection.
3. Now you can open the Bluetooth settings of your device. Then select „Niceboy RAZE Fusion“ in the list of available devices. Successful pairing will be announced by an acoustic signal.

PARAMETERS

BT version: 5.1

Frequency band: 2.4 GHz

Radiofrequency power: ≤ 2.5 mW

Transmission range: 10 meters

Supported codecs: SBC

Supported profiles: A2DP, AVRCP, HFP

Power output: 10 W

Impedance: 4 Ω

Sensitivity: >75 dB

Frequency range: 50 Hz - 18 kHz

Supported data storage devices: USB flash drive, micro SD card, max. 32 GB

Supported audio formats: MP3

Battery: Li-Ion 1200 mAh

Battery life: 12 hours (at 50% volume)

Waterproofness: IPX4

SAFETY INFORMATION

Listening to music at very high volume can damage your hearing. Do not expose the device to fluids or humidity. Do not expose the device to extreme temperatures or try to disassemble it. Protect the device from sharp objects and falls from height. Batteries – improper handling (prolonged charging, short circuit, breakage by other objects, etc.) may result in fire, overheating or battery leakage.

The battery or accumulator that may be included with the product has a service life of six months, as it is a consumable. The manual is available for download in electronic form at www.niceboy.eu in the support section. NICEBOY s.r.o. hereby declares that radio device type Niceboy RAZE Fusion complies with Directives 2014/53/EU, 2014/30/EU, 2014/35/EU, and 2011/65/EU. The full EU Declaration of Conformity is available at the following website: https://niceboy.eu/declaration/en/raze-fusion

INFORMATION FOR USERS ON DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT (HOUSEHOLDS)

The above symbol on the product or accompanying documentation means that used up electrical or electronic products must not be disposed of as communal waste. To dispose of the product correctly, bring it to designated waste collection points, where it will be disposed of free of charge. Proper disposal of the product helps preserve valuable natural resources and prevent potential negative impact on the environment and human health caused by improper waste disposal. For more information, contact local authorities or the nearest waste collection point. Improper disposal of this type of waste may result in a fine pursuant to national legislation.

Information for Users on Disposal of Electrical and Electronic Equipment (Corporate Use) To properly dispose of electrical and electronic equipment for corporate use, contact the manufacturer or importer of the product. They will provide you information on disposal methods for the product and will inform you on who is obligated to fund the disposal of the electrical device based on the date the product was put on the market. Information on Disposal in Countries outside the European Union. The above symbol only applies in EU countries. To properly dispose of electrical and electronic equipment, request more information from your local authority or the seller of the product.

DE

LIEFERUMFANG

AUFLADUNG

https://niceboy.eu/de/declaration/raze-fusion

TÖLTÉS

PUNJENJE

Preporučujemo da potpuno napunite zvučnik prije prve uporabe kako biste produžili trajanje baterije. Potpuno punjenje traje oko 3 sata. Niska razina baterije označena je zvučnim signalom. Za punjenje baterije zvučnika, uključite isporučeni USB-C kabel u priključak za punjenje (11) i spojite ga na bilo koji prilagodnik za punjenje (napon od 5 V i najmanje 1 A izlazne struje) ili na USB priključak na računalu. Punjenje je označeno crvenom LED diodom za punjenje (10); LED se isključuje kada je baterija potpuno napunjena.

UKLJUČIVANJE/ISKLJUČIVANJE

Za uključivanje ili isključivanje zvučnika pritisnite i držite gumb (3) u trajanju od 3 sekunde.

*Ako žvučnik ostane neaktivan, automatski će se isključiti nakon 10 minuta radi uštede energije.

POVEZIVANJE S UREĐAJEM

1. Za uključivanje zvučnika pritisnite i držite gumb (3) u trajanju od 3 sekunde. Zvučnik je sada u načinu uparivanja za bežično povezivanje. Način uparivanja označen je treperenjem LED diode.(4).
2. Uključite Bluetooth na uređaju. Odaberite „Niceboy RAZE Fusion” na popisu dostupnih uređaja.
3. Uređaj će se spojiti sa zvučnikom. Uspješno uparivanje označeno je zvučnim tonom i uključivanjem radne LED diode plave boje (4).

*Kada se ponovno uključi, zvučnik se automatski povezuje sa zadnjim uparenim uređajem.

REPRODUKCIJA ZVUKA

Pjesmu možete započeti ili pauzirati kratkim pritiskom na tipku (5). Glasnoćom upravljate kratkim pritiskom tipki (1) i (6). Pritisnite i držite tipke (1) i (6) za prebacivanje na sljedeću ili prethodnu pjesmu.

NAČIN RADA AUX

1. Umetnite 3,5 mm jack kabel u audio ulaz (7) i zvučnik će se automatski prebaciti na odgovarajući način rada.
2. Koristite uređaj na koji ste spojili zvučnik za upravljanje glazbom koja se reproducira. Glasnoćom zvučnika možete upravljati kratkim pritiskom tipki () i (6).

USB IZBRISIVI MEMORIJSKI POGON I MICRO SD KARTICA

Umetnite memorijski uređaj u odgovarajući priključak (8), (9). Zvučnik će se automatski prebaciti u način rada za reprodukciju, što će biti najavljeno zvučnim signalom. Pjesmu možete započeti ili pauzirati kratkim pritiskom na tipku (5). Glasnoćom zvučnika možete upravljati kratkim pritiskom tipki (1) i (6). Pritisnite i držite tipke (1) i (6) za prebacivanje na sljedeću ili prethodnu pjesmu.

*Uređaj podržava nosače podataka s maksimalnim kapacitetom od 32GB i audio format MP3.

TELEFONSKI POZIVI

Da biste odgovorili i nakon toga završili telefonski poziv, pritisnite gumb (5). Dugim

ŁADOWANIE

POLNJENJE

PRAVA BREZŽIČNA POVEZAVA (TWS)

ÎNCĂRCAREA

Codecuri acceptate: SBC

Profiluri acceptate: A2DP, AVRCP, HFP

Putere de ieşire: 10 W

Impedanță: 4 Ω

Sensibilitate: >75 dB

https://niceboy.eu/ro/declaration/raze-fusion

INFORMATII PENTRU UTILIZATORI CU PRIVIRE LA ELIMINAREA CA DEŞEU A ECHIPAMENTELOR ELECTRICE ŞI ELECTRONICE (UZ CASNIC)

LADDNINGENS

Praha 4, Czech Republic, ID: 294 16 876.

Made in China.

RoHS CE 📄 📌 ✉
