Product Type	Ratchet Lashing Strap Set
Model	HG07155
Brand	ULTIMATE SPEED
Fixed End Length (L_GF)	0.2 - 1.1 m
Adjustable End Length (L_GL)	2 - 50 m
Permissible Load (LC)	350 daN (approx. 350 kg)
Material	Polyester (PES)
Max Hand Force	25 daN
Operating Temperature Range	-40°C to +80°C
Intended Use	Private use for securing loads on vehicles
Lashing Methods	Lashing down and diagonal lashing
Safety Inspection	Check for damage, cuts, corrosion before each use
Cleaning Instructions	Clean with lukewarm water and pH-neutral cleaner; avoid corrosive detergents
Storage	Store in a dry, well-ventilated, cool place
Warranty	3 years from date of purchase
Release Mechanism	Quick release button and handle
Chemical Resistance	Resistant to mineral acids; attacked by alkalis
Standard Compliance	EN 12195-1:2010 for number of lashings

Frequently Asked Questions - HG07155 ULTIMATE SPEED

What is the maximum load capacity of the HG07155 ratchet strap set?

The permissible load (LC) is 350 daN, which is approximately 350 kg. Never exceed this limit.

Can I use this strap set for commercial purposes?

No, this product is intended for private use only, not for commercial applications.

How should I clean and maintain the ratchet straps?

Clean with lukewarm water and a pH-neutral detergent. Avoid corrosive cleaners. Lightly grease the ratchet mechanism but keep it off the webbing. Store in a dry, cool place.

What should I inspect before each use?

Check for broken threads, cuts, deformations, corrosion, missing labels, or damage from heat or chemicals. Do not use if any damage is found.

What is the difference between lashing down and diagonal lashing?

Lashing down presses the load onto the vehicle bed. Diagonal lashing secures the load directly to the vehicle using four straps. Both methods require at least two straps.

How do I release the tension on the strap?

Pull back the quick release button and hold it. Then lift the handle to an open flat position. The webbing will be released.

What is the warranty period for this product?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects, but not normal wear or damage from misuse.

Can I use the straps in extreme temperatures?

Yes, the operating temperature range is -40°C to +80°C. However, temperature changes during transport may affect tension, so check periodically.

What should I do if the strap comes into contact with chemicals?

Remove the strap from service immediately. Thoroughly soak it in cold water and let it dry naturally. Consult the manufacturer if needed.

How many straps are required for securing a load?

For lashing down, at least two straps of the same type. For diagonal lashing, use two pairs (four straps) of the same type for stability.

USER MANUAL HG07155 ULTIMATE SPEED

Operation and safety notes

HU

NEHÉZ TEHER RACSNIS RÖGZÍTŐSZÍJ KÉSZLET

GB Operation and safety notes Page 5

Isometric diagram of a rectangular block mounted on a base with a diagonal line and a small dot at the base (no text or symbols)

Isometric diagram of two rectangular blocks mounted on a base platform, connected by wires (no text or symbols)

Introduction Page 6

Intended use.... Page 6

Technical data ...... Page 7

Safety instructions ...... Page 8

Safety instructions for lashing straps....Page 8

Practical use and care information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Use Page 13

Attaching the lashing strap Page 14

Releasing the lashing strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15

Cleaning and care....Page 16

Disposal Page 16

Warranty Page 17

HEAVY DUTY RATCHET STRAP SET

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

The manufacturer and the dealer of this product are not liable for any damages if the product is not used according to the warnings and instructions of this instruction manual. The product is not intended for commercial use. The product is only suitable for private use, to secure loading on vehicles. Any usage which does not conform with this manual can lead to injuries or damages.

● Technical data

HG07154:

Length: L

$$ _ {G F} (\text { length - fixed end }): 0. 2 - 1. 1 \mathrm{m} $$

$$ L _ {G L} (\text { length - adjustable end }): 2 - 5 0 \mathrm{m} $$

Permissible load (LC): 1000 daN (10000 N =

$$ \text { Newton } / 1 0 0 0 \mathrm{kg} (\mathrm{m} / \mathrm{s} ^ {2}) / S _ {\mathrm{HF}} 5 0 \mathrm{daN}) $$

Material: Polyester (PES)

HG07155:

Length: L

$$ _ {G F} (\text { length - fixed end }): 0. 2 - 1. 1 \mathrm{m} $$

$$ L _ {G L} (\text { length - adjustable end }): 2 - 5 0 \mathrm{m} $$

Permissible load (LC): 350 daN (3500 N =

$$ \text { Newton } / 3 5 0 \mathrm{kg} (\mathrm{m} / \mathrm{s} ^ {2}) / \mathrm{H} _ {\mathrm{F}} 2 5 \mathrm{daN}) $$

Material: Polyester (PES)

● Safety instructions

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

Safety instructions for lashing straps

- Keep the product away from children.

- Check that all parts have been assembled correctly. Improper assembly may result in injury.

- Check the product for damages prior to each use. Do not use the product anymore if it is damaged.

- Carefully check the product for dirt, contamination, corrosion or other material damages.

- Do not use the product if it is damaged in any way:

- Broken threads or cuts in the thread (especially if the edges have been nicked).

- Missing/irlegible labelling. Only legibly marked and labelled lashing straps may be used.

- Damage to connections. Deformation due to exposure to heat (friction, radiation).

- Material deformations on any component

- Damages due to the effect of corrosive substances.

- After accidental contact with chemical products, the lashing strap must be removed from service and the manufacturer or supplier consulted.

- Never exceed the permissible tensile load of the lashing strap as stated on the label (see also "Technical data").

- Choose the most suitable lashing strap in accordance with the intended load that needs to be lashed down, the tensile load and loading surface (see label).

- Check that the vehicle parts you wish to strap the load to are sturdy enough.

■ Make sure that the lashing straps are not twisted/knotted and that the load is distributed across their entire width.

• Keep lashing strap away from hot surfaces.
  ■ Evenly distribute the lashing straps on the load to be secured.
  ■ Never use the lashing straps to lift loads.

⚠️ CAUTION! DANGER OF ACCIDENT! Always choose suitable lashing straps, lashing points and lashing methods. The size, shape and weight of the cargo as well as the intended mode of use, the transport environment and the type of cargo determine the correct choice.

- Do not exceed the roof load indicated by the vehicle manufacturer.

⚠️ CAUTION! DANGER OF ACCIDENT! When lashing down, pay attention to the required pre-load force. At least 2 lashing straps are required. For reasons of stability, at least 2 lashing straps of the same kind must be used for lashing down and 2 pairs of lashing straps of the same kind used for diagonal lashing.

⚠️ CAUTION! DANGER OF ACCIDENT! During transportation, regularly check that the cargo is correctly lashed and tighten the lashing strap if necessary.

● Practical use and care information

1. In selecting and using lashing equipment, you must consider the required lashing force, the mode of use and the type of cargo to be lashed. The size, shape and weight of the cargo as well as the intended mode of use, the transport environment and the type of cargo determine the correct choice. For stability reasons, at least 2 lashing straps must be used for lashing down and 2 pairs of lashing straps used for diagonal lashing.

2. The selected web lashings shall both be strong enough and of the correct length for the mode of use. Basic lashing rules:

3. Plan the fitting and removal operations of lashing before starting a journey;

4. Keep in mind that during journeys parts of the load may have to be unloaded;
5. Calculate the number of web lashings according to EN 12195-1:2010;
6. Only those web lashings designed for frictional lashing with STF on the label are to be used for frictional lashing;

7. Check the tension force periodically, especially shortly after starting the journey.

8. Due to different characteristics and because of different changes in length under load, only identical lashing device combinations (e.g. lashing chains and lashing strap made of synthetic fibres) may be used in parallel for lashing the same load.

9. Consideration shall also be given to ancillary fittings (components) and lashing devices in the load restraint assembly are compatible with the web lashing.

10. During use, flat hooks must engage over the entire width of the bearing surface of the hook.

11. Release of the web lashing: Care should be taken to ensure that the stability of the load is independent of the lashing equipment and that the release of the web lashing shall not cause the load to fall off the vehicle, thus endangering the personnel. If necessary attach lifting equipment for further transport to the load before releasing the tensioning device in order to prevent accidental falling and/or tilting of the load. This applies as well when using tensioning devices which allow controlled removal.

12. Before starting to unload, you must loosen the lashing until the load is free.
13. During loading and unloading attention has to be paid to proximity of any low overhead power lines.

14. The materials from which lashing straps are made have selective resistance to chemical attacks. Seek the advice of the manufacturer or supplier if exposure to chemicals is anticipated. It should be noted that the effects of chemicals may increase with rising temperatures. The resistance of man-made fibres to chemicals is summarized below.

15. Polyamides are virtually immune to the effects of alkalis. However, they are attacked by mineral acids.

16. Polyester is resistant to mineral acids but is attacked by alkalis.
17. Polypropylene is little affected by acids and alkalis and is suitable for applications where high resistance to chemicals (other than certain organic solvents) is required.

18. Solutions of acids or alkalis which are harmless may become sufficiently concentrated by evaporation to cause damage. Take contaminated webbings out of service at once, thoroughly soak them in cold water, and dry naturally.

19. This product is suitable for use for the following temperature ranges: -40 to +80 °C. This range may vary in a chemical environment. In that case the advice of the manufacturer or supplier shall be sought. Changing the environmental temperature during transport may affect the forces in the lashing. Check the tension force after entering warm areas.

20. Lashing straps shall be rejected or returned to the manufacturer for repair if they show any signs of damage.

The following criteria are considered to be signs of damage:

• Only lashing bearing identification labels shall be repaired;
• If there is any accidental contact with chemical products, lashing straps shall be removed from service and the manufacturer or supplier shall be consulted;
• for lashing straps (to be rejected): tears, cuts, nicks and breaks in load bearing fibres and retaining stitches; deformations resulting from exposure to heat;

• for end fittings and tensioning devices: deformations, splits, pronounced signs of wear, signs of corrosion.

• Care should be taken that the lashing is not damaged by sharp edges of the load on which it is used.
  A visual inspection before and after each use is recommended.

• Only legibly marked and labelled web lashings shall be used.
• Lashing straps must not be overloaded: The maximum hand force 25 daN for model HG07155; 50 daN for model HG07154 (1 daN ≈ 1 kg) may be applied. Mechanical aids such as bars or levers etc. may not be used unless they are part of the tensioning device (HG07154 / HG07155).
• Lashings shall never be used when knotted.
• Damage to labels shall be prevented by keeping them away from sharp edges of the load and, if possible, from the load.
• Webbing must be protected against friction, abrasion and damage from loads with sharp edges by using protective sleeves and / or corner protectors.

Use

Lashing down (HG07154 / HG07155):

With lashing straps stretched over it, the load is pressed down onto the loading area (Fig. 1).

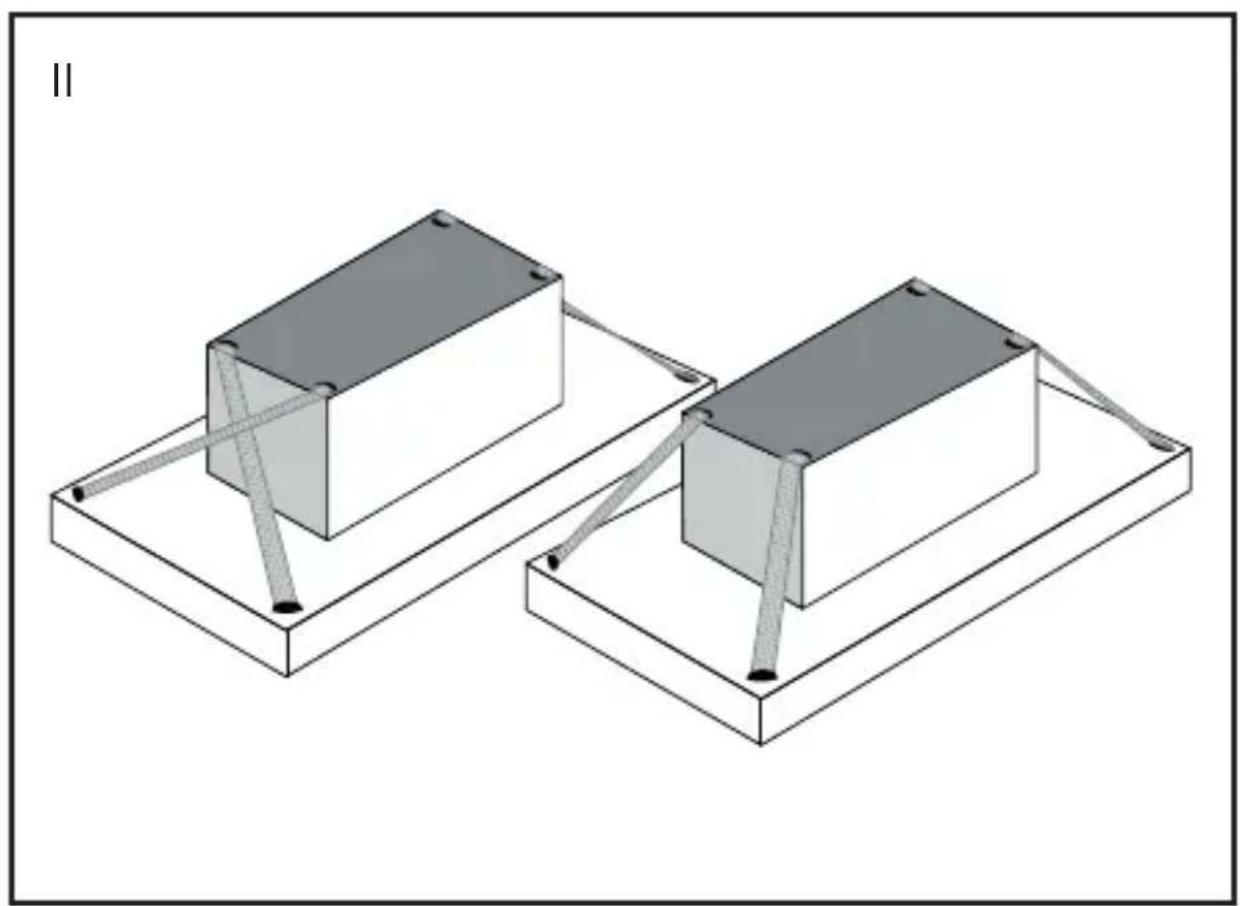

Diagonal lashing (HG07155):

The load is secured by 4 lashing straps and directly connected to the vehicle (Fig. II).

- Attaching the lashing strap

HG07154:

Technical line drawing of a mechanical tool or device with no visible text or symbols

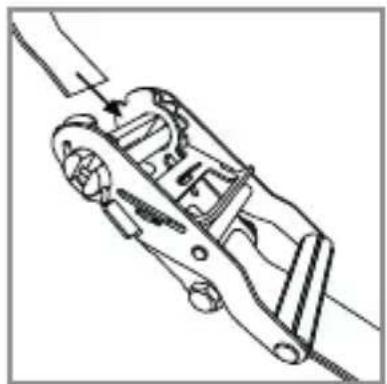

■ Fasten the hooks on both sides. Insert the free end of the strap through the slot in the ratchet. Pull through the ratchet until it sits snug around the load.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

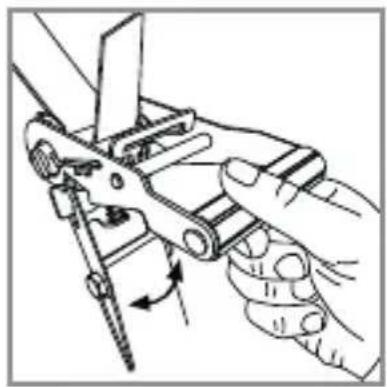

■ Tighten the strap by pumping the handle up and down until the strap is tight. Then, fully close the handle.

HG07155:

Line drawing of a car inside a vehicle, showing structural components and motion direction (no text or symbols)

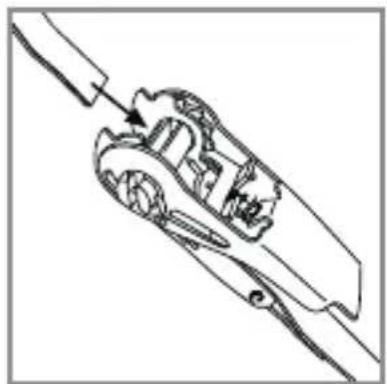

- Fasten the hooks on both sides. Insert the free end of the strap through the slot in the ratchet. Pull through the ratchet until it sits snug around the load.

Illustration of a hand using a tool to cut or adjust a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

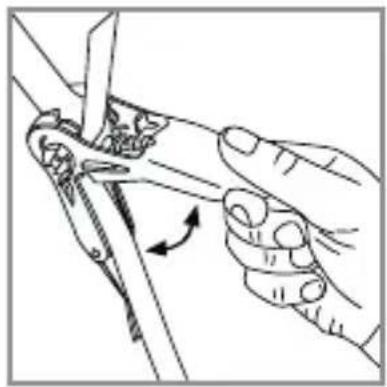

■ Tighten the strap by pumping the handle up and down until the strap is tight. Then, fully close the handle.

● Releasing the lashing strap

HG07154:

Technical line drawing of a mechanical clamp or connector assembly (no text or symbols)

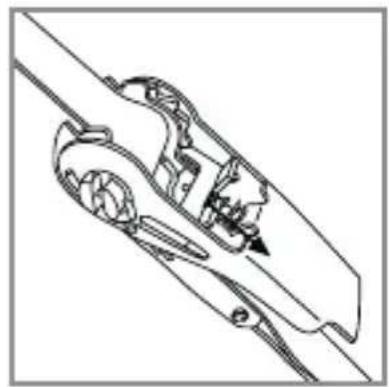

Pull back the quick release button and hold.

Technical line drawing of a mechanical assembly (no text or symbols)

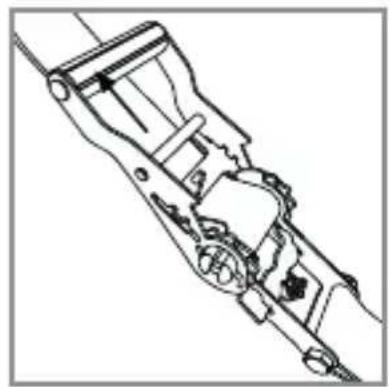

■ Pull the handle up to an open, flat position.

The slot in ratchet will be free to turn. The webbing is released now.

HG07155:

Technical line drawing of a mechanical component or tool assembly (no text or symbols)

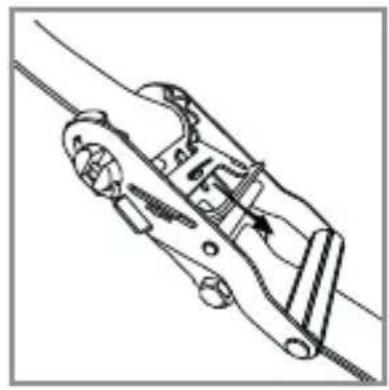

Pull back the quick release button and hold.

Technical line drawing of a mechanical assembly with directional arrows (no text or symbols)

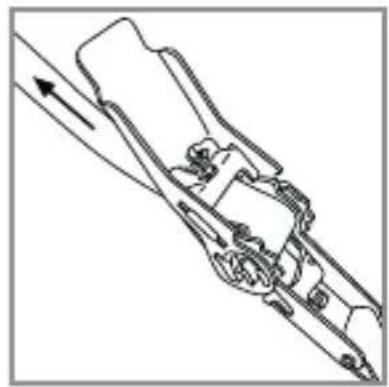

■ Pull the handle up to an open, flat position.

The slot in ratchet will be free to turn. The webbing is released now.

● Cleaning and care

Note: Regular care will maintain the quality and functionality of the lashing strap.

- Clean the lashing strap with lukewarm water and pH-neutral cleaning agents. Avoid corrosive detergents.

The ratchet tensioner should be regularly cleaned and then lightly greased. When greasing it, make sure that parts that come into contact with the webbing are not greased.

■ Store the lashing strap in a dry, well-ventilated cool place.
- Avoid contact with chemicals, acids and alkalis as they may damage the lashing strap.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB

Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

Bevezető Oldal 20

$$ (L C): 1 0 0 0 d a N (1 0 0 0 0 N = $$

$$ \text { Newton } / 1 0 0 0 \mathrm{kg} (\mathrm{m} / \mathrm{s} ^ {2}) / S _ {\mathrm{HF}} 5 0 \mathrm{daN}) $$

$$ (L C): 3 5 0 \mathrm{daN} (3 5 0 0 \mathrm{N} = $$

$$ \text { Newton } / 3 5 0 \mathrm{kg} (\mathrm{m} / \mathrm{s} ^ {2}) / \mathrm{H} _ {\mathrm{F}} 2 5 \mathrm{daN}) $$

Technical line drawing of a mechanical tool or device with no visible text or symbols

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a gear mechanism with no visible text or symbols

Illustration of a hand using a tool to cut or adjust a piece of material, with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical clamp or connector assembly (no text or symbols)

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical component or tool assembly (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or labels)

Dovoljena sila (LC): 1000 daN (10000 N =

$$ \text { Newton } / 1 0 0 0 \mathrm{kg} (\mathrm{m} / \mathrm{s} ^ {2}) / S _ {\mathrm{HF}} 5 0 \mathrm{daN}) $$

Material: Poliester (PES)

HG07155:

Dolžina: L

$$ \begin{array}{l} _ {\mathrm{GF}} (\text {dolžina fiksnega konca}): 0, 2 - 1, 1 \mathrm{m} \ L _ {\mathrm{GL}} (\text {dolžina prostega konca}): 2 - 5 0 \mathrm{m} \end{array} $$

Dovoljena sila (LC): 350 daN (3500 N =

$$ \text { Newton } / 3 5 0 \mathrm{kg} (\mathrm{m} / \mathrm{s} ^ {2}) / \mathrm{H} _ {\mathrm{F}} 2 5 \mathrm{daN}) $$

Material: Poliester (PES)

Technical line drawing of a mechanical device with no visible text or symbols

Hand using a tool to adjust or install a mechanical component, no visible text or symbols

Mechanical assembly diagram showing a gear and shaft assembly (no text or labels)

Illustration of a hand using a tool to cut or adjust a piece of material, showing a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical clamp or connector assembly (no text or symbols)

Povlecite zapah za hitro sprostitev nazaj in ga zadržite v tem položaju.

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical component or tool assembly (no text or symbols)

Povlecite zapah za hitro sprostitev nazaj in ga zadržite v tem položaju.

Technical line drawing of a mechanical assembly with directional arrows (no text or symbols)

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA

Přípustná síla (LC): 1000 daN (10000 N =

Newton / 1000 kg (m / s²) / S _HF 50 daN)

Přípustná síla (LC): 350 daN (3500 N =

Newton / 350 kg (m / s ^2 ) / H _F 25 daN)

Technical line drawing of a mechanical tool or device with no visible text or symbols

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing gear and shaft components (no text or labels)

Illustration of a hand using a tool to cut or adjust a piece of material, showing a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical clamp or connector assembly (no text or symbols)

Technical line drawing of a mechanical assembly or linkage component (no text or symbols)

Technical line drawing of a mechanical component or tool assembly (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with motion arrows (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Hand using a tool to adjust or install a mechanical component, no visible text or symbols

Mechanical assembly diagram showing gear and shaft components (no text or labels)

Illustration of a hand using a tool to cut or adjust a piece of material, showing a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical clamp or connector assembly (no text or symbols)

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical component or tool assembly (no text or symbols)

Technical line drawing of a mechanical assembly with directional arrows (no text or symbols)

Zulässige Kraft (LC): 1000 daN (10000 N =

$$ \text { Newton } / 1 0 0 0 \mathrm{kg} (\mathrm{m} / \mathrm{s} ^ {2}) / S _ {\mathrm{HF}} 5 0 \mathrm{daN}) $$

Material: Polyester (PES)

HG07155:

Länge: L

$$ \begin{array}{l} _ {\mathrm{GF}} (\text {Länge Festende}): 0, 2 - 1, 1 \mathrm{m} \ L _ {\mathrm{GL}} (\text {Länge Losende}): 2 - 5 0 \mathrm{m} \end{array} $$

Zulässige Kraft (LC): 350 daN (3500 N =

$$ \text { Newton } / 3 5 0 \mathrm{kg} (\mathrm{m} / \mathrm{s} ^ {2}) / \mathrm{H} _ {\mathrm{F}} 2 5 \mathrm{daN}) $$

Material: Polyester (PES)

Technical line drawing of a mechanical tool or device with no visible text or symbols

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a gear and shaft assembly (no text or labels)

Illustration of a hand using a tool to cut or adjust a piece of material, showing a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical clamp or connector assembly (no text or symbols)

Technical line drawing of a mechanical assembly (no text or symbols)

Technical line drawing of a mechanical component or tool assembly (no text or symbols)

Technical line drawing of a mechanical assembly with directional arrows (no text or symbols)
