HG02121C-1 - Uncategorized ULTIMATE SPEED - Free user manual and instructions

Product Type	Bungee Cord Set (set of 12)
Brand	Ultimate Speed
Model	HG02121C-1
Included Cords	4x 450 mm (red), 2x 600 mm (green), 2x 800 mm (orange), 2x 1000 mm (blue), 2x 1200 mm (black)
Diameter	8 mm
Max Tensile Load (per cord)	70 N (approx. 7.1 kg)
Max Usable Length (450 mm cord)	858.4 mm
Max Usable Length (600 mm cord)	1175.6 mm
Max Usable Length (800 mm cord)	1508.8 mm
Max Usable Length (1000 mm cord)	2061.7 mm
Max Usable Length (1200 mm cord)	2526.2 mm
Material	Elastic rubber with plastic hooks
Intended Use	Fastening light objects (e.g., rain protection, nets, clothes, camping items)
Cleaning	Wipe with a dry, lint-free cloth
Safety Notices	Do not overstretch; keep face away when stretching; check for damage before each use; not for load securing or hoisting
Warranty	3 years from date of purchase
Service Contact (UK)	Tel: [phone], E-Mail: [e-mail]
Manufacturer	OWIM GmbH & Co. KG, Stiftsbergstraße 1, 74167 Neckarsulm, Germany

Frequently Asked Questions - HG02121C-1 ULTIMATE SPEED

What is included in the bungee cord set HG02121C-1?

The set includes 12 bungee cords: 4 cords of 450 mm (red), 2 cords of 600 mm (green), 2 cords of 800 mm (orange), 2 cords of 1000 mm (blue), and 2 cords of 1200 mm (black), along with an instruction manual.

What is the maximum load capacity per bungee cord?

Each bungee cord has a maximum tensile load of 70 N (Newton), which is roughly equivalent to 7.1 kg. Do not exceed this limit.

Can I use these bungee cords to secure luggage on a car roof?

No, these bungee cords are not intended for load securing on vehicles. They are only for fastening light items. For car roof loads, additional solid fastenings are required.

How should I clean the bungee cords?

Clean them with a dry, lint-free cloth. Do not use water or cleaning agents, as they may damage the elastic material.

What is the warranty period for this product?

The warranty is 3 years from the date of purchase. It covers defects in materials or manufacture, but not normal wear or damage from improper use.

How do I file a warranty claim?

Keep your original sales receipt. Contact the service department (phone or email) with the receipt and item number. You may be asked to return the defective product with proof of purchase.

Can I join two bungee cords together to make a longer one?

No, never join or knot bungee cords together. Doing so can cause them to snap or lose elasticity, leading to injury.

Are the hooks adjustable or can I bend them?

No, do not attempt to change or bend the fixing hooks. They are designed as-is for safe attachment. Bending may weaken the hook or cause it to detach.

What is the maximum extension length for each cord?

The maximum usable lengths are: 450 mm cord extends to 858.4 mm, 600 mm to 1175.6 mm, 800 mm to 1508.8 mm, 1000 mm to 2061.7 mm, and 1200 mm to 2526.2 mm. Never stretch beyond these limits.

Is this product safe for children to play with?

No, this product is not a toy. Keep bungee cords and packaging away from children to prevent risk of injury or suffocation.

USER MANUAL HG02121C-1 ULTIMATE SPEED

BUNGEE CORD SET

GB

BUNGEE CORD SET

Operation and safety notes

HU

CSOMAGRÖGZÍTÖ GUMI

GB Operation and safety notes Page 5

HU Kezelési és biztonsági utalások Oldal 13
SI Navodila za upravljanje in varnostna opozorila Stran	21
CZ Pokyny pro obsluhu a bezpečnostní pokyny Strana	30
SK Pokyny pre obsluhu a bezpečnostné pokyny Strana	38
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite	46

BUNGEE CORD SET

● Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The bungee cords are intended for the fastening and securing of light objects. For example:

• Fixation of rain protection over secured luggage.
• Nets for fixation of small parts on secured container (foliage, paper, foil etc.).
• Fixation of clothes on bicycle luggage carrier or trailer.
• Fixation of article in camping area (tent and porch).
• Fixation of rain protection at home and garden.

Do not exceed the maximum load capacity.

Any use other than previously mentioned or any product modification is prohibited and can lead to injuries and / or product damage. The manufacturer is not liable for any damages caused by any use other than for the intended purpose.

The product is not intended for commercial use.

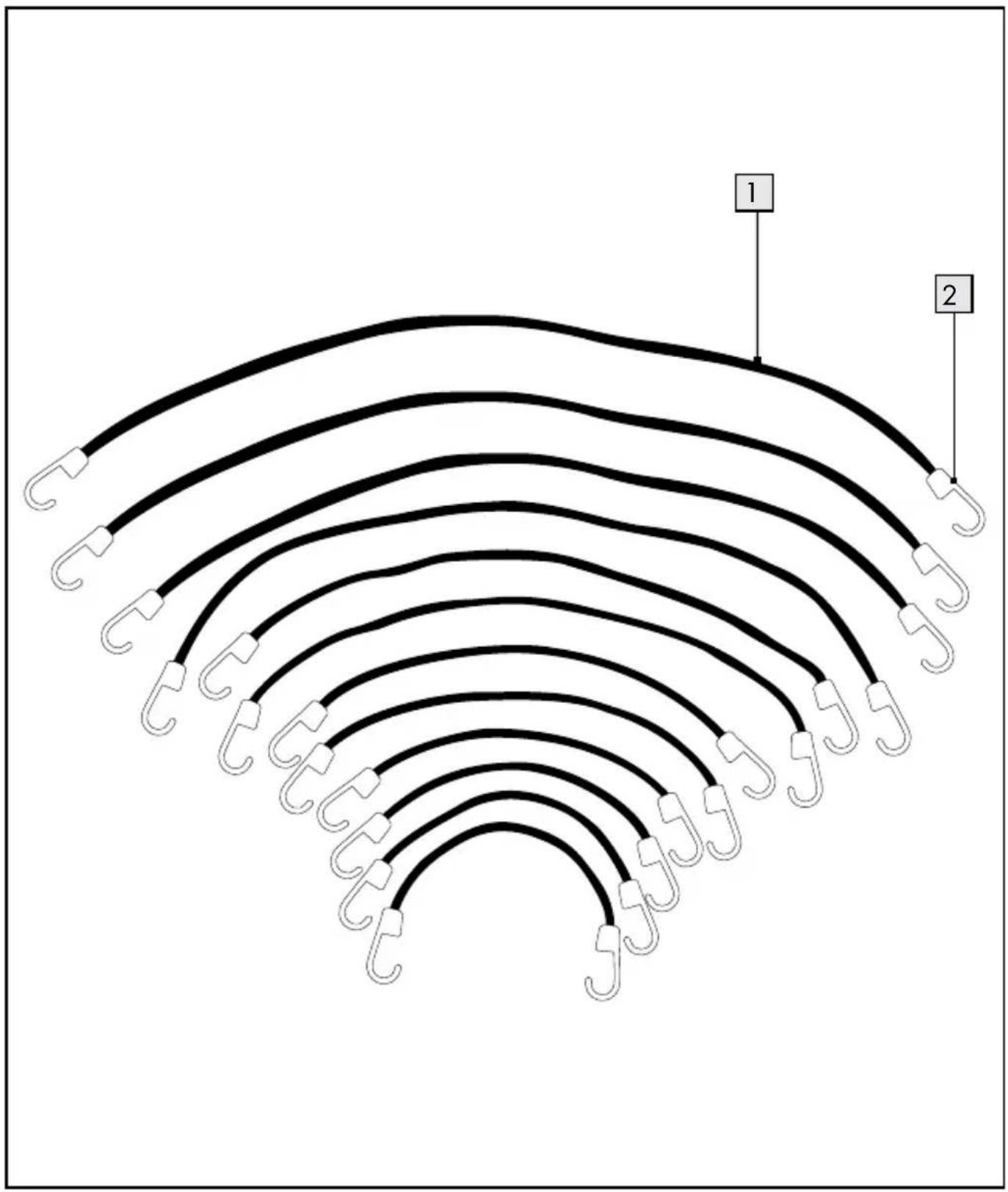

• Description of parts

1 Elastic band
2 Hooks

- Technical data

Art. no. Length	Max. usable length	Max. tensile load	Colour
HG02121A-1 450 mm 858.4 mm 70 N Red
HG02121A-2 600 mm 1175.6 mm 70 N Green
HG02121A-3 800 mm 1508.8 mm 70 N Orange
HG02121A-4 1000 mm 2061.7 mm 70 N	Blue
HG02121A-5 1200 mm 2526.2 mm 70 N	Black

- Scope of delivery

Check the delivery for completeness and condition of the product immediately after opening and ensure all parts are included.

4 x Bungee cord, 450 mm
2 x Bungee cord, 600 mm
2 x Bungee cord, 800 mm
2 x Bungee cord, 1000 mm
2 x Bungee cord, 1200 mm
1 x Instruction manual

● Safety instructions

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

General safety instructions

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN! Never leave children unattended with the packaging material. The packaging poses a risk of suffocation and danger of life due to vision. Children often underestimate this danger. Always keep children away from this This product is not a toy.

⚠️ CAUTION! The bungee cords are not suitable for attaching to all vehicle types.

⚠️ CAUTION! RISK OF INJURY! Ensure that all bungee cords are undamaged and hooks have been secured well. Damaged bungee cords and loose hooks can affect safety and function.

■ Always turn your head and body away when fastening objects with the bungee cords. The bungee cords could slip out of your hands and snap back. Injuries may result from rebounding hooks.

CAUTION! Do not use bungee cords for load securing!

⚠️ CAUTION! The bungee cords are not intended to secure heavy loads. Do not exceed the maximum load capacity.

- Never extend the bungee cords beyond their maximum length of extension.

CAUTION! RISK OF INJURY! Never use damaged bungee cords.

Do not use the bungee cords to hoist loads.

WARNING! Bungee cords are ideal to tying fluttering tarpaulins. Do not use to secure the load!

● Methods of fixing, outlined possible risks

WARNING! Please observe that the bungee cords may slip away when braking and in strong wind. We therefore recommend performing a brake test. Previously fastened luggage may otherwise loosen. Loose luggage may fall onto the roadway and lead to accidents. Death, injuries and / or property damage may result.

⚠️ CAUTION! RISK OF INJURY! Do not overexpand the bungee cords. The bungee cords could tear and snap back. When stretched, the bungee cords may rebound and snap back with considerable force.

- Care should be taken that the face or other vulnerable body parts are kept away from a potential rebound of the bungee cords.

Always ensure the hooks are properly secured. Hooks should be firmly held and securely fastened.

- Do not place the bungee cords over sharp corners and edges. Product damage may result.

Large items should be additionally secured against wind load.

Bungee cords are not ropes. Never use the bungee cords to secure loads on cars without additional solid fastenings.

Do not join or knot the bungee cords together!
Do not attempt to change or bend the fixing hooks.

● Cleaning and maintenance

- Clean this product with a dry, lint-free cloth.

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

● Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

Model: HG02121A-1 ∅ 8 mm, length: 450 mm Permissible tensile force: 70 N

- Fasten light items only. - Consider additional forces (wind, braking, uplift). - Never use damaged bungee cords! - Pull the bungee cords tight but do not overload them. - The bungee cords are not intended to be the only method of attaching and securing loads on vehicles.

Model: HG02121A-2 ∅ 8 mm, length: 600 mm Permissible tensile force: 70 N

- Fasten light items only. - Consider additional forces (wind, braking, uplift). - Never use damaged bungee cords! - Pull the bungee cords tight but do not overload them. - The bungee cords are not intended to be the only method of attaching and securing loads on vehicles.

Model: HG02121A-3 ∅ 8 mm, length: 800 mm Permissible tensile force: 70 N

- Fasten light items only. - Consider additional forces (wind, braking, uplift). - Never use damaged bungee cords! - Pull the bungee cords tight but do not overload them. - The bungee cords are not intended to be the only method of attaching and securing loads on vehicles.

Model: HG02121A-4 ∅ 8 mm, length: 1000 mm Permissible tensile force: 70 N

- Fasten light items only. - Consider additional forces (wind, braking, uplift). - Never use damaged bungee cords! - Pull the bungee cords tight but do not overload them. - The bungee cords are not intended to be the only method of attaching and securing loads on vehicles.

Model: HG02121A-5 ∅ 8 mm, length: 1200 mm Permissible tensile force: 70 N

- Fasten light items only. - Consider additional forces (wind, braking, uplift). - Never use damaged bungee cords! - Pull the bungee cords tight but do not overload them. - The bungee cords are not intended to be the only method of attaching and securing loads on vehicles.

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA

Model No.: HG02121A-1 - HG02121A-5

Version: 09/2020

IAN 354942_2004
