IAN 064250 - Uncategorized Livarno Lux - Free user manual and instructions

Product Type	Energy-Saving Table Lamp (Desk Lamp)
Model	7594-010L (Blue), 7594-012L (Red), 7594-014L (Titanium)
IAN Number	064250
Operational Voltage	220–240 V, 50 Hz
Bulb Type	Energy-saving bulb, E14 fitting
Bulb Wattage	9 W (max 9 W)
Flexible Hose	Yes, adjustable spotlight direction
Switch	In-line switch (ON/OFF)
Storage Compartments	Yes, for pens etc.
Proper Use	Indoor, dry rooms only
Assembly	Rotate bulb clockwise into fitting, place on level surface
Cleaning	Use dry, lint-free cloth; never use water or solvents
Replacing Bulb	Unplug, let cool, rotate anticlockwise to remove, use same type
Safety Precautions	Check for damage before use, avoid water, do not cover
Warranty	36 months from date of purchase
Disposal	Separate collection for electrical/electronic equipment (WEEE)
Manufacturer	Livarno Lux (ORFGEN Marketing)

Frequently Asked Questions - IAN 064250 Livarno Lux

How do I assemble the lamp?

Rotate the supplied energy-saving bulb clockwise into the E14 fitting using a clean, lint-free cloth. Ensure the bulb is correctly seated, then place the lamp on a level surface and plug into a mains socket.

How do I replace the bulb?

First, unplug the lamp from the mains and allow it to cool completely. Rotate the defective bulb anticlockwise to remove. Insert a new 220–240 V, 9 W, E14 energy-saving bulb by rotating clockwise. Use a clean cloth to avoid fingerprints.

What type of bulb should I use?

Only use a 220–240 volt energy-saving bulb with an E14 fitting and a maximum rated output of up to 9 watts. Using a different bulb may cause damage or safety hazards.

Can I use this lamp outdoors?

No, this lamp is designed for indoor use only in dry, enclosed rooms. Using it outdoors or in damp areas can lead to electric shock or fire.

How do I clean the lamp?

Always unplug the lamp first. Allow it to cool completely. Clean only with a dry, lint-free cloth. Never use water, solvents, or other liquids, as this can cause electric shock.

What should I do if the lamp is damaged?

If the lamp or mains lead is damaged, do not use it. Contact the service centre or a qualified electrician for repair. A damaged lead poses a serious risk of electric shock.

How can I adjust the light direction?

Switch off the lamp and let it cool. Then gently bend the flexible hose to direct the spotlight to the desired angle. Do not twist the hose completely around, as this may damage the internal wiring.

Why does the lamp turn off by itself?

If the lamp turns off unexpectedly, it may be due to a defective bulb or overheating. Check the bulb and replace if necessary. Ensure the lamp is not covered and has adequate ventilation.

What is the warranty period?

The lamp comes with a 36-month warranty from the date of purchase. It covers material and manufacturing defects but excludes wear parts like bulbs and damage from improper use.

Is this lamp energy-saving?

Yes, it uses a 9 W energy-saving bulb, which consumes less electricity compared to traditional incandescent bulbs while providing sufficient lighting.

USER MANUAL IAN 064250 Livarno Lux

ENERGY-SAVING TABLE LAMP

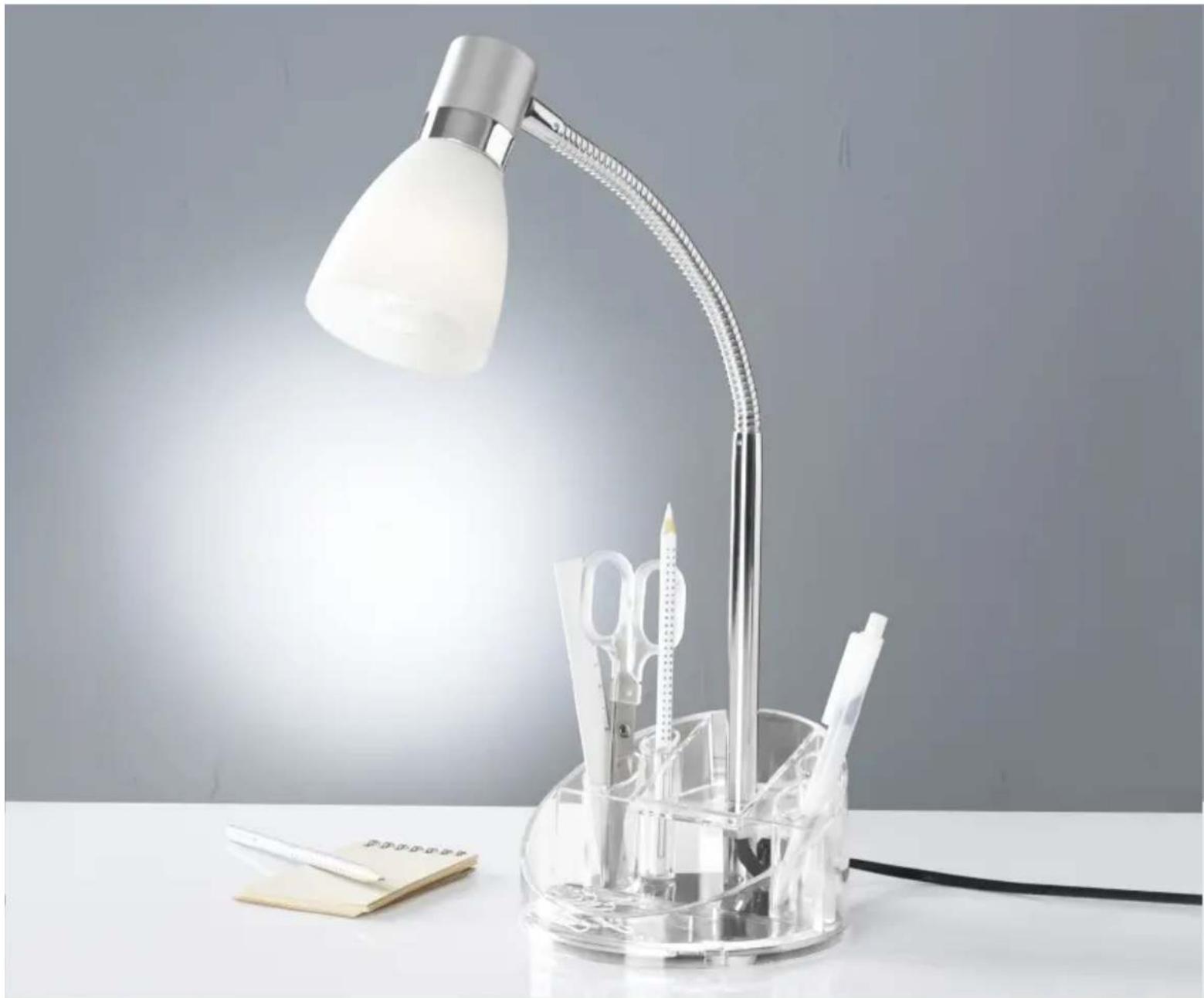

Modern desk lamp with adjustable armrest and clear plastic cup, placed on a white surface (no text or symbols visible)

ENERGY-SAVING TABLE LAMP

Operation and Safety Notes

ENERGIATAKARÉKOS ÍRÓASZTALLÁMPA

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

PL

GB Operation and Safety Notes Page 5

Introduction

Proper use Page 6

Included items....Page 6

Description of parts....Page 6

Technical information Page 6

Safety

Safety advice....Page 6

Preparing for use

Assembling the lamp....Page 7

Use

Switching on/off Page 7

Directing the spotlight.... Page 7

Replacing a bulb.... Page 7

Maintenance and Cleaning Page 8

Disposal Page 8

Information

Guarantee Page 8

Manufacturer/Service Page 8

Declaration of Conformity....Page 8

Energy-Saving Table Lamp

- Introduction

Please read carefully and completely through these operating instructions. Fold out the page with the illustrations. These instructions form part of the product and contain important information about bringing the product into use and its handling. Always observe all the safety advice. Check that the correct mains voltage is available and that all the parts have been properly assembled before bringing into use. Should you have any questions or be uncertain as to how to operate the device, please get in touch with your dealer or service point. Please keep these instructions in a safe place and hand them on to a third party if necessary.

- Proper use

This light is designed only for use indoors, in dry and enclosed rooms. Any use other than that described above or modification to the lamp is not permitted and may lead to damage to people or property. Moreover, there is the risk of injury or loss of life and that the lamp may develop technical faults such as short circuit or fire or give an electric shock. This lamp is intended for use only in a domestic environment.

Included items

Check that all the items and accessories are present and that the lamp is in perfect condition immediately after unpacking.

1 Energy-saving desk lamp, Model 7594-010L/-012L/-014L
1 Energy-saving bulb, E14, 9 W
1 Operating instructions

• Description of parts

1 Spot
2 Flexible hose
3 Mains lead with mains plug
4 In-line switch (ON/OFF)
5 Storage compartments (e.g. for pens etc.)
6 Energy-saving bulb, E14, 9 W

● Technical information

Operational voltage: 220 - 240V, 50Hz

Bulb: 220 - 240V, 9W, E14

Maximum nominal output: 1 x 9 W

Protection category:

Model:7594-010L: Blue

7594-012L: Red

7594-014L: Titanium

● Safety

Safety advice

The right to claim under the guarantee shall be rendered invalid in respect of damage caused by the non-observance of these operating instructions! No liability is accepted for consequent damage! No liability is accepted for damage to property or persons caused by improper handling or non-observance of the safety advice!

To avoid danger to life from electric shock

■ Every time before connecting the lamp the mains, check it and the mains lead for damage. Never use your light if you find it is damaged in any way.

⚠️ CAUTION! A damaged mains lead presents a serious danger to life from electric shock. In the event of damage, repairs or other problems with the lamp please contact the service centre or an electrician.

■ Never let the lamp come into contact with water or other liquids.
■ Never open any electrical fittings such as in-line switches etc. or allow any object to be inserted into them. This sort of interference can lead to a serious danger to life from electric shock.
If the external flexible lead of this lamp becomes damaged, to avoid danger have it replaced by the manufacturer, his servicing agent or an equivalent electrical appliance repair specialist.

To avoid danger of fire and injury

RISK OF INJURY! Check all bulbs and the lamp for damage immediately after unpacking. Do not fit defective bulbs into the lamp. In this event, contact the Service Centre for a replacement.
RISK OF INJURY FROM BURNS! Ensure the lamp has been switched off and allowed to cool before you touch it. In this way you will avoid the danger of burns. Bulbs give off a lot of heat around the top of the lamp.
- Allow the lamp to cool down completely before replacing a defective bulb.
- Replace defective bulbs immediately. Before replacing the bulb always remove the plug from the mains socket.
■ Never leave the spotlight operating unattended. Fire can result from the development of too much heat.
- Do not allow the lamp or the packaging materials to lie around unattended. Plastic film or bags, Styrofoam etc. can turn into dangerous toys for children.
- Do not allow any objects to cover the lamp.

Working safely

Use only 220 - 240 volt-energy-saving bulbs with an E14 fitting and a maximum rated output of up to 9 watts.
■ Position the lamp so that it is protected from moisture and dirt.

● Preparing for use

- Assembling the lamp

☐ Use a clean, fluff-free cloth when you are fitting the bulb.
☐ Rotate the supplied energy-saving bulb 6 clockwise into the fitting.
☐ Check that the bulb is correctly seated.
☐ Place the lamp on a level, horizontal surface.
☐ Insert the mains plug of the mains cable 3 into a mains socket.

Your lamp is now ready for use.

Use

Note: The lamp has a number of different storage compartments 5. You can keep items, e.g. pens, in these storage compartments 5.

- Switching on/off

☐ Flip the in-line switch 4 to turn the lamp on or off.

- Directing the spotlight

□ Only change the direction of the spotlight 1 after the light has been switched off. Allow the lamp to cool down completely.

□ Using the flexible hose 2, turn the spot 1 to achieve the desired orientation.

Note: Do not turn the flexible hose 2 completely about itself or the mains lead inside the lamp could be damaged.

- Replacing a bulb

CAUTION! DANGER OF ELECTRIC

SHOCK! First pull the plug 3 attached to the mains lead out of the

mains socket.

□ Allow the lamp to cool completely.
☐ Replace the energy-saving bulb 6 only after it has fully cooled. Use a clean, fluff-free cloth when you are replacing a bulb.
□ Always use a 220 - 240 volt energy-saving bulb with an E14 fitting and a maximum rated output of up to 9 watts.
☐ Rotate the defective energy-saving bulb 6 carefully anticlockwise out of the fitting.
☐ Rotate a new energy-saving bulb 6 clockwise into the fitting.
☐ Check that the bulb is correctly seated.

● Maintenance and Cleaning

CAUTION! DANGER OF ELECTRIC

SHOCK! First pull the plug 3 attached to the mains lead out of the

mains socket.

• Do not use any solvents, petrol or similar. This would cause damage to the light.
  ☐ Allow the lamp to cool down completely.

CAUTION! DANGER OF ELECTRIC SHOCK! For reasons of electrical safety, the light must never be cleaned with water or other fluids or be immersed in water. When cleaning, only use a dry, lint-free cloth.

- Disposal

The packaging and ancillary packing consist entirely of environmentally-friendly materials. They can be disposed of at your local recycling facility.

The symbol of the wheelie bin with the line through it means that, in the European Union, the product has to be disposed of in a separate refuse collection. This applies to the product and to all components bearing this symbol. Products marked in this way may not be disposed of along with normal domestic waste but have to be handed in at a recycling collection point for electrical and electronic appliances. Recycling

helps to reduce the consumption of raw materials and to ease the burden on the environment.

Information

Guarantee

You receive a 36 month warranty on this product, valid from the date of purchase.

The device has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect arising during the warranty period, please send the device to the listed Service Centre address, making reference to the following article number:

7594-010L/-012L/-014L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty.

The performance of services under the warranty does not extend or renew the warranty period.

Manufacturer / Service

● Declaration of Conformity CE

This product fulfils the requirements of the applicable European and national directives (Electromagnetic Compatibility 2004/108/EC, Low Voltage Directive 2006/95/EC). Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Wstep

© by ORFGEN Marketing
