Product Type	LED Clip Light
Brand	Livarno Lux
Model	Z31303A
Intended Use	Indoor, dry enclosed rooms
Power Supply	Mains adapter 100-240V AC, output 12V DC, 0.1A
Lamp Operating Voltage	12V DC, 55 mA
LED Voltage and Power	3V, 20mA, 0.06W per LED
Protection Class	Lamp: Class III; Adapter: Class II
Certifications	TÜV/GS tested (lamp and adapter)
Lamp Features	Flexible arm, clamp, ON/OFF switch, non-replaceable LEDs
Included Items	LED clip lamp, mains adapter, operating instructions
Safety Precautions	Do not look directly into light; keep away from children; do not use near water; use only supplied adapter
Maintenance	Clean with dry, fluff-free cloth; do not use liquids; LEDs not replaceable
Disposal	Recyclable packaging; do not dispose in household waste
Clamp Usage	For attachment to flat surfaces; not suitable for tubular objects
Flexible Arm	Adjustable; do not twist completely to avoid damaging internal cable

Frequently Asked Questions - Z31303A Livarno Lux

How do I turn on the LED clip light?

Use the ON/OFF switch (3) located on the lamp to turn it on or off.

Can I use a different mains adapter?

No, only use the supplied mains adapter (model LPS03-120-0100-2W). Using another adapter may damage the lamp and void the warranty.

Is the lamp suitable for outdoor use?

No, the lamp is designed for indoor use only in dry and enclosed rooms.

How should I clean the lamp?

Always unplug the adapter first. Clean with a dry, fluff-free cloth. Do not use water or other liquids, and never immerse the lamp.

Can the LEDs be replaced?

No, the LEDs are non-replaceable. They are integrated into the lamp.

What should I do if the lamp or cable is damaged?

Do not use the device. Consult a specialist electrician for repairs. Never open the electrical parts yourself.

Is it safe to use the lamp near a bathtub or shower?

No, the lamp must not be used in the immediate vicinity of water sources like bathtubs, showers, or swimming pools to avoid electric shock.

Can I attach the lamp to tubular objects?

No, the lamp is not suitable for attaching to tubular objects. It may fall and cause damage or injury.

What does protection class III mean for the lamp?

Protection class III means the lamp operates at safety extra-low voltage (12V DC) and is safe from electric shock.

Can I leave the lamp on for a long time?

Yes, but if not used for an extended period (e.g., holiday), unplug the adapter from the mains socket. The lamp may get hot; let it cool before touching.

USER MANUAL Z31303A Livarno Lux

Operation and Safety Notes

HU

LEDOLVASÓLÁMpA

LED SVIETIDLO SO ŠtlpCOM

Pokyny pre obsluhu a bezpečnostné pokyny

IAN94316

PL HU

SI CZ SK

Gradient bar transitioning from black to white with no text or symbols

Color palette bar with eight distinct color swatches (yellow, magenta, cyan, blue, green, red, black, yellow, pink, light blue, gray) arranged horizontally.

GB Operation and Safety Notes Page 4

Color palette bar with grayscale gradient and a black crosshair symbol (no text or labels)

Introduction

Intended Use Page 5

Description of parts....Page 5

Technical data......Page 5

Included items Page 6

Safety

Safety information....Page 6

Bringing into use......Page 7

Maintenance and Cleaning......Page 8

Disposal Page 9

LED Clip Light

- Introduction

The instructions for use are to be considered as part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. The product must only be used as described and for the stated fields of application. If you pass the product on to third parties, please give them all of the documentation as well.

- Intended Use

This lamp is intended for use indoors only, in dry and enclosed rooms. Other forms of use or changes to the product are deemed to be contrary to the intended use and may result in risks such as the danger of death, injuries and damage. The manufacturer does not accept any liability for injury or damage resulting from use of this product contrary to its intended use. The product is not intended to be used for commercial purposes.

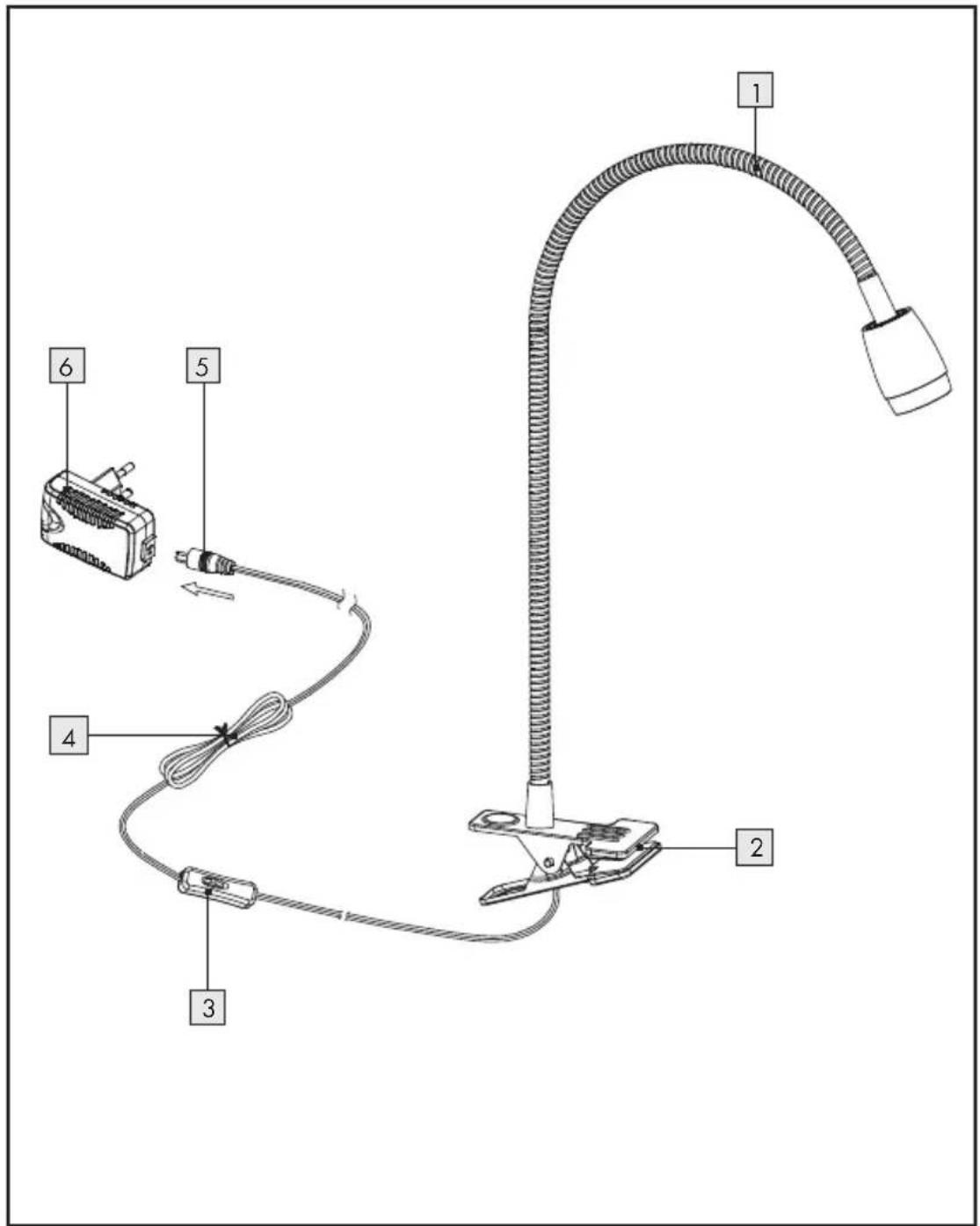

● Description of parts

1 Flexible lamp arm
2 Clamp
3 ON/OFF switch
4 Mains connection lead
5 Mains connector
6 Mains adapter

- Technical data

Lamp:

Operating voltage: 12 V, 55 mA (approx.)

Operating voltage

per LED: 3 V

= 20mA,

0.06 W (approx.)

Protection class: III /

TÜV/GS tested

The bulb cannot be replaced.

Mains adapter:

Rated voltage,

primary:100-240V

0.5 A, 50-60 Hz

Rated voltage,

secondary: 12V

= 0.1A

Protection class: II /

Model No.:

LPS03-120-0100-

2W

DEKRA/GS tested

Introduction / Safety

- Included items

1 LED Clip Lamp
1 Mains adapter
1 Operating instructions

● Safety

Safety information

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

WARNING! DANGER OF DEATH AND ACCIDENTS FOR

TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the device at all times.

This device is not a toy and should not be played by children. Children are not able to understand the dangers that can occur when handling this device.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

This light is designed for use indoors only, in dry and enclosed rooms.
The lamp is not suitable for attaching to tubular objects. Failure to observe this advice could lead to the lamp falling and possible damage to the product and/or injury.

Safety /Bringing into use

Avoid the danger of death from electric shock!

Before use, ensure that the mains voltage available is the same as the required operating voltage for the device (230V\~).

Before connecting the device to the mains you should always check the device and the mains lead for any damage. A damaged device represents the danger of death from electric shock.

- Do not use the device if you find any damage.

■ Please consult a specialist electrician if you discover any damage or problems with the device, or for the performance of repairs to the device.

■ Never open any of the electrical equipment or insert any objects into it. Such interventions represent the danger of death from electric shock.

It is essential that the device does not come into contact with water or other liquids.

■ Protect the power supply cable 4 from sharp edges, mechanical strain and hot surfaces.

■ Never use the device in the immediate vicinity of a bathtub, shower or

swimming pool.

• Do not look directly into the light or its reflection. Do not aim the light directly at people. This could produce glare, leading to accidents.
  If direct or reflected light strikes your eyes, close them and move your head immediately out of the light.
• Operate the lamp only with supplied mains adapter (LPS03-120-0100-2W). Please note that any damage caused through the use of a different adapter is excluded from the warranty.
  ■ Never touch the mains adapter 6 with moist or wet hands.
  If the lamp is not to be used for an extended period, e.g. while you are away on holiday, then the mains adapter 6 must be pulled out of the mains socket.
  ■ The bulb becomes hot during operation. Allow the lamp and bulb to cool before you touch them.
  ■ The LEDs cannot be replaced.

● Bringing into use

□ Never direct the LED light beam on to reflective surfaces or at people or animals. Failure to observe this

Bringing into use / Maintenance and Cleaning

advice may result in eye injury and/ or loss of sight to people or animals. Even a weak LED light beam can cause eye damage.

□ Attach the lamp in the desired position by means of the clamp 2.

CAUTION! RISK OF SHEARING OR CRUSHING INJURY!

A large force is required to attach the lamp. This could result in a risk of shearing or crushing injury through trapping parts of your body.

- Connect the mains connector 5 to the mains adapter 6. - Insert the mains adapter 6 into an ordinary domestic mains outlet socket (230V\~).

☐ Use the ON / OFF switch 3 to switch the lamp on or off.

☐ Bend the flexible lamp arm 1 to bring the lamp into the desired position.

Note: Do not turn the flexible lamp arm 1 completely about itself or the mains lead inside the lamp could be damaged.

● Maintenance and Cleaning

Note: The device requires no maintenance. The LEDs cannot be replaced.

■ Do not use any solvents, petrol or similar. This would cause damage to the light.

☐ Pull the mains adapter ☐ out of the mains socket.

CAUTION! DANGER OF ELECTRIC SHOCK! For electrical safety reasons do not clean the lamp with water or other liquids and never immerse it in water.

□ Always use a dry fluff-free cloth for cleaning the device.

□ Never direct the LED light beam on to reflective surfaces or at people or animals. Failure to observe this advice may result in eye injury and / or loss of sight to people or animals. Even a weak LED light beam can cause eye damage.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

EMC CE

Spis zawartości

Wstep

CZEŃSTWO WYPADKU W PRZYPADKU W MAŁYCH

Vertical metallic bar with diagonal stripe and circular cutout (no text or symbols)

OWIM GmbH & Co. KG

Stiftsbergstraße 1

D-74167 Neckarsulm

Model-No.: Z31303A/Z31303B

Version: 10/2013
