PASS 50 A1 - Uncategorized PARKSIDE - Free user manual and instructions

Product Type	LED Work Light
Model	PASS 50 A1
Brand	Parkside
Dimensions (approx.)	200 x 116 x 200 mm
Weight (approx.)	2000 g
Operating Voltage	230 V ~ 50 Hz
Total Power Consumption	40 W
Protection Class	I
Degree of Protection (work light)	IP54 (splash-proof)
Degree of Protection (socket only)	IPX4
Socket Max. Load	2500 W
Cable Length	3 m
Projected Area	approx. 200 x 200 mm
Intended Use	Indoor and outdoor area illumination; withstands vibration 1.0 m²/s³ 200–2000 Hz
Not Suitable For	Household room illumination
Brightness Levels	Position I and Position II (maximum brightness)
Mounting Options	Hanging or standing on flat stable surface
Stand Adjustable	Yes
LED Replaceable	No, must be replaced by qualified electrician
Warranty	3 years from date of purchase
Certification	GS certified (not for HG06704-FR/HG06704-BS)

Frequently Asked Questions - PASS 50 A1 PARKSIDE

What is the intended use of the Parkside PASS 50 A1?

The product is intended to illuminate indoor and outdoor areas such as workshops or garages. It can withstand extreme physical conditions like vibration (1.0 m²/s³ 200–2000 Hz). It is not suitable for household room illumination.

Can the LEDs be replaced?

No, the LEDs cannot be replaced by the end user. If they fail, they must be repaired by a qualified electrician or the entire product must be replaced.

What is the maximum power that can be connected to the socket?

Do not connect any appliance with a total output greater than 2500 W to the socket, otherwise there is a risk of fire.

Is the PASS 50 A1 suitable for outdoor use?

Yes, the work light has IP54 protection (splash-proof) and is suitable for outdoor use. However, the socket is only IPX4 protected and must only be used with corresponding IPX4 plugs outdoors.

How should I clean the work light?

Disconnect the plug from the socket and allow the product to cool down. Clean it with a lint-free, slightly damp cloth and mild cleaning agent. Never immerse the product in water or other liquids.

What should I do if the power cord is damaged?

The external flexible cable cannot be replaced. If the cord is damaged, the product shall be destroyed.

Can children use this product?

This product may be used by children aged 8 years and above if they are supervised or instructed in safe use. Children should not play with the product, and cleaning/maintenance should not be done by children without supervision.

What is the warranty period?

The warranty is 3 years from the date of purchase. It covers defects in materials or manufacture, but not normal wear or damage from improper use.

How do I make a warranty claim?

Have the till receipt and item number (e.g., IAN 123456_7890) ready. Contact the service department by phone or email. Return the defective product with proof of purchase and defect description to the service address provided.

Can I connect multiple lights together?

No, luminaires shall not be connected after each other.

USER MANUAL PASS 50 A1 PARKSIDE

Worker operating a mechanical tool in a workshop (no visible text or symbols)

White Parkside VR camera with black frame and stand (no text or symbols visible)

FARO LED DA LAVORO PASS 50 A1

IT MT

FARO LED DA LAVORO

Operation and safety notes

DE AT CH

LED-ARBEITSSTRAHLER

GB / MT Operation and safety notes Page 11

Intended use......Page 12

Parts description......Page 12

Technical data......Page 12

Scope of delivery....Page 12

General safety instructions....Page 13

Before use......Page 14

Use Page 14

Connect the plug into the socket of work light Page 14

Cleaning and care....Page 14

Disposal Page 14

Warranty Page 15

Warranty claim procedure....Page 15

Service Page 15

List of pictograms used
	Alternating current/voltage		*Plugs for indoor use only (for HG06704-BS only)
	Dust Protected + Splash-proof (IP54) for LED Work Light (except mains sockets)		Length of the connecting cable: 3 m
	Splash-proof (only mains sockets)		Product designed to withstand severe mechanical handling

LED Work Light PASS 50 A1

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

The product is intended to illuminate *indoor and outdoor areas. The product can withstand extreme physical conditions in the form of vibration (1.0 m²/s³ 200–2000 Hz). This product is only intended for private use, e.g. in work-shops or garages and is not suitable for commercial use or for use in other applications.

Not suitable for household room illumination.

Partsdescription

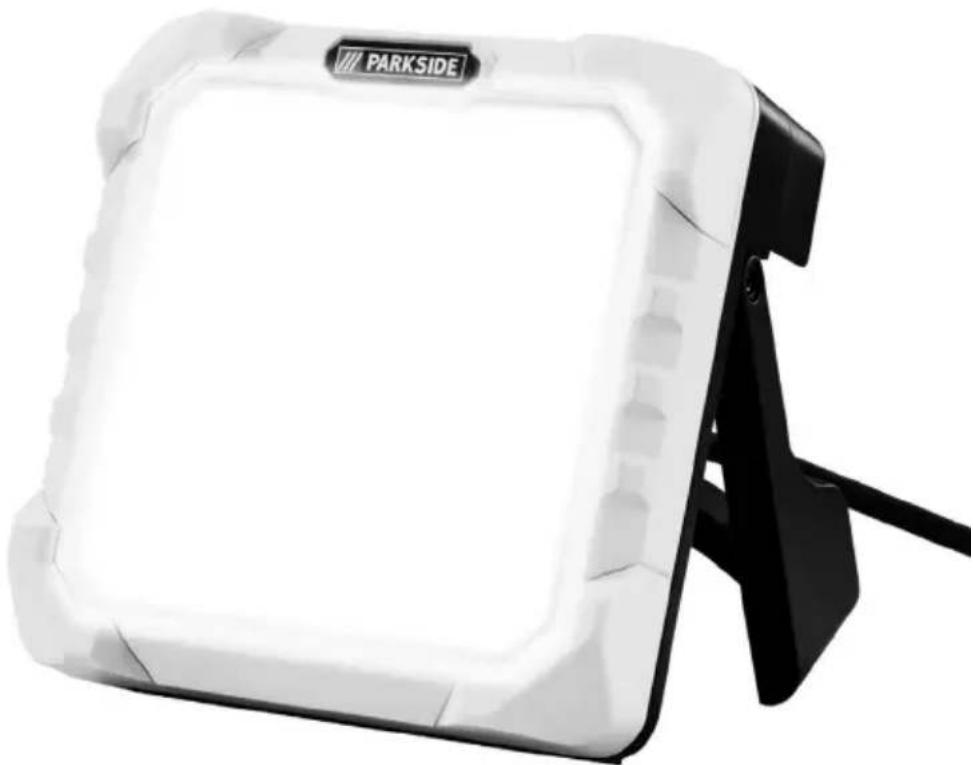

1 work light
2 stand
3 plug

4 socket cover
5 switch
6 socket
7 interlock (for HG06704-BS only)

●Technicaldata

Operating voltage: 230V\~50Hz

Total power consumption: 40 W

Protection class: I

Degree of protection: IP54 (splash-proof);

IPX4 (for socket of

work light ONLY)

Socket: max. 2500 W for

socket.

Dimension: approx. 200 x 116 x

200mm

Weight: approx. 2000 g

Projected area: approx. 200 x 200 mm

GS certified (not for HG06704-FR/

HG06704-BS).

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED Workshop spotlight

1 Instructions for use

Generalsafety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

DANGER TO LIFE AND ACCI-

DENT HAZARD FOR TODDLERS

AND SMALL CHILDREN! Never

leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep the product out of the reach of children at all times.

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Children should not be allowed to play with the product. Cleaning and user maintenance should not be performed by children without supervision.

■ DANGER OF SUFFOCATION! Children could swallow and choke on small included parts (e.g. screws). Keep children away from the work area during assembly.

This product does not contain any parts that can be serviced by the user. The LEDs cannot be replaced by end user.

If the LEDs fail at the end of their lives, they must be repaired by qualified electrician or the entire product must be replaced.

The external flexible cable or cord of this product cannot be replaced; if the cord is damaged, the product shall be destroyed.

Danger to life by electric shock

■ Always check the product for damage before connecting it to the mains. Never use the product if it shows any signs of damage.

■ Protect the mains cable against sharp edges, mechanical stresses and hot surfaces.

■ Always unplug the mains plug from the socket before cleaning.

■ Disconnect the product from the mains supply if it is not going to be used for some time (e.g. holiday).

- Verify that the mains voltage on site corresponds with the operating voltage required for the product (230 V\~ 50 Hz), before you use it. Otherwise do not use the product.

CAUTION! DANGER OF BURN INJU-

RIES! To prevent burns, verify the product is switched off and has cooled down for at least 15 min before touching it. The product can become very hot.

The accessible surface, is very hot when the lamp is operating.

$$ \text { 1.0n } $$

FIRE HAZARD! Place the product so that it is at least 1.0 m away from the material to be illuminated.

Excessive heat can result in a fire.

The product is only suited for use with the built-in LED control gear.

The product continues to draw a small amount of power even if the product is off as long as product is connected to supply mains. To switch the device off completely, unplug the plug 3 from socket.

The plug can only be connected with a corresponding socket with the same IP in order to keep the protective degree against dust/ water. For HG06704-BS, plug for indoor use only.

■ Luminaires shall not be connected after each other.

The work light 1 can be hanged up or it can be used on a flat, stable surface, e.g. floor or table.

- Before use

Note: Remove all packaging materials from the product.

Place the work light 1 only on a stable surface without any angle.
☐ Check the stability of the work light.
☐ Align the work light 1 into the desired direction. For this, you may alignment the stand 2 to desired direction. After alignment, check that the work light 1 is stable.

Use

Plug the plug into the socket.
Press the switch to position I or position II (maximum brightness) to switch on the product.

Note: Insert the plug to the corresponding IPX4 socket only during outdoor use.

- Connect the plug into the socket of work light

Open the socket cover behind the product.
Connect an additional item by plugging it into the socket 6 of the work light 1 (see Fig.).
☐ Close the socket cover (For HG06704-BS).
☐ For HG06704-BS, lock with interlock.

Note: Make sure the addition item with water proof plug. For waterproof mains plugs, there is a marking of IP44 marking.

Note: Do not connect any appliance with a total output of >2500 W. Otherwise there is the risk of a fire.

For HG06704/HG06704-FR:

☐ The socket of work light is only IPX4 protected.
☐ Insert only corresponding IPX4 plug only for outdoor use.
☐ RISK OF ELECTRIC SHOCK! Water may enter the product if incorrect plug is used

For HG06704-BS:

☐ The socket is only IPX4 protected.
☐ The socket can only protected from water when the cover is completely closed. Ensure the interlock 7 of socket cover 4 is locked.
☐ Water may enter the product if the cover is not corrected posited.

CAUTION: Do not move the power cord of the product after connecting the power plug 3 with a socket outlet. There is a risk that the product will slip or tip over.

- Cleaning and care

■ Never immerse the product in water or other liquids. Otherwise the product can be damaged.
☐ Remove the plug 3 from the socket and allow the product to cool down.
☐ Clean the product with a lint-free, slightly moist cloth and mild cleaning agent.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard/80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

- Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

MT Service Malta

Tel.:[phone]

E-Mail: [e-mail]
