USER MANUAL AVIC-8DVD PIONEER

IMPORTANT INFORMATION ABOUT YOUR NEW DVD NAVIGATION UNIT AND THIS MANUAL + The Pioneer DVD Navigation Unit is intended solely as an aid to you in the oper- ation of your vehicle. It is not a substitute for your attentiveness, judgement and care while driving. + Do not use your navigation system to route you to emergency services such as hospitals or police stations. Not all emergency service facilities are contained in the map data. + Do not operate the DVD Navigation Unit if doing so will divert your attention from the safe operation of your vehicle. Always observe safe driving rules and follow all existing traffic regulations. + This manual explains how to install this DVD Navigation Unit in your vehicle. Operation of this DVD Navigation Unit is explained in the separate Operation Manual that also came with this unit.

Connecting the System CAUTION … Before installing the unit To prevent damage Parts supplied … Connecting the system . Connecting the power cord (1) Connecting the power cord (2) . Diouuue

Installation CAUTION To guard against electromagnetic interference . Before installing and fixing Before using the adhesive tape Installing the main unit Installation notes © Parts supplied e CAUTION e If you install with the left and right sides of the DVD Navigation Unit parallel to your vehicle's forward / art direction DIN Front/Rear-mount DIN Front-mount … Installation with the rubber bush Removing the Unit DIN Rear-mount . … © Installation using the screw holes on the side of the unit Installing the GPS aerial e CAUTION Installation notes © Parts supplied © When installing the aerial inside the vehicle (on the dashboard or rear shelf) © When installing the aerial outside the vehicle (on the body) Installing the Remote controller … © Parts supplied © Loading the batteries e Battery notes « Remote controller handling notes When Installing with double-sided tape Installing the microphone … . Installation notes © Parts supplied When installing the microphone on the sun visor When installing the microphone on the steering column e CAUTION After installing the unit . ENG/MASTER 96 HSITONA

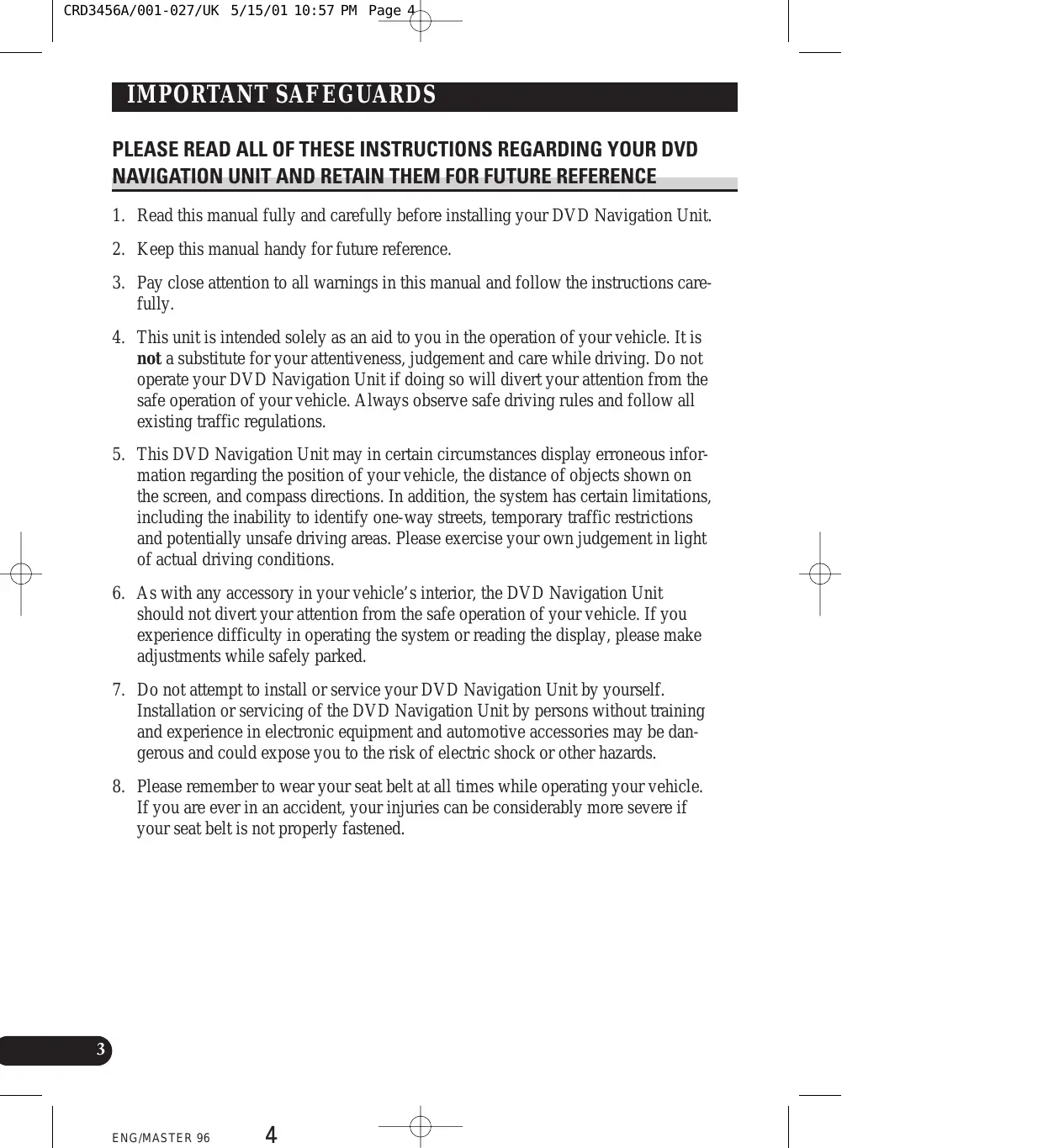

| ENG/MASTER 96 4 + Read this manual fully and carefully before installing your DVD Navigation Unit. Keep this manual handy for future reference. Pay close attention to all warnings in this manual and follow the instructions care- fully. . This unit is intended solely as an aid to you in the operation of your vehicle. Itis not a substitute for your attentiveness, judgement and care while driving. Do not operate your DVD Navigation Unit if doing so will divert your attention from the safe operation of your vehicle. Always observe safe driving rules and follow all existing traffic regulations. . This DVD Navigation Unit may in certain circumstances display erroneous infor- mation regarding the position of your vehicle, the distance of objects shown on the screen, and compass directions. In addition, the system has certain limitations, including the inability to identify one-way streets, temporary traffic restrictions and potentially unsafe driving areas. Please exercise your own judgement in light of actual driving conditions. . As with any accessory in your vehicle’s interior, the DVD Navigation Unit should not divert your attention from the safe operation of your vehicle. If you experience difficulty in operating the system or reading the display, please make adjustments while safely parked. . Do not attempt to install or service your DVD Navigation Unit by yourself. Installation or servicing of the DVD Navigation Unit by persons without training and experience in electronic equipment and automotive accessories may be dan- gerous and could expose you to the risk of electric shock or other hazards. … Please remember to wear your seat belt at all times while operating your vehicle. If you are ever in an accident, your injuries can be considerably more severe if your seat belt is not properly fastened.

Connecting the System AN caurion + Pioneer does not recommend that you install or service your DVD navigation unit yourself, Installing or servicing of the product may expose you to risk of electric shock or other hazards. Refer all installation and servicing of your navigation unit to authorised Pioneer service personnel. HSITONA Secure all wiring with cable clamps or electrical tape. Do not allow any bare wiring to remain exposed. Do not drill a hole into the engine compartment to connect the yellow lead of the unit to the vehicle battery. Engine vibration may eventually cause the insulation to fail at the point where the wire passes from the passenger com- partment into the engine compartment. Take extra care in securing the wire at this point. It is extremely dangerous to allow the GPS aerial lead or microphone lead to become wound around the steering column or gearstick. Be sure to install the unit in such a way that it will not obstruct driving. Make sure that wires will not interfere with moving parts of the vehicle, such as the gearstick, hand brake or seat sliding mechanism. À Do not route wires where they will be exposed to high temperatures. If the insulation heats up, wires may become damaged, resulting in a short circuit or malfunction. Do not cut the GPS aerial lead to shorten it or use an extension to make it longer. Altering the aerial cable could result in a short circuit or malfunc- tion. Do not shorten any leads. If you do, the protection circuit may fail to work properly. Never feed power to other electronic products by cutting the insulation of the power supply lead of the DVD navigation unit and tapping into the lead. The current capacity of the lead will be exceeded, causing overheating. + 5 ENG/MASTER 96

| CRD3456A/601-027/UK 5/15/01 10:57 PM Page 67,

onnecting the System Before installing the unit + This unit is for vehicles with a 12-volt battery and negative grounding. Before installing itin a recreational vehicle, lonry, or bus, check the battery voltage. + To avoid shorts in the electrical sys- tem, be sure to disconnect the (-) bat- tery cable before beginning installa- F { tion. CE] -S À To prevent damage + When disconnecting a connector, pull the connector itself. Do not pull the lead, as you may pull it out of the con- nector. If this unit is installed in a vehicle that does not have an ACC (accessory) position on the ignition switch, the red lead of the unit should be connected to a a terminal coupled with ignition switch — ON/OFF operations. If this is not done, the vehicle battery may be drained ACC position No ACC position when you are away from the vehicle for several hours. To avoid short-circuiting, cover the disconnected lead with insulating tape. Parts supplied Power cond Connector Inter connector ENG/MASTER 96 6 +

| CRD3456A/601-027/UK 5/15/01 10:57 PM Page 7,

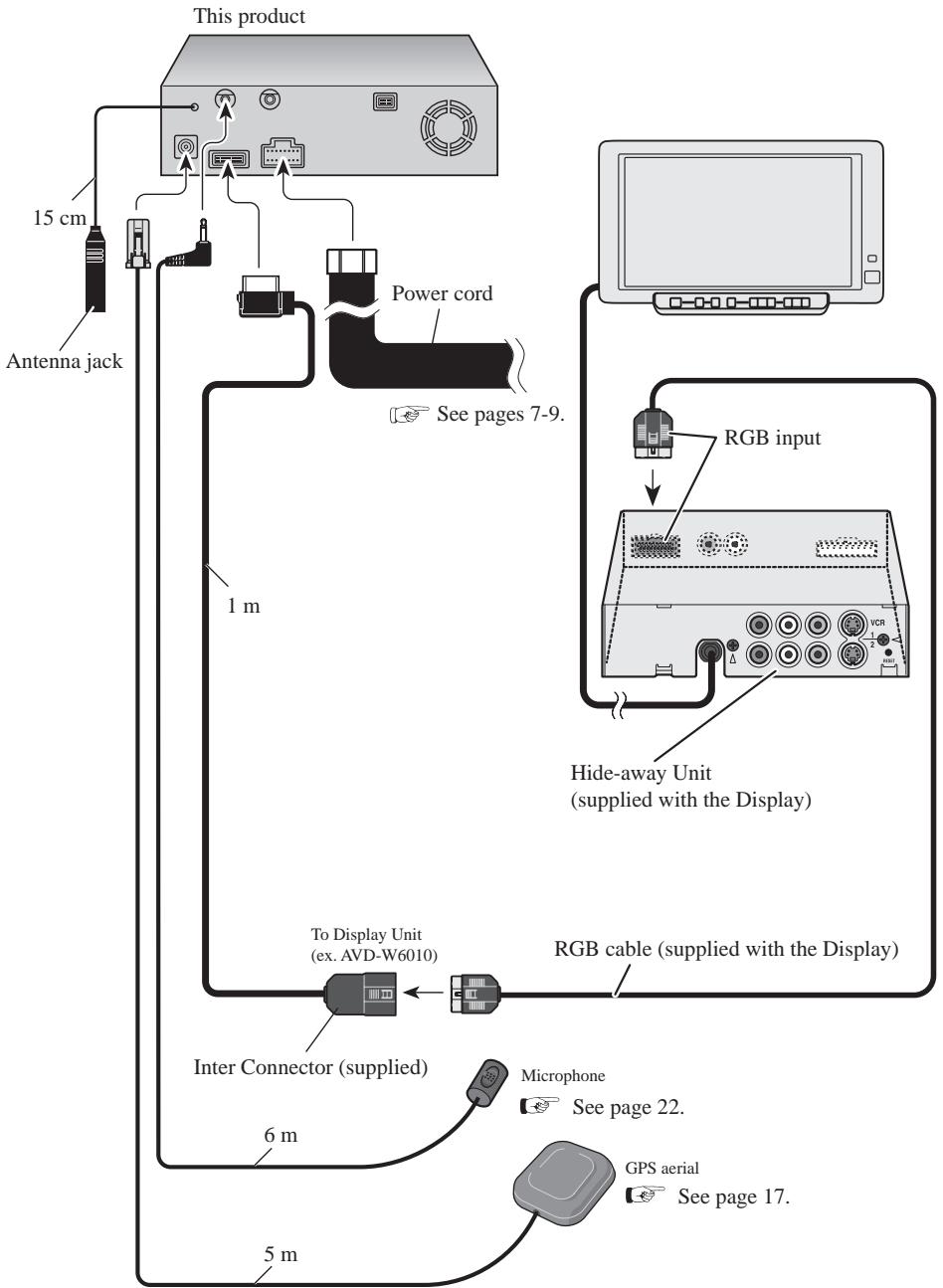

Connecting the system Antenfa jack This product D...

To Display Unit {ex. AVD-W6010)

te See pages 7-9. Hide-awaÿ Unit supplied with the Display) RGB cable (supplied with the Display)

Inter Connector (supplied)

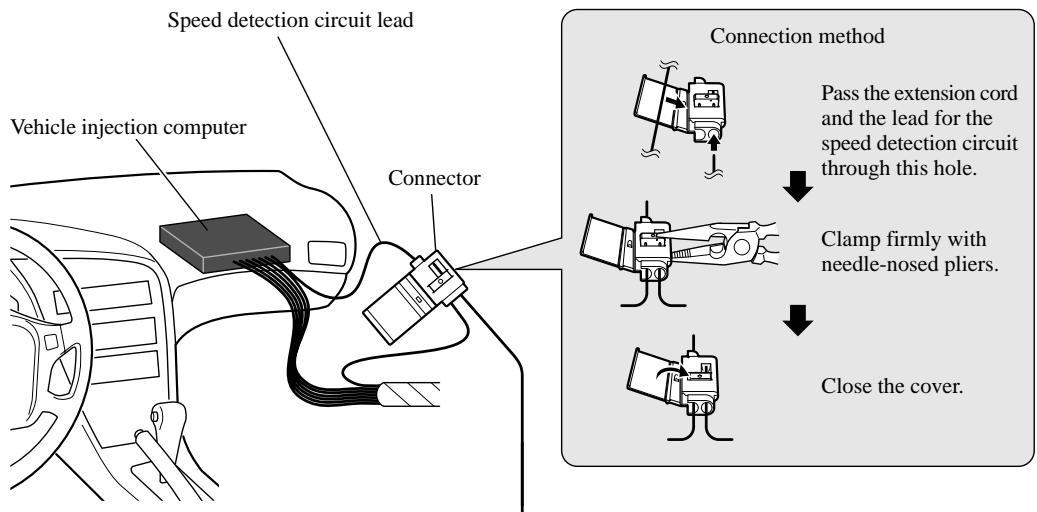

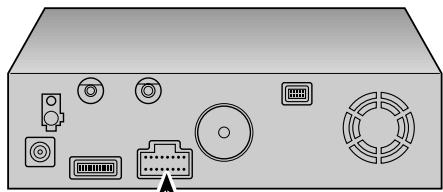

| CRD3456A/001-027/UK 5/15/01 10:57 PM Page 8- Connecting the System Connecting the power cord (1) Speed detection circuit lead ————— This product Pass the extension cord and the lead for the = ; Vehicle injection computer Re 5 3 Connector through this hole. le | Clamp fimly with needle-nosed pliers. B- Power cord Close the cover: =) Note: The position of the speed detection circuit Pink (CAR SPEED SIGNALINPUT) depends on the vehicle model. For details, The mobile navigation system is connected here to detect l consult the relevant documents from Pioneer. the distance the vehicle travels. Always connect the When making connections for a model not listed vehicle/sspeed detection circuit or the ND-PG1 speed . in those documents or for which connection to pulse generator, sold separately. Failure to make this Purple/white (REVERSEGEAR SI the speed detection circuit is too difficult, connection will increase errors in the location display. This is connected so that the nan connect the separately sold ND-PG1 speed pulse detect whether the vehicle is mo generator to the pink lead. backwards. Connect the purple/n Note: The position of the parking brake switch Lightgreen whose voltage changes when the depends on the vehicle model. For details, Used to detect the ON/OFF status of the parking brake. engaged. I this is not connectec consult the vehicle owners manual or dealer. This lead must be connected to the power supply side of this Unit will detemnine whether the parking brake swich. If this connection is made travelling fonwards or backurard incorrectly or omitted, certain functions of your navigation system will be unusable. Note: When you use the ND-PC generator (sold separately), plea to connect it. Connection method Clamp the parking brake switch power supply side lead. Power supply side isin rev Clamp fimly with needle-nosed pliers. Ground side Parking brake switch | ENG/MASTER 96 8

| CRD3456A/601-027/UK 5/15/01 10:57 PM Page 97,

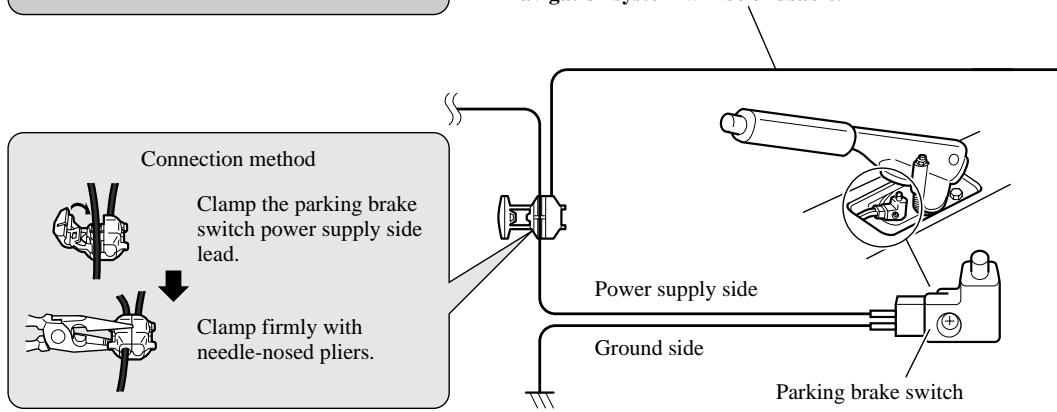

This product Note: Cords for this product and those for other products may be different colors even if they have the same function, When connecting this product to another product, refer to the supplied Installation manuals of both products and connect cords that have the same function. Power cord Black, Orange/white, Red, Y ellow [C——_ \\ ——— | ter See Page 9.

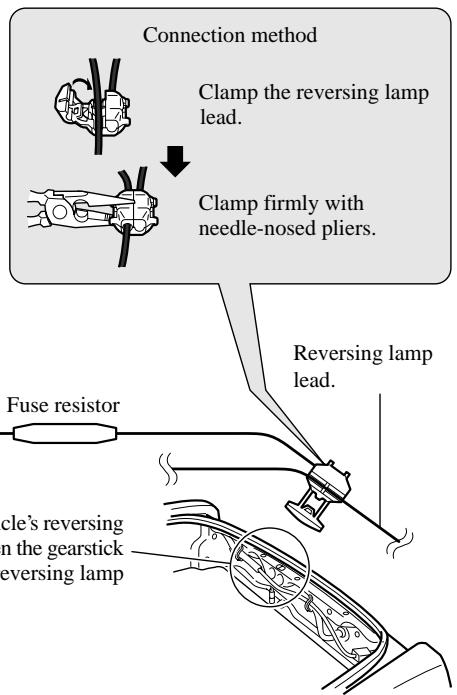

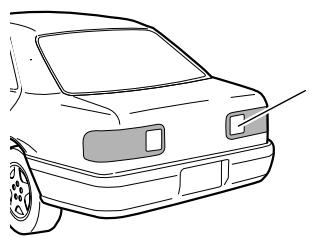

Yellow/black — When combining this navigation unit with a Pioneer car stereo, CE) if the car stereo has yellow/black leads, connect them to those Es | leads. This way when the uidance audio is output and when you operate the system by voice, the vehicle stereo is automatically muted to reduce the vehicle stereo volume Connection method Purple/white (REVERSEGEAR SIGNAL INPUT) onnechon merno This is connected so that the navigation system can detect whether the vehicle is moving forwards or GED ED backwards, Connect the purple/whit Lead to the lead whose voltage changes when he reverse gear is engaged. If this is not connected, the sensor inside this unit will determine whether your vehicle is traveling forwards or backwands. Clamp fimly with needle-nosed pliers. Note: When you use the ND-PG 1 speed pulse generator (sold separately), please make sure to connect it. Reversing lamp lead Fuse resistor Check the position of your vehicle's reversing amp (the one that lights up when the gearstick —__#\ is in reverse [R]) and find the reversing lamp lead in the trunk. + 9 ENG/MASTER 96 HSITONA

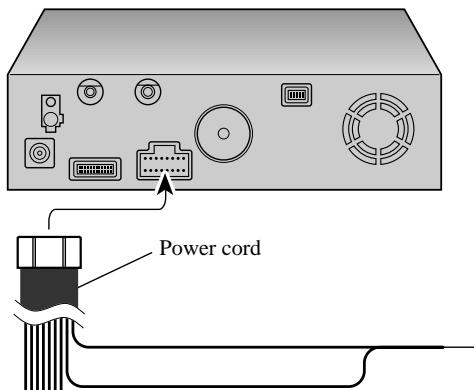

Connecting the System Connecting the power cord (2) This product Note: Cords for this product and those for other products may be different colors even if they have the same function. When connecting this product to another product, refer to the supplied Installation manuals of both products and connect cords that have the same function. Black To vehicle (metal) body. To keep electromagnetic noise from the vehicle body out of the mobile navigation system, attach this lead near the main unit. Note: When replacing the fuse, be sure to use only a fuse of the rating Note: The yellow, red, and orange/white leads should prescribed on the fuse holder. be connected to the opposite side of the fusebox terminals from the battery. D D D D Yellow To the terminal always supplied with power regardless of ti vitch tion. Fuse holder (6 A) AJRCOR RICE POUR Red To the electric teminal controlled by the ignition switch (12 V DC) ONJOFF. Do not connect this lead to power source tenminals to which poweris continuously supplied. If the lead is connected to such temminals, the battery may be drained. Fuse resistor Orange/white To lighting switch terminal, Fuse resistor Yellow/black, Purple/white, Pink, Lightgreen

Installation AN caurion + Pioneer does not recommend that you install or service your DVD navigation unit yourself, Installing or servicing the product may expose you to risk of electric shock or other hazards. Refer all installation and servicing of your navigation unit to authorised Pioneer service personnel. HSITONA Never install the unit in places where:

• It could injure the driver or passengers if the vehicle stops suddenly.

• It may interfere with the drivers operation of the vehicle, such as on the floor in front of the driver’s seat. Make sure there is nothing behind the dashboard or panelling when drilling holes in them. Be careful not to damage fuel lines, brake lines or power cables. When using screws, do not allow them to come into contact with any electri- cal lead. Vibration may damage wires, leading to a short circuit or other damage to the vehicle. To ensure proper installation, use the supplied parts in the manner specified. If any parts other than the supplied ones are used, they may damage internal parts of the unit or they may work loose and the unit may become detached. 7 It is extremely dangerous to allow the GPS aerial lead or microphone lead to become wound around the steering column or gearstick. Be sure to install the unit in such a way that it will not obstruct driving. Make sure that leads cannot get caught in a door or the sliding mechanism of a seat, resulting in a short circuit. Please confirm the proper function of your vehicle’s other equipment follow- ing installation of the DVD navigation unit.

Installation To guard against electromagnetic interference + In order to prevent interference, set the following items as far as possible from the main Unit of this Navigation System, other cables or leads: - TV antenna and antenna lead - FM, MW/LW antenna and its lead - GPS aerial and its lead In addition you should lay each antenna lead as far as possible from other antenna leads. Do not bind them together, lay them together, or cross them. Such electromagnetic noise would increase the error for the location display. Before installing and fixing + Consult with your nearest dealer if installation requires the drilling of holes or other mod- ifications of the vehicle. + Before finally installing the unit, connect the wiring temporarily, making sure it is all connected up properly, and the unit and the system work propeny. Before using the adhesive tape + Make sure the surface is free of moisture, dust, grime, oil, etc. before affixing the tape. ENG/MASTER 96 12 +

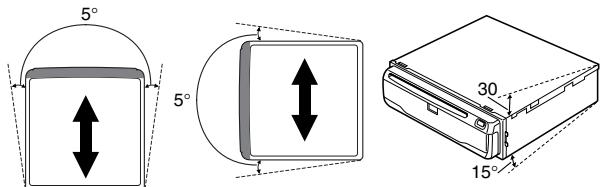

CRD3456A/001-027/UK 5/15/01 10:57 PM Page , uw | Installing the main unit Installation notes + Do not install the main unit in places where it may become subject to high temperatures HSITONA or humidity, such as:

• Places close to a heater outlet.

• Places exposed to direct sunlight, such as on top of the dashboard or the rear shelf. Places that may be splashed by rain, for example close to the door. The installation strength will depend on the vehicle model and the installation position. Choose a position where the main unit can be firmly installed, and install it securely. If the main unit is not securely fastened, the errors in location display will be greater. Do not install the main unit on the board covering the spare tyre or other places which are subject to vibration. When the main unit is installed under a front seat, ensure that it does not obstruct the sliding action of the seat. Do not install the main unit where it will be under luggage. Strong mechanical shock to the main unit would increase the errors in location display. Avoid installing the main unit in places where it will interfere with loading and unload- ing of the spare tyre, jack, tools, etc. Check that a disc or a PC card can be ejected with the main unit installed. Install the main unit on a surface within +30 degrees to -15 degrees tolerance (within five degrees to the left or right of your vehicle's direction of travel). A surface tilted more than this would increase the errors in location display. D Do not install the main unit vertically. Installing it this way can cause it to function improperly.

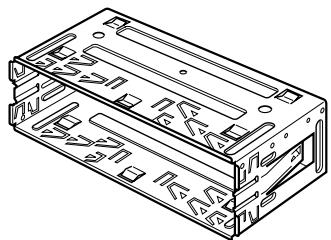

Installation Parts supplied This product Screw

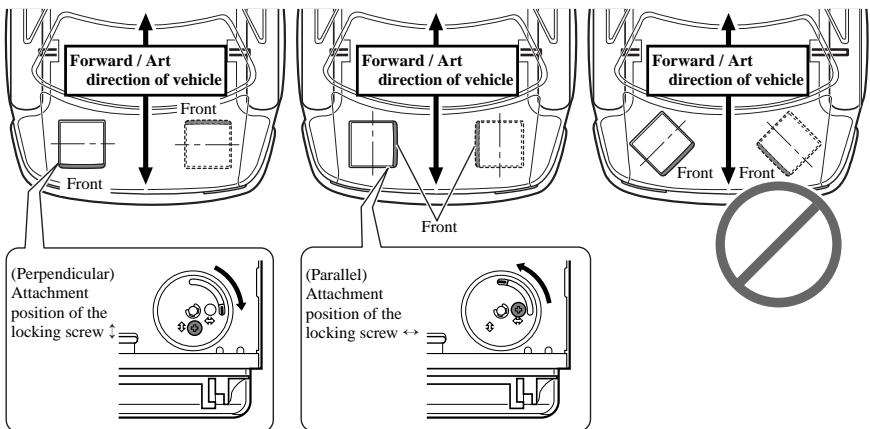

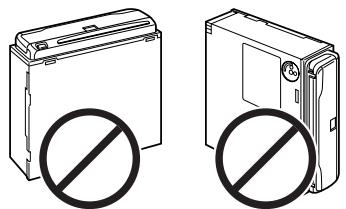

AN caurion + Install with the left and right sides of the DVD Navigation Unit perpendicular or parallel to your vehicle’s direction of travel. Do not install diagonally to your vehicle’s direction of travel or the current location will be displayed incorrectly. HSITONA + If you install the left and right sides of the DVD Navigation Unit parallel to your vehicle’s direction of travel, switch the installation direction lever, and attach the locking screw to the “+ ” side, or else the G sensor mounted in the Forward / Art direction of vehicle Forward / Art direction of vehicle 1dicule — = CNE position ofthe (SO) position of the ( o Ke. 2 locking sen 2 lockng cree = 27 If you install with the left and right sides of the DVD Navigation Unit parallel to your vehicle's forward / art direction If you install with the left and right sides of the DVD Navigation Unit parallel to your vebhicle’s forward / art direction, remove the mounting screw underneath the DVD Navigation Unit, and switch the installation direction lever. Then change the screw mount- ing position from “+ ” side to “1?” side. If the screw is attached to the “+ ” side, the G sen- sor mounted in the DVD Navigation Unit will not operate correctly.

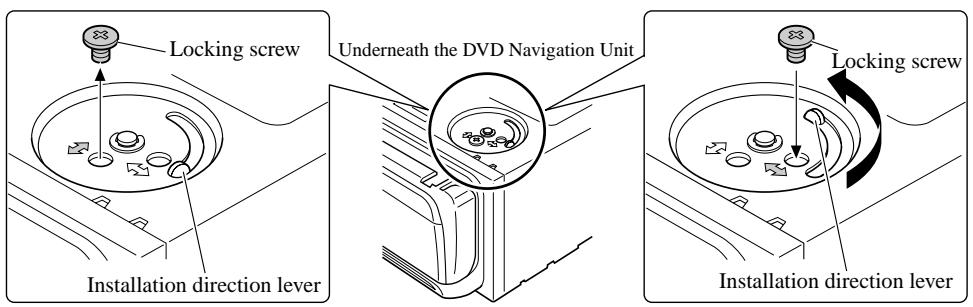

1. Remove the locking screw attached to the installation direction lever.

2. Switch the lever, and attach the mounting screw to the “+ ” side.

Installation direction lever

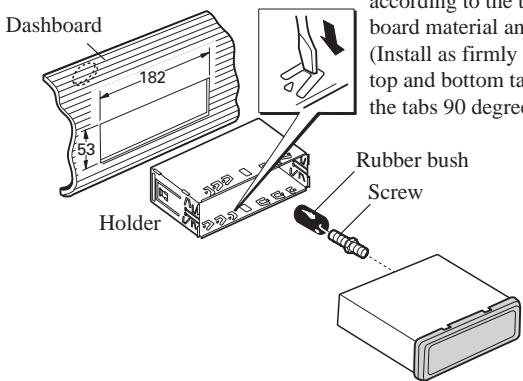

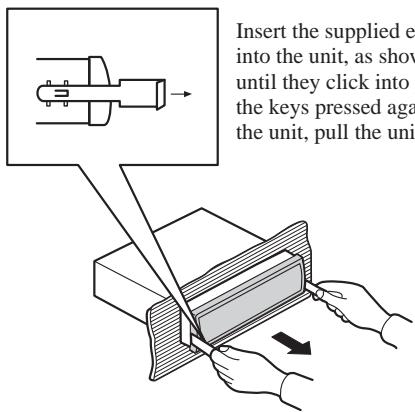

Installation DIN-Front/Rear-mount This unit can be propery installed either from “Front” (conventional DIN Front-mount) or “Rear” (DIN Rear-mount installation, utilizing threaded screw holes at the sides of unit chassis). For details, refer to the following illustrated installation methods. DIN Front-mount Installation with the rubber bush After inserting the holder into the dash- board, then select the appropriate tabs according to the thickness of the dash- board material and bend them. (install as fimmly as possible using the top and bottom tabs. To secure, bend the tabs 90 degrees.) Rubber bush Screw Pa Pa D D Removing the Unit Insert the supplied extraction keys into the unit, as shown in the figure, __ | until they click into place. Keeping the keys pressed against the sides of the unit, pull the unit out. ENG/MASTER 96 16 +

| CRD3456A/001-027/UK 5/15/01 10:57 PM Page 14, |

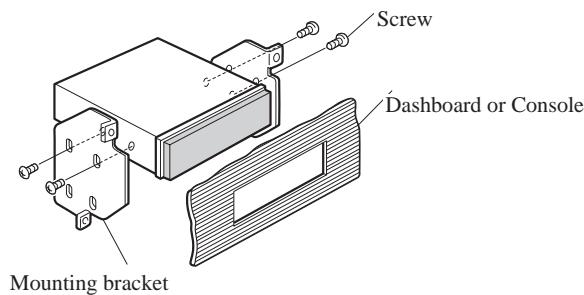

DIN Rear-mount Installation using the screw holes on the side of the unit HSITONA + Fastening the unit to the factory radio mounting bracket. Select a position where the screw holes of the bracket and the screw holes of the head unit become aligned (are fit- ted), and tighten the screws at 2 places on each side. Use either binding screws (5 X6 mm) or flush surface screws (5x6 mm), depending on the shape of the screw holes in the bracket. Dashboard or Console Mounting bracket

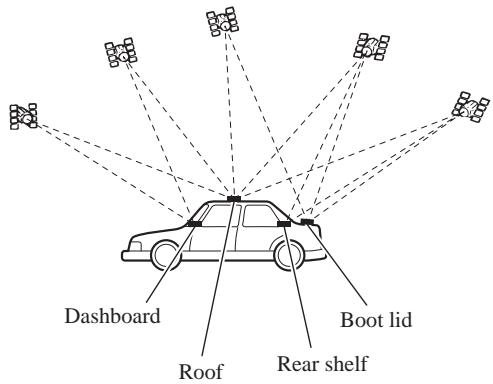

Installation Installing the GPS aerial À CAUTION + Do not cut the GPS aerial lead to shorten it or use an extension to make it longer. Altering the aerial cable could result in a short circuit. Installation notes The aerial should be installed on a level surface where radio waves will be blocked as little as possible. Radio waves cannot be received by the aerial if reception from the satellite is Bë. blocked. Installation on the vehicle roof or boot lid is recommended to enable best reception. Bootlid Roof Rearshelf When installing the GPS aerial inside the vehicle, be sure to use the metal sheet provid- ed with your system. If this is not used, the reception sensitivity will be poor. Do not cut the accessory metal sheet. This would reduce the sensitivity of the GPS aeri- al. Take care not to pull the aerial lead when removing the GPS aerial. The magnet attached to the aerial is very powerful, and the lead may become detached. The GPS aerial is installed with a magnet. When installing the GPS aerial, be careful not to scratch the vehicle body. When installing the GPS aerial on the outside of the vehicle, always put it in the vehicle when going through an automatic vehicle wash. If it is left on the outside it may be knocked off and scratch the vehicle body. Do not paint the GPS aerial, as this may affect its performance. ENG/MASTER 96 18

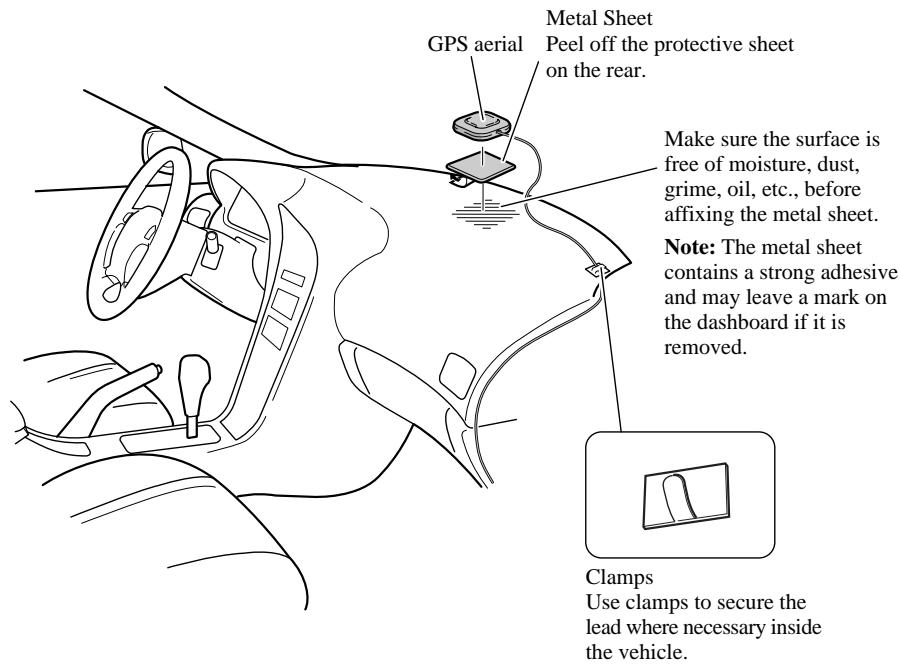

GPS aerial Metal sheet Clamp (5 pes.) Waterproof pad HSITONA When installing the aerial inside the vehicle (on the dashboard or rear shelf) Affix the metal sheet on as level a surface as possible where the GPS aerial faces outside the window. Place the GPS aerial on the metal sheet. (The GPS aerial is fastened with its magnet.) Metal Sheet GPS aerial Peel off the protective sheet on the rear. Make sure the surface is free of moisture, dust, grime, oil, etc. before affixing the metal sheet. Note: The metal sheet S- contains a strong adhesive T

À andmayleaeamakon the deshboard if itis Q removed. Clamps Use clamps to secure the lead where necessary inside the vehicle. Note: + When attaching the metal sheet, do not cut it into small pieces. + Some models use window glass that does not allow signals from GPS satellites to pass through. On such models, install the GPS aerial on the outside of the vehicle.

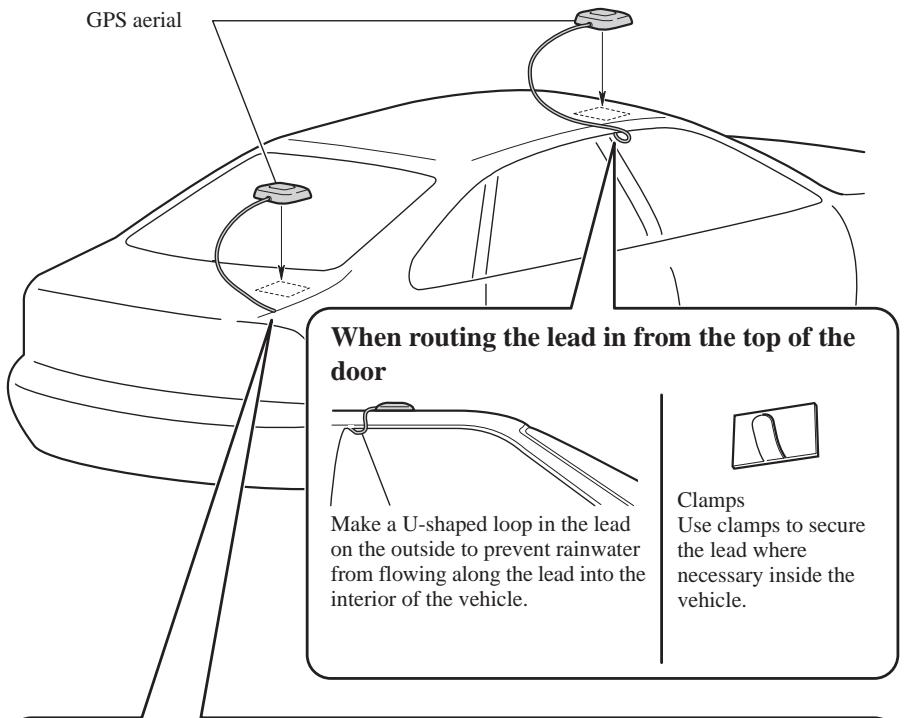

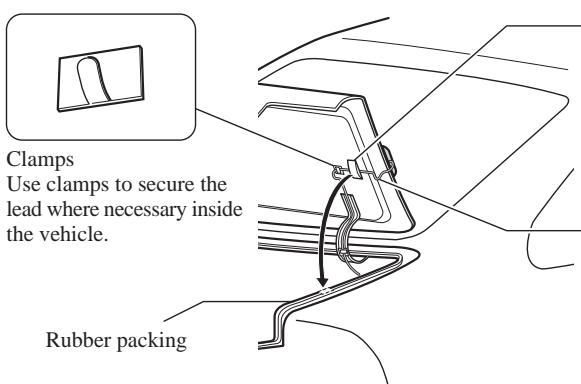

Installation When installing the aerial outside the vehicle (on the body) Put the GPS aerial in a position as level as possible, such as on the roof or boot lid. (The GPS aerial is fastened with a magnet.) GPS aerial KT Î ) \ \ _] = When routing the lead in from the top of the TZ, door S | Clamps Make a U-shaped loop in the lead | Use clamps to secure on the outside to prevent rainwater | the lead where S- from flowing along the lead into the | necessary inside the interior of the vehicle. vehicle. LL J [w hen routing the lead in from inside the boot Waterproof pad Make sure the waterproof pad — "contacts the top of the rubber packing. Clamps Use clamps to secure the lead where necessary inside the vehicle. Rubber packing D Make a U-shaped loop in the lead outside the rubber packing to prevent rainwater from flowing along the lead into the intenor of the vehicle.

Installing the Remote controller Parts supplied Remote controller Alkaline battery Holder Double-sided tape (UM-4, LRO3 1.5 V) (large) (pes) Loading the batteries Remove the battery cover, and insert two alkaline (UM-4, AAA, LRO, 1.5V) batteries. For details, see “Operation Manual”. VAN CAUTION + Take care to insert the batteries the right way round as shown by the + and - marks in the diagram. + Do not mix new batteries with old. + Do not mix different types of batteries. Even batteries of the same size may have different voltages. + If the Remote Controller will be out of use for a long period, remove the bat- teries. + If a battery leaks, completely clean any liquid or deposits from the battery compartment before inserting new batteries. + The supplied batteries cannot be recharged. + We recommend using alkaline batteries as replacements. + When disposing of used batteries, please comply with governmental regula- tions or environmental public institutional rules that apply in your country/area. Remote controller handling notes + Always keep the remote controller protected from direct sunlight or high temperatures. Leaving the remote controller in places exposed to direct sunlight or high temperatures for long periods of time may cause deformation, discolouration or malfunction. + Replace the batteries when the remote controller's performance deteriorates.

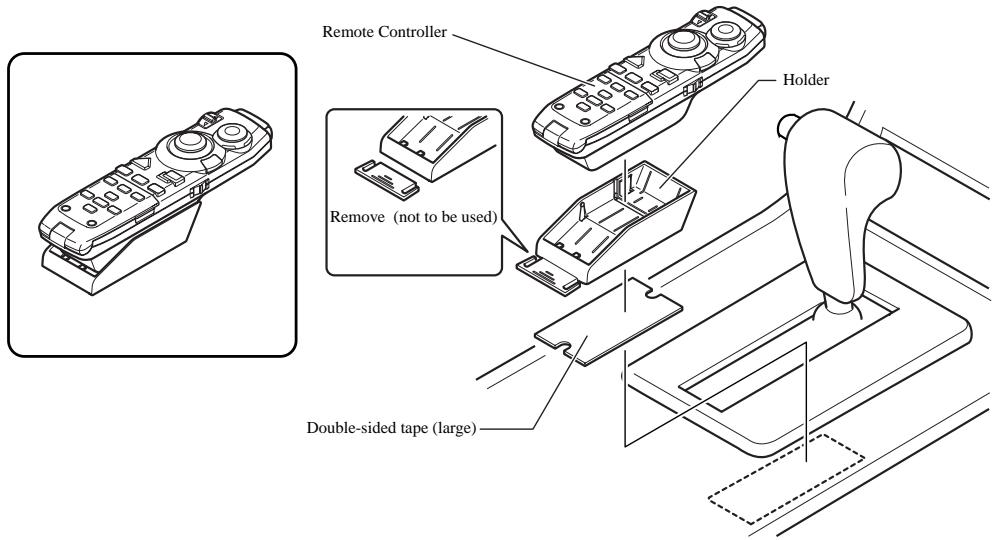

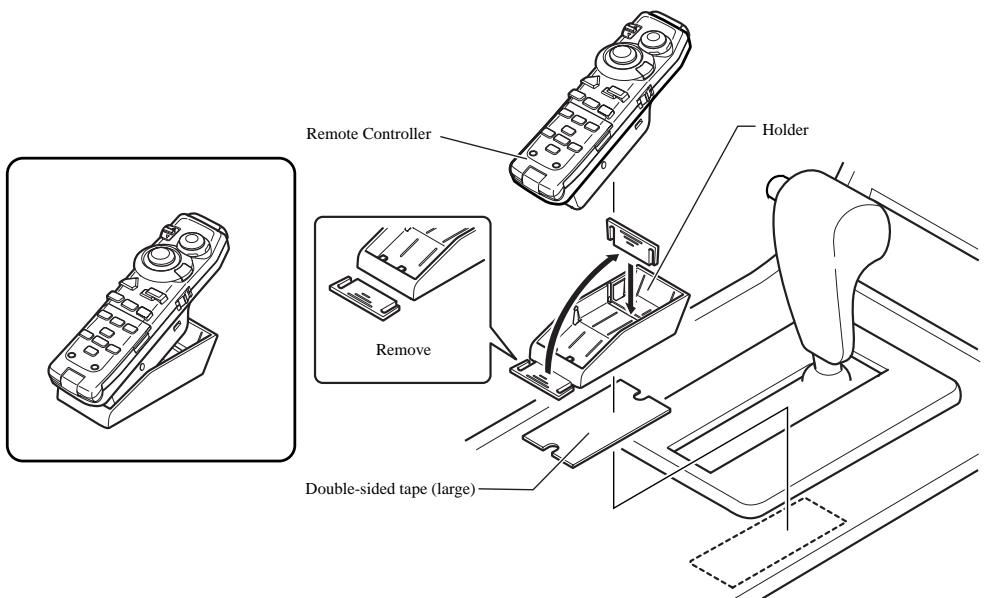

Installation When installing with double-sided tape Attach the Holder using the double-sided tape (large) included in the set. When attaching horizontally Double-sided tape (large) AUS When attaching with elevated position Remote Controller Double-sided tape (large) ENG/MASTER 96 22 +

| CRD3456A/001-027/UK 5/15/01 10:57 PM Page 23, |

Installing the microphone

Installation notes [al + Install the microphone in a position and orientation that will enable it to pick up the g voice of the person operating the system. Parts supplied ë 0 < L Microphone Microphone clip Double-sided tape Clamp (small) (5 pes.) D D D D

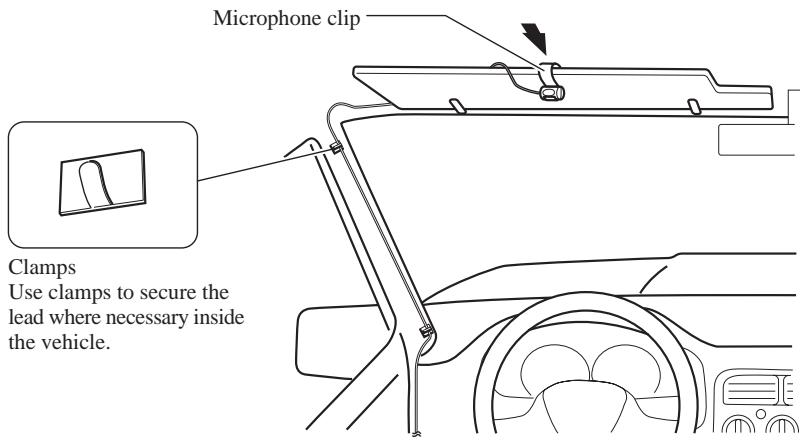

Installation When installing the microphone on the sun visor

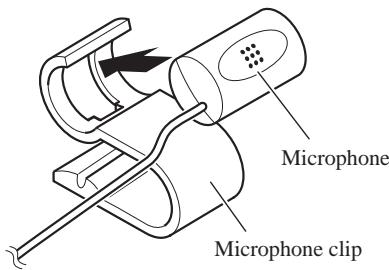

1. Install the microphone on the microphone clip.

With the sun visor up, install the microphone clip. (Lowering the sun visor reduces the recognition rate for voice operations.) Microphone clip TA Clamps Use clamps to secure the lead where necessary inside the vehicle. ENG/MASTER 96 24 +

1. Install the microphone on the microphone clip.

Fitthe microphone lead into the groove. Microphone clip

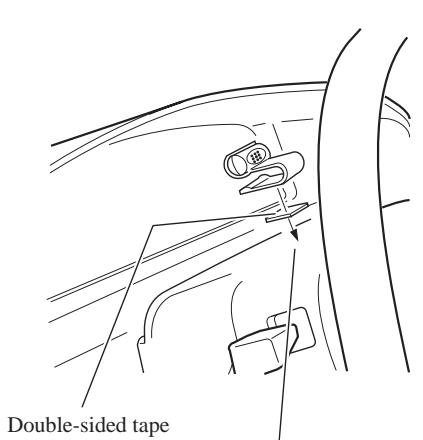

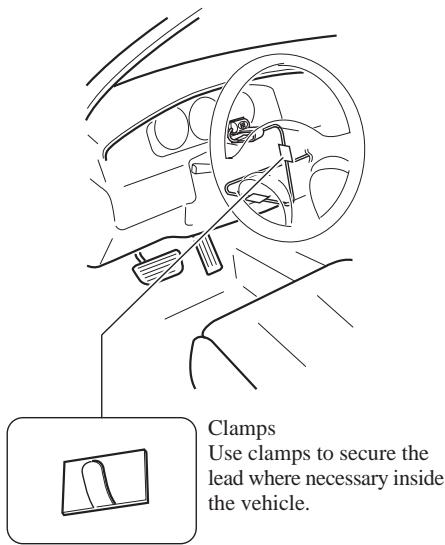

2. Install the microphone clip on the steering column.

Double-sided tape Install the microphone clip on the rear side of the steering column. Use clamps to secure the lead where necessary inside the vehicle. AN caurion + Itis extremely dangerous to allow the microphone lead to become wound around the steering column or gearstick. Be sure to install the unit in such a way that it will not obstruct driving.

After installing the unit

1. Reconnecting the battery.

First, double-check that all connections are correct and that the unit is installed correctly. Reassemble all vehicle components that you previously removed. Then reconnect the neg- ative (-) cable to the negative (-) terminal of the battery.

2. Start the engine.

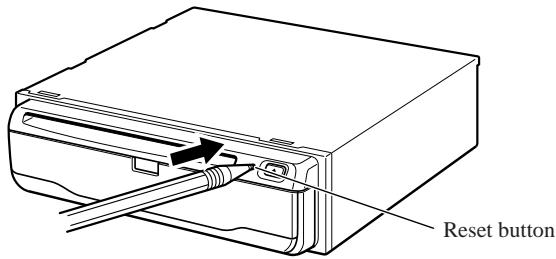

3. Press the reset button on the main unit.

Press the reset button on the main unit using a pointed object such as the point of a pen. Reset button

4. Set the navigation system.

Set the navigation system as explained in the “Operation manual”. ENG/MASTER 96 26 +
