Product type	Live wire and metal conduit detector
Brand	Black & Decker
Model	BDS200
Power supply	1 9V battery type 6LR61
Operating voltage	9 V
Weight	0.12 kg
Detection modes	Detection of live cables (230 VAC) and metal conduits
Mode selector	Selection button (electricity or metal symbol)
LED indicators	Red for live cables, green for metal conduits
Audible alarm	Yes, emits a 'hum' sound
Sensitivity adjustment	Rotary dial
Safety	Do not use on exposed or bare wires; do not use as voltmeter; keep out of reach of children
Maintenance	Clean with a dry cloth; remove battery if not used for a long time
Warranty	24 months
Standards	CE compliant (89/336/EEC, EN 55014)
Used batteries	Recycle at appropriate station
Usage tips	Test on a known source before use; reduce sensitivity to refine detection
Repairability	Repairs only by authorized repairer with original parts

Frequently Asked Questions - BDS200 BLACK & DECKER

How to turn on the BDS200 detector?

To turn on the device, turn the sensitivity dial clockwise. To turn it off, turn it counterclockwise.

How to detect live cables?

Select electricity mode with the selection button. Adjust sensitivity until you hear a hum and see the red LED, then decrease slightly to stop. Test on a live outlet, then slowly sweep the wall.

How to detect metal conduits?

Select metal mode with the selection button. Adjust sensitivity until hum and green LED, then decrease. Test on a metal object, then sweep the wall.

What do the red and green LED indicators mean?

The red LED indicates detection of a live cable. The green LED indicates detection of a metal conduit.

Why is the device not detecting properly?

This may be due to a weak battery, thick walls, very deep conduits or wires, metal-covered walls, high humidity, or shielded cables. Always test on a known source before use.

How to adjust sensitivity?

Use the sensitivity dial: turn clockwise to increase, counterclockwise to decrease. To fine-tune detection, gradually reduce sensitivity after locating an object.

What type of battery to use?

Use a 9V battery type 6LR61. Insert it by connecting the larger terminal to the smaller terminal on the connector.

How to change the battery?

Slide the battery cover off the device, disconnect the old battery, connect the new one respecting polarity, then replace the cover until it clicks.

What to do if the battery has leaked?

Carefully clean the liquid with a cloth, avoiding skin contact. Do not store batteries above 40 °C and do not incinerate them.

How to clean the device?

Clean the device with a dry cloth. Do not use chemicals. Store it in a dry place out of reach of children.

USER MANUAL BDS200 BLACK & DECKER

English 3

Deutsch 6

Français 10

Italiano 13

Nederlands 16

Español 19

Português 22

Svenska 25

Norsk 28

Dansk 31

Suomi 34

Ελληνικά 37

Illustration of a hand inserting a device into a device with labeled part '4' (no text or symbols beyond label)

Illustration of hands holding a small object inside a rectangular panel, with a grid fence and dashed lines indicating alignment (no text or symbols)

Intended use

This Black & Decker tool has been designed to aid in locating live wires operating at mains voltage (230 V AC) and metal pipes behind internal walls. This tool is intended for consumer use only.

Safety instructions

• Warning! When using battery-powered tools, basic safety precautions, including the following, should always be followed to reduce the risk of fire, leaking batteries, personal injury and material damage.
  ◆ Read all of this manual carefully before operating the tool.
  ◆ Retain this manual for future reference.

Keep work area clean

Cluttered areas and benches can cause accidents.

Consider work area environment

Do not expose the tool to rain. Do not use the tool in damp or wet conditions. Keep the work area well lit. Do not use the tool where there is a risk of causing fire or explosion, e.g. in the presence of flammable liquids and gases.

Keep children away

Do not allow children, visitors or animals to come near the work area or to touch the tool.

Do not overreach

Keep proper footing and balance at all times.

Stay alert

Watch what you are doing. Use common sense.

Do not operate the tool when you are tired.

Use appropriate tool

The intended use is described in this instruction manual.

Warning! The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury.

Check for damaged parts

Before use, carefully check the tool for damage. Ensure that the tool will operate properly and perform its intended function. Do not use the tool if any part is damaged or defective.

Store idle tools

When not in use, tools and batteries should be stored in a dry, locked up or high place, out of reach of children.

Repairs

This tool complies with relevant safety requirements.

Repairs should only be carried out by qualified persons using original spare parts; otherwise this may result in considerable danger to the user.

Additional safety instructions for non-rechargeable batteries

◆ Never attempt to open for any reason.

Do not store in locations where the temperature may exceed 40 °C.
When disposing of batteries, follow the instructions given in the section "Protecting the environment". Do not incinerate the batteries.
Under extreme conditions, battery leakage may occur. When you notice liquid on the batteries, proceed as follows:
- Carefully wipe the liquid off using a cloth. Avoid skin contact.

Additional safety instructions for pipe and wire detectors

Do not use the tool to detect AC voltage in uninsulated, exposed or free wires.
◆ Do not use the tool as a substitute for a voltmeter.
- Be aware that the tool may not always properly detect all pipes and wires. The following conditions can cause inaccurate results:
- Low battery
- Thick walls with thin pipes or wires
- Very thick walls
- Very deep wires or pipes
- Walls covered with metal
- Very humid conditions
- Shielded cables
◆ Before use, always test the tool by detecting a known pipe or wire.
◆ If in doubt contact a qualified contractor.

Warning! This tool will not detect wires in circuits isolated from the mains supply, cables operating at direct current (DC) or wires used for telecommunication or computer systems. Hidden wires (e.g. wall lights) may not be detected when switches are in the off position.

Warning! This tool will not detect pipes of any other material than metal.

Features

1. Mode selector switch
2. LED indicator
3. Sensitivity dial

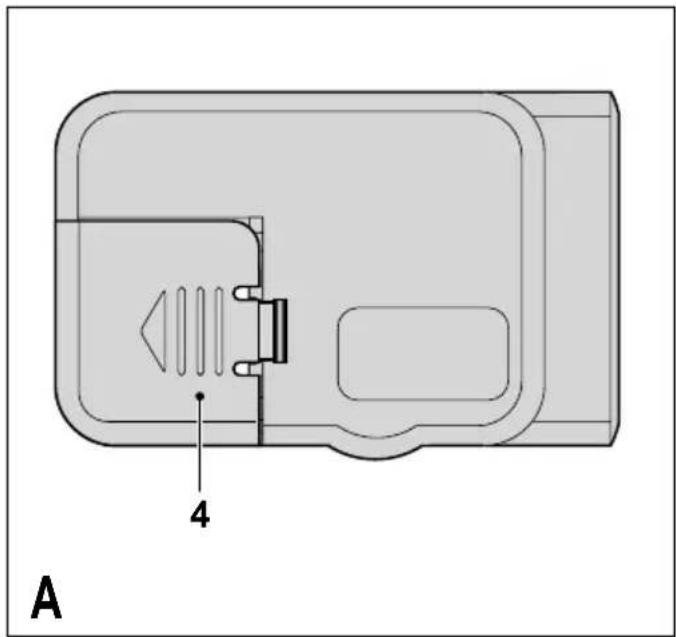

Fig. A

1. Battery cover

Assembly

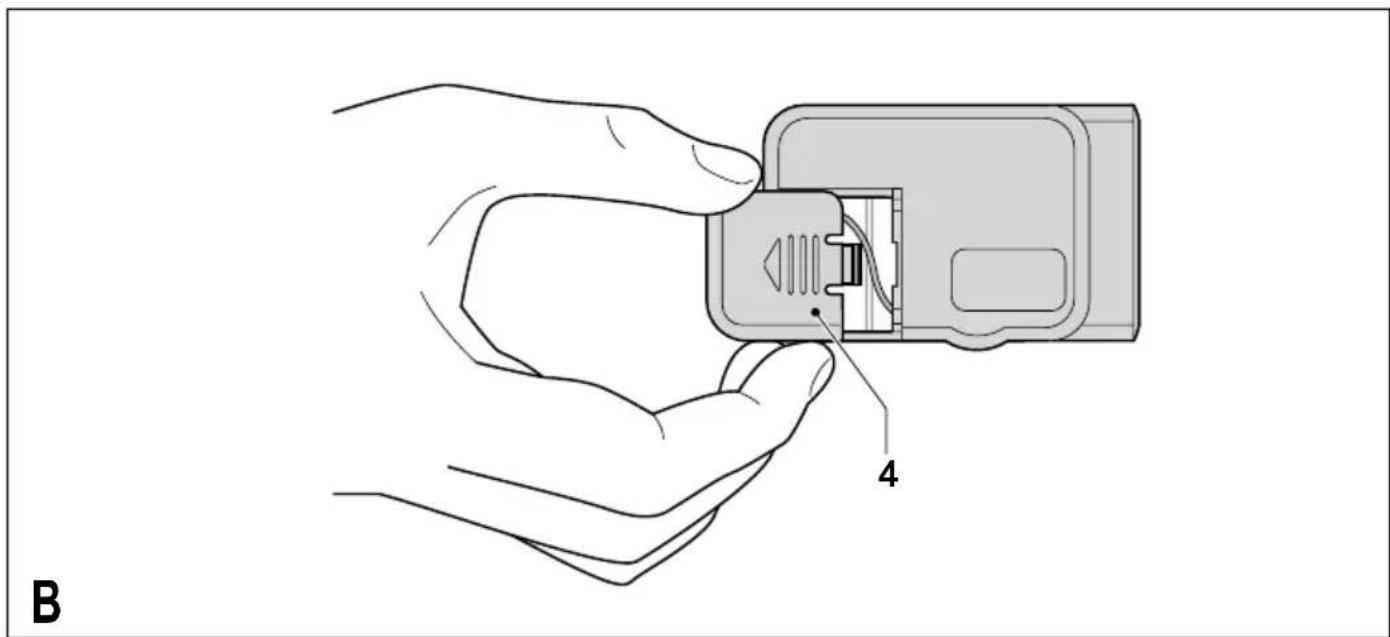

Fitting the battery (fig. B)

◆ Slide the battery cover (4) off the tool.
- Connect the battery to the connector. The larger battery terminal connects to the smaller connector terminal.

ENGLISH

◆ Refit the cover and let it click into place.

Use

Switching on and off

◆ To switch the tool on, turn the sensitivity dial (3) clockwise.
◆ To switch the tool off, turn the sensitivity dial counterclockwise.

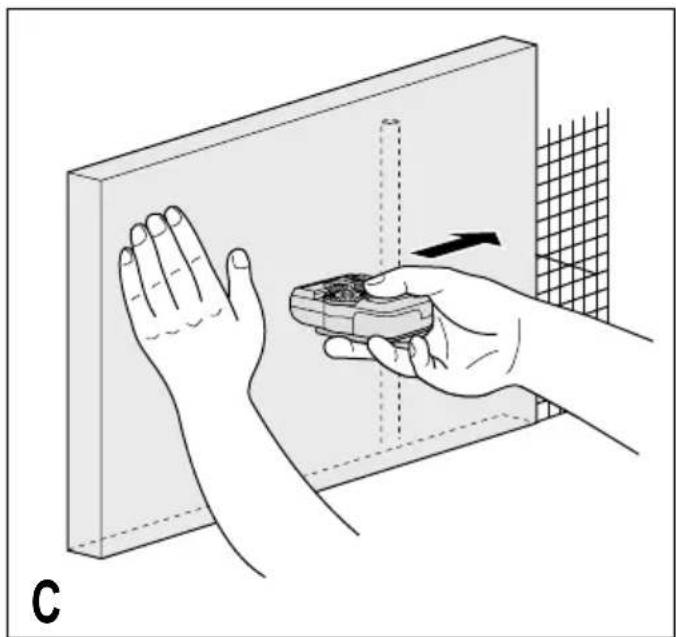

Detecting live wires (fig. C)

Warning! Test the unit on a known source of AC current before use.

◆ Make sure unit is away from area being scanned and any other AC current source.
◆ Set the mode selector switch (1) to the electricity symbol.
- Turn the sensitivity dial clockwise until the buzzer sounds and the red LED indicator is on.
- Slowly turn the dial counterclockwise until the buzzer stops sounding and the red LED indicator is off.
◆ Test the unit by holding it adjacent to a plug connected to a live socket. Confirm the operation of the red LED indicator and the buzzer.

The unit is now ready for use and is set to maximum sensitivity.

• While holding the unit with one hand place your other hand on the surface close to the area being scanned.
  ◆ Move the detector slowly and smoothly across the surface area, approaching from different directions.

When an AC source is located, the red LED indicator will blink and the buzzer will sound intermittently.

- After detecting the work area repeat the testing procedure to confirm the operation of the unit.

Detecting metal pipes (fig. C)

Warning! Test the unit on a known metal object before use.

◆ Make sure unit is away from area being scanned or any other metal objects when preparing for use.
◆ Set the mode selector switch (1) to the metal symbol.
- Turn the sensitivity dial clockwise until the buzzer sounds and the green LED indicator is on.
- Slowly turn the dial counterclockwise until the buzzer stops sounding and the green LED indicator is off.
◆ Test the unit by holding it adjacent to an exposed metal object. Confirm the operation of the green LED indicator and the buzzer.

The unit is now ready for use and is set to maximum sensitivity.

• While holding the unit with one hand place your other hand on the surface close to the area being scanned.
  ◆ Move the tool slowly across the wall, approaching from different directions.

When a metal object is detected, the buzzer will sound and the green LED indicator will come on.

◆ After detecting the work area repeat the testing procedure to confirm the operation of the unit.

Hints for optimum use

- After detecting a hidden object, the sensitivity of the unit can be gradually reduced to maximise the accuracy. Slightly turn the sensitivity dial counterclockwise and continue to move the tool across the detected area from different directions until the location of the hidden object is more accurately defined.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Battery

At the end of their useful life, discard batteries with due care for our environment.

◆ Remove the battery as described above.

◆ Place the battery in a suitable packaging to ensure that the terminals cannot be short-circuited.
◆ Take the battery to a local recycling station.

Technical data

BDS200

Voltage V 9

Battery size 6LR61

Weight kg 0.12

EC declaration of conformity

BDS200

Black & Decker declares that these products conform to:

89/336/EEC, EN 55014

Kevin Hewitt

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

1-11-2006

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

◆ The product has been used for trade, professional or hire purposes;
◆ The product has been subjected to misuse or neglect;
- The product has sustained damage through foreign objects, substances or accidents;
◆ Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk
