Product Type	Oil-filled radiator
Brand	ECG
Model	OR 1570
Number of Ribs	7
Power Supply	220-240 V~ 50/60 Hz
Nominal Power Input	1370-1640 W
Max. Input Power	1500 W
Power Levels	500 W, 1000 W, 1500 W
Thermostat	Continuous adjustable thermostat
Safety Features	Overheat protection with automatic shut-off, thermal fuse, tip-over protection (requires base assembly)
Mounting	Free-standing with wheeled base (assembly required)
Control Panel	Main switch with power level setting (0/I/II/III) and thermostat control knob
Indicators	Operating lamp
Handle	Folding handle
Cable Storage	Space for cable storage on the unit
Material	Metal body (oil-filled, sealed)
Cleaning	Wipe with damp cloth; do not use abrasive cleaners
Maintenance	No user-serviceable parts; repairs must be done by professional service
Dimensions (Approx.)	Not specified in manual; typical 7-rib oil heater: height ~65 cm, width ~40 cm, depth ~25 cm
Weight (Approx.)	Not specified; typical for such heaters: ~10-12 kg
Intended Use	Indoor, well-insulated rooms or temporary use only
Certifications	Complies with EU directives on electromagnetic compatibility and electrical safety
Warranty	Refer to manufacturer or vendor

Frequently Asked Questions - OR 1570 ECG

How do I assemble the base with wheels?

Thread the bent end of the stirrup through the opening in the base, insert between the ribs on the bottom of the radiator, push the stirrup downwards, and tighten with the wing nut. Repeat for the second base on the opposite side. Ensure the radiator is stable and upright.

Why does the radiator emit a smell or smoke when first used?

This is normal for the first use or after long storage. The heating elements burn off dust or residues. It will disappear after a short time. Ensure the room is ventilated.

How do I set the desired temperature?

Turn the thermostat control knob slowly until you hear a 'snap' when the room reaches the desired temperature. The thermostat will maintain that temperature. Fine-tune by turning slightly up or down.

What should I do if the radiator turns off automatically?

The overheat protection has activated. Unplug the radiator and let it cool for about 15 minutes. Then plug it back in. Ensure the thermostat is set correctly and that air vents are not blocked. If it persists, contact service.

Can I cover the radiator to dry clothes?

No, never cover the radiator. It can overheat and cause a fire. Keep flammable materials like curtains, towels, and clothing at least 90 cm away from the unit.

How do I clean the radiator?

Always unplug and let it cool completely. Wipe the exterior with a damp cloth. Do not use abrasive or sharp cleaners. Do not immerse in water.

What are the power level settings?

The main switch has four positions: 0 (off), I (500 W), II (1000 W), and III (1500 W). Combine with the thermostat for precise heating control.

Is it safe to use the radiator in a bathroom?

No, do not use near bathtubs, showers, or pools. The radiator is not waterproof and must be kept away from water to avoid electric shock. Only use in dry indoor areas.

What should I do if the power cord is damaged?

Do not use the radiator. Cord replacement and all other repairs must be done by a professional service centre. Do not remove protective covers.

How should I store the radiator when not in use?

Turn off, unplug, and allow it to cool completely. Store in a clean, dry place away from dust. Wrap the cord around the cable storage area.

USER MANUAL OR 1570 ECG

White electric solar oil heater with coiled heat exchanger and wheels (no visible text or symbols)

OR 1570

CZ

OLEJOVÝ RADIÁTOR

NÁVOD K OBSLUZE

This product is only suitable for well-insulated rooms or temporary use.

HR/BIH

ULJNI RADIJATOR

UPUTE ZA UPORABU

Ova proizvod je prikladan samo za dobro izolirane prostore i kratkotrajnu uporabu.

SI

OLJNI RADIATOR

NAVODILA

CZ

1. Folding handles
2. Control panel
3. Ribs
4. Bases with wheels
5. Space for cable storage

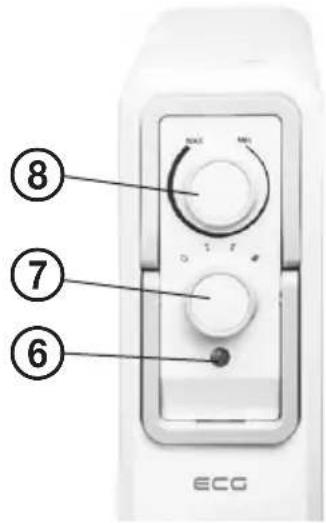

6. Indicator
7. Main switch and power level setting
8. Temperature control

HR/BIH

1. Sklopiva ručka
2. Upravljačka ploča
3. Rebra
4. Postolje s kotačićima
5. Prostor za namatanje kabela
6. Kontrolna žarulja
7. Glavni prekidač i regulator snage
8. Kontrola termostata

SI

Do not immerse in water! – Neponořovat do vody!

INSTALACE

Please read carefully and keep for future reference.

Warning: The safety measures and instructions contained in this manual do not include all potential conditions and scenarios. The user must understand that common sense, caution and care are factors that cannot be integrated into a product. Therefore, the user is responsible for these factors when using and operating this appliance. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

GB

This radiator is filled with the exact amount of special oil. Repairs requiring the oil tank to be opened must only be performed by the manufacturer or his service technician who should be contacted in the event of oil leakage.

When disposing of the radiator, observe the regulations regarding the handling of oil.

To protect against the risk of fire or electric shock, basic precautions must be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is correctly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Do not use the radiator without a properly attached base.
3. Do not operate the device if the cord is damaged. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
4. Protect the device against direct contact with water and other liquids, to prevent potential electric shock.

5. Do not use the radiator outdoors or in a humid environment, and do not touch the power cord or the appliance with wet hands. Risk of electric shock.

6. Pay extra attention when using the radiator near children!

7. Make sure that the radiator is placed on a level surface.
8. Do not use the radiator near flammable objects or underneath them, e.g. close to drapes. The temperature of surfaces near the radiator (0.9 m) may be higher than usual during its operation. Place the radiator so as to ensure sufficient air circulation.
9. Do not place the radiator on a high pile carpet.
10. Do not place the radiator in front of or right under an electrical outlet.
11. Never cover the radiator! Risk of overheating or catching fire if covered.
12. The radiator must not be connected to power supply via a timer or connected to a remotely switched power circuit because there is a risk of fire in the event of remote switching on a covered or improperly placed radiator.
13. Do not use the radiator close to the bathtub, shower or pool and do not place it in locations where there is danger of it falling into the bathtub or another water container.
14. If an unusual smell or smoke begins to come from the device, disconnect the device and have it checked by a service centre.
15. Do not switch off the device by pulling on the power cord. First, always turn off the main switch.
16. Always unplug the radiator when moving it.
17. Do not leave the radiator with plugged in cable unattended. Disconnect the cord from the electrical outlet prior to any maintenance. Do not unplug the device by pulling the power cord. Unplug the power cord from the outlet by grasping the plug.
18. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges.

19. Do not use the radiator in places where flammable substances (paints, gasoline, solvents, etc.) are stored or where flammable vapors are present.

20. Do not insert fingers or other objects into the radiator openings.

21. Do not cover the output openings with a towel, for example, or when drying any laundry.
22. Use the radiator only in accordance with the instructions in this manual. The manufacturer is not liable for damages caused by the improper use.

23. This appliance can be used by children aged eight and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children must not play with the appliance. Cleaning and maintenance operations must not be carried out by children unless supervised by an adult. Children under the age of 8 shall keep away from the appliance and its power supply.

24. Children under 3 years of age should not be near the device unless they are under constant supervision.

25. Children between 3 and 8 years of age can only switch on and off the appliance if it is correctly positioned and installed in its proper working position when supervised or instructed to use the appliance in a safe way and understand the potential hazards. Children between the ages of 3 and 8 may not connect the appliance, regulate it, clean it, or perform maintenance performed by the user.

WARNING: Some parts of the appliance may become very hot during operation and may cause burns. Increased attention should be paid in the presence of children or people with reduced physical or mental abilities.

WARNING: The radiator must not be operated without attached bases.

WARNING: This heater is not equipped with a device for measuring the room temperature. Do not use the heater in small rooms occupied by individuals that are not capable of leaving

the room without assistance, unless proper supervision is available.

Do not immerse in water!

INSTALLATION

Please make sure that the package contains all the parts needed to assemble the radiator. Contact your vendor if this is not the case.

Package contents:

1. Oil filled radiator 1 pc
2. Stand with wheels: 2 pcs
3. Threaded stirrup to attach the base: 2 pcs
4. Wing nuts: 2 pcs

Always unplug the power before handling the device to prevent electric shock.

GB

WARNING

Do not operate the radiator without the base attached. Use the radiator always only in the upright position (wheels on the bottom, controls at the top). Any other position is dangerous.

Installation requirements

Place the radiator on a flat surface that provides sufficient free space for proper venting.

The distance between the device and the closest wall must be at least 90 cm.

WARNING

To prevent the device from overheating, do not cover the radiator.

The radiator must not be placed directly under an outlet.

The surfaces marked in this way become hot during use.

DO NOT COVER!

WARNING

Some parts of this product might become very hot and cause burns. You have to pay special attention in the presence of children or disabled persons.

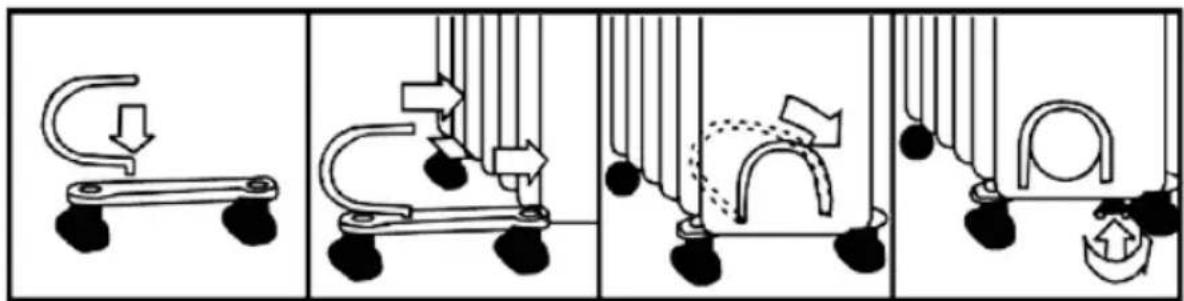

Mounting bases

1. Thread the bent end of the stirrup through the opening in the base with the wheels (Fig. 1).

2. Insert this assembly on the bottom of the radiator between the ribs and push the stirrup downwards (Fig. 2, 3).

3. Tighten the stirrup properly with the wing nut so that the appliance is stable and there is no risk its overturning (Figure 4).

4. Repeat the procedure with the second base on the other side of the radiator.

WARNING: Place the "U" shaped base right behind the control panel and the second one between the last two ribs – see the photos in the description.

GB

USING THE APPLIANCE

Note: An odour or smoke may emit from the heat elements during the first use of the appliance or when turning on after a longer period of time. This effect is normal and will go away after a short while.

Main switch and power level settings

0 = Radiator is off

I = 500 W

II = 1000 W

II = 1500 W

Thermostat and temperature settings

When you turn the thermostat control ⑧ you can regulate the temperature.

When the ambient temperature reaches the desired temperature, slowly rotate the thermostat until you hear "snap". Be careful not to continue turning. The thermostat will follow this set temperature and will continue to maintain it.

Turning off the radiator

First, set the thermostat control ⑧ in the "MIN" position and the power level control ⑦ to "0" position. Then always unplug the power cable from the outlet.

Note: Any handling of the appliance can be performed only if it is turned off with the main power switch and unplugged from the outlet.

Protection against overheating

The internal heat fuse protects the radiator against overheating and switches off the appliance automatically. In this case, the operating lamp will switch off.

If the appliance switches itself off, unplug the power cable from the socket. After cooling down (about 15 minutes), the appliance is again ready for use. Plug the power cable back into the socket.

If the situation persists, first make sure the thermostat controller is properly configured and whether the air vents are not covered.

CLEANING AND MAINTENANCE

Always unplug the power cord from the outlet before cleaning and wait for the appliance to cool completely. Clean the outer surface of the radiator with a damp cloth. Do not use sharp or abrasive agents to clean the device, otherwise the surface of the radiator can become damaged.

You can store the radiator only after turning off the main switch, unplugging the it from the outlet and after it cools completely.

RADIATOR STORAGE

If you do not plan to use the appliance for a longer period of time, it should be placed in a clean and dry location protected against dust.

TECHNICAL DATA

Radiator with 7 ribs

Max. input power 1500 W

3 power levels: 500, 1000 a 1500 W

Continuous thermostat regulation

Safety cut out switch

Free-standing

Nominal voltage: 220–240 V\~ 50/60 Hz

Nominal input power: 1370-1640 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.

08/05
