USER MANUAL Vital Eta
① B2 B1 A7 A3 A4 A A6 A5 A8 A2 A1 CBL VITAL
Combination Electric Grill 2-in-1
eta 1162
GRIL VITAL
USER'S MANUAL
Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.
I. SAFETY WARNINGS
- Carefully read the user's manual before putting the appliance into operation, see the illustrations and save the manual for future use. Consider the instructions in the user's manual as a part of the appliance and provide it to other users of the appliance.
- Never use the appliance if the power cord or power plug are damaged, if it is not functioning correctly or if it has fallen on the floor and been damaged or if it has fallen into water. In such cases take the appliance to a professional service centre to verify its safety and correct function.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
- Pay careful attention when handling the grill to avoid injury, (e.g. burns, scalding). When handling the appliance use the handles.
- If the power cord of this appliance is damaged, the cord must be replaced by the manufacturer, their service technician or by a similarly qualified person, this will prevent the creation of a dangerous situation.
- Before replacing accessories or accessible parts, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!
- CAUTION – Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.
- After finishing work, always switch off the appliance and disconnect it from power supply by taking the power cord connector out of the electric socket.
- Always unplug the appliance from power supply if you leave it unattended.
- NOTICE – Some parts of this product may become very hot and cause burns. Take special care when children or handicapped persons are present.
- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.
- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!
- Check that the voltage on the type label corresponds to the voltage in your electric power socket. The power plug must be connected to a properly installed and grounded power socket.
- Do not insert the power plug into the electric power socket and do not pull it out of the electric power socket with wet hands or by pulling on the power cord!
- Do not use the grill outdoors!
- Do not use the grill to heat a room!
- Never submerge the grill under water (even partially) and do not wash under running water!
- Do not leave the grill on without supervision and supervise it for the entire time that food is being prepared.
- Do not use the grill for other purposes (e.g. for drying textile products, shoes, etc.) than those recommended by the manufacturer.
- Do not place the grill on unstable, fragile or flammable surfaces (e.g. glass, paper, plastic, wooden-varnished boards and various fabrics/tablecloths).
- Use the grill only in the working position in places, where there is no risk of it being knocked over and at a sufficient distance from flammable objects (e.g. curtains, drapes, wood, etc.), sources of heat (e.g. fire stoves, stoves, etc etc.) and wet surfaces (kitchen sinks, wash basins etc.).
- Before frying remove any food packaging (e.g. paper, PE-bag, etc.).
- Always use quality oil or shortening recommended by the manufacturer for cooking on the grill.
- Do not use the appliance in the environment that is saturated with explosive or flammable steams.
- The appliance must not be used in areas where chemicals, paints and other flammable, explosive, volatile and harmful substances are used or stored.
- When grilling spontaneous combustion of foods is possible. If sudden combustion (fire) occurs, disconnect the appliance from the power grid and put the fire out.
- Before changing accessories (hotplates) allow the appliance to cool down.
- Before every connection to the power grid make sure that the temperature control dial is in the position 0 or MIN. After finishing work and before any maintenance always turn the temperature control dial to the position 0 or MIN and disconnect the appliance from the electrical grid by pulling the power cord plug from the power socket.
- Do not carry the appliance when it is hot, if by chance it is tipped over there is a danger of a burn injury.
- The power cord must not be damaged by sharp or hot objects, by an open flame and it must not be submerged under water. Never place it on hot surfaces and do not leave it hanging over the edge of a table or a work bench. If the cord is brushed against or tripped over or pulled by for example children the appliance may tip over or be pulled down and lead to serious injuries!
- The appliance is portable and is equipped with a flexible power cord with a plug, which ensures a bipolar disconnection from the electricity grid.
- In terms of fire safety the grill conforms to the norm EN 60 335-2-6. According to this norm this is an appliance that may be operated on a table or a similar surface under the condition that in the direction of the main heat radiation, i.e. above the hotplate, a safe distance of 500mm must be maintained from flammable materials and at least 100mm in the other directions.
- If you need to use an extension cord, it has to be uncorrupted and it has to comply with the valid standards.
- Check the condition of the power cord of the appliance regularly.
- Use the appliance only with original accessories from the producer. Using another appliance can represent a risk for the operator.
- Never use the appliance for any other purpose than that described in these instructions for use!
- Use the appliance only for the purpose it is intended for as specified in this manual. Never use the appliance for any other purpose.
- WARNING: There is a risk of injury in case of incorrect use (not in accordance with the manual) of the appliance.
- All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.
- The manufacturer is not responsible for damage caused by improper use of the appliance and the accessories (e.g. food deterioration, injury, burning, scalding, fire) and its guarantee for the appliance does not apply in situations when the safety warnings above are not complied with.

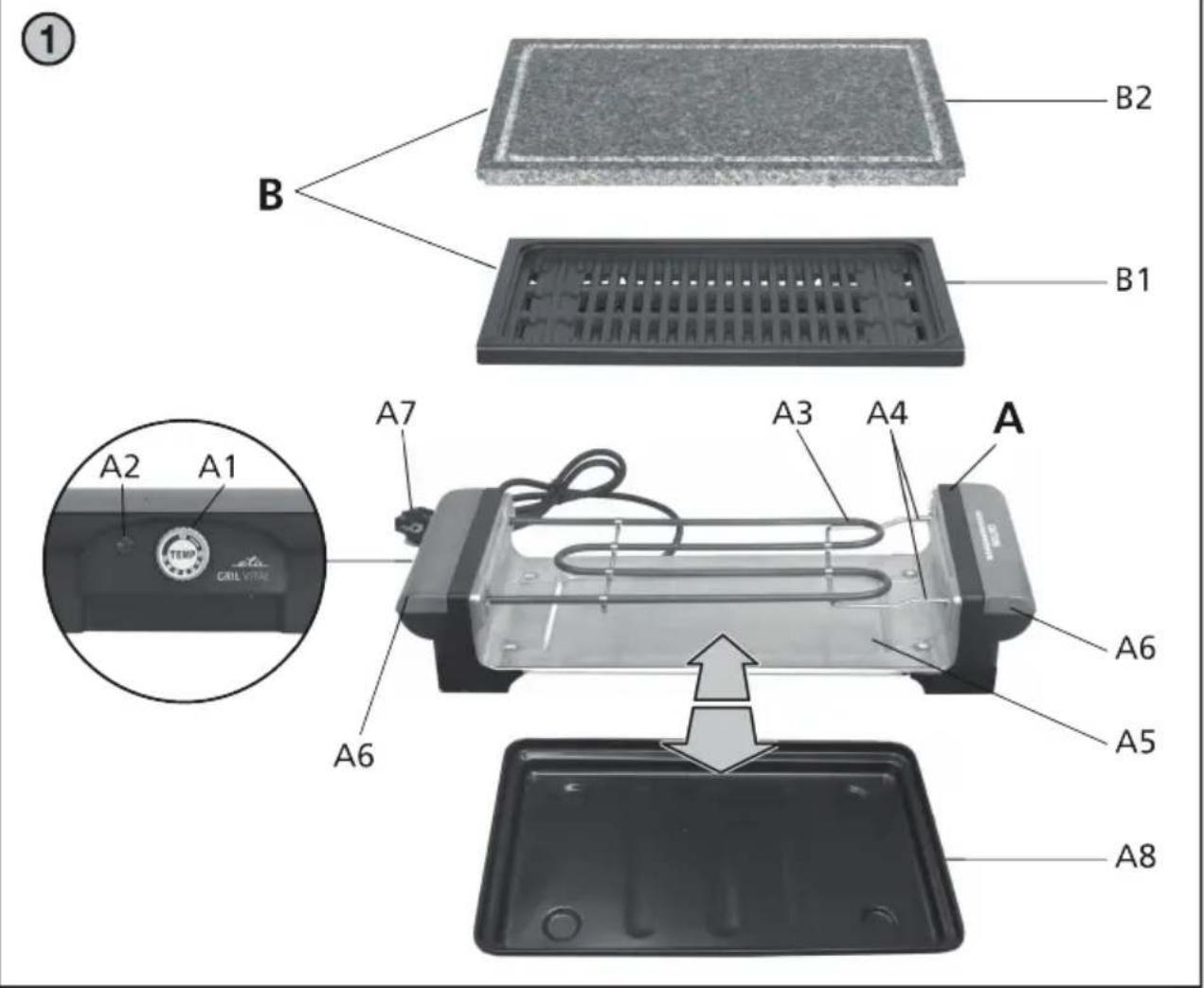

II. DESCRIPTION OF THE APPLIANCE (Fig. 1)
A - grill
A1 – temperature control dial A5 – placement area
A2 – indicator light A6 – handles
A3 – heating element A7 – power cord
A4 – support rack A8 – drip tray
B – interchangeable grill hotplates
B1 – cast iron (grate) B2 – stone
III. PREPARATION AND USE
Remove all packaging materials and take out the grill with its accessories. Remove all adhesive foils, stickers or paper from the grill. When first putting into operation insert the drip tray A8, filled with water, on to area A5 and place the interchangeable hotplate B2 (without any food) on to the support rack. Set the control dial A1 to MAX and with the window open allow the grill to function for approximately 15 minutes, then turn it off and allow it to cool down. Short mild emission of smoke is not a defect and is no reason for complaint. After it has cooled down clean the parts that will come in contact with food using hot water with detergent, thoroughly rinse with clean water and wipe dry, if necessary allow to dry (see paragraph V. MAINTENANCE).

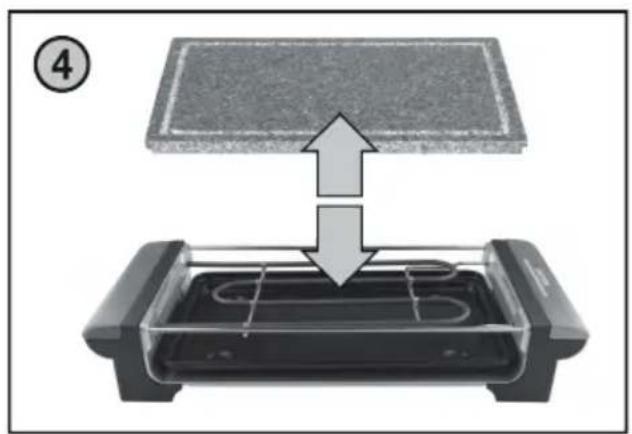

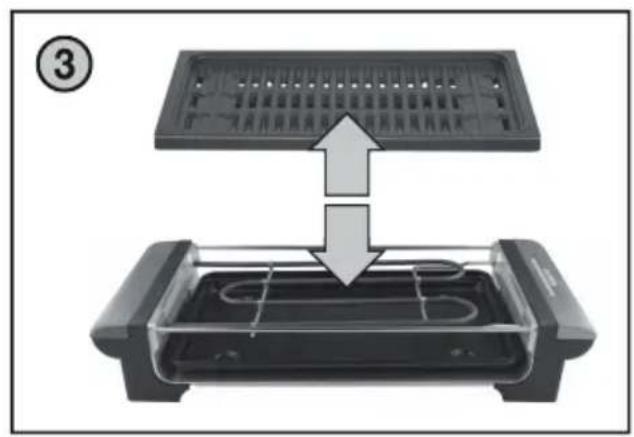

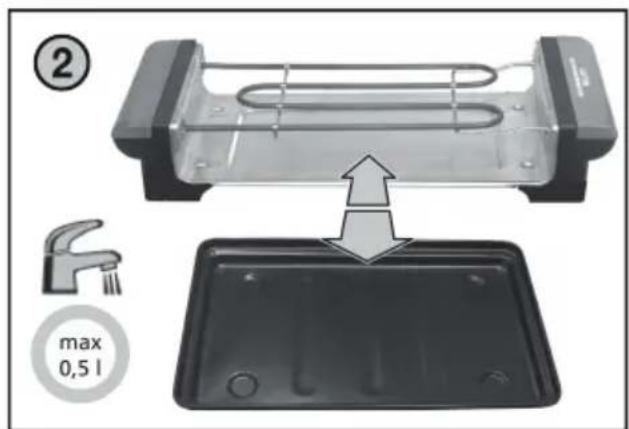

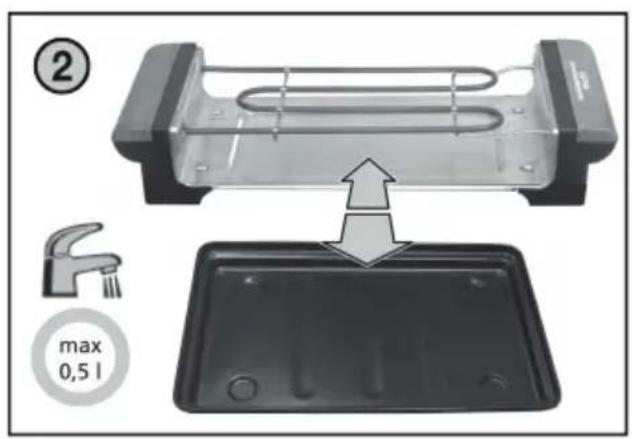

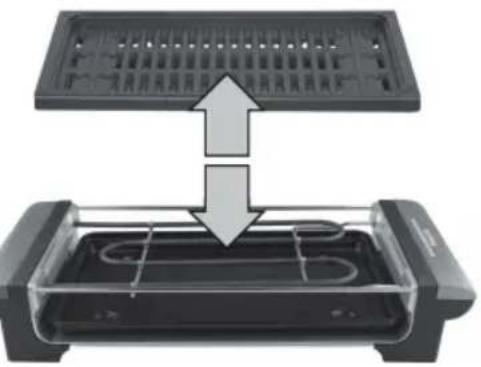

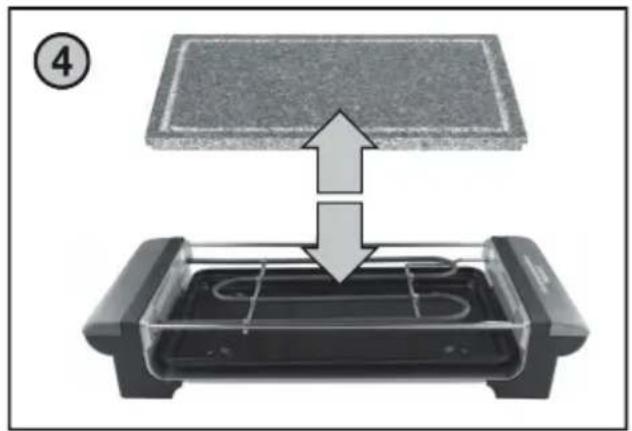

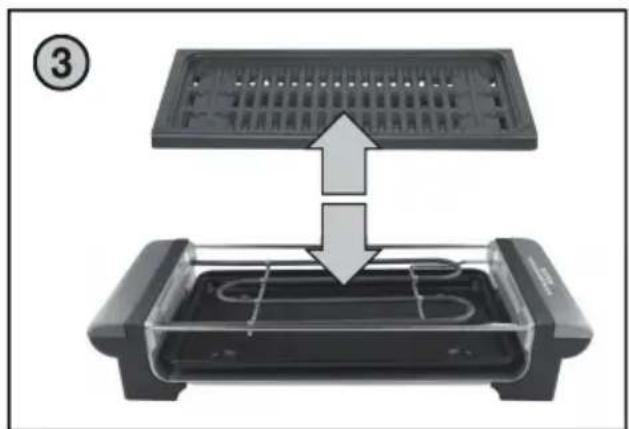

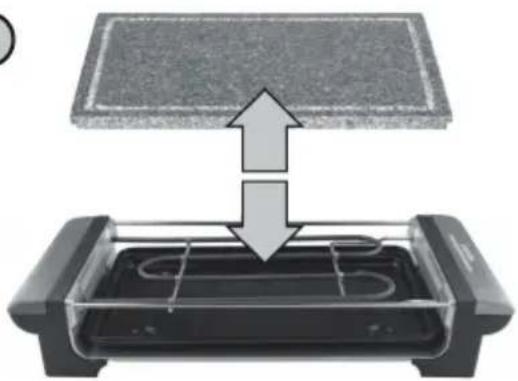

Assembly of the grill (pic. 2, 3, 4)
Place the interchangeable hotplate B1 or B2 on to the grill so that the dents in the hotplate/stone slide on to the support rack A4 (i.e. for stone with the shiny side upwards).
Following the reverse order you may again remove all the parts.
IV. INSTRUCTIONS FOR USE
Place the grill on a dry and even surface (e.g. kitchen table) at a height of at least 85 cm, out of the reach of children. Insert the power plug A7 into the power socket and check that it does not lead under the grill. Depending on the foods being prepared select the appropriate hotplate B1 or B2.
Set the control dial A1 to the MAX position. The indicator light A2 will turn on. Allow the grill to heat up for approximately 10-15 minutes without placing any food on it. Working temperature is achieved when the indicator light turns off. Place the food on hotplate B. Turn off the grill by turning the temperature control dial A1 to position 0 a few minutes before finishing grilling because the hotplate is sufficiently hot to complete the grilling of the food.
Note
- When the temperature is changed using the control dial A1 during the course of grilling it will take approx. 5 to 10 minutes for the hotplate to achieve the set temperature.
- While heating the thermostat may cycle (the indicator light turns on and off). This is not considered to be a defect.
Important notice
- Always allow the hotplates to heat up to working temperature before placing food on them.
- Do not touch the metal parts of the grill or the hotplate B during grilling, because these parts are HOT! Pay special care to ensure that children do not touch the hotplate! For carrying use only the handles A6.
- Never place aluminium foil or anything else under the hotplate or between the heating element and the placement area.
- Never place a cold hotplate on a hot heating element.
- Never place frozen or heavy foods on a hotplate.
- Never allow the stone hotplate to come into contact with acidic foods (e.g. vinegar products, mustard, sour gherkins, pickled vegetables, etc.).
- Do not leave an empty grill turned on for longer than 30 minutes.
- After several uses the stone will change colour and you will not remove the dark colours. Small cracks that are created by the expansion of the stone are normal. This has no effect on the operation of the appliance and cannot be a reason for a complaint.
- Never wash the stone hotplate in a dishwasher. Do not wash the stone using a pressurised water beam or any other similar equipment (e.g. pressure or steam cleaner)!
- The grill is not suitable for grilling food coated with breadcrumbs.
- Sausages tend to crack when grilled. To prevent it, pierce them at several places with a fork or cut them with a knife.
- Never cut food that is being prepared on the hotplates!
- Household pets (e.g. exotic birds) may have sensitive reactions to smells/odours, steam and smoke created while food is being cooked. For this reason we recommend that food is cooked in a different room.
TIPS FOR ACHIEVING THE BEST RESULTS WHEN GRILLING MEAT
Consider the following tips for preparing food as examples and inspiration, the purpose of which is not to provide instructions, but to show various possibilities of preparing food. The times of food preparation (processing) are only approximate and they are given in minutes. The time of grilling will vary according to the temperature of the grill, the environment and the type of the prepared food. You can adjust the preparation time to your taste; the longer the preparation takes, the crispier the food will be.
All times of food preparation recommended in professional literature (cookery books) anticipate that food has the refrigerator temperature. Preparation of frozen meat can last much longer.
Watch the food carefully when grilling and adjust the time of preparation at your wish. Food will be grilled more thoroughly if you turn it more frequently. Before grilling vegetables, fish or lean meat we recommend greasing the plate with vegetable oil or spraying it with special oil against food sticking. If you prepare fatty meat or marinated food, the plate does not have to be treated in this way. Use fresh food only (not frozen).
Remove tendons and excessive fat from meat and fish bones from fish. Cut food you want to grill to slices about 1 to 1.5 ~cm thick. If you want to make your meat tenderer, you can salt the food in advance, put spices on it, cover with sauce or oil.
Before you start grilling marinated meat, remove excessive marinade and humidity from it. Some marinades contain a lot of sugar that could stick to the plates during grilling. Do not pierce meat during grilling and do not dry it excessively by extended preparation.
If you prepare various kinds of food one after another (e.g. meat, fish, vegetables, fruit), we recommend cleaning food residues from the plates using a wooden turner, a spatula or a paper towel. Do not clean hot plate with water!
If you will be cooking various types of food after each other (e.g. meat, fish, fruit), we recommend that you clean the remains from the hotplate between the individual stages using wooden tongs or spatula. Do not clean the hotplate with water when hot!
You may use the following table as a guide for determining the approximate grilling time:
| Food | Cooking time (min.) | Status check |
| Chicken breasts, slice about 1 cm thick | 5 – 6 the meat must not be pink | |
| Neck of pork, slice about 1cm thick | 8 – 9 the meat must not be pink | |
| Beef rump, slice about 1cm thick | 4 – 5 to taste | |
V. MAINTENANCE
Before carrying out any maintenance disconnect the appliance from the power grid by pulling out the plug on the power cord from the el. socket! Only clean the grill once it has cooled down! Clean regularly after every use by wiping with a soft damp cloth! Do not use abrasive or aggressive cleaning agents (e.g. sharp objects, caustic pipe cleaning agents etc.) Also do not use any pressure cleaning equipment (e.g. dishwasher, pressure or steam cleaner)! Remove fat and food remains from the grill, which have stuck to the placement area A5, drip tray A8, support racks A4 and the hotplate B, etc. using a standard plastic kitchen spatula. Clean the interchangeable hotplates B and the drip tray A8 under a weak water current and wipe dry. Clean the drip tray A8 in hot water with some detergent and wipe dry (you may use a dishwasher).
It is normal for the colour of surfaces to change over time. This change in no way changes the properties of the surface and is not a reason for complaint about the appliance!
Storage
Before storing make sure that the interchangeable hotplates are cool. Store the grill in a safe and dry location that is out of reach of children and incapacitated persons.
VI. TROUBLESHOOTING
| Problem Cause Solution | ||
| Foods are not cooked enough | The set temperature is too low | Information about temperature and time can be found on the food label |
| Short cooking time | ||
| Too much food on the hotplate | Reduce the amount of food | |
| The grill is emitting an unpleasant odour | The grill is soiled (food and fat remains) | Clean the grill according to paragraph V. Maintenance |
| The grill doesn't work | The power is not connected Check the power cord, plug and el. socket | |
| The control dial is se to 0 or MIN | Set the control dial to MAX | |
VII. ENVIRONMENTAL PROTECTION
If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electric or electronic products must not be disposed of together with municipal waste. For proper disposal of the product, hand it over at special collection places where it will be taken over free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authorities or in the nearest collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation for good, after disconnecting it from power supply we recommend cutting off the power cord and thus it will not be possible to use the appliance again.
More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to warranty repair!
VIII. TECHNICAL DATA
Voltage (V) Shown on the type label of the appliance
Input power (W) Shown on the type label of the appliance
Weight (kg) approx. 6.4
Protection class of the appliance I.
Size of the product (mm) 530 x 250 x 110
Input in off mode is 0.00 W.
The manufacturer reserves the right to change the technical specifications and accessories for the respective models.
WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:
HOT. DO NOT COVER. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.
TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.
NOTICE
WARNING: HOT SURFACE
Don't touch on!
