USER MANUAL Rostock Majority

Rostock Internet Radio

User Manual

MAJORITY

What's In the Box? 3

Controls & Functions.... 4

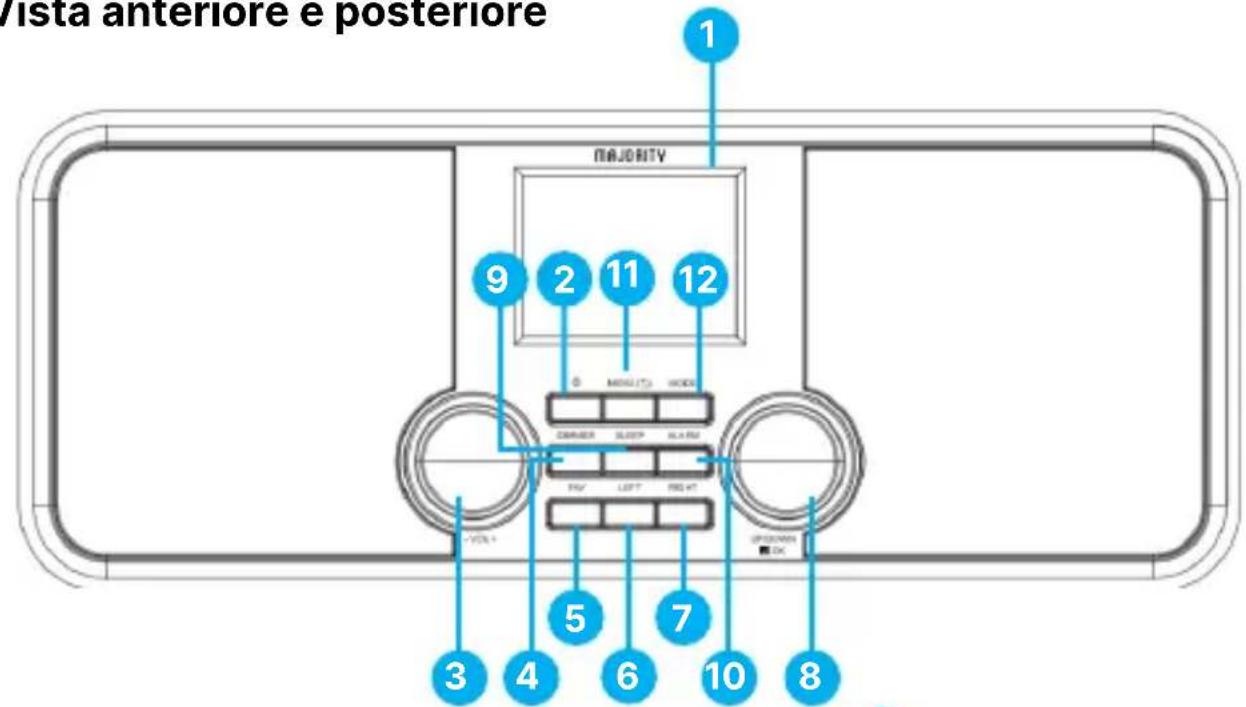

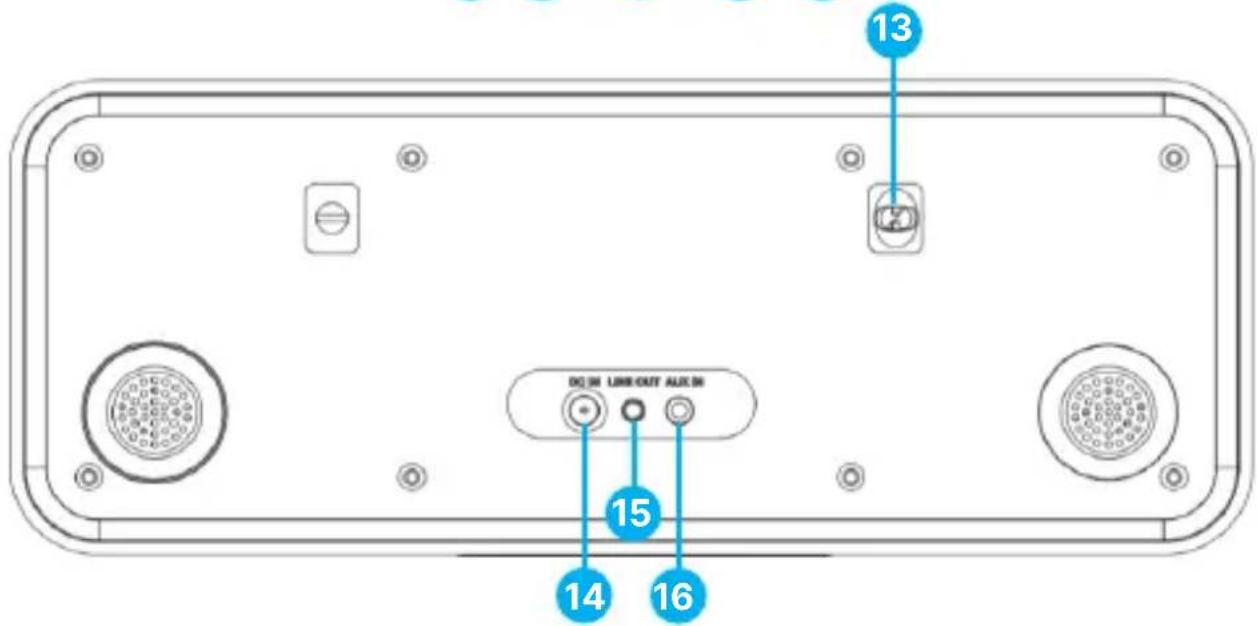

Front & Back View 4

Remote Control.... 5

Instructions Guide 5

Basic Operations....

Product Setup....7

Internet Radio 8

Save and Recall Saved Radio Stations (Presets).... 10

Podcasts.... 12

DAB / DAB+ Radio Mode.... 13

FM Radio Mode.... 14

Bluetooth.... 15

Spotify Connect.... 16

Line Out & AUX Input Connections.... 16

System Settings 17

Alarm and Sleep Timer.... 18

Specifications and Warranty.... 26

Safety Information......

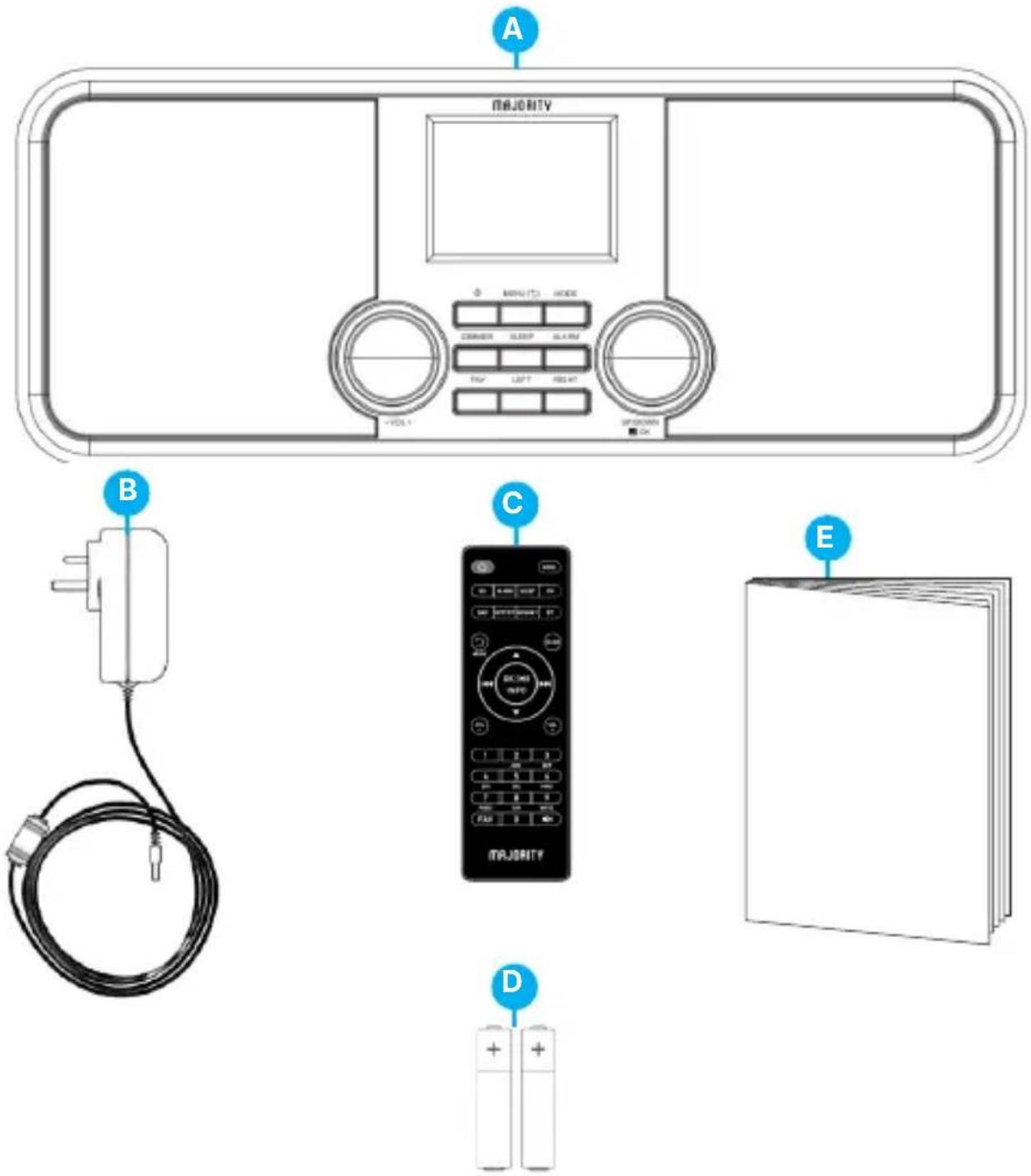

What's in the Box?

A. Majority Rostock Radio

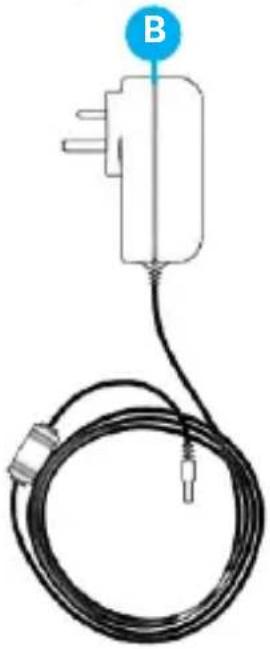

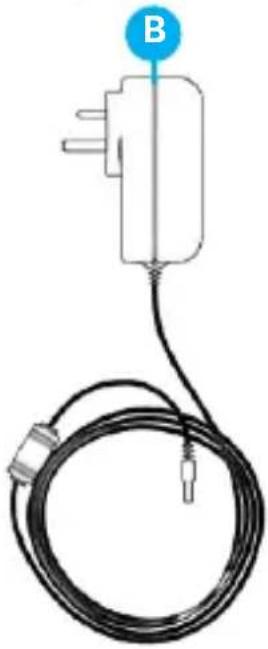

B. Power Cable Adaptor
C. Remote Control

D. 2 AA Batteries for emote control

E. User Manual

1. Standby
2. Alarm
3. EQ
4. DAB
5. Spotify
6. Menu/Back
7. Previous
8. Volume -
9. Numeric Keypad
10. Favourite
11. MODE
12. SLEEP Timer
13. FM
14. BT (Bluetooth)
15. Internet Radio
16. Scan
17. Arrow Up
18. Next/ Forward
19. Ok/Play/Pause/Info
20. Arrow Down
21. Volume +
22. Mute

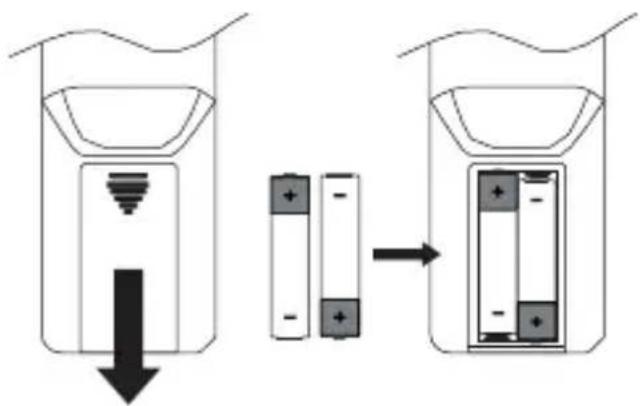

Battery Replacement for the Remote Control

Remote Control

1. Press and slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Ensure the (+) and (-) ends of the batteries match with the (+) and (-) ends indicated in the battery compartment.
3. Close the battery compartment cover.

Handling the battery

• Improper or incorrect use of batteries may cause corrosion or battery leakage. This could cause fire, personal injury or damage to property.
• Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with local regulations.
• Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury, and/or property damage, and/or fire.

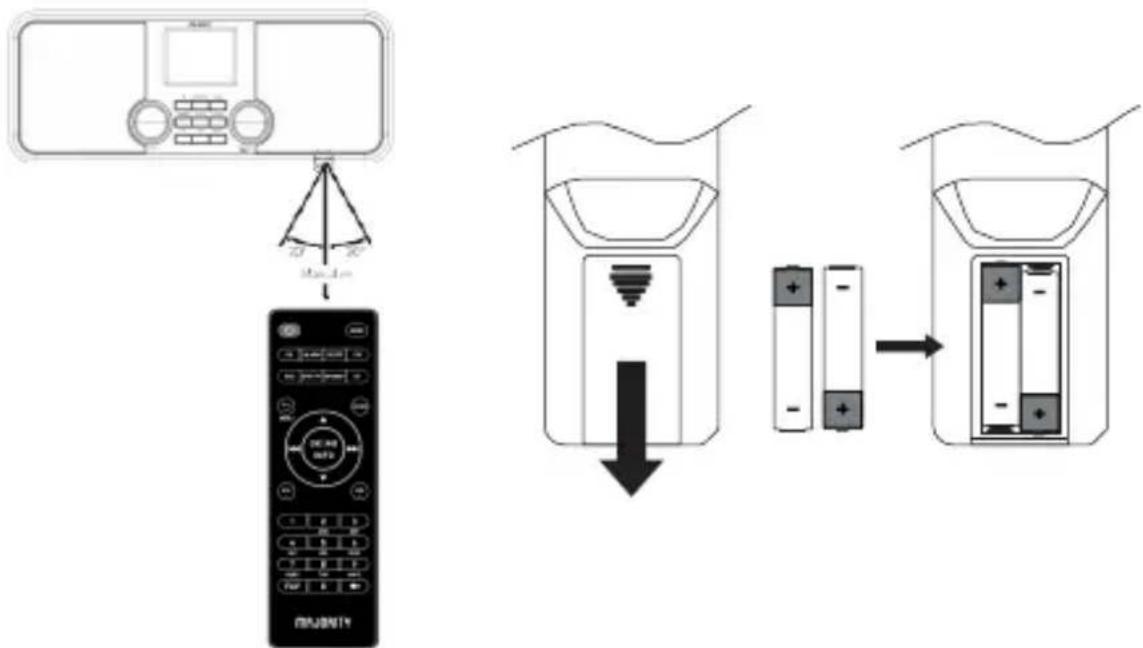

Diagram illustrating the process of adding a remote to a battery, showing control panel, power input, and battery charging.

PLEASE NOTE: The instructions within this user manual will refer to the button number on the unit e.g. (Ref. 'Number'), or buttons on remote control e.g. (Rem. 'Number'), in accordance with the diagrams from pages 4-5.

Product Set-Up

Remove all packaging and prepare the Majority Rostock for set-up. Position the radio where you would like it to be in use. Extend the radio antenna in full before scanning for DAB/FM radio stations. Connect the unit to a suitable power source using the power cable included in the box. Once connected to mains power, the Majority Rostock will display "Welcome" on the screen.

Powering ON/Standby Mode

Press the POWER ON/ Standby button on the unit (Ref.2) or remote control (Rem.2) to switch the unit on.

Press the POWER ON/ Standby button on the unit (Ref.2) or remote control (Rem.2) to switch the unit back to standby.

When the unit is idle for approximately 15 minutes in Internet Radio, Podcasts, Spotify, DAB or Bluetooth Mode (with external unit disconnected), it will automatically switch to Standby.

To switch the unit off completely, remove the mains plug from the main socket.

Selecting Modes

Press the MODE button on the remote control (Rem.11), or on the radio (Ref.12) to enter the Mode menu. Press the LEFT/RIGHT buttons on the radio (Ref.6 & 7), or use the arrow buttons on the remote control to switch the radio mode to: Internet Radio, Podcasts, Spotify, DAB, FM, Bluetooth, AUX In. Press the OK button to confirm. Alternatively, you can press the FM, DAB, SPOTIFY, INTERNET and BT buttons on remote control to switch the radio mode quickly.

Adjusting the Volume

Press the VOLUME +/- buttons on remote control (Rem.8 & 21) or rotate the Volume knob on the radio (Ref.3) to adjust the volume.

To temporarily mute the sound, press the MUTE button (Rem.22) on the remote control. Press the MUTE button again or press the VOLUME +/- buttons on the remote control to resume normal listening.

Navigating the Menu

Press the MENU button on remote control (Rem.6) or on the radio (Ref.11) to access the radio main MENU. Press the arrow buttons on remote control or the LEFT/RIGHT (Ref.6 & 7) on the radio or simply rotate the Navigation dial on the radio (Ref.8) to navigate through the Menu. Press the OK button to enter any section you would like to adjust.

Get the Internet Network environment ready

Ensure you have setup the wireless network and you have the WEP, WPA or WPA2 security password to activate the Internet connection. You can also use the WPS (Wi-Fi Protected Setup) function for easy pairing your network device with the Majority Rostock.

Ensure the light indicators on your network device/router show that you have an available internet connection.

When powering the Majority Rostock for the first time, the Setup Wizard will be automatically launched. The Setup Wizard guides you through the basic setup parameters such as Language, Time/Date and Network connection.

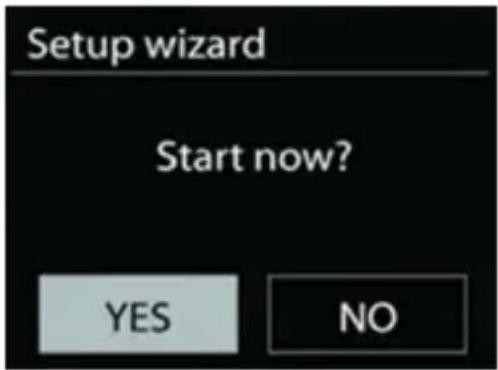

Start the Setup Wizard

To launch the initial 'Setup wizard', press the left/right buttons on the radio or rotate the Navigation dial to select [YES] to continue and connect to your network, select NO if you do not want to connect to your network. Press the OK button to confirm your selection.

Setup wizard Start now? YES NO

PLEASE NOTE: If you choose not to launch the Setup Wizard and skip this step, or if the Setup Wizard is interrupted before completing a network setup, the Majority Rostock generates its own Wi-Fi access which you can later on configure using the OKTIV APP.

Network connection indicator:

= Network connection established.

= Network connection not established.

Select the language

On first use, the display will show the start-up screen, followed by 'Language Menu'. To select the language of your choice, press the arrow buttons on remote control or rotate the Navigation dial (Ref.8) to find your preferred language. Press the OK button on remote control (Rem.19), or on the radio (Ref.8) to confirm your selection. Continue to the next step.

Product Setup - Connect to Network

Set the time and date

You can now select the time format. Choose the clock time format as per your preferences, either to [12] or [24] hours. Press the OK button to confirm and move onto the next step. Next, select which source (DAB/FM/ NETWORK/NO UPDATE) the unit uses as a source to obtain and update the time and date. If 'Update from Network' is selected, proceed to the next step and select the time zone. Choose 'Daylight Savings' by setting to [ON] or [OFF].

Connect to your wireless internet network

On the next screen, you can specify whether the product should remain connected to the network when on Standby Mode. Press LEFT/RIGHT buttons on the radio (Ref.6-7) or on the ones on remote control to select [YES], and then press the OK button to confirm.

The Majority Rostock, will now scan for your wireless network, this may take a few seconds until a list of all the wireless networks available appears on the screen. Select the WLAN network you would like to connect the radio to, then press the OK button on the remote or on the radio to confirm. The next screen will show you three options that you can use to connect the radio to your wireless network by using Push Button (WPS), PIN (pin code) or 'Skip WPS' based on your router functionality.

Connecting using the WPS (Wi-Fi Protected Setup) button on your router is a quick and easy way to connect your radio without having to use a password. Select one of the following two connection methods:

1. Select 'Push Button' if your internet router has WPS button

Select the Push Button on the radio, then press the OK button to confirm. A message will display on the screen, requesting you to press the WPS button on your router-press to continue.

PLEASE NOTE: Refer to your router user manual to identify the WPS button, if in doubt.

Press the OK button to confirm. The Majority Rostock will now connect to your router. This may take a few seconds.

2. Select 'PIN' if your router can connect using a PIN code number

Select this option on radio menu, then press the OK button to confirm. The radio will generate an 8-digit code number, which will be displayed on the screen.

Refer to your router user manual to follow the PIN code (WPS) instructions, when using a pin code number. Enter this code number into the wireless router to connect with Rostock. Press the OK button to continue.

Connecting the radio to your wireless network using the password instead of WPS

When using a router with no WPS button, you will be asked to enter your password to connect the Majority Rostock with your wireless network. Select 'SKIP WPS' to go straight to the password screen.

Press the arrow buttons on the remote control or rotate the Navigation dial to select each letter/number of your internet password. Press the OK button to enter the selected letter/number.

Once the password has been entered, press the arrow buttons on remote control again or rotate the 'Navigation dial' on the radio (Ref.8) buttons, to confirm by selecting 'OK' on the right hand-side of the screen. It takes a few seconds to connect with your network.

After your radio has connected, press the OK button to exit the setup.

Settings can be changed at any time in Menu-System Settings – Network settings - Network Wizard.

Once the radio is connected to your wireless Internet router, you can enter the Internet radio and Podcasts menu on the radio.

Internet Radio Mode

To switch the radio to Internet Radio mode, press the INTERNET button (Rem.15) on the remote control. Alternatively, you can press the MODE button on the remote (Rem.11) or on the radio itself (Ref.12) to cycle through modes until Internet Radio is selected. Once highlighted, press the OK button to confirm.

When Internet Radio mode is activated, the radio connects to the Airable Internet Radio Portal, allowing access to all available internet radio stations. Once a station is selected, the radio will connect directly to it.

If you are using Internet Radio for the first time, the radio will start in the [Station List] menu. A variety of options will be displayed, including: My Favourites, My Added Stations, Search, Location, Popular, and Discover.

Use the arrow buttons on the remote control or rotate the NAVIGATION/OK dial to highlight the menu you would like to access, then press the OK button to confirm.

When the Internet Radio mode is restarted, the last station you listened to will be automatically selected. To return to the [Station List], press the BACK button.

Whilst in Internet Radio Mode, press the MENU button on the remote control to access the menu. You can choose between: Last listened, Station list, System settings and Main Menu. Press the UP/DOWN buttons on remote control (Rem.17 & 21) to select any of these options, and then press the OK button to confirm.

Last Listened

1. Press the UP/DOWN buttons on the remote control (Rem. 17 & 21) to select [Last listened], and then press the OK button to confirm.
2. Press the UP/DOWN buttons on remote control (Rem. 17 & 21) to select the history of stations that you have listened to before, and press the OK button to confirm.

Station List

While in Internet Radio Mode, press the MENU button to access the menu. Press the w / s buttons to select [Station List] and press the OK button to confirm.

When Internet Radio is restarted, the last listened stations is automatically selected. To return to [Station List], press the BACK button.

If it is the first time listening to Internet radio, the radio will be in [Station List].

1. Press the UP/DOWN buttons on the remote control (Rem. 17 & 21) buttons to select from the following options, and then press the OK button to confirm.

The Internet Radio feature allows you to explore and access a wide variety of stations through different search methods:

• The country you are located in: You can browse and search specifically for radio stations from your own country. This option displays local stations available based on your current location.
• Search: Use keywords to find specific stations. The name and description of the selected station will appear on the display.
- Location: Choose from a list of countries to access radio stations from different regions around the world.
• Popular: Access a curated list of the most popular Internet Radio stations globally.
• Discover: Explore stations by browsing through various categories such as Country, Genre, or Language.

Press the BACK button to move back a menu level.

Preset Stations – Store and Recall

The Majority Rostock radio has a total of 90+ preset slots, which are shared across all radio modes (Internet Radio, Podcasts, DAB, and FM). You can use the same method to save and recall stations in any of these modes.

The store and recall functions work the same in all radio modes as per the followings:

Storing a Radio Station as a Preset

Presets are stored on the radio itself and cannot be accessed from other devices.

To store a preset:

Tune in and listen to the station you wish to save.

Press and hold the FAV button on the remote control (Rem.10) for 4–5 seconds, until the display shows 'Save to Preset'.

Use the UP/DOWN arrow buttons on the remote control (Rem.17 / Rem.20) to scroll and select a preset slot (up to 40 available).

Press the OK button to confirm. The display will show 'Preset Stored'. Alternatively, press and hold the number keys (0–9) on the remote control to store presets 1–10 directly to those buttons.

Recalling a Saved Station from Presets

To recall a station from your saved presets:

Press the FAV button on the remote control (Rem.10) to open the 'Preset Recall' list.

Use the UP/DOWN arrow buttons on the remote (Rem.17 / Rem.20) to scroll through your saved stations.

Press the OK button to confirm and play the selected station.

If a preset slot has not been used, the display will show 'Preset Empty'. Alternatively, you can press number keys (0–9) on the remote to directly play the corresponding preset station (1–10).

Additional Notes:

If you would like to delete a saved station, either:

Overwrite it by saving a new station in the same preset slot, or

Perform a factory reset on the radio to clear all saved presets and start fresh.

Presets are saved directly onto the radio and cannot be accessed or managed from other devices.

Podcasts

To listen to podcasts, your radio must be connected to the Internet.

Change the radio mode into Podcasts.

Press the MODE button on the remote control (Rem.11) or on the radio (Ref.12) to access Mode Menu.

Use the arrow buttons or rotate the 'Navigation/OK' dial on the radio (Ref.8), to select and press the OK button to switch to Podcasts Mode.

Whilst in Podcasts Mode, press the MENU button on the remote control to access the menu. You can choose between: Last Listened, Podcast List, System Settings and Main Menu.

Press the UP/DOWN to select and press the OK button to confirm.

Last Listened

Press UP/DOWN arrow buttons on remote control (Rem.17.20) to select [Last listened], and then press the OK button to confirm.

Press the UP/DOWN arrow buttons on remote control (Rem.17 & 20) to select the history of stations that you played beforehand and press the OK button to confirm.

Podcast List

Whilst in Podcasts Mode, press the MENU button to access the menu. Press the UP/DOWN arrow buttons on remote control (Rem.17 & 20) to select [Podcast list] and press the OK button to confirm.

When the radio is restarted, the last listened stations is automatically selected. To return to [Podcast list], press the BACK button.

If it is the first time using the Podcast feature, the radio will be in [Podcast list]. Press the UP/DOWN arrow buttons on remote control (Rem.17 & 20) to select from the following options and press the OK button to confirm.

DAB /DAB+ Radio Mode

Position the radio where you have good DAB/DAB+ signal and extend the radio antenna in full to ensure you will receive good DAB/DAB+ radio signal.

• Press the MODE button on the remote control (Rem.11) or on the radio (Ref.12) to access Mode Menu.
• Use the arrow buttons or rotate the 'Navigation/OK' dial on the radio (Ref.8), to select and press the OK button to switch to DAB/ DAB+ radio mode. Alternatively, press the DAB button on the remote control to switch to DAB mode.

While in DAB radio mode, for the first time the radio will enter DAB Mode and perform an automatic full scan. During the scan, the display will show 'Scanning...' together with a slide bar indicating the progress of the scan and how many stations have been discovered. Once the scan has finished, the unit will select the first alphanumerically found station and list all under 'Stations list'. To explore the found stations, press the UP/DOWN arrow buttons on remote control (Rem.17.20) to select and press the OK button to confirm and start playing.

To store or recall DAB/DAB+ stations on your own list, please follow the instructions described in detail at page 12. To process a new scan, press the SCAN button on remote control (Rem.16).

DAB/DAB+ Radio Mode – Menu

Whilst in DAB/DAB+ mode, press the MENU button on the radio (Ref.11) or on the remote control (Rem.6) to enter the DAB+ main menu. A list of sub-menus will appear on the radio screen. These include:

Station List – Displays the list of available DAB stations found after a full scan.

Scan – Select this option to perform an automatic scan for available stations.

Manual Tune – Allows you to manually tune into specific DAB/DAB+ frequencies.

Prune Invalid – After completing a scan, enter this section and select:

• YES, to remove stations with poor signal.
• NO to keep all stations as found.

DRC (Dynamic Range Control) – Choose from three DRC levels: High, Medium, or Low, depending on your listening preference.

System Settings – Access the radio's system menu for advanced options.

Main Menu – Return to the main menu to switch between different radio modes.

Use the arrow buttons on the remote control or rotate the 'Navigation' dial on the radio (Ref.8) to scroll through the options. Press OK to select and enter the chosen sub-menu. Press the BACK button on remote (Ref.6) or on the radio (Ref.12), to return to previous menu.

FM Radio Mode

Position the radio where you have good FM signal and extend the radio antenna in full to ensure you will receive good FM radio signal.

Press the MODE button on the remote control (Rem.11) or on the radio (Ref.12) to access Mode Menu. Use the arrow buttons or rotate the 'Navigation/OK' dial on the radio (Ref.8), to select and press the OK button to switch to FM Radio Mode. Alternatively, press the FM button on the remote control to switch to FM Mode.

The display will show the frequency. Press the SCAN button on remote control (Rem.16) to scan for available FM radio stations. Alternatively, enter the FM Menu to process an Auto presetting scan.

FM Radio Mode – Main Menu

While in FM mode, press the MENU button on the remote control (Rem.6) or on the radio (Ref.11) to access the FM Radio Menu. A list of sub-menus will appear on the radio screen, including:

Scan Setting – Enter this option and select YES to scan for stations with a strong signal, or NO to search for all available stations.

Audio Setting – Choose whether to play in MONO or STEREO.

Auto Presetting – Select and confirm to perform an automatic scan that saves found stations as presets.

System Settings – Access general radio settings.

Main Menu – Return to the radio mode selection menu.

Manual Scan and Fine Tuning

To fine-tune manually in FM mode:

• Press the PREV or NEXT buttons (Rem.7 & 18) once to adjust the frequency by 0.05 MHz up or down.
• When you find a station, you'd like to save, press and hold the FAV button on the remote control (Rem.10) or on the radio (Ref.5) for 4–5 seconds to open the 'Save to Preset' list.
• Select an empty preset slot, then press OK to save and confirm.

To scan more quickly through the FM band:

- Press and hold the PREV or NEXT buttons for a few seconds to scan upwards or downwards until a station is found.

To store or recall FM stations on your own list, please follow the instructions described in detail at page 12.

Bluetooth Operation

The unit has a Bluetooth function that can receive a signal within 8 metres. Pair the unit with a Bluetooth device such as a phone or a tablet to play audio from:

• Press the MODE button on the remote control (Rem.11) or on the radio (Ref.12) to access Mode Menu. Use the arrow buttons or rotate the 'Navigation/OK' dial on the radio (Ref.8), to select and press the OK button to switch to Bluetooth Mode. Alternatively, press the BT button on the remote control (Rem.12) to switch to Bluetooth Mode. The Bluetooth logo will start to flash on radio screen indicating that it's in pairing mode.

- Activate your Bluetooth device and select the search mode.

• "Majority Rostock" will appear on your Bluetooth device list.

- Select Majority Rostock and connect. Once paired the Bluetooth logo on the screen will stop flashing. Your device is now paired with the unit, and you can start playing from your device. Increase the volume on both radio and your device as per your preferences.

- Pressing the BT button on the remote control (Rem.14) can disconnect existing Bluetooth connection, allowing other Bluetooth devices to pair instead. To disconnect the Bluetooth function, press the MODE button on the remote control to switch to another mode or disable the function from your Bluetooth device.

PLEASE NOTE: The Majority Rostock is a Bluetooth Input which means that cannot be used to pair with Bluetooth external speakers or earbuds.

Spotify Connect

Use your phone, tablet or computer as a remote control for Spotify. To learn how, please visit spotify.com/connect to learn how.

Licenses

The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-party-licenses

AUX Input

The Majority Rostock radio can be connected to external devices such as a phone, tablet, or CD player to play audio through the radio's speaker. Follow the steps below:

• Press the MODE button on the remote control (Rem.11) or on the radio (Ref.12) to access the Mode Menu.
  • Use the arrow buttons or rotate the Navigation/OK dial on the radio (Ref.8) to select AUX Input, then press OK to confirm.
• Using a 3.5 mm AUX-to-AUX cable (not included), connect one end to the AUX IN port on the back of the radio (Ref.16), and the other end to your device's AUX output port.
• Once connected, start playing audio from your device.
• Adjust the volume on both the radio and your connected device. Playback is controlled directly from your external device.

LINE Output

The Majority Rostock can also be connected to external speakers (not included) via the LINE OUT port to play audio from the radio through external audio equipment. Here's how to connect:

• Using a 3.5mm AUX-to-AUX cable (not included), connect one end to the LINE OUT port on the back of the radio (Ref.15) and the other end to your external speaker's audio input.
• Begin playback from any mode on the radio. Audio will now be transmitted through your connected speakers.
• Adjust volume levels using both the radio and your external speakers for optimal sound.

^9 [EKEARE ^9 MNj2E] ^9 Ihv ^9 yōǔ ^9 eúrēriēođe ^9 Zǔèiō ^9 èitūōrūiōo¿ ^9 rtěZtě ^9 dōotǔtū ^9 yōǔr ^9 speaker's user manual for guidance on compatible connections and recommended audio settings when paired with an external source like the Rostock radio.

Important: The LINE OUT port on the radio is not compatible with wired headphones or earphones. It is specifically designed for use with external speakers only.

System Settings

The System Settings of the Majority Rostock can be accessed from any mode.

• Press the MENU button on the remote control (Rem.6) or on the radio (Ref.11) to open the main menu.
  • Use the UP/DOWN arrow buttons to navigate and highlight System Settings, then press the OK button to enter.

The following System Settings sub-menus are available:

Equaliser, Streaming Audio Quality, Network, Time/Date, Language, Factory Reset, Software Update, Setup Wizard, Info, and Backlight.

Equaliser

The radio supports a variety of preset equalisers and sound effects. These can be accessed:

• By pressing the EQ button directly on the remote control (Rem.3), or
• Via the System Settings menu. Navigate to Equaliser and press the OK button on the remote control (Rem.19) to enter.

The available equaliser presets are:

Normal, Flat, Jazz, Rock, Music, Classic, Pop, News, and MY EQ.

To use MY EQ, you must first configure it through [My EQ Profile Setup]

My EQ Profile Setup

• While in My EQ Profile Setup, press the UP/DOWN buttons to select either Bass or Treble, then press OK to confirm.
  • Use the UP/DOWN buttons again to set your desired level, then press OK to save.
• Press the BACK button to exit, then use the 7 / 8 buttons to select YES, and press OK to confirm.
  • The display will show "Equaliser Saved".

Once saved, the MY EQ option will appear with a star icon next to it, indicating it is your custom, personalised equaliser profile.

Streaming audio quality : Select between low, normal or high quality. Press OK to confirm your selection.

Network

Enter this section to access Network settings with its sub-menus. These are: Network Wizard, PBC Wlan Setup, View Settings, Manual Settings, Network Profile, Clear Network Settings and Keep the network connected. Highlight any of these sections you would like to access and press the OK button to enter. Press the 'BACK' button to cancel the setting and return to the previous menu. Select 'NO' to deactivate WIFI on the radio.

-Network Wizard: Enter to process a new scan of Internet networks

-PBC Wlan Setup,: Enter this section to connect the radio to a wireless router using the WPS button.

-View settings. Display the radio settings info.

-Manual Settings. Enter to enable or disable DHCP.

-Network Profile: View the wireless network that the radio is connected to.

-Clear Network Settings : Enter to delete the network profile settings.

-Keep the network connected: Enter to activate this option and keep the radio connected to your network at all times including the Standby mode, or deactivate this option to reconnect to network only when in use

Time and Date

The Time/Date can be automatically set once it has been connected to the Internet, DAB or FM radio station with time/date information. You may also adjust the Time/Date manually.

- While in System Settings Mode, press the arrow buttons to select Time/ Date and press the OK button to confirm. Press the UP/DOWN buttons to select 'Set Time/Date' and press the OK button to confirm and set these manually.

-The date digits will flash onto the radio screen.

- Press the UP/DOWN arrow buttons to adjust the date, then press the OK button to confirm.

-Repeat Step 2 to set the Month/Year/Hour/Minute.

-The date and time settings are now completed.

For the other settings under Time/Date, press the arrow buttons on remote control or rotate the Navigation Dial (Ref.8) to select from the following options and then press the OK button to confirm.

-Auto update Select to update the time and date from DAB/FM/Network/No Update.

-Set format : select the clock format to 12/24 hr format.

• Set Time zone: Select a time zone. (Only available when Auto update from Network is on).
• Daylight settings: Select daylight savings. (Only available when Auto update from Network is on).

PLEASE NOTE : The default auto time update setting is 'Update from Network'. If you would like to manually set the time, it is recommended to turn the Auto update function off.

Language

Enter this section to change the radio menu language as per your preferences. Navigate through all 15 languages available on the radio, select your preferred language, and then press OK button to confirm.

Factory Reset

Factory reset would be recommended when experiencing issues with radio reception and moving houses when the Majority Rostock may pick up the local and national DAB stations in that area, therefore previously tuned channels may no longer be available.

1. While in System Settings Mode, press the UP/DOWN buttons to select Factory reset, and press the OK button to confirm.
2. Press PREV/NEXT buttons on remote control or LEF/RIGHT on the radio to select [Yes] and press the OK button to confirm or select [No] to cancel.
3. After the system reset, all the tuned stations, Internet, DAB & FM preset stations will be erased.

Software Update

Press the UP/DOWN buttons to select 'Auto-Check Setting' or 'Check now', and then press the OK button to confirm.

Before downloading software, ensure that the radio is plugged into a stable mains power connection. Interrupting the mains supply during software download can lead to functional disturbances and/or damage to the unit.

Setup Wizard

The setup wizard is available in the System Settings section; you can run through this to configure settings for date/time and network. Once this has finished, your radio is ready to use.

Info

Within the Info sub-menu, you will find the software version, Spotify version, Radio ID and Friendly name will show on the display.

Backlight (Display backlight).

Enter this section to adjust and set the display brightness as per your preferences. There are three sub-menus, and you will have to adjust each one

Timeout: Options: Controls how long the display remains active before dimming or turning off. The options are : On /10 sec/20 sec/30 sec/45 sec/60 se /90 sec /120 sec/180 sec

Dim Level: This setting adjusts the display brightness whilst in Standby Mode which you can set to Medium or Low

On Level: This sets the display brightness during active operation. And you can select High/Medium/Low

PLEASE NOTE:

• Dim Level is used specifically for Standby Mode.
• On Level adjusts brightness while the unit is powered on and in use.
- To keep the display on and set with the brightness level of your selection, set Timeout to ON.

Setting the Alarm

The Majority Rostock has two alarms available which you can use and set as per your preferences.

Press the ALARM button on the remote control (Rem.2) or on the radio press the Sleep button (Ref.9). The display will show:

Alarm (1 or 2): Off [hh:mm].

Use the UP/DOWN arrow buttons to select either Alarm 1 or Alarm 2, then press the OK button to begin setting the alarm parameters. Use the ▲ / ▼ buttons to adjust each setting, and then press OK to confirm.

The alarm settings you can configure include:

Enable: Choose whether the alarm is set to Off, Daily, Once, Weekends, or Weekdays.

Time: Set the alarm time (hh:mm).

Mode: Select the alarm sound source – Buzz, Internet radio, DAB, or FM.

Preset: Choose either the Last Listened station or a Preset station (if applicable).

Volume: Set the alarm volume level (range from 0 to 32).

Save: Once all options are set, select Save and confirm to save the alarm settings.

After setting all parameters, select Save and press the OK button. The display will confirm with "Alarm Saved". Once set, the alarm icon will appear on the display.

Alarm Snooze

To temporarily turn off the alarm when it sounds, press the OK button to activate the Snooze function.

Pressing the OK button repeatedly will set a snooze period of 5, 10, 15, or 30 minutes.

The snooze time will appear on the display, and the unit will enter standby mode during that time.

Turn off/Cancel Alarm

To turn off the alarm completely when it sounds, press either the Power button or the ALARM button.

Tip: To cancel the alarm entirely, repeat steps 1–3 and switch the alarm to Off. The alarm icon will then disappear from the display.

Sleep Timer

Press the SLEEP button on remote control (Rem.12) or the one on the radio (Ref.9), repeatedly and choose one from the following options: off/15 /30/45/60/90/120 minutes Once you see the time on radio screen that you would like to use, wait two seconds and this will remain activated on the radio until the time will go off.

Oktiv App – Use as a Net Remote

OKTIV

The Majority Rostock radio supports Net Remote functionality, allowing users to control the device remotely via a smartphone or tablet (iOS or Android). By downloading the dedicated app OKTIV, you can access and control all available modes such as Internet Radio, Podcasts, Spotify, DAB, FM, and Bluetooth.

To get started:

• Search for OKTIV in the Google Play Store or Apple App Store and install the app on your smartphone or tablet.
• Ensure that both your radio and mobile device are connected to the same WiFi network.
• Launch the app.
• The app will automatically initialise and begin scanning for available devices on the network.
• Tap on your Rostock device once it appears in the app to establish the Net Remote connection.
• Once the connection is established, your mobile device will automatically reconnect to the radio the next time you open the app—provided it's on the same network.

Note: If another smartphone or tablet with the OKTIV app is connected to the same network and attempts to access the radio, it will override your current connection.

Observation Potential Cause/Solution
No power	Ensure the mains adaptor plug is connected.Make sure that the unit is switched on.
No sound from the unit	Please try either one of the solutions below:Make sure that the unit is not muted. PressVOLUME+/- buttons to resume normal listening. Press the Standby button to switch the unit to Standby Mode. Press the button again to switch the unit on.Unplug the unit from the mains socket, and then plug them again. Switch on the unit.
The unit does not respond when pressing any buttons	The unit may freeze up during use. Unplug the unit, leave it for 15 minutes then plug this on to mains

Radio DAB/FM

Observation Potential Cause/Solution
Poor radio reception.	Ensure the DAB/FM aerial is fully extended.Electrical interference in your home can cause poor reception. Move the unit away from them (especially those with motors and transformers).
Desired station not found.	Weak signal. Search manually. If reception is still poor, adjust the position of the aerial then process a new scan.

Internet Radio

Observation Potential Cause/Solution
No Internet connection	Reset your internet router, then power on the radio and reconnect.
The radio is not connecting to the router, but other devices do connect	Clear the network settings on the radio via System Settings. Process a factory reset of the radio. Restart your internet router, then reconnect the radio to your wireless network
The unit does not respond when pressing any buttons.	The unit may freeze up during use. Unplug the unit, leave it for 15 minutes then plug this on to mains

Bluetooth

Observation Potential Cause/Solution
I can't find "Majority Rostock" on my Bluetooth device	Ensure the Bluetooth function is activated on your Bluetooth device.Re-pair the unit with your Bluetooth device.
I can't hear the music	You may need to increase the volume on the radio and Bluetooth device.

Do you still have issues? Contact Tech Support

If you require further assistance with your Majority product, please contact our team on the Majority website: www.majority.co.uk/support or email us @[e-mail]

Warranty

All products come with a standard 12-month warranty. All items must be registered within 30 days of purchase via www.majority.co.uk for the warranty to be valid. Once on the web page, use the menu to find 'Register Your Product'. You will also be given the chance to extend your warranty for an additional 24 months, free of charge

Specification & Warranty

Specification

Brand	Majority
Model	Rostock
System Section
Power Supply	Input: 100240V ~ 50-60Hz 0.5A max.Output: 12.0V/1.0A
Power Consumption	Up to 18Watts
Standby Consumption	1.1W (with WIFI ON) 0.76W (with WIFI OFF)
Working Environment - Temperature	0 ~ 35 °C
Net Weight	1353g
Unit Dimension (W) × (D) × (H)	280x110x110mm
Radio Frequency	FM 87.50 – 108.00MHz DAB174 - 240MHz

How to activate wireless network port:

• Connect the unit with power
• Switch to wireless mode (e.g. Internet)

How to deactivate wireless network port:

- Go to Main Menu - System Settings - Network - Keep network connected. Select No, and then press the OK button to deactivate WIFI.

Wifi	Maximum transmitted power	15 dBm
	Frequency band	2412 -2472 MHz

Note:

• The equipment will enter network Standby Mode after approx. 15 minutes. To resume playback, press the 'Power' button'
• In Internet Radio, Podcasts, Spotify, DAB Radio and Bluetooth Audio Mode, the unit will automatically go into Standby Mode after 15 minutes, if it has no audio playback. Pres s the Standby button to resume.
• The product may have noise (1KHz signal) in the presence of strong electromagnetic fields.
  In case of malfunction due to these strong electromagnetic fields, user need to wait till resume normal operation without intervene.

Rostock Internet Radio

Benutzerhandbuch

MAJORITY

Diagram illustrating the process of a remote control system, showing device placement and battery charging steps.

Setup wizard Start now? YES NO

The Majority Rostock can also be connected to external speakers (not included) via the LINE OUT port to play audio from the radio through external audio equipment. Here's how to connect:

• Using a 3.5mm AUX-to-AUX cable (not included), connect one end to the LINE OUT port on the back of the radio (Ref.15) and the other end to your external speaker's audio input.
• Begin playback from any mode on the radio. Audio will now be transmitted through your connected speakers.
• Adjust volume levels using both the radio and your external speakers for optimal sound.

▲ PLEASE NOTE: If you experience audio distortion, please consult your speaker's user manual for guidance on compatible connections and recommended audio settings when paired with an external source like the Rostock radio.

Important: The LINE OUT port on the radio is not compatible with wired headphones or earphones. It is specifically designed for use with external speakers only.

Systemeinstellungen

Diagram showing a remote control panel with labeled degrees and a remote control device labeled 'MOUNTY'

Diagram illustrating battery charging process with labeled components and charge distribution

Setup wizard Start now? YES NO

You can now select the time format. Choose the clock time format as per your preferences, either to [12] or [24] hours. Press the OK button to confirm and move onto the next step. Next, select which source (DAB/FM/ NETWORK/NO UPDATE) the unit uses as a source to obtain and update the time and date. If 'Update from Network' is selected, proceed to the next step and select the time zone. Choose 'Daylight Savings' by setting to [ON] or [OFF].

On the next screen, you can specify whether the product should remain connected to the network when on Standby Mode. Press LEFT/RIGHT buttons on the radio (Ref.6-7) or on the ones on remote control to select [YES], and then press the OK button to confirm.

The Majority Rostock, will now scan for your wireless network, this may take a few seconds until a list of all the wireless networks available appears on the screen. Select the WLAN network you would like to connect the radio to, then press the OK button on the remote or on the radio to confirm. The next screen will show you three options that you can use to connect the radio to your wireless network by using Push Button (WPS), PIN (pin code) or 'Skip WPS' based on your router functionality.

Connecting using the WPS (Wi-Fi Protected Setup) button on your router is a quick and easy way to connect your radio without having to use a password. Select one of the following two connection methods:

Mode radio FM – Menu principal

A MAJORITY MINIUTON MODE DRINKS CLEEP ALAM RV LEFT RED MT VOL OFFDCOM OK

Simple line drawing of a medical or electrical device with a labeled component (B) and a coiled cable (no text or symbols on the device itself)

C MAJORITY

Illustration of a blank book with a blue circular label labeled 'E' on top (no text or symbols on the book itself)

Vista anteriore e posteriore

Vista anteriore e posteriore 1 MAJORITY 9 2 11 12 0 MINUTO HOCK DRIVER SLIPP ALA FI RV LEFT RIGHT + VOL + 5 7 3 4 6 10 8 OPPOGRAVE OK

DO ON LINK-OUT AUX ON 13 15 14 16

Diagram illustrating battery charging process with labeled components and charge distribution

Setup wizard Start now? YES NO

A MAJORITY MINIUTON MODE DRINKS CLEEP ALAM RV LEFT RED MT VOL OFFDCOM OK

Simple line drawing of a medical or electrical device with a labeled component (B) and a coiled cable (no text or symbols on the device itself)

C MAJORITY

Illustration of a blank book with a blue circular icon labeled 'E' on top (no text or symbols on the cover)

Diagram illustrating battery charging process with downward arrow and charge distribution in beaker

Setup wizard Start now? YES NO

Modo Radio FM - Menú Principal

Diagram illustrating the process of battery charging and discharging, showing a container with a plug and battery stack connected to a battery holder.

Setup wizard Start now? YES NO

EN Safety and Usage Guidelines (All where applicable)

General Safety Information - Read and Retain: Review all safety and operating instructions before use; keep them for future reference. Follow Instructions: Adhere strictly to all safety and operational guidelines. Water Exposure: Keep the device away from water; avoid placing liquids near it. Ventilation: Ensure ventilation openings are unobstructed to prevent overheating. Heat Sources: Keep the device away from heat-emitting appliances. Wall Mounting - Installation Safety: Follow the manufacturer's instructions and use approved mounting kits only. Avoid drilling into areas with cables, gas, or water lines. Use proper tools and safety apparatus. Regular Maintenance: Inspect regularly for wear or damage, especially if wall-mounted. Relocation: Detach from the wall mount before moving. Child Safety: Keep out of children's reach and ensure heavy items are securely mounted. Seismic Precautions: Use specialized mounts in earthquake-prone areas. Electrical Safety - Power Source: Use the specified power source; consult an electrician if unsure. Cable Management: Protect the power cord from damage. Power Disconnection: Keep the main plug accessible; unplug during storms or long periods of non-use. Battery Safety - Charging: Use the manufacturer's charger; avoid extreme conditions. Heat Exposure: Keep batteries away from heat to prevent explosion or leakage. Battery Condition: Discontinue use if the battery is damaged; dispose of it properly. Replacement: Only use recommended batteries; incorrect types can cause hazards. External Batteries: Use only specified types, observing correct polarity. Battery Removal: Remove batteries if not used for an extended period. Disposal: Follow local regulations for battery disposal; do not incinerate. Connectivity Safety - Cable Connections: Power off devices before connecting or disconnecting cables. Bluetooth Pairing: Ensure a secure connection; avoid interference from other devices. Volume Control: Keep volume moderate to prevent hearing damage. Connectivity and Data Security - Wireless Security: Review privacy policies and secure your network. Software Updates: Keep software updated for security and performance. Children's Safety Warnings - Product Use: Intended for adults; keep away from children. Battery Warning: Keep batteries and items containing batteries out of children's reach. Volume Control: Maintain a safe volume level to protect children's hearing. Fire Hazard - Flammable Materials: Do not place open flames near the product. Overheating: Avoid covering the product to prevent overheating and fire risks. Disposal and Recycling - Product Disposal: Dispose of at a recycling centre according to local laws. Environmental Compliance: Follow regulations for battery and electronic waste disposal. User Maintenance - Cleaning: Unplug before cleaning; use a dry cloth only. Servicing: Only qualified personnel should perform repairs. Data Protection: Reset to factory settings before returning or disposing of the product. Disclaimer: Failure to follow these instructions may result in injury, death, or property damage. The manufacturer is not liable for damage caused by improper use.

Declaration of Conformity:

We, iZilla Limited, 1 Cygnus Business Park, Middlewatch, Swavesey, Cambridgeshire

CB24 4AA, declare under our sole responsibility that the product:

Product Name: Restock Internet Radio Model: 1000003039 Brand Name: Majority

To which this declaration referred is in conformity to the following harmonized standards or normative documents (CE & Rohs 2.0);

EN 55035:2017, EN 55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EEN62368-1:2004+A11:2017, ETSI EN 301 489-1 V2.2.3(2019-11), ETSI EN 301 489-17, V3.2.2(2019-12), ETSI EN 300 328 V2.2.2 (2019-07), EN 62479: 2010, IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017, (EC)NO 1275/2008,EN50564:2011, (EC)NO 801/2013.

Complying with the requirements or provisions of Council Directives which relate to:

EMC Directive 2014/30/EU, RED Directive 2014/53/EU, LVD Directive 2014/35/EU, Directive (2011/65/EU) and its amendment directives 2015/863/EU (RoHS 2.0) of the, European parliament, ERP Directive 2009/125/EC.

All essential test suites have been carried out.

Point of Contact: Eddie Latham | Founder

Signed: F. Latham Date of Issue: January 2024 Place of Issue: Cambridge, UK

Importer's Addresses:

UK: iZilla Limited, 1 Cygnus Business Park, Middlewatch, Swavesey, Cambridgeshire CB24 4AA

Email: [e-mail]

EU RP: AR Experts, Po Box 5047, 3620 AA Breukelen, The Netherlands

Email: [e-mail]

US: iZilla Ltd C/O A.N.Deringer Inc, 19520 Wilmington Ave, Rancho Dominguez, CA, 90220

Email: [e-mail]

ATTENTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION

RISQUE D'ELECTROCUTION NE PAS OUVRIR

IMPORTANT: Please read all instructions carefully before use and keep for future reference

Statement of Compliance

Product Security and Telecommunications Infrastructure Act 2022 and the Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023

1. Responsible Person

Company Name: IZILLA LIMITED (Company No. 08520738)

Registered Office: 1 Cygnus Business Park, Middlewatch, Swavesey, Cambridgeshire CB24 4AA

Contact for Compliance Purposes: [e-mail]

2. Product Identification

Product Range Name: Majority Steramers

Brand: Majority

Models Covered: Rostock Internet Radio

Product Description: Consumer connectable streaming audio products capable of network connectivity for media playback and control.

3. Declaration of Compliance

IZILLA LIMITED declares that, in our opinion, the products identified in Section 2 comply with the applicable security requirements under the Product Security and Telecommunications Infrastructure Act 2022 and the associated Regulations.

4. Security Requirements Met

4.1 No Universal Default Passwords

The products are not supplied with universal default passwords. Where authentication is used, the product uses unique credentials and or requires the user to set credentials during setup, as applicable.

4.2 Vulnerability Disclosure Policy

A vulnerability reporting process exists for these products. Security issues and vulnerabilities can be reported to:

[e-mail]

4.3 Security Update Commitment

Security updates will be provided for a minimum period of 10 years from the date of first UK sale. Information on security updates is available

via: https://www.majority.co.uk/support

5. Supporting Evidence

IZILLA LIMITED maintains documentation to support this declaration, which may include:

• Default password and authentication approach
  • Vulnerability intake and handling process
  • Security update policy and support period records
  • Relevant technical and compliance records

This information will be made available to UK enforcement authorities on request.

6. Signature

Signed for and on behalf of IZILLA LIMITED:

Name: E Latham

Position: Owner

Date: 1 ^st Jan 2024

Handwritten signature or scribble on a curved line, possibly a signature or artistic mark

MAJORITY

www.majority.co.uk
