USER MANUAL UltraOne Plus ELECTROLUX

Line drawing of a mechanical component with textured surface and mounting features (no text or symbols)

ENGLISH

Thank you for choosing Electrolux UltraOne Plus bagged vacuum cleaner. Always use original accessories and spare parts to get the best results. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

Before starting

• Read this manual carefully.
• Check that all parts described are included.
• Pay special attention to the safety precautions!

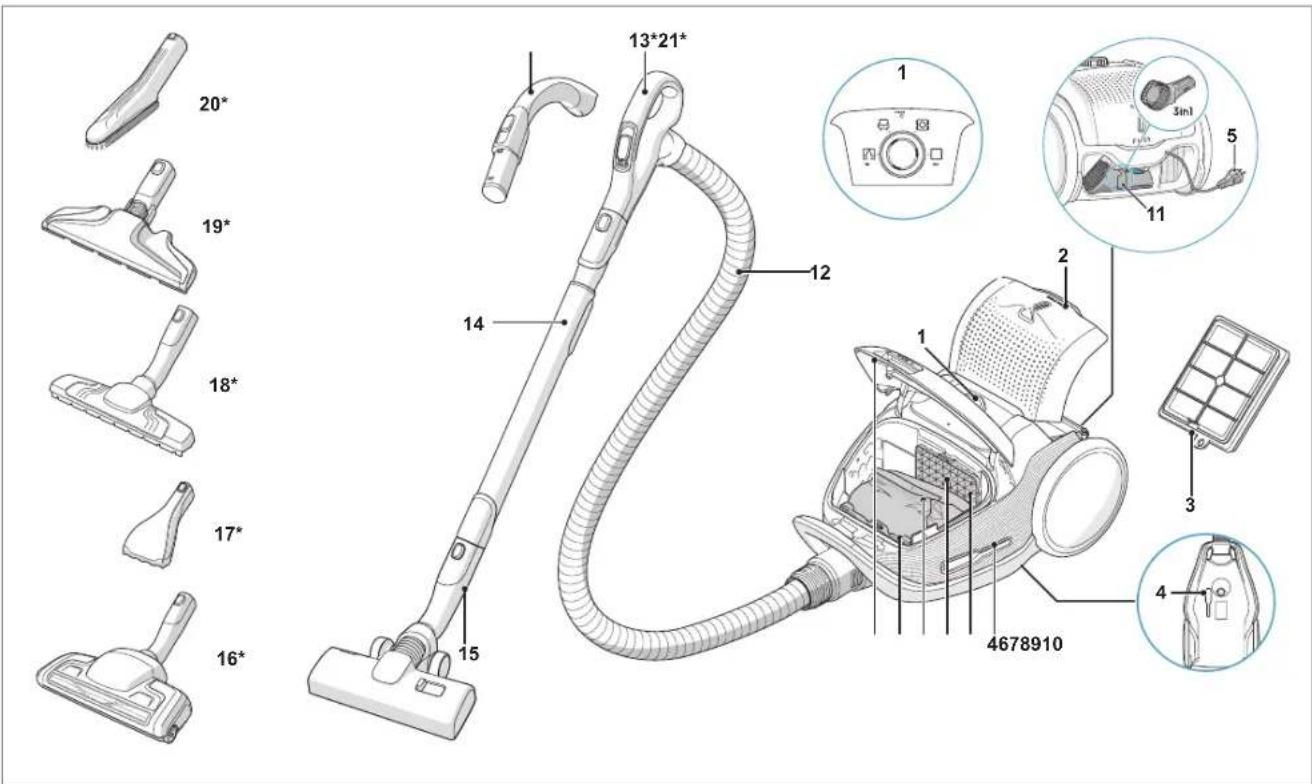

20* 19* 18* 17* 16* 13*21* 14 12 1 2 3 4 5 11 4678910

DESCRIPTION OF ULTRAONE PLUS VACUUM CLEANER

1. Display
2. Exhaust filter lid
3. Exhaust filter
4. Parking slots
5. Power cord
6. Motor filter
7. Motor filter holder
8. S-bag ^®
9. S-bag ^® holder
10. Dust compartment cover
11. 3in1 tool
12. AeroPro hose
13. AeroPro Ergo handle*
14. AeroPro telescopic tube
15. AllFloor Auto nozzle
16. Turbo nozzle*
17. Mini Turbo nozzle*
18. ParkettoPro nozzle*
19. FlexProPlus nozzle*
    20.Furniture nozzle
20. AeroPro Classic handle*
    * Certain models only

Power consumption in standby: 0.3W

HOW TO USE THE VACUUM CLEANER

Illustration of a handheld vacuum cleaner with a blue internal component (no text or symbols visible)

Open the dust compartment cover by pulling the S-BAG button. Check that the dust bag (s-bag) is in place.

Clutch Clutch

Attach the telescopic tube to the nozzle. Attach the telescopic tube to the hose handle (to remove it, press the lock button and pull).

Clust Clust

Insert the hose into the cleaner (to remove it, press the lock buttons and pull). Insert the hose into the hose handle until the lock button clicks (to release it, press the lock button and pull).

Illustration of a hand holding a tool with directional arrows indicating movement (no text or symbols)

Adjust the telescopic tube by holding the lock with one hand and pulling the handle with the other hand.

START/STOP THE VACUUM CLEANER AND ADJUST SUCTION POWER

Illustration of a vacuum cleaner connected to an electrical outlet (no text or symbols)

Pull out the power cord and plug it into the mains. Press the ON/OFF button to turn the cleaner on/off.

Diagram showing car interior control panel with directional arrows and labeled buttons for mode and position

Turn the rotary knob on the cleaner or use the air valve on the handle.

Illustration of a hand using a screwdriver to adjust or install a mechanical component (no text or symbols visible)

After cleaning, push the REWIND button to rewind the cable.

PARKING POSITIONS

Diagram showing three types of vacuum cleaner setups labeled A, B, and C with component labels

Use parking position on the side (A) or underneath (C) to carry and store the cleaner. At the back (B) when you pause (save your back).

REPLACING THE DUSTBAG, S-BAG®

S-BAG S-BAG

Replace the s-bag when S-BAG indicator lights up in red (green light: bag is OK, yellow light: soon time to replace bag).

NB: Always change the s-bag when S-BAG indicator is illuminated or has red light even if the s-bag is not full (it may be blocked) and after using carpet cleaning powder. For best possible performance, use the Ultra Long Performance bag which is especially developed for your cleaner. Other synthetic s-bags can also be used. Do not use paper dust bags! www.s-bag.com

Diagram illustrating car seatbelting process with labeled parts and directional arrows indicating movement

Open the dust compartment cover by pulling the S-BAG button. Pull the cardboard handle to close and remove the s-bag ^9

Click

Insert a new s-bag ^® by pushing the cardboard straight down in its tracks. Close the lid. If the s-bag ^® is not properly placed or is missing, the lid will not close.

When you start the cleaner after s-bag replacement, it takes 10 seconds before the S-BAG indicator turns off or turns green.

REPLACING THE FILTERS

Replace/clean** the filter when (**washable filter only) you have changed the s-bag 5 times.

Diagram illustrating satellite monitoring system with solar panels, alarm, and 24-hour speed indicator

Pull the FILTER button to open the filter lid. Use original s-filters. Remove the filter and check the reference on the frame to define type. Replace with a new filter or clean it. Rinse the inside (dirty side) in lukewarm tap water. Tap the filter frame to remove the water. Repeat the process four times.

NB: Do not use cleaning agents. Avoid touching the filter surface. Let the filter dry completely (min. 24 h in room temperature) before putting back! Change the washable filter at least once a year or when it is very dirty or damaged. Do not remove the L-shaped foam under the filter.

Click!

After replacing the filter, close the filter lid until it is clicked back into place. If the filter lid comes off, position the hinges at the bottom and push the filter lid until it is clicked back into place.

NB: When you start the cleaner after filter replacement, it takes 10 seconds before the FILTER indicator turns green or turns off.

Illustration of a car interior with tools and components, no visible text or symbols

Replace the motor filter when dirty or after every 5th s-bag. Push the filter holder down and pull it out. Exchange the filter and close the lid.

CLEANING THE UNIVERSAL NOZZLE

Line drawing of a hand holding a tool with a handle (no text or symbols)

Disconnect the nozzle from the tube. Clean with the hose handle.

CLEANING THE TURBO NOZZLE

Two hand-drawn diagrams showing a tool being inserted into a mechanical component, no text or symbols present.

Disconnect the nozzle from the tube and remove entangled threads etc by snipping them away with scissors. Use the hose handle to clean the nozzle.

3IN1 ACCESSORY TOOL

Diagram illustrating a device's internal components with labeled parts and directional arrows indicating motion or movement.

Pull the textile tab to take out 3in1 tool. The tool has 3 functions, see pictures on next page. After usage, put it back in its place.

NOZZLE/ACCESSORY USE FOR: NOZZLE/ACCESSORY USE FOR:
3In1 accessory tool123	3 tools in 1:1. Dusting tool for hard surfaces (bookshelves, skirting boards etc).2. Upholstery tool for textiles (curtains, upholstery etc).3. Crevice tool for narrow spaces (behind radiators etc).	AllFloor Auto nozzle Universal nozzle:	- For all floor types, secures excellent dust pick up both on carpets and hard floors.- Recommended to use Allfloor mode, which enables going from hard floor to carpet without adjusting the setting.- For deep cleaning on carpet, change the nozzle setting with the slider to Carpet mode.
Turbo nozzle* Carpet nozzle:	- Brushes and vacuums at the same time (best pick up of hair, fibres etc).- Brush roller is driven by the airflow of the vacuum cleaner.- Not suitable for carpets with very deep piles and long fringes, anti-slip carpets like door mats or water resistant carpets. Use universal nozzle instead.	Mini Turbo nozzle*	Upholstery nozzle:- Brushes and vacuums at the same time (best pick up of hair, fibres etc).- For textile furniture, car seats, mattresses etc.- Brush roller is driven by the airflow of the vacuum cleaner.- Not suitable for carpets with very deep pile and long fringes as it can get stuck in the rotating brush roll.
ParkettoPro nozzle*	Hard floor nozzle:- For gentle cleaning of hard floor (parquet, wooden floor, tiles etc).- Best dust pick up on hard floor with crevice.	FlexProPlus nozzle*	Hardfloor nozzle:- For reach under/between furniture, corners and other obstacles.- Can easily turn 180 degrees for direct access to narrow spaces.
Furniture nozzle* Delicate Surfaces Tool:	- Removes fine particles and dust from delicate surfaces in your home

* Certain models only

TROUBLESHOOTING

PROBLEM SOLUTION
The vacuum cleaner does not start	Check that the cable is connected to the mains.Check that the plug and cable are not damaged.Check for a blown fuse.Check if the battery indicator lamp in the remote control handle responds (certain models only).
The s-bag® indicator light is illuminated	Check if the s-bag* is full or blocked.If you have already changed the s-bag*, change the motor filter.
The cleaner stops	The cleaner might be overheated: disconnect it from the mains; check if the nozzle, tube, hose or filters are blocked. Let the cleaner cool down for 30 minutes before plugging it in again.If the cleaner still does not work, contact an authorized Electrolux service centre.
Reduction of suction capacity versus normal	Check if the s-bag is full or blocked.Check if the motor filter is clogged and needs changing.Check if nozzle is blocked and needs to be cleared.Check if hose is blocked by squeezing it gently. However, be careful in case the obstruction has been caused by glass or needles caught inside the hose.Note: The warranty does not cover any damage to the hose caused by cleaning it.
Water has been sucked into the vacuum cleaner	It will be necessary to replace the motor at an authorized Electrolux service centre.Damage to the motor caused by the penetration of water is not covered by the warranty.
For any further problems, contact an authorized Electrolux service centre.
