Product Type	Canister Vacuum Cleaner
Brand	Electrolux
Model	Pure C9 PC91-6IBM
Color	Black/Red
Dimensions (L x W x H)	450 x 280 x 320 mm
Weight	5.8 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	800 W
Suction Technology	Cyclonic Bagless
Dust Capacity	1.5 L
Filtration System	HEPA 13 + Washable Pre-Filter
Cord Length	9 m
Operating Radius	12 m
Noise Level	76 dB(A)
Speed Control	Electronic, 3 settings
Floor Nozzle	Combi brush (hard floor & carpet)
Additional Tools	Crevice tool, dusting brush, upholstery nozzle
Dust Container Cleaning	Empty with one-touch button
Filter Maintenance	Washable pre-filter, HEPA replaceable annually
Park Position	Horizontal & vertical parking
Safety Features	Overheating protection, automatic shut-off
Spare Parts Available	Filters, brush rolls, hoses, nozzles
Repairability Index	7.5 / 10
Warranty	2 years

Frequently Asked Questions - Pure C9 PC91-6IBM ELECTROLUX

How do I empty the dust container on the Electrolux Pure C9 PC91-6IBM?

Press the one-touch release button at the top of the dust container and lift it out. Hold it over a trash bin, then press the bottom button to open the flap and empty the contents. Close the flap securely before reinserting.

How often should I clean the filters?

The pre-filter should be washed every 1-2 months under running water and dried fully before reuse. The HEPA filter should be replaced every 12 months for optimal performance.

Can I use the vacuum on hardwood floors?

Yes, the floor nozzle has a brush setting suitable for hard floors. Ensure the brush is engaged to avoid scratches. You can also use the dusting brush for delicate surfaces.

The suction power seems weak. What should I check?

First, empty the dust container and clean the pre-filter. Check for blockages in the hose, wand, and nozzle. Also, ensure the HEPA filter is not clogged. If the problem persists, contact Electrolux support.

How do I replace the HEPA filter?

Open the filter compartment (usually at the back or top of the vacuum). Remove the old HEPA filter and insert a new one (model specific). Ensure it fits snugly, then close the compartment.

Is the vacuum bagless?

Yes, the Pure C9 PC91-6IBM is a bagless cyclonic vacuum. Dirt collects in a transparent dust container that you empty directly into the bin.

What is the maximum operating radius?

The vacuum has a 9 m power cord and a 3 m hose, giving a total operating radius of approximately 12 m from the power outlet.

Can the vacuum be used for upholstery?

Yes, it comes with an upholstery nozzle. Attach it to the wand or hose directly for cleaning sofas, curtains, and car interiors.

How do I store the vacuum after use?

Park the wand vertically by inserting the floor nozzle into the parking slot on the vacuum body. You can also hook the hose onto the back of the unit for compact storage.

Where can I purchase spare parts?

Authorized Electrolux dealers, online retailers, or the official Electrolux website. Use the model number PC91-6IBM for compatibility.

USER MANUAL Pure C9 PC91-6IBM ELECTROLUX

Bagless canister vacuum cleaner

Bagless canister vacuum cleaner

Bagless canister vacuum cleaner

Bagless canister vacuum cleaner

Bagless canister vacuum cleaner

1 OVERVIEW OF THE PRODUCT

2 INSTALLATION

* CERTAIN MODELS ONLY

3 USING THE PRODUCT

3 USING THE PRODUCT * CERTAIN MODELS ONLY 12

13

4 DUST EMPTYING 14

5 CLEANING THE FILTERS 15

16

5 CLEANING THE FILTERS 17

6 MAINTENANCE * CERTAIN MODELS ONLY

18

7 SYSTEM CHECK 19 5

SAFETY PRECAUTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children should be supervised to ensure that they do not play with the appliance.

Cleaning and maintenance shall not be done by children without supervision.

WARNING: Turbo nozzles* have a rotating brush where parts can get entrapped. Please use them with caution and only on intended surfaces. Please turn the vacuum cleaner off before removing entrapped parts or cleaning the brush.

Batteries must be removed from the remote control in the handle* / LED lighted nozzle* before scrapping the product**.

*Certain models only.

**Information on how to remove the battery is in section 6 and 7.

Always disconnect the plug from the mains before cleaning or maintaining the appliance or when removing the battery. The battery is to be disposed of safely.

If the cord is damaged, it must be replaced only by an authorized Electrolux service centre in order to avoid a hazard.

Pure C9 should only be used for normal vacuuming indoors and in a domestic environment. Make sure the vacuum cleaner is stored in a dry place.

All service or repairs must be carried out by an authorized Electrolux service centre.

Packaging material, e.g. plastic bags, should not be accessible to children to avoid suffocation.

Never use the vacuum cleaner:

In wet areas.

Close to flammable gases, etc.

When the product shows visible signs of damage.

On sharp objects or fluids.

When the floor nozzle shows visible signs of damage.

On hot or cold cinders, lighted cigarette butts, etc.

On fine dust, for instance from plaster, concrete, flour, hot or cold ashes.

Do not leave the vacuum cleaner in direct sunlight.

Avoid exposing the vacuum cleaner to strong heat or freezing temperatures.

Never use the vacuum cleaner without its filters.

Do not try to touch the brush roll while the cleaner is switched on and the brush roll is turning.

When the wheels are blocked.

Do not use your vacuum cleaner if the filters are damaged or broken.

Power cord precautions

Check the plug and cord regularly. Never use the vacuum cleaner if the plug or cord is damaged.

Damage to the vacuum cleaner's cord is not covered by the warranty.

Never pull or lift the vacuum cleaner by the cord.

Using the vacuum cleaner in the above circumstances may cause serious personal injury or damage to the product. Such injury or damage is not covered by the warranty or by Electrolux.

SERVICING AND WARRANTY

All service or repairs must be carried out by an authorized Electrolux service centre.

Damage to the vacuum cleaner's cord is not covered by the warranty.

Damage to the motor caused by; vacuuming liquid, immersing appliance in liquid or using appliance with a damaged hose and nozzle is not covered by the warranty.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste.

To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

Hereby, Electrolux Home Care and SDA, declares that the Vacuum Cleaner with radio equipment type FOR1, FOR2 and FOR3 is in compliance with Directive 2014/53/EU.

NOTES ON THE ENERGY LABEL REGULATIONS

This vacuum cleaner is a general purpose vacuum cleaner.

To achieve energy efficiency and the cleaning performance indicated for carpet, please use the interchangeable universal nozzle "FlowMotion".

To achieve the cleaning performance indicated for hard floor with crevices, please use the specific hard floor nozzle "Parketto Pro" when specified and included in the packaging, otherwise use the interchangeable universal nozzle "FlowMotion".

This instruction book, the cleaner specific fiche and energy label can be downloaded from our website, www.electrolux.com.

The calculations are based on the Commission Delegated Regulation (EU) No 665/2013 of 3rd May 2013 supplementing Directive 2010/30/EU. All of the procedures in these instructions that are not described in more precise detail were based on EN 60312-1:2013.

Thank you for choosing Electrolux Pure C9 vacuum cleaner. Always use original accessories and spare parts to get the best results. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

BEFORE STARTING

• Read this manual carefully.
• Check that all parts described are included.
• Pay special attention to the safety precautions!

DESCRIPTION OF PURE C9 VACUUM CLEANER

A. Display A1 rotary knob control* A2 remote control* B. Filters lid C. Fine dust filter D. Pre-motor filter E. Parking slots F. Power cord G. Carry handle H. Cyclone compartment and nose cone filter I. Air channel J. Dust compartment L. AeroPro hose M. AeroPro handle M1 AeroPro Classic handle* M2 AeroPro Ergo handle* M3 AeroPro Remote Control handle* N. AeroPro telescopic tube O. Parking clip K. AeroPro 3in1 tool T. Motorized nozzle* U. FlowMotion nozzle* V. FlowMotion LED nozzle (with front lights)* W. AeroPro Turbo nozzle* X. AeroPro Mini Turbo nozzle* Y. ParkettoPro nozzle* Z. AeroPro FlexProPlus nozzle* AA. AeroPro Long crevice nozzle* AB. BedPro nozzle* * Selected models only

Nozzle Accessories

Picture page 2-6

HOW TO USE THE VACUUM CLEANER

1. Check that all filters are properly placed before using the vacuum cleaner. 2. Insert the hose into the cleaner (to remove it, press the lock buttons and pull). Insert the hose into the hose handle until the lock button clicks (to release it, press the lock button and pull). 3. Attach the telescopic tube to the nozzle. Attach the telescopic tube to the hose handle (to remove it, press the lock button and pull). 4. Adjust the telescopic tube by holding the lock with one hand and pulling the handle with the other hand.

3-IN-1 ACCESSORY TOOL

5. You can fasten the clip-on holder and 3-in-1 tool under the handle to have it easily accessible. The tool has 3 functions, see pictures on next page.

CHANGING THE BATTERIES*

6. Nozzle with front lights*: Before first use, remove the protective film (on top of the batteries). Change batteries when front lights start blinking fast. Use 2 AA batteries.

7. Handle with remote control*: Change battery when light indicator turns red or is not responding when pressing any button. Use only batteries type LITHIUM CR1632.

NB: Remove the batteries from the product before scrapping. Follow your country's rules for collection of batteries and electrical products.

START/STOP THE VACUUM CLEANER AND ADJUST SUCTION POWER

8. Pull out the power cord and plug it into the mains. Press the ON/OFF button to turn the cleaner on/off. Models with remote control can also be operated by the ON/OFF button on the handle.*

9. After cleaning, push the REWIND button to rewind the cable.

10. Adjust suction power (manual control models): Turn the rotary knob on the cleaner or use the air valve on the handle.* Adjust suction power (remote control models): Press +/- button on the handle. MIN/MAX and symbols indicators on display will show level of power.*

VACUUMING WITH THE UNIVERSAL NOZZLE (V*, W*)

11. Change nozzle setting with the pedal. Icon illustrates recommended floor type (hard floor or carpet).

FlowMotion LED nozzle*: Move the nozzle forward. The front light turns on automatically after a few seconds. When the nozzle is not used, the light turns off automatically after a few seconds.

PARKING POSITIONS, MOVING THE VACUUM CLEANER

12 Use parking position (1), at the back of the vacuum cleaner, when you pause while vacuuming. Use parking position (2), underneath the vacuum cleaner, to carry and store the vacuum cleaner.

13 The vacuum cleaner has two carrying handles.

EMPTYING THE DUST COMPARTMENT

14 Empty the dust compartment when the level of dust has reached the maximum limit ("MAX"-mark). Press the release button and pull to remove the dust compartment. Hold the dust compartment over a dust bin. Press the unlock button underneath the lid, open the lid by swinging it outwards. Empty dust into the dustbin. Refit in reverse order.

REPLACING THE FILTERS

15 Pull the FILTER button to open the filter lid. Clean the fine dust filter after six months of use, or when dust is visible. Pull the tab on the frame to remove the fine dust filter. Rinse the filter under running water. NB: Do not use cleaning agents. Let the filter dry completely (min. 24 h in room temperature) before putting back!

16 Press and slide the lock mechanism to the right to release the pre-motor filter. Remove the filter by pulling the filter frame tab. Clean the pre-motor filter after twelve months of use. Only use original s-filter Recommended by Electrolux (See Consumables and Accessories). Rinse the inside (dirty side) in lukewarm tap water. Tap the filter frame to remove the water. Repeat the process four times.

NB: Do not use cleaning agents. Avoid touching the filter surface. Let the filter dry completely (min. 24 h in room temperature) before putting back! Change the washable filter at least once a year or when it is very dirty or damaged. After replacing the filters, close the filter lid until it is clicked back into place.

17 Cleaning the nose cone filter: the nose cone filter is located inside the cyclone compartment. Clean the nose cone filter if dust has entered. Pull the nose cone filter to remove. Remove dust with your hand. Clean under running water if heavily soiled. Refit in reverse order. NB: Do not use cleaning agents. Let the filter dry completely (min. 24 h in room temperature) before putting back!

CLEANING THE UNIVERSAL NOZZLE (V*, W**) AND THE TURBO NOZZLE (X*)

18 Disconnect the universal nozzle from the tube. Clean with the hose handle. Disconnect the turbo nozzle from the tube and remove entangled threads etc by snipping them away with scissors. Use the hose handle to clean the nozzle. *

Enjoy a great cleaning experience with Pure C9!

Electrolux reserves the right to change products, information and specifications without notice.

TIPS ON HOW TO GET THE BEST RESULTS

NOZZLE/ACCESSORY USE FOR: NOZZLE/ACCESSORY USE FOR:
T. Motorized nozzle* Carpet nozzle:	- Motorized nozzle gives the best dust pick-up and deep cleaning of carpets through the rotating brush roller agitating the carpet.- Do not leave the motorized nozzle stationary with brush roller on.	U. FlowMotion nozzle*V. FlowMotion LED nozzle*	Universal nozzle:- For all floor types, secures best dust pick up on both carpets and hard floors.- Change nozzle setting with the pedal. Icon will show recommended floor type.- Front light helps to detect dust and dirt in dark spaces (under furniture etc). PureVision only
		X. Mini Turbo nozzle* Upholstery nozzle:	- Brushes and vacuums at the same time (best pick up of hair, fibres etc).- For textile furniture, car seats, mattresses etc.- Brush roller is driven by the airflow of the vacuum cleaner.- Not suitable for carpets with very deep pile and long fringes as it can get stuck in the rotating brush roll.
W. Turbo nozzle* Carpet nozzle:	- Brushes and vacuums at the same time (best pick up of hair, fibres etc).- Brush roller is driven by the airflow of the vacuum cleaner.- Not suitable for carpets with very deep piles and long fringes, anti-slip carpets like door mats or water resistant carpets. Use universal nozzle instead.	Z. FlexProPlus nozzle* Hardfloor nozzle:	- For reach under/between furniture, corners and other obstacles.- Can easily turn 180 degrees for direct access to narrow spaces.
Y. ParkettoPro nozzle* Hard floor nozzle:	- For gentle cleaning of hard floor (parquet, wooden floor, tiles etc).- Best dust pick up on hard floor with crevice.	AB. BedPro nozzle* Bed nozzle:	- Removes dirt and dust mites from bedding and mattresses.
AA. Long crevice nozzle* Extra long tool:	- For areas hard to reach (top of shelves etc).- For narrow spaces (behind radiators, under car seats etc).	K. 3in1 accessory tool* 3 tools in 1:123	1. Dusting tool for hard surfaces (bookshelves, skirting boards etc).2. Upholstery tool for textiles (curtains, upholstery etc).3. Crevice tool for narrow spaces (behind radiators etc).
Models with manual power regulation- follow graphics on cleaner for optimal performance.

TROUBLESHOOTING

PROBLEM	SOLUTION
The vacuum cleaner does not start	Check that the cable is connected to the mains.Check that the plug and cable are not damaged.Check for a blown fuse.Check if the battery indicator lamp in the remote control handle responds (certain models only).
The cleaner stops	The cleaner might be overheated: disconnect it from the mains; check if the nozzle, tube, hose or filters are blocked. Let the cleaner cool down for 120 minutes before plugging it in again.If the cleaner still does not work, contact an authorized Electrolux service centre.
Reduction of suction capacity versus normal	Check if the dust compartment is full or blocked.Check if the air channel and inlet or outlet connection is blocked and needs to be cleared.Check if the pre-motor filter is clogged and needs changing.Check if nozzle is blocked and needs to be cleared.Check if hose is blocked by squeezing it gently. However, be careful in case the obstruction has been caused by glass or needles caught inside the hose.Note: The warranty does not cover any damage to the hose caused by cleaning it.
Water has been sucked into the vacuum cleaner	It will be necessary to replace the motor at an authorized Electrolux service centre.Damage to the motor caused by the penetration of water is not covered by the warranty.
For any further problems, contact an authorized Electrolux service centre.

CONSUMABLES & ACCESSORIES

Buy Consumables & Accessories for your appliance:

www.electroluxshop.co.kr https://shop.electrolux.com.au/

Availability of Consumables & Accessories varies by region and country. Please refer to our local Electrolux website for more details or contact local customer service hotline for support.

S-FILTER S-FRESH NOZZLE* KITS

PureAdvantage D11 Washable (Australia)

HEPA 13 washable (Australia, Korea)

HEPA 13 washable (Taiwan, Korea)

Crispy Bamboo Tropical Breeze Brown Sugar & Fig Evening Rose Citrus Burst

Silent Parketto Delicate Care KIT

Clean & Tidy KIT DustMagnet Silent

* Availability of accessory is dependent on tube dimension

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

PNC Number Serial Number Model Number

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

1. Product Overview

1. Installation

* Only for specific models

1. Using the Product

3. Using the Product

* Only for specific models

4. Emptying the Dust

5. Cleaning the Filter

5 Cleaning the Filter

6. Maintenance

* Only for specific models

7. System check

Safety precautions

https://shop.electrolux.com.au/

Kits

Delicate care kit

Cleaning and organizing kit, DustMagnet Silent nozzle

* Accessory availability depends on the telescopic tube size

Customer care and service

* Only for specific models

1. Using the product

3. Using the product

* Only for specific models

4. Emptying the dust

5. Clean the filter

5 Clean the filter

6. Maintenance

* Only for specific models

7. System check

Safety warnings

https://shop.electrolux.com.au/

Availability of consumables and accessories varies by region and country.

Silent Parketto Delicate Care KIT

Clean & Tidy KIT DustMagnet Silent * Accessory availability depends on the telescopic tube size

Customer service

When contacting customer service, please ensure you provide the following information.

- Model - PNC number - Serial number

This information is on the rating plate.

In view of the importance of environmental awareness worldwide.

* Specific models only

3 Product use

3 Product use

* Specific models only

4 Emptying the dust container

5 Cleaning the filter

5 Cleaning the filter 17

6 Maintenance * Specific models only

18

7 System check 19 5

Safety precautions

www.electroluxshop.co.kr https://shop.electrolux.com.au/

Dust Magnet Silent

Clean and Tidy Kit

* Specific models only

1. USING THE PRODUCT

1. USING THE PRODUCT * ONLY FOR CERTAIN MODELS
2.

13.

1. EMPTYING THE DUST
2.

1. CLEANING THE FILTER
2.

1.

5 CLEANING THE FILTER 17.

1. MAINTENANCE * ONLY FOR CERTAIN MODELS

18

1. SYSTEM CHECK
2. 5

SAFETY INSTRUCTIONS

K. AeroPro 3-in-1 Tool

T. Motorized Nozzle*

U. FlowMotion Nozzle*

V. FlowMotion LED Nozzle (with front light)*

W. Nosel Turbo AeroPro*

X. Nosel Mini Turbo*

Y. Nosel ParkettoPro*

Z. Nosel AeroPro FlexProPlus*

AA. Nosel celah Panjang AeroPro*

AB. Nosel BedPro*

* Hanya model tertentu

Halaman gambar 2-6

CARA MEMAKAI PENYEDOT DEBU.

www.electroluxshop.co.kr https://shop.electrolux.com.au/

S-FILTER S-FRESH NOSEL* KIT

PureAdvantage DII Dapat Dicuci (Australia)

HEPA 13 dapat dicuci (Australia, Korea)

HEPA 13 dapat dicuci (Taiwan, Korea)

Crispy Bamboo Tropical Breeze Brown Sugar & Fig Evening Rose Citrus Burst

Silent Parketto KIT Delicate Care

KIT Clean & Tidy DustMagnet Silent

4. การเหตุ นัท

1. การตรวจสอบระบบ
2. 5

▶

www.electroluxshop.co.kr https://shop.electrolux.com.au/

Crispy Bamboo Tropical Breeze Brown Sugar & Fig Evening Rose Citrus Burst

ชุดอปกรณ์

Silent Parketto Delicate Care KIT

Clean & Tidy KITDustMagnet Silent

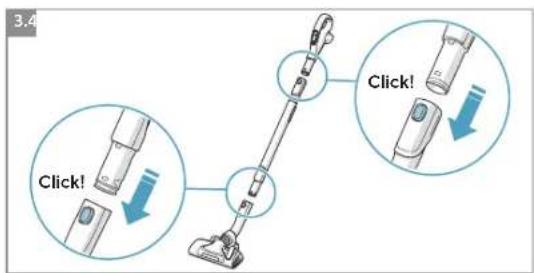

3. SỬ DỤNG SẢN PHẨM

* CHÍ CÓ Ô MỘT SỐ MODEL

3. SỬ DỤNG SẢN PHẨM

* CHÍ CÓ Ô MỘT SỐ MODEL

4. REMOVING DUST

5. CLEANING THE FILTER

5 CLEANING THE FILTER

6. MAINTENANCE

* ONLY ON SOME MODELS

7. SYSTEM CHECK

www.electroluxshop.co.kr https://shop.electrolux.com.au/

PureAdvantage D11 Washable (Australia)

HEPA 13 washable (Australia, South Korea)

Crispy Bamboo Tropical Breeze Brown Sugar & Fig Evening Rose Citrus Burst

SUCTION NOZZLE* ACCESSORIES

Silent Parketto Delicate Care KIT

Clean & Tidy KITDustMagnet Silent

ELECTROLUX OFFICE ADDRESS

Electrolux Korea Limited

9F, Pine Avenue B,

100 Euljiro, Jung-gu, Seoul, Korea 04551

Tel: +(82) 2 6020-2200

Fax: +(82) 2 6020-2271~3

Customer Care Services: +(82) 1566-1238

Email: [e-mail]

Website: www.electrolux.co.kr

INDONESIA

Electrolux Indonesia

Electrolux Building

Electrolux Philippines Inc.

10th Floor, W5th Avenue Building

5th Avenue Corner 32nd Street

Bonifacio Global City,

Taguig Philippines 1634

Tel: +(63) 2 737 4757

Domestic Toll Free: 1 800 10 845 care 2273

Customer Care Services: +(63) 2 845 care 2273

Email: [e-mail]

Website: www.electrolux.com.ph

THAILAND

Electrolux Thailand Co Ltd

Electrolux Building

14th Floor 1910 New Petchburi Road

Bangkapi, Huay Kwang

Bangkok 10310

Thailand

Tel: +(66) 2 725 9100

Fax: +(66) 2 725 9299

Customer Care Services: +(66) 2 725 9000 Email:

[e-mail] Website:

www.electrolux.co.th

VIETNAM

Electrolux Vietnam Ltd

Floor 9th, A&B Tower

76 Le Lai Street

Ben Thanh Ward - District 1

Ho Chi Minh City

Vietnam

Tel: *(84) 8 3910 5465

Fax: +(84) 8 3910 5470

Customer Care Services: 1800-58-8899

Email: [e-mail]

Website: www.electrolux.vn

MALAYSIA

Electrolux Home Appliances Sdn Bhd

Lot C6, No. 28, Jalan 15/22,

Taman Perindustrian Tiong Nam,

40200 Shah Alam, Selangor

Malaysia

Customer Care Hotline: 1300-88-11-22

Customer Care Services Tel: [phone]

Customer Care Services Fax: [phone]

Email: [e-mail]

Website: www.electrolux.com.my

SINGAPORE

Electrolux SEA Pte Ltd

1 Fusionopolis Place, Galaxis #07-10 (West Lobby)

Singapore 138522

Fax: +(65) 6727 3611

Customer Care Services: +(65) 6727 3699

Email: [e-mail]

Website: www.electrolux.com.sg

HONG KONG

Dah Chong Hong Trading Limited

Electrical Appliance Repair Centre

20 Kai Cheung Road, Kowloon Bay, Hong Kong

5/F, Dah Chong Hong Group Building

163 O'Riordan Street, Mascot, NSW 2020, Australia

Customer Service Phone: [phone]

Website: www.electrolux.com

NEW ZEALAND

Electrolux Home Care & Small Domestic Appliances

A division of Electrolux (NZ) Limited

3-5 Niall Burgess Road, Mt Wellington,

Auckland, New Zealand

Phone: [phone]

Customer Service Phone: [phone]

Website: www.electrolux.com
