USER MANUAL Polaris 360 ZODIAC

White medical or cleaning device with attached tubing and wheels, no visible text or symbols

OWNER'S MANUAL

English | Français | Deutsch

• Before installing the Polaris, make sure the pool filter is clean.
• New plumbing lines should be flushed out before installing the Polaris.
• The Polaris should not be used to remove plaster dust in new pools.
• Except when checking the wheel RPM, do not handle the Polaris while it is operating.

• Always remove the Polaris before swimmers enter the pool.

• Always disconnect the Polaris from the pool wall when cleaning or backwashing the pool filter.

• Always remove the Polaris from the pool before chemical shock treatments.

- After cleaning or backwashing, let the filtration system run for at least five minutes before re-connecting the Polaris.

- Solar heating systems, ozone generators, and other air inducing equipment may cause air flow through the cleaner, adversely affecting cleaner balance and performance. Plumb the dedicated cleaner line upstream of these components.

- Highly chlorinated water can cause maintenance problems. Avoid running Polaris while chlorinating.

For customer service or support:

• Please mail Warranty Card immediately.
• For on-line support: www.polarispool.com
  • To contact Polaris: US and Canada

Customer Service
2620	Commerce	Way
Vista,	CA	92881-8438
1-800-822-7933

WARNING: USE OF POLARIS 360 IN A VINYL LINER POOL

Certain vinyl liner patterns are particularly susceptible to rapid surface wear or pattern removal caused by objects coming into contact with the vinyl surface, including pool brushes, pool toys, floats, fountains, chlorine dispensers, and automatic pool cleaners. Some vinyl liner patterns can be seriously scratched or abraded simply by rubbing the surface with a pool brush. Ink from the pattern can also rub off during the installation process or when it comes into contact with objects in the pool. Zodiac Pool Systems, Inc., is not responsible for, and the Limited Warranty does not cover, pattern removal, abrasion or markings on vinyl liners.

Introduction

Congratulations on the purchase of your new automatic pool cleaner, and thank you for choosing Polaris. The Polaris Vac-Sweep® 360 is designed to give you years of dependable and efficient service.

Like most mechanical devices, the Polaris requires periodic adjustments, routine maintenance, and the replacement of certain hardworking parts. Be sure to have the Polaris checked occasionally by your local Polaris dealer or authorized service center.

Always insist on genuine Polaris replacement parts. Non-Polaris parts are not made to our specifications. They may have an adverse effect on the operation of your Polaris or may even damage it.

Polaris 360 Complete Cleaner

1. All-Purpose Bag
2. Head Float
3. Cleaner Body
4. Sweep Hose
5. Sweep Hose Scrubber

6. Replacement Eyeball

7. Eyeball Regulators

8. Feed Hose
9. Hose Floats
10. Back-up Valve
11. Pressure Tester
12. Quick Disconnect with Universal Wall Fitting

Technical diagram of a medical device with numbered parts for identification and assembly reference.

Quick Installation Instructions

Four quick steps to install and get maximum performance from the Polaris 360:

• Install the Universal Wall Fitting (UWF) with Quick Disconnect and Eyeball Regulators
• Test and adjust water pressure
- Adjust feed hose to fit pool length
- Check for proper wheel RPM (revolutions per minute)

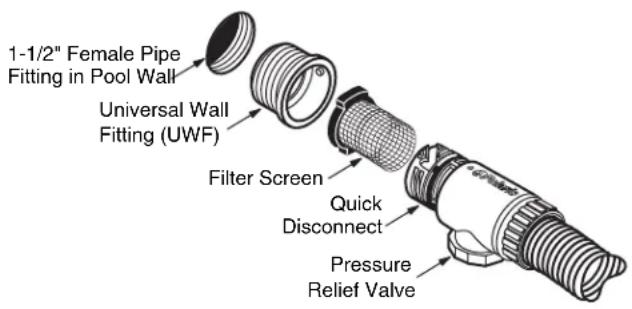

Install the Universal Wall Fitting

Installs in minutes on pools with a dedicated cleaner return line and a threaded 1-1/2" female pipe fitting.

1. Turn on the filtration pump and flush out the plumbing line. Turn pump off.
2. Remove the UWF from the Quick Disconnect and screw it into the return opening.
3. Turn the Quick Disconnect clockwise into the UWF and pull away to secure.

1-1/2" Female Pipe Fitting in Pool Wall Universal Wall Fitting (UWF) Filter Screen Quick Disconnect Pressure Relief Valve

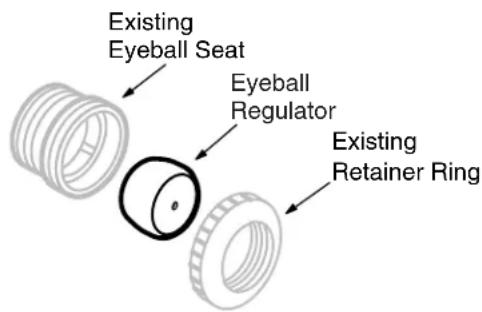

If the pool has more than one return line, install the Eyeball Regulators to ensure the pool's water pressure is high enough to operate the Polaris 360.

Use the Replacement Eyeball with a Quick Disconnect fitting to restore proper water circulation when the Polaris 360 is removed from the pool.

Existing Eyeball Seat Eyeball Regulator Existing Retainer Ring

Replacement Eyeball with quick connect fitting

Install Eyeball Regulators

If the Universal Wall Fitting and Eyeball Regulators are successfully installed, SKIP to Step 2. Otherwise, see Installing Other Pool Connections.

Installing Other Pool Connections

If the pool does not have a dedicated return line, the Polaris 360 connects to most common return lines using special adapter kits available for purchase at a participating Polaris dealer.

For pools with plastic-pipe return lines (without pipe threads) that are cut off flush with the pool wall:

If pipe is 1" in diameter, use 1" Stub Pipe Connection Kit (part #9-100-8002)

1" Return Line 1" Expansion Connector

If pipe is 1-1/4" in diameter, order 1" Stub Pipe Connection Kit (part #9-100-8002) and 1-1/4" Sleeve Kit (part #8-841-00).

1-1/4" Return Line 1-1/4" Sleeve Not included with kit

If pipe is 1-1/2" in diameter, use 1-1/2" Stub Pipe Connection Kit (part #9-100-8003).

1-1/2" Return Line 1-1/2" Expansion Connector

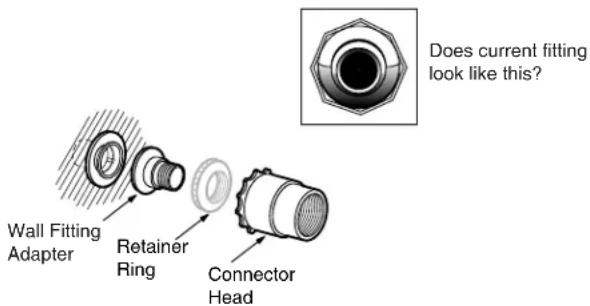

For directional eyeball fittings that do not have a 1-1/2" threaded socket, request the Eyeball Adapter Connection Kit (part #9-100-8005).

Does current fitting look like this? Wall Fitting Adapter Retainer Ring Connector Head

These are the most common, but not all of the possible pool connections.

If the UWF and Eyeball Regulators still cannot be installed on the pool, contact your dealer or Customer Service to determine which parts may be necessary.

Other Connections Requiring Special Fittings

If a spa is connected to the pool filtration equipment, obtain expansion regulators in addition to one of the kits listed above. Contact your dealer or Customer Service to determine which parts may be necessary.

2

Test and Adjust Water Pressure

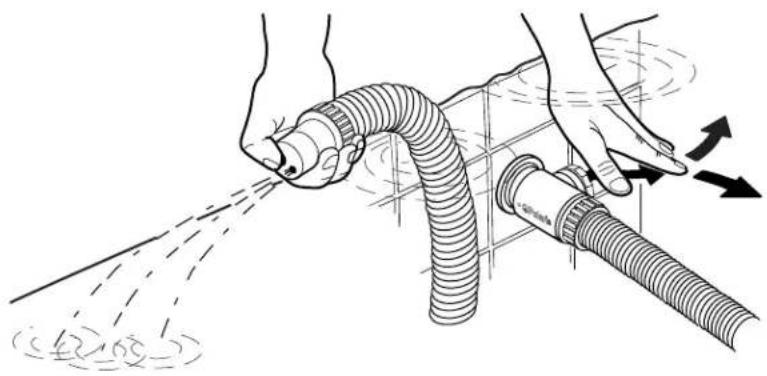

The Polaris is packaged with a pressure tester installed on the hose. Simply attach the hose to pool wall using the Quick Disconnect fitting. Turn pump on, cover large hole with thumb and confirm that water is released from the Pressure Relief Valve.

Illustration of a hand spraying a hose with motion arrows indicating flow direction (no text or symbols)

If water does not release from the Pressure Relief Valve, there is insufficient water pressure to operate the Polaris pool cleaner.

• Check the filter screen in the Quick Disconnect for debris which restricts water flow.
• Clean the skimmer, filter and pump basket, clearing debris which restricts water flow.
• Check the hoses, connections and swivels for leaks that cause loss of water pressure.
• If the cleaner is connected to a dedicated return line, adjust the 3-way diverter to increase water flow.

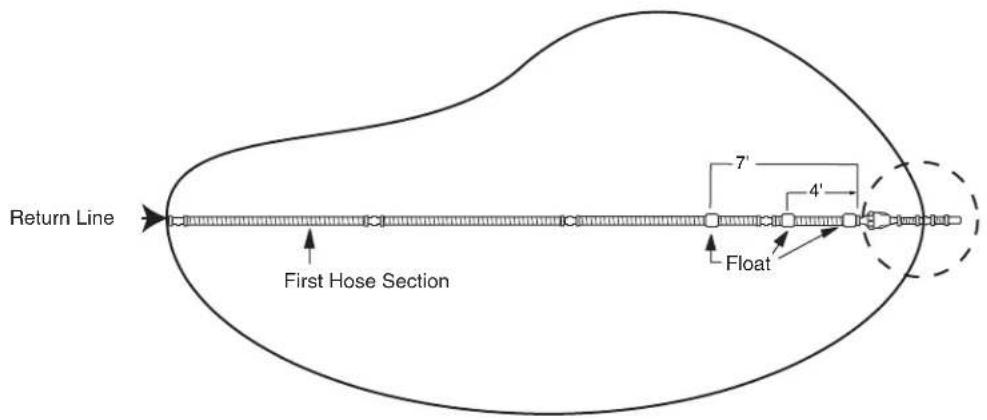

Adjust Feed Hose to Fit Pool Length

With the hose connected to the pool wall at the return line, hold feed hose under water and turn on the pool pump. Extend the hose to the farthest point of the pool. The hose end must be within 6" of this point – longer or shorter – as shown by the dotted line.

Hose too long? Cut excess length from first hose section and reconnect hose sections.

Hose too short? Buy an additional hose section and add to first hose section.

After adjusting the hose length, position the three hose floats as indicated by the diagram.

Return Line First Hose Section Float 7' 4'

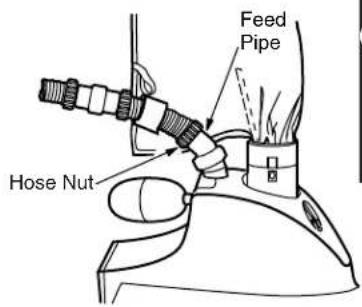

Assemble Cleaner

1. Remove the pressure tester from the hose by unscrewing the hose nut and pulling off hose.
2. Use hose nut from the pressure tester to secure hose to the cleaner body at the feed pipe.
3. The filter bag is packaged in the collar area on the cleaner body. Pull out the bag and snap the bag tie collar onto the feed hose.
4. Push Head Float all the way in, against cleaner body.
5. Place the Polaris into the pool. Turn on the pool filtration pump.

Feed Pipe Hose Nut

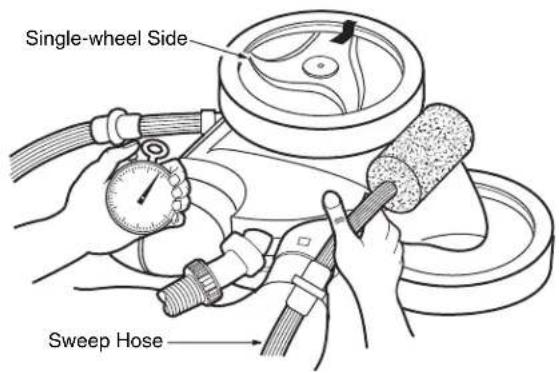

Check for Proper Wheel RPM

Before operating the Polaris, check for proper wheel revolutions per minute (RPM). For maximum efficiency, the Polaris should operate between 28 and 32 RPM.

1. Mark the single-wheel side tire.
2. Turn pump on, hold cleaner below water level and count wheel revolutions for 1 minute.
3. Optimum speed should be between 28 and 32 RPM.

Single-wheel Side Sweep Hose

If count is less than 28 RPM:

• Check the filter screen in the Quick Disconnect for debris.
• Clean the skimmer, filter and pump basket.
• Check the hoses, connections and swivels for leaks.
• If the cleaner is connected to a dedicated return line, adjust the 3-way diverter to increase water flow.

If count is more than 32 RPM, unscrew the Pressure Relief Valve until the proper RPM is reached. If an adjustable valve has been installed, adjust the valve to reduce the amount of water flow.

Fine Tuning The Polaris Cleaner

When operating correctly, the Polaris vacuums, sweeps and scrubs all surfaces randomly throughout the pool. The climbing ability of the Polaris depends on the pool's shape and water pressure or flow. The Polaris climbs best in pools without sharp angles or curves in the transition from the pool floor to the pool wall.

Approximately every 3-1/2 minutes the Polaris 360 goes into back-up mode. This action pulls the Polaris away from pool obstacles.

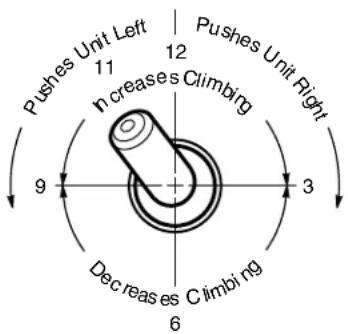

Thrust Jet Adjustment

The thrust jet powers the direction of the Polaris. Factory position is eleven o'clock, but depending on the pool, other settings are helpful.

Sweep Hose Adjustment

The sweep hose should move in a gentle sweeping motion. To decrease the motion of the sweep hose, turn the sweep hose adjustment screw clockwise.

See Troubleshooting for other action adjustments.

Pushes Unit Left 11 12 Pushes Unit Right Increases Climbing 9 3 Decreases Climbing 6

Routine Maintenance

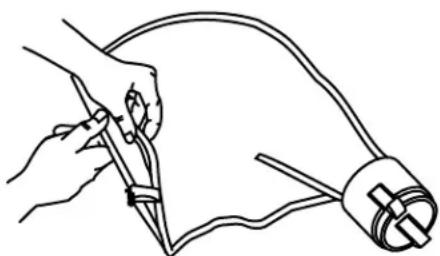

Cleaning the Filter Bag

Detach the bag by releasing the prongs and removing the bag tie collar from the feed hose. Open the closure and dump out the debris.

Line drawing of a hand holding a tool next to a coiled cable or wire (no text or symbols)

→ Empty the bag when it is half full, especially if the dirt load is sand.
→ It is easier to empty the bag when it is dry. Alternate between two bags.

Backwashing the Pool Filter

Always disconnect the Polaris from the pool wall before cleaning or backwashing the pool filter. After cleaning or backwashing, let the filtration system run for at least five minutes to flush out the return lines before re-connecting the Polaris.

Storage and Winterizing

Never store the Polaris in direct sunlight. When storing for the winter, drain out all the water (freeze damage is not covered by the warranty). Remove the UWF from the pool wall by attaching the Quick Disconnect and using pulling pressure to unscrew. In some cases, it may be necessary to use the UWF Removal Tool (part #10-102-00) available from participating Polaris dealers.

Polaris360

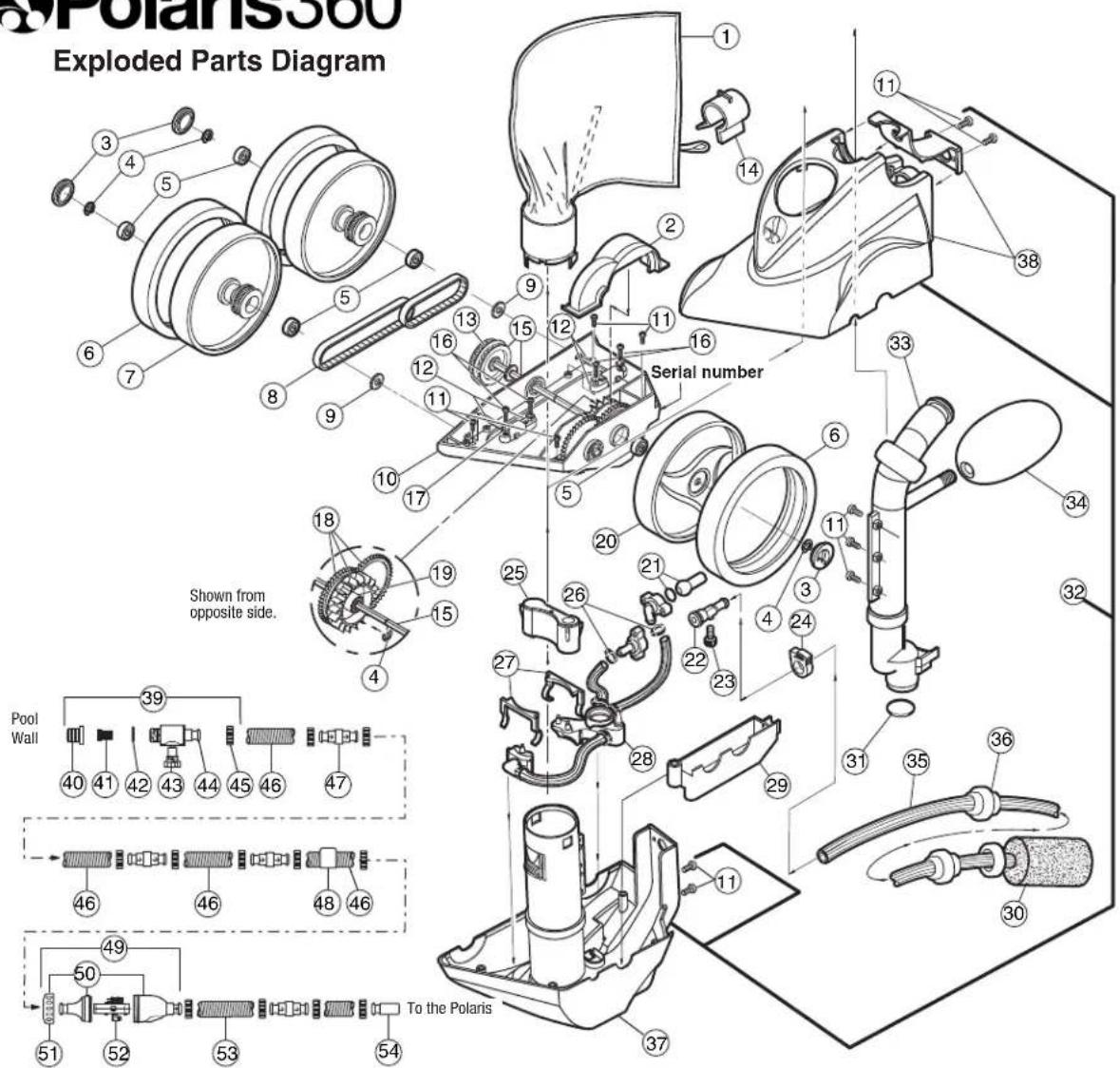

Polaris500 Exploded Parts Diagram 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 To the Polaris

No.	Part #	Description	Qty	No.	Part #	Description	Qty	No.	Part #	Description	Qty
1	9-100-1014	All-Purpose Bag* 1		20	9-100-1116	Wheel, Single-side	1	39	9-100-3008	UWF Connector Assembly	1
2	9-100-1152	Housing, Turbine Upper 1		21	C131 Thrust	Jet Kit 1		40	6-500-00	Universal Wall Fitting (UWF)	1
3	9-100-1114	Hub Cap 3		22	9-100-7008	Sweep Hose Barb Complete	1	41	6-504-00	Filter Screen, UWF/QD	1
4	9-100-5107	E-clip, Stainless Steel 10		23	B20 Adjust.Screw, Sweep Hose	1		42	6-505-00	O-ring, UWF/QD	1
5	9-100-1108	Ball Bearing 8		24	B15 Sweep Attach Clamp 1			43	9-100-3009	Pressure Relief Valve, white	1
6	C10 Tire,	MaxTrax **	3	25	9-100-3005	Base Weight	1	44	9-100-3006	Quick Disconnect, UWF	1
7	9-100-1008	Wheel, Double-side 2		26	9-100-7170	Hose Clamp for WMS	6	45	9-100-3109	Hose Nut	12
8	9-100-1017	Belt Kit, Small and Large 1		27	9-100-7009	Jet Retainer	2	46	9-100-3102	Feed Hose, 6 Foot	4
9	9-100-7011	Shield, Bearing 3		28	9-100-7014	Water Management (WMS)	1	47	9-100-3002	Swivel, Hose	4
10	9-100-1005	Frame	1	29	9-100-1155	Housing, Turbine Lower	1	48	9-100-1206	Float, Feed Hose	3
11	9-100-5125	Screw, 8-32 x 1/2" SS	11	30	9-100-3105	Sweep Hose Scrubber*	1	49	9-100-1200	In-line Back-up Valve	1
12	9-100-1139	Axle Block Kit, front and rear	1	31	9-100-5132	O-ring, Timer/Feed Pipe	1	50	9-100-1202	Case Kit, Back-up Valve	1
13	9-100-1010	Belt Divider, Pulley	1	32	9-100-7030	Top and Base Assembly	1	51	9-100-1213	Collar, Back-up Valve	1
14	9-100-3135	Collar, Bag Tie	1	33	9-100-1002	Feed Pipe/Timer Blank	1	52	9-100-1204	Mechanism, Back-up Valve	1
15	9-100-1007	Transfer/Drive Shaft 1		34	A20	Float, Head	1	53	9-100-3103	Feed Hose, 1 Foot	1
16	9-100-5115	Screw, 8-32 x 3/4" SS	4	35	9-100-1011	Sweep Hose Complete* 1		54	** Pressure	Tester 1
17	9-100-5130	Lock Washer, Axle Block	4	36	B10	Wear Rings*	7
18	9-100-1132	Drive Train Gear Kit	1	37	9-100-7026	Base Assembly	1
19	9-100-1103	Turbine Wheel with Bearing	1	38	9-100-1240	Top Housing	1

* Wear items not covered by warranty.

Troubleshooting

If the Polaris cleaner displays the following actions, adjustments may be necessary to restore performance. Refer to the exploded parts diagram for part references.

Action: Hangs up on steps or other obstacles longer than 3-1/2 minutes.

Solution: 1. Check the wheel RPM.

1. Verify the back-up valve is cycling.
2. Adjust the thrust jet.
3. Remove unnecessary pool hardware or install a Ladder Guard Kit (order part #G21 from a Polaris dealer).

Action: Polaris is sluggish, running with less power than normal.

Solution: 1. Check the filter screen in the quick disconnect and clean, if necessary.

1. Clean the skimmer basket, pump basket, and pool filter.
2. Check all of the hoses, connections, and swivels for leaks that could cause loss of water pressure.
3. Check the wheel RPM.

Action: Polaris flies around the pool.

Solution: 1. Check the wheel RPM. If more than 32 RPM, unscrew the pressure relief valve to decrease water flow to cleaner.

1. Verify the back-up valve is cycling. Hold the valve out of the water and watch the jet. It should come on and go off.
2. Adjust 3-way diverter to reduce the amount of water flow to the Polaris pool cleaner.

Action: Polaris does not back up.

Solution: 1. Verify the back-up valve is cycling.

1. Check the wheel RPM.
2. If the bag is full, empty it.
3. If the head float has water in it, replace it.
4. Ensure feed hose is floating.

Action: Polaris only turns in one direction.

Solution: 1. Adjust the thrust jet.

1. If the end of the hose that connects to the Polaris has a curve to it, align it with the curve of the feed pipe.
2. Make sure that the swivel on the feed pipe turns freely.
3. Ensure feed hose is floating

Action: Feed hose becomes tangled.

Solution: 1. Remeasure the hose to verify that it is adjusted to the proper length for the pool shape.

1. With the Polaris operating, check that the swivels in the hose and the hose connections turn freely.
2. Ensure the feed hose is floating.
3. With the Polaris turned off, spin each of the wheels. All of the wheels should turn together.

Action: Sweep hose is sucked into the vacuum tube.

Solution: 1. Make sure the opening at the end of the sweep hose is not blocked by the sweep hose scrubber.

1. Adjust the sweep hose to a gentle sweeping motion.

Action: Sweep hose constantly sprays water out of the pool.

Solution: 1. Adjust the speed of the sweep hose by tightening the adjustment screw.

1. Replace the sweep hose scrubber (part #9-100-3105) if it is worn or missing.

2. Add a sweep hose weight (order part #B2) to keep the sweep hose from spraying.

Action: The cleaner does not clean the entire pool.

Solution: 1. Check the hose length reaches within 6" of the farthest point of the pool. If not, order a new hose section from your Polaris dealer and add it to the first hose section.

1. Check thrust jet for 11 o'clock position that optimizes random turning.

2. While the cleaner is operating, hold it upside down and look into the vacuum tube. There should be three distinct, even jets of water. If there are not, contact Customer Service or a Polaris authorized Service Center for assistance.

Action: The cleaner is running in circles on its side.

Solution: 1. The filter bag is full and weighing the cleaner down on one side.

1. Remove the head float and shake it. If there is water in the float, order a new one.

2. The feed hose should float evenly on the surface of the pool.

Troubleshooting Worksheet

If these solutions do not result in improved performance, contact the Polaris dealer who sold you the cleaner or call Customer Service.

In order to provide faster and more convenient service, please have the following information available at the time of your call or when taking the Polaris in for service.

1. Serial #:

2. Wheel RPM:

3. Is the back-up valve cycling?

Yes No □

1. Is the feed hose the proper length?

□Yes No

1. Are the swivels rotating freely?

Yes No □

1. How often do you clean the filter screen inside the quick disconnect?

□ Never Once a Week

Twice a Week Once a Month

1. Are the vacuum jets obstructed?

(While the cleaner is operating, hold it upside down and look into the vacuum tube. There should be three distinct, even jets of water.)

Yes No

1. Is the drive train functioning?

(As you spin each wheel independently, all the wheels should spin.)

Yes No

Informations importantes

Installation du raccord mural universel (UWF)

Illustration of a person using a hose to lift water, showing spray and motion arrows (no text or symbols)

Line drawing of a hand holding a tool next to a coiled cable or connector (no text or symbols)

Illustration of a hand holding a coiled hose with motion arrows indicating fluid flow (no text or symbols)

Line drawing of a person using a tool to interact with a cable or cable connector (no text or symbols present)

Illustration of a hand pouring liquid into a coiled hose with motion arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a tool next to a cable or wire (no text or symbols)

Illustration of a hand pouring liquid into a coiled hose with motion arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a tool next to a coiled cable or connector (no text or symbols)

Illustration of a hand pouring liquid into a coiled hose with motion arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a tool next to a coiled cable or wire (no text or symbols)

Zodiac Pool Systems, Inc.

2620 Commerce Way, Vista, CA 92081

1.800.822.7933 | www.ZodiacPoolSystems.com

ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.

All trademarks referenced herein are the property of their respective owners.

©2011 Zodiac Pool Systems, Inc. LP50 Rev. C
