USER MANUAL TornaX GT 3220 ZODIAC

Instructi ons for installati on and use - English Electric cleaner Translati on of the original instructi ons in french

EN

Line drawing of a tracked robotic vehicle with visible tracks and wheels (no text or symbols)

Illustration of various cleaning and repair devices including a robotic device, battery pack, and cylindrical brush (no text or symbols present)

Line drawing of a mobile phone with dual wheels and a curved handle (no text or symbols)

FR

Diagram of a robotic device with labeled parts A through J, showing a coiled cable and attached tracked vehicle.

Line drawing of a mechanical device with a clamped base and housing (no text or symbols)

2

Simple line drawing of a laptop with a scroll wheel (no text or symbols)

FR

3 Uti lisati on

Illustration of a person using a walking padlock on a paved surface with a downward arrow indicating water flow (no text or symbols)

2

Illustration of a submerged object with bubbles and a handle, partially submerged in water (no text or symbols)

3

Illustration of a robotic vacuum cleaner with a coiled cable, set against a textured gray background (no text or symbols)

Line drawing of a medical or laboratory device with a scroll wheel and directional arrow (no text or symbols)

2

Line drawing of a device with a scroll wheel and cable, showing a close-up of the cable being inserted (no text or symbols present)

3

4

Illustration of a hand holding a cylindrical object with a green checkmark indicating a detail (no text or symbols present)

5

Simple line drawing of a hand holding a wall socket next to an arrow (no text or symbols)

Diagram of a container with an attached device and a ladder, showing no text or symbols.

3.6 I Terminer le cycle de nett oyage

Illustration of a person using a mobile phone on a tiled floor, with an upward arrow indicating motion (no text or symbols)

Line drawing of a tracked robotic vehicle with visible tracks and wheels (no text or symbols)

2

Illustration of a hand holding a device with a partially visible screen (no text or symbols)

3

Illustration of a robotic device with a handle and internal components (no text or symbols)

4

Hand inserting a device into a device (no text or symbols visible)

5

Diagram showing a mechanical component being lifted into a housing (no text or symbols present)

6

Technical illustration of a mechanical component with a hose inserted, showing internal structure and flow direction (no text or symbols)

Two illustrations of a robotic device with hands operating it, showing mechanical components and a funnel (no text or symbols present)

2

Illustration of a robotic device with a hand operating it (no text or symbols visible)

3

Close-up of a hand using a mechanical component to adjust or install a fan (no visible text or symbols)

4

Illustration of a hand operating a tracked robot with a control panel (no text or symbols visible)

5

Illustration of a hand pouring liquid into a mechanical device (no text or symbols visible)

6

Illustration of a hand operating a tracked robot with visible keyboard and keypad (no text or symbols)

7

Illustration of a robotic device with a hand inserting a tool (no text or symbols visible)

Diagram illustrating a mechanical assembly with labeled parts and an inset showing a close-up of a component detail.

Diagram illustrating a mechanical assembly with labeled parts and a magnified detail showing a downward force indicator.

Illustration of hands installing or adjusting a mechanical component with arrows indicating motion (no text or symbols)

Illustration of a hand holding a medical device with a magnified view of internal components (no text or symbols)

Illustration of hands holding a mechanical component, no text or symbols present

Illustration of hands using a tool to cut or mark a piece of wood, no text or symbols present

• Failure to respect the warnings may cause serious damage to the pool equipment or cause serious injury, even death.
- Only a person qualified in the technical fields concerned (electricity, hydraulics or refrigeration) is authorised to perform this procedure. The qualified technician working on the appliance must use/wear personal protective equipment (such as safety goggles and protective gloves, etc.) in order to reduce the risk of injury occurring when working on the appliance.
- Before handling the appliance, ensure that it is switched off and isolated.
- The appliance is intended to be used only for swimming pools and spas; it must not be used for any purpose other than that for which it has been designed.
- It is important that the appliance is operated by people who are competent and qualified (both physically and mentally), after having read the instructions for use. All persons not meeting these criteria must not approach the appliance in order to avoid exposure to dangerous elements.
- Keep the appliance out of the reach of children.
- The appliance must be installed according to the manufacturer's instructions and in compliance with local standards. The installer is responsible for installing the appliance and for compliance with national installation regulations. Under no circumstances may the manufacturer be held liable in the event of failure to comply with applicable local installation standards.
- For any work other than the simple user maintenance described in this manual, the product should be referred to a qualified professional.
• Incorrect installation and/or use may cause serious damage to property or serious injuries (possibly causing death).
- All equipment, even postage and packing paid, travels at the risks and perils of the recipient. The latter shall issue reserves in writing on the carrier's delivery slip if damage is detected, caused during transport (confirmation to be sent to the carrier within 48 hours by registered letter). In the event that an appliance containing coolant has been turned on its side, mention your reservations in writing to the carrier.
• If the appliance suffers a malfunction, do not try to repair it yourself; instead contact a qualified technician.
• Refer to the warranty conditions for details of the permitted water balance values for operating the appliance.
- In addition to using spare parts manufactured by unauthorised third-party manufacturers, deactivating, eliminating or by-passing any of the safety mechanisms integral to the appliance, will automatically void the warranty.
- Do not spray insecticide or any other chemical (inflammable or non-inflammable) in the direction of the appliance, as this may damage the body and cause a fire.
- Zodiac® heat pump, filtration pump and filter appliances are compatible with the most commonly used types of pool water treatment systems.
- Do not touch the fan and/or any moving parts and do not insert anything, including your fingers in the vicinity of the moving parts while the appliance is in operation.

WARNINGS ASSOCIATED WITH ELECTRICAL APPLIANCES

• The electrical supply to the appliance must be protected by a dedicated 30 mA differential residual current protection device (RCD), complying with the standards and regulations in force in the country where it is installed.
• Do not use an extension cord to plug in the appliance; plug it directly into a proper wall socket or outlet.
  • Before carrying out any operations, check that:
• The voltage indicated on the rating plate of the appliance corresponds to the mains voltage,
• The power grid is adapted to the power requirements of the appliance, and is grounded.
• The plug (where applicable) is suitable for the socket.
• In the event of abnormal function or signs of overheating such as a burning odour from the appliance, turn it of immediately, unplug it from its power supply and contact a professional.
• Before accessing the enclosure for any reason, ensure that all power to the appliance and also power to any accessories or external devices which may be connected to the appliance, is disconnected from the mains power supply.
• Do not disconnect and reconnect the appliance to the power supply when in operation.
• Do not pull on the power cord to disconnect it from the power supply.
  • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not attempt to carry out any servicing or maintenance operations with wet hands or while the appliance is wet.
• Ensure that all terminals for mains power are free in good condition and free of corrosion and/or dirt/debris.
• For any component or sub-assembly containing a battery: do not recharge or dismantle the battery, or throw it into a fire. Do not expose it to high temperatures or direct sunlight.
• In stormy weather, unplug the appliance to prevent it from suffering lightning damage.
• Do not immerse the appliance in water (with the exception of cleaners) or mud.

SPECIFIC FEATURES APPLICABLE TO "Pool cleaners"

- The cleaner must operate in pool water with a temperature of between 15°C and 35°C.

• To avoid possible injury and damage to the cleaner, do not operate the cleaner out of the water.

• In order to prevent possible injury, bathing is prohibited when your cleaner is in the pool.

- Do not use the cleaner during shock chlorination.

- Do not leave the cleaner unatt ended for an extended period.

WARNING ON THE USE OF A CLEANER IN A POOL WITH A VINYL SURFACE:

• Before installing your new cleaner, carefully inspect the lining of your pool. If the liner has eroded in some areas, or if you notice gravel, folds, roots or corrosion caused by metal on the inner surface of the liner, or if you notice that the support (bottom and walls) is damaged, do not install the cleaner before performing the necessary repairs or before replacing the liner using a qualified professional. The manufacturer cannot be held liable in any way for damage caused to the liner.
• The surface of certain vinyl patterned surfaces can wear rapidly and the patterns disappear on contact from objects such as cleaning brushes, toys, inflatable buoys, chlorine distributors and automatic pool cleaners. The decoration on some vinyl surfaces can be scratched or worn by basic friction such as through the use of a pool brush. The colours of certain patterns can also be erased during use or when in contact with objects in the pool. The erased patterns, wear or scratching of vinyl surfaces are not the liability of the manufacturer and are not covered by the limited warranty.

Recycling

This symbol means that your appliance must not be thrown into a normal bin. It will be selectively collected for the purpose of reuse, recycling or transformation. If it contains any substances that may be harmful to the environment, these will be eliminated or neutralised.

Contact your retailer for recycling information.

• Before handling the appliance, it is vital that you read this installation and user manual, as well as the “warnings and warranty” booklet delivered with the appliance. Failure to do so may result in material damage or serious or fatal injury and will void the warranty.
• Keep and pass on these documents for later consultation during the appliance's service life.
• The distribution or modification of this document in any way is prohibited, without prior authorisati on from Zodiac®.
• Zodiac® is constantly developing its products to improve their quality. The information contained herein may therefore be modified without notice.

CONTENTS

① Specifi cati ons 3

1.1 | Description on 3
1.2 I Technical specifications and marking 4

② Installati on 5

2.1 | Set-up 5
2.2 | Att achment to the base 5

3 Use 6

3.1 | Operati ng principle 6
3.2 | Pool preparati on 6
3.3 Immersing the cleaner 6
3.4 | Electricity supply connections 7
3.5 | Starting the cleaning cycle 8
3.6 | Ending the cleaning cycle 9

4 Maintenance 10

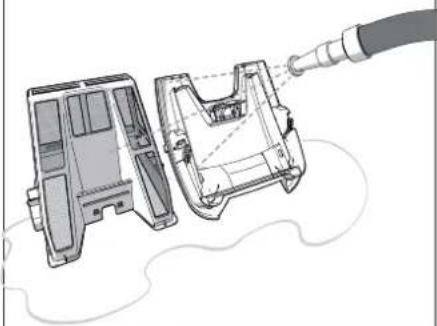

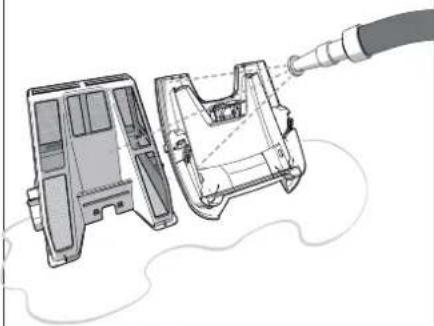

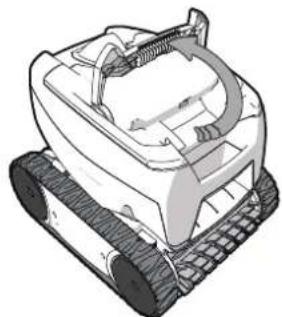

4.1 | Cleaning the filter 10

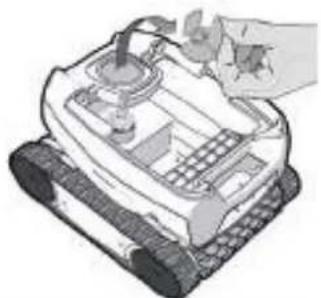

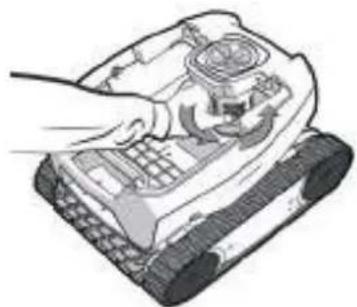

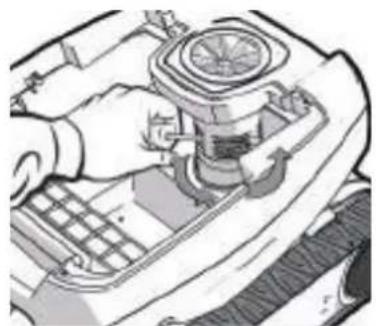

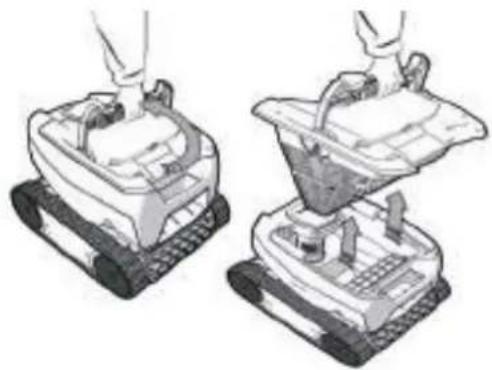

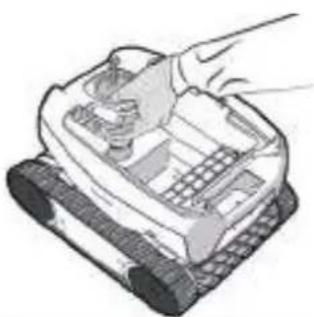

4.2 | Cleaning the propeller 11

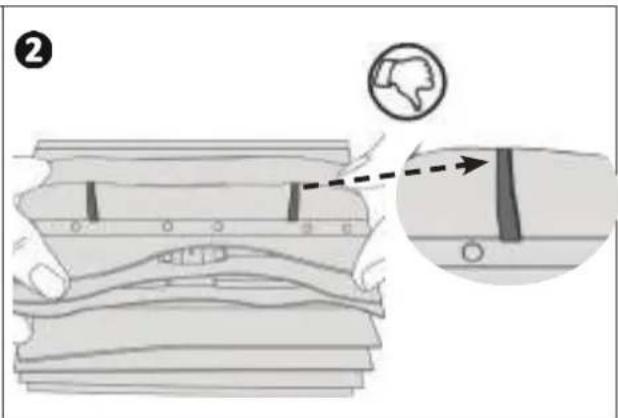

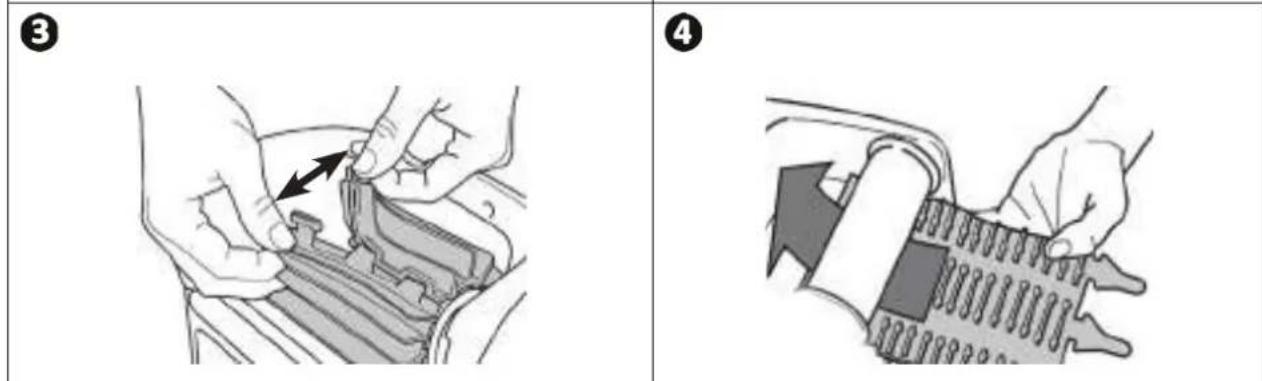

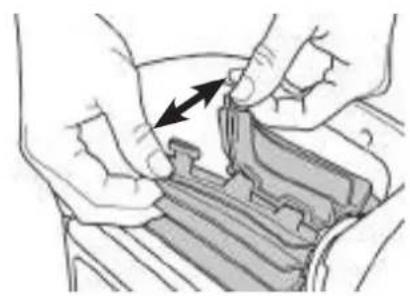

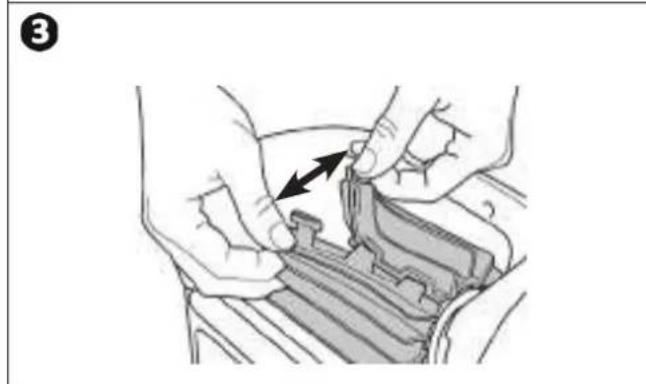

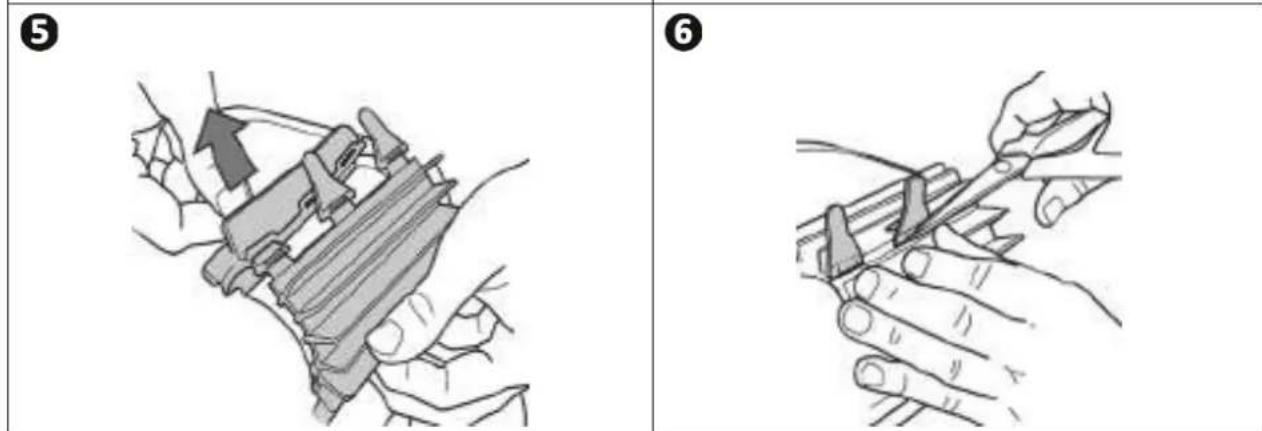

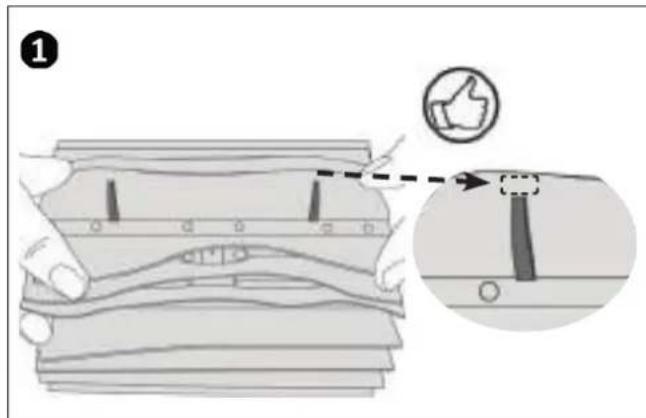

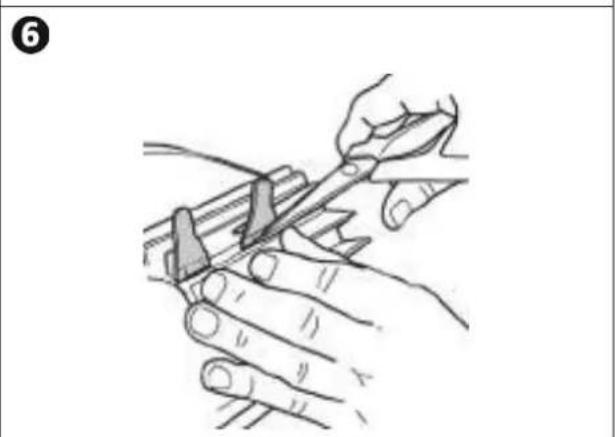

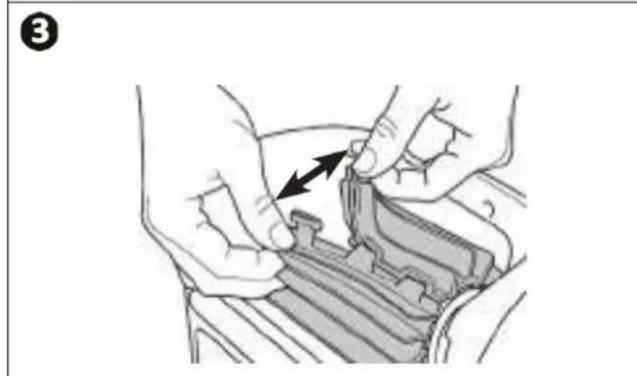

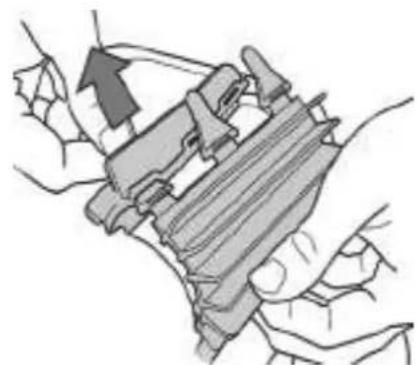

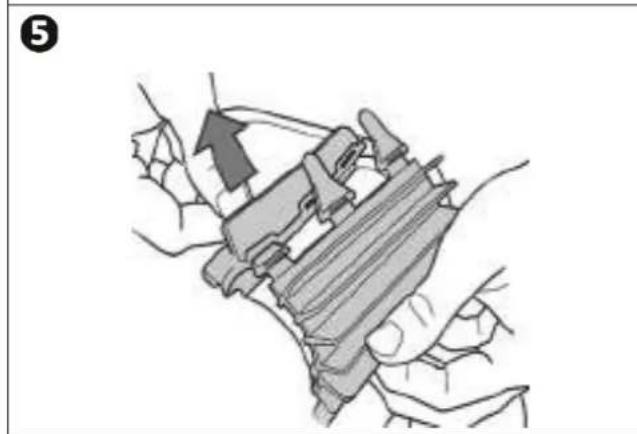

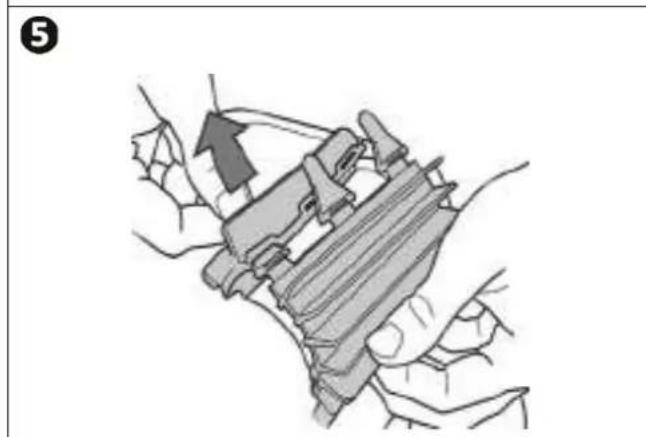

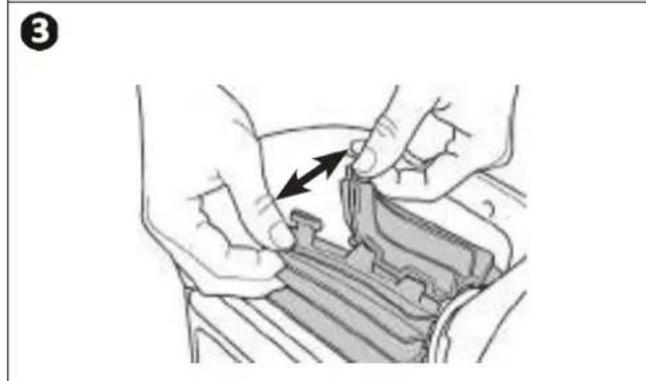

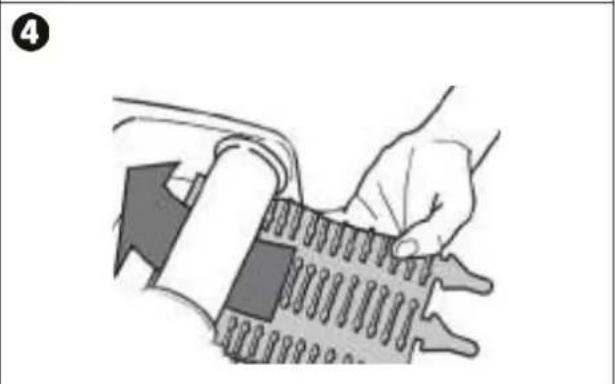

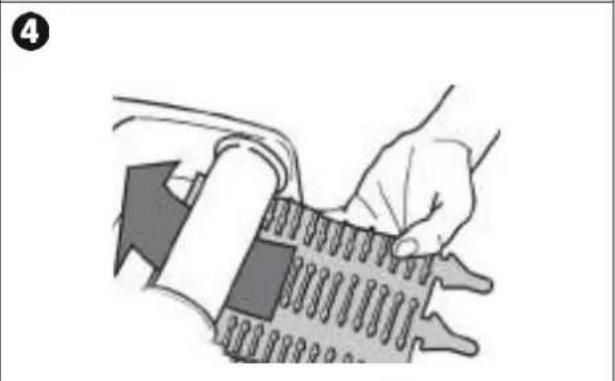

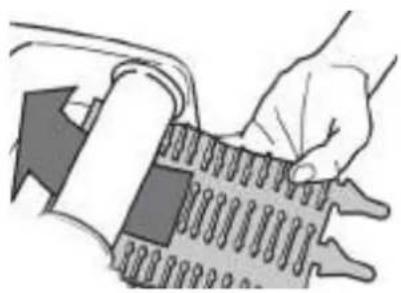

4.3 | Replacing the brush 12

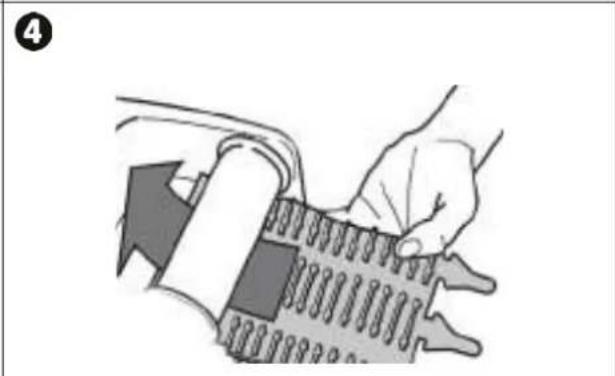

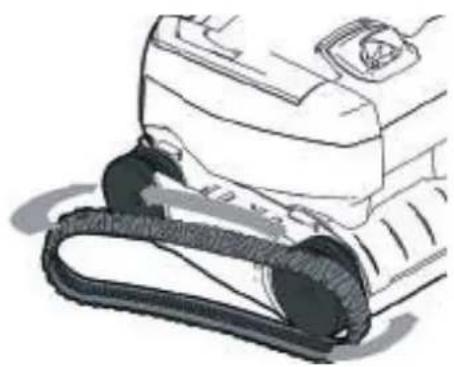

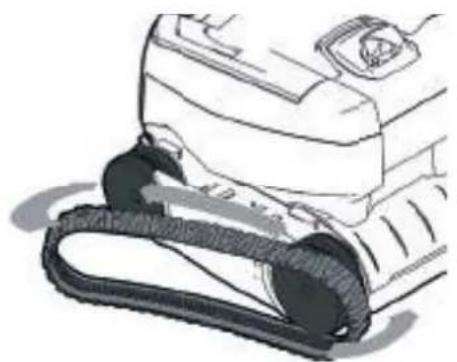

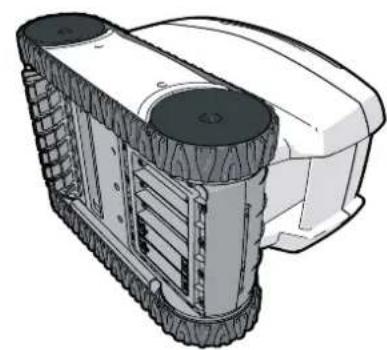

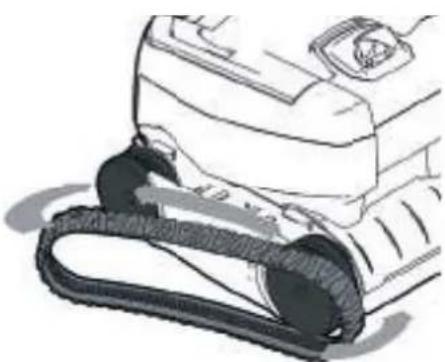

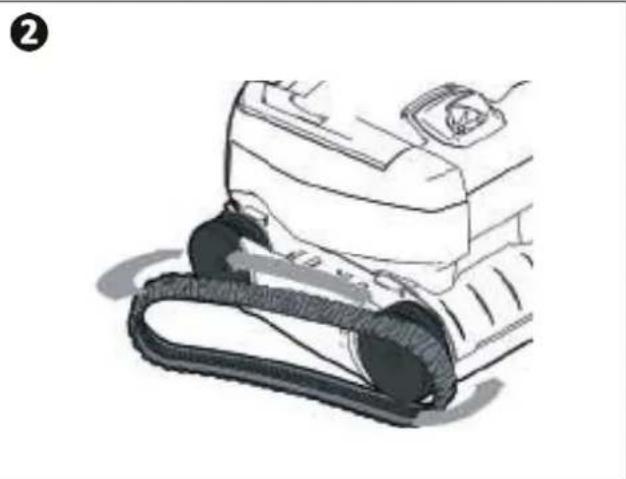

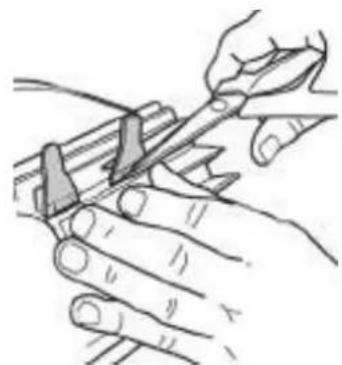

4.4 | Replacing the tracks 13

5 Troubleshooti ng

5.1 | Appliance behaviour 14
5.2 | User alerts 15

Tip: to make it easier to contact your retailer

Write down your retailer's contact details to help you find them more easily and fill in the "product" information on the back of the manual; your retailer will ask you for this information.

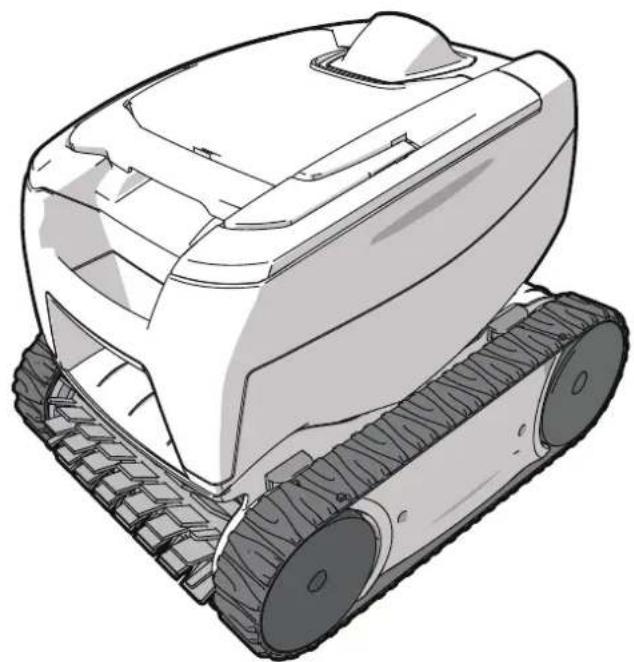

1 Specifi cati ons

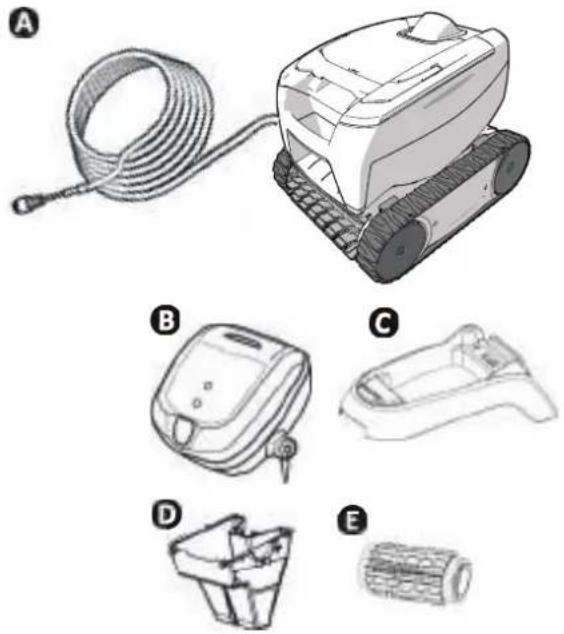

1.1 I Descripti on

F

Line drawing of a mobile phone with dual wheels and a handle (no text or symbols)

A Cleaner +	fl oati ng cable
B Control box
C Base for control box
D	100μ fi ne debris fi lter
	200μ large debris fi lter
	60μ very fi ne debris fi lter
E	Standard fl ap brush /Tile brush (depending on the model)
	Tile brush

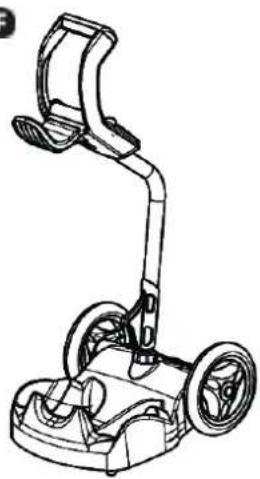

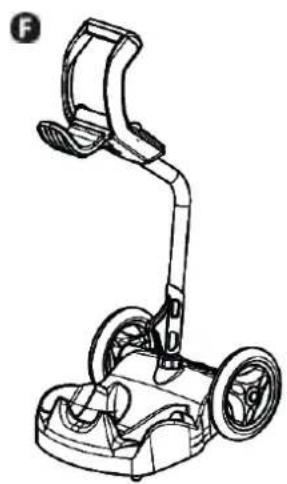

F	Caddy kit

: Supplied

vailable as an opti on

Symbol Designati on
	Starting / Stopping the appliance:	√
	"Bott om only" cleaning (2h)	Depending on the model
	"Bott om + Walls" cleaning (2h30)	Depending on the model
	"Control" indicator	√
	Surface to clean :“Bott om only”	Depending on the model
	“Bott om + Walls”

: Available

1.2 I Technical specifi cati ons and marking

1.2.1 Technical specifications

Control box power supply voltage 100-240 VAC, 50/60 Hz
Cleaner power supply voltage	30 VDC
Maximum power input	100 W
Cable length	14 m or 16.5 m (depending on the model)
Cleaner size (L x W x h)	37 x 29 x 30 cm
Package size (L x W x h) 56 x 37 x 38 cm
Cleaner weight 5.5 kg
Packaged weight 10.1 kg
Theoreti cal cleaning width 17 cm

1.2.2 Marking

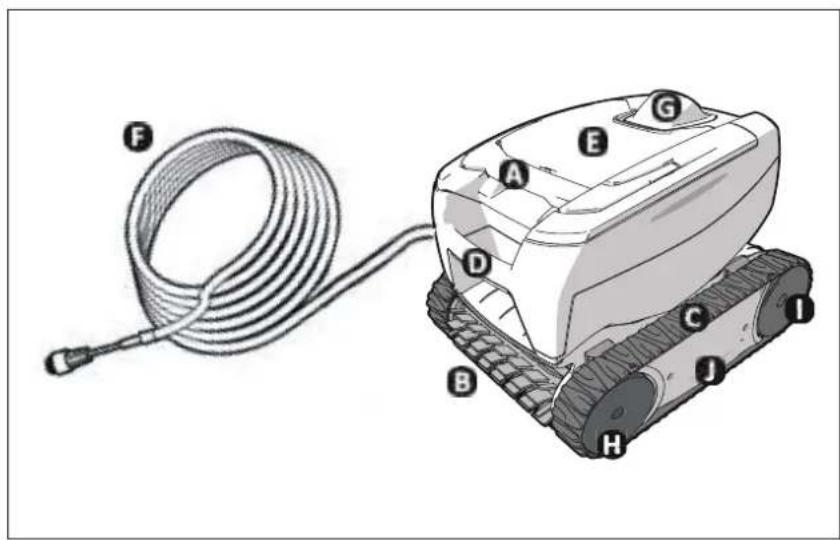

Illustration of a robotic device with labeled parts (A–J) and a coiled cable, no text or symbols present.

A : Filter access handle
B: Brush
C: Tracks
D: Transport handle
E: Transparent window (depending on the model)
F: Floating cable
G: External flow guide
H : Front wheels
1: Rear wheels
J: Cartridges

1.2.3 Product conformity

This appliance has been designed and built according to the following standards:

Low voltage directi ve: 2006/95/EC

Electromagneti c compati bility directi ve: 2004/108/EC

EN 55014-1: 2000 +A1:2001 +A2:2002; EN 55014-2: 1997 +A1:2002

EN 60335-1: 2002 + A1:2004 + A2:2006 + A11:2004 + A12:2006; EN 60335-2-41: 2003 + A1:2004

Relati ve to which it is compliant. The product has been tested under the normal condi ti ons of use.

SAFETY STANDARDS:

The cleaners are classified by Intertek (ETL) as being compliant with the appropriate requirements of IEC 60335-2-41.

EU

IEC 60335-2-41

2 Installati on

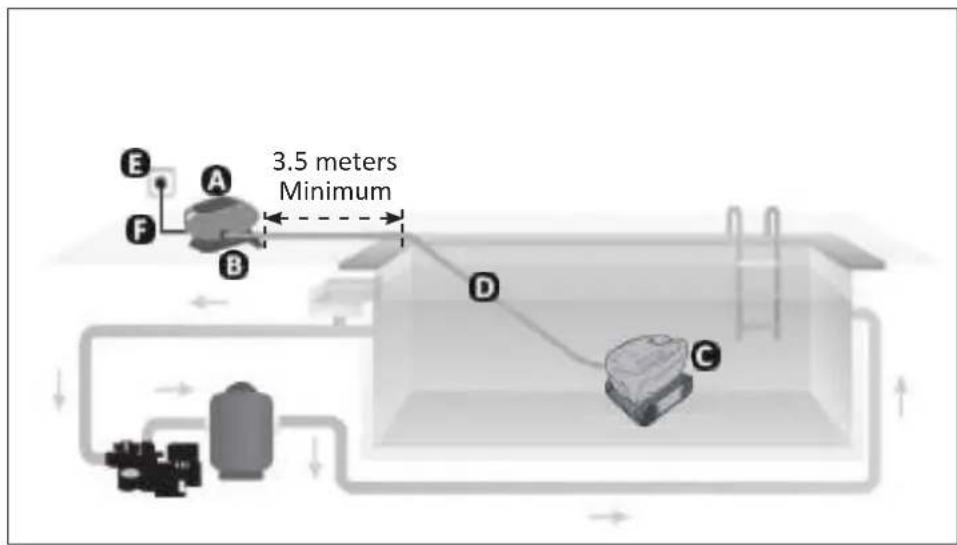

2.1 I Set-up

3.5 meters Minimum E A F B D C

A: Control box
B: Base
C: Cleaner
D: Floating cable
E: Plug
F: Power cord

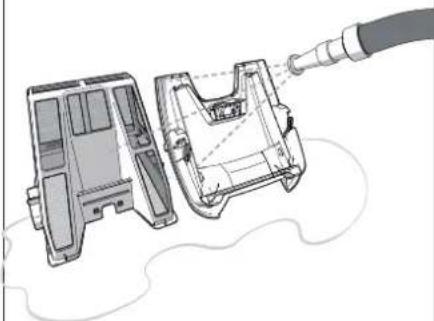

2.21 Att achment to the base

1

Line drawing of a mechanical device with an open lid and base mount (no text or symbols)

2

Simple line drawing of a vehicle or machine component with no text or symbols

Use

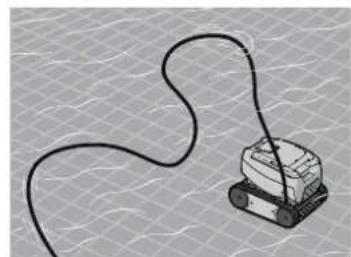

3.1 I Operating principle

The cleaner is independent of the fi Itrati on system and can therefore operate autonomously. It just simply needs to be connected to the mains power supply.

It finds the best route to move around and clean the areas of the pool for which it has been designed (depending on the model: bott om only, bott om and walls). Debris is sucked in and stored in the cleaner's filter.

The control box is used to remotely control your cleaner and provide initial diagnostics indicators.

3.2 I Pool preparati on

- This product is intended to be used in pools which are permanently installed. Do not use it in pools which may be dismantled. A permanent pool is built into the ground or on the ground and cannot be easily dismantled and stored.

- The appliance must operate in pool water with the following properties:

Water temperature Between 15°C and 35°C

pH Between 6.8 and 7.6

Chlorine < 3 mg/l

• When the pool is dirty, especially when commissioning, remove the largest debris using a net in order to optimise the appliance's performances.
• Remove any thermometers, toys and other objects that might damage the appliance.

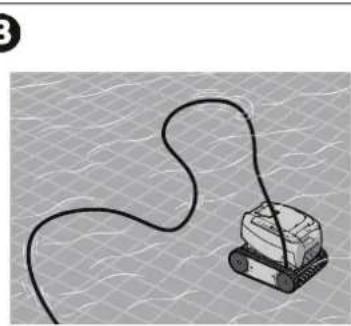

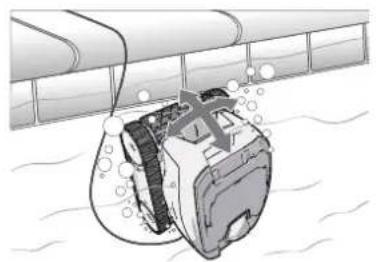

3.3 Immersing the cleaner

• Place as much of the floating cable as possible in the water.
• Place the cleaner into the water using the handle (see image)

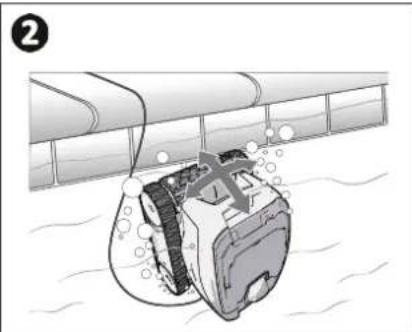

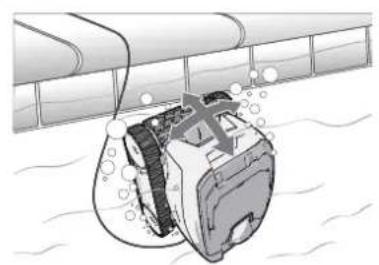

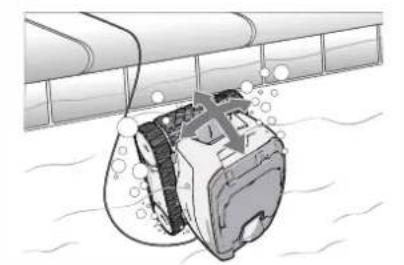

• Move it slightly in all directions so that the air contained in the cleaner escapes (see image

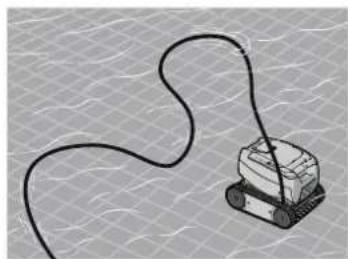

• It is essential that the appliance sinks on its own and settles on the pool bottom (see image 3)..

1

Illustration of a person using a camera on a wet pavement with a downward arrow indicating flow or pressure (no text or symbols)

2

Illustration of a mechanical device partially submerged in water, with bubbles indicating fluid or material (no text or symbols present)

3

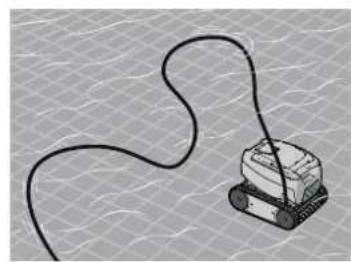

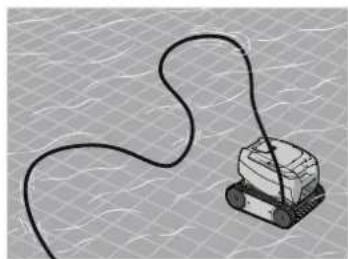

Illustration of a small robotic device connected by a coiled cable, placed on a textured surface (no text or symbols)

3.4 I Electricity supply connections

To prevent risk electrocuti on, fi re, or serious injury, be sure to adhere to the following:

• Use of an electrical extension is prohibited when connecting the control box.
• Make sure that the socket can be easily accessed at all times and is protected from rain or splashes.
• The control box is splash-proof but must not be immersed. It must not be installed in a floodable area; keep it at least 3.5 metres away from the edge of the pool and avoid exposing it to direct sunlight.
• Place the control box near the socket.

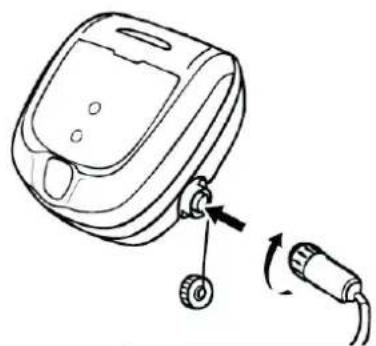

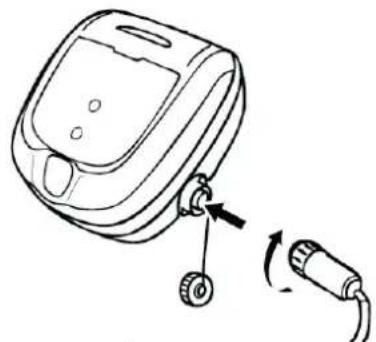

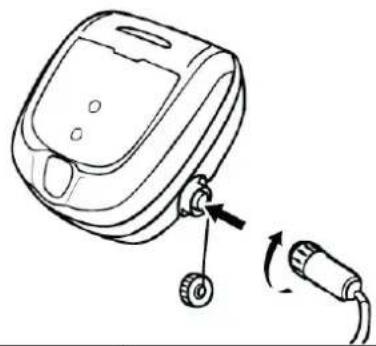

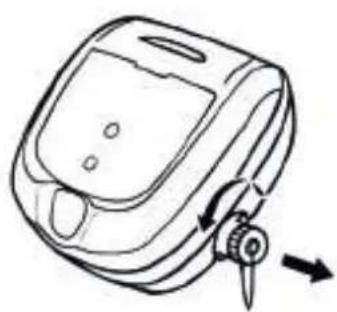

• Unscrew the protecti ve cap (see image 1)

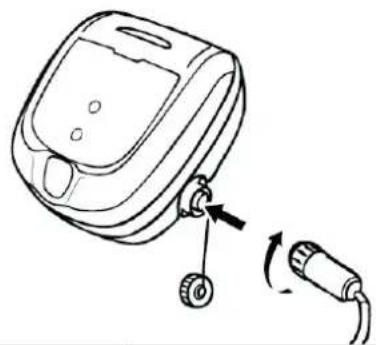

- Connect the floating cable to the control box and lock it in place by turning the ring only in the clockwise direction (to prevent damage to the floating cable) (see image 2, 3)
• Make sure that the connector is fully pushed in so that no water can get in (see image 4).
- Connect the power cord (see image 5). Only connect the control box to a power outlet protected by a 30 mA maximum residual current device (if in doubt contact a qualified technician).

1

Line drawing of a medical or laboratory device with a scroll wheel and directional arrows indicating movement (no text or symbols)

2

Line drawing of a device with a scroll wheel and cable, showing a close-up of the cable being inserted (no text or symbols present)

3

4

Illustration of a plug with a green checkmark indicating selection (no text or symbols present)

5

Simple line drawing of a hand holding a socket with an arrow pointing left (no text or symbols)

Tip: positi oning the unit for bett er operati on

Place the control box in the centre of the pool's length, following the safety conditions relating to the electrical connection.

3.5 I Starting the cleaning cycle

To prevent risk of injury or property damage, be sure to adhere to the following:

• Bathing is prohibited when the appliance is in the pool.
• Do not use the appliance during shock chlorinati on.
• Do not leave the appliance unatt ended for an extended period.
• Do not use the appliance if the roller shut er is closed.

3.5.1 Launching the cleaning cycle

- Press and release

D lights up.

- The appliance starts the cleaning cycle in "bottom only" or "bottom + walls" mode (depending on the model).

- Press and release

to select the "bott om only" or "bott om + walls" mode (depending on the model).

Tip to improve cleaning performance

Regular use of the cleaner (without exceeding 3 cycles per week) means that your pool will always be clean and the filter less clogged.

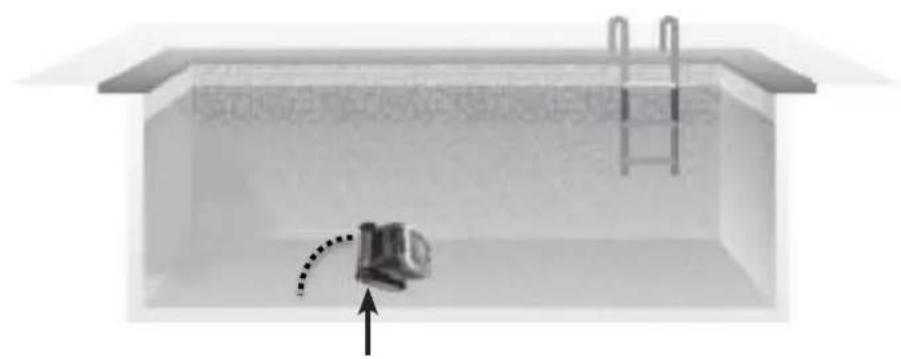

3.5.2 The cleaner rears up during certain rotati ons

- The more grip on the surface of the lining, the more the robot will tend to rear up.

Simple diagram of a container with an internal device and a ladder, no text or symbols present

3.6 I Ending the cleaning cycle

• To avoid damaging the unit, use the cleaner's handle to raise the cleaner and remove it from the pool. Do not pull on the floating cable.
  • Take the appliance out of the water each ti me cleaning is complete.
• Do not leave the appliance to dry out in sunlight after use.

• Store all the elements away from sunlight, humidity and bad weather.

• Once the cycle is complete, the appliance stops and the LED on the control box switches off.

• To stop the appliance during cleaning, press the LED goes out.
• Carefully pull on the floating cable to bring the robot to the edge of the pool.
• When the cleaner is within arm's reach, pick it up by the handle and lift it gently out of the pool so that the water it contains drains into the pool (see image 1)
• Place the cleaner on the ground or vertically at the location provided on the caddy (available as an optional extra) for it to dry out quickly. Then store it with the control box away from sunlight and any splashes.

1

Illustration of a person using a mobile phone on a tiled floor, with an upward arrow indicating motion (no text or symbols)

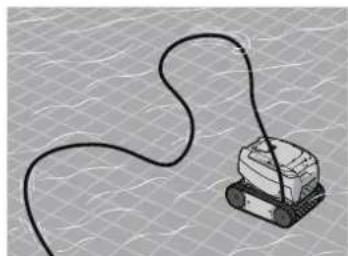

Tip to prevent the floating cable from becoming tangled

The appliance's behaviour is strongly impacted by the tangling of the cable. A cable that is correctly untangled will guarantee better coverage of the pool.

• Untangle the cable and lay it out in the sun so that it returns to its original shape.
• Then wind it up carefully and place it on the caddy handle (available as an optional extra) or on a fixed support.

4 Maintenance

• The appliance must be cleaned regularly using clean or slightly soapy water. Do not use solvents.
• Rinse the appliance thoroughly with clean water.
• Do not let your appliance dry in the sun by the pool.

Tip: replace the fi Iter and the brush every 2 years

You are encouraged to change the filter and the brush every 2 years to preserve the integrity of the appliance and guarantee optim performance.

4.1 I Cleaning the fi Iter

• The cleaner's performance may be reduced if the filter is full or dirty.
• Clean the filter with fresh water after each cleaning cycle, or several times per cycle depending on the state of the pool (for example on recommissioning).

1

Line drawing of a tracked robotic vehicle (no text or symbols)

2

Illustration of a hand holding a device with a cable, no visible text or symbols

3

Illustration of a robotic device with a handle and internal components (no text or symbols)

4

Hand inserting a device into a device (no text or symbols visible)

5

Diagram showing a mechanical component being lifted into a housing (no text or symbols present)

6

Technical illustration of a fuel pump assembly showing internal components and exhaust pipe connection (no text or symbols)

Tip: If the fi Iter is clogged

Clean the filter with an acidic solution (such as spirit vinegar) at least once a year. The filter may clog if not used for several months (winterising period).

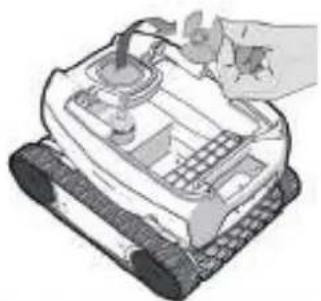

4.2 I Cleaning the propeller

To avoid serious injury:

- Disconnect the cleaner from the power supply.

- Wear gloves when handling the propeller

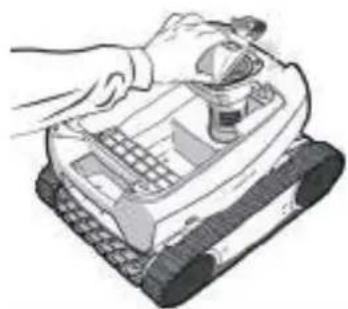

• Remove the filter using the handle (see image 1)
• Remove the external flow guide by lifting it so as to clear the clips (see image 2).
• Upon first removal, you will notice that the internal flow guide is securely tightened, which is why we recommend inserting a screwdriver into the holes to loosen it by turning the screwdriver in the anti-clockwise directi on (see image).

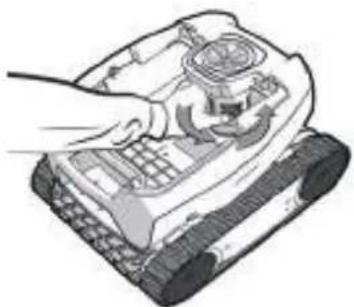

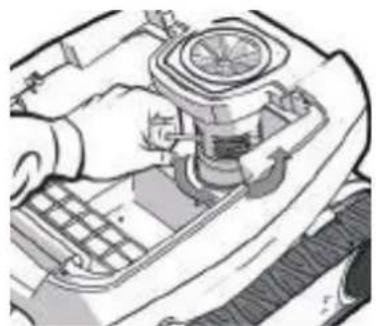

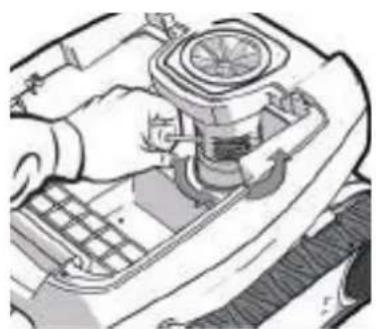

• Once the internal flow guide has been loosened, unscrew it by hand (see image 4).

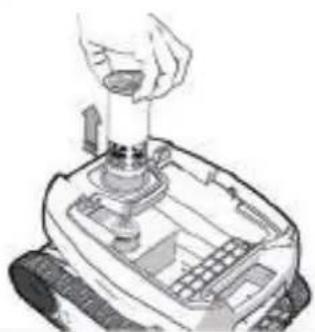

• Remove the internal flow guide (see image 5).

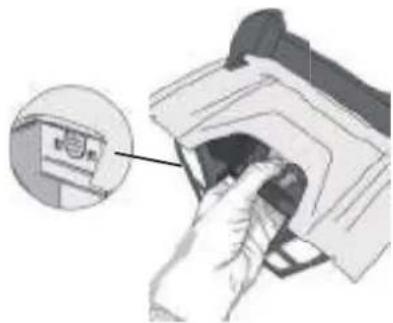

• Put on a pair of gloves and pull the propeller, holding it firmly to take it out (see image 6).
• Remove any debris (leaves, stones, etc.) which may be blocking the propeller (see image 7).

1

Two illustrations of a robotic device with hands operating it, showing mechanical components and a funnel (no text or symbols)

2

Illustration of a robotic device with a hand adjusting its top panel (no text or symbols visible)

3

Close-up of a hand using a tool to adjust or install a car engine component, no visible text or symbols

4

Illustration of a hand operating a tracked robot with control panel (no text or symbols visible)

5

Illustration of a hand pouring liquid into a mechanical device (no text or symbols visible)

6

Illustration of a robotic device with a hand operating it, no text or symbols visible

7

Illustration of a robotic device with a hand adjusting its top panel (no text or symbols visible)

4.3 I Replacing the brush

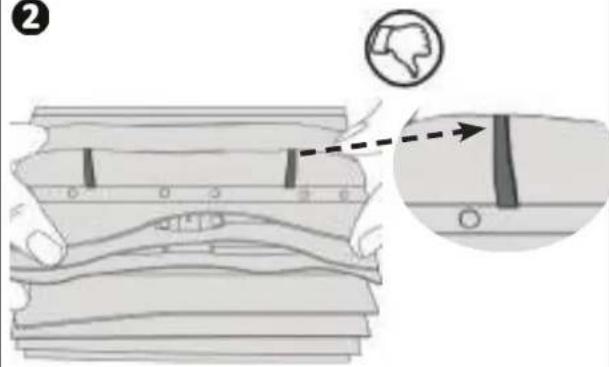

• The brush is equipped with wear indicators; the distance between the indicators and the end of the brush indicates whether the brush is in good condition (see image 1).

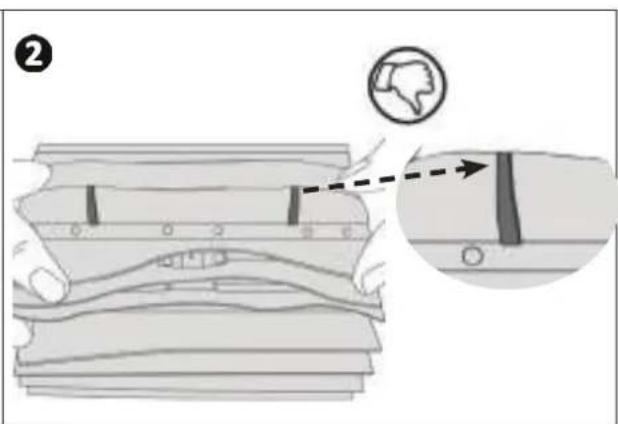

• The brush is worn and should be replaced when the wear indicators appear as shown in image 2.
• To remove the worn brush, remove the tabs from the holes in which they are fixed (see image 3).
• To fit the new brush, start by fitting the side without tabs under the brush holder (see image 4).
• Roll the brush around its support, slide the tabs into the attachment holes and pull on the end of each tab until its edge passes through the slit (see image 5).

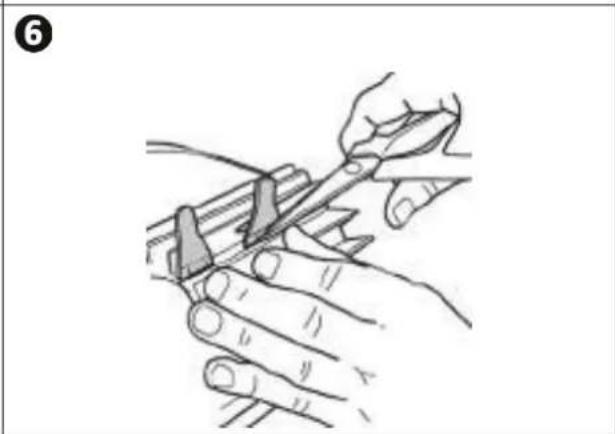

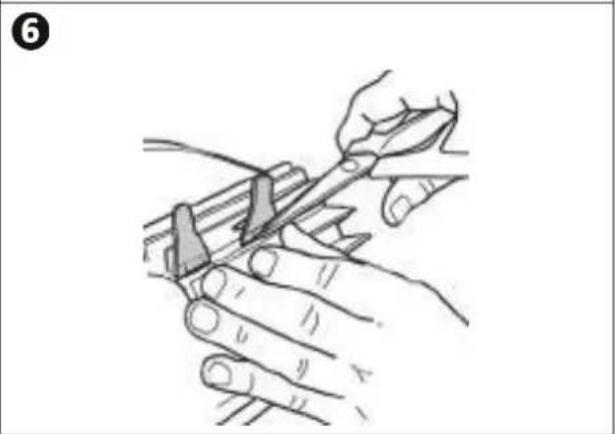

• Cut the tabs using a pair of scissors for them to be below flap level (see image 6).

Diagram illustrating a mechanical assembly with an inset showing a close-up of a component being lifted by a thumbs-up icon.

Diagram illustrating a mechanical assembly with labeled parts and an inset showing a close-up of a component with a downward arrow.

Illustration of hands installing or adjusting a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of a hand holding a spring-loaded device with a tool, no text or symbols present

Illustration of hands holding a mechanical device with an arrow indicating motion (no text or symbols present)

Illustration of hands using a tool to cut or mark a piece of material (no text or symbols present)

4.4 I Replacing the tracks

• Place the cleaner on its side (see image 1).
• Starting with one of the wheels, pull on the inside of the track to separate it from the wheel (see image 2). Then remove the track from the cleaner.
  • To install the new track, position the inside of the track on the first wheel's grooves.
• Stretch the track around the second wheel. Press down on the track to position it correctly on the wheel grooves.
• Make sure that the track passes under the guides (if the model includes track guides).

1

Technical illustration of a tracked robotic vehicle with visible wheels and mounting brackets (no text or symbols)

2

Line drawing of a car interior with a mesh hose and attached vehicle (no text or symbols)

5 Troubleshooting

• If a problem occurs, before you contact your retailer, please carry out these few simple checks using the following tables.
• If the problem continues, contact your retailer.
  : Actions to be performed by a qualified technician only

5.1 I Appliance behaviour

When the cleaner moves forward in a straight line, it is no longer fl at on the floor.(To run on the bottom of the pool, it is normal for the front of the cleaner to rise)	There is still air in the appliance's casing. Repeat the cleaner immersion operations (see § “3.3 Immersing the cleaner”).The filter is full or dirty: simply clean it.The propeller is damaged, contact your retailer
The cleaner does not or no longer climbs the pool sides as it originally did.(Its electronic programme means that the cleaner does not systemati cally climb the walls).	The filter is full or dirty: simply clean it.The filter is clogged: clean it with an acidic solution on (spirit vinegar, for example) or replace it where necessary.Even though the water seems clear, microscopic algae are present in your pool, they are not visible to the naked eye, and they make the sides slippery and prevent the cleaner from climbing. Carry out shock chlorinati on and slightly reduce the pH.Do not leave the cleaner in the water during shock treatment.If the problem continues contact your retailer
The cleaner does not move on start-up.	Check that the outlet to which the control box is connected is receiving a power supply.Check that the cleaning cycle has been launched and that the light is on.If the problem continues contact your retailer
The cable gets tangledThe cleaner doesn't clean the entire poolThe cleaner's discharge nozzles become blocked	Check that you place as much of the floating cable as possible in the water.Stop the filter on pump and begin a new cleaning cycle.Place the control box in the centre of the pool's length, following the safety conditions, see “3.4 | Electricity supply connections”. If cleaning is not optimal, vary the location of the control box and the place at which the cleaner enters the pool.
The control box does not respond to any butt on presses	Unplug the cable from the mains socket, wait 10 seconds and plug it back in again.
The robot does not tilt upwards to climb the walls	The brush is worn: check the wear indicators “4.3 | Replacing the brush” and that the brush is properly attached to its brush support. Replace the brush where necessary.The pool is tied with a right angle between the bottom and the walls: the brush may require adaptation to opti mise cleaning: contact your retailer
The cleaner climbs the walls slowly and stops under the water lineThe cleaner climbs the walls quickly and goes past the water line, aspirating air	The cleaner may behave differently depending on the lining of the pool.A parameter may require changing.To do this, contact your retailer

5.21 User alerts

Flashing LED: i	Soluti ons
	Check that the cleaner is correctly connected to the control box. If necessary, unplug it and reconnect it following the appropriate procedure.
	Check that there is nothing preventing the brush and support from turning. To do so, remove the tracks and manually rotate the wheels to check that there are no external elements jammed in a housing.
	Cleaner operating outside the pool. Make sure you start the cleaner when it is in the water (see § “3.3 Immersing the cleaner”).
	Check that there are no stones or hair in the propeller (see § “4.2 I Cleaning the propeller”). Clean or change the filter if necessary.
	Temperature too high in the control box:- Preferably install the box in a shaded locati on.- Allow the box to cool before starting a new cycle.
	General cleaner surge current. Check the soluti ons for fl ashing indicator No. 2 and No. 3.
	The cleaner may be stuck in one area of the pool. Re-start a cycle or check the soluti ons for the fl ashing indicator No. 2.

Tip: if you require assistance, inform your retailer about the appliance's condition to save time. Provide this information to your retailer

WARNHINWEISE

Line drawing of a mobile phone with dual wheels and a curved handle (no text or symbols)

DE

Diagram of a robotic device with labeled parts A through J, showing a coiled cable and connected base.

Line drawing of a mechanical device with a clamped base and housing (no text or symbols)

2

Simple line drawing of a suitcase on a stand (no text or symbols)

3 Bedienung

Illustration of a person using a power tool on a brick surface with a downward arrow indicating flow or pressure (no text or symbols)

Illustration of a submerged object partially submerged in water, with no visible text or symbols

3

Illustration of a robotic device with a curved line extending from it, set against a textured gray background (no text or symbols)

Line drawing of a medical or laboratory device with a knob and arrow indicator (no text or symbols)

2

Line drawing of a device with a scroll wheel and cable, showing a close-up of the cable being inserted (no text or symbols present)

3

4

Illustration of a pipe fitting with a green checkmark indicating inspection or approval (no text or symbols present)

5

Simple line drawing of a hand holding a wall socket next to an arrow pointing left (no text or symbols)

Diagram of a rectangular container with a hanging ladder and a small mechanical component, no text or symbols present.

Illustration of a person using a power tool on a brick wall, with an upward arrow indicating motion (no text or symbols)

Illustration of a tracked robotic vehicle with visible tracks and wheels (no text or symbols)

2

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

3

Illustration of a robotic device with open lid and internal components (no text or symbols)

4

Illustration of a hand inserting a device into a device (no text or symbols visible)

5

Diagram showing a mechanical assembly with an upward arrow emerging from a container (no text or symbols present)

6

Technical illustration of a fuel pump assembly showing internal components and exhaust pipe connection (no text or symbols)

Illustration of two robotic devices with hands operating them, showing mechanical components and a funnel (no text or symbols)

2

Illustration of a hand using a robotic device to press or install a component (no text or symbols visible)

3

Close-up of a hand using a mechanical device to adjust or install a component (no visible text or symbols)

4

Illustration of a robotic device with a hand operating it, showing mechanical components and wiring (no text or symbols)

5

Illustration of a hand pouring liquid into a mechanical device (no text or symbols visible)

6

Illustration of a hand operating a tracked robot with a keyboard and keypad (no text or symbols visible)

7

Illustration of a robotic device with a hand adjusting its top panel (no text or symbols visible)

Technical diagram illustrating two-step assembly or repair process with labeled steps and directional arrows indicating movement.

Technical diagram showing two steps of a mechanical assembly: step 3 is before and after adjustment, and step 4 is after adjusting a component.

(5) ⑥

3D rendering of a tracked robotic vehicle with visible tracks and wheels (no text or symbols)

Line drawing of a car's front wheel and side arm (no text or symbols)

5 Problembehebung

ALGEMENE WAARSCHUWINGEN

Illustration of five different types of cleaning or repair devices, including a coiled cable, a vacuum cleaner, a plastic bag, a broken cup, and a cylindrical tool (no text or symbols present)

Line drawing of a mobile phone with dual wheels and a curved handle (no text or symbols)

Diagram of a robotic device with labeled parts A through J, showing a coiled cable and connected base.

Line drawing of a mechanical device with an open lid and base mount (no text or symbols)

2

Simple line drawing of a car or vehicle with a handle and wheels (no text or symbols)

Gebruik

3.1 I Werkingsprincipe

Illustration of a person using a power tool on a tiled surface with a downward arrow indicating flow or damage (no text or symbols)

2

Illustration of a submerged object with bubbles and waves, partially submerged in water (no text or symbols)

3

Illustration of a robotic vacuum cleaner with a coiled cable, placed on a textured surface (no text or symbols)

Line drawing of a medical or laboratory device with a scroll wheel and directional arrow (no text or symbols)

2

Line drawing of a device with a scroll wheel and cable, showing a close-up of the cable being inserted (no text or symbols present)

3

4

Simple line drawing of a mechanical component with a green checkmark indicating selection (no text or symbols)

5

Simple line drawing of a hand holding a socket with an arrow pointing left (no text or symbols)

Diagram of a container with a ladder and a small object inside, no text or symbols present

3.6 I Schoonmaakcyclus stoppen

Illustration of a person using a power tool on a tiled floor, with an upward arrow indicating motion (no text or symbols)

Illustration of a tracked robotic vehicle with visible tracks and wheels (no text or symbols)

2

Illustration of a hand holding a device with a cable, no visible text or symbols

3

Illustration of a robotic device with a handle and internal components (no text or symbols)

4

Illustration of a hand inserting a device into a device (no text or symbols visible)

5

Diagram showing a mechanical component being inserted into a container (no text or symbols present)

6

Technical illustration of a fuel pump assembly showing internal components and exhaust pipe connection (no text or symbols)

Illustration of two robotic devices with hands operating them, one emitting a spray bottle (no text or symbols visible)

2

Illustration of a hand using a robotic device to press or install a component (no text or symbols visible)

3

Close-up of a hand using a car's air conditioner to adjust the engine compartment (no text or symbols visible)

4

Illustration of a robotic device with a hand operating the control panel (no text or symbols visible)

5

Illustration of a hand pouring liquid into a mechanical device (no text or symbols visible)

6

Illustration of a robotic device with a hand operating it, no text or symbols visible

7

Illustration of a robotic device with a hand adjusting its top component (no text or symbols visible)

Diagram illustrating a mechanical or structural assembly with an inset showing a close-up of a pin inserted into a component, accompanied by a thumbs-up icon.

2

Technical diagram showing a mechanical assembly with an inset close-up of a component detail, labeled with Chinese character '②' and a thumbs-down icon.

3

Illustration of hands installing or adjusting a mechanical component with arrows indicating direction (no text or symbols)

4

Illustration of a hand holding a tool interacting with a textured surface (no text or symbols visible)

5

Illustration of hands holding a mechanical device with an arrow indicating upward motion (no text or symbols present)

6

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

4.4 I Rupsbanden vervangen

Technical illustration of a tracked vehicle with visible tire tracks and mounting base (no text or symbols)

2

Line drawing of a car interior with a rubber strap (no text or symbols)

5 Probleemoplossing

Line drawing of a mobile phone with dual wheels and a curved leg (no text or symbols)

Diagram of a robotic device with labeled parts A through J, showing a coiled cable and connected base.

Line drawing of a mechanical device with a lid and base mount (no text or symbols)

2

Simple line drawing of a car or vehicle with a handle and wheels (no text or symbols)

3 Uti lización

Illustration of a person using a power tool on a tiled floor, with a downward arrow indicating force or damage (no text or symbols present)

2

Illustration of a submerged object with bubbles and a cross symbol, partially submerged in water (no text or symbols present)

3

Illustration of a small robotic device connected by a coiled cable, on a textured surface (no text or symbols)

Line drawing of a medical or laboratory device with a valve and arrow indicator (no text or symbols)

2

Line drawing of a device with a scroll wheel and cable, showing a close-up of the cable being inserted (no text or symbols present)

3

4

Close-up of a mechanical component with a green checkmark indicating a detail (no text or symbols present)

5

Simple line drawing of a hand holding a socket next to an arrow pointing left (no text or symbols)

Simple diagram of a rectangular tank with a ladder and a small container, no text or symbols present.

Illustration of a person using a mobile phone on a brick wall, with an upward arrow indicating motion (no text or symbols)

Illustration of a tracked robotic vehicle with visible tracks and wheels (no text or symbols)

2

Illustration of a mechanical device with a handle and internal components (no visible text or symbols)

3

Illustration of a robotic device with a handle and internal components (no text or symbols)

4

Illustration of a hand inserting a device into a device, with an inset showing the internal component (no text or symbols visible)

5

Diagram showing a mechanical component being lifted into a container (no text or symbols present)

6

Technical illustration of a fuel pump assembly showing internal components and exhaust pipe connection (no text or symbols)

Two illustrations of a robotic device with hands operating it, showing mechanical components and a funnel (no text or symbols)

2

Illustration of a robotic device with a hand operating it (no text or symbols visible)

3

Close-up of a hand using a car's air conditioner to adjust the engine compartment (no text or symbols visible)

4

Illustration of a robotic device with a hand operating it, showing no text or symbols

5

Illustration of a hand pouring liquid into a mechanical device (no text or symbols visible)

6

Illustration of a hand operating a tracked robot with a keyboard and numeric keypad (no text or symbols visible)

7

Illustration of a robotic device with a hand adjusting its top panel (no text or symbols visible)

Technical illustration of a wheeled robotic vehicle with visible tracks and wheels (no text or symbols)

2

Line drawing of a car interior with a mesh hose and attached vehicle (no text or symbols)

Illustration of various cleaning and repair devices including a robotic arm, a handheld device, and a cylindrical brush (no text or symbols present)

Line drawing of a mobile phone with dual wheels and a curved handle (no text or symbols)

Illustration of a robotic device with labeled parts (A–J) and a coiled cable, no text or symbols present.

A: Pega de acesso ao fi Itro
B: Escova
©: Lagartas
D: Pega de transporte
E: Janela transparente (segundo o modelo)
F: Cabo fl utuante
G: Guia de fl uxo externa
H: Rodas dianteiras
1: Rodas traseiras
J: Cassetes

Line drawing of a mechanical device with a lid and base mount (no text or symbols)

2

Simple line drawing of a car or vehicle with a handle and wheels (no text or symbols)

3 Uti lização

Illustration of a person using a device on a paved surface with a downward arrow indicating flow or movement (no text or symbols)

2

Illustration of a submerged object with bubbles and liquid, partially submerged in water (no text or symbols)

3

Illustration of a robotic device with a curved line extending from it, set against a wavy background (no text or symbols)

Line drawing of a medical or laboratory device with a valve and adjustment knob (no text or symbols)

2

Line drawing of a device with a scroll wheel and cable, showing a close-up of the cable being inserted (no text or symbols present)

3

4

Simple line drawing of a pipe with a green checkmark indicating completion (no text or symbols)

5

Simple line drawing of a hand holding a wall socket next to an arrow pointing left (no text or symbols)

Diagram of a container with an internal device and a ladder, showing no text or symbols.

Illustration of a person using a power tool on a brick pavement, with an upward arrow indicating motion (no text or symbols)

Illustration of a tracked robotic vehicle with visible tracks and wheels (no text or symbols)

2

Illustration of a hand holding a device with a cable, no visible text or symbols

3

Technical illustration of a robotic device with internal components and housing (no text or symbols)

4

Hand inserting a device into a device (no text or symbols visible)

5

Diagram showing a mechanical assembly with an upward arrow emerging from a container (no text or symbols present)

6

Technical illustration of a fuel pump assembly showing internal components and exhaust pipe connection (no text or symbols)

Two illustrations of a robotic device with hands operating it, showing mechanical components and a funnel (no text or symbols present)

2

Illustration of a hand operating a tracked robot with a sensor on top (no text or symbols visible)

3

Close-up of a hand using a mechanical component to adjust or install a fan (no visible text or symbols)

4

Illustration of a hand operating a tracked robot with a control panel (no text or symbols visible)

5

Illustration of a hand pouring liquid into a mechanical device (no text or symbols visible)

6

Illustration of a hand operating a tracked robot with a keyboard and numeric keypad (no text or symbols visible)

7

Illustration of a robotic device with a hand adjusting its top component (no text or symbols visible)

Diagram illustrating a mechanical assembly with an inset showing a close-up of a component being lifted by a thumbs-up icon.

Diagram illustrating a mechanical assembly with labeled parts and an inset showing a downward force indicator.

Illustration of hands installing or adjusting a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of a hand holding a spring-loaded device with a tool, no text or symbols present

Illustration of hands holding a mechanical device with an arrow indicating motion (no text or symbols present)

Illustration of hands using a tool to cut or mark a piece of wood, no text or symbols present

Technical illustration of a wheeled robotic vehicle with visible wheels and mounting brackets (no text or symbols)

2

Line drawing of a car interior with a rubber strap and handle (no text or symbols)

Line drawing of a mobile phone with dual wheels and a handle (no text or symbols)

Diagram of a robotic device with labeled parts A through J, showing a coiled cable and connected base.

3.5 metri Minimo E A F B D C

Line drawing of a mechanical device with a lid and base mount (no text or symbols)

2

Simple line drawing of a vehicle or machine component with no text or symbols

IT

Uso

Illustration of a person using a power tool on a brick surface with a downward arrow indicating flow or pressure (no text or symbols)

2

Illustration of a submerged object with bubbles and liquid, partially submerged in water (no text or symbols)

3

Illustration of a small robotic device connected by a coiled cable, placed on a textured surface (no text or symbols)

Line drawing of a medical or laboratory device with a scroll wheel and directional arrow (no text or symbols)

2

Line drawing of a device with a scroll wheel and cable, showing a close-up of the cable (no text or symbols)

3

4

Close-up of a mechanical component with a green checkmark indicating a detail (no text or symbols present)

5

Simple line drawing of a hand holding a socket with an arrow pointing left (no text or symbols)

Interior view of a rectangular tank with a ladder and a small container, no visible text or symbols

Illustration of a person using a power tool on a brick wall, with an upward arrow indicating motion (no text or symbols)

Line drawing of a tracked robot with visible tracks and wheels (no text or symbols)

2

Illustration of a hand holding a device with a partially visible screen (no text or symbols)

3

Illustration of a robotic device with a handle and internal components (no text or symbols)

4

Hand inserting a device into a device (no text or symbols visible)

5

Diagram showing a mechanical component being lifted into a container (no text or symbols present)

6

Technical illustration of a fuel pump assembly showing internal components and exhaust pipe connection (no text or symbols)

Two illustrations of a robotic device with hands operating it, showing mechanical components and a funnel (no text or symbols)

2

Illustration of a robotic device with a hand operating it (no text or symbols visible)

3

Close-up of a hand using a mechanical tool to adjust or install a component, with no visible text or symbols.

4

Illustration of a hand operating a tracked robot with control panel (no text or symbols visible)

5

Illustration of a hand pouring liquid into a mechanical device (no text or symbols visible)

6

Illustration of a robotic device with a hand operating it, no text or symbols visible

7

Illustration of a robotic device with a hand adjusting its top panel (no text or symbols visible)

Diagram illustrating a sewing process with labeled steps and an inset showing the step of sewing to a button.

Diagram illustrating a mechanical assembly with labeled parts and an inset showing a downward force indicator.

Illustration of hands adjusting a mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

Illustration of a hand holding a mechanical device with an arrow indicating motion (no text or symbols present)

Illustration of hands using a tool to cut or mark a piece of material (no text or symbols present)

Technical illustration of a wheeled vehicle with visible tire tracks and mounting brackets (no text or symbols)

2

Line drawing of a car interior with a black rubber strap (no text or symbols)

IT
