Cafelizzia Fast Pro Select - Coffee machine CECOTEC - Free user manual and instructions

USER MANUAL Cafelizzia Fast Pro Select CECOTEC

Exterior view of a black CECOLEC coffee maker with visible branding and control panel (no text or symbols on device body)

Cumbia

Safety instructions 7

1. Parts and components 39

2. Before use 39

3. Operation 40

4. Cleaning and maintenance 42

5. Troubleshooting 43

6. Technical specifications 44

7. Disposal of old electrical and

electronic appliances 45

1. Technical support and warranty 45

2. Copyright 45

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This symbol means 'caution: hot surface.' Accessible
  surfaces are likely to heat up during use. Be careful not to burn yourself.

- This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

- The appliance must not be used by children. Keep this appliance and its power cord out of their reach.

- This appliance can be used by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

- Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

- WARNING: the filling opening or the water tank must not be opened during operation.

- WARNING: take precautions to avoid spillage of liquids on any electrical conductors.

- WARNING: incorrect or improper use can be dangerous for the user and damage the appliance. Use the appliance only for the purposes described in this manual. The surface of the heating element is subject to residual heat after use.

• Ensure that the mains voltage matches the voltage specified on the appliance rating label and that the plug is earthed.
• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.
• Warning: if the device falls accidentally in water, unplug it immediately. Do not touch the water!
• Check the power cable regularly for visible damage. If the cable is damaged, it must be replaced by the official Cecotec Technical Support Service
• in order to avoid any type of danger.
• WARNING: do not use the appliance if its cable, plug, or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• Do not twist, bend, pull, or damage the power cable. Protect it from sharp edges and heat sources. Do not allow the cable to touch hot surfaces. Do not let the cable hang over the edge of the working surface or worktop.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Turn off and unplug the appliance from the mains supply when not in use and before cleaning it. Pull from the plug, not the cable, to disconnect it from the outlet.
• Supervise children to prevent them from playing with the appliance. Close supervision is necessary when the appliance is being used by or near children.

• Place the appliance on a dry, stable, flat, heat-resistant surface.

• Do not use the appliance under the following circumstances:

• On or near a gas or electric hob, in heated ovens, or near open flames.
• On soft surfaces (such as carpets) or where it may tip over during use.
• Outdoors or in areas with high humidity levels.
• Do not cover the appliance during operation.
• Never leave the device unattended during use. Unplug it from the mains supply when you finish using it or when you leave the room.
• Do not try to repair the appliance by yourself. Contact the official Cecotec Technical Support Service for advice.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance functions properly. Turn off and unplug the appliance before moving and cleaning it.
• Do not wash the appliance in dishwashers.
• No liability is accepted for any eventual damage or personal injuries derived from misuse or non-compliance with this instruction manual.

INSTRUCTIONS DE SÉCURITÉ

1. Water tank cover
2. Water tank
3. Feet
4. Decorative top cover plate
5. Top cover
6. Buttons
7. Pressure gauge
8. Front cover
9. Single-coffee filter
10. Double-coffee filter
11. Filter holder
12. Portafilter
13. Measuring spoon with tamper
14. Decorative frame for portafilter
15. Steamer
16. Cup tray
17. Drip tray
18. Steam knob

Fig. 2

1. 1-coffee button
2. 2-coffee button
3. Steam button

NOTE:

the graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

- This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.

ENGLISH

- Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Coffee machine
• Single-coffee filter
• Double-coffee filter
• Portafilter
• Instruction manual

3. OPERATION

1. Fill the water tank; the water level should not exceed the "MAX" mark in the tank.
2. Remove the portafilter from the packing box and put the filter inside. Then, install the portafilter by turning it until it is aligned with the locking position (symbol "
3. Plug the coffee machine into a mains socket. The machine will beep. The indicator lights of the 1-coffee, 2-coffee and steam buttons will flash 3 times at the same time. Next, press the 1-coffee button and 2-coffee buttons at the same time; the machine will make a "dripping" sound and the indicator lights will flash at the same time, which means that the machine is preheating.

Note: make sure the steam knob is in the off position. The 1-coffee, 2-coffee and steam buttons will flash at the same time, but the machine will not be able to operate if the steam knob is in the water dispensing position.

1. Press any button when the 1-coffee and 2-coffee buttons are on and use the hot water to clean the coffee machine.

Preparing an espresso

1. While the coffee machine is heating up, put the filter that you want to use in the portafilter and fill it with ground coffee (it should be neither too coarse nor too fine). Use the measuring spoon with tamper to press the coffee. Then, clean the excess ground coffee from the edge of the filter with a brush or by hand (if you want to brew 1 cup of coffee, use the single-coffee filter, but, if you need to brew 2 cups, use the double-coffee filter). Fig. 3

2. Install the portafilter on the machine and fix it securely as shown in the instructions. After that, place a cup on the drip tray. Fig. 4

3. When the 1-coffee and 2-coffee indicator lights stop flashing and remain steady, press the 1-coffee button to brew a cup. Make sure you have positioned the cup correctly under the coffee spout.

Steam function (milk frothing)

1. Turn on the coffee machine. Next, press the steam button, the corresponding indicator light will start flashing. Once the machine has completed the preheating process, the indicator light will remain steady.
2. Pour 1/3 of cold whole milk into the container to be used. Insert the steam nozzle 1 cm from the surface of the milk and turn the steam knob slowly counterclockwise until steam comes out.

Note: allow the steamer to emit a little water or steam before frothing the milk.

1. When the temperature of the milk reaches about 75^ C and the froth starts to expand, turn the steam knob clockwise to the off position and deactivate the steam function by pressing the corresponding button.

Note: after frothing the milk, the steamer must be cleaned with the hot water function to prevent milk residues from remaining inside and clogging it.

Hot water function

• Turn on the coffee machine. Next, press the steam button, the corresponding indicator light will start flashing. Once the machine has completed the preheating process, the indicator light will remain steady.
• Turn the steam knob counterclockwise funtil the steamer dispenses hot water. Turn the steam knob clockwise to the off position to deactivate the function and so that the steamer stops dispensing hot water.

Memory function

- Turn on the coffee machine. Next, press the steam button, the corresponding indicator light will start flashing. Once the machine has completed the preheating process, the indicator light will remain steady.

- Then, press and hold the 1-coffee button, the coffee machine will start brewing coffee. Once the desired amount of coffee has been obtained, stop pressing the 1-coffee button. The machine will beep, indicating that this dispense time or amount of coffee has been saved correctly. Next time you prepare coffee, press the 1-coffee button and the machine will brew it according to the previously saved setting.

- The coffee machine brews coffee 60 seconds approx. by default, which is the maximum time coffee can be brewed and saved. The setting shall not be valid if it exceeds 60 seconds.

Note: the setting will not be registered and saved unless the bottom is pressed for long enough. The stored quantity of dispensed coffee shall not be less than 15 ml.

ENGLISH

Restore factory settings

If you want to restore factory settings, hold pressed at the same time the 1-coffee button and the steam button for 3 seconds. The appliance will beep indicating factory settings have been successfully restored.

Cooling function of the machine

- After producing steam, the temperature of the coffee machine is likely to increase significantly. In fact, when the steam button is turned off, the indicator lights will start flashing indicating that the temperature of the machine is too high, so it will be necessary to cool down the machine if you want to brew coffee.

- To allow the machine to cool down, turn the steam knob to the water position so that the machine dispenses water for a few seconds. Then, turn the steam knob to the off position. The cooling function of the machine will have finished when the indicator lights stop flashing. When the indicator lights remain steady, the machine is ready for use.

4. CLEANING AND MAINTENANCE

• Disconnect the appliance from the power supply and allow it to cool down completely before cleaning.
• Do not use abrasive cleaners or scouring pads, as they could cause damage to the appliance's surface.
• Use a soft, dampened cloth to clean the outer part of the appliance.
• Do not immerse the main body in water or other liquids.
• Wash the water tank, drip tray and cup holder tray regularly.
• After using the steam function, the tube must be cleaned with a cloth immediately after.
• Allow steam to be released to avoid possible blockages inside the tube.
• If the steam tube is clogged, use a needle to unblock the conduct.
• Remove the portafilter and empty all coffee residues inside it. Then, use water and a cloth to clean it. Do not wash it in the dishwasher.
• Clean all parts with water and dry thoroughly before storing it or using the appliance again.

Descaling

When the device has been used 500 times, either for steaming or for coffee brewing, it is recommended to carry out a descaling cycle.

1. Fill the water tank with water up to the MAX. level and add about 10 g of descaler.

2. Switch on the coffee machine and allow it to heat up. Once the preheating process is finished, turn the steam knob to the water position and turn it back to the off position from time to time to dispense water little by little. The machine will stop operating after 2 minutes.

3. Turn the steam knob to the off position and then to the water position to repeat the process.

4. Follow the above steps about 5 times until the water tank is empty.

5. Refill the water tank to the "MAX" mark and repeat the descaling cycle from the beginning to clean the machine thoroughly. The descaling process is now complete.

6. TROUBLESHOOTING

Problem Cause Solution
Coffee does not come out	No water in tank. Coffee grind is too fine. There is too much coffee in the filter. The appliance is not turned on or connected to the power supply. Coffee has been tamped/compressed too much.	Add water. Grind medium-ground coffee. Fill filter with less coffee. Connect the unit to a power supply and turn it on. Refill the filter basket with coffee, do not tamp too much.
No water/steam There is no water in the water tank or it is not installed properly. The machine is not preheated.		Fill the water tank with water and turn on the device. The machine needs to be preheated before coffee can be brewed. Once the machine is preheated, the indicator light will turn on.
Coffee comes out around the edge of the portafilter	Portafilter not rotated to full lock position. There is ground coffee on the edge of the filter. There is too much coffee in the filter.	Rotate filter holder to full lock position. Wipe off the rim. Fill with less coffee.
Coffee is too light Coffee is	not enough ground, or the grounds are not pressed enough.	Replace the coffee powder and flatten it with the measuring spoon with tamper.

ENGLISH

No steam Te steamer is blocked. The steam knob is not set to the required position or preheating is not completed.	Use a fine wire to feed it through the duct and clean the steamer after each use. Turn the steam knob to the steam position and wait for the preheating process to complete.
Coffee is not brewed well Too much or too little coffee powder.	1 cup of coffee requires 1 coffee spoon and must be pressed down. Coffee powder cannot be too thick or too fine. Too thick coffee cannot be completely extracted, too fine will affect the amount and quality of coffee.
Milk is not properly frothed	The milk used is not suitable for this function. The steam function was enabled before the indicator light turned on. Use whole milk. Steam can only be released after the steam indicator light changes from flashing to steady light.
The indicator lights blink The temperature is too high after steaming.	Cool down the appliance.

6. TECHNICAL SPECIFICATIONS

Product: Cafelizzia Fast Pro

Product reference: 01635

Rated power: 1350 W

Voltage: 220 - 240 V

Frequency: 50 Hz

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the

local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

5. PROBLEEMOPLOSSING

Simple line drawing of a coffee cup inside a circle (no text or symbols)

Simple line drawing of two cups on a table inside a circle (no text or symbols)

Simple line drawing of a three-pin electrical plug inside a circle (no text or symbols)

Fig. / Img. / Rys. / Obr. 2

Technical line drawing of a mechanical device with a cylindrical shaft and flange (no text or symbols)

Fig. / Img. / Rys. / Obr. 3

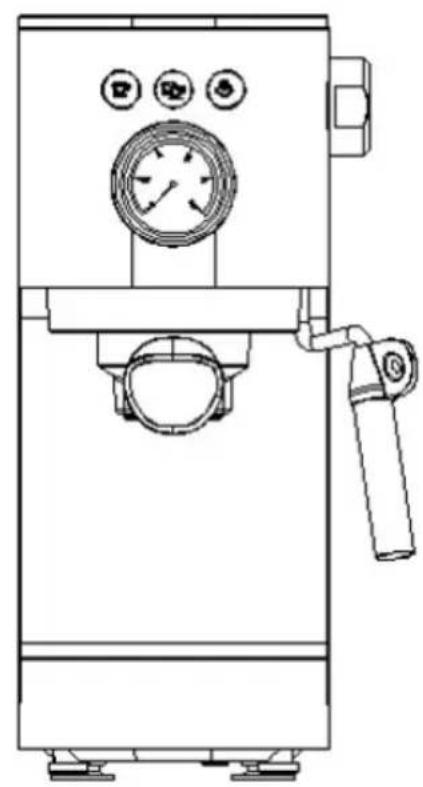

Line drawing of a mechanical device with gauges and lever (no text or symbols)

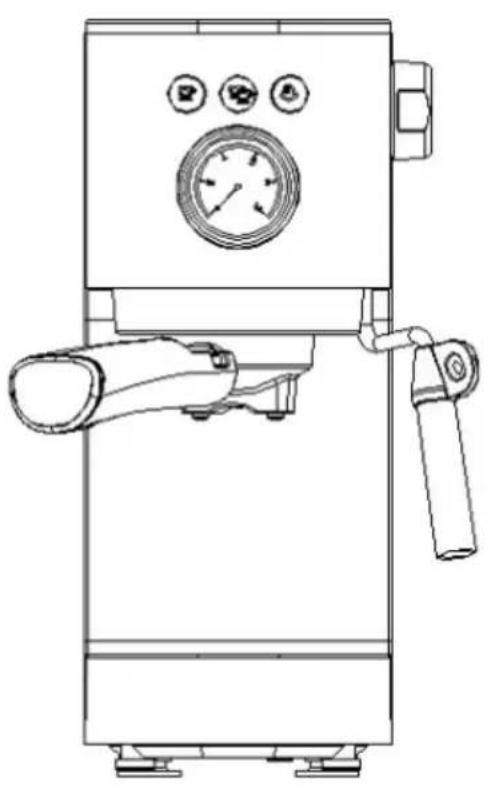

Technical line drawing of a mechanical device with control panel and handle (no text or symbols)

Fig. / Img. / Rys. / Obr. 4

www.cecotec.es
