The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified people to avoid a hazard.

This appliance can be used by children from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

The lint trap has to be cleaned frequently.

Lint must not to be allowed to accumulate around the tumble dryer.

Do not dry unwashed items in the tumble dryer.

Items that have been soiled with substance such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with a extra amount of detergent before being dried in the tumble dryer.

Items such as foam rubber (latex form), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Warning!

Never stop the tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that the full opening of the tumble dryer door is restricted.

Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.

The appliance should not be overturned during normal use or main-

tenance.

Remove all objects from pockets such as lighters and matches.

Ventilation openings in the base must not be obstructed by carpets.

Children of less than 3 years should be kept away unless continuously supervised.

Plug must be accessible after installation.

Warning!

The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

Remove all packages before using the appliance. Otherwise, serious damage may result.

Adequate ventilation must be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

Power supply and grounding

The dryer employs alternating current with the rated voltage and frequency. When the voltage fluctuates between 6% of rated voltage, the dryer can work normally.

A special power socket with a capacity ≥ 10A for the dryer had better be set beside the dryer for convenience and safety. The method of connection of the socket is as the figure below.

To be safe, please make improvements as soon as possible according to the rules and suggestions mentioned above.

The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been installed properly. When connecting the appliance to the mains, make sure that the mains voltage is correct. You can find more information about this on the rating plate.

The electrical safety of this tumble dryer can only be guaranteed when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt, please have the household wiring system tested by a qualified electrician. The manufacturer cannot be held liable for the consequences of an inadequate earthing system (e.g. electric shock).

Warning!

The socket and the grounding wire must be installed by an electrician to prevent incorrect installation or use of the socket and to guarantee the safe use of electricity. No connection of the grounding wire and the neutral wire, otherwise the cabinet will be charged, which is likely to cause the danger of electric shock.

Precautions

Install or store where it will not be exposed to temperatures below freezing or exposed to water or weather, which could cause permanent damage and invalidate the warranty.

Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt. An obstructed port might reduce the airflow.

Thoroughly spin the laundry in the washing machine. High spin speed can reduce drying time and save energy.

Make sure combustible sprays will not be close to the dryer when it is working, and once the gas leaks, do not touch plug or start/pause it.

Do not wash or dry articles that have been cleaned in, washed in, soaked in or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.)

Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled or has missing or broken parts, including a damaged cord or plug.

Do not allow children on or in the appliance. Close supervision of children is necessary when the appliance is used near children.

Do not use the machine when your hands are wet.

Do not store plastic, paper or clothing that may burn or melt on top of the dryer during operation.

The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

Do not dry articles containing rubber, plastic or similar materials such as padded bras, tennis shoes, galoshes, bathmats, rugs, bibs, baby pants, raincoats, plastic bags or pillows that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce fire by spontaneous combustion.

The door should be opened only after the program of the drying machine is completed. Do not open the door before the program is finished to avoid human skin from being scalded by hot steam or overheated drying machine.

CONSIGNES DE SÉCURITÉ

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

1. Top board
2. Control panel
3. Door
4. Cabinet

2. INSTALLATION

Installation Position Selection

The dryer should be placed in a ventilated area with not less than 10cm distance from the wall. It is suggested there are no obstacles within 1.5m in front of the dryer to assure ventilation. Fig. 2

Level Adjusting

When installing the dryer, please place the dryer on a flat ground. If there is a gap between the floor and one of the feet, use a sheet under it until it is stable.

Note!

If the dryer is not placed horizontally (tilt angle more than 2^ ), the dryer may not work properly.

Notice when installing:

• Do not install the dryer in the open air or a place where it can be damaged easily by rain;
• Do not place the back of dryer near curtain or something moved by wind;
• Do not place the dryer near gas or flammable materials.

Exhaust duct installation

Connect one end of the flex tube to the back vent, then fix it firmly until it's tight.

The other end of flex tube will be extended to outdoor, for the proper assembly please refer to the below pictures. Fig. 3

3. OPERATION

Quick start

Note!

Before use, please make sure the tumble dryer is installed properly.

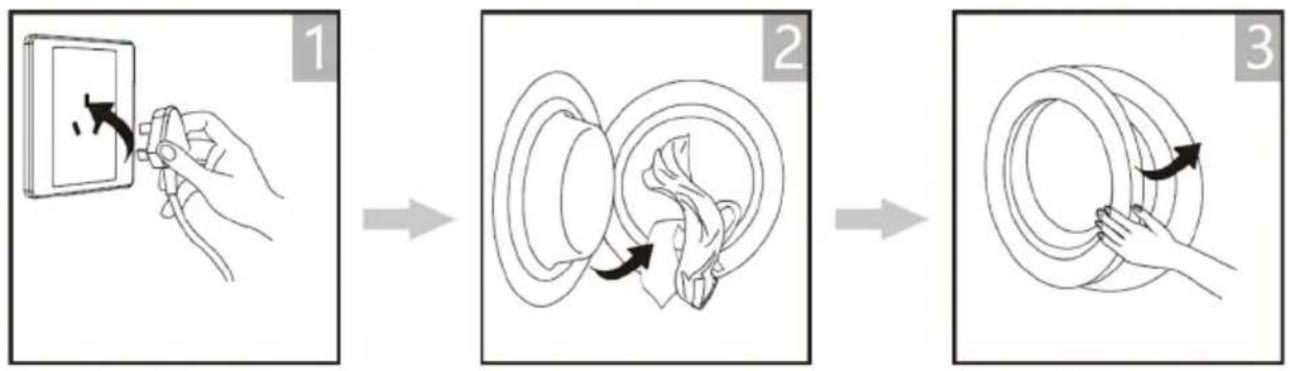

Before drying Fig. 4

1. Plug in
2. Load
3. Close the door

Drying Fig. 5

A. ON
B. Select program
C. Select function or default
D. Start

After drying Fig. 6

Buzzer beep or "0:00" on display.

1. Unload
2. Clean filter
3. Unplug

Before each drying

• Before drying, thoroughly spin the laundry in a washing machine. High spin speed can reduce the drying time and save energy consumption.
• For uniform drying result, sort the laundry according to fabric type and drying program.
• Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
• Do not over dry the clothes, because over dried clothes can easily get creases.
• Do not dry articles containing rubber or similar elastic materials.
• The door should be opened only after the program of the drying machine is completed.
• Do not open the door before the program is finished to avoid the human skin from being scalded by hot steam or over heated dryer.
• Clean the lint filter after each use to avoid extension of drying time and energy consumption.
• Do not dry clothes after dry-cleaning process.

ENGLISH

Reference weight of dry clothes (each)

Type Estimated weight
	Sweater About 800g
	Jacket About 800g cotton
	Jeans About 800g
	Bath towel About 900g cotton
	Single beadsheet About 600g cotton
	Work clothes About 1120g
	Sleepwear About 200g
	Long sleeve shirt About 300g cotton
	T-shirt About 180g cotton
	Underwear About 70g cotton
	Socks About 50g mixed-weave

Note!

• Do not overload the dryer.
- Not for dripping wet textiles. The dryer could be damaged or even cause a fire.
• Not suitable for silk or woolen textiles.

Only dry laundry is suitable for tumble drying. Regarding the laundry care labels:

Suitable for tumble drying

Normal drying process: Drying in the tumbler is possible under normal load and temperature 80°.

Mild drying process: Caution is appropriate when tumble drying. Select mild process with reduced thermal action.

Do not tumble dry: Articles unsuitable for drying in the tumbler.

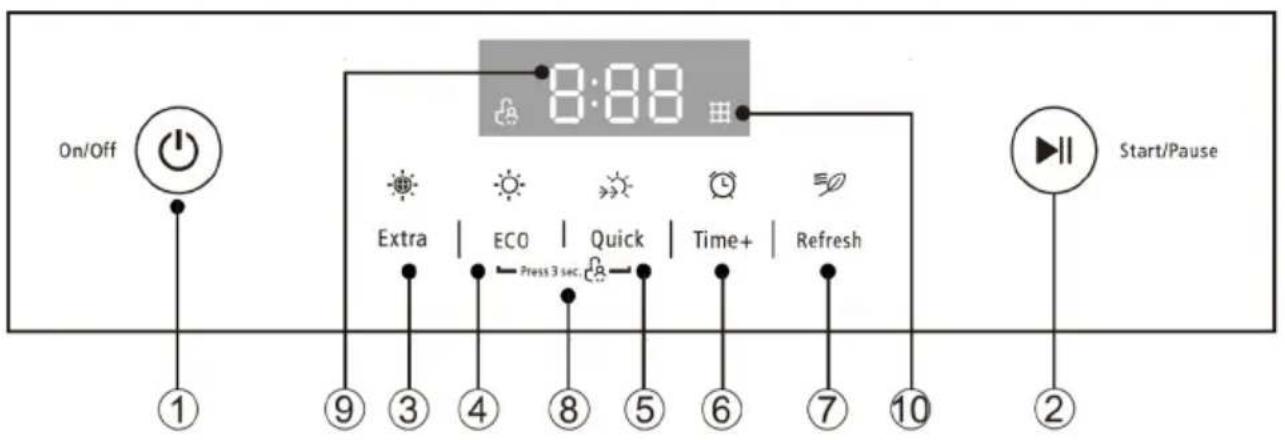

Control panel Fig. 7

On/Off

After plugging in and loading, switch the product on or off.

Start/Pause

Press the button to start or pause the drying cycle

Extra

To dry cotton laundry. Drying level: extra dry.

ECO

Automatic drying for cotton and linen laundry.

Quick

Fast drying for polyester, mixed-fabric loading up to 0.8kg.

Time+

Press the button repeatedly to adjusted the time of drying 10-120 minutes.

Refresh

Refresh the laundry up to 1kg.

ENGLISH

8

Child Lock

This function can effectively prevent children from carelessly pressing buttons or making faulty operation. To set this function: Press" ECO" and "Quick" simultaneously for 3sec., then the display will show the "Child Lock" symbol. To deactivate the function, simultaneously press" ECO" and "Quick" for 3 sec. again.

9

Display Screen

Remaining time

10

Reminder for filter cleaning

After the program finishes, this light is on to remind the user of cleaning the filter.

Note for Child Lock Mode

• Different series of products may have different combination keys for child lock.
• The child lock function can be set after the program starts. Once it's activated, all buttons (except On/Off) are deactivated. If you want to operate the dryer, please disable the Child Lock first.
• The Eco program is the energy saving program and is suitable for drying normal wet cotton laundry. It's the most efficient program in terms of energy consumption for cotton laundry.
• The Eco program is used to assess compliance with the Delegated Regulation of the EU Commission 2023/2533 Ecodesign and 2023/2534 Energy Labeling, measured in accordance with EN 61121.

Note!

• Clean the lint filter, cabinet and drum
• Clean the lint filter when the "Filter" light is flashing, after the dryer stops.

Drying programmes table

Drying pro-grammes	Capacity (max) (kg)	Display time Time	Adjustment (min)
ECO 3.0 1:46 /
Extra 3.0 1:58 /
Quick 0.8 0:45 /
Time+	1.0	0:10	10-120
Refresh	1.0	0:10	10-60

Consumption data

Model Program Capacity Final			moisture content	Drying time [h:min]	Energy consumption	Spin speed
Mini S3 ECO 3.0 kg 0% 2:05 2.25 kWh 1000rpm
				1.5 kg 0% 1:08 1.15 kWh 1000rpm
				Extra 3.0 kg -3% 2:25 2.35 kWh 1000rpm
				1.5 kg -3% 1:25 1.25 kWh 1000rpm

Note!

- Thick or multi-layered fabrics, e.g. jackets etc., are not easy to dry. You had better choose Cotton Extra programme.

- As uneven material, thick and multi-layered clothes are not easy to dry, it is better to choose the appropriate time drying programme to completely dry them if some parts of the clothes are still damp after programme finishes.

- All data are measured in accordance with EN 61121. The actual consumption may differ from the values given in the table, depending on the amount of the laundry, type off fabric, residual moisture and any additional functions selected.

4. MAINTENANCE

Cleaning and care

Filter clean Fig. 8

- Clean the lint filter after each use: remove the filter by pulling it straight up.

• Filter cleaning: use a wiping cloth or your hands to remove lint.

• Install filter: if the filter is cleaned by damp cloth or water, please dry thoroughly before installation.

Cleaning cabinet and drum Fig. 9

WARNING!

• Disconnect the power cord before cleaning!
  • Clean the dryer with a wet cloth which is only damped by clean water.
  • Do not rinse water over the machine directly.

• Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaners. These could damage plastic surfaces and other parts.
  • Before starting the dryer, dry all parts with a soft cloth.

• TROUBLESHOOTING

Problem Cause Solution
Dryer does not start	Power cut offThe power plug is not plugged tightThe dryer is overloaded
The appliance gets hot or burnt smell	The lint filter is cloggedThe uptake or exhaust duct is clogged
Clothes are too dry	The machine is overload-edClothes are not taken out in time after finishClothes are not sorted properlyThe selected temperature is too high
Clothes shrink	Laundry is over-dried
Pilling on clothes	Laundry is sensitive for rubbing

ENGLISH

- Heavy wet clothes turning and bumping will cause noise accordingly while to dryer runs.

- During the drying cycle, the machine will create airflow, which will cause noise when hitting the drum.

Other failure

Display Reason Solution
E33 Temperature	ature sensor broken or PCB failure	Please contact your local service center if the problem occurs.

6. TECHNICAL SPECIFICATIONS

Parameter Model
	Mini S3
Dimension (L*W*H) 520*	435*640 (mm)
Rated input power 1250W
Rated voltage 220-240V~
Rated frequency 50Hz
Weight of product 20kg
Rated capacity 3.0kg
Ambient temperature	+5°C~+35°C

Note!

- The rated capacity is the maximum capacity. Make sure that the dry clothes which are loaded to the appliance do not exceed the rated capacity any time.

- Do not install the tumble dryer in a room when there is a risk of frost occurring. At temperatures around freezing point the tumble dryer may not be able to operate properly.

ENGLISH

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

This symbol indicates that, according to the applicable regulations, the product and/or cells must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailers for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protect the environment.

8. TECHNICAL SUPPORT AND WARRANTY

EVVO shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs are carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official EVVO Technical Support Service:

910 200 422 - TELEPHONE ATTENTION

633 525 883 - WHATSAPP ATTENTION

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to EVVO HOME EUROPE S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of EVVO HOME EUROPE, S.L.

1. PIÈCES ET COMPOSANTS

Fig. 1

Symbol of a trash bin with crossed lines indicating no waste or restriction, accompanied by a solid black rectangle below (no text or symbols present)

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Symbol of a trash bin with crossed-out lanes and a blank rectangular base (no text or numbers)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Technical line drawing of two identical electrical enclosure units with ventilation grilles and side panels (no text or symbols)

Fig./Img./Abb./Afb./Rys./Orb 3

Fig./Img./Abb./Afb./Rys./Orb 4

A

B

C

D

Fig./Img./Abb./Afb./Rys./Orb 5

Hand holding a circular object with a black arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with internal structure and directional arrow (no text or symbols)

Simple line drawing of a wall socket with a cable and arrow indicating direction (no text or symbols)

Fig./Img./Abb./Afb./Rys./Orb 6

Fig./Img./Abb./Afb./Rys./Orb 7

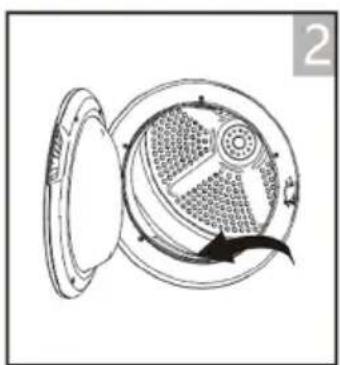

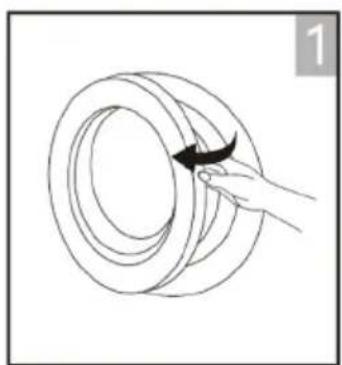

Line drawings of a washing machine with open lid, internal circuit board, and clean air filter (no text or symbols)

Fig./Img./Abb./Afb./Rys./Orb 8 Fig./Img./Abb./Afb./Rys./Orb 9

eVVO

evvohome.com

Evvo Home Europe S.L.

Crta. Madrid 9

37900 Santa Marta de Tormes

(Salamanca) SPAIN

CIF: B-37556842
