1. base
2. tank
3. piston
4. outlet valve
5. hose
6. hose tip
7. safety valve
8. power switch
9. power switch lock
10. capacity regulator
11. battery socket

DE

Read the operating instruction

Wear protective goggles

Schutzbrille tragen

Wear hearing protectors

Gehörschutz tragen

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

WYPOSAŻENIE PRODUKTU

The cordless grease gun is used to apply solid greases. The grease gun has its own grease tank and a flexible hose with a tip adapted to typical grease nipples (so-called grease fittings). Thanks to the battery power supply, it is possible to apply the grease quickly, easily and efficiently even in places without access to power sources. Proper, reliable and safe operation of the product depends on appropriate use, that is why you should:

Read this entire manual before the first use of the tool and keep it for future reference.

The supplier shall not be held liable for any damage or injury resulting from improper use of the tool, failure to observe the safety regulations and recommendations of this manual. Use of the tool for purposes other than those for which it was intended shall cause the loss of the user's rights to a warranty and under statutory warranty.

PRODUCT ACCESSORIES

The YT-07020 tool is supplied with a battery and a battery charging station. The YT-07021 tool is supplied without battery and without a charging station.

TECHNICAL DATA

Parameter Unit Value
Catalogue No. YT-07021, YT-07021
Operating voltage [V DC] 18
Grease capacity [g/min] 284
Grease pressure [MPa] 62
Hose length [cm]	76
Noise level
- sound pressure L_mA ± K	[dB(A)]	76.0 ± 3.0
- power L_mA ± K	[dB(A)]	86.0 ± 3.0
Protection rating		IPX0
Insulation class		III
Vibration level (with / without impact)	[m/s2]	0.5 ± 1.5
Weight	[kg]	3.45
Battery type		Li-Ion
Battery capacity*	[Ah]	3
Charger*
Input voltage	[VAC]	220 - 240
Mains frequency	[Hz]	50 / 60
Rated power	[W]	60
Output voltage	[V DC]	21 DC
Output current	[A]	2.4
Charging time**	[h]	1

* only for models equipped with a battery and charger
** the specified charging time applies only to the battery with the capacity listed in the table

The declared total vibration emission value and declared noise emission value have been measured using the standard test method and can be used to compare one tool to another. The declared total vibration emission value and declared noise emission can be used in the initial exposure assessment.

Caution! The vibration emission during tool operation may differ from the declared value, depending on the manner the tool is used.

Caution! Safety measures to protect the operator, which are based on an assessment of emission exposure under actual conditions of use (including all parts of the work cycle, such as the time when the tool is switched off or idle and the activation time), must be specified.

GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS

Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fi re or serious injury.

Keep all warnings and instructions for future reference.

EN

The term "power tool" used in warnings applies to all tools driven by power both wired and wireless.

Workplace safety

Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.

Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.

Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.

Electrical safety

The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.

Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.

Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.

Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.

Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.

In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.

When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.

Personal safety

Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.

Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.

Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.

Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.

Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.

If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.

Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.

Carefree action can cause serious injuries in a fraction of a second.

Use and care of the power tool

Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.

Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.

Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.

Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.

Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.

Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.

Repairs

Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.

EN

GREASE GUN SAFETY REQUIREMENTS

Tool or hose components may break under high pressure. Always check the tool for damage or wear before using it. Never use the tool with damaged or worn parts.

Use only approved hoses. Only use hoses identical to those factory-fitted to the tool or specified by the manufacturer.

If the hose is twisted, kinked or damaged, it can cause serious injury. Replace the hose at the first sign of wear, twist or damage.

Use only the grease recommended in the manual. Using other greases may cause injuries.

Stop the mechanisms for the time of grease application. Using the grease gun near moving parts can result in serious injury. The grease is discharged from the tool under high pressure. Never point the grease gun outlet towards you or towards other people or animals. Always use protective gloves and protective clothing with long sleeves and legs when handling the grease gun.

Risk of fire. The grease can be flammable. Do not expose grease to high temperatures or fire. Read the information supplied with the grease before using it.

TOOL OPERATION

Preparing for operation

Warning! Before beginning preparation activities, make sure that the tool is disconnected from the power supply. The battery must be removed from the tool's socket.

Caution! It is forbidden to use substances other than solid greases. In particular, it is forbidden to use agents bonding when exposed to air, such as silicones, sealing compounds or adhesives.

Caution! Before filling the tank with grease, thoroughly clean the tank and the grease gun from the remnants of the previous grease. Different greases can react with each other, causing health hazards and damage to the tool. If the residues of the previously used grease are inside the grease, after filling the tank with a new grease, the grease gun outlet should be aimed at a safe place and the trigger pressed until only the new grease starts to come out.

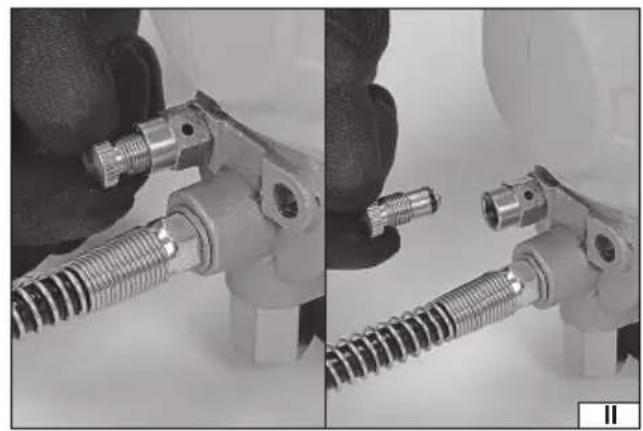

Unscrew the outlet valve (II).

Grasp the tool handle with one hand and the grease tank piston handle with the other. Pull the piston handle until it can be locked by sliding it in the cylinder cover opening (III).

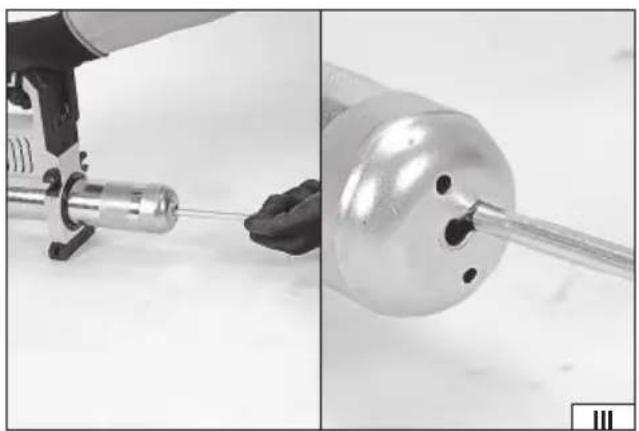

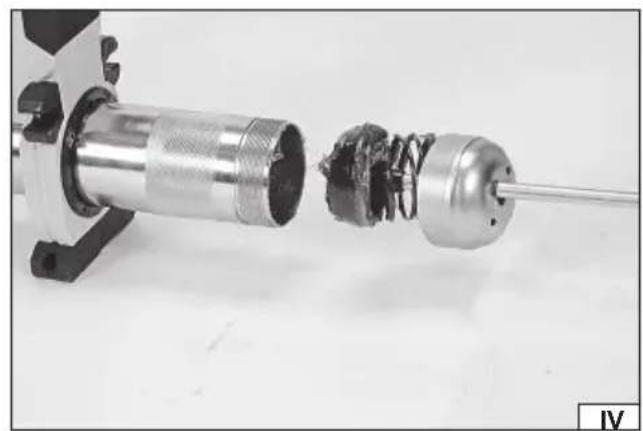

Unscrew the tank cover and remove it together with the piston (IV). When unscrewing, be careful not to unlock the piston. Make sure that the piston seal faces the inside of the piston (V). Install the cover by fixing it to the tank, then unlock the piston and lower it as far as possible. A small amount of grease can escape through the outlet valve.

Caution! There may be a small amount of grease inside the cylinder, which is necessary for the factory test of the tool, as well as for the maintenance of metal parts during transport and storage.

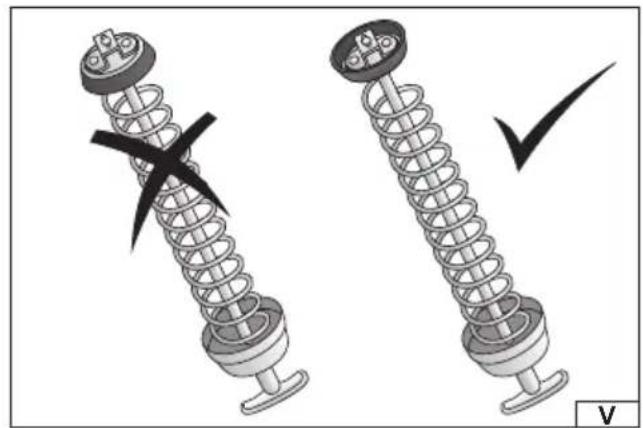

Unscrew the grease tank, push the tank piston in completely. Place the tank in a container with grease so that the open end of the tank is about 5 cm below the grease level. Slowly pull out the tank piston, filling it with grease to the desired volume. Next, lock the piston. Remove grease from the outer surface of the tank, then carefully fix the tank to the grease gun. Release the piston lock and push it as far as possible to remove any remaining air from inside the tank. Close the outlet valve.

Caution! If the grease proves to be too thick to fill the tank as described above, the grease can be applied with an additional tool (e.g. a spatula) to the inside of the tank.

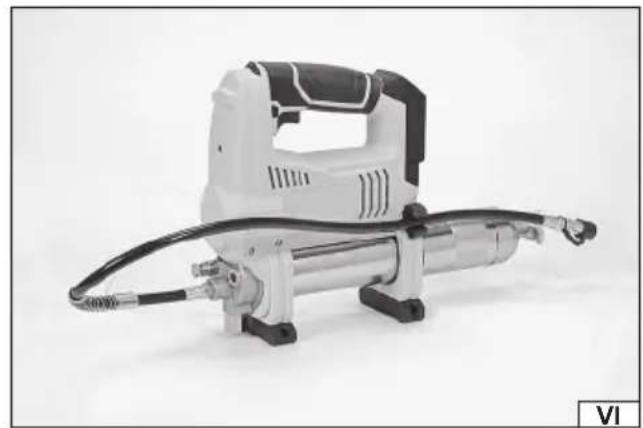

The grease gun has a hose bracket which facilitates transport and storage (VI). The hose tip should be protected with the cover which will reduce the risk of contamination of the hose tip.

Battery installation

Only the following 18V Li-Ion YATO batteries can be used to power the tool: YT-82842, YT-82843, YT-82844 and YT-82845, which can only be charged with YATO YT-82848 or YT-82849 chargers. It is forbidden to use other batteries with a different rated voltage and not matching the tool battery socket. It is forbidden to modify the socket or battery to make them match.

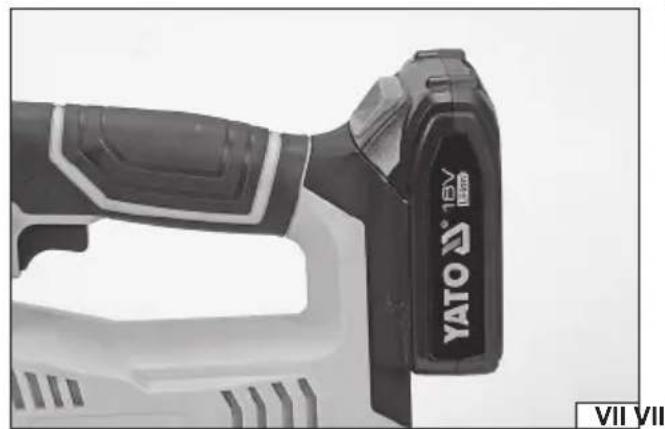

Slide the charged battery into the guides of the battery socket so that the battery latch holds it in place (VII). Check whether the battery does not slide out of the tool socket by itself.

Grease gun operation

After filling the tank with grease, remove the remnants of the old grease and the remaining air from inside the tank.

Unhook the hose from the handle and uncover its tip, which should be aimed at a safe spot, e.g. inside the tank.

The tool switch has a lock to prevent the tool from starting accidentally. The lock blocks the switch if it is set to the closed padlock symbol and unlocks the switch when it is set to the open padlock symbol.

EN

Unlock the switch, press and hold. After a while, the grease should start to flow out of the hose tip. If the grease comes out in a uniform flow, it means that the air has been pushed out of the tank.

Set the desired capacity by turning the regulator. The higher the number on the regulator, the higher the tool output.

Release the pressure on the power switch and check whether the grease has stopped coming out of the hose tip. Block the possibility of pressing the switch. Remove any excess grease from the hose tip and secure it with the cover if the grease gun is not in use.

If grease is applied, the hose tip should be placed on the grease nipple and held pressed against the grease nipple. Unlock the switch, push it and hold it down throughout the grease application process. When the application is finished, release the pressure on the switch and block the possibility of pressing it, and only then disconnect the hose tip from the grease nipple. Disconnecting the tip from the grease nipple while the switch is pressed will result in grease flowing out of the hose tip.

If the grease starts to escape from the safety valve, it means that the grease outlet through the hose has been clogged. In this case, stop applying the grease immediately and remove the cause of clogging. In this case, disassemble the tank and check that there are no impurities in the grease blocking its application.

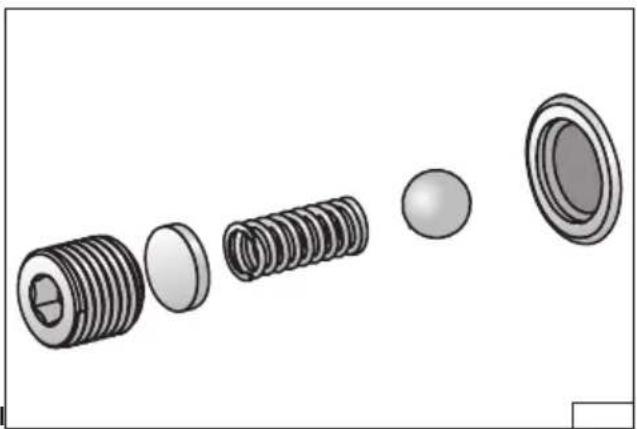

If there is no grease coming out of the hose outlet after pressing the switch, it may mean that the grease tank has been emptied. If the tank is full and grease is still not coming out of the hose tip, clean the safety valve. To do this, loosen the screw located in the valve, remove the valve's components, clean them and reassemble. The order of the components' assembly is shown in figure (VIII).

Caution! Disconnect the battery from the tool socket before removing the safety valve.

Safety recommendations for battery loading

Attention! Before loading may start make sure the body of the charger, the cable and the plug are not broken or damaged. It is prohibited to use a damaged loading dock and charger! For the purpose of loading batteries only the charging dock and the charger provided may be used. Using another charger may be a cause of fire or damage the tool. Batteries may be charged only in a dry room, protected from unauthorised persons, particularly children. Do not use the charging dock and the charger without permanent supervision of an adult! If it is necessary to leave the room where loading is taking place, it is required to disconnect the charger from the mains, removing the charger from the mains socket. In case when smoke comes out of the charger, or a strange smell is emitted, etc., it is required to immediately remove the plug of the charger from the mains socket!

The drill and automatic return screwdriver is provided with an unloaded battery, so before work may commence, it is required to charge it following the procedure below, using the charger and charging dock provided. Li-ION batteries do not show the so called “memory effect”, so it is allowed to charge them at any moment. However, it is recommended to discharge them during normal work, and then load them to their full capacity. If due to the nature of the task it is not possible to do so each time, then it is required to do it at least from time to time. Under no circumstances is it allowed to discharge the batteries short-circuiting the electrodes, since this would cause irreversible damage! It is also prohibited to check the load of the batteries, short-circuiting the electrodes for sparking.

Storage of the battery

In order to prolong the life of the battery, it is required to provide adequate storage conditions. The batteries can go through approximately 500 „loading - discharging” cycles. The battery must be stored between 0 and 30°C, at the relative humidity of 50%. In order to store the battery for a prolonged period, it is required to charge it to approximately 70% of its capacity. In case of prolonged storage, it is required to recharge the battery once a year. Do not permit excessive discharging of the battery, since this would reduce its life and may cause irreversible damage.

During storage, the battery will be gradually unloading due to leakage conductance. The process of automatic unloading depends on the temperature of storage, since the higher the temperature, the fastest the process. In case of incorrect storage of batteries, there is a danger of electrolyte leakage. In case of leakage, it is required to protect the leakage with neutralizing agent. In case of contact of electrolyte with the eyes, it is required to rinse the eyes abundantly, and then immediately seek medical assistance. It is prohibited to use a tool with a damaged battery.

In case the battery is completely worn out, it is required to deposit it at a special point dedicated to disposal of such waste.

Transport of the batteries

Lithium-ion batteries are in accordance with legal regulations treated as dangerous waste. The user of the tool may transport the tool with the battery or only batteries by land. Then no additional conditions must be complied with. In transport is realised by third parties (for example dispatch through courier service), then it is required to proceed in accordance with regulations for transport of dangerous materials. Before shipment, contact an authorised person.

It is prohibited to transport damaged batteries. During transport the battery must be removed from the tool, and the exposed contacts protected, e.g. with insulating tape. Protect the batteries so that they do not move inside the package during transport. It is also required comply with the national regulations for transport of dangerous materials.

EN

Charging the battery

Attention! Before charging you should disconnect the charger from the mains by unplugging the power supply plug from the mains. In addition, you should clean the battery and its terminals of dirt and dust with a soft, dry cloth.

The battery has a built-in charge indicator. When you press the button, LEDs will light up (IX), the more LEDs will light up, the more fully the battery pack is charged. If the button is pressed and the LEDs are off it means that the battery is discharged.

Disconnect the battery from the tool.

Push the battery in the charger socket (IX).

Plug the charger into a mains socket.

When the red LED lights up, it means the loading process.

When charging is complete, the red LED goes off, and green LED lights up, indicating a full charge of the battery.

Unplug the charger from the mains outlet.

Remove the battery from the charging station, by pressing the battery latch button.

Attention! If, when the charger is connected to the power supply, the green LED is on, this indicates a fully charged battery. In this case, the charger does not start charging.

Maintenance

Warning! Disconnect the battery from the tool socket before carrying out maintenance.

There is no need to remove grease from the tank after each use. However, grease should be removed if the tool has not been used for a long time. The grease may require special storage conditions or may change its properties over time. Refer to the information provided by the manufacturer for all information regarding grease storage.

After use, disconnect the battery from the tool, remove excess grease from the hose tip and residue from the tool housing with a soft dry cloth. Secure the hose tip with the cover and attach it to the bracket.

Clean the ventilation openings with a soft handheld brush or a painting brush with plastic bristles. The ventilation openings can be cleaned with a stream of compressed air of not more than 0.3 MPa.

Store and transport the tool resting on its base, without the battery connected.

DE

GERÄTEBESCHREIBUNG

CARACTÉRISTIQUES DU PRODUIT

Transport van accu's

DECLARATION OF CONFORMITY

0225/YT-07020/EC/2025

We declare and guarantee with full responsibility that the following products:

Cordless grease gun 18 V d.c., 62 MPa; 284 g/min; item no. YT-07020, YT-07021
