USER MANUAL PAMSP 20-Li A2 PARKSIDE
DE AT CH
20 V AKKU-EXZENTERSCHLEIFER
Bedienungsanleitung
Translation of the original instructions
FR BE
20 V PONCEUSE EXCENTRIQUE SANS FIL
Mode d'emploi
BATTERY COMPATIBLE WITH ALL DEVICES OF THE SERIES "X 20 V TEAM"
BATTERIE COMPATIBLE AVEC TOUS LES APPAREILS DE LA SÉRIE « X 20 V TEAM »
ACCU COMPATIBEL MET ALLE APPARATEN VAN DE SERIE "X 20 V TEAM"
AKUMULATOR KOMPATYBILNY ZE WSZYSTKIMI URZĄDZENIAMI SERII „X 20 V TEAM”
AKUMULÁTOR KOMPATIBILNÍ SE VŠEMI PŘÍSTROJI ŘADY „X 20 V TEAM“
AKUMULÁTOR JE KOMPATIBILNÝ SO VŠETKÝMI PRÍSTROJMI ZO SÉRIE „X 20 V TEAM“
BATERÍA COMPATIBLE CON TODOS LOS DISPOSITIVOS DE LA SERIE "X 20 V TEAM"
BATTERIET ER KOMPATIBELT MED ALLE APPARATER I SERIEN "X 20 V TEAM"
BATTERIA COMPATIBILE CON TUTTI GLI APPARECCHI DELLA SERIE "X 20 V TEAM"
AZ AKKU AZ „X 20 V TEAM” SOROZAT MINDEN KÉSZÜLÉKÉVEL KOMPATIBILIS
line

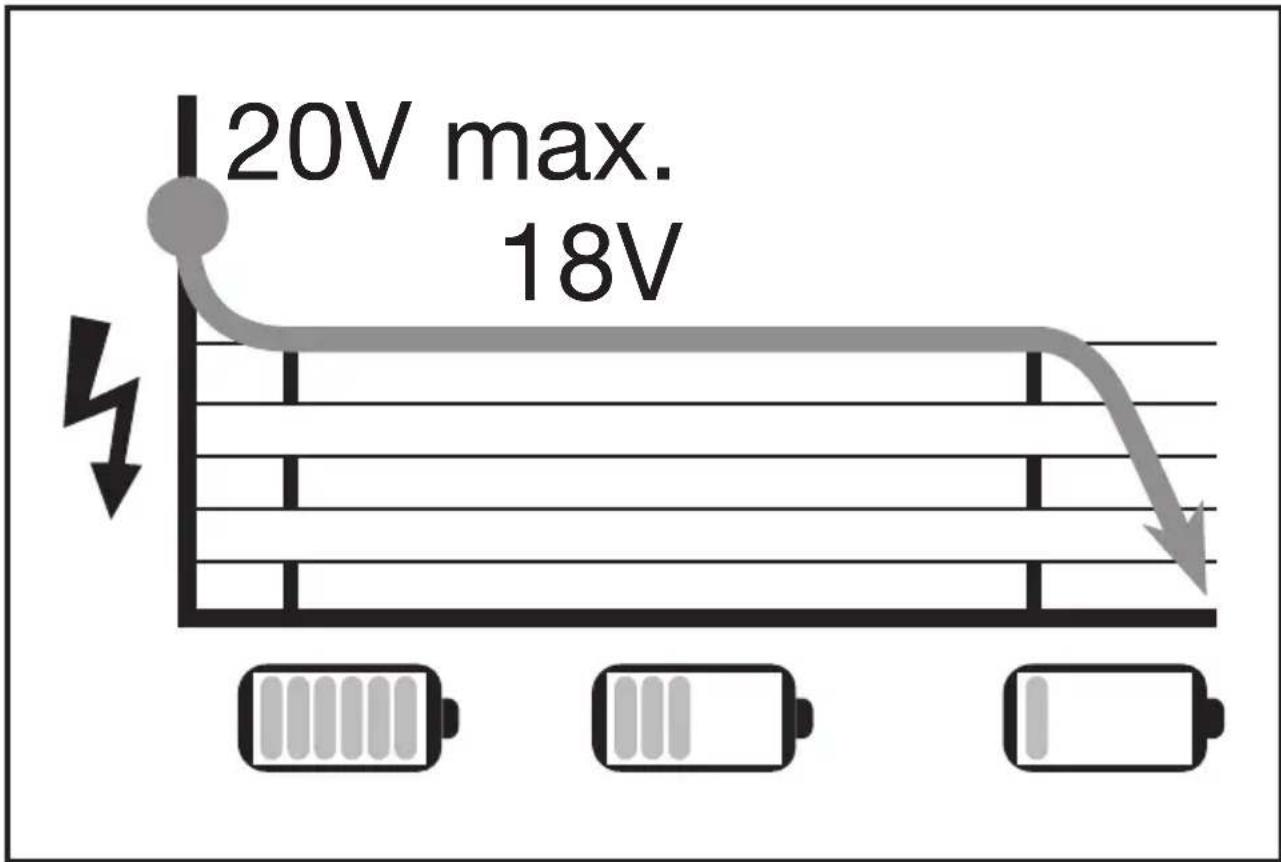

| Voltage Level | Value | | ------------- | ----- | | 20V max. | 18V |Ladezeit/Charging time/Temps de charge/Oplaadtijd/Czas ładowania/Doba nabíjení/Čas nabíjania/Tiempo de carga/Opladningstid/Tempo di ricarica/Töltési idő
| **PAP 20 B12 Ah | **PAP 20 B34 Ah | Smart PAPS204 A1 4 Ah | Smart PAPS208 A1 8 Ah | |
| *PLG 20 A4/C1(max. 2.4 A) | 60 min 120 | min 120 min 210 | min | |
| *PLG 20 A3/C3(max. 4.5 A) | 35 min 60 | min 50 min 120 min | ||
| *PDSLG 20 A1(max. 4.5 A) | 35 min 60 | min 50 min 120 min | ||
| *Smart PLGS2012 A1 | 35 min 35 | min 35 min 45 min |
NOTE: The actual charging time may be slightly different from the above stated depending on the ambient temperature and the condition of the battery pack. The information is subject to change without prior notice.
List of pictograms used ...... Page 25
Introduction Page 26
Intended use.... Page 26
Scope of delivery ...... Page 26
Parts list ...... Page 26
Technical data.... Page 26
General safety instructions.... Page 28
General power tool safety warnings ...... Page 28
Safety instructions for sanders. Page 31
Battery charger safety warnings.... Page 31
Before first use.... Page 32
Unpacking the product. Page 32
Accessories ...... Page 32
Charging the battery pack.... Page 32
Inserting/removing the battery pack. Page 33
Checking the battery pack's charging level....Page 33
Assembly Page 33
Fitting/removing the dust box. Page 33
Fitting/changing the sand grid .... Page 34
Operation.... Page 34
Switching on/off Page 34
Working instructions ...... Page 34
Cleaning and care Page 35
Cleaning Page 35
Maintenance Page 35
Repair Page 35
Replacement parts/Accessories. Page 36
Storage Page 36
Transportation. Page 36
Disposal Page 36
Warranty.... Page 37
Warranty claim procedure.... Page 37
Service Page 38
EU declaration of conformity.... Page 39
| List of pictograms used | |||
 | WARNING! - Designating a hazard with moderate risk, which can result in death or severe injury if not avoided (e.g. risk of electric shock) |   | This symbol means that the operating instructions must be observed when using the product. |
 | CAUTION! - Designating a hazard with low risk, which could result in minor or moderate injury if not avoided (e.g. risk of scalding) |  | Always unplug the battery charger 11 from the mains before removing the battery pack 6 from the battery charger or inserting the battery pack. |
 | NOTICE! - Warns of possible damage to property/the product if not avoided (e.g. risk of short circuit) |  | Always switch the product off, remove the battery pack 6 and let the product cool down before making any adjustments. |
 | Wear hearing protection! Wear prc  e gloves! | ||
 | Wear dust mask! Direct current/vo  | ||
 | Alternating current/voltage Fuse |  | |
 | Use the product in dry indoor spaces only. |  | Revolutions per minute |
 | Protection class II (double insulation) |  | Protect the battery pack 6 from heat and continuous intense sunlight. |
 | Protect the battery pack 6 from fire. |  | Protect the battery pack 6 from water and moisture. |
 | CE mark indicates conformity with relevant EU directives applicable for this product. | [3090] | Safety information Instructions for use |
20V CORDLESS RANDOM ORBITAL SANDER
● Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intended use
☐ This random orbital sander (hereinafter “product” or “power tool”) is intended for rough sanding of dry surfaces such as: - Wood - Varnish - Filler
☐ Depending on the sand grid being used, this product is suitable for dry sanding of metal.
☐ Any other use or modification of the product are considered improper use and can result in hazards such as death, life-threatening injuries and damage. The manufacturer is not liable for any damages caused by improper use. The product is not intended for commercial use or for any other use.
- Scope of delivery
WARNING!
The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!
1 20V Cordless random orbital sander
2 Sand grid (grit 120)
1 Sand grid (grit 240)
1 Dust box
1 Adapter (for dust box)
1 O-Ring
1 Carrying case
1 User manual
Parts list
1 Adapter for dust box
1a (arrow mark)
2 Dust box
3 On/off switch
4 Handle
5 Release button (battery pack)
6 Battery pack *
7 Speed control button
8 Charging level LEDs (product)
9 Charging level LEDs (battery pack)
10 Mains cord with mains plug
11 Battery charger (rapid battery charger) *
12 Charging control LED (red)
13 Charging control LED (green)
14Sand grid
15Extraction outlet
16Clip
- Technical data
| 20V Cordless random orbital sander PAESP 20-Li A2 | |
| Model number: HG13576 | |
| Rated voltage: 20 V --- | |
| Rated idle speed n0: 6,000–10,000 min | -1 |
| Oscillation rate: 12,000–20,000 min | -1 |
| Oscillation circuit: 2.5 mm | |
| Diameter of grinding disc: 125 mm | |
| Battery pack PAPS 204 A1 * | |
| Type: Lithium-Ion | |
| Rated voltage: 20 V | —— |
| Capacity: 4 Ah | |
| Energy value: 80 Wh | |
| Number of cells: 5 | |
| Frequency performance: ≤ 20 dBm | |
| Frequency band: 2,400–2,483.5 MHz | |
| Rapid battery charger | PLG 20 C3 * |
| Input: | |
| Rated voltage: | 230–240 V~ |
| Rated frequency: | 50 Hz |
| Rated power: | 120 W |
| Fuse (internal): | 3.15 A/T3.15A |
| Output: | |
| Rated voltage: | 21.5 V --- |
| Charging current: | 4.5 A |
| Protection class: | II/☐ |
Recommended ambient temperature
| While charging: | +4 °C to +40 °C |
| During operation: | +4 °C to +40 °C |
| During storage: | +20 °C to +26 °C |
Noise emission value
Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool at the working location is typically as follows:
| Sound pressure level L_pA : | < 64 dB |
| Uncertainty K_pA : | k = 3 dB |
| Sound power level L_WA : | 72 dB |
| Uncertainty K_WA : | k = 3 dB |
WARNING!
Wear hearing protection!
Vibration emission value
Total vibration values (vector total of three directions) determined in accordance with EN 62841:
| Sanding chipboard ah: < | 2.274 m/s2 |
| Uncertainty K: | 1.5 m/s2 |
NOTE
The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.
WARNING!
Depending on the manner in which the power tool is being used and, in particular, the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
WARNING!
It is necessary to establish safety measures to protect the operator based on an estimation of the vibration load during actual use (wherein all states of operation must be included, e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).
General safety instructions
● General power tool safety warnings
WARNING!
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting.
Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack for tool that is damaged or modified. Damaged or modified batteries exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above +130 °C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of the fire.
CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries!
Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.
Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should be only be performed by the manufactured or authorized service providers.
● Safety instructions for sanders
■ Only use the product for dry sanding. Water entering the product increases the risk of electric shock.
■ Always wait until the product has come to a complete stop before placing the product down.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
■ Provide sufficient ventilation when working on plastics, paints, lacquers, etc.
- Do not use the product without a sand grid fitted.
⚠ WARNING! Risks due to dust!
When working for extended periods of time on wood and, in particular, materials that produce dust that is hazardous to health, connect the product to an appropriate dust extraction tool. Wear safety goggles and a protective dust mask!
● Battery charger safety warnings
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the product in a safe way and understand the hazards involved.
Children shall not play with the product.
Cleaning and user maintenance shall not be made by children without supervision.
Do not charge non-rechargeable batteries. Disregarding this instruction is hazardous.
If the mains cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
■ Protect the electrical parts against moisture. Do not immerse such parts in water or other liquids to avoid electrical shock. Never hold the product under running water. Pay attention to the instructions provided for cleaning, maintenance and repair.
The product is suitable for indoor use only.
⚠ NOTICE! This charger is only designed for charging the following battery pack types:
| /// PARKSIDE® 20 Vbattery pack | ||
| PAP 20 B1 2 Ah | 5 cells | |
| PAP 20 B3 4 Ah | 10 cells | |
| PAPS 204 A1 | 4 Ah | 5 cells |
| PAPS 208 A1 | 8 Ah | 10 cells |
Suitable battery packs and chargers
| Battery pack: | X 20 V Team |
| Charger: | /// PARKSIDE' X 20 V Team |
- Customers can order compatible replacement batteries and chargers from Lidl online shops for the following countries:
Germany (lidl.de), France (lidl.fr), Belgium (lidl.be), Czech Republic (lidl.cz), Netherlands (lidl.nl), Poland (lidl.pl), Slovakia (lidl.sk), Spain (lidl.es)
Customers from all other countries can order from www.optimex-shop.com.
Before first use
● Unpacking the product
- Take the product out of the packaging and remove all packaging materials.
- Check to make sure that all listed parts are included (see "Scope of delivery").
- Check whether the product and all parts are in good condition, if any damage or defect is detected, do
not use the product, but follow the procedure described in chapter "Warranty".
Accessories
☐ To operate this product safely and correctly, the following accessory is necessary: - Suitable sand grid
□ Accessories are available through your authorised dealer. When buying always consider the technical requirements of this product (see "Technical data").
☐ Use only the additional equipment and accessories specified in the user manual. Using attachments or accessory tools other than those recommended in the user manual can lead to a risk of injury.
☐ If you are not certain, ask a qualified specialist and get advice from your trusted dealer.
● Charging the battery pack
⚠ WARNING! Risk of injury!
Always unplug the battery charger 11 from the mains before inserting/removing the battery pack 6 .
NOTE
You can charge the battery pack 6 at any time without reducing its life cycle.
Interrupting the charging process does not damage the battery pack 6.
Let the battery charger ^11 cool down for at least 15 minutes between successive charging processes.
Before operation: Charge the battery pack 6 when it is at medium or low charging level (see “Checking the battery pack’s charging level”).
☐ The charging control LEDs (red 12 and green 13) indicate the status of the battery charger 11 and the battery pack 6:
| LED Status | |
| Red LED 12 lights up | Battery pack 6 charges |
| Green LED 13 lights up | Battery pack 6 fully charged |
| Green LED 13 and red LED 12 flashing | Battery pack 6 defective |
| Red LED 12 flashing | Battery pack 6 too cold or too warm |
| Green LED 13 lights up (without battery pack 6) | Battery charger 11 ready |
-
Insert the battery pack 6 into the battery charger 11.
-
Connect the mains plug 10 to a mains socket.
-
When the battery pack 6 is fully charged:
-
Remove the mains plug 10 from the mains socket.
-Remove the battery pack 6 from the battery charger 11.
- Inserting/removing the battery pack
Inserting the battery pack
- Push the battery pack 6 into the handle 4.
- Ensure the battery pack 6 clicks audibly in place.
Removing the battery pack
-
Press the release button 5 on the battery pack 6.
-
Pull the battery pack 6 from the handle 4.
- Checking the battery pack's charging level
☐ The charging level LEDs 9 display the charging level after the product is switched on and off:
| Colour Charging level | |
| Red/orange/green Max | imum |
| Red/orange Medium | |
| Red Low |
Assembly
● Fitting/removing the dust box
(Fig. E, F)
WARNING! Risk of injury!
Always switch the product off, remove the battery pack 6 and let the product cool down before making any adjustments.
NOTE
The adapter for dust box 1 is pre-installed on the dust box 2.
When working vertical surfaces: The dust box 2 has to face downwards.
For optimum dust extraction: Empty the dust box 2 regularly.
▶ Optional: The dust can be extracted with a vacuum cleaner (e.g. PWD 30 C1).
Fitting the dust box
- Fit the adapter for dust box 1 onto the extraction outlet 15.
-
Align ▲ 1a on the adapter for dust box 1 with □ on the dust box 2.
-
Locking: Rotate the dust box 2 in clockwise direction until ▲1a points to 🔒.
Removing the dust box
- Rotate the dust box 2 in anti-clockwise direction until ▲ 1a points to □.
- Remove the dust box 2 from the adapter for dust box 1.
External dust extraction
- Remove the adapter for dust box 1 from the extraction outlet 15.
- Place the o-ring in the groove of the extraction outlet 15.
- Connect the end of the hose coupler to the extraction outlet 15.
● Fitting/changing the sand grid
(Fig. D)
WARNING! Risk of injury!
Always switch the product off, remove the battery pack 6 and let the product cool down before making any adjustments.
- Align the shape of the sand grid 14 to the sanding attachment on the product.
- Use the hook-and-loop fabric to attach the sand grid 14 to the product.
Operation
- Switching on/off
CAUTION! Risk of injury!
Always wear protective gloves when handling or working with the product.
CAUTION! Risk of injury!
Before switching on the product: Ensure the sand grid 14 is not in contact with the workpiece.
▶ Ensure your stance is stable.
Always hold the product firmly with both hands while working.
Keep your hands away from the sand grid 14 when the product is in operation.
NOTE
The required orbital stroke rate is dependent on the material and the work conditions and can be determined using practical tests.
Preselecting the vibration rate
☐ Selecting the desired speed: Press the speed control button 7 once or several times.
| Vibration level | Vibration rate (min ^-1 ) |
| 1 12,000 | |
| 2 12,800 | |
| 3 14,000 | |
| 4 16,000 | |
| 5 18,000 | |
| 6 20,000 |
Switching on
□ Press the on/off switch 3.
Switching off
☐ Press the on/off switch 3 again.
● Working instructions
CAUTION! Risk of injury and damage to property!
▶ Secure the workpiece with the aid of clamping devices on the workbench.
⚠️ CAUTION! Risk of injury and damage to property!
Always make sure that the workplace is well ventilated.
Avoid over-stressing the product while working.
▶ Use appropriate sand grid ^14 for working different materials.
Switch the product on before applying the product to the workpiece.
▶ Apply minimal pressure when working.
▶ Work at a constant speed.
▶ Never use the same sand grid ^14 for sanding different materials (e.g. wood followed by metal). Optimum sanding results can only be achieved by using clean sand grid.
Guide the product over the workpiece in parallel. Use overlapping sanding motions.
After completing the task: Lift the product from the workpiece. Switch the product off.
● Cleaning and care
⚠ WARNING! Risk of injury!
Always switch the product off, remove the battery pack 6 and let the product cool down before making any adjustments.
Cleaning
NOTE
Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.
■ Never allow fluids to get into the product.
□ Always keep the product clean, dry and free from oil or grease.
☐ After each use and before storage: Remove debris from the product.
☐ Regular and proper cleaning helps to ensure safe use and prolongs the life of the product.
Cleaning the product
□ Clean the product with a dry cloth.
☐ Use a soft brush for areas that are hard to reach.
☐ In particular, clean the air vents after every use with a cloth and soft brush. The vents must always be clear.
Cleaning the dust box
(Fig. G, H)
☐ For a thorough cleaning: Open the dust box 2.
☐ Use a slotted screwdriver to push the clip 16 down and away from the slot of the dust box 2. Empty the dust box thoroughly.
Maintenance
Before and after each use: Check the product and accessories for wear and damage. If required, replace worn or damaged accessories. Observe the technical requirements (see “Technical data”).
☐ Check covers and safety devices for sound condition and correct installation. If that is not the case, have them replaced by an expert.
☐ Change the sand grid 14 regularly.
Repair
☐ This product does not contain any parts that can be repaired by the user.
□ Contact an authorised service centre or a similarly qualified person to have the product checked and repaired.
● Replacement parts/Accessories
□ Customers can obtain compatible replacement parts and accessories via www.optimex-shop.com.
□ Have the order number ready for your order.
☐ You can only place orders online.
□ Contact the Lidl service hotline (see "Service") for further information.
| Replacement part/Accessory | Order number |
| 1Adapter for dust box 99948561901 | |
| 2Dust box 99948561902 |
Storage
□ Clean the product (see "Cleaning").
□ Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
□ Always store the product in a place that is inaccessible to children.
☐ The ideal temperature for a long term storage (longer than 3 months) is between +20 °C and +26 °C.
□ Store the product in its carrying case.
Battery pack
☐ Before storing for extended periods: Only store the battery pack 6 partially charged. The battery pack should be charged at 40 % to 60 % (red and orange charging level LEDs 9 light up).
☐ When storing for extended periods: Check the charging level of the battery pack 6 about every 3 months. Recharge the battery pack, if necessary.
- Transportation
□ Transport the product in its carrying case.
☐ Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
☐ Secure the product to prevent it from slipping or falling over.
- Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.
Product:
The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility.
Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.
The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries/rechargeable batteries must be recycled. Return the batteries/rechargeable batteries and/or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries/rechargeable batteries!
Remove the batteries/battery pack from the product before disposal.
Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 5 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.
Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.
Should the product show any fault in materials or manufacture within 5 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.
This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.
● Warranty claim procedure
So that your request can be processed quickly, please observe the following instructions:
For all inquiries, please have the receipt and item number (IAN 485619_2501) ready as proof of purchase.
The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.
If malfunctions or other defects arise, first contact the service department indicated below by phone or email.
You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.
Service
GB Service Great Britain
Tel.: 0800 0569216
E-Mail: owim@lidl.co.uk
IE Service Ireland
Tel.: 1800 200736
E-Mail: owim@lidl.ie
● EU declaration of conformity
EU DECLARATION OF CONFORMITY (No 485619\_2501-1)
IAN: 485619_2501
Product identification:
"PARKSIDE" Cordless Random Orbital Sander
Model Number: HG13576
The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
| Directive 2006/42/EC |
| Directive 2014/30/EU |
| Directive 2011/65/EU and all related amendments |
References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:
| N° / Parts |
| Directive 2006/42/EC |
| EN 62841-1:2015/A11:2022 |
| EN 62841-2-4:2014/AC:2015 |
| Directive 2014/30/EU |
| EN IEC 55014-1:2021 |
| EN IEC 55014-2:2021 |
The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:
| N° / Parts |
| EN IEC 63000:2018 |
Keeper of the technical documentation: OWIM GmbH & Co.KG
Signed for and on behalf of:
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Translation of the original declaration of conformity
Neckarsulm 15.07.2025
Place
Date
Authorised Signatory Authorised Signatory
EN
- Activer/désactiver
⚠️ PRUDENCE ! Risque de blessures !
