USER MANUAL Four Maxi Osann

Thank you for choosing our child car seat. If you need help with this product, please contact our customer service.

HOW TO USE

• This product is suitable for children between 100 and 150 cm in height.
• Forward-facing installation for children between 100 to 150~cm in height made possible thanks to the Isofi x connectors. The child is strapped in with the car's 3-point seat belt. Alternatively, the child car seat in the 100-150 cm size class can also be fitted using the 3-point seat belt only. Connection with the Isofi x connectors is not mandatory, but it is recommended.

NOTE

This is an optimised i-Size children's booster seat. It is approved under Regulation No. 129 for use primarily on "i-Size vehicle seats" as specified by vehicle manufacturers in the vehicle manual. If in doubt, the manufacturer of the enhanced child restraint system or the retailer should be consulted.

IMPORTANT - DO NOT USE THE CHILD CAR SEAT IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 3.

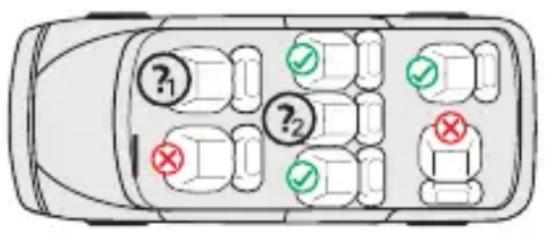

1 & 2): When used with Isofi x: This only applies if Isofi x connectors are available and the seat is recognised as i-Size-compatible in the vehicle manual.

The following table provides information about the fastening devices and methods:

Size class	Installation direction	Installation Type Child safety device
100-150 cm	Forward-facing	Isofi x connectors & 3-point car seat belt	i-Size Booster seat	3-point car seat belt
100-150 cm	Forward-facing	3-point car seat belt	i-Size Booster seat	3-point car seat belt

WARNING

• Please read through these instructions carefully before use in order to guarantee the safety of your child. Retain the instructions. Non-compliance with the instructions in this manual may result in serious injuries to your child.
• For Isofi x installation: Be sure to read the car manufacturer's manual.
• Do not use load-bearing contact points other than those described in the instructions and indicated on the child restraint system.
• Do not use this child car seat at home. It has been designed exclusively for use in a car.
• Do not leave your child unsupervised in the seat at any time.
• The child seat must be replaced if it has been subject to severe mechanical stress in an accident.
• For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.
• Always make sure that all straps that attach the child car seat to the vehicle are secure and that all belts that restrain the child are adjusted to fit the child's body. Ensure that the belts are not twisted.
• Items of luggage and other objects that could cause injury in the event of a collision must be properly secured.
• The rigid elements and plastic parts of a child restraint system must be positioned and installed so that they cannot become jammed by a movable seat or a vehicle door.
  It is important that belts that sit low hold the child's pelvis firmly in place. Your child should always be fastened in to stop them falling out.
• It is dangerous to make changes or additions to the product without approval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraint system may also present risks to the safety of your child.
• This child seat is designed for children with a maximum height of 150~cm . Never overload the child seat by transporting more than one child or additional loads in it.
• The child restraint system must not be used without the seat cover.
• The seat cover must not be replaced by a cover other than that recommended by the manufacturer, as this seat cover is an important component of the restraint system.

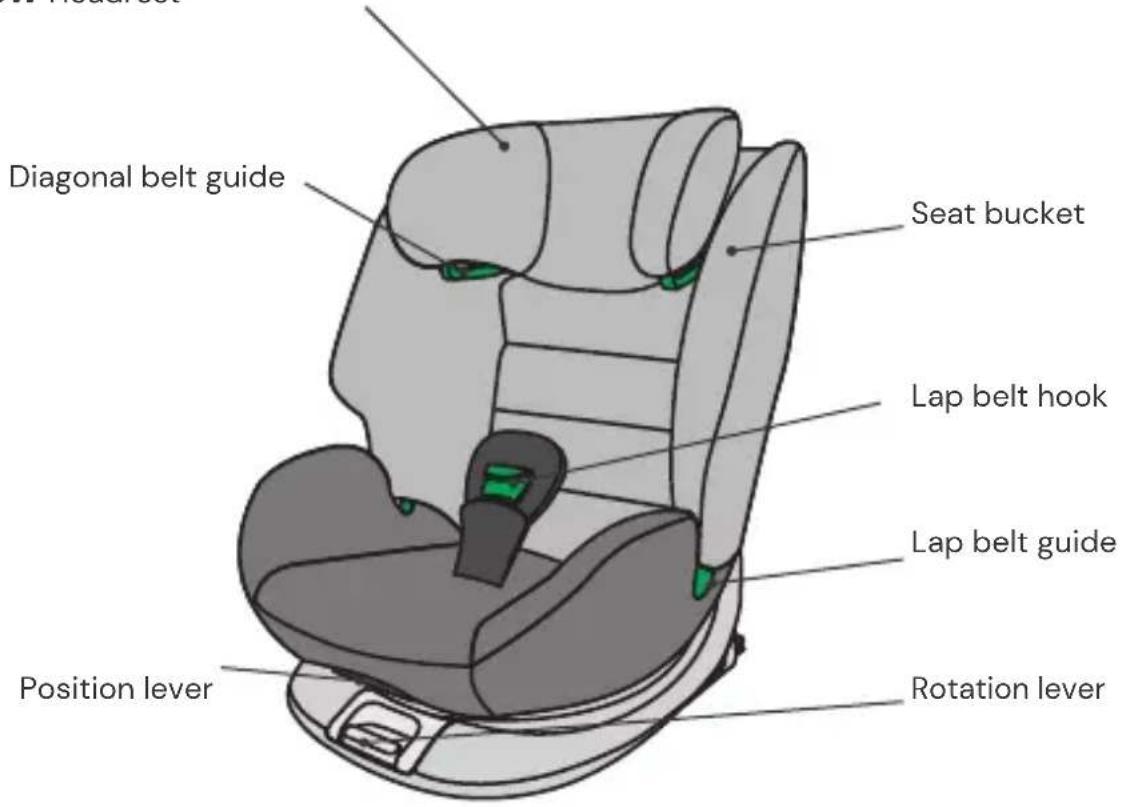

SEAT PARTS

Front view Headrest

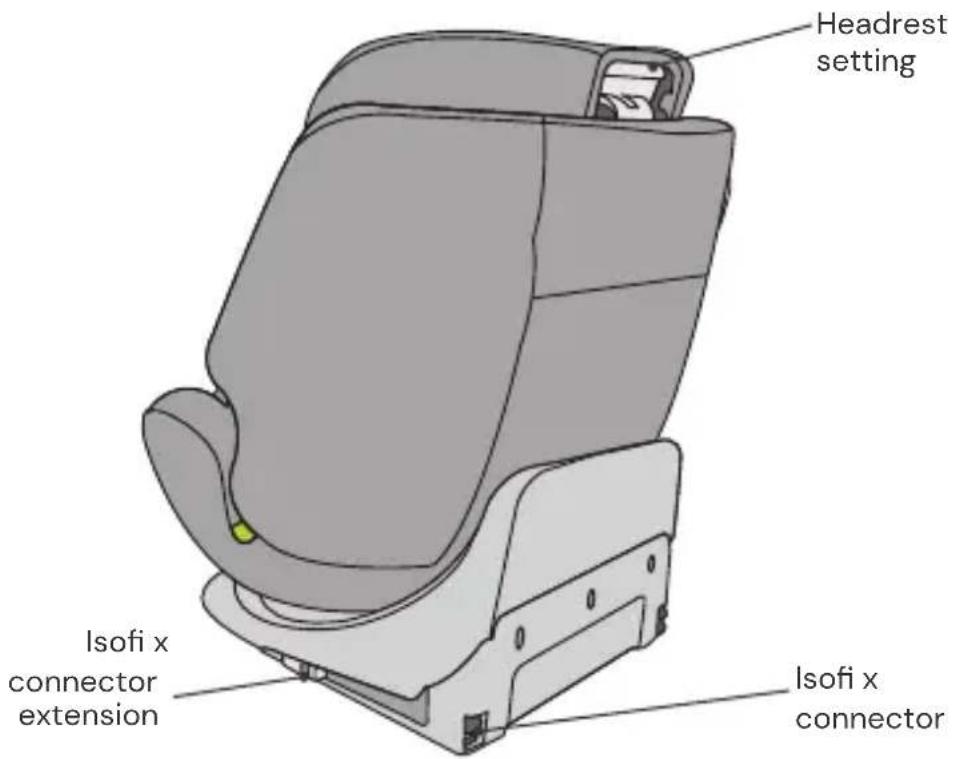

Rear view

USING THE CHILD CAR SEAT

Setting the child car seat tilt angle

• Operate the position lever on the lower front of the seat bucket with one hand.
• Hold the seat pan with the other hand and adjust the angle.

The following seat positions are possible:

(Pleasesee the label on the child car seat)

Forward facing, body size:

100-125 cm: 4 positions (1 to 4)

126-150 cm: 1 position (1)

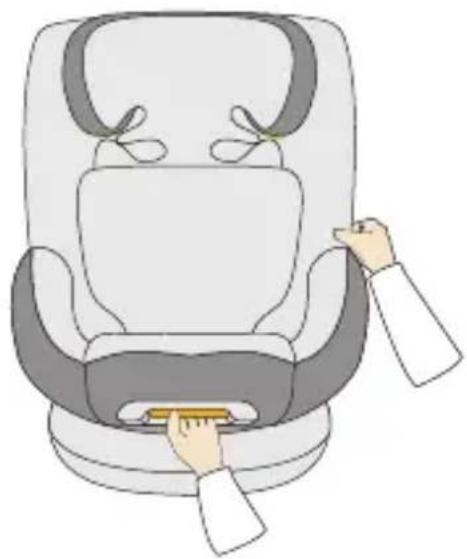

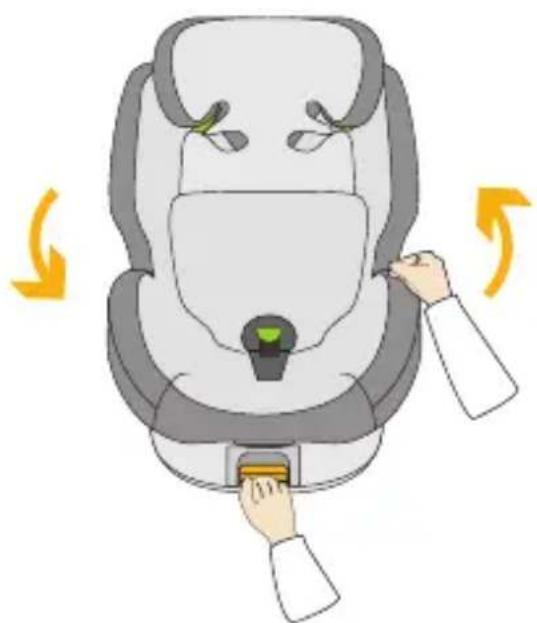

Rotating the child car seat

• Pull the rotation lever at the front of the base with one hand and use the other hand to turn the seat unit to the side position or in the direction of travel.
• The side position is only intended to facilitate the child's entry. This position must not be used while driving.

Adjusting the headrest

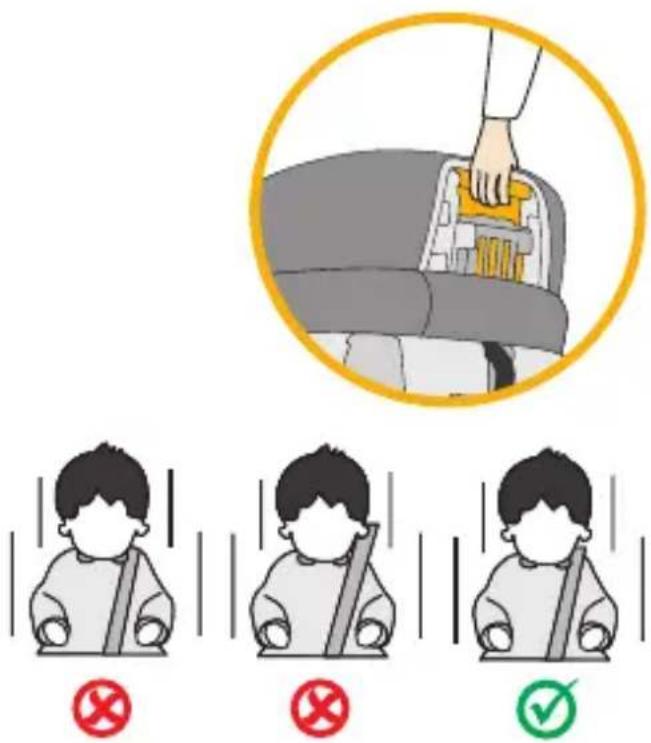

• Pull up the headrest adjustment lever on the back of the child car seat and adjust the height of the headrest.
• Thread the diagonal belt of the car's 3-point seat belt through the diagonal belt guide on the headrest.
  Make sure that the diagonal strap of the car's 3-point seat belt comes out of the diagonal strap guide on the headrest just above your child's shoulders.
• Release the lever and ensure that the headrest is engaged.

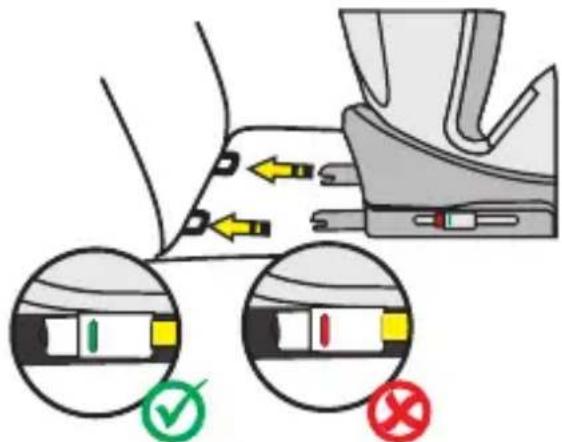

Isofi x connectors

• Press the two lateral Isofi x connector buttons in order to extend the length of the Isofi x connectors.
• Guide the Isofix connectors onto the Isofix anchor points on the seat of the vehicle and ensure that they lock into position.
• Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Ensure that both Isofi x indicators are showing green.

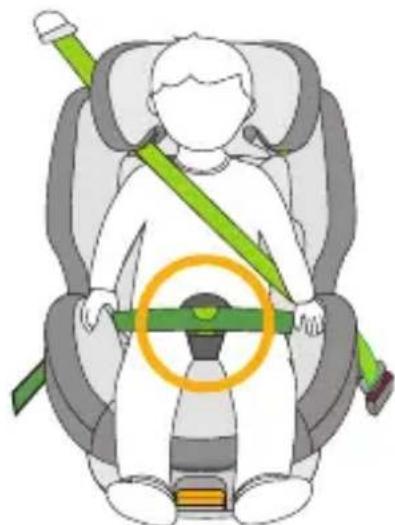

Lap belt hook

• When fastening the child, please ensure that the lap belt of the car's 3-point belt runs inside the lap belt hook. Make sure that the belt is not twisted.
  WARNING: The diagonal belt must not run inside the lap belt hook.
• Use of the lap belt hook is optional.

CLEANING

To guarantee the long-term usage of your child car seat, do not use any solvents, abrasive cleaners or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and of the seams after each wash. When washing the fabric, carefully follow the instructions on the label (see below).

Wash at 30^ gentle wash cycle

DO NOT iron

DO NOT bleach

DO NOT dry clean

Tumble dry at low temperature

MAINTENANCE

Regularly check the condition of the product for possible damage. In the event of damage, the child car seat must no longer be used and must be stored out of the reach of children.

In case of any issues, please contact Osann customer service on [phone].

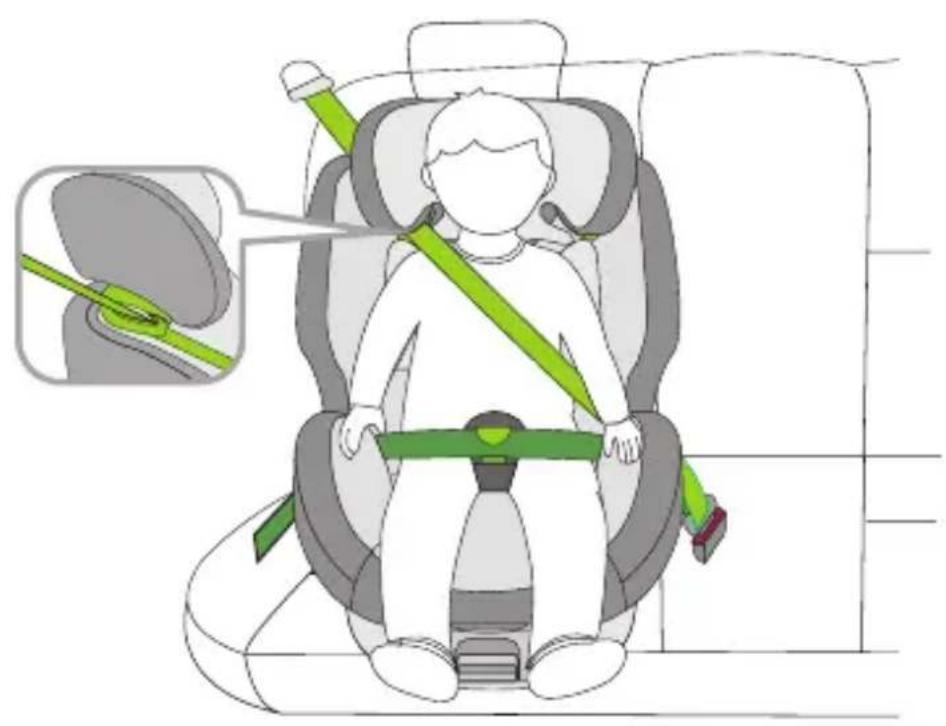

INSTALLATION OF THE CHILD CAR SEAT

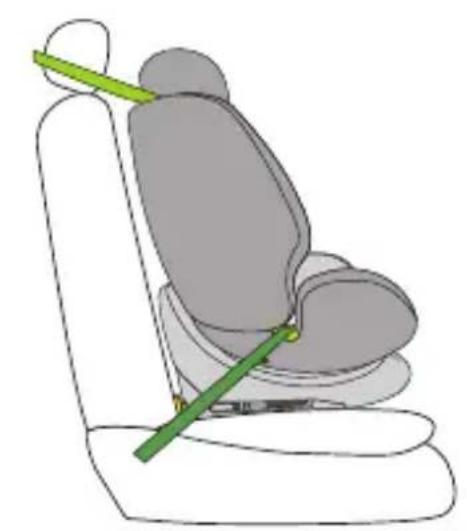

3) Size class 100-150 cm, forward-facing

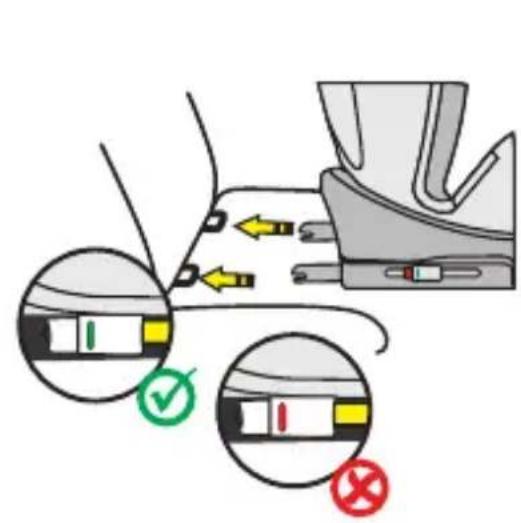

1. Press the two lateral Isofix connector buttons in order to extend the length of the Isofix connectors.
2. Guide the Isofix connectors to the Isofix anchor points on the car seat and snap them into place.
3. Push the child car seat in until it rests securely against the backrest of the car seat. Ensure that both Isofi x indicators are switched to green.
4. Thread the diagonal belt of the 3-point seat belt in the car through the diagonal belt guide on the headrest of the child car seat.
5. Thread the lap belt of the car's 3-point seat belt through the first lap belt guide in the seat area of the child car seat.
6. When placing your child in the child car seat, turn the car seat towards the car door for convenience.
   7.Put your child in the child car seat.
7. Adjust the height of the headrest so that the child's head is fully in the headrest and the diagonal belt comes out through the belt guide at the level of the child's shoulders.
8. Turn the seat into the forward-facing position. Check that the child car seat is locked in this position.
   10.Close the belt buckle of the 3-point seat belt until you hear a click.
9. Make sure that the lap belt runs inside the lap belt hook. Use of the lap belt hook is optional.
10. Make sure that both the diagonal belt and the lap belt run through the second lap belt guide on the child car seat which faces the car's seat belt buckle.
    13.Pull on the diagonal strap to tighten it. Make sure that the straps are not twisted.
11. The child car seat has the following adjustable seat positions in the direction of travel: 100-125 cm: 4 positions (1 to 4); 126-150 cm: 1 position (1).

Installation without Isofi x:

Alternatively, the child car seat in the 100-150 cm size class can also be fitted with the 3-point seat belt only. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended.
