USER MANUAL 80970 VOREL

PL ZESTAW PNEUMATYCZNY SZLIFIERKA MINI

EN PNEUMATIC MINI GRINDER KIT

DE DRUCKLUFTSATZ MINISCHLEIFGERÄT

LT PNEUMATINIS RINKINYS ŠLIFUOKLIS MINI

LV PNEIMATISKS KOMPLEKTS SLIPMAŠINA MINI

CZ PNEUMATICKÁ BRUSKA MINI - SOUPRAVA

SK PNEUMATICKÁ BRÚSKA MINI – SÚPRAVA

HU MINI PNEUTAMIKUS CSISZOLÓGÉP KÉSZLET

RO TRUSĂ MINIPOLIZOR PNEUMATIC

Top-down view of a mechanical tool kit with cylindrical spring and tool holder (no visible text or symbols)

CE

PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR

Technical diagram of a device interior with numbered components for identification

Close-up of a metallic mechanical tool with a threaded connector and threaded end (no visible text or symbols)

Technical diagram of a mechanical or fluid system with numbered components, likely an engine or pump assembly.

Close-up of gloved hands holding a metallic cylindrical tool with a transparent cable, no visible text or symbols.

Close-up of two metallic mechanical components with threaded ends, shown from front and side views (no text or symbols visible)

Close-up of two mechanical components with coiled wires and a tool, shown from different angles (no text or symbols visible)

Read the operating instruction

Wear protective goggles

Schutzbrille tragen

Wear hearing protectors

Gehörschutz tragen

Maximum air pressure

Max. Betriebsdruck

Nominal rotation speed

Required air supply rate

Air connection diameter

PRODUCT CHARACTERISTICS

Pneumatic mini grinder kit is powered with a stream of compressed air at the appropriate pressure. Due to its compact size, the grinder can be used wherever normal-sized grinder cannot be used. For example, during finishing works, craft and high precision works. Due to the universal shank it is possible to work by using the grinding stones embedded on mandrels. The device is designed to be used only in private households and should not be used professionally, i.e. in factories and for commercial tasks. The tool is not designed for continuous operation. Recommended mode of operation is casual work during 5 minutes, then you should wait for 30 minutes, to cool the tool. Correct, reliable, and safe operation of the device is dependent on its proper use, therefore:

Prior to working with the tool, you should read all the instruction and keep it around.

For any damages or injuries caused by the tool misuse, resulting from failure to comply with its designation, non compliance with safety regulations and recommendations included in this manual, the supplier does not accept any liability. Using the product without compliance to its intended to sign, results also in the loss of user's rights to the guarantee, as it would be a non-compliance with the contract.

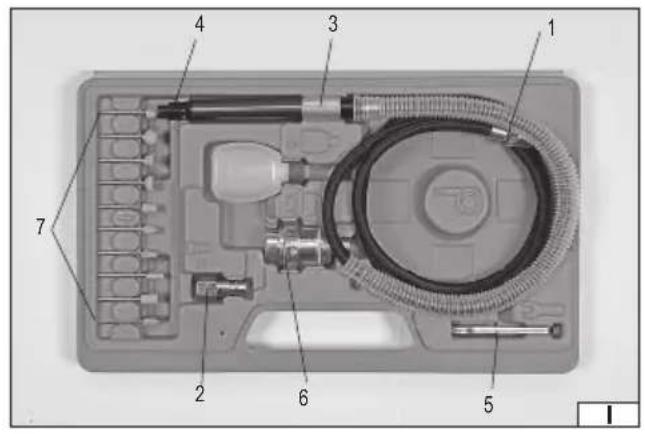

EQUIPMENT

The grinder is equipped with a coupling to attach it to the pneumatic system. the device is also equipped with the keys, which allow you to attach an accessory in the holder mini air lubricator, oil lubricator and the set of grinding stones on mandrels.

TECHNICAL DATA

Parameter Unit Value
Catalog number 80970
Weight [kg] 0.35
The diameter of the air connection (PT) [°] / [mm] 1/4
The diameter of the air inlet hose (internal) [°] / [mm] 3/8 / 10
Rotations [min]	-1] 54 000
Diameter of tool holder [mm]	3
Maximum operation pressure:	[MPa] 0.63
Required air flow (at 6.2 bar)	[l/min]	113
Sound pressure (ENISO 15744) [dB(A)]	79 ± 3
Sound power (ISO 15744)	[dB(A)]	90 ± 3
Vibration (EN 28662-1)	[m/s2]	<2.5

GENERAL SAFETY CONDITIONS

WARNING! When you are working with an pneumatic tool, we recommend that you always comply with the basic principles of occupational safety, including the principles presented below, in order to reduce the risk of fire, electric shock and to prevent injuries.

Prior to working with the tool, you should read all the instruction and keep it around.

ATTENTION! Read all the instructions below. Failure to comply with them can lead to electrical shock, fire or personal injury. The concept of “pneumatic tool”, which is used in the instructions, refers to all tools, which are driven by a stream of air compressed at the right pressure.

COMPLY WITH THE FOLLOWING INSTRUCTIONS

General safety conditions

Before starting the installation, work, repair, maintenance and changing of accessories, or when you are working near pneumatic tool, because of many risks, you should read and understand the safety instructions. if the above mentioned steps are not taken, it may result in serious injury. Installation adjustment and installation of pneumatic tools may be performed only by qualified and trained staff. Do not modify the pneumatic tool. Modifications can reduce the efficiency and level of security, and increase the risk for a tool operator. Do not discard the safety instructions, you must pass them to the tool operator. Do not use pneumatic tool, when it is damaged. The tool should be subject to periodic inspections for visibility of the data required by ISO 11148. The employer/user should contact the manufacturer for replacement of a rating plate whenever it is necessary.

Hazards associated with moving parts

Damage to the workpiece, accessories or even the inserted tool can cause the ejection of parts at high speed. Always use the

EN

eye protection which is impact-resistant. Degree of protection should be selected depending on the work to be done. You should make sure, that the work piece is securely clamped. You should regularly check whether the rotation speed is not higher than the values shown on the rating plate. Control should be performed without mounted inserted tool, and in accordance with the manufacturer's recommendations. Make sure, that sparks and debris created during operation do not cause hazards. Disconnect the tool from its power supply before changing the inserted tool or before maintenance. You must constantly take into account the risk to bystanders.

Risks of getting tangled

The risk of getting tangled may cause choking, scalping and/or injury, when loose clothing, jewelry hair or gloves are not kept away from tools or accessories.

The risks associated with the work

To prevent cuts of hands and other parts of the body, you should avoid contact with a rotating spindle and the inserted tool. Use of the tool may expose the operator's hands for threats, such as crushing, impact, cut-off, abrasion and heat. You should dress appropriate gloves to protect your hands. The operator and maintenance personnel should be physically able to cope with the quantity, the weight and power of the tool. Grip the tool properly. Be ready to withstand normal or unexpected movements and always keep both hands ready. Keep balance and ensure the safe foot positioning. Use protective glasses, it recommended to use tight gloves and protective clothing. Do not use the rotary file at a speed which is exceeding the speed rating. When you are working over your head, use protective helmet. Be careful because the inserted tool is spinning for some time after the release of the actuator. Depending on the workpiece, you should take into account the risks of explosion or fire.

The risks associated with repetitive movements

During the application of the pneumatic tool for work consisting of the repetition of movements, the operator is exposed to experience discomfort in hands, arms, shoulders, neck or other parts of the body. In the case of use of pneumatic tool, the operator should take a comfortable posture for correct setting of feet and should avoid postures, that are strange or not providing the balance. The operator should change posture during the long work, this will help to avoid discomfort and fatigue. If the operator is experiencing symptoms such as persistent or recurring discomfort, pain, pulsed pain, tingling, numbness, burning or stiffness. Operator should not ignore them, should tell the employer about it and consult a doctor.

The risks associated with accessories

Disconnect tool from the power supply before changing the inserted tool or accessory.

Use accessories and supplies only in sizes and types, which are recommended by the manufacturer. Do not use accessories in other sizes and types. Avoid direct contact with the inserted tool during or immediately after work, it can be hot or sharp.

Check whether the maximum speed of the inserted tool is greater than the rated speed of a sander or polisher. Check whether the maximum speed of the inserted tool is greater than the rated speed of the tool. You should never mount a grinding wheel, cutting wheel or milling cutter on the tool grinding machine. The grinding wheel, which has been done damaged can cause very serious injury or death. Do not use any discs which are cracked or broken, or discs, which have been dropped. Use only the allowed inserted tools of an appropriate diameter of the mandrel. Please pay attention, that the rotational speed of the installation point must be reduced due to the increase in the lshaft length between the end of the sleeve, and the installation point. Make sure, that the minimum length of the mandrel which is clamped in the tool holder is at least 10 mm (you should also take into account the recommendations of the manufacturer of inserted tool). Beware of errors by adjusting the diameter of the mandrel of inserted tools and clamping of the pneumatic tool.

Risks associated with the workplace

Slips, trips and falls are the main causes of injuries. Beware of slippery surfaces, caused by the use of tools, and threats of tripping caused by the pneumatic system. Proceed with caution in an unknown environment. There may be hidden threats, such as electricity or other utility lines. Pneumatic tool is not intended for use in potentially explosive atmospheres and is not isolated from contact with electricity. Make sure, that there are no electric wires, gas pipes, etc., that can cause a threat in the event of their damage by using the tool.

Hazards arising from vapors and dust

Dust and fumes caused by using a pneumatic tool can cause bad health condition (such as cancer, birth defects, asthma and/or inflammation of the skin). There are necessary: a risk assessment and implementation of appropriate control measures in relation to those risks. The risk assessment should include the effect of dust created by using tools and the possibility of excitation of the existing dust. The air outlet must be aimed to minimise generating dust in a dusty environment. Where dust or fumes are created, priority should be to control them at the source of their emission. All integrated functions and equipment for collection, extraction or reduction of dust or fume should be properly operated and maintained in accordance with manufacturer's recommendations. Wear suitable respiratory protective equipment, in accordance with the instructions of an employer and in accordance with the requirements of hygiene and safety. Service and maintenance of the pneumatic tool should be carried out according to the recommendations of the manual. This will minimize the emission of fumes and dust. You should select, maintain and exchange inserted tools according to the manual, to prevent increase of and dust. Treatment of certain materials can cause fumes and dust, that produce a risk of explosion.

EN

Noise hazard

Exposure, without any protection, for high noise levels can cause permanent and irreversible hearing loss and other problems, such as tinnitus (ringing, buzz, whistling or humming in the ears). It is necessary to perform the risk assessment and implement appropriate control measures in relation to those risks. The appropriate checks, performed in order to reduce the risk, may include activities such as: application of insulation materials to prevent the "ringing" of the workpiece. Use hearing protection in accordance with the instructions of employer and in accordance with the requirements of hygiene and safety. Service and maintenance of the pneumatic tool should be carried out according to the recommendations of the manual, to avoid the unnecessary increase of noise level. If the pneumatic tool has a muffler, you should always make sure that it is correctly mounted when you use the tool. Select, maintain and replace worn inserted tools according to the recommendations of the manual. This will allow to avoid the unnecessary increase in noise.

Risks of vibrations

Exposure to vibration may cause permanent damage to the nerves and blood supply to the hands and arms. You should stay away from the screw driver sockets. You should wear warm clothing when working at low temperatures and you should keep your hands warm and dry. If you experience numbness, tingling, pain or skin whitening in the fingers and hands, you should discontinue the use of pneumatic tool, and then inform your employer and seek medical advice. Operation and maintenance pneumatic tool according to the recommendations of the manual, will allow avoid the unnecessary increase of vibration. Do not use worn or ill-fitting caps, because it can cause a significant increase in the level of vibration. Select, maintain and replace worn inserted tools according to the recommendations of the manual. It will allow to avoid the unnecessary increase of vibration. Where it is possible the covering assembly should be used. If it is possible, you should subpart the weight of the tool in a rack, tensioner or equivalent. Hold the tool, with light but a firm grip, taking into account the required reaction forces, because the risk from vibration is usually much larger, when the grip force is higher. An improperly mounted or damaged inserted tool can cause an increase in vibration.

Additional safety instructions for pneumatic tools

Air under pressure can cause serious injury:

- always shut off the air supply, drain hose of air pressure and detach tool from air supply, when it is not in use, before changing accessories or performing repairs;

- never direct the air stream at yourself or anyone else.

Hose hitting can cause serious injury. You should always check for damaged or loose hoses and fittings. Cold air should be directed away from the hands

Every time when there are used universal screwed connection (claw couplings), you should apply the protecting pins and connectors against the possibility of damage to the connections between the hoses and between the hose and tool. Do not exceed the maximum air pressure specified for the tool.

Never carry the tool, by holding it by the hose.

OPERATING CONDITIONS

You should also make sure that the source of compressed air allows you to create the proper working pressure and that it provides the required air flow. In the case of a too high air pressure, a reducer should be used together with a safety valve. The pneumatic tool must be powered by the system of a filter and lubricator. This will ensure, at the same time, the air, which is pure and moistured by oil. The state of the filter and lubricator should be checked before each use, and possibly clean the filter or refill shortage of oil in the lubricator. This will ensure proper operation of the tool and will extend its service life.

If you use any additional handles or supporting racks, you should make sure, that the tool is mounted correctly and securely. You should adopt an appropriate posture to counteract the normal or unexpected movement of the tool, caused by its torque.

Be careful of your work surroundings, the grinder machine can easily cut through something.

Do not use any grinding wheels and tools designed for grinding their surface side, for cutting.

Do not use any cutting discs or wheels for milling.

When you turn off the grinder, you should wait with its stacking, until a complete stop to the rotating tool.

Before the installation of additional equipment, you should make sure the maximum speed of the equipment is higher than the speed of the grinder. Do not use any equipment with handles of other dimensions than those specified in the instructions. Do not modify the grinding wheel mandrel to fit it to the diameter of the grip handle. Insert tool must be firmly and securely mounted in the tool holder. Do not use reduction rings and sleeves, in order to match the diameter of the tool spindle and grinding wheel. Do not modify the grinder holder to fit it to the mandrel diameter of the grinding wheel.

Abrasive element of the getting wheel should be stored and used in accordance with its manufacturer's instructions. Do not use damaged equipment. Equipment with any faults must be replaced immediately to new and efficient. Check the status of the spindle and tool holders for wear or damage.

Do not operate the grinder in a place with a high risk of explosion. The sparks, which are produced during operation, can cause a fire.

After mounting the grinding wheel you should run it for about 30 seconds in a safe position. Immediately stop the device, if you observe a large vibration or other defects in the grinder behavior.

Any irregularities must be removed before the next launch of the grinder.

You should make sure that the grinding speed is not greater than the speed which is specified on the rating plate.

EN

During processing of certain materials, poisonous or combustible dusts and fumes can be created. Work in well ventilated areas and use personal protective equipment.

When you are selecting safeguard measures you should take into account the type of workpiece.

You should make sure, that sparks and debris created during operation do not cause any hazards.

Use personal protective equipment such as gloves, apron, helmet.

In the case of dropped tools with a mounted grinding wheel, before subsequent switching it on, you should carefully check the condition of the grinding wheel.

Before each use, you should check that none of the components of the product is damaged. If you notice any damage, you should replace the element immediately with new one, undamaged system component.

Before each use of the the pneumatic system, you should dry the moisture condensed inside the tool, compressor and pipes.

ATTENTION! To power the pneumatic tool you should use only compressed air. It is forbidden to use any other gas for that purpose, especially fl ammable gases.

Connecting the tool to pneumatic system

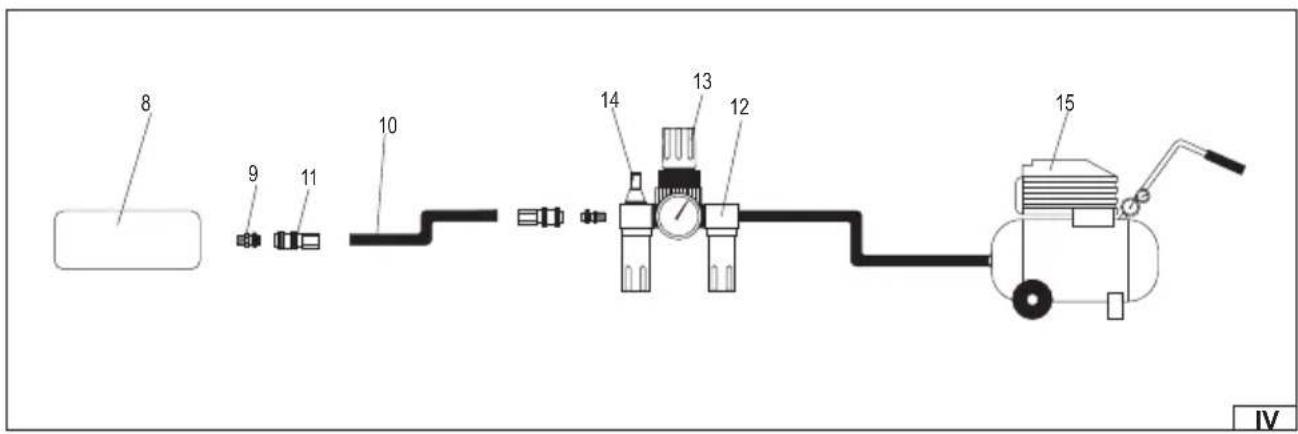

The figure shows the recommended connection of tool to the pneumatic system. Presented method will ensure the most efficient use of tool, and also it will extend the service life of the tool.

Let a few drops of oil with viscosity SAE 10 to the air intake.

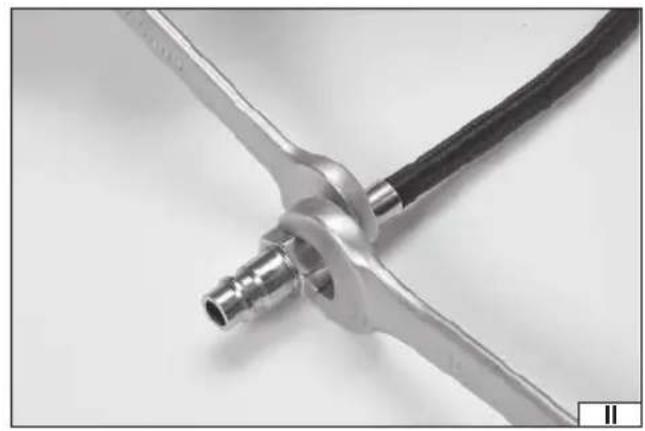

To the thread of air inlet tightly and firmly screw the appropriate tip allowing for the connection of an air supply hose (II).

On the tool driver you should mount an appropriate grinding wheel. If the grinding wheel has a specified direction of rotation, then it must be consistent with the direction of rotation on the tool. Make sure, the grinding wheel is designed to work with pneumatic tools, and its permissible rotational speed is equal to or higher than the rotational speed of the grinder.

Make sure, that the switch – speed regulator was rotated in the position marked "OFF" (III).

Connect the tool to an air system by using the hose with an inner diameter of 10 mm / 3/8 “. Make sure, that the strength of the hose is at least 1.38 MPa.

Run the tool for a few seconds by turning the switch – speed controller to the stop in the direction of the position marked "ON". Make sure, that the tool does not issue any suspicious sounds or vibrations.

Adjust the rotational speed by using the switch - speed control. Rotation in the direction marked "ON" increases the speed and in the direction of the "OFF" reduces the speed until the cessation of rotation.

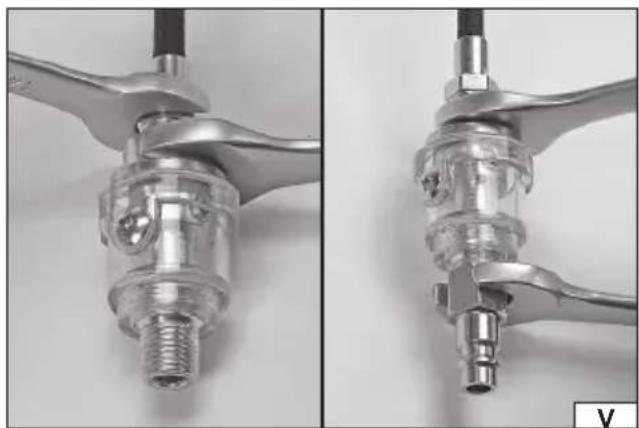

Installation and replacement of equipment (V)

Make sure, that the maximum rotational speed is higher, than the rotational speed of the grinder. You should follow the recommendations of manufacturers of grinding wheels in relation to their speed and the mandrel length, which should be mounted in the spindle.

Make sure, that the grinder has been disconnected from the compressed air supply.

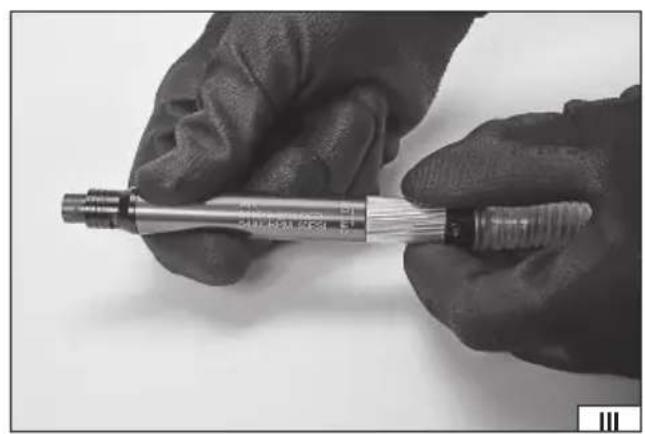

By blocking with one key possibility of the spindle rotation, you should by using the second key loosen the nut of the tool holder.

Mount a piece of equipment, so at least 10 mm of the mandrel is located inside the spindle.

By using keys, tightly and firmly screw the nut which is locking the spindle. Remove keys before connecting the tool to pneumatic system with compressed air.

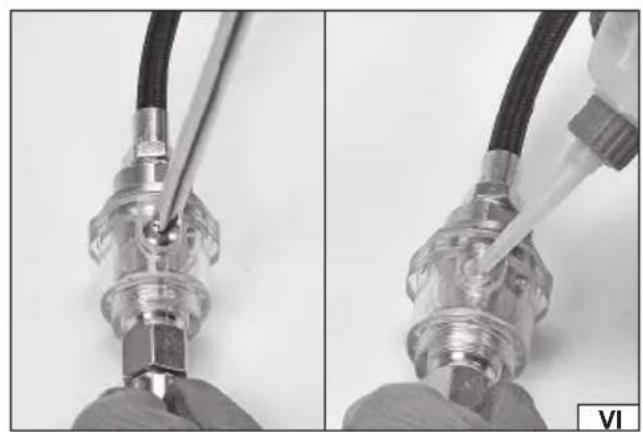

The grinder is equipped with air lubricator, which you can use when the compressed air supply system is not equipped with and lubricator. Lubricator should be installed at the inlet of compressed air to the tool, then you should screw to it the appropriate tip, which will allow for an air inlet hose connection (VI).

On the case of the lubricator there is the screw (VII), which is an oil tank valve, after unscrewing it, you should fill in the tank with oil designed for use in pneumatic tools, SAE viscosity 10, and then close the oil tank valve by tightening the screw. The lubricator optimal position for work is a vertical position with the air inlet facing downwards. During work you should regularly refill oil.

Operation of the sander

Choose the appropriate tool for a given operation mode. Before starting work, you must allow for grinding wheel to reach its full speed. Only the rotating grinding wheel should be applied to a workpiece.

You should apply only such pressure to the tool, which is required for the material processing. Too much pressure can damage the grinding wheels and increase the risk of injuries.

During work the sparks can occur and workpiece fragments of the workpiece can tear off. You should ensure that the that sparks and tear-off fragments would not create risks in the workplace.

MAINTENANCE

Never use gasoline, solvent, or any other flammable liquid to clean the tool. The vapors can be ignited, causing the tool explosion and serious injury.

EN

Solvents, which are used to clean the tool holder and the body, can cause seals softening. Thoroughly clean the tool before starting your work.

In case of finding any irregularities in the tool operation, the tool you should be immediately disconnect from the pneumatic system.

All the elements of the pneumatic system must be protected against contamination. Contamination, which enters the pneumatic system, can damage the tool and other air system components.

Maintenance the tool before each use

Disconnect the tool from the pneumatic system.

Before each use, let a small amount of liquid preservative (e.g.. WD-40) through the air intake.

Connect the tool to pneumatic system and run for about 30 seconds. This will distribute the liquid preservative inside the tool interior and will clean it.

Again, disconnect the tool from the pneumatic system.

Let small amount of oil SAE 10 to the inside of the tool, through the air inlet and the holes intended for this purpose. It is recommended to use oil SAE 10 intended for maintenance of pneumatic tools. Connect the tool and run it for a short time.

Attention! Maintenance liquid may not be used as an appropriate lubricating oil.

Remove excess of oil, that spill out through the holes. Left oil may damage the tool seals.

Other maintenance operations

Before each use, you should check whether the tool shows any traces of damages. Drivers, tool holders and the spindles must be kept clean.

Every 6 months or after 100 hours of operation, you must pass the tool for inspection by the qualified personnel in the repair shop. If the tool was used without the application of recommended air supply system, you should increase the frequency of the tool inspections.

Troubleshooting

You should stop using the tool immediately after the disguardy of any fault. Work with a defective tool can cause injury. Any repair or replacement of tool components must be carried out by qualified personnel in authorized repair facility.

Failure Possible solution
The tool has too slow rotations or it does not start	Let a small amount of the preservative liquid through the air inlet. Run the tool for a few seconds. The blades may stick to the rotor. Run the tool for about 30 seconds. Lubricate the tool with small amount of oil. Attention! The excess of oil can cause a decrease in power of tool. In this case, you should clean the drive.
The tool starts and then slows down	The compressor does not provide proper air supply. The tool starts by the air collected in the tank of compressor. As the tank is emptying, the compressor has not kept pace with the refilling of air shortages. Connect the device to a more efficient compressor.
Insufficient power	Make sure, that your hoses have an internal diameter, at least such as it is specified in the table in paragraph 3. Check the set point of pressure, whether it is set to the maximum value. Make sure, that the tool is properly cleaned and lubricated. In the absence of results, you should pass the tool for repair.

Transport of the product

The product should be transported in individual packaging.

Storage of the product

Before starting the storage, you should maintain the product as described in the instruction. Keep the product in the included individual packaging. Store the product in a dry and shaded places. The storage location should be protected against unauthorized access, in particular against access of children.

Handling of waste tools

Worn tools are secondary raw materials, it is forbidden to dispose of them together with household waste. because they contain substances harmful to human health and the environment! Please actively support the cost-effective management of natural resources and environmental protection by passing the used equipment to the point of storage for worn out devices. To reduce the amount of disposed waste it is necessary to re-use them, recycle or recover in another form.

CHARAKTERISTIK DES PRODUKTES

PRODUKTA RAKSTUROJUMS

CONDITIONS D'EXPLOITATION

DECLARATION OF CONFORMITY

1024/80970/EC/2024

We declare and guarantee with full responsibility that the following products:

Mini die grinder; 0,63 MPa; 54 000 min ^-1 ; 3 mm; item no. 80970

meet requirements of the following European Standards / Technical Specifications:

EN ISO 11148-9:2011

and fulfill requirements of the following European Directives:

2006/42/EC Machinery and safety elements

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The person authorized to compile the technical file:

Agnieszka Rędziak

(Place and date of issue)

V-CE PREZES ZARZADU

JAN SZMIDT

(Name and signature of authorized person)

TOYA S.A.
