USER MANUAL SS-798 Sogo

Exterior view of a white SOGO-style food processor with control panel and side handles (no visible text or symbols)

FREIDORA PROFESIONAL DE ACERO INOXIDABLE 5 LITROS PROFESSIONAL STAINLESS STEEL DEEP FRYER 5 LITRES FRITEUSE ACIER INOXYDABLE PROFESSIONNEL 5 LITRES FRITADEIRA AÇO INOXIDÁVEL PROFISSIONAL 5 LITROS PROFESSIONELLE EDELSTAHL-FRITTEUSE 5 LITER FRIGGITRICE PROFESSIONALE IN ACCIAIO INOX DA 5 LITRI

Caution: please read and preserve these important instructions

This manual can be downloaded from our website, www.sogo.es in the following languages.

SPANISH, CATALAN, ENGLISH, FRENCH, PORTUGUESE, GERMAN, ITALIAN AND MORE

Exploded view diagram of a microwave oven with numbered components and control buttons

Close-up of a mesh fence with a curved arrow indicating rotation or movement (no text or symbols)

Close-up of a mesh grid structure with metal fittings, no visible text or symbols

This instruction manual can also be downloaded from our web page www.sogo.es

IMPORTANT!

• Please read the instructions for use and refer to the diagrams of the control/heating element before using the deep fat fryer.
• Check that the voltage stated on the type plate of the deep fat fryer corresponds to the mainsvoltage.
• Only connect the deep fat fryer to a wall socketoutlet with earthing contact.
• Before using the deep fat fryer for the first time, clean the individual parts thoroughly (see section “cleaning”)
• Never immerse the control/heating element in water and do not clean these parts under running water.
• Ensure that all parts are completely dry before filling the deep fat fryer with oil or liquid fat.
• It is recommended to use frying oil or liquid frying fat. Solid frying fat can also be used. In this case, special care must be taken to ensure that the fat does not spatter and the heating element overheats (see section “Solid frying fat” and “Tips”)
• Never switch on the deep fat fryer if it is not filled with oil or liquid fat.
• Only use oil or fat that does not foam and is suitable for frying. This information is shown on the packaging or label.
• The deep fat fryer must be filled with oil or fat between the two marks on the inside of he bowl, before switching on the deep fat fryer,

always ensure that it is filled with sufficient fat or oil.

• A safety thermal cut-out switches off the deep fat fryer in the event of overheating (see section “Safety”)
  • These instructions show the maximum quantities for frying and must not be exceeded (see Table).
• Hot steam is released during frying. Keep a safe distance away from the steam.
• When the deep fat fryer is in use, it must be kept out of the reach of children.

Do not allow the cord to hang over the edge of a table or work surface on which the deep fat fryer is standing.

• After use, set the thermostat to the lowest setting (turn the thermostat fully anticlockwise). Disconnect the mains plug and allow the oil or fat to cool down. Do not move the deep fat fryer until it and its contents have cooled down.
• Damaged parts must only be replaced by an authorized customer service center.
• The warranty will be invalidated in the case of unauthorized repairs.
• Please retain these instructions for future reference.

SAFETY

Safety thermal cut-out

In the event of overheating, the thermal cut-out will switch off the deep fat fryer.

This can happen if the deep fat fryer is not filled with sufficient oil or solid frying fat is melted in the deep fat fryer.

In the case of solid fat is melted in the deep fat fryer. In the case of solid fat, the heating element is unable to radiate the produced heat quickly enough. If the safety thermal cut-out switches off the deep fat fryer, proceed as follows:

• Allow the oil or fat to cool down.
• Carefully push in the (reset switch) at the rear of the control element with a small screwdriver. The deep fat fryer is now ready to use again.

Safety switch

The safety switch in the control element ensures that the heating element can only be switch when the control element locks with a click.

Cold zone

During the frying process, food particles collect on the bottom of the bowl.

As the heating element is arranged below the bowl and heats the oil/fat in the upper area of the deep fat fryer, the oil/fat between the base and the heating element remains relatively cold (cold zone). This prevents the food particles in this zone burning and offers the advantage of being able to use the oil or fat more than once.

Frying with solid fat

We recommend the use of frying oil or liquid frying fat in this deep fat fryer. Solid frying fat can also be used. In order to prevent fat spatter and the deep fat fryer becoming too hot, the following precautions should be taken:

- When using fresh fat, allow the blocks of fat to melt slowly on a moderate heat in a normal frying pan. Carefully pour the melted fat into the deep fat fryer. Plug in the mains plug and switch on the deep fat fryer (see section “frying”)

- After, use, store the deep fat fryer with the resolidified fat a room temperature. If the fat is too cold. It can's spatter when reheated! To prevent this happening, poke the solid fat with a fork several times, take care not to damage the heating element.

- This appliance is for domestic use only. Use as described in this instruction booklet. Misuse or improper handling may cause problems in the appliance and cause injury to the user.

- Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

- Do not use or store the appliance outdoors.

• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.

- Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.

- Do not use this device in the bathroom or near water sources.

- Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorised service agent for repair before reusing.

• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g. stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Do not use the appliance if the cable or plug is damaged. Should the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Should the appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• Make sure your hands are dry before plug or unplugging.
• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
- Never use accessories that are not recommended by the manufacturer.
- Do not touch the top and bottom housing of the device. These can become very hot during operation. Use the handle instead.
- Do not cover the appliance with anything.
- The appliance is not intended to be operated by means of an external timer or a separate remote-control system
- Do not toast bread for too long as it may burn and cause a fire. Do not position the device beneath a curtain, wall cabinets or combustible materials.
- The kitchen surface can get hot while operating the device.
- Place the device on a stable and level surface.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.

CAUTION: Overheating of the heating element

- Oils and fats may burn when overheated.

Please be careful! Do not forget to switch the device off after use! Always turn the switch to the "0" position and unplug the device from the mains.

• Overheating of the heating element: Please note this important information if you would like to use fat in the deep fat fryer!

- The fat has to be melted slowly so that it can enclose the heating element.

- When fat is placed in the deep fat fryer for the firsttime or melted again, there is a danger of overheating if the selected temperature is too high! Placing fat in the deep fat fryer for the first time

• Liquefy the fat beforehand in a separate vessel.

- Do not heat the fat above 50°C in order to prevent injury when transferring it from the vessel to the deep fat fryer.

• Transfer the liquefied fat to the frying fat container.

- Once the required oil level has been reached you can set the desired temperature on the thermostat.

- If the fat in the deep fat fryer has become hard, it is difficult to know how much it has already melted down at the heating element.

- Turn the thermostat slowly up until the control lamp shows that the heating is working.

Stop! Do not turn any further! The heating will now slowly heat up the fat.

• A short time later the heating switches off again.

- Turn the heating on again by readjusting the thermostat.

- Repeat the process until the fat has melted.

Scope of delivery

1 lid

1 casing

1 deep frying fat receptacle

1 control assembly with heating element

2 small frying baskets

1 large frying basket

3 frying basket handles

Unpack Device

1. Take the device out of its packaging.

2. Remove all packaging materials, such as foils, filling materials, cable ties and cartons.

3. Check that all accessories are included in the box.

4. If the contents of the box are incomplete or if damage is found, do not operate the appliance. Return it to the dealer immediately.

NOTE:

Clean manufacturing residues and dust from the device as described under "Cleaning".

Exploded view diagram of a microwave oven with numbered components for identification

Overview of the Components

1 On/off switch and timer switch

2 Power indicator light (red)

3 Temperature indicator light (green)

4 Thermostat

5 Deep frying grease container

6 Safety switch

7 Restart button

8 Cable compartment

9 Frying basket (small)

10 Housing

11 Frying basket (large)

Operating instructions

Useful hints for use

• Always remove the food remaining in the oil (e.g. pieces of French fries). After the device has been used several times you should change the oil.

Use high quality frying oil or frying grease.

- Fats and oils must be heatable to high temperatures.

Do not use margarine, olive oil or butter: they are not fit for frying, because they start to smoke already at low temperatures.

We recommend the use of liquid frying oil.

WARNING: Danger!

• It is essential to change the fat / oil regularly.
- Do not use any frozen food containing ice!
• Rub dry humid foods with a cloth before frying.
- If food containing too much moisture (e.g. chips containing a lot of ice etc.) is used, there is a strong tendency to form foam, which in the worst case may cause the hot fat / oil to overflow and result in injuries.
- Please note that the safety switch (6) is operated when the control element is inserted into the guide mechanism.

• Choose the right frying temperature and check the conditions of the food to be fried. A rule of thumb is that pre-fried foods require a higher temperature than raw foods.
• Do not carry or move the deep fryer if the oil or grease is still hot.
• When frying dough-like foods scrape off the excess dough and put the pieces carefully into the oil.
• Please ensure that the handle of the deep fat frying basket has been correctly attached.
• The deep fat frying basket must not be more than 2/3 full. Do not overfill the frying basket.

NOTE: Maximum capacity

Large basket: 1000 g

Small baskets: 500 g each

Tips for reducing acrylic amide concentration

• Acrylic amide is a chemical compound. It comes from the bronzing process (deep-frying, baking, frying, roasting and grilling) in foodstuffs high in carbohydrates (starch and sugar) like, for example, potato and cereal products.
• It is suspected that acrylic amide damages genetic make-up and causes cancer. The actual risk to humans is not currently known.
  • We recommend that you do not exceed 170 °C when deep-frying.
• Furthermore we recommend that you keep the frying time as short as possible and fry food to a maximum gold yellow colour.
• Thicker chips or pieces of potato are less affected as the acrylic amide is mainly in the outer layer.
• If you make chips from fresh potatoes, you can soak the peeled and chopped pieces of potato for an hour beforehand. This removes some of the sugars (primary substance for acrylic amide) from the outer layers.

Putting into use

Before using for the first time

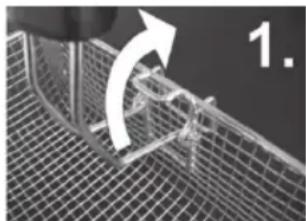

1. Mount the handle onto the frying basket:

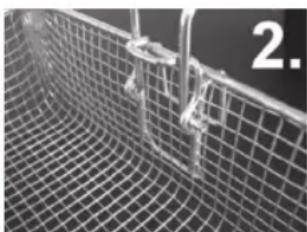

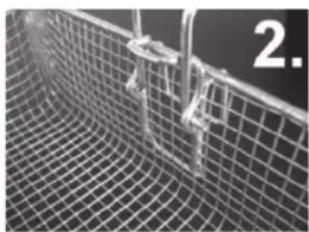

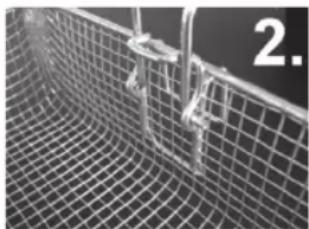

2. Press the ends of the wire together at the free end of the handle.
3. Insert the brackets into wire hoops inside the basket.
4. Lock the handle into place on the basket.

Close-up of a mesh fence with an arrow indicating rotation, no visible text or symbols

Close-up of a mesh fence structure with metal fixtures, no visible text or symbols

1. Please pull the connecting cable out of the cable compartment.

Electrical connection

• Make sure that the iron voltage (see name plate) and the line voltage match.
• The mains plug should only be inserted into a correctly installed socket with earthing contact.

Connected Wattage

The total power consumption of this device can be up to 3000 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION: Overload!

• If you use extension leads, these should have a cable cross-section of at least 1.5 ~mm^2 .
• Do not use any multiple sockets, as this device is too powerful.

On/off switch

When the switch is in the position "0", the device is off.

There are two ways in which the device can be used:

Using without the timer switch

1. Move the on/off switch (1) to the "ON" position.

2. Select your desired temperature with the temperature control (4).

Using with the timer switch

1. Select the desired cooking time with the timer switch (1) (5 to 30 minutes).
2. Select your desired temperature with the temperature control (4).

NOTE:

Once the time is up, a bell will sound.

The device will switch off automatically.

Use

1. Make sure that the appliance is unplugged and switched off (The control lamps are off.).

2. Take the lid off the deep fryer. Ensure the lid is closed every time the device is heating up or frying.

3. Remove the frying basket and fill the container with oil or grease (maximum 5 l). The filling level must be located between the minimum and the maximum level.

4. Insert the plug into a power socket. The red control lamp lights up. Set the desired temperature by turning the temperature control (4).

5. Switch the device on with the on/off switch. Switch it to the "ON" position or select a time.

6. The green control lamp lights up.
   Once the set temperature has been reached the green control lamp goes off. Place the frying basket containing the items to be fried carefully into the hot fat.

7. The green control lamp switches on and off several times during frying. This is normal and it indicates that the temperature is controlled by the thermostat and is being maintained. Once the frying time is over (the frying times are to be found on the packaging of the food or in the recipe),

please take out the frying basket.

1. Let the oil drip from the food being fried.

Ending operation

1. Switch the on/off switch to the "0" position.
2. Turn the temperature control and/or the timer back to the start.
3. Unplug the device from the mains.
4. Leave the device to cool.

CLEANING WARNING:

• Always pull out the plug from the mains socket before cleaning and wait until the unit has cooled down.
• Never immerse the control assembly into water. It could cause an electric shock or fire.

CAUTION:

• Do not use any wire brush or other abrasive objects.
• Do not use any acidic or abrasive detergents. Wait until the deep fryer is completely cool before cleaning. Wait in any case for 1 to 2 hours after use before using again to avoid burns.

Deep frying fat container

• In order to change the oil, pull out the deep frying fat container and pour the oil out at the side.
- The frying receptacle can be cleaned in warm water with a mild detergent. It is dishwasher safe. Take care that excessive detergent is not used.

Frying baskets and lid

• The baskets, handles, and the lid can all be washed in warm water with mild detergent.
- Ensure that everything is dried thoroughly after washing.

Housing and control assembly

Clean these parts with a slightly moist cloth.

STORAGE

• Clean the appliance as described and let it dry completely.
  • We recommend that you store the appliance in the original packaging, should you not want to use it for a longer period of time.
  • Always store the appliance out of the reach of children in a well ventilated and dry location.

Troubleshooting

Device is not working

Troubleshooting:

• Check the mains connection.
• Check the position of the on/off switch.
• Check the position of the thermostat.

Other possible causes:

The device is fitted with a safety switch (6). This prevents the heater being switched on accidentally.

Troubleshooting:

Check that the control element is correctly in place. Overheating Protection

• If the oil gets too hot, the device's overheating protection will automatically kick in. The appliance is no longer ready to be used.
  • Unplug the deep fryer.
• Only after the device has been left to cool down completely should the "RESTART" button (7) on the rear of the control element be operated in order to use the deep fat fryer again. For this you should use a plastic or wooden object that is the least 4 cm long.

TECHNICAL SPECIFICATIONS

Model: SS-798

Power supply: 230 V\~, 50-60 Hz

Power consumption 3000 W

Protection class: I

Net weight: approx. 3.2 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

Exploded view diagram of a refrigerator with numbered parts and labeled buttons

Close-up of a wire mesh structure with an arrow indicating rotation (no text or symbols)

Close-up of a mesh grid structure with metal components, no visible text or symbols

Electrical connection

• Make sure that the iron voltage (see name plate) and the line voltage match.
• The mains plug should only be inserted into a correctly installed socket with earthing contact.

Consommation: 3000 W

Classe de protection: I

Poids net: environ. 3.2 kg

Exploded view diagram of a microwave oven with numbered components and control buttons

Close-up of a mesh fence with an arrow indicating rotation or movement, no visible text or symbols

Close-up of a mesh metal grate with a handle and label '2.' (no text or symbols on the grate itself)

Interruptor on / off

Exploded view diagram of a microwave oven with numbered components and labeled parts

Close-up of a mesh fence with an arrow indicating rotation or movement, no visible text or symbols

Close-up of a mesh grid structure with metal fixtures, no visible text or symbols

Exploded view diagram of a microwave oven with numbered components and control buttons

Close-up of a mesh fence with an arrow indicating rotation or movement, no visible text or symbols

Close-up of a mesh metal grate with a handle and label '2.' (no text or symbols on the grate itself)

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards

Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain

Product manufactured in CHINA After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
