USER MANUAL SS-10885 Sogo

Exterior view of a modern SOGO air fryer with black and white casing (no visible text or symbols on the device itself)

QR code image containing encoded data, no visible human-readable text

FREIDORA DE AIRE AIR FRYER FRITEUSE À AIR FRITADEIRA DE AR LUFTFRITTEUSE FRIGGITRICE AD ARIA

Caution: please read and preserve these important instructions This manual can be downloaded from our website, www.sogo.es in the following languages. SPANISH, CATALAN, ENGLISH, FRENCH, PORTUGUESE, GERMAN, ITALIAN AND MORE

ref. SS-10885

ÍNDICE

1. Important Note P. 15

2. Symbol definition P. 15

3. Safety instructions for the user P. 15

I. General precautions during the use of electrical equipment P. 15

II. Restrictions on use to avoid personal injury P. 17

III. Product use restrictions due to poor condition or breakdown P. 18

IV. Restrictions on use when used with children and elders P. 18

V. IMPORTANT WARNING P. 19

VI. Instructions to follow when using the device P. 20

1. Technical specifications P. 22

2. Parts Description P. 22

3. Preparation for use P. 22

4. Instructions for use P. 24

5. Cleaning and maintenance P. 25

6. Trouble shooting P. 26

7. Declaration of conformity P. 75

8. Responsibility for disposal, details of the manufacturer and after-sales service P. 76

ÍNDICE

Technical diagram of a device with labeled parts A through I, showing front, side, and top views.

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Symbol definition

1

3

4

GENERAL PRECAUTIONS

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
3- Warning against fire ris
4- Warning against hot surfaces
5- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

1.

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat an even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors

or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.

- The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.

- Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.

- Close supervision is necessary when any appliance is being used by or near children.

- Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.

- The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

- The appliances are not intended to be operated by means of an external timer or separate remote-control system.

- This appliance is intended to be used in household and similar applications such as

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses and by clients in hotels, motels and other residential type environments;

- Bed and breakfast type environments;

- Catering and similar non-retail applications.

- Avoid spillage on the connector

II. Restrictions on use to avoid personal injury

• Do not let the appliance operate unattended.
• Do not place or operate this appliance near water sources.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Neither immerse the housing, which contains electrical components and the heating elements in water, nor rinse it under the tap.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
  • To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.
• Be careful, while handling electrical appliances,

as the surface of the heating element is subject to residual heat after use. Any misuse may cause potential injury to the user and may damage the appliance.

- Do not touch the outer surface of the appliance as it can get very hot during operation. Instead, use the handle or mitts.

III. ⚠️ Product use restrictions due to poor condition or breakdown

• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians

IV. ⚠️! Restrictions on use when used with children and elders

- The appliance is not to be used by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not allow the children to use the appliance without supervision.

V. ⚠️ IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. Instructions to follow when using Air fryer

• Do not place the appliance against a wall or against any other appliance. Leave at least 10 cm free space from the all sides before placing the appliance.
  • After cooking, frying basket and inner pot should not be placed directly on the countertop to avoid burning the countertop.

Always put the ingredients to be fried in the basket, to prevent it from coming into contact with the heating elements.

• Do not cover the air inlet and the air outer openings while the appliance is operating.
• Do not fill the pan with oil as this may cause fire hazard
• Extreme caution must be taken when moving an appliance containing hot oil or other hot liquids.
• Never touch the internal part of the appliance while in use.
• The temperature of accessible surfaces may be high when the appliance is operating
• Do not place anything on top of the appliance to prevent from any type of burn cause of hot surface.
• During air frying, hot steam is released through the air outlet openings, Keep your hands and face at a safe distance from the steam and from the air outlet openings.
• Also be careful of hot steam and air when you remove the pan from the appliance.
• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you

remove the pan from the appliance.

• WARNING: Do not touch hot surfaces.
• WARNING: This equipment shall be used with CAUTION as this electrical appliance contains a heating function. Surface of this appliance is also different from other functional surfaces which can produce high temperatures. Since temperatures are differently perceived by different persons The equipment must be touch only at intended handles and gripping surfaces with the help of heat protectors like gloves or similar type of clothing. Otherwise let it for sufficient time cool down before touching the hot surfaces.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

Introduction

This electric air fryer provides an easy and healthy way of preparing your favourite dishes. The best part of using the air fryer is that you can prepare as many types of fried dishes and have them without worry and or being conscious about consuming fatty foods, as it does not consume oil at all or if it consumes oil, then only a very little quantity.

By using hot rapid air circulation, it is able to make numerous dishes. The best part is that the Air fryer heats food at all directions and most of the ingredients do not need any oil.

4. TECHNICAL SPECIFICATIONS

Voltaje Power	Frequency Capacity
AC220-240V	1600W	50 – 60Hz	6,5L

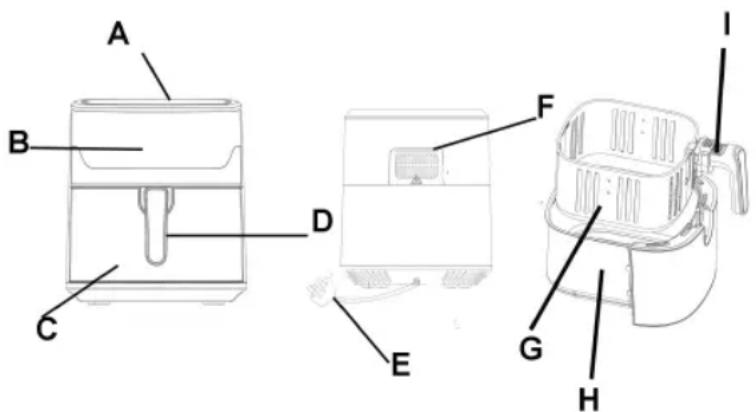

5. PARTS DESCRIPTION

A. Touch screen panel
B. Viewing window
C. Frying basket
D. Frying basket handle
E. Power cord
F. Air outlet
G. Removable air frying basket (Ceramic coated)
H. Frying pot (Non stick coated)
I. Frying basket release button

A B C D E F G H I

Viewing window and food tong: This air fryer has been provided frying basket with viewing window and food tong. Viewing window helps us to check the cooking status anytime and act accordingly if need to change the time and temperature. Also this air fryer has been provided with food tong for user safety, which helps us to take out the food without touching it and hot frying basket to avoid any scalding.

6. PREPERATION FOR USE

BEFORE FIRST USE

1. Remove all the packaging material.
2. Remove the glue, labels and stickers sticked on the product.
3. Clean the frying basket and the frying grill thoroughly with warm water, soft detergent and non-abrasive sponge.
4. Clean the inside and outside of the product with warm damp cloth.
5. This air fryer uses 360° hot air circulation technology, which helps user to cook the food in short span of time and without using the oil and if it uses, uses a very little amount.

Note: Do not clean the air fryer housing with detergent and water, just clean it by using the damp cloth. Do not pour oil or fat directly in the air fryer, as it might cause burns and risk to the user's life and damage the air fryer.

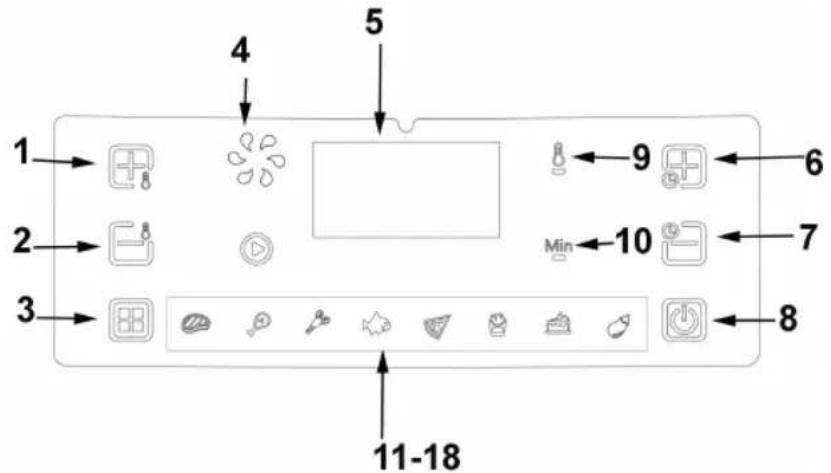

USING THE DIGITAL CONTROL PANEL

1 2 3 4 5 6 7 8 9 Min 10 11-18

1 & 2. Plus and minus temperature buttons: This fryer model has "+" and "-" temperature buttons. With the help of these buttons, we can change the temperature value of all menu functions including the default menu function at any time while cooking. By pressing these buttons, we can raise or lower the cooking temperature in 5°C intervals. We can change the temperature from 80°C to 200°C.

1. Menu button: : There are 8 preset menu functions in this air fryer. When turning on the air fryer the default temperature and time of default cooking menu function starts flashing and by pressing it again we can start cooking the food. To cook the food with the desired menu function, press the menu button and the first menu function will start flashing and the digital display will show the time and temperature of this menu function, by pressing it again the second menu function will start flashing and in this way we can keep pressing the menu icon button until the desired menu icon flashes.

Note: The temperature and time of each menu are already set as the default time and temperature. Once the desired menu has been selected, press the power button to start the cooking process Note: The time and temperature of all menu functions can be changed with the help of the "+" and "-" buttons for temperature and time.

Note: By pressing for a long time (long press), it is possible to change quickly.

1. Fan indicator icon: this air fryer has a fan indicator icon, during cooking, this icon remains illuminated.

2. Digital display: LED digital display: When the power button is pressed, the digital display is activated and shows the preset time and temperature of the menu functions. When we start cooking, the time unit of the menu function starts counting backwards during the whole cooking process. The digital display continues to show the temperature and remaining time alternatively during the cooking process.

6 & 7. Plus and minus time buttons: This Air fryer model has "+" and "-" time buttons. With the help of these buttons, we can change the time value of all menu functions including the default menu function, at any time while cooking. By pressing these buttons we can increase or decrease the cooking time in 1 min intervals. We can change the time from 1 min to 60 min. Note: Long press (long press) can be used to change the cooking time rapidly and easily.

1. Power/Start/Stop Button: Once the unit is plugged in, the Power Button will turn on and the display will enter into the sleep mode. Pressing the Power Button once will activate the touch control panel and all menu functions will illuminate, including the digital display and the default menu function will start flashing. When the power button is pressed again, the unit automatically starts the cooking process with the default menu function. While the air fryer is in working mode, pressing the power button for a few seconds (long press) switches off the appliance and the cooking process remains uncompleted. The fan will continue to run for a few seconds to cool the appliance.

9 & 10. Temperature icon: This product has temperature and time indicator lights, which light up while the appliance is on. Both lights keep flashing alternatively, while the unit is in working mode and also when we change the time and temperature value.

11-18. Menu functions: This air fryer has 8 menu functions. While cooking in any menu function, the icon of that function keeps flashing rapidly.

Menu functions temperature and time setting

Ingredients	Min-max amount (g)	Default Time (min)	Default Temperature(°C)	Shake function
Default cooking function	----	15 200 No
French fries	400-800 17	200 Ye		s
Chicken	600-800 22	180 Yes
Pizza	6in-8in 25	180 Yes
Fish	500-800	16	180 Ye	s
Sea food	400-800 12	1	80 Yes
Meat	100-200 16	180 Yes
Vegetables	400-600	17	160	Yes
Bake	120-250 17	160		No

7. INSTRUCTION FOR USE

HOW TO OPERATE THE AIR FRYER

1. Place the appliance on a dry, stable and heat-resistant surface.
2. Since the appliance becomes hot during use, make sure that it is not too close to any other appliances and keep it with 20 cm distance from the wall side.

3. Prepare the food for cooking.

4. Plug the power cord into the socket. A BEEP sound indicates the Air Fryer is turned on. Immediately after turning on the appliance, units enter into standby state. In the standby mode, the light of "Power/Start-Stop" remained lighting.

NOTE: At this time, only the "Power/Start-Stop" button can operate.

1. Press the "Power/Start-Stop" button to enter into the working mode. By default, the default cooking function activated and time and temperature of this function start flashing alternatively. All the menu function kept lit. in order to cook food in any menu function press the "Menu Icon" button and first menu function icon starts blinking, to change the menu function press it again and second menu button icon start blinking. In order to select the desired menu function keep pressing the menu icon until you find your desired menu function blinking. After selecting the corresponding menu function, press the "TIME" or "TEMP" "+ o -" Buttons to adjust the time and temperature. Once the menu function setting completed, press the "Power/Start-Stop" button to start the cooking process.

NOTE1: When we remove the frying basket during any menu function operation, the fan, and motor stop working, LED screen and the menu icon disappears and cooking time countdown stops. Once we place back the air fryer basket cooking process start again for remaining cooking time.

NOTE: The air fryer basket needs to be place back within 10 minutes to keep continuing cooking function. Once 10 minutes passes by and if we don't place back the frying basket, cooking function need to reset again.

NOTE2: During cooking process, we can press the "Power/Start-Stop" button to stop cooking (Air fryer stop working and fan continue working for few seconds). After suspension of any menu function, we can replace it with any other menu function. If within next one minute we don't select any menu functions, air fryer starts cooking again.

1. Once the cooking time has elapsed, air fryer stops working, the LED screen display "OFF" icons with flashes and unit emits 5 times "BEEP" sound as reminder that cooking process has been finished. Fan keeps working for 30 seconds and After 30 seconds, unit makes a beep sound and enters into the standby mode.

2. Remove the air fryer basket and and place down on a heat-resistant surface. Do not place it on the Air fryer

3. Turn off the device using the "Power/Start-Stop" button and pull the mains plug out of the plug socket.

4. Remove the food from the frying basket.

5. Allow the basket and rack to cool down and clean them as mentioned in cleaning and maintenance process.

Shaking the food half way through process

To get the most out of your Air fryer and the best results, it is always recommended to shake or turn upside down the food half way through the process to get an evenly cooked inal result. But most of the times it is not easy to remember to stop the air fryer, shake the food and start again.

Auto reminder function to shake the food in halfway through process

So, this model of air fryer has "auto reminder" function, which reminds you with the help of simply "5" times beep signal and control panel flashing with "000" for about 20s to shake or stir the food.

Functioning of the auto reminder function

The automatic reminder function is preestablished on the fryer and will work as long as the total process time is equal to or greater than “12” minutes in both pre-set and personalized menus. Assuming a 12-minute menu has been set. During the first 1/2 of the time (6 minutes) it will do the normal cooking and when 1/2 (6 minutes) of time remained left, the display will show “000”, it will begin to flash for about 20 seconds and a beep sound comes for “5” Times to remind you that you can shake or stir the food. This is time to remove the basket from the fryer. Once removed, the process will stop and the front panel will turn off. Stir the food and place the air fryer basket back into its position and the air fryer activates automatically in order to complete the cooking process where it had left off. And in case if you don’t want to stir the food, after 20sec. till the cooking process was suspended, the fryer starts working until the completion of the cooking procedure.

Note: Preheat the air fryer for 5 minutes before preparing any type of dish. The above default data are for reference only, the user can adjust the desired temperature and time as required.

Tips

• Smaller size ingredients usually require a slightly shorter preparation time than large size ingredients
• A larger amount of ingredients only requires a slightly longer preparation time comparatively smaller amount of ingredients.
• Shaking smaller ingredients halfway through the preparation time optimizes the end result and can prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you added the oil.
• Do not prepare extremely greasy ingredients such as sausages in the air fryer.
• Snacks that can be prepared in an oven can also be prepared in the air fryer
• The optimal amount for preparing crispy fries is 500 grams. Use pre-made dough to prepare filled snacks quickly and easil. Pre-made dough also requires a shorter preparation time than home-made dough.
• Place a baking tin or oven dish in the air fryer basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients
• You can also use the Air fryer to reheat ingredients. To reheat ingredients, set the temperature to 150^ for up to 10 minutes.
• Before using the device, make sure that the device and the outsides of the frying baskets are clean and dry.
• Do not use the device longer than 4 hours without a break.
• Do not leave the device switched on when it is empty.
• Do not place food that is still wrapped in cling film or plastic bags into the device.
• Make sure that the food does not come into contact with the heating elements.
• Do not overfill the drawer so that the hot air can circulate optimally inside the cooking chamber. Fill it no more than 1/3 full.
• Make sure that foodstuffs containing oil and fats are not overheated. There are possibilities of ignition.
  • Always place the hot frying baskets on a heat-resistant surface after use.

8. CLEANING AND MAINTENANCE

Cleaning

1. Clean the appliance after every use.
2. The pan and the non-stick coating basket: do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.

3. Remove the mains plug from the wall socket and let the appliance cool down. Note: Pull out the basket to let the air fryer cool down more quickly.

4. After cooking, frying basket should not be placed directly on the countertop to avoid burning the countertop.

5. Wipe the outside of the appliance with a moist cloth.
6. Clean the Frying basket, grill and tong with warm water, some cleaning liquid and a non-abrasive sponge.
7. You can use degreasing liquid to remove any remaining dirt. Tip: If dirt is stuck to the basket, fil the basket with hot water with some cleaning liquid. Place the frying grill into the basket and let them soak for few minutes.
8. After few minutes when the grease and dirt will come out, then wash it with the help of soap and non-abrasive sponge.
9. Clean the inside of the appliance with hot water and non-abrasive sponge.
10. Clean the heating element with a cleaning brush to remove any food residues.

Storage

1. Unplug the appliance and let it cool down.
2. Make sure all parts are clean and dry.
3. Store in a cool and dry place

9. TROUBLE SHOOTING

Problem Possible cause Solution
The Air fryer does not work	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not set the timer.	Set the time to the required preparation time to switch on the appliance.
The ingredients fried with the air fryer are not done.	The amount of ingredients is much more in the basket compare to the basket size.	Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly.
	The set temperature is too low.	Set the temperature to the required temperature setting (See section ‘settings’ in chapter ‘Using the appliance').
	The preparation time is too short.	Set the time to the required preparation time (see section ‘Settings’ in chapter’ Using the appliance').
The ingredients are half fried or unevenly fried in the air fryer.	Certain types of ingredients need to be shaken halfway through the preparation time.	Ingredients that lie on top or across each other (e.g., fries) need to be shaken halfway through the preparation time. See section ‘Settings’ in chapter ‘Using the appliance’.
Fried snacks are not crispy when they come out of the air fryer.	You used a type of snacks meant to be prepared in a traditional deep fryer.	Use oven snacks or lightly brush some oil on to the snacks for a crispier result.
I cannot slide the pan into the appliance properly.	There are too much ingredients in the basket.	Do not fill the basket beyond the MAX indication even try to fill Little less
	The basket is not placed in the pan correctly.	Push the basket down into the pan until you hear a click.
White smoke comes out of the appliance.	You are preparing greasy ingredients.	When you fry greasy ingredients in the air fryer, a large amount of oil will leak into the pan. The oil produces white smoke and the pan may heat up more than usual. This does not affect the appliance or the end result
	The pan still contains grease residues from previous use.	White smoke is caused by grease heating up in the pan . make sure you clean the pan properly after each use.
French fries are fried unevenly in the air fryer.	You did not use the right potato type.	Use fresh potatoes and make sure they stay firm during frying.
	You did not rinse the potato sticks properly before you fried them.	Rinse the potato sticks properly to remove the starch from outside of the sticks.
French fries are not crispy when they come out of the air fryer.	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure you dry the potato sticks properly before you add the oil.
		Cut the potato sticks smaller for a crispier result.
		Add slightly more oil for a crispier result.

1. IMPORTANT:

A B C D E F G H I

Technical diagram of a food appliance with labeled parts A through I, including a side view and internal components.

A B C D E F G H I

A B C D E F G H I

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
