Caution! It is essential that you read the following instructions before using the locomotive on your model railway system for the first time!

• For safety reasons, this heavy and detailed model is screwed to the supplied base. Please remove the 3 screws very carefully and keep them safe. When moving the locomotive, transport it only on this base and in the original case.

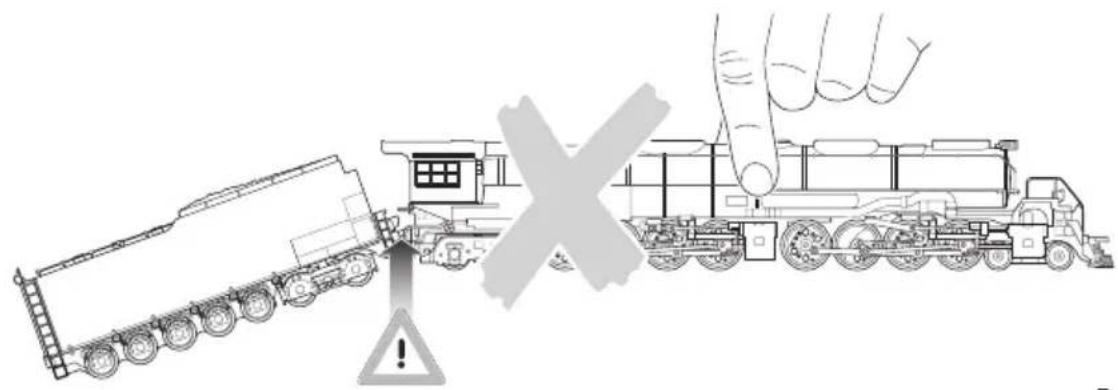

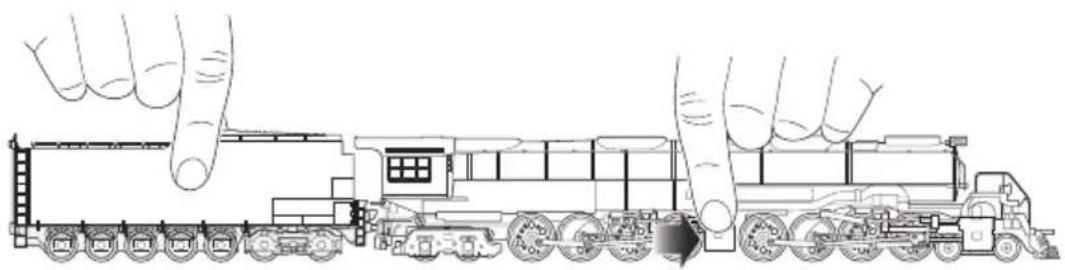

• To avoid damaging any detail work, please handle the model only at the places indicated.

• The connection between the locomotive and the tender must not be stretched or kinked.

The extremely large locomotive places particular demands on your model railway system. Before operating for the first time, please check the following points in order to avoid damage to the locomotive or your system:

• The usable minimum radius is 360mm . However, we recommend that you select greater radii if at all possible (>500mm) .
• The clearance profile of the locomotive is wider and higher than the dimensions specified for European model railways. Overhead cable masts and signals must therefore be mounted as far away from the centre of the rails as possible. Please pay attention to the signal drives, operating levers or lanterns of the points drives which might come into contact, depending on the installation position. You must also take care with the tunnel entrances, bridge handrails and platforms in the vicinity of the bends in the sections.
• Points should be crossed at the appropriate speed. This is particularly important for points with smaller radii (up to 437.5mm ) and for curved sets of points.
• The locomotive has been designed primarily for use with Märklin C-rails and K-rails. Contact faults may occur in the event of very slow travel on certain M-rails (curved points, three-way points).

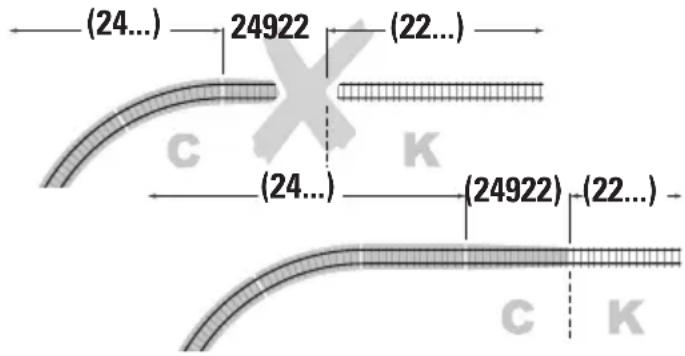

• Crossings to inclines or gradients and transfer rails (K-rail to C-rail or M-rail) should not be located directly at the start of a bend. If necessary, move the transfer point one rail length further away.

We recommend a careful test run with a second person for assistance.

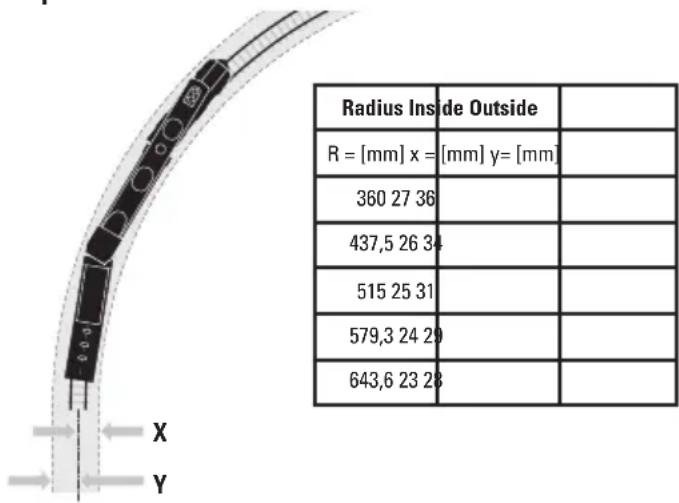

Required clearance on bends

Transfer rail / gradient and start of bend

Safety Notes

• This locomotive is to be used only with an operating system designed for it (Marklin AC, Marklin Delta, Marklin Digital or DCC).
• The feeder track must be equipped to prevent interference with radio and television reception, when the locomotive is to be run in conventional operation. The 74046 interference suppression set is to be used for this purpose.
• WARNING! Sharp edges and points required for operation.
• The LEDs in this item correspond to Laser Class 1 according to Standard EN 60825-1.

Important Notes

• The current version of these operating instructions can be found at www.maerklin.de on the page for this product under „Downloads".
• The operating instructions and the packaging are a component part of the product and must therefore be kept as well as transferred along with the product to others.
• Please see your authorized Marklin dealer for repairs or spare parts.
• Disposing: www.maerklin.com/en/imprint.html
• General Note to Avoid Electromagnetic Interference:

A permanent, flawless wheel-rail contact is required in order to guarantee operation for which a model is designed. Do not make any changes to current-conducting parts.

Functions

• Mfx technology for the Mobile Station / Central Station. Name set at the factory: Big Boy 4000 UP
• Address set at the factory: MM 06 / DCC 03
  Automatic system recognition with priority for mfx. (Priority 2: DCC / Priority 3: MM)
• Individual protocols can be deactivated with Parameter CV 50.
• Setting the locomotive parameters (address, acceleration/ braking delay (ABV), maximum speed): with the Control Unit, Mobile Station, Central Station.
• Headlights, changing over with the direction of travel.
• Various controllable functions.
  Mode of Operation:Locomotive Engineer
  Additional explanations about the mode of operation can be found in the supplemental instructions (included).
• A smoke generator can be retrofitted to the locomotive - also for analog operation.

Controllable Functions		6021	MS I 1	MS II 2	CS I	CS II/III
Headlights 6	F0
Smoke generator 3,6	F1		7
Operating sounds 4	F2		3
Sound effect: Locomotive whistle F3 4
ABV, off F4 2
Sound effect: Squealing brakes off F5 6
Engineer's cab lighting F6 1
Sound effect: Switching whistle F7 5
Number Board Lights 6	F8		8
Sound effect: Bell (slow) F9
Sound effect: Whistle sequence before a grade crossing	F10
Sound effect: Air pump F11
Sound effect: Injector F12
Sound effect: Auxiliary Blower F13
Sound effect: Blowing off steam F14
Sound effect: Squealing brakes on 5	F15
Sound effect: Cab radio F16
Sound effect: Sounds of couplers F17

Controllable Functions		6021	MSI 1	MSI II 2	CSI	CSII/III
Sound effect: Bell (fast) F18
Sound effect: Generator + Headlights F19
Low speed switching range F20
Sound effect: Rail joints	F21
Sound effect: 3x Short locomotive whistle	F22
Sound effect: Long locomotive whistle	F23
Sound effect: Sanding	F24
Sound effect: Clearing sludge	F25
Sound effect: Filling coal	F26
Sound effect: Filling water	F27
Sound effect: Filling sand	F28

1 The number corresponds to the button number on the device
2 Functions starting at F16 are not possible until you have Software Version 3.55 in the MS2.
3 Not included in delivery scope
4 with random sounds
5 Only for "World of Operation", do not move (do not map)
6 active in analog operation

Potential Problems with the Smoke Generator

• The smoke generator cannot be filled any more than halfway with smoke fluid.
• There should not be any air bubbles in the smoke generator.
• The connecting wire on the underside of the smoke generator must have a clean contact with the connection field in the locomotive's frame.

Front coupling connection:

Cover closed
Cover open with coupling mock-up
- Coupling hook (restricted use)
Other systems (e.g. Kadee # 19)

Note: Several parts are offered unpainted or in another color. Parts that are not listed here can only be repaired by the Märklin repair service department.

The firm Gebr. Marklin & Cie. GmbH grants a voluntary manufacturer's guarantee of 24 months for this product from the purchase date (maximum of 60 months from appearance in the catalog) from an authorized Marklin specialty dealer. This is independent of the legal warranty claims for the purchase of this product according to the conditions at www.maerklin.de/garantie
