USER MANUAL 68273 Lund

Two black industrial air purifiers with ventilation grilles, one labeled 68272 and the other 68273 (no text on the devices themselves)

PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR

Labeled diagram of a smart air fryer oven with numbered parts for identification

Interior view of a dark, empty laboratory or industrial chamber with a circular vent and a labeled panel (no readable text or symbols)

Interior view of a black oven with a mesh grating and a tray (no visible text or symbols)

Black and white photo of a transparent plastic container with internal compartments, no visible text or symbols

9 7 18:8.6 10118 TIMER TEMP 6 V

Read the operating instruction

Safe contact with food

Note! Hot surface. Do not touch.

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

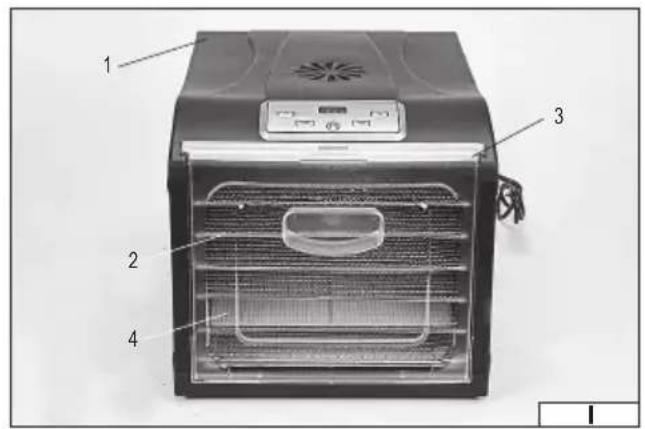

APPLIANCE CHARACTERISTICS

The food dehydrator is an appliance designed for drying food by means of forced circulation of warm air. Thanks to the wide range of temperature adjustment, you can adjust the operating parameters of the appliance to your needs and to the type of dried food. Many sieves allow for efficient operation. The appliance is not intended for commercial use. Proper, reliable and safe operation of the appliance depends on appropriate use, that is why you should

Read and keep the entire manual before the first use of the appliance.

The supplier shall not be held liable for any damage or injury resulting from improper use of the appliance or failure to observe the safety regulations and recommendations of this manual. Use of the appliance for purposes other than those for which it was intended shall cause the loss of the user's rights to the guarantee and also under warranty.

ACCESSORIES

The appliance is supplied complete and does not require assembly. However, before using the appliance, remove all packaging and transport protection elements. Preparatory activities described later in this manual are also required.

GENERAL INSTRUCTIONS FOR USE

The appliance has been designed for home use and is not allowed to be used in commercial applications, e.g. in catering facilities.

The appliance is intended for indoor use only. Do not expose the appliance to rain or other precipitation.

The appliance can be used only for heat processing of food placed directly on the sieves. It is forbidden to use the appliance in any other way, for example as a heater for the products inside a dish.

It is forbidden to repair, disassemble or modify the appliance on one's own. All repairs to the appliance must be carried out by an authorised service centre.

The appliance must be kept under supervision at all times during operation.

WARNING! The appliance may become hot during operation, take special care when touching the appliance during operation and immediately after operation, as this may cause burns.

The appliance is not intended for use by children under at least 8 years of age and by persons with reduced physical and/or mental abilities and by persons without experience in or understanding of the operation of the appliance. Unless they will be supervised or instructed to use the appliance safely, in a manner ensuring that the risks involved are understood.

Children should not play with the appliance. Unattended children should not be allowed to perform the cleaning and maintenance of the appliance.

Recommendations concerning transport and installation of the appliance

The appliance may only be placed on a hard, flat, level and non-flammable surface. The surface should be able to withstand the weight of the appliance itself and of the food it contains.

Ensure that there is a minimum distance of 10 cm around the side walls of the appliance, and do not place non-high temperature resistant materials above the appliance. This will allow for the proper ventilation of the appliance. Do not place near edges of, e.g., a table. Do not place the appliance near flammable materials, e.g. curtains or drapes.

The appliance should be used in a place where the air is free of contaminants and odours.

During food drying, any contaminants can remain on the dried products due to the air flow.

EN

Do not place any electrical equipment above the appliance. During operation, hot and humid air is released, which can cause a short circuit in the electrical system and lead to electric shock. It is forbidden to drill any holes in the product, as well as making any other modifications of the appliance not described in the manual.

Move the appliance only when cooled, grasping the housing. Do not move the appliance by pulling on the power cord.

The temperature at the place of installation and use of the appliance must be within the range of +10^ ÷ +38^ , and the relative humidity must be below 90% without water vapour condensation.

Recommendations for connecting the appliance to the power supply

Before connecting the appliance to the power supply, make sure that the voltage, frequency and performance of the power supply corresponds to the values shown on the appliance's rating plate. The plug must fit into the socket. It is forbidden to modify the plug in any way.

The appliance must be connected directly to a single power supply socket. It is forbidden to use extension cords, adapters or double sockets. The power supply circuit must be fitted with a protective conductor and at least a 16 A protective device.

Avoid contact of the power cord with sharp edges, hot objects or surfaces. During operation, the power cord must always be fully extended and the position of the power cord must be set so that it does not become an obstacle during operation. The power cord shall not be placed in a manner that would pose a risk of tripping. The power supply socket should be located in a place where it is always possible to quickly remove the appliance power cord plug. Always pull the power cord by the plug housing when unplugging it, never by the cord.

If the power cord or the plug are damaged, immediately disconnect it from the power supply and contact an authorised service centre of the manufacturer for replacement. Do not use the appliance with a damaged power cord or plug. The power cord or plug cannot be repaired and must be replaced with a new one that is free of defects if these components are damaged. Replacement of the power cord and plug must be carried out by an authorised service centre of the manufacturer.

Instructions for the use of the appliance

WARNING! The appliance housing can be hot during and shortly after use. Do not touch it, as it may cause burns. Allow the appliance housing to cool down.

Food should be cut into small pieces before placing it on sieves. The smaller the pieces of food, the faster they can be dried and the lower the drying temperature required.

Food should always be placed starting from the bottom sieve. Do not arrange the products too tightly to allow air circulation. Only one layer of food should be placed on one sieve.

Products placed on the sieve should not touch the sieve or the housing placed above them. Make sure that the floor near the appliance is not slippery. This will prevent slipping, which can cause serious injuries.

The appliance must be kept under supervision at all times during operation. Before checking the degree of drying of food, stop appliance operation, unplug the power cord from the socket, wait until the product housing cools down and then open it.

EN

If, after drying, food residues remain on the sieves or housing, they should be removed before new food is placed on the sieves. If food residues remain on the sieves and/or housing, air circulation may be impaired and the appliance may overheat. Overheating can lead to damage to the appliance or cause fire or electric shock. Clean the appliance according to the instructions in section: "Appliance maintenance"

APPLIANCE OPERATION

Installation, start-up and operation of the appliance

The appliance must be unpacked and all parts of the packaging completely removed. It is recommended to keep the packaging, as it can be helpful for further transport and storage of the appliance.

Prepare the appliance according to the instructions specified in the "Appliance maintenance" section.

Placing the sieves

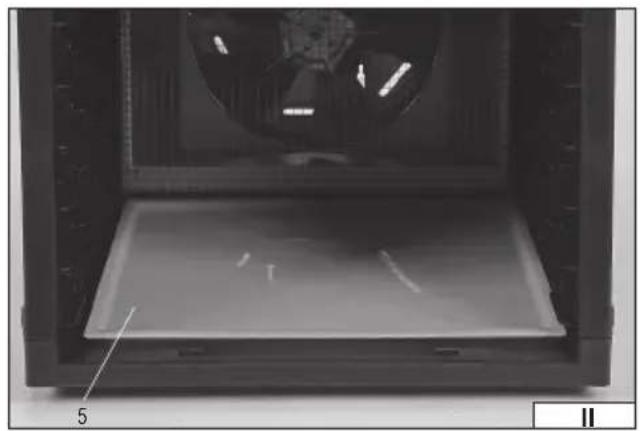

Place the drip tray on the bottom of the housing (II). This will help to maintain cleanliness inside the appliance in the event that juice drips from food.

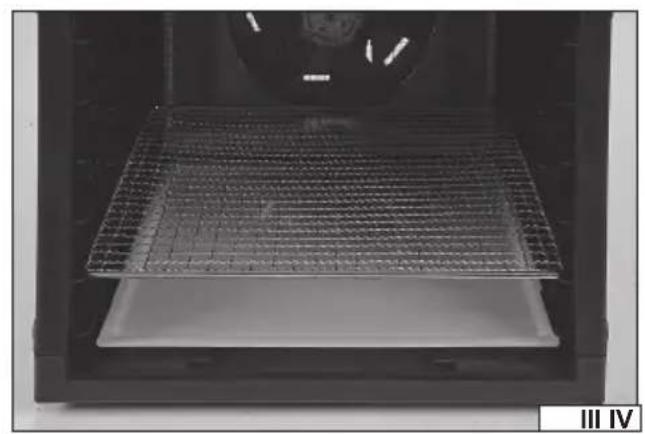

The sieves are placed in the guides inside the housing (III). Make sure that each sieve is parallel to the appliance base. Depending on the quantity of food to be dried, any number of sieves supplied with the appliance may be used.

In case of drying very small pieces of food, the appliance is equipped with one fine-mesh sieve. The sieve should be placed on one of the other sieves, it is not suitable for mounting directly on the guides inside the housing.

After all sieves have been inserted into the housing, slide the lid in using the guides on the front of the housing (IV). Make sure that the lid is fully slid in.

Caution! It is recommended to test the position of the sieves before placing food on them. This will allow to gain experience and make it easier to set up sieves with food placed on them.

Placing food on the sieves

Caution! It is recommended to place food on sieves disassembled from the base. Place the products in one layer. Do not place food on the base or lid. Slide the sieve with food into the housing using the lowest pair of guides. Slide the next sieves into the uppermost pair of guides, taking care that the food placed on the lower sieve does not come into contact with the upper sieve.

Starting and stopping the appliance

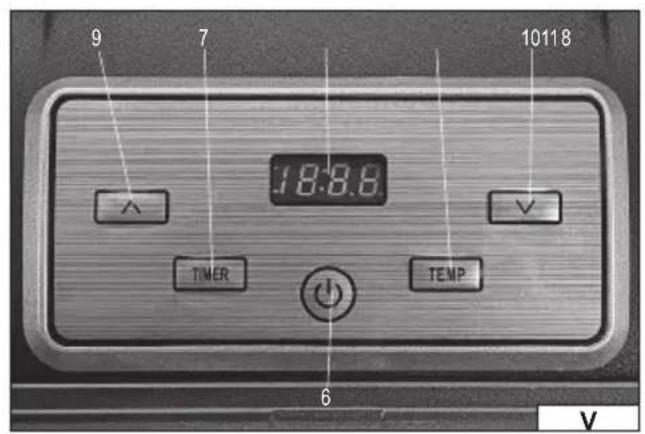

Plug the power cord plug into the socket. The device will emit a sound signal and the LED indicator will highlight all the elements (8888 symbol) for 3 seconds and then display the default operating parameters. Time 10 hours (10:00) and 70°C (70C). Pressing the ON/OFF switch will start operation with default settings. Pressing the switch marked "TIMER" allows you to set the operating time. Pressing the switch marked "TEMP" allows you to set the operating temperature. The time setting is possible from 30 minutes to 19 hours and 30 minutes with 30-minute increments. Temperature setting is possible in the range from 35°C to 70°C with 5°C increments. The time and temperature settings can be changed by pressing the switches marked with arrows. The switch with the upward arrow increases the value of the setting and the switch with the downward arrow decreases it. Pressing and holding the switch will automatically change the parameter to be set.

After setting the operating time and temperature, press the ON/OFF switch to start the operation. The fan operation will be audible and the heater will also be activated after approx. 5 seconds.

During operation, the time and temperature can be freely changed according to the procedure described above. The display alternately shows the remaining operating time and the set temperature. The operating time is counted back to 0:00. The heater switches off automatically and the fan continues to operate for another 10 seconds. The appliance will beep 20 times and the display will show "END"

Pressing the ON/OFF switch ends the operation at any time.

Remove the power cord plug from the socket. Allow the sieves to cool down and proceed with their disassembly, starting with the lid and gradually disassembling the sieves one by one from the highest to the lowest.

After removing the food from the sieves, proceed with the maintenance of the sieves, lid and base.

Additional notes

Maximum standby power consumption: 0.8 W.

The idle time after which the food dehydrator automatically enters standby mode is approximately 1 minute.

When the dehydrator enters standby mode, "10:00" appears on the display.

Recommendations for the food drying

Dried pieces of fruit and vegetables can be used as snacks or as food additives. Dried products retain their taste and nutritional

EN

values. Dried food may differ in appearance or taste from products available in shops because preservatives and dyes are not added during drying.

Before drying, it is recommended to note the weight of the products and then the time and temperature of drying. This will make it easier to determine operating conditions in the future.

The drying time of the products depends on: - the thickness or size of the pieces, - the number of sieves used for drying, - the number of products placed in the dehydrator, - the humidity of the air around the dehydrator, - personal preference for drying effects. If during the drying process uneven effects are observed, the position of the sieves should be periodically changed if the construction of the appliance allows it.

Dried food should be placed in containers only after it has completely cooled down. The container for storing dried food products should be tight. It is recommended to use vacuum containers. After placing the products in the container, seal the container tightly and then extract as much air as possible. Store food in containers in dark and cool rooms. The storage temperature should not exceed 15^ C. Do not place dried food directly in metal containers. Periodically check the condition of dried food.

If, for any reason, it is necessary to interrupt the drying process, food should be removed from the sieves and placed in plastic bags or containers and then stored in the freezer. Before resuming drying, the products should be defrosted. Do not refreeze products that have already been defrosted.

Appliance maintenance

CAUTION! All maintenance must be carried out with the appliance switched off. To do this, unplug the power cord from the socket.

The appliance is used to prepare food placed directly on the sieves, therefore care must be taken to maintain proper hygiene so that the preparation of food is safe.

Sieves and lid should be washed with a jet of running water or by immersing it in water. Use a mild dishwashing detergent. Clean with a soft cloth, a soft sponge or a soft brush. Do not use aggressive or abrasive cleaning agents due to the risk of the sieve and lid surfaces dulling.

After cleaning is finished, dry the sieve and the lid thoroughly before placing them on the base.

Sieves and the lid are not suitable for cleaning in mechanical dishwashers or with high-pressure water jet.

Clean the base / housing with a slightly damp cloth, then dry with a clean, dry cloth.

Caution! Never immerse the electric appliance (base) in water or any other liquid.

Do not use solvents, caustics, alcohol, petrol or abrasives for cleaning.

Clean the ventilation openings with a vacuum cleaner.

Before using the appliance for the first time, after cleaning the sieves, lid and base / housing, run the dehydrator for thirty minutes at its maximum temperature without placing any food inside. During this time, it is possible that smoke or odour may be emitted from the appliance. After finished operation, allow the appliance to cool down and then wash the sieves and lid again and clean the base. This will allow to remove the remains of chemical agents used in the appliance components manufacture.

Appliance storage

If the appliance will not be used for an extended period of time, disconnect it from the socket.

During storage, keep the appliance indoors, and make sure it is not exposed to dust, dirt, or moisture. It is recommended to store the appliance in its original packaging.

Store the appliance in operating position. Do not stack products in layers. Do not place anything on the product during storage.

SPECIFICATION

Parameter Unit Value Value
Catalogue No. 68272 68273
Rated voltage [V~] 220 – 240 220 – 240
Rated frequency [Hz] 50 - 60 50 - 60
Rated power [W] 420 - 500	600 - 700
Protection class		II
Sieve dimensions	[cm]	32.5 x 30	32.5 x 30
Max. load per sieve	[kg]	0.5	0.5
Appliance dimensions (H x W x D)	[cm]	32 x 34.5 x 45	42 x 34.5 x 45
Net weight	[kg]	3	4.3
