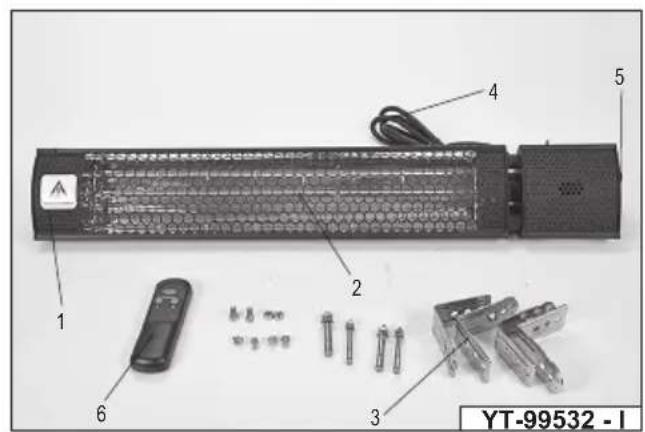

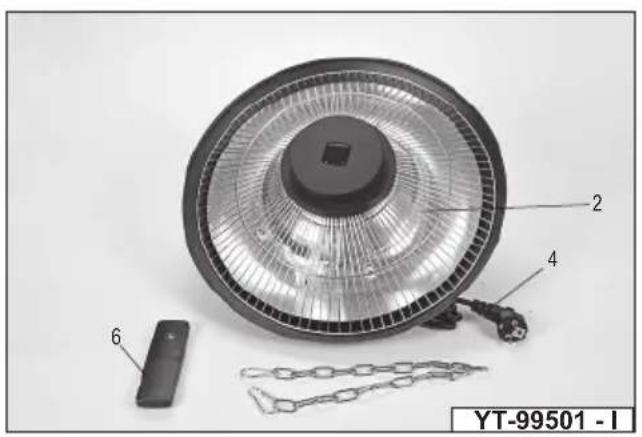

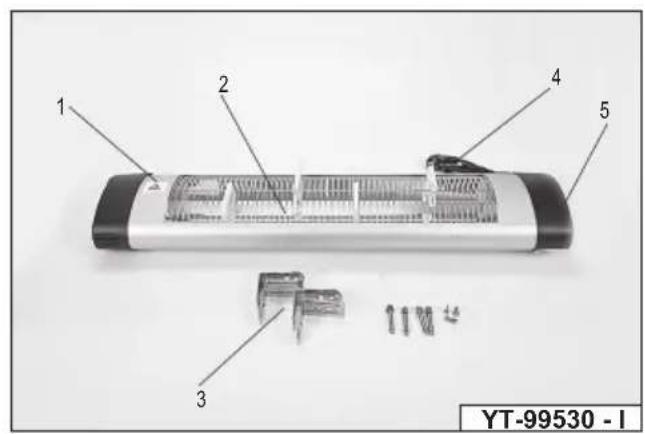

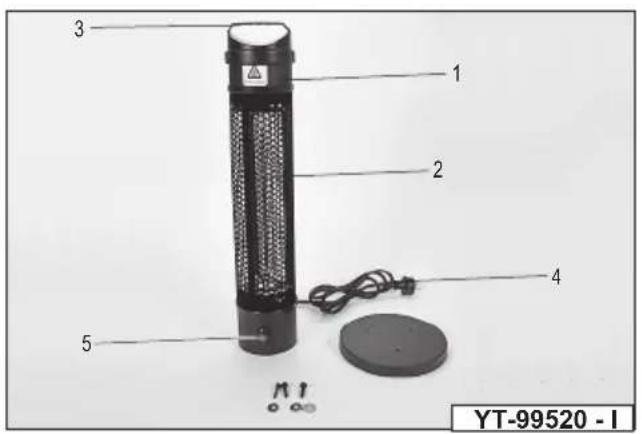

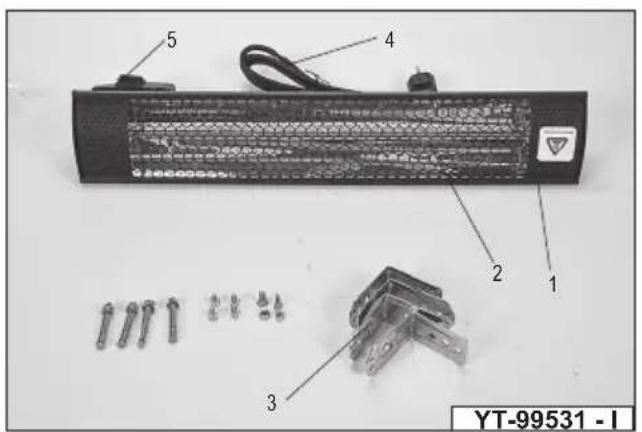

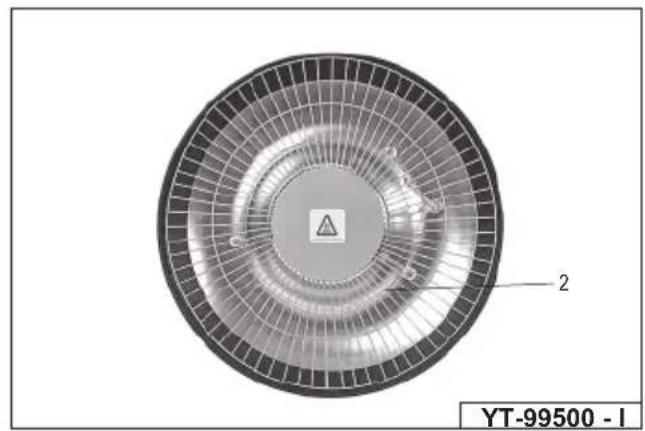

- housing
- heating component
- handle
- power cord
- power switch
- remote control
LT
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
WYPOSAŻENIE PRODUKTU
PRODUCT CHARACTERISTICS
The infrared heater is used to heat rooms. Proper, reliable and safe operation of the product depends on appropriate use, that is why you should:
Read the entire manual before the first use of the product and keep it for future reference.
The supplier shall not be held liable for any damage or injury resulting from improper use of the product, failure to observe the safety regulations and recommendations of this manual. Use of the product for purposes other than those for which it was intended shall cause the loss of the user's rights to the warranty and under statutory warranty.
ACCESSORIES
The product is delivered complete but requires assembly or proper adjustment for free-standing models.
GENERAL INSTRUCTIONS FOR USE
The device heats up to a high temperature during use. Be careful when operating the device. Improper use of the device may result in serious burns and/or fi re.
Do not leave the device unattended when it is connected to a power supply.
Do not use the device for any other purpose than heating rooms, e.g. for defrosting or drying.
It is forbidden to repair, disassemble or modify the device by yourself. All repairs must be carried out by an authorised service centre.
Children under 3 years of age should be kept away from the device, unless they are under constant supervision.
Children over 3 years of age and under 8 years of age should only be allowed to switch the device on and off at the place of the device's operation and if they are supervised or instructed on how to safely use the device and understand the risks involved. Children over 3 years of age and under 8 years of age should not connect, clean or carry out maintenance activities on the device.
The product is not intended for use by people with impaired physical or mental abilities, or by people without experience in or understanding of the operation of the product, unless they will be supervised or instructed to use the product safely, in a manner ensuring that the risks involved are understood. Children should not play with the product.
Keep the device and the power cord out of reach of children under 8 years of age while the device is connected to the power supply or cooling down.
Recommendations for connecting the device to the power supply
Before connecting the device to the power supply, make sure that the voltage, frequency, and performance of the supply network correspond to the values shown on the device's rating plate. The plug must fit into the socket. It is forbidden to modify the plug or socket in any manner to make them fi t.
The device must be connected directly to a single power supply socket. The mains supply circuit shall be equipped with a protective conductor and a protective device of at least 16 A. When using extension cords, use an extension cord with three wires that can withstand a 16 A current load.
Avoid contact of the power cord with sharp edges, hot objects or surfaces, including those of the device. During operation, the power cord must always be fully extended and the position of the power cord must be set so that it does not become an obstacle during product operation. The power cord should not be placed in a manner that would pose a risk of tripping. The power supply socket should be located in a place where it is always possible to quickly remove the product power cord plug. Always pull the power cord by the plug housing when unplugging it, never by the cord.
If the power cord or the plug is damaged, immediately disconnect it from the supply network and contact an authorised service centre of the manufacturer for replacement. Do not replace the power cord by yourself. Do not use the product with a damaged power cord or plug.
The power cord or plug cannot be repaired and must be replaced with a new one that is free of defects if these components are damaged.
Instructions for use
The device should not be used in potentially flammable or explosive atmospheres, or in highly dusty and humid environments. Do not use the device in rooms where flammable materials are present. Do not use the device in rooms where animals are present.
Never cover the device. The device heats up to a high temperature and can ignite the material with which it has been covered.
The heater must not be located directly under the power supply socket.
Do not use the heater with a programmer, timer, separate remote control system or any other device which will switch start the heater on automatically due to the risk of fire if the heater is covered or incorrectly positioned.
Portable heaters must not be used in the immediate vicinity of bathing area, shower or swimming pool.
Warning! The heater is not equipped with a device which controls the room temperature. Unless constant supervision is provided, do not use the heater in small rooms where people are unable to leave the room on their own.
Devices whose protection rating is lower than IPX4 may not be installed in such a manner that their switch is within reach of persons taking a bath or shower.
Devices whose protection rating is lower than IPX4 must not be used outdoors.
EN
Do not expose the heater to direct precipitation.
Devices permanently fixed to ceilings or walls must not be installed lower than 1.8 m above the floor.
Never touch the heating lamp with an uncovered hand, even when it is cold. Fat particles on the skin will settle on the lamp which can lead to damage to the lamp.
HEATER OPERATION
YT-99500, YT-99501 heater installation
Warning! Before starting any assembly work, make sure that the device is disconnected from the power supply socket and is completely cooled down.
The heater should be suspended on a hook fixed to the ceiling or roof beam. The fixing point must be able to bear the weight of the heater. The power supply socket must be positioned in such a manner that the heater's power supply plug of the heater can be removed at any time. Use the chain supplied with the heater to suspend the heater. Suspend the heater in such a manner that its lowest point is at least 1.8 m from the floor. There should be at least 1.5 meters distance between the surrounding walls and the heater.
The heater is not suitable for installation in the ceiling or fixing to walls or directly to the ceiling and must be suspended on a chain. If necessary, the chain can be shortened by cutting off the excess length.

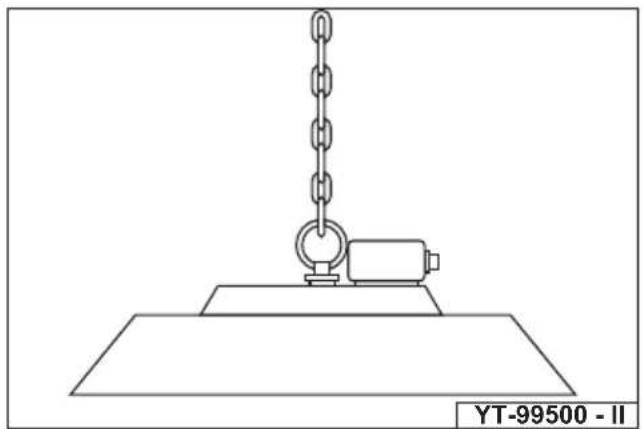

For the YT-99500 heater, attach the chain holder (II) to the heater housing and then attach the chain to the holder with a latch connector.

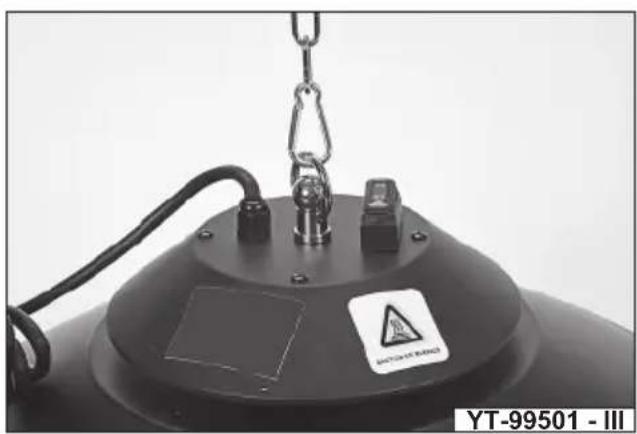

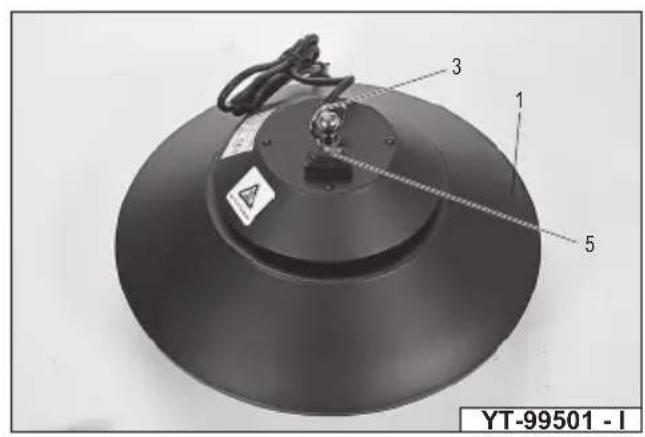

For the YT-99501 heater, attach the chain directly to the holder in the heater housing (III).
Check that the device switch is in the OFF or O position and plug the power cord plug into the power supply socket. The heater is ready for use.
YT-99520 heater installation
Warning! Before starting any assembly work, make sure that the device is disconnected from the power supply socket and is completely cooled down.

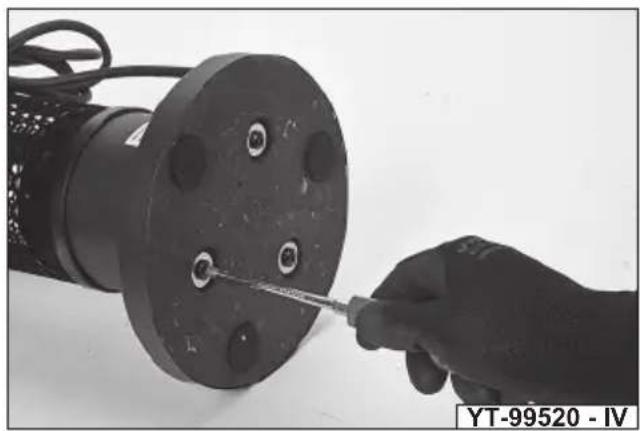

This is a portable type heater and cannot be fixed to walls or ceilings. Mount the base (IV) to the device using screws.
Place the heater on the floor. A minimum of 1.5 m distance from persons, walls or objects should be kept around the front wall of the heater. The rear wall of the heater should be at least 0.5 m away from people, walls or objects.
Check that the device switch is in the OFF or O position and plug the power cord plug into the power supply socket. The heater is ready for use.
Warning! Do not transport the device when it is hot. This can cause serious burns. To move the device, grasp it by the handle.
YT-99530, YT-99531, YT-99532, YT-99536 heater installation
Warning! Before starting any assembly work, make sure that the device is disconnected from the power supply socket and is completely cooled down.
The heater can be installed directly on the wall or on the YT-99570 or YT-99571 rack. This type of heaters cannot be installed on the ceiling or on the ceiling beam.
The heater must be installed at a height of at least 1.8 m from the floor and at least 0.5 m from the ceiling. Tilt the heater so that its front wall faces the floor at an angle of approx. 45 degrees.
The heater is equipped with a three-element or four-element mounting system.

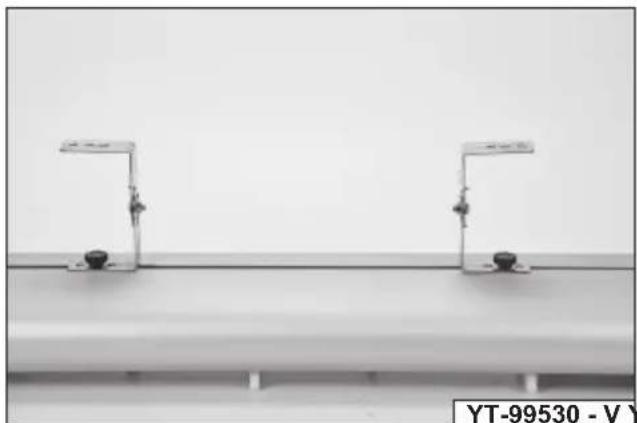

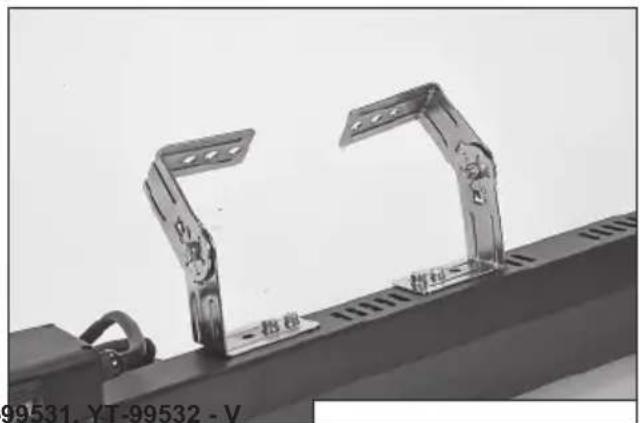

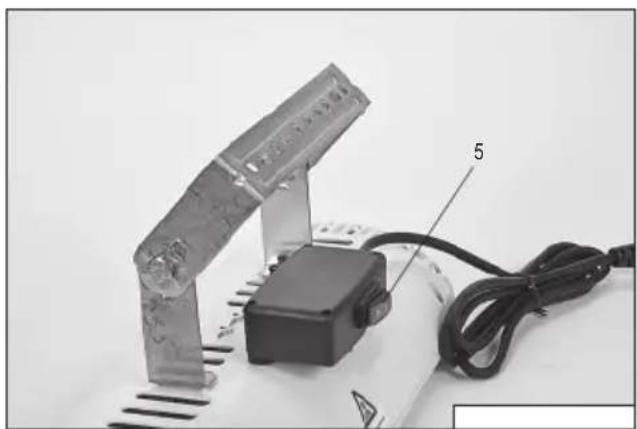

Connect the element of the assembly system using screws and nuts and then fix them to the rear wall of the heater (V).

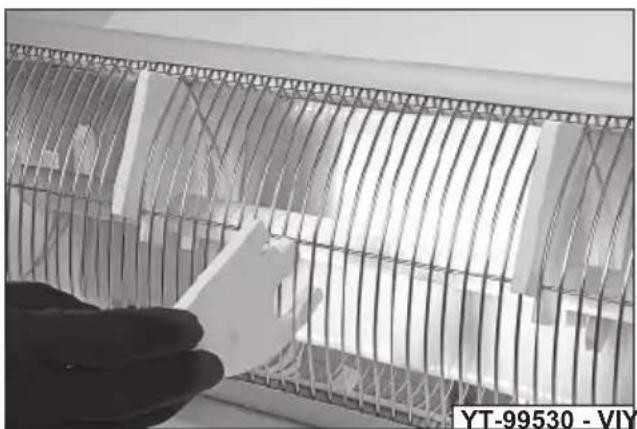

Make sure that the elements supporting the heater during transport (VI), if present in the device, are removed before connecting the heater to the power supply. Leaving these elements will cause them to melt down, which can result in damaging the device, as well as cause fire. It is recommended to keep the elements in case of future transport of the device.
Check that the device switch is in the OFF or O position and plug the power cord plug into the power supply socket. The heater is ready for use.
Using the heater
Turn the heater on by moving the switch to the ON or I position. For the YT-99530 heater, the switch must be moved to one of the heating power positions. The more dots the higher the heat output.
The heater starts up and begins heating the room. If the room is larger than the maximum heating area, several heaters should be placed in the entire room area, with even spaces between them. Otherwise, the device will not function effectively.
The speed of heating a room depends on several factors, its dimensions, the indoor temperature, the heat loss rate in the room, e.g. due to insufficient thermal insulation.
EN
After heating, turn off the heater by moving the switch to the OFF or O position and then unplug the power cord from the socket.
If the device is equipped with a remote control, it can be used to turn the device on and off and to set the heating degree, if the remote control is equipped with such a function. Remote control operation is only possible when the device switch is in the ON position. Turning the device off using the remote control does not flip the switch to the OFF position. Turning off using only the remote control cannot be regarded as turning the device off.
Maintenance
Warning! Before starting any maintenance work, make sure that the device is disconnected from the power supply socket and is completely cooled down.
Clean the device housing with a cloth slightly dampened with water and dry it. Clean the area around the heating lamp and the vent holes with a stream of compressed air of not more than 0.3 MPa.
Never immerse the device in water or any other liquid and do not clean it with a jet of water or any other liquid.
Store the device disconnected from power supply. The power cord must be unplugged from the power supply socket. The place of storage should be well ventilated and protected against direct sunlight, moisture and precipitation, as well as against access by unauthorised persons, especially children.
The heating component is not intended to be replaced. If it is damaged, contact an authorised repair centre for replacement. It is forbidden to use the heater with a damaged heating component.
TECHNICAL DATA
| Parameter Unit Value Value | Value Value Value | Value Value Value | ||||||
| Catalogue No. YT-99500 YT-99501 YT-99520 YT-99530 YT-99531 YT-99532 YT-99536 | ||||||||
| Rated voltage [V~] 220 - 240 220 - 240 220 - 240 220 - 240 220 - 240 | ||||||||
| Rated frequency [Hz] 50/60 50/60 50/60 50/60 50/60 50/60 | ||||||||
| Rated power | [W] | 1500 | 1500 | 800 | 2000 | 2000 | 2000 | 2000 |
| Protection rating | IP44 | IP44 | IP44 | IPX0 | IP65 | IP65 | IP65 | |
| Weight | [kg] | 1.8 | 2.9 | 1.8 | 2 | 1.4 | 1.7 | 2.2 |
| Max. heating area | [m2] | 9 - 12 | 12 - 18 | 2 - 3 | 12 - 18 | 12 - 18 | 12 - 18 | 12 - 24 |
| Heating component life | [h] | 5,000 | 5,000 | 10,000 | 5,000 | 6,000 | 6,000 | 6,000 |
