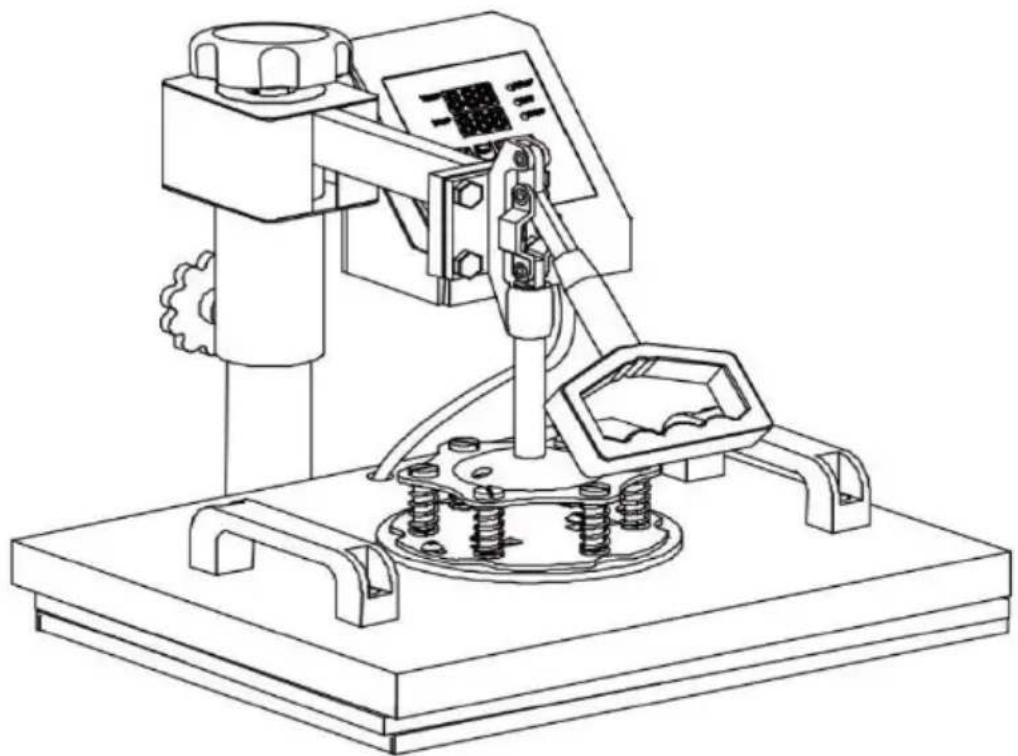

Technical line drawing of a mechanical device with gears and a central control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Symbol	Symbol Description
	Warning: To reduce the risk of injury, the user must the instructions manual carefully.
	This symbol, placed before a safety comment, indicate kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the rise injury, fire, or electrocution, please always follow the recommendations shown below.
	CORRECT DISPOSAL:This product is subject to the provision of European Directive 2012/ 19/EC. The symbol showing a wheel crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with symbol. Products marked as such may not be discawith normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

WARNING

1. Warnings must be followed carefully to avoid body injury, improper use may result in electric shock, fire, personal injury and other damage.

1) Keep unplug when moving the machine.

2) Keep unplug when installing accessories.

3) Place on a fat and stable platform and operate under ventilated conditions.

4) Wear special protective equipment when operating the machine.

5) Do not use this machine in a hazardous-location.

6) Do not use when the machine is not working properly.

7) Do not disassemble and repair this machine.

8) Do not use an unsuitable AC Outlet.

9) Do not touch the heating plate when the machine is heating

10) Do not use in humid environment or contact with water. Do not infiltrate

liquid in the machine to prevent fire or electric shock caused by short circuit

11) Do not use the power supply that does not meet the rated voltage. The supply that does not meet the specified voltage may cause fire or electric sh

12) Ensure that the machine is grounded so as not to cause harm to body.

13) Do not touch the rotating rod or bearing part with your fingers during use case of injuries.

14) If the machine is not in use for a long time, please unplug the power from the socket.

15) Do not use the machine during thunderstorms or lighting to avoid damage the machine.

16) Place the machine smoothly on the flame-retardant table and keep away from flammable and explosive items.

17) Please stop using it if the machine smokes, emits a peculiar smell, or becomes noisy and in other abnormal conditions.

18) This appliance can be used by children aged from 8 years and above ar persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge

If they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall play with the appliance. Cleaning and user maintenance shall not be made by children without supervision

19) Type X attachment: If the supply cord is damaged, it must be replaced by special cord or assembly available from the manufacturer or its service agent.

20) In order to avoid a hazard due to inadvertent resetting of the thermal circuit, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by utility.

Please turn off the power when plug or unplug the connector

Close-up of a metallic connector with black top and metal body (no visible text or symbols)

Close-up of a metallic connector inserted into a black mechanical component (no visible text or symbols)

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Contents

1. SPECIFICATION.... 6
2. PRODUCT DIAGRAM....7
3. CONTROL PANEL....8
4. PARTS LIST....9
5. MUG PRESS FRAME PACKING LIST....10
6. INSTALLATION STEPS FOR MUG PRESS FRAME......11
7. ASSEMBLY&USE STEPS....13
8. TEMPERATURE CONTROLLER OPERATION METHOD......14
9. PRINTING METHODS....16
10. REPLACE BAKING TRAY MAT....18
11. REPLACE BAKING CAP MAT....19
12. REPLACE BAKING COASTER....21
13. RECOMMENDED PARAMETER....23
14. TROUBLE SHOOTING FOR TRANSFER QUALITY....24

1. SPECIFICATION

Model	SJY-H12151M		SJY-H15151M
Heat Size	12x15inch(30×38cm)		15x15inch(38×38cm)
Product
Temperature Range	32-480°F(0-250°C)		32-480°F(0-250°C)
Time Range	0-999 Seconds		0-999 Seconds
Voltage	120V~60Hz	220-240V~50Hz	120V~60Hz	220-240V~50Hz
Power	1150W	1050W	1400W	1350W

2. PRODUCT DIAGRAM

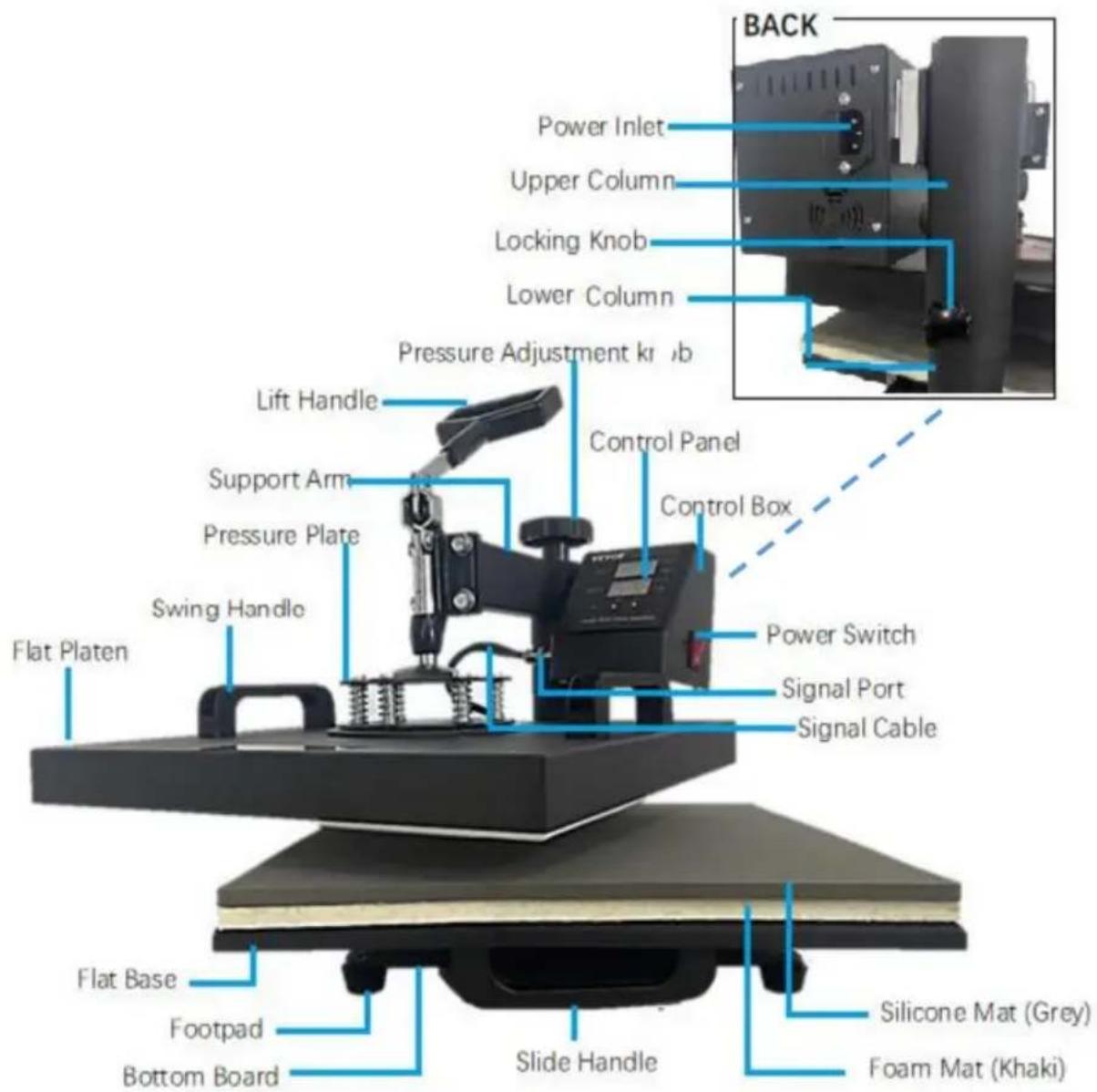

BACK Power Inlet Upper Column Locking Knob Lower Column Pressure Adjustment krb Lift Handle Support Arm Pressure Plate Control Panel Control Box Flat Platen Swing Handle Power Switch Signal Port Signal Cable Flat Base Footpad Bottom Board Slide Handle Silicone Mat (Grey) Foam Mat (Khaki)

3. CONTROL PANEL

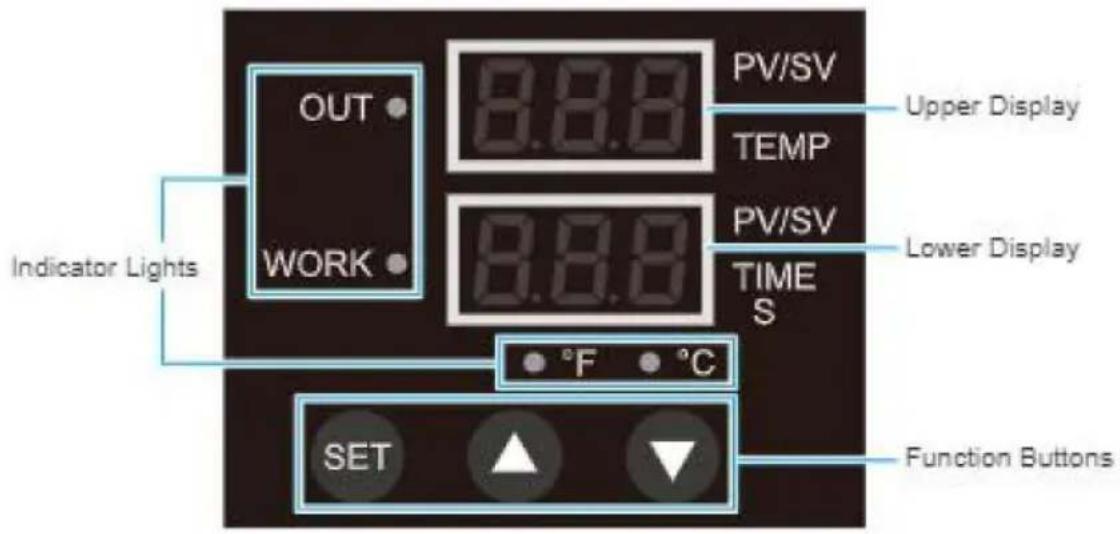

OUT WORK PV/SV TEMP PV/SV TIME S °F °C Function Buttons Indicator Lights Upper Display Lower Display

Display Areas	Upper	Displays temperature values or parameter names.
	Lower	Displays timer values or parameter settings.
Indicator Lights	OUT	Indicates heating is operating.
	WORK	Indicates countdown is operating.
	°F	Indicates temperature values in Fahrenheit.
	°C	Indicates temperature values in Celsius.
Function Buttons	SET	Enters/Exits primary parameter menus or confirms settings when pressed.
		Enters/Exits secondary parameter menus or confirms settings when held.
	▲	Increases values or converts settings in parameter menus.
	▼	Starts/Stops/Resets countdown
		Decreases values or converts settings in parameter menus

4. PARTS LIST

A: 8inch Plate Press Attachment	B: 10in Plate Press Attachment	C: Arched Press Plate

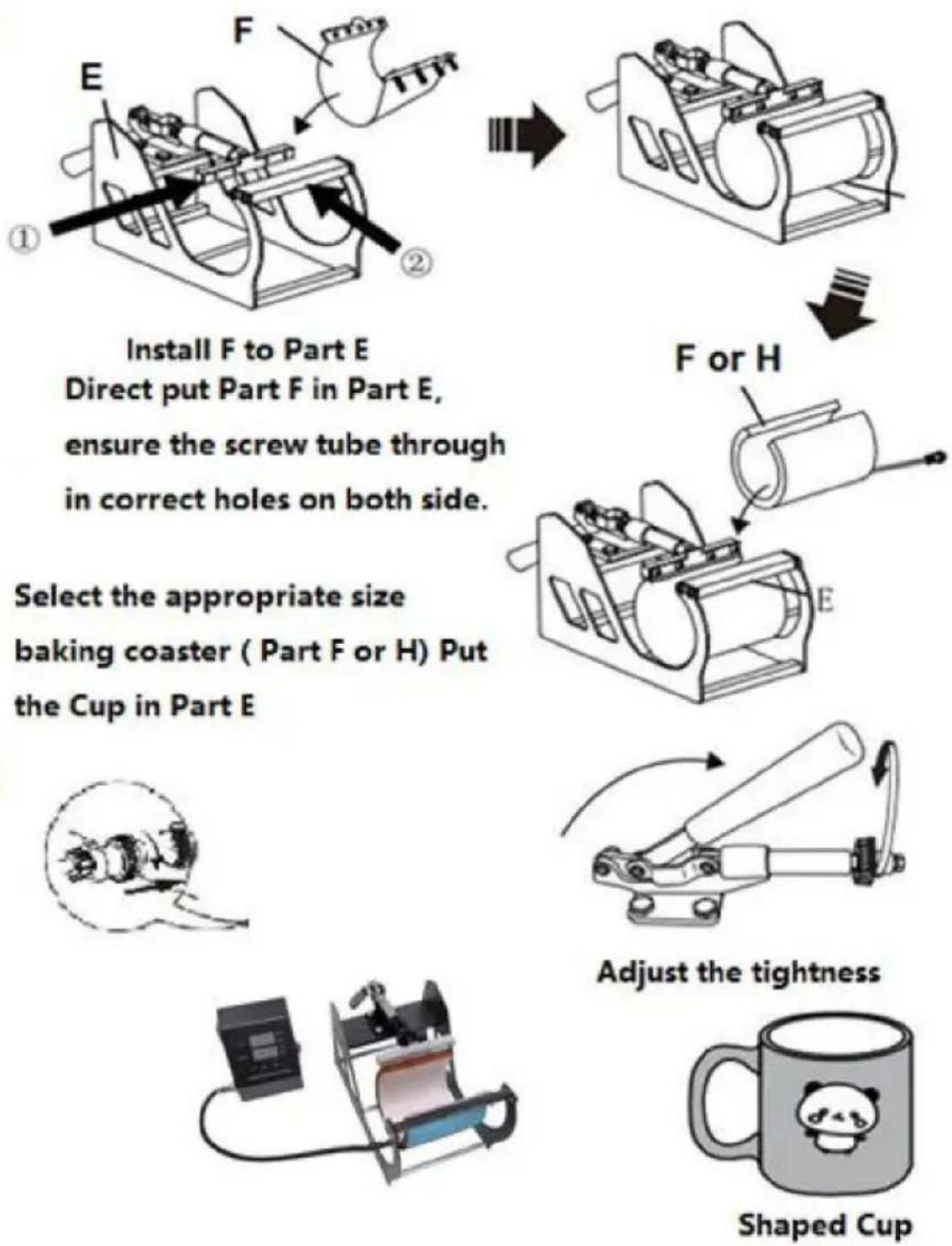

D: Curved Base	E: Mug Press Fram	F: 6oz Mug Press Attachment

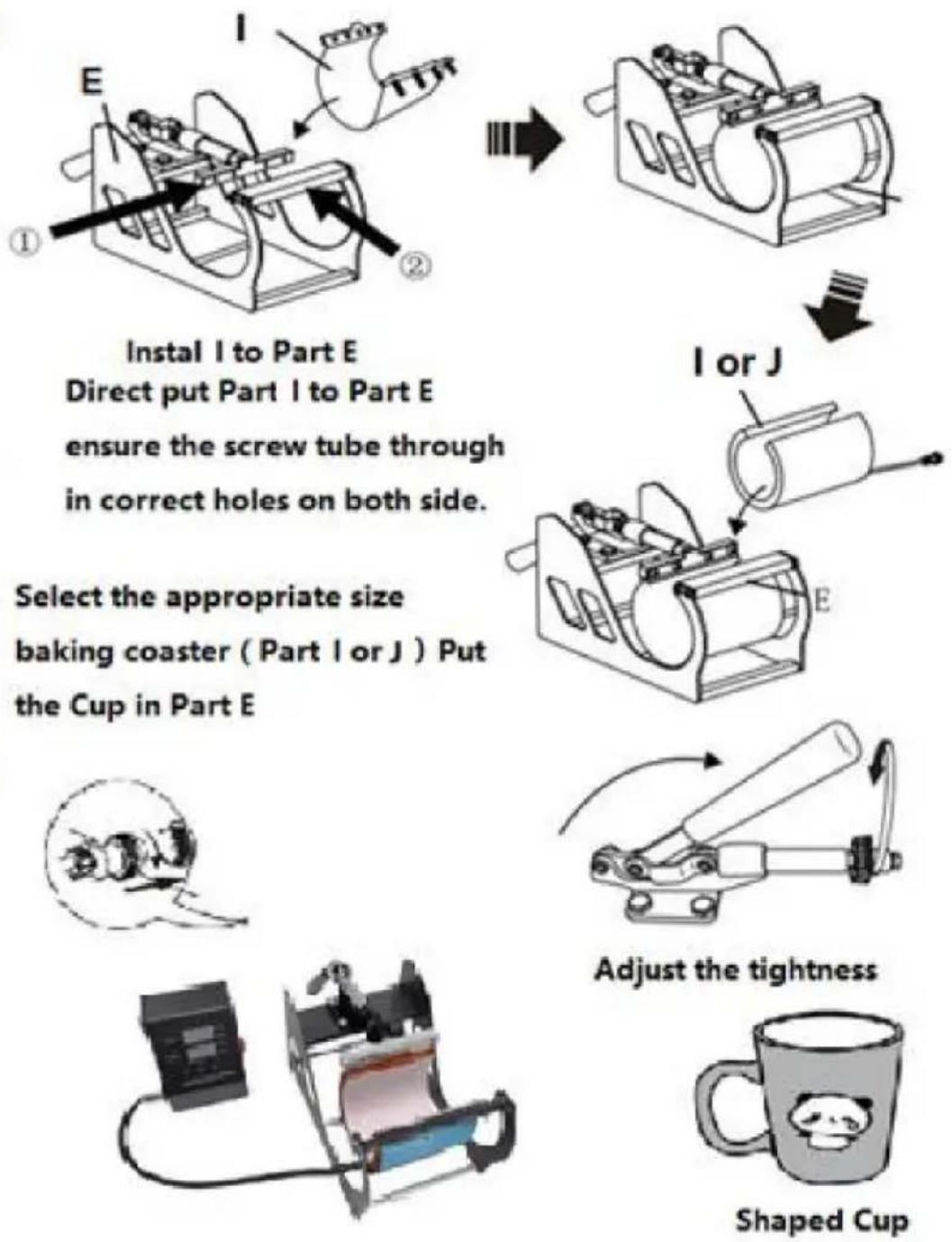

H: 30oz Mug Press Attachment	I: 12oz Mug Press Attachment	J: 17oz Mug Press Attachment

	PartA	PartB	PartC	PartD	PartE	PartF	PartH	PartI	Part J
5in1	√	√	√	√	√		√
6in1	√	√	√	√	√	√	√
8in1	√	√	√	√	√	√	√	√	√

5. MUG PRESS FRAME PACKING LIST

No.	Picture	Component	Quantity
①		5*6mm round head screws	18
②		Round tube	3
③		side panel	2
④		four-hole billiards	1
⑤		straight handle	1
⑥		Heating elements for cups	1
⑦		8*12mm Yuan machine screws	4
⑧		Adjustment knob	1
⑨		plane strip	1

6. INSTALLATION STEPS FOR MUG PRESS FRAME

1. Installation steps

Diagram of a structural frame with three labeled components (①, ②, ③) indicating different parts of the frame.

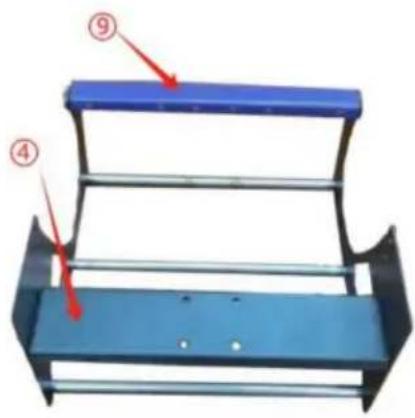

A

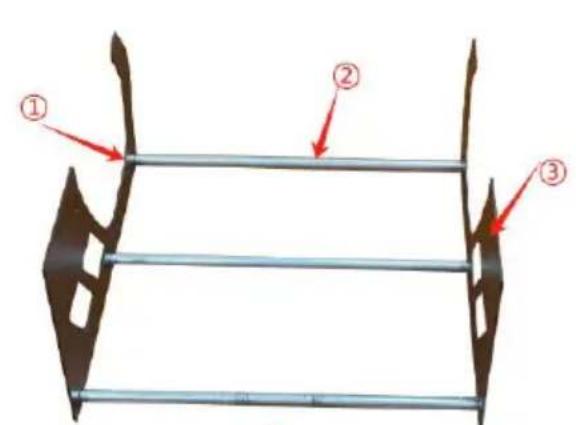

Combine ①②③

Diagram of a multi-tiered storage or rack system with numbered components and red arrows indicating features.

B
Combine A④⑨

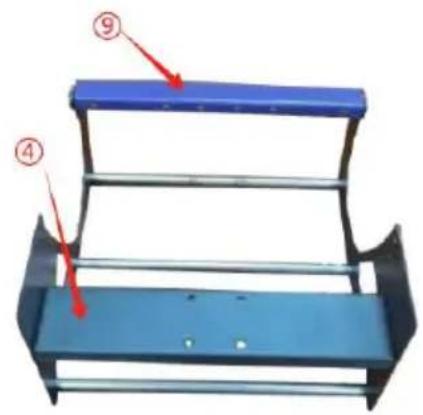

Diagram of a mechanical tool with numbered parts labeled ⑤, ⑧, and ⑧

C

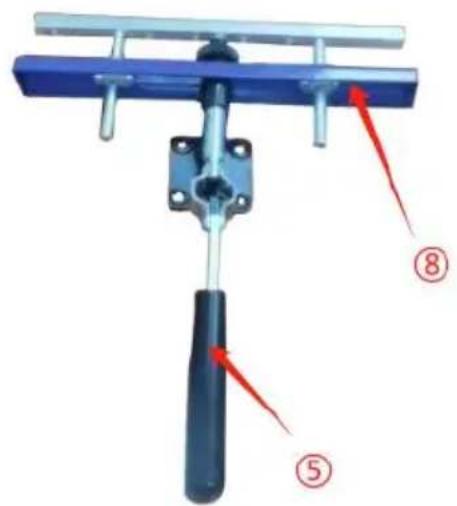

Combine ⑤⑧

Mechanical assembly diagram showing a blue frame with metal supports and a black component inserted into a black plate, labeled D and ⑦ (no text or symbols on the diagram itself)

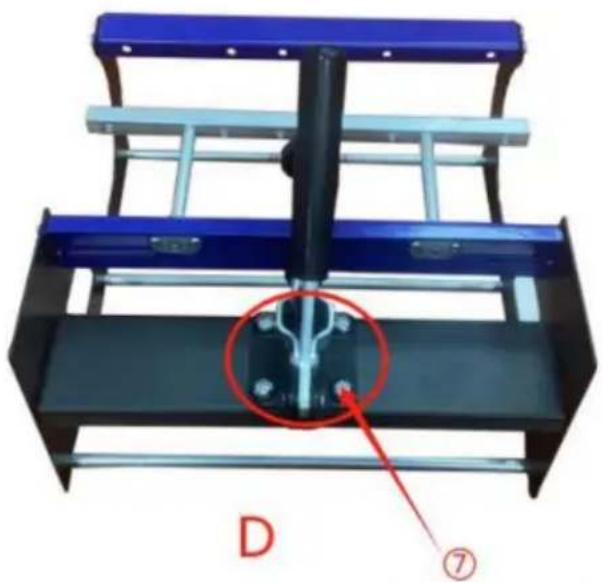

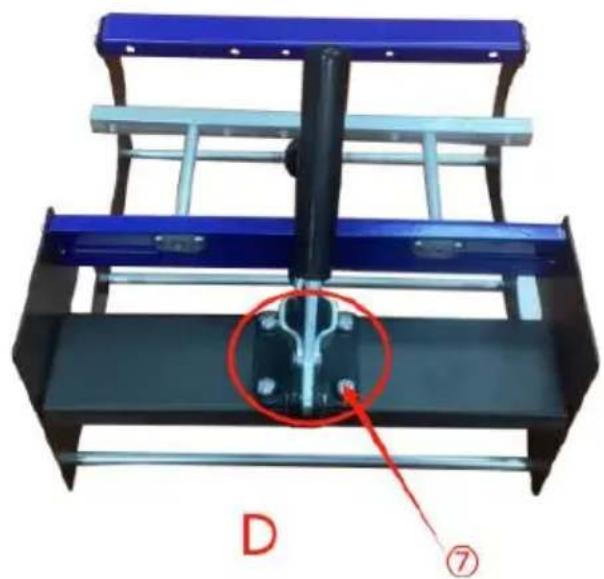

Secure B and C with ⑦

Mechanical assembly diagram showing a blue and black frame with a red arrow pointing to a component (no text or symbols visible)

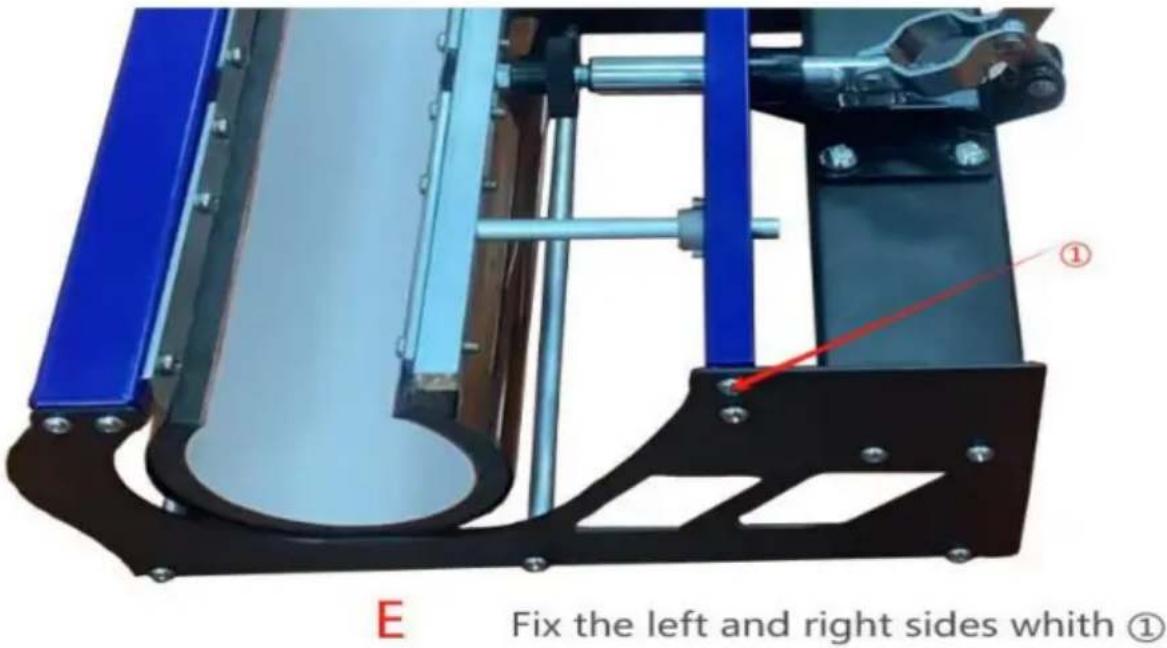

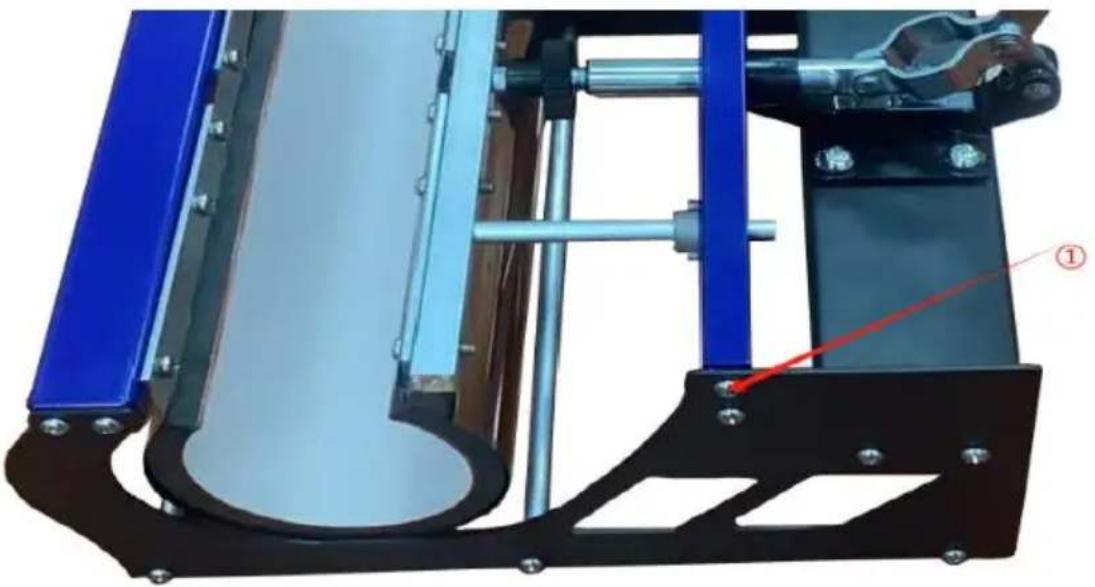

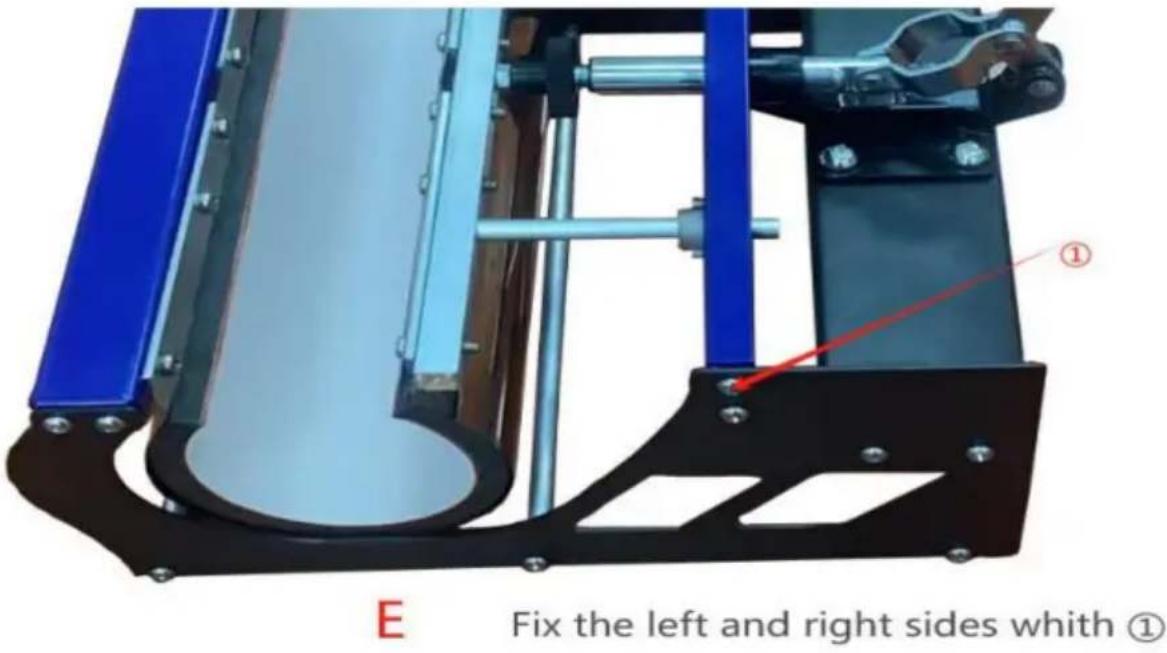

E Fix the left and right sides whith ①

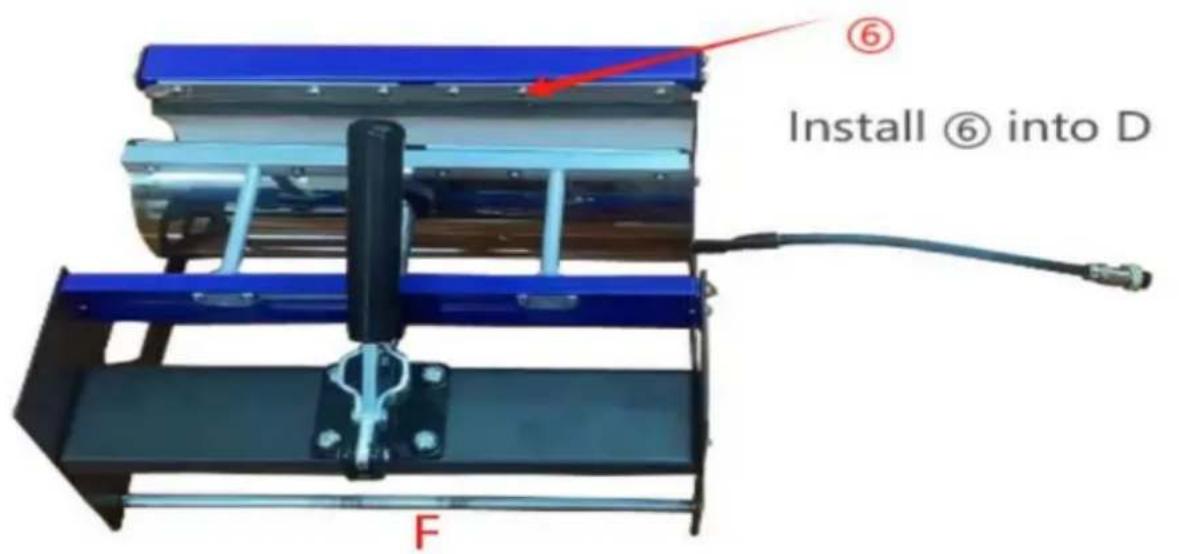

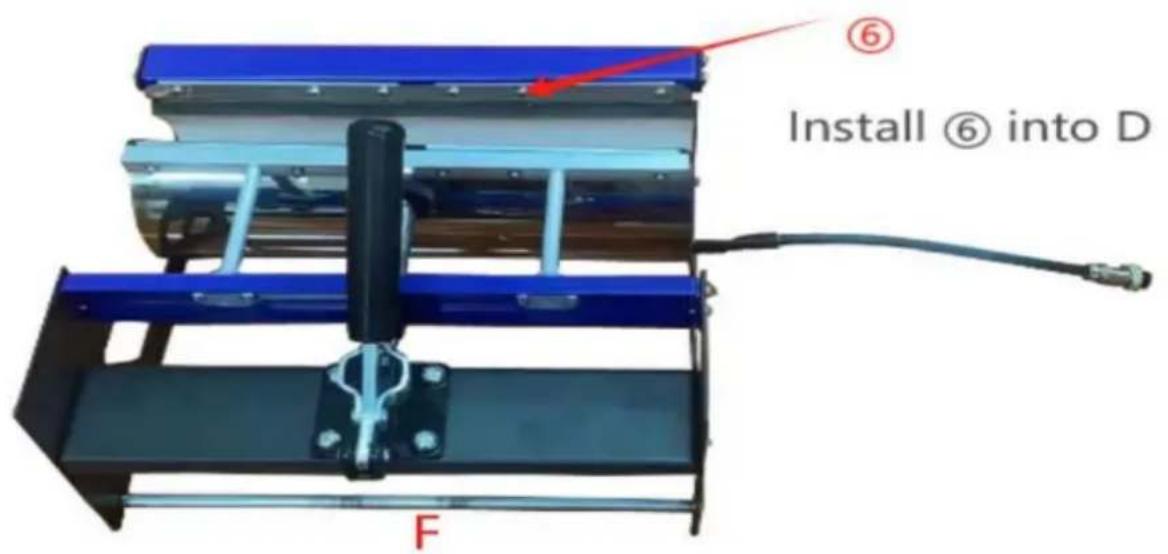

Install ⑥ into D F

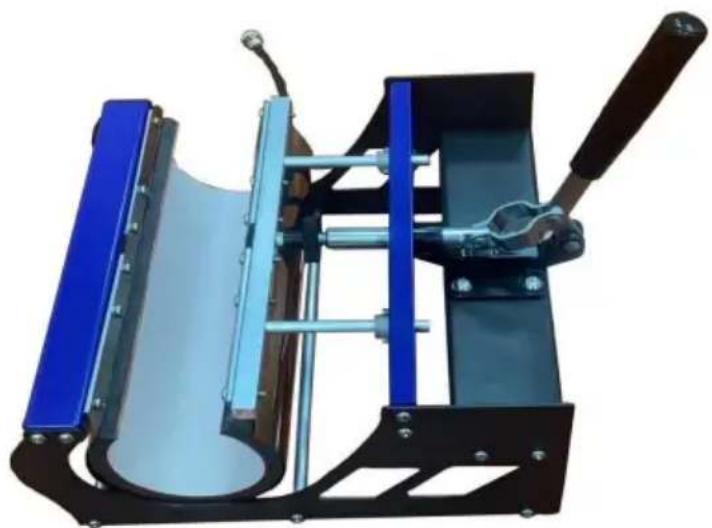

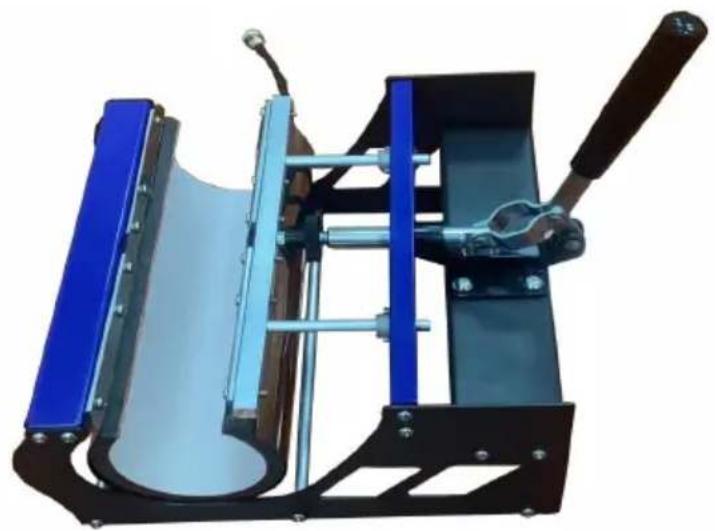

Mechanical device with blue and black components, no visible text or symbols

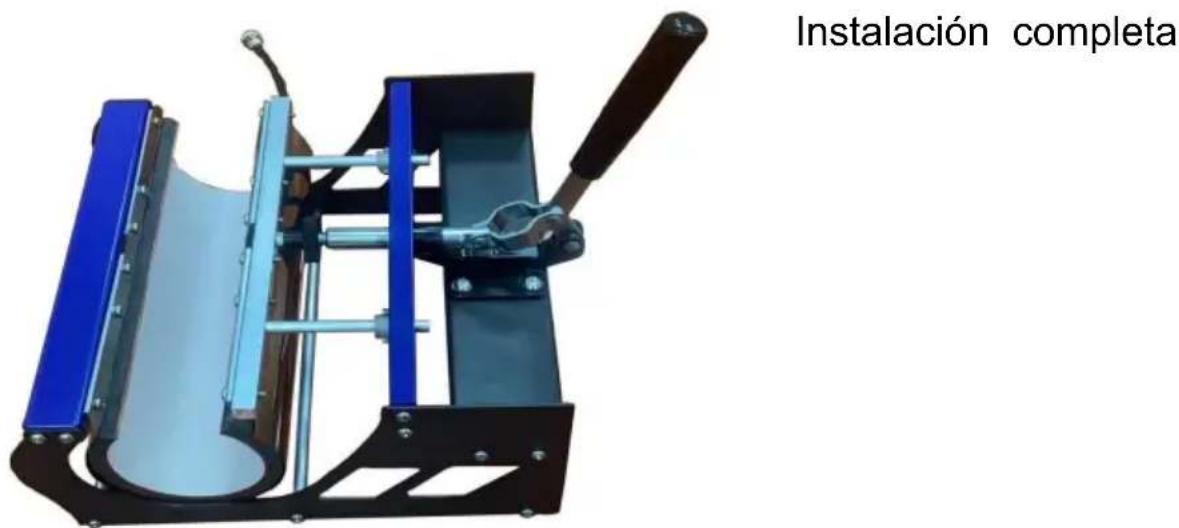

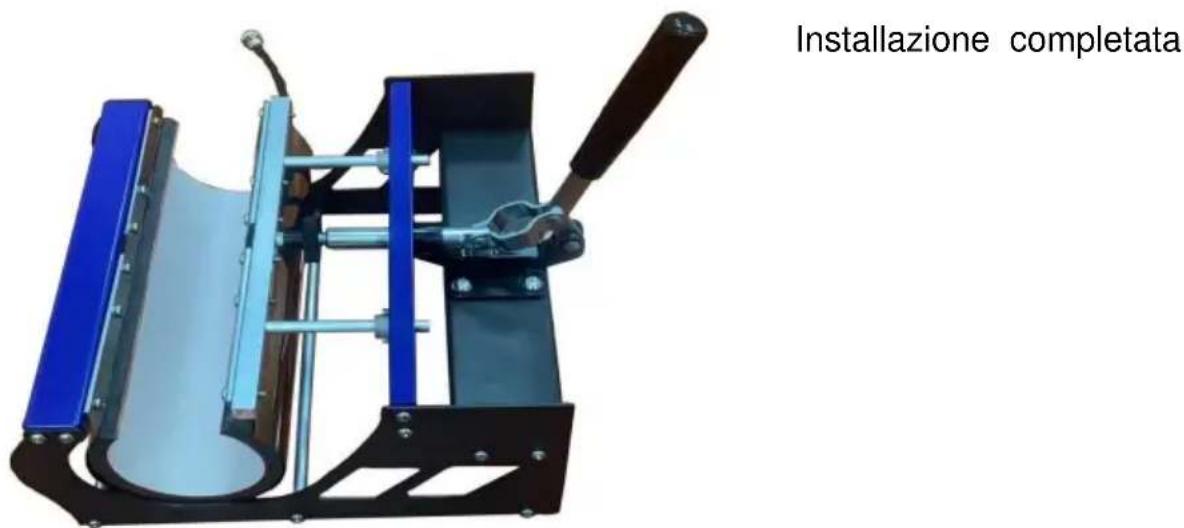

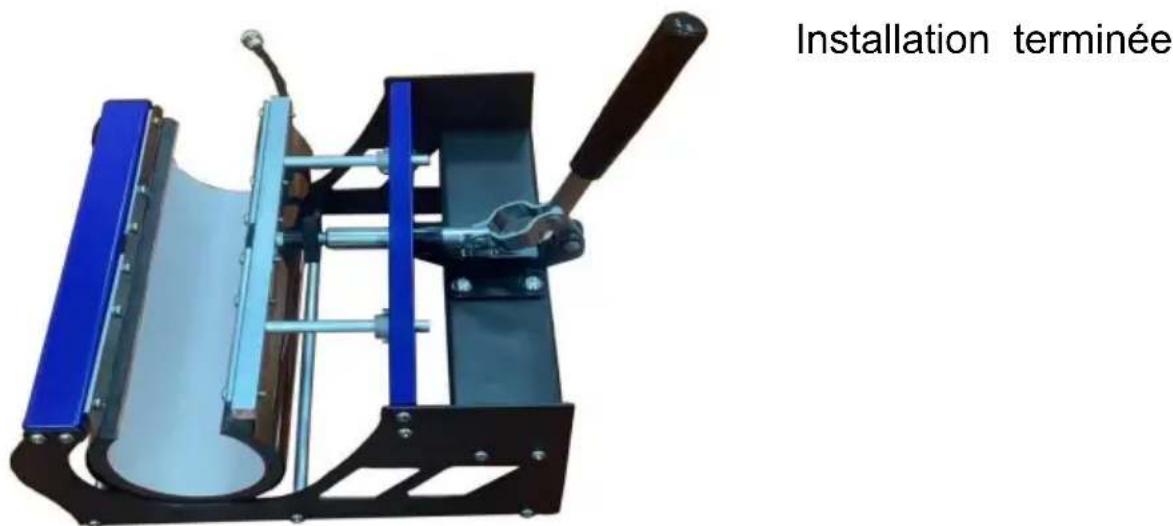

Installation complete

7. ASSEMBLY&USE STEPS

1

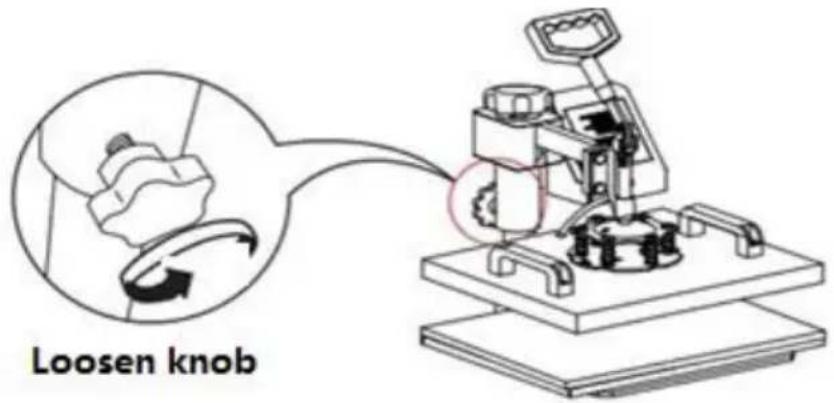

Loosen knob

2

Illustration of a microscope setup with an optical bench and base, showing motion direction (no text or symbols)

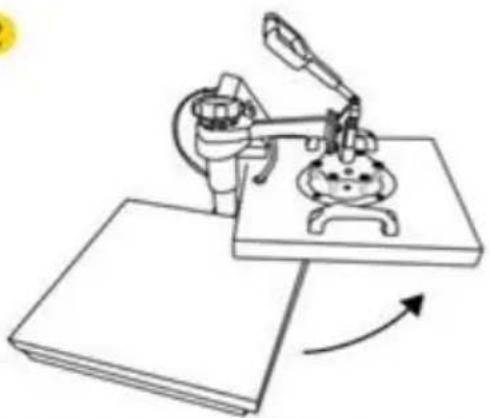

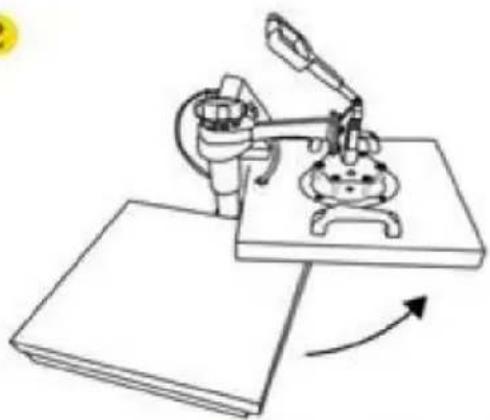

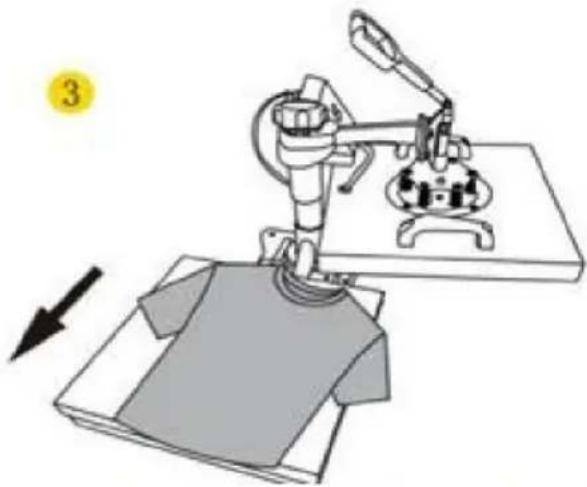

Rotate the heat transfer board to the side

Illustration of a robotic arm operating on a workbench with a device, showing motion direction (no text or symbols)

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

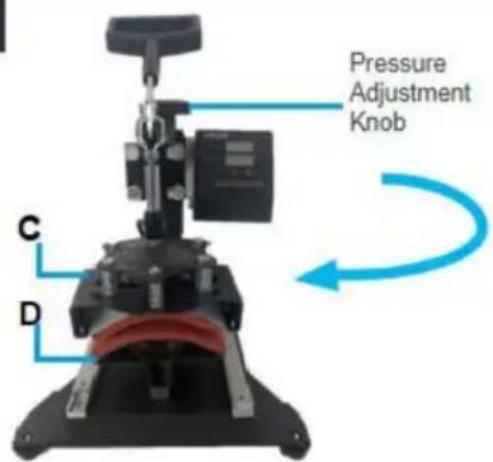

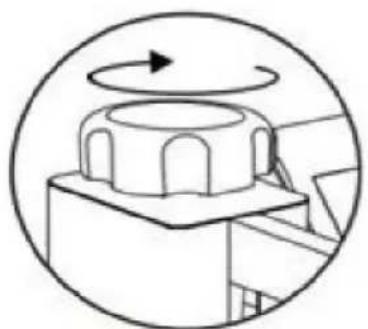

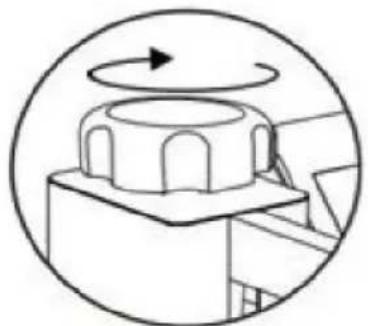

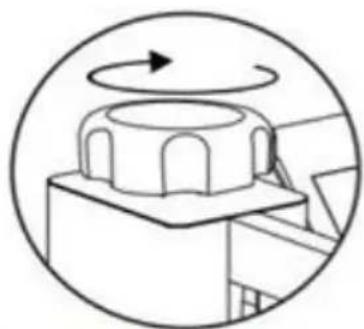

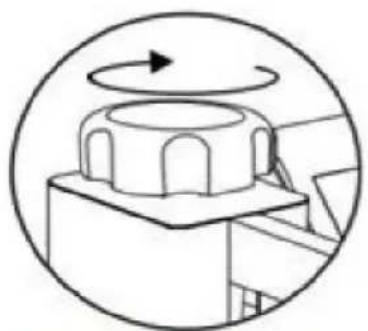

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure
5

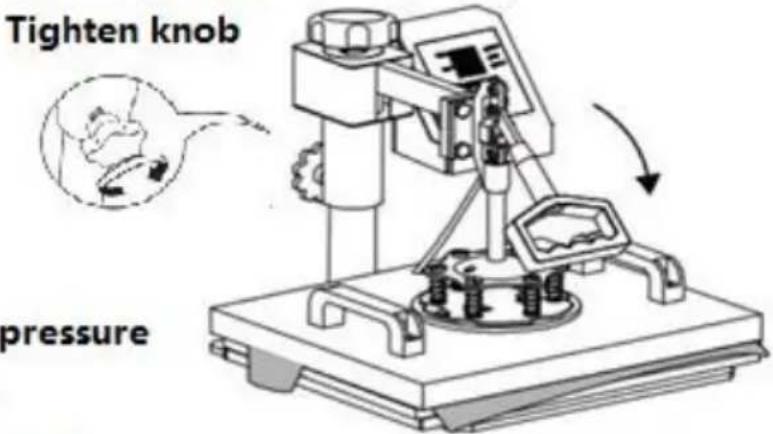

Tighten knob pressure

1. Turn on the power switch, it shows present temperature, and are increasing.
2. Parameter setting guide:

●Temperature setting:

Press "SET" one time, the digital display on the upper screen will show "SP", the bottom screen will show your last set temperature value, press "▲" to increase the temperature value, press "▼" to decrease the temperature value.

For example, you can set the temperature value into 300 Fahrenheit, that value is to check whether your control box is in good condition.

Kindly note: Long press"▲" and "▼", the temperature value will change fast.

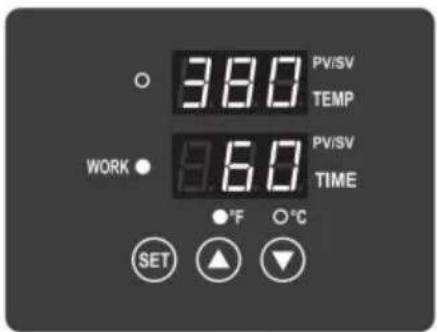

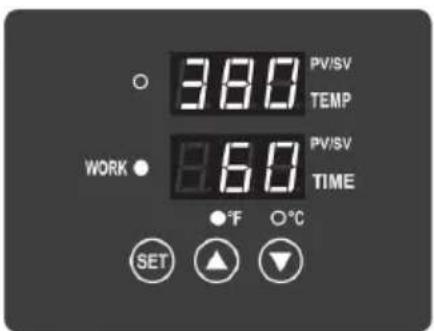

POWER ○ 360 PV/SV TEMP WORK ● 30 PV/SV TIME ● °F ○ °C SET ▲ ▼

Press the power switch to turn on the machine. Press the "SET" button once.

POWER ○ 5.8 P/SV TEMP WORK ● 3.60 P/SV TIME ● °F ○°C SET ▲ ▼

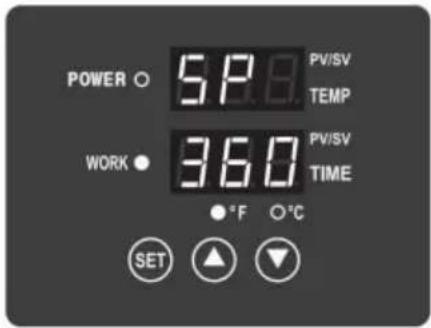

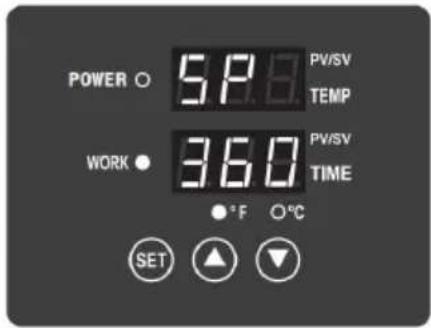

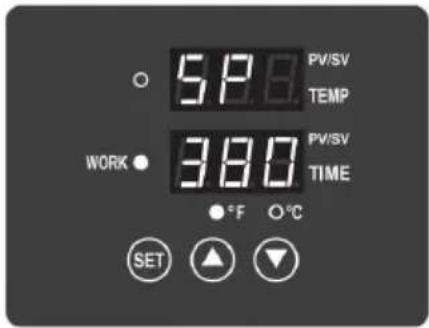

Then the digital controller will show the word "SP"

5.88 PV/SV TEMP WORK 3.80 PV/SV TIME °F °C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

● Working Time setting:

Press "SET" once again, the digital display on the upper screen will show "ST", the bottom screen will show your last press time value, press "▲" to increase the press time value, press▼"to decrease the press time value.

5.68 PV/SV TEMP WORK 8.30 PV/SV TIME -°F 0°C SET ▲ ▼

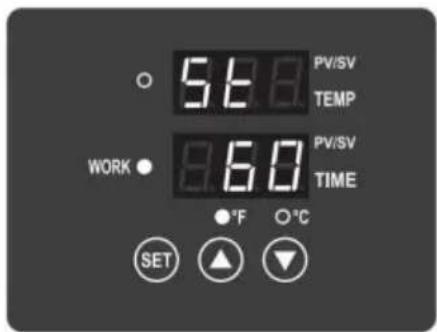

Press the "SET" button for the 2nd time, the display screen will show "St".

5.6.8 PV/SV TEMP WORK 8.6.0 PV/SV TIME ●°F ○°C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

380 PV/SV TEMP WORK 860 PV/SV TIME °F O°C SET ▲ ▼

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

● Degrees Celsius and Fahrenheit transfer

Press the "SET" button for 3th time, the digital display on the upper screen will show "C-F",

Situation1: If the bottom screen shows "C", the current temperature unit is Celsius, please press "▲" or "▼" to transfer the unit into "F"(F is Fahrenheit). Press "SET"

one more time to save your setting.

Situation 2: If the bottom screen shows "F", press "SET" to save your setting.

● Countdown time setting

1. When pressing the heating plate down, begin printing, then press▼" the set working time will automatically countdown.
2. When the timing is over, the buzzer will beep. Lift up the handle a then retrieve the object and finish DIY gift printing.(If the handle is due to lift up, you can anticlockwise the pressure regulator to decrease the pressure.)
3. Once the heat press finished one printing countdown, the counter w count one time.

It is normal for the silicone pad to generate a small amount of smoke when the product is used, and it will disappear on its own after being heated for a few times.

● Suggestion Before Use

The Pressure Adjustment Knob controls the amount of force that will used to push the transferred image into the fibers of the garment.

Clockwise increases pressure. Counterclockwise decreases it.

The Control Panel on the right upper face of the casing is where you set heat and times requirements of your project. These will vary depending on the vinyl or transfer paper used.

The handle opens & closes the top & bottom Heated Platens of the revolve press.

- How to calibrate your heat press machine

1. Turn the pressure knob counterclockwise a few times to lower the pressure on the platens.
2. Place a piece of paper onto the bottom of the platen.
3. Close the revolve press using the handle.

4.Pull on the paper.

1. If the paper moves at all, turn the knob clockwise and try again.

6.Try again and repeat until the paper doesn't move at all. This is y "Medium" pressure. From the "Medium" setting, high pressure will be clockwise one to two turns. Low pressure will be counterclockwise one two turns. (The number of turns will depend on the thickness of the garment.

9. PRINTING METHODS

1. Adjust pressure to your requirement(Please refer to “how to calibrate your heat press machine” suggestion). Plug in the power cord and tu the power switch ON.

2. The temperature will auto starts to rise. In this time you can set the transfer temperature and press time.

3.Once the temperature rises to the set temperature, the buzzer will out the "BEEF" sound.

1. Place the object (i.e.T-shirt) on the press bed. Pull down the hand press the object. Then press the "▼" button to start countdown time.

2. Wait for the time to end up with a long buzzer sound. (Note: There about 5s time for the long buzzer to notify you it has finished; after for the short buzzer will appear to notify you whether you still go or next work.)

3. Work finish and take out the object.

4. Turn off the power switch.

Note: Slide Handle Assembly Method

Black rectangular object with a handle and small protrusions, no visible text or symbols

Use Phillips screwdriver assembly the slide handle (M5*20 screw and nuts)

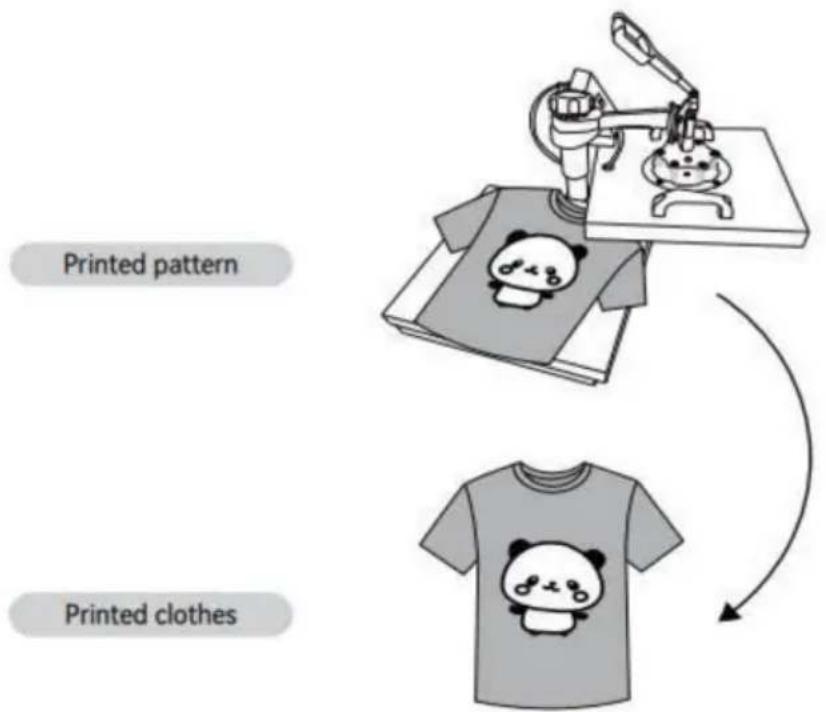

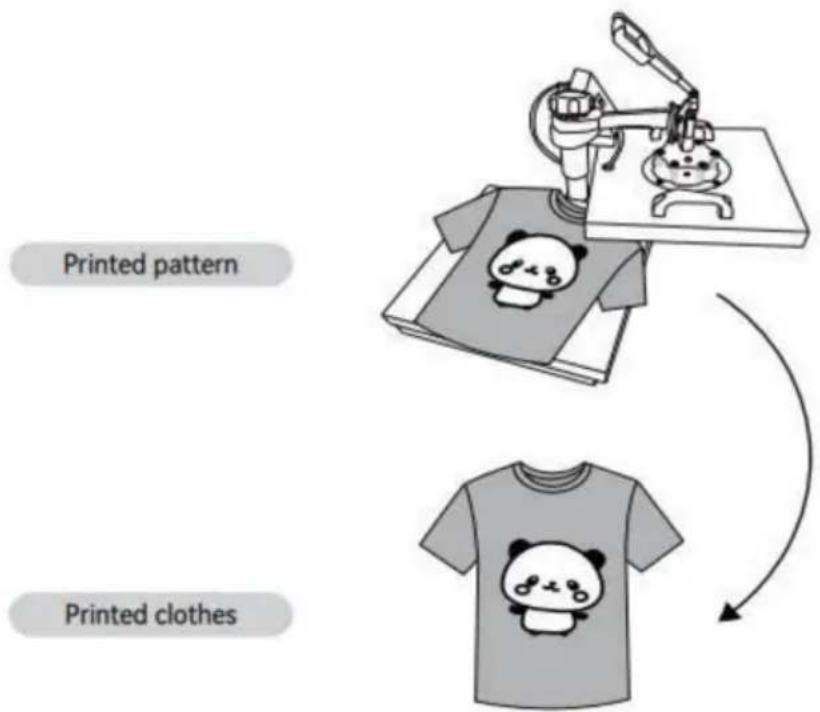

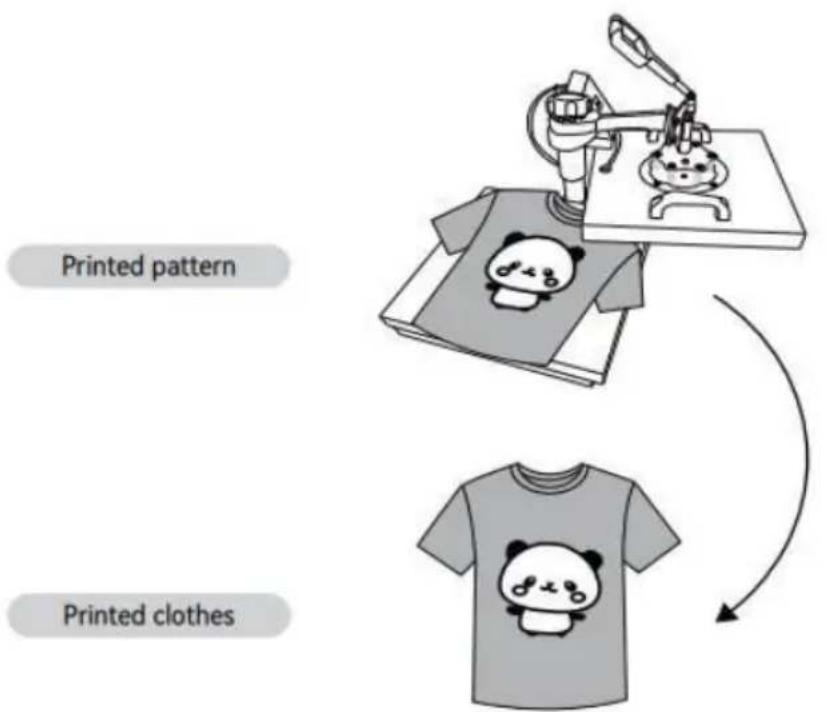

Printed pattern Printed clothes

Turn off the power and pull out the mat. It is recommended to wear heat-resistant gloves when removing clothes or remove them after 2-3 minutes. Be careful of hot heat.

Precautions: The area 5cm from the edge of the heating plate is and stamping area.

If use heating transfer paper, bast cover a protective cover sheet on avoid pattern residue.

Tips:

.1. If it's for a T-shirt, please flat it by preheating it for 3-5 sec remove wrinkles and moisture, ironing clothes likewise.

1. It's better if you put a white cloth on the transfer paper to an unnecessary marks when setting the temperature too high.

10. REPLACE BAKING TRAY MAT

8inch 10inch

1. Use high-temperature tape to fix the pattern on the tray, and then cover it v silicone mat of suitable size (8in or 10in

Plate 10inch Picture Plate heating pad

1. When reaching the set temperature, the tray on the press bed. (Silicone m opposite to bottom, tray bottom opposite heating plate). It is suggested to set the countdown time around 15min (900s). Ps. Refer to ‘operation example’

Plate 10inch

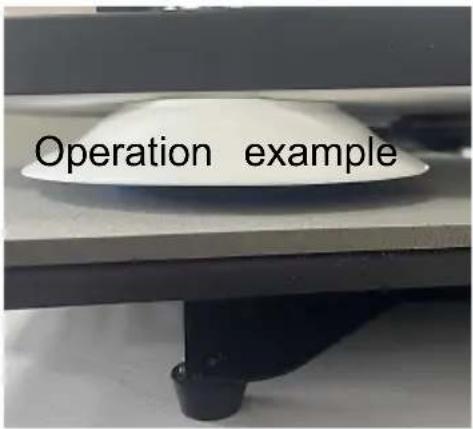

Operation example

1. Remove the heating plate and place it on the plate keeping the side without silica gel pad facing upward.

Three plates with photo frames, displayed on stands (no visible text or symbols)

200°C 900S

Recommended

parameter

Set Temp: 200^ C

On the time 0000

11. REPLACE BAKING CAP MAT

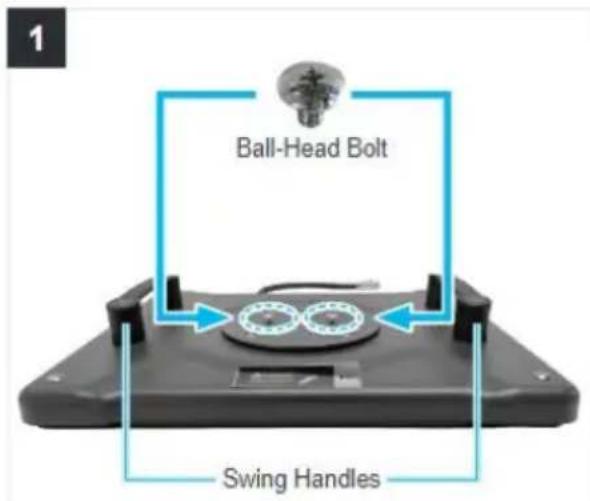

Ball-Head Bolt Swing Handles

Screw the ball-head Phillips bolts back to the flat platen.

Note: Partially tighten them.

Close-up of a mechanical clamp or mounting base with four springs and bolts, no visible text or symbols

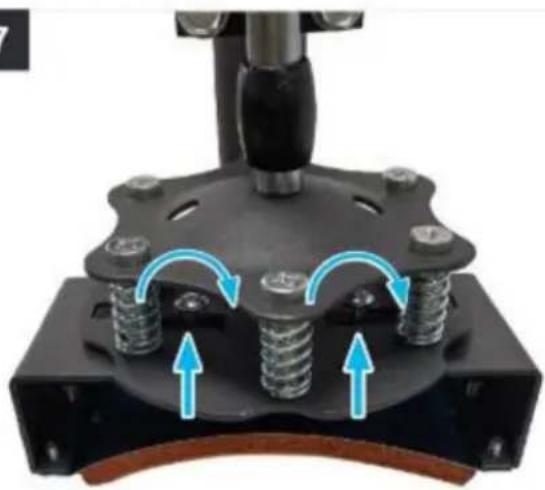

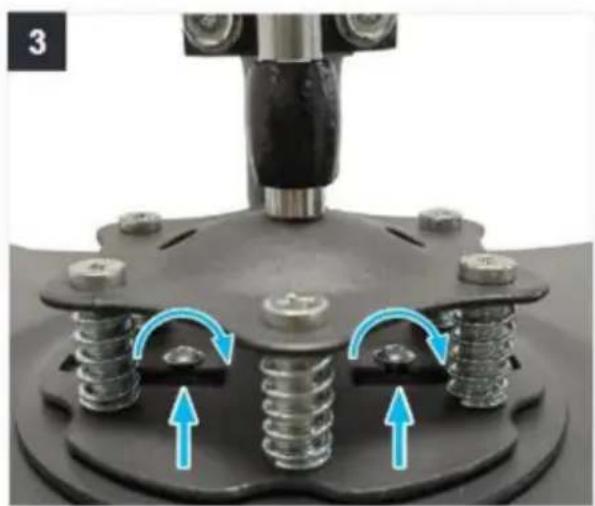

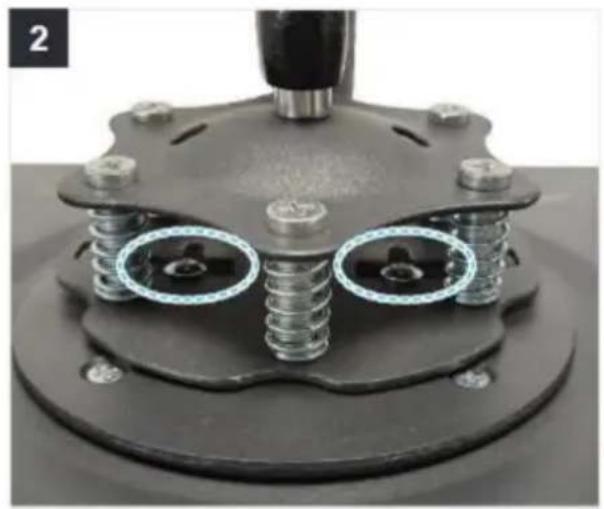

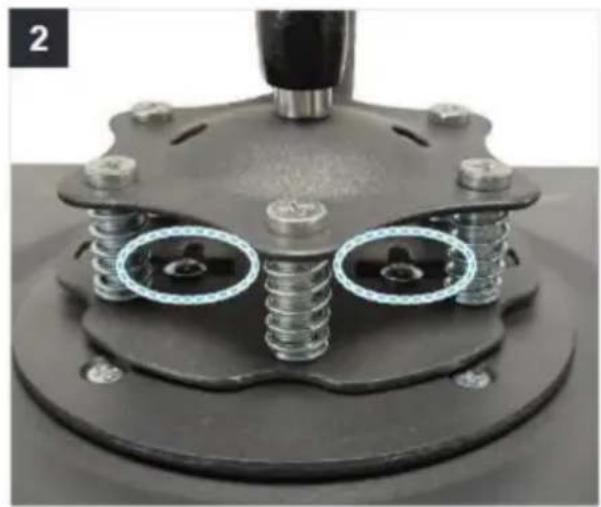

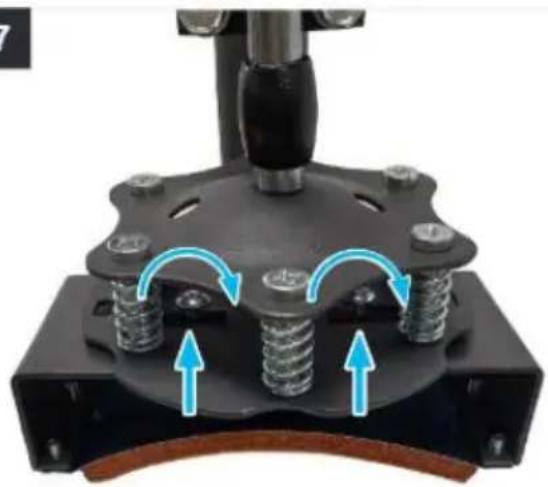

Firmly grasp the swing handles, lifting the platen up to the lower pressure plate and placing the bolts in the large slots as shown.

Close-up of a mechanical assembly with springs and a central component, showing motion arrows (no text or symbols)

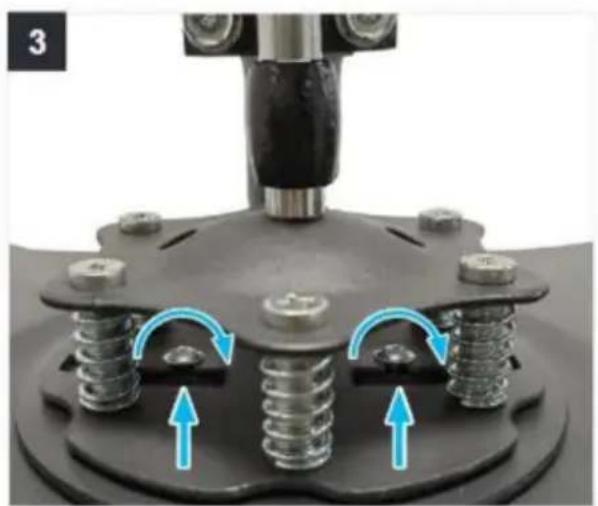

a. Slide the bolts into the small slots.

b. Tighten them FULLY to relock the platen.

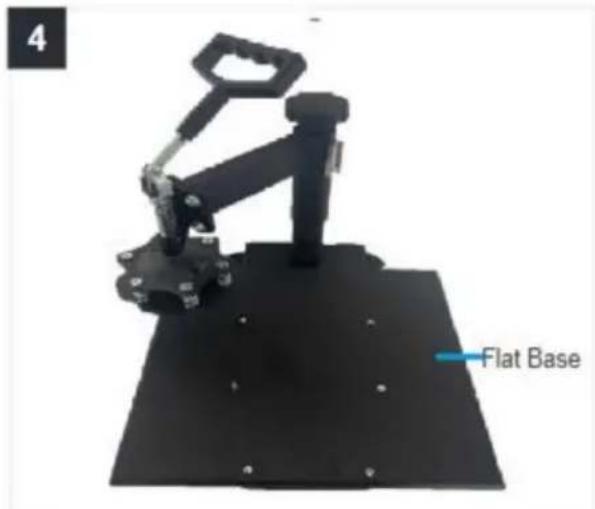

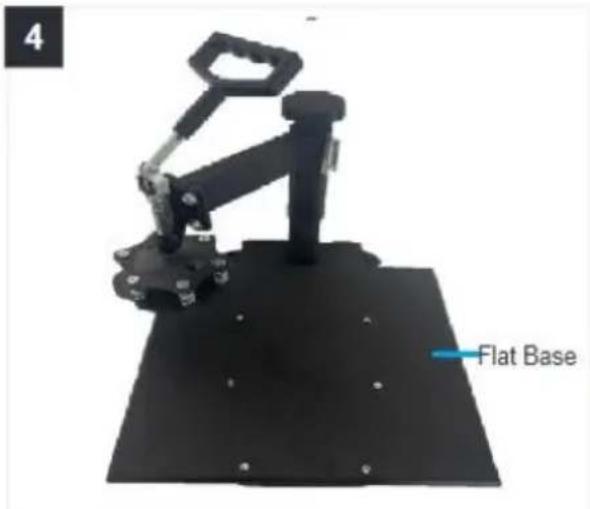

4 Flat Base

Turn the support arm to either side and remove the heat-resistant mats from the flat base.

5

Mushroom-Head Bolt

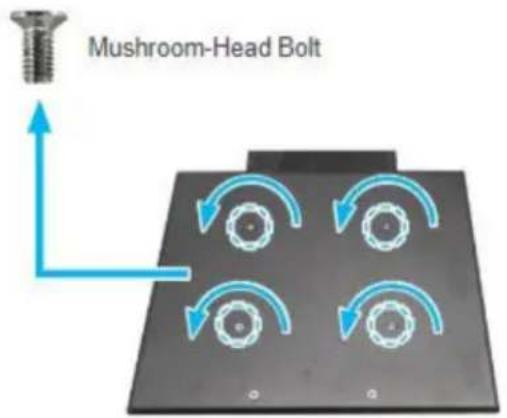

Unscrew the four mushroom-head bolts using a Phillips screwdriver (not included).

6

Mechanical assembly diagram showing a component being processed from top to bottom, with no visible text or symbols.

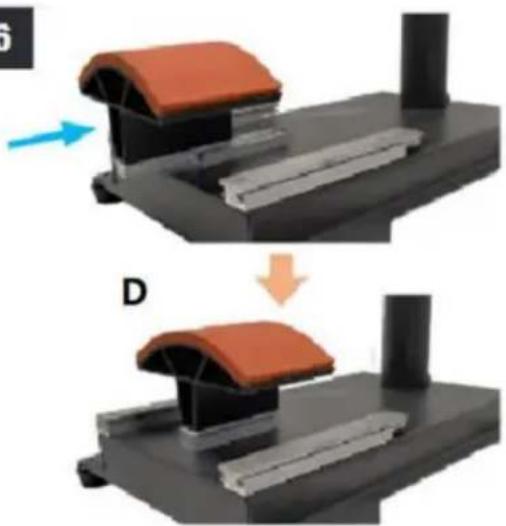

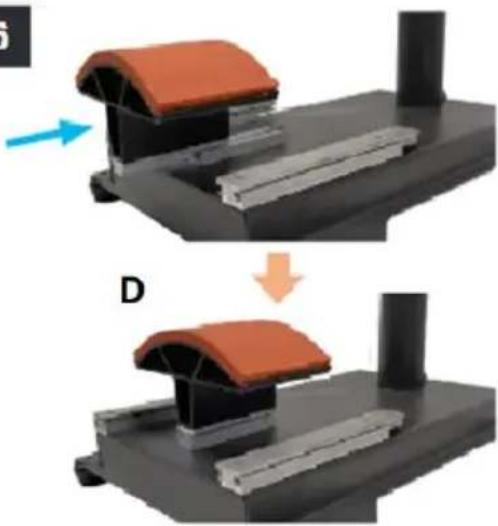

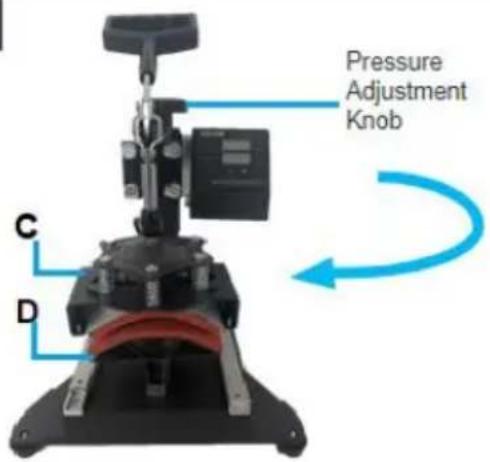

Slide the curved base (D) onto the rail as shown.

7

Close-up of a mechanical press or clamp device with springs and a central component, showing blue directional arrows indicating motion (no text or symbols visible)

Push the press plate up to the lower pressure plate, placing the bolts in the large slots as shown.

a. Slide the bolts into the small slots.
b. Tighten them FULLY using a Phillips screwdriver (not included).

8

Pressure Adjustment Knob C D

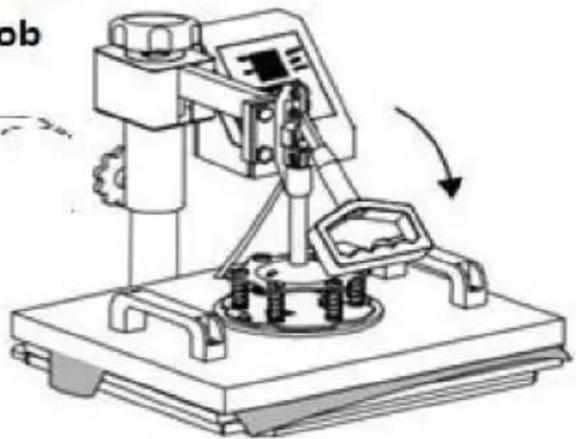

Turn back the support arm, placing the press plate above the curved base (L).

Note: If the press plate is not high enough to be positioned above the base, turn the pressure adjustment knob counterclockwise to raise the support arm and the plate.

1

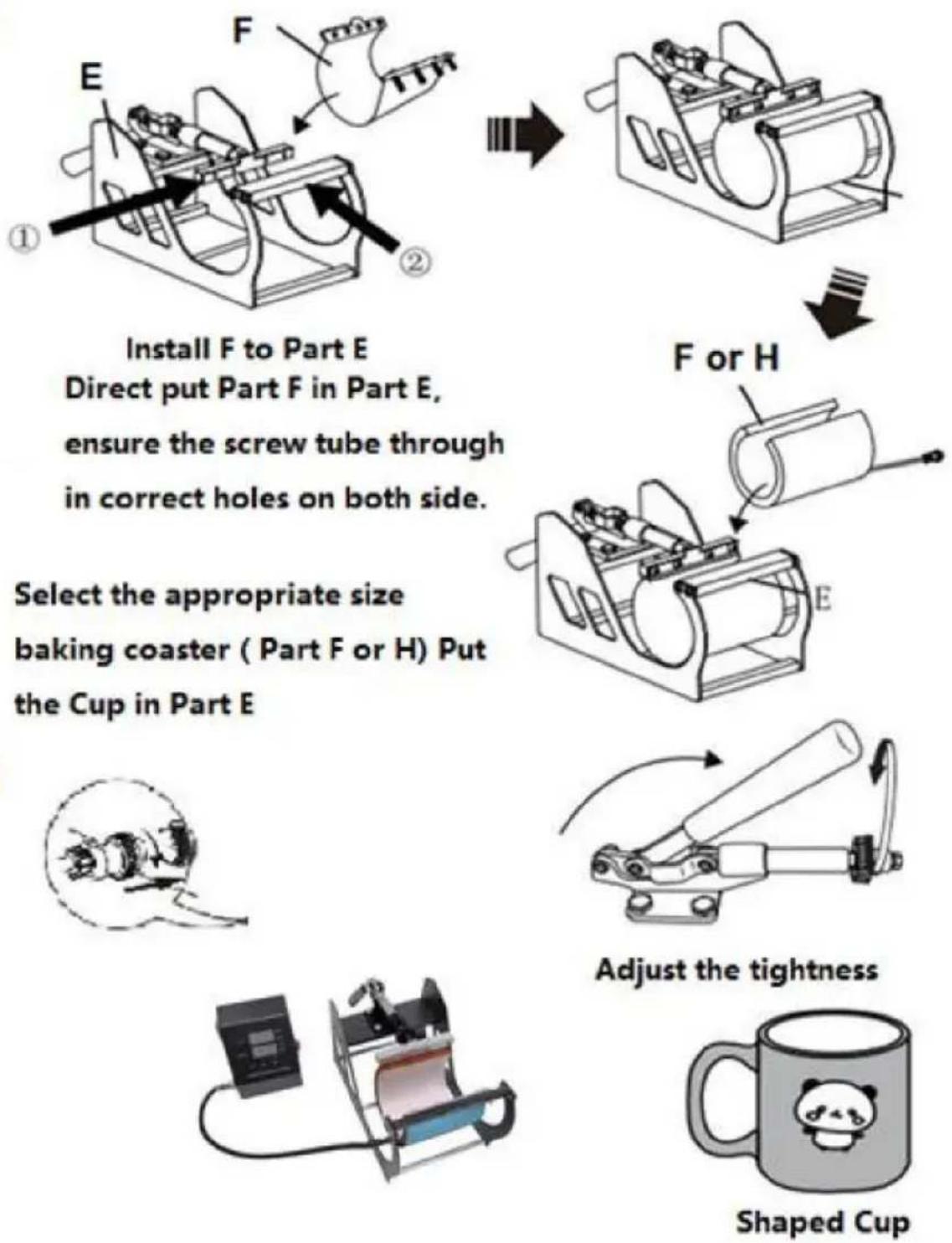

Install F to Part E Direct put Part F in Part E, ensure the screw tube through in correct holes on both side.

Select the appropriate size baking coaster ( Part F or H) Put the Cup in Part E

2

1

Instal I to Part E

Direct put Part I to Part E

ensure the screw tube through

in correct holes on both side.

Select the appropriate size baking coaster (Part I or J) Put the Cup in Part E

2

13. RECOMMENDED PARAMETER

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

14. TROUBLE SHOOTING FOR TRANSFER QUALITY

Pale color:

The temperature is too low/the pressure is not correct/or not pressed long enough.

Blurring Patter: Too much transfer time causes proliferation.

Part Blurring of Pattern: Heat was incorrectly

distributed through the heat plate.

Allow more time between press operations.

Pressure distribution can also be the

cause, which can be set on the four plate surface adjusters.

Please note that it has been factory set,

and there should be no need to adjust them.

Dull Surface of Pattern: The pressure is too large,

or the temperature is too high.

Scarred Pattern transfer time is too long.

Different Pattern Color: The pressure is incorrect,

or the transfer paper is poor quality.

Adhesive Paper: the temperature is too high or poor printing ink.

Ps. Partten material always uses heat transfer paper and DTF film

Please check the DTF film suggested removing time to avoid that the

remove time is incorrect cause failure.

Tutorial Video

Blue QR code image with finder patterns, no visible text or symbols beyond the matrix pattern

Temperature controller operation method

QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

Temperature sensor replace tutorial

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical testing device with gears and a central control panel (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

BACK Power Inlet Upper Column Locking Knob Lower Column Pressure Adjustment k b Lift Handle Support Arm Pressure Plate Control Panel Control Box Power Switch Signal Port Signal Cable Flat Platen Swing Handle Flat Base Footpad Bottom Board Slide Handle Silicone Mat (Grey) Foam Mat (Khaki)

3. PANEL STEROWANIA

OUT WORK PV/SV TEMP PV/SV TIME S Indicator Lights °F °C SET Function Buttons Upper Display Lower Display

Diagram of a structural frame with three labeled components (①, ②, ③) indicating different parts of the frame.

A
Combine ①②③

Diagram of a multi-tiered mechanical structure with numbered annotations pointing to specific components.

B
Combine A④⑨

Diagram of a mechanical tool with numbered parts labeled ⑤, ⑧, and ⑧

C
Combine ⑤⑧

Mechanical assembly diagram showing a blue shelving unit with a black tool inserted into a black component, labeled D and ⑦ (no text or symbols on the diagram itself)

Secure B and C with ⑦

E Fix the left and right sides whith ①

Install ⑥ into D F

Mechanical device with blue and black components, no visible text or symbols

Illustration of a mechanical device with a lever and base, showing a rotating arrow (no text or symbols)

Rotate the heat transfer board to the side

Illustration of a robotic arm operating on a workbench with a mechanical device, showing no text or symbols.

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure

Tighten knob

5

Mechanical device with rotating arm and adjustment knob (no visible text or symbols)

8. SPOSÓ B DZIAŁANIA REGULATORA TEMPERATURY

Press the power switch to turn on the machine. Press the "SET" button once.

POWER ○ 518.0 PV/SV TEMP WORK ● 360.0 PV/SV TIME ● °F ○ °C SET ▲ ▼

Then the digital controller will show the word "SP"

5.88 PV/SV TEMP WORK 3.80 PV/SV TIME °F O°C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

Press the "SET" button for the 2nd time, the display screen will show "St".

5.68 PV/SV TEMP WORK 8.60 PV/SV TIME ●°F ○°C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

3.80 PV/SV TEMP WORK 9.60 PV/SV TIME °F °C SET ▲ ▼

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

Black plastic tray with handle and side screw, no visible text or symbols

Use Phillips screwdriver assembly the slide handle (M5*20 screw and nuts)

Printed pattern Printed clothes

8inch 10inch

Plate 10inch Picture Plate heating pad

Three circular plates with colorful portrait designs, displayed on stands (no text or symbols visible)

200°C 900S

Zalecony

parametr

Screw the ball-head Phillips bolts back to the flat platen.

Note: Partially tighten them.

Close-up of a mechanical clamp or mounting bracket with four springs and bolts, no visible text or symbols

Firmly grasp the swing handles, lifting the platen up to the lower pressure plate and placing the bolts in the large slots as shown.

Mechanical assembly with four springs and a central shaft, showing motion arrows (no text or symbols)

a. Slide the bolts into the small slots.

b. Tighten them FULLY to relock the platen.

4 Flat Base

Turn the support arm to either side and remove the heat-resistant mats from the flat base.

5

Mushroom-Head Bolt

Unscrew the four mushroom-head bolts using a Phillips screwdriver (not included).

6

Mechanical assembly diagram showing a component being processed from top to bottom, with no visible text or symbols.

Slide the curved base (D) onto the rail as shown.

7

Close-up of a mechanical clamp or spring assembly with blue arrows indicating motion direction (no text or symbols)

Push the press plate up to the lower pressure plate, placing the bolts in the large slots as shown.

a. Slide the bolts into the small slots.
b. Tighten them FULLY using a Phillips screwdriver (not included).

8

Pressure Adjustment Knob C D

Turn back the support arm, placing the press plate above the curved base (L).

Note: If the press plate is not high enough to be positioned above the base, turn the pressure adjustment knob counterclockwise to raise the support arm and the plate.

12. WYMIANA PODSTAWKI DO PIECZENIA

1

Install F to Part E Direct put Part F in Part E, ensure the screw tube through in correct holes on both side.

Select the appropriate size baking coaster ( Part F or H) Put the Cup in Part E

2

1

2

13. ZALECANY PARAMETR

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

14. ROZWIĄZYWANIE PROBLEMÓW Z JAKOŚCIĄ TRANSFERU

Kolor blady:

QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

C/O YH Consulting Limited Biuro 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical testing device with gears and a central control panel (no text or symbols)

Close-up of two metallic connector pins with black connectors, shown from different angles (no text or symbols visible)

INFORMAZIONI FCC

BACK Power Inlet Upper Column Locking Knob Lower Column Pressure Adjustment k b Lift Handle Support Arm Pressure Plate Control Panel Control Box Power Switch Signal Port Signal Cable Flat Platen Swing Handle Flat Base Footpad Bottom Board Slide Handle Silicone Mat (Grey) Foam Mat (Khaki)

3. PANNELLO DI CONTROLLO

OUT WORK PV/SV TEMP PV/SV TIME S Indicator Lights °F °C SET Function Buttons Upper Display Lower Display

Diagram of a structural frame with three labeled components (①, ②, ③) indicating different parts of the frame.

A
Combine ①②③

Diagram of a multi-level metal structure with numbered annotations pointing to specific components.

B
Combine A④⑨

Diagram of a mechanical tool with numbered parts labeled ⑤, ⑧, and ⑧

C
Combine ⑤⑧

Mechanical assembly diagram showing a blue shelving unit with a black tool inserted into a black component, labeled D and ⑦ (no text or symbols on the diagram itself)

Secure B and C with ⑦

E Fix the left and right sides whith ①

Install ⑥ into D F

Illustration of a mechanical device with a lever and base, showing a rotating arrow (no text or symbols)

Rotate the heat transfer board to the side

Illustration of a robotic arm operating on a workbench with a mechanical device, showing motion direction (no text or symbols)

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure

Tighten knob

5

Mechanical device with rotating arm and control panel (no visible text or symbols)

Press the power switch to turn on the machine. Press the "SET" button once.

POWER ○ 51.8 PV/SV TEMP WORK ● 36.0 PV/SV TIME ● °F ○°C SET ▲ ▼

Then the digital controller will show the word "SP"

5.8 PV/SV TEMP WORK 3.0 PV/SV TIME °F °C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

Press the "SET" button for the 2nd time, the display screen will show "St".

5.68 PV/SV TEMP WORK 8.60 PV/SV TIME °F °C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

3.80 PV/SV TEMP WORK 9.60 PV/SV TIME -°F °C SET ▲ ▼

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

Black rectangular object with a handle and small protrusions, no visible text or symbols

Use Phillips screwdriver assembly the slide handle (M5*20 screw and nuts)

Printed pattern Printed clothes

8inch 10inch

Plate 10inch Picture Plate heating pad

Three circular plates with colorful portrait designs, displayed on stands (no text or symbols visible)

200°C 900S

Raccomandato

parametro

Temperatura impostata: 200ÿ

Screw the ball-head Phillips bolts back to the flat platen.

Note: Partially tighten them.

Close-up of a mechanical clamp or mounting bracket with four springs and bolts, no visible text or symbols

Firmly grasp the swing handles, lifting the platen up to the lower pressure plate and placing the bolts in the large slots as shown.

Mechanical assembly with four springs and a central shaft, showing motion arrows (no text or symbols)

a. Slide the bolts into the small slots.

b. Tighten them FULLY to relock the platen.

4 Flat Base

Turn the support arm to either side and remove the heat-resistant mats from the flat base.

5

Mushroom-Head Bolt

Unscrew the four mushroom-head bolts using a Phillips screwdriver (not included).

6

Mechanical assembly diagram showing a component being processed from top to bottom, with no visible text or symbols.

Slide the curved base (D) onto the rail as shown.

7

Close-up of a mechanical clamp or spring assembly with blue arrows indicating motion direction (no text or symbols)

Push the press plate up to the lower pressure plate, placing the bolts in the large slots as shown.

a. Slide the bolts into the small slots.
b. Tighten them FULLY using a Phillips screwdriver (not included).

8

Pressure Adjustment Knob C D

Turn back the support arm, placing the press plate above the curved base (L).
Note: If the press plate is not high enough to be positioned above the base, turn the pressure adjustment knob counterclockwise to raise the support arm and the plate.

12. SOSTITUIRE IL SOTTOBICCHIERE DA FORNO

1

Install F to Part E Direct put Part F in Part E, ensure the screw tube through in correct holes on both side.

Select the appropriate size baking coaster ( Part F or H) Put the Cup in Part E

2

1

Instal I to Part E Direct put Part I to Part E ensure the screw tube through in correct holes on both side.

Select the appropriate size baking coaster (Part I or J) Put the Cup in Part E

2

1. PARAMETRO CONSIGLIATO

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

14. RISOLUZIONE DEI PROBLEMI PER LA QUALITÀ DEL TRASFERIMENTO

Colore pallido:

QR code image with blue dots and white square outlines, no visible text or symbols beyond the matrix pattern

Blue QR code with finder patterns, no visible text or symbols beyond the matrix pattern

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

C/O YH Consulting Limited Ufficio 147, Centurion House,

Via Roma, 101, 00186 Roma, Italia

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical testing device with gears and a central control panel (no text or symbols)

Close-up of two metallic connectors with black caps, one mounted on a white cable and the other attached to a black cable (no text or symbols visible)

2. DIAGRAMA DEL PRODUCTO

BACK Power Inlet Upper Column Locking Knob Lower Column Pressure Adjustment k b Lift Handle Support Arm Pressure Plate Control Panel Control Box Power Switch Signal Port Signal Cable Flat Platen Swing Handle Flat Base Footpad Bottom Board Slide Handle Silicone Mat (Grey) Foam Mat (Khaki)

3. PANEL DE CONTROL

OUT WORK PV/SV TEMP PV/SV TIME S Indicator Lights °F °C SET Function Buttons Upper Display Lower Display

Diagram of a structural frame with three labeled components (①, ②, ③) indicating different parts of the frame.

A
Combine ①②③

Diagram of a multi-level metal structure with numbered annotations pointing to specific components.

B
Combine A④⑨

Diagram of a mechanical tool with numbered parts labeled ⑤, ⑧, and ⑧

C
Combine ⑤⑧

Mechanical assembly diagram showing a blue shelving unit with a black tool inserted into a black component, labeled D and ⑦ (no text or symbols on the diagram itself)

Secure B and C with ⑦

E Fix the left and right sides whith ①

Install ⑥ into D F

Illustration of a mechanical device with a lever and base, showing a rotating arrow (no text or symbols)

Rotate the heat transfer board to the side

Illustration of a robotic arm operating on a workbench with a mechanical device, showing motion direction (no text or symbols)

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure

Tighten knob

5

Mechanical device with rotating arm and base mount (no visible text or symbols)

8. MÉTODO DE FUNCIONAMIENTO DEL CONTROLADOR DE TEMPERATURA

Press the power switch to turn on the machine. Press the "SET" button once.

POWER ○ 51.8 PV/SV TEMP WORK ● 36.0 PV/SV TIME ● °F ○ °C SET ▲ ▼

Then the digital controller will show the word "SP"

5.8 PV/SV TEMP WORK 3.0 PV/SV TIME °F °C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

Press the "SET" button for the 2nd time, the display screen will show "St".

5.68 PV/SV TEMP WORK 8.60 PV/SV TIME °F °C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

3.80 PV/SV TEMP WORK 9.60 PV/SV TIME -°F °C SET ▲ ▼

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

• Transferencia de grados Celsius y Fahrenheit

Black plastic tray with handle and screw, no visible text or symbols

Use Phillips screwdriver assembly the slide handle (M5*20 screw and nuts)

Printed pattern Printed clothes

8inch 10inch

Plate 10inch Picture Plate heating pad

1. Al alcanzar la temperatura establecida, coloque

Three circular plates with colorful portrait designs, displayed on stands (no text or symbols visible)

200°C 900S

Recomendado

parámetro

Temperatura establecida: 200

Screw the ball-head Phillips bolts back to the flat platen.

Note: Partially tighten them.

Close-up of a mechanical clamp or mounting base with four springs and bolts, no visible text or symbols

Firmly grasp the swing handles, lifting the platen up to the lower pressure plate and placing the bolts in the large slots as shown.

Mechanical assembly with four springs and a central shaft, showing motion arrows (no text or symbols)

a. Slide the bolts into the small slots.

b. Tighten them FULLY to relock the platen.

4 Flat Base

Turn the support arm to either side and remove the heat-resistant mats from the flat base.

5

Mushroom-Head Bolt

Unscrew the four mushroom-head bolts using a Phillips screwdriver (not included).

6

Mechanical assembly diagram showing a component being processed from top to bottom, with no visible text or symbols.

Slide the curved base (D) onto the rail as shown.

7

Close-up of a mechanical clamp or spring assembly with blue arrows indicating motion direction (no text or symbols)

Push the press plate up to the lower pressure plate, placing the bolts in the large slots as shown.

a. Slide the bolts into the small slots.
b. Tighten them FULLY using a Phillips screwdriver (not included).

8

Pressure Adjustment Knob C D

Turn back the support arm, placing the press plate above the curved base (L).

Note: If the press plate is not high enough to be positioned above the base, turn the pressure adjustment knob counterclockwise to raise the support arm and the plate.

12. SUSTITUYA EL POSAVASOS PARA HORNEAR

1

Install F to Part E Direct put Part F in Part E, ensure the screw tube through in correct holes on both side.

Select the appropriate size baking coaster ( Part F or H) Put the Cup in Part E

2

1

Instal I to Part E Direct put Part I to Part E ensure the screw tube through in correct holes on both side.

Select the appropriate size baking coaster (Part I or J) Put the Cup in Part E

2

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

QR code image with blue dots and white square outlines, no visible text or symbols beyond the matrix pattern

QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

C/O YH Consulting Limited Oficina 147, Centurion House,

Carretera de Londres, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical testing device with gears and a central control panel (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Close-up of two metallic connector pins with black connectors, shown from different angles (no text or symbols visible)

FCC-INFORMATION

BACK Power Inlet Upper Column Locking Knob Lower Column Pressure Adjustment k b Lift Handle Support Arm Pressure Plate Control Panel Control Box Power Switch Signal Port Signal Cable Flat Platen Swing Handle Flat Base Footpad Bottom Board Slide Handle Silicone Mat (Grey) Foam Mat (Khaki)

3. KONTROLLPANEL

OUT WORK PV/SV TEMP PV/SV TIME S Indicator Lights °F °C SET Function Buttons Upper Display Lower Display

Diagram of a structural frame with three labeled components (①, ②, ③) indicating different parts of the frame.

A
Combine ①②③

Diagram of a multi-level metal structure with numbered annotations pointing to specific components.

B
Combine A④⑨

Diagram of a mechanical tool with numbered parts labeled ⑤, ⑧, and ⑧

C
Combine ⑤⑧

Mechanical assembly diagram showing a blue shelving unit with a black tool inserted into a black component, labeled D and ⑦ (no text or symbols on the diagram itself)

Secure B and C with ⑦

E Fix the left and right sides whith ①

Install ⑥ into D F

Mechanical device with blue and black components, no visible text or symbols

Illustration of a mechanical device with a lever and base, showing a rotating arrow (no text or symbols)

Rotate the heat transfer board to the side

Illustration of a robotic arm operating on a workbench with a mechanical device, showing motion direction (no text or symbols)

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure

Tighten knob

5

Mechanical device with rotating arm and control panel (no visible text or symbols)

8. FUNKTIONSMETOD FÖR TEMPERATURREGULATORN

Press the power switch to turn on the machine. Press the "SET" button once.

POWER ○ 5.8 P/V/SV TEMP WORK ● 3.60 P/V/SV TIME ● °F ○ °C SET ▲ ▼

Then the digital controller will show the word "SP"

5.8 PV/SV TEMP WORK 3.0 PV/SV TIME °F °C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

Press the "SET" button for the 2nd time, the display screen will show "St".

5.68 PV/SV TEMP WORK 8.60 PV/SV TIME -°F O°C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

3.80 PV/SV TEMP WORK 9.60 PV/SV TIME -°F °C SET ▲ ▼

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

Black plastic tray with handle and side screw, no visible text or symbols

Use Phillips screwdriver assembly the slide handle (M5*20 screw and nuts)

Printed pattern Printed clothes

8inch 10inch

Plate 10inch Picture Plate heating pad

Three plates with colorful portrait designs, displayed on stands (no text or symbols visible)

200°C 900S

Rekommenderad

parameter

Screw the ball-head Phillips bolts back to the flat platen.

Note: Partially tighten them.

Close-up of a mechanical clamp or mounting bracket with four springs and bolts, no visible text or symbols

Firmly grasp the swing handles, lifting the platen up to the lower pressure plate and placing the bolts in the large slots as shown.

Mechanical assembly with four springs and a central shaft, showing motion arrows (no text or symbols)

a. Slide the bolts into the small slots.

b. Tighten them FULLY to relock the platen.

4 Flat Base

Turn the support arm to either side and remove the heat-resistant mats from the flat base.

5

Mushroom-Head Bolt

Unscrew the four mushroom-head bolts using a Phillips screwdriver (not included).

6

Mechanical assembly diagram showing a component being processed, with no visible text or symbols

Slide the curved base (D) onto the rail as shown.

7

Close-up of a mechanical clamp or spring assembly with blue arrows indicating motion direction (no text or symbols)

Push the press plate up to the lower pressure plate, placing the bolts in the large slots as shown.

a. Slide the bolts into the small slots.
b. Tighten them FULLY using a Phillips screwdriver (not included).

8

Pressure Adjustment Knob C D

Turn back the support arm, placing the press plate above the curved base (L).

Note: If the press plate is not high enough to be positioned above the base, turn the pressure adjustment knob counterclockwise to raise the support arm and the plate.

12. BYT UNDERLÄTT

1

Install F to Part E Direct put Part F in Part E, ensure the screw tube through in correct holes on both side.

Select the appropriate size baking coaster ( Part F or H) Put the Cup in Part E

2

1

Instal I to Part E Direct put Part I to Part E ensure the screw tube through in correct holes on both side.

Select the appropriate size baking coaster (Part I or J) Put the Cup in Part E

2

1. REKOMMENDERAD PARAMETER

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

14. FELSÖKNING FÖR ÖVERFÖRINGSKVALITET

Blek färg:

QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

Temperaturregulators driftmetod

QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

WARMTEPERSMACHINE

Technical line drawing of a mechanical testing device with gears and a central control panel (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Close-up of two metallic connector pins (no text or symbols visible)

FCC-INFORMATIE

BACK Power Inlet Upper Column Locking Knob Lower Column Pressure Adjustment k b Lift Handle Support Arm Pressure Plate Control Panel Control Box Power Switch Signal Port Signal Cable Flat Platen Swing Handle Flat Base Footpad Bottom Board Slide Handle Silicone Mat (Grey) Foam Mat (Khaki)

3. BEDIENINGSPANEEEL

OUT WORK PV/SV TEMP PV/SV TIME S Indicator Lights °F °C SET Function Buttons Upper Display Lower Display

Diagram of a structural frame with three labeled components (①, ②, ③) indicating different parts of the frame.

A
Combine ①②③

Diagram of a multi-level metal structure with numbered annotations pointing to specific components.

B
Combine A④⑨

Diagram of a mechanical tool with numbered parts labeled ⑤, ⑧, and ⑧

C
Combine ⑤⑧

Mechanical assembly diagram showing a metal frame with a central component and a red circle highlighting a feature, labeled D and ⑦ (no text or symbols on the diagram itself)

Secure B and C with ⑦

E Fix the left and right sides whith ①

Install ⑥ into D F

Mechanical device with blue and black components, no visible text or symbols

Illustration of a mechanical device with a lever and base, showing a rotating arrow (no text or symbols)

Rotate the heat transfer board to the side

Illustration of a robotic arm operating on a workbench with a mechanical device, showing motion direction (no text or symbols)

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure

Tighten knob

5

Mechanical device with rotating arm and control panel (no visible text or symbols)

Press the power switch to turn on the machine. Press the "SET" button once.

POWER ○ 51.8 PV/SV TEMP WORK ● 36.0 PV/SV TIME ● °F ○°C SET ▲ ▼

Then the digital controller will show the word "SP"

5.8 PV/SV TEMP WORK 3.0 PV/SV TIME °F °C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

Press the "SET" button for the 2nd time, the display screen will show "St".

5.68 PV/SV TEMP WORK 8.60 PV/SV TIME °F °C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

3.80 PV/SV TEMP WORK 9.60 PV/SV TIME -°F °C SET ▲ ▼

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

- Graden Celsius en Fahrenheit overdracht

Black plastic tray with handle and side screw, no visible text or symbols

Use Phillips screwdriver assembly the slide handle (M5*20 screw and nuts)

Printed pattern Printed clothes

8inch 10inch

Plate 10inch Picture Plate heating pad

Three circular plates with colorful portrait designs, displayed on stands (no text or symbols visible)

200°C 900S

Aanbevolen

parameter

Screw the ball-head Phillips bolts back to the flat platen.

Note: Partially tighten them.

Close-up of a mechanical clamp or mounting bracket with four springs and bolts, no visible text or symbols

Firmly grasp the swing handles, lifting the platen up to the lower pressure plate and placing the bolts in the large slots as shown.

Mechanical assembly with springs and a central component, no visible text or symbols

a. Slide the bolts into the small slots.

b. Tighten them FULLY to relock the platen.

4 Flat Base

Turn the support arm to either side and remove the heat-resistant mats from the flat base.

5

Mushroom-Head Bolt

Unscrew the four mushroom-head bolts using a Phillips screwdriver (not included).

6

Mechanical assembly diagram showing a component being processed, with no visible text or symbols

Slide the curved base (D) onto the rail as shown.

7

Close-up of a mechanical clamp or spring assembly with blue arrows indicating motion direction (no text or symbols)

Push the press plate up to the lower pressure plate, placing the bolts in the large slots as shown.

a. Slide the bolts into the small slots.
b. Tighten them FULLY using a Phillips screwdriver (not included).

8

Pressure Adjustment Knob C D

Turn back the support arm, placing the press plate above the curved base (L).

Note: If the press plate is not high enough to be positioned above the base, turn the pressure adjustment knob counterclockwise to raise the support arm and the plate.

12. BAKING ONDERZETTER VERVANGEN

1

Install F to Part E Direct put Part F in Part E, ensure the screw tube through in correct holes on both side.

Select the appropriate size baking coaster ( Part F or H) Put the Cup in Part E

2

1

Instal I to Part E Direct put Part I to Part E ensure the screw tube through in correct holes on both side.

Select the appropriate size baking coaster (Part I or J) Put the Cup in Part E

2

1. AANBEVOLEN PARAMETER

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

14. PROBLEMEN OPLOSSEN VOOR OVERDRACHTKWALITEIT

Lichte kleur:

QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

C/O YH Consulting Limited Kantoor 147, Centurion House, Londen Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical testing device with gears and a central control panel (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Close-up of two metallic connector pins with black connectors, shown from different angles (no text or symbols visible)

INFORMATIONS FCC

2. DIAGRAMME DU PRODUIT

BACK Power Inlet Upper Column Locking Knob Lower Column Pressure Adjustment k b Lift Handle Support Arm Pressure Plate Control Panel Control Box Power Switch Signal Port Signal Cable Flat Platen Swing Handle Flat Base Footpad Bottom Board Slide Handle Silicone Mat (Grey) Foam Mat (Khaki)

3. PANNEAU DE CONTRÔLE

OUT WORK PV/SV TEMP PV/SV TIME S Indicator Lights °F °C SET Function Buttons Upper Display Lower Display

Diagram of a structural frame with three labeled components (①, ②, ③) indicating different parts of the frame.

A
Combine ①②③

Diagram of a multi-level metal structure with numbered annotations pointing to specific components.

B
Combine A④⑨

Diagram of a mechanical tool with numbered parts labeled ⑤, ⑧, and ⑧

C
Combine ⑤⑧

Mechanical assembly diagram showing a blue shelving unit with a black tool inserted into a black component, labeled D and ⑦ (no text or symbols on the diagram itself)

Secure B and C with ⑦

E Fix the left and right sides whith ①

Install ⑥ into D F

Installation terminée

7. ÉTAPES D'ASSEMBLAGE ET D'UTILISATION

1

Loosen knob

2

Illustration of a mechanical device with a lever and base, showing a rotating arrow (no text or symbols)

Rotate the heat transfer board to the side

Illustration of a robotic arm operating on a workbench with a mechanical device, showing motion direction (no text or symbols)

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure

Tighten knob

5

Mechanical device with gear and control panel, no visible text or symbols

8. MODE DE FONCTIONNEMENT DU CONTRÔLEUR DE TEMPÉRATURE

Press the power switch to turn on the machine. Press the "SET" button once.

POWER ○ 51.8 PV/SV TEMP WORK ● 36.0 PV/SV TIME ● °F ○°C SET ▲ ▼

Then the digital controller will show the word "SP"

5.8 PV/SV TEMP WORK 3.0 PV/SV TIME °F °C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

Press the "SET" button for the 2nd time, the display screen will show "St".

5.68 PV/SV TEMP WORK 8.60 PV/SV TIME °F °C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

3.80 PV/SV TEMP WORK 3.60 PV/SV TIME °F °C SET ▲ ▼

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

Black plastic tray with a handle and screw, shown with blue measurement lines (no text or symbols)

Use Phillips screwdriver assembly the slide handle (M5*20 screw and nuts)

Printed pattern Printed clothes

8inch 10inch

Plate 10inch Picture Plate heating pad

Three circular plates with colorful portrait designs, displayed on stands (no text or symbols visible)

200°C 900S

Recommandé

paramètre

Screw the ball-head Phillips bolts back to the flat platen.

Note: Partially tighten them.

Close-up of a mechanical clamping device with springs and bolts, no visible text or symbols

Firmly grasp the swing handles, lifting the platen up to the lower pressure plate and placing the bolts in the large slots as shown.

Mechanical assembly with springs and a central component, no visible text or symbols

a. Slide the bolts into the small slots.

b. Tighten them FULLY to relock the platen.

4 Flat Base

Turn the support arm to either side and remove the heat-resistant mats from the flat base.

5

Mushroom-Head Bolt

Unscrew the four mushroom-head bolts using a Phillips screwdriver (not included).

6

Mechanical assembly diagram showing a component being processed from top to bottom, with no visible text or symbols.

Slide the curved base (D) onto the rail as shown.

7

Close-up of a mechanical clamp or spring assembly with blue arrows indicating motion direction (no text or symbols)

Push the press plate up to the lower pressure plate, placing the bolts in the large slots as shown.

a. Slide the bolts into the small slots.
b. Tighten them FULLY using a Phillips screwdriver (not included).

8

Pressure Adjustment Knob C D

Turn back the support arm, placing the press plate above the curved base (L).

Note: If the press plate is not high enough to be positioned above the base, turn the pressure adjustment knob counterclockwise to raise the support arm and the plate.

12. REMPLACER LE SOUS-VERRE DE CUISSON

1

Install F to Part E Direct put Part F in Part E, ensure the screw tube through in correct holes on both side.

Select the appropriate size baking coaster ( Part F or H) Put the Cup in Part E

2

1

Instal I to Part E Direct put Part I to Part E ensure the screw tube through in correct holes on both side.

Select the appropriate size baking coaster (Part I or J) Put the Cup in Part E

2

1. PARAMÈTRE RECOMMANDÉ

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

14. DÉPANNAGE POUR LA QUALITÉ DU TRANSFERT

Couleur pâle :

QR code image with blue dots and white square outlines, no visible text or symbols beyond the matrix pattern

QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

C/O YH Consulting Limited Bureau 147, Centurion House,

Route de Londres, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical testing device with gears and a central control panel (no text or symbols)

Close-up of two metallic connector pins (no text or symbols visible)

FCC-INFORMATIONEN

BACK Power Inlet Upper Column Locking Knob Lower Column Pressure Adjustment k b Lift Handle Support Arm Pressure Plate Control Panel Control Box Power Switch Signal Port Signal Cable Flat Platen Swing Handle Flat Base Footpad Bottom Board Slide Handle Silicone Mat (Grey) Foam Mat (Khaki)

3. BEDIENFELD

OUT WORK PV/SV TEMP PV/SV TIME S Indicator Lights °F °C SET Function Buttons Upper Display Lower Display

Diagram of a structural frame with three labeled components (①, ②, ③) indicating different parts of the frame.

A
Combine ①②③

Diagram of a multi-level metal structure with numbered annotations pointing to specific components.

B
Combine A④⑨

Diagram of a mechanical tool with numbered parts labeled ⑤, ⑧, and ⑧

C
Combine ⑤⑧

Mechanical assembly diagram showing a blue shelving unit with a black tool inserted into a black component, labeled D and ⑦ (no text or symbols on the diagram itself)

Secure B and C with ⑦

E Fix the left and right sides whith ①

Install ⑥ into D F

Mechanical device with blue and black components, no visible text or symbols

Illustration of a mechanical device with a lever and base, showing a rotating arrow (no text or symbols)

Rotate the heat transfer board to the side

Illustration of a robotic arm operating on a workbench with a mechanical device, showing motion direction (no text or symbols)

Pull out the mat below, place the clothes flat on the mat and place the pattern on the clothes

4

Simple line drawing of a mechanical component with an arrow indicating rotational motion (no text or symbols)

Turn this knob to adjust the pressure Clockwise to add pressure Anticlockwise to reduce pressure

Tighten knob

5

Mechanical device with rotating arm and adjustment knob (no visible text or symbols)

8. FUNKTION DES TEMPERATURREGLERS

Press the power switch to turn on the machine. Press the "SET" button once.

POWER ○ 51.8 PV/SV TEMP WORK ● 36.0 PV/SV TIME ● °F ○°C SET ▲ ▼

Then the digital controller will show the word "SP"

5.8 PV/SV TEMP WORK 3.0 PV/SV TIME °F °C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust temperature you need (in Degree Fahrenheit)

Press the "SET" button for the 2nd time, the display screen will show "St".

5.68 PV/SV TEMP WORK 8.60 PV/SV TIME °F °C SET ▲ ▼

Press arrows button "▲" or "▼" to adjust the time you need (in Seconds)

3.80 PV/SV TEMP WORK 9.60 PV/SV TIME -°F °C SET ▲ ▼

Press the "SET" button for the 3th time. Then press the "C" or "F" key meet your demands.

Black rectangular object with a handle and small protrusions, no visible text or symbols

Use Phillips screwdriver assembly the slide handle (M5*20 screw and nuts)

Printed pattern Printed clothes

8inch 10inch

Plate 10inch Picture Plate heating pad

Three circular plates with colorful portrait designs, displayed on stands (no text or symbols visible)

200°C 900S

Empfohlen

Parameter

Screw the ball-head Phillips bolts back to the flat platen.

Note: Partially tighten them.

Close-up of a mechanical clamp or mounting bracket with four springs and bolts, no visible text or symbols

Firmly grasp the swing handles, lifting the platen up to the lower pressure plate and placing the bolts in the large slots as shown.

Mechanical assembly with four springs and a central shaft, showing motion arrows (no text or symbols)

a. Slide the bolts into the small slots.

b. Tighten them FULLY to relock the platen.

4 Flat Base

Turn the support arm to either side and remove the heat-resistant mats from the flat base.

5

Mushroom-Head Bolt

Unscrew the four mushroom-head bolts using a Phillips screwdriver (not included).

6

Mechanical assembly diagram showing a component being processed from top to bottom, with no visible text or symbols.

Slide the curved base (D) onto the rail as shown.

7

Close-up of a mechanical clamp or spring assembly with blue arrows indicating motion direction (no text or symbols)

Push the press plate up to the lower pressure plate, placing the bolts in the large slots as shown.

a. Slide the bolts into the small slots.
b. Tighten them FULLY using a Phillips screwdriver (not included).

8

Pressure Adjustment Knob C D

Turn back the support arm, placing the press plate above the curved base (L).

Note: If the press plate is not high enough to be positioned above the base, turn the pressure adjustment knob counterclockwise to raise the support arm and the plate.

Install F to Part E Direct put Part F in Part E, ensure the screw tube through in correct holes on both side.

Select the appropriate size baking coaster ( Part F or H) Put the Cup in Part E

2

1

Instal I to Part E Direct put Part I to Part E ensure the screw tube through in correct holes on both side.

Select the appropriate size baking coaster (Part I or J) Put the Cup in Part E

2

1. EMPFOHLENE PARAMETER

T-shirt (Non-cotton)	T-shirt (PU flex film)	Aluminum plate
392°F (200°C) 60s	338°F (170°C) 25s	338°F (170°C) 100s
Pillow	Mouse pad	Cloth bag
392°F (200°C) 60s	365°F (185°C) 50s	356°F (180°C) 60s

Material		Temperature		Time	Pressure
Aluminum Sheet		340–355°F	170–180°C	80–90 sec.	M
Aluminum Alloy Coating		355–390°F	180–200°C	45–60 sec.	M
Ceramics	Porcelain Cups	340–355°F	170–180°C	60–90 sec.	XL
	Color-Changing Cups	320–340°F	160–170°C	60–90 sec.	XL
	Plates or Dishes	320–355°F	160–180°C	60–90 sec.	XL
	Tiles	355°F	180°C	80–90 sec.	XL
Chemical Fibers or Fibres		320°F	160°C	20 sec.	M
Cotton (T-Shirts &c.)	PU Flex Film	340°F	170°C	25 sec.	H
	Sublimation	390°F	200°C	60 sec.	H
	Vinyl	320°F	160°C	15 sec.	M
Cotton Poly Blends		350°F	175°C	10 sec.	H
Crystal Photo Block		375°F	190°C	180 sec.	M
Glass Frames		320–340°F	160–170°C	60–90 sec.	XXL
Mousepads		355°F	180°C	60 sec.	M
Pillowcases & Linens		355°F	180°C	60 sec.	H
Polyester		270°F	130°C	10 sec.	H
Rhinestone Transfers		320°F	160°C	15 sec.	M
Slate Rock Photo		355°F	180°C	420 sec.	M
Wood		375°F	190°C	50 sec.	M
Stainless Steel Sports Bottle		320–340°F	160–170°C	60–90 sec.	M
Paperboard Pieces		355°F	180°C	60 sec.	M

Pressure Levels: XXL<XL<M<H

QR code image with blue dots and white square outlines, no visible text or symbols beyond the matrix pattern

QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
